| Parameter | Specifications | Standard Value |
|---|---|---|
| Full Pallet Height | ≤2000mm (including pallet) | - |
| Full Pallet Weight | Maximum 2 tons (including pallet) | - |
| Working Form | Cold Stretch Hood | - |
| Equipment Material | Carbon steel spray | - |
| SH-60 Capacity | 60 pallets/hour (pallet height ≤ 2400mm, including pallets) | - |
| SH-80 Capacity | 80 pallets/hour (pallet height ≤ 2000mm, including pallets) | - |
| SH-100 Capacity | 100 pallets/hour (pallet height ≤ 1600mm, including pallets) | - |
| Metering Range (g) | - | 1000 - 5000 |
| Packaging Speed | - | 15 - 30 bags/min |
| Applicable Bag Type | - | Paper bag |
| Specifications Item | Details and Limits |
|---|---|

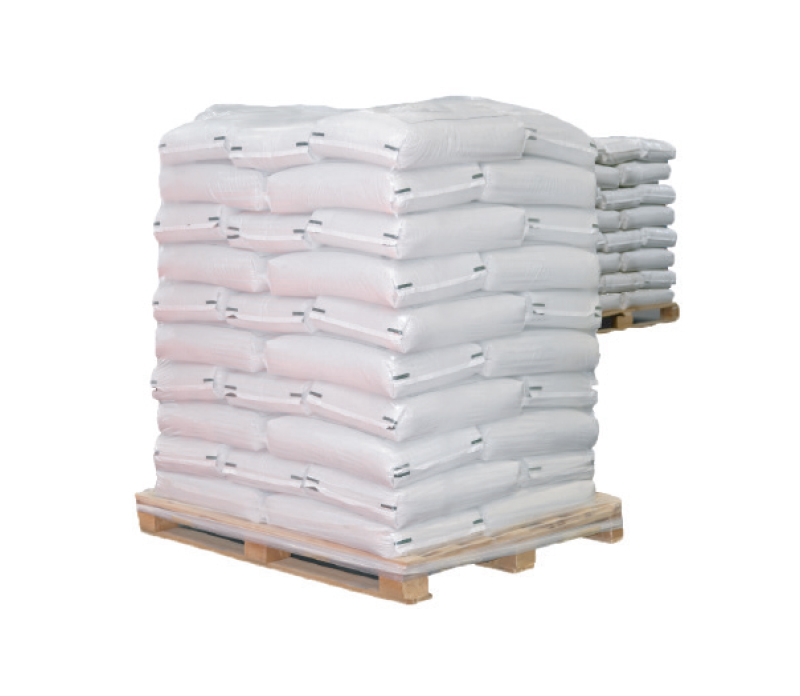

| Applicable Pallet | Pallets for bag, ton bag, carton, barrel, etc. |

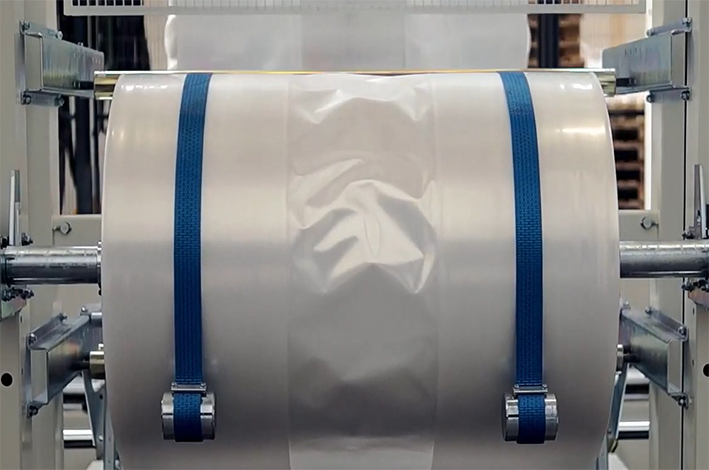

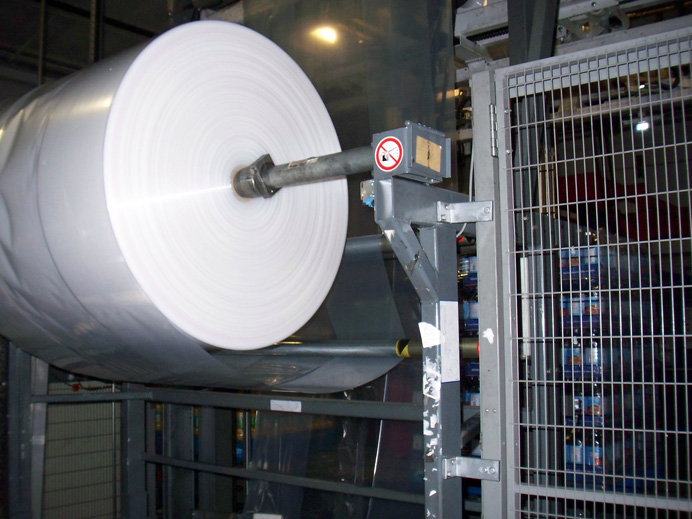

| Film Roll Material | Heat-sealable PE film roll |
| Applicable Film Thickness | 120 ~ 150 µm |
| Inner Diameter of Reel | Φ76 mm |
| Diameter of Film Roll | ≤ Φ1000 mm |
| Film Roll Width | ≤ 1000 mm |
| Pallet Material | Wooden pallet, engineering plastic pallet, iron pallet, corrugated paper pallet |
| Fork Form | Two-sided or four-sided fork |
| Full Pallet Size | 1200mm*1000mm or 1100mm*1100mm, height ≤ 2000mm |

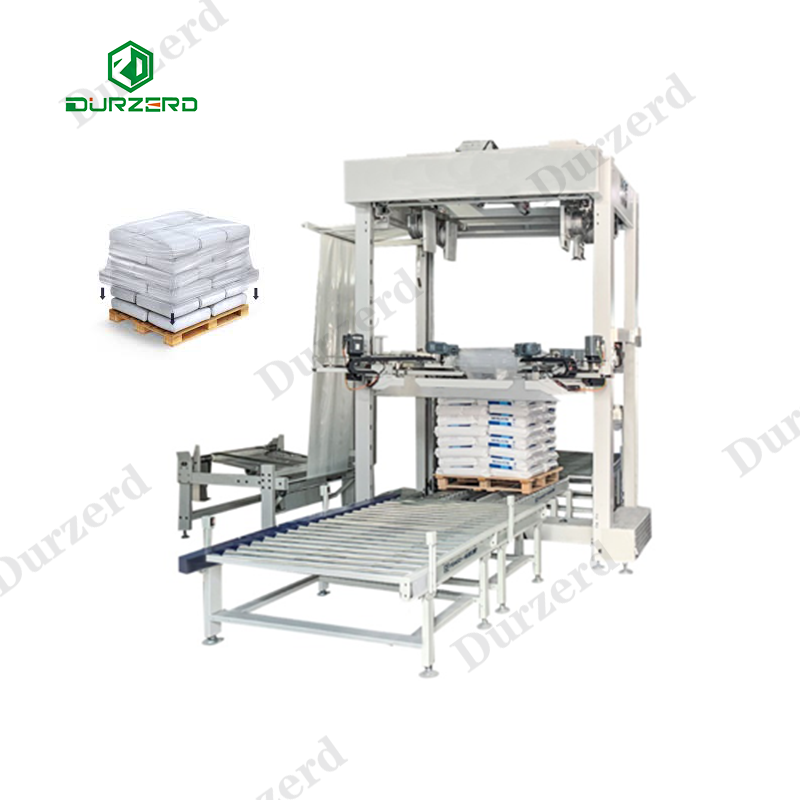

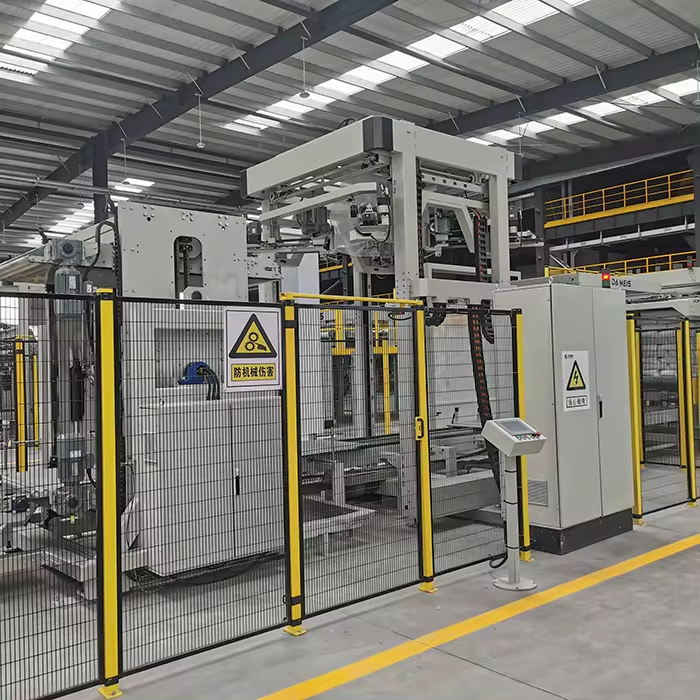

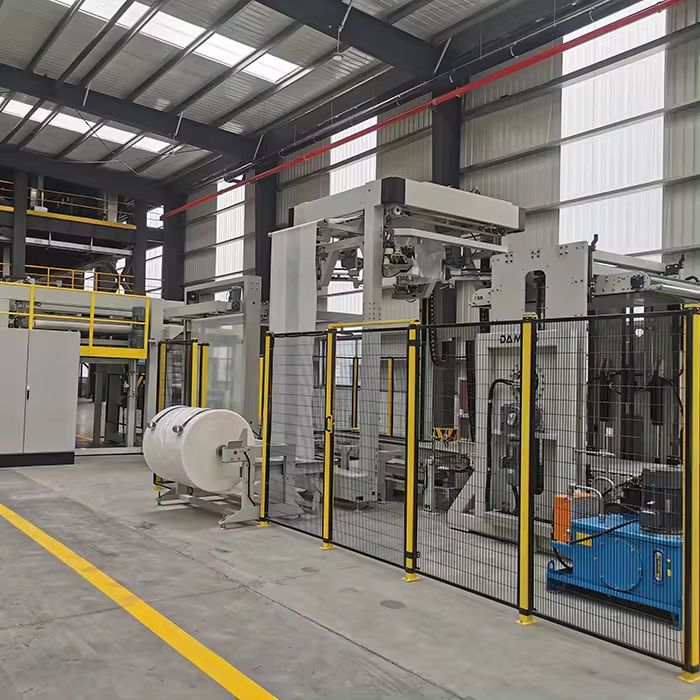

The Stretch Hooder creates a cover from tubular film and stretches it over the pallet to secure the load on the pallet. When the pallet enters the machine the length of the required cover is determined by measuring the length, width and height of the load and pallet.

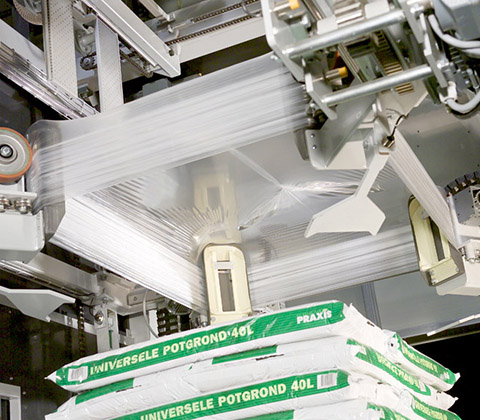

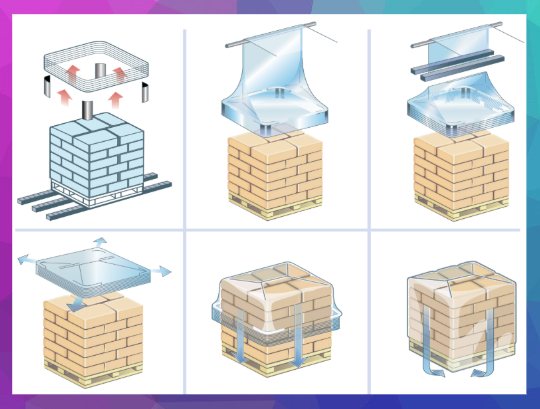

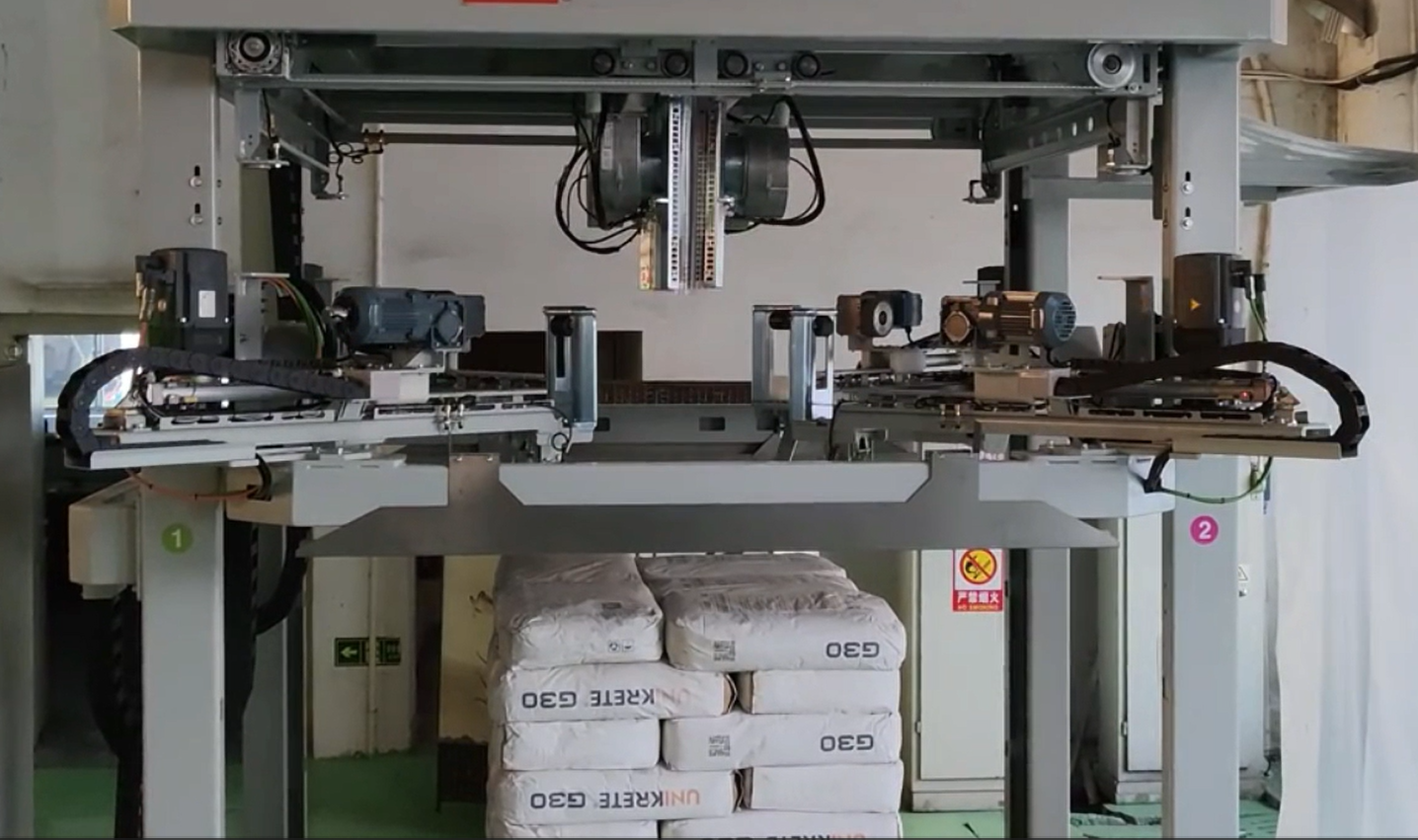

After opening and sealing the film it is rolled-up on the film gripper arms. Each of the arms can move in two directions to adapt on the pallet load. The film gripper arms stretch the rolled-up cover and guide it downwards over the pallet. During the hooding the shape of the load is controlled. Once the hood is complete over the pallet the arms move upwards again. The machine releases the hooded pallet and is then ready for the next pallet.
