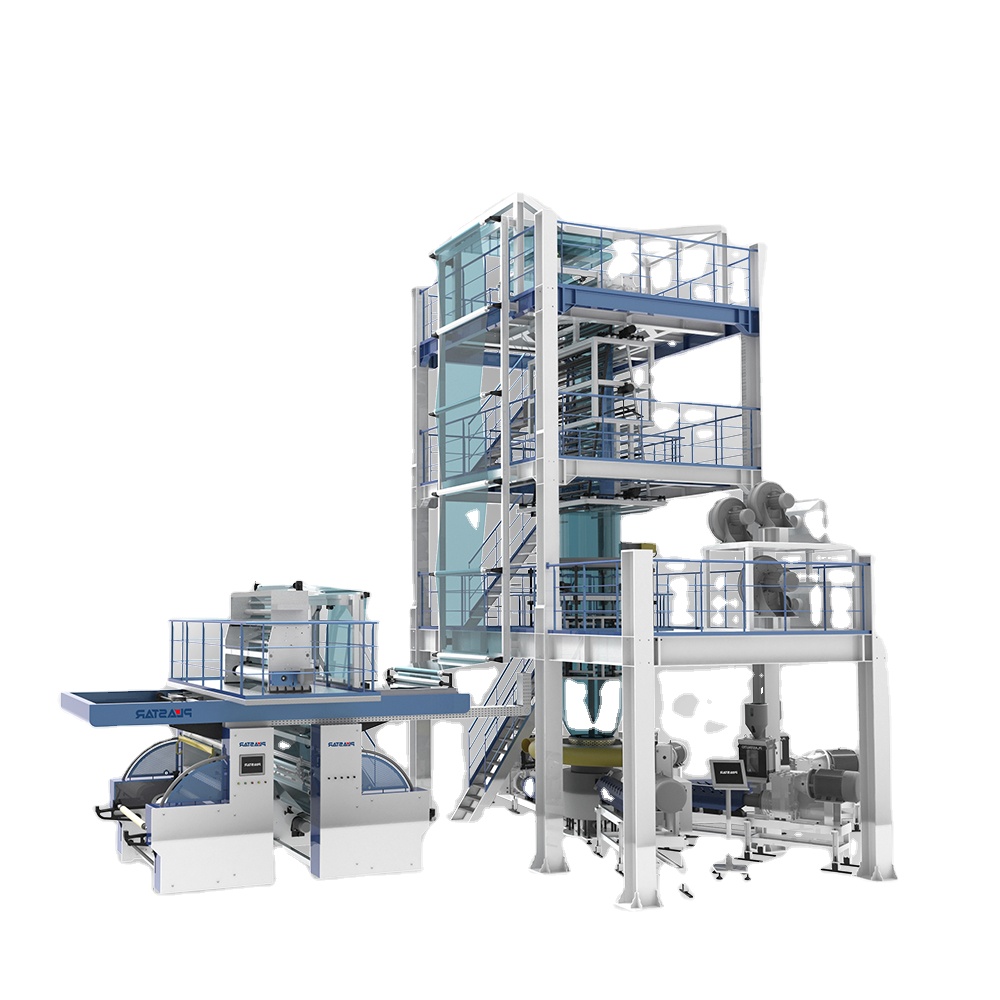

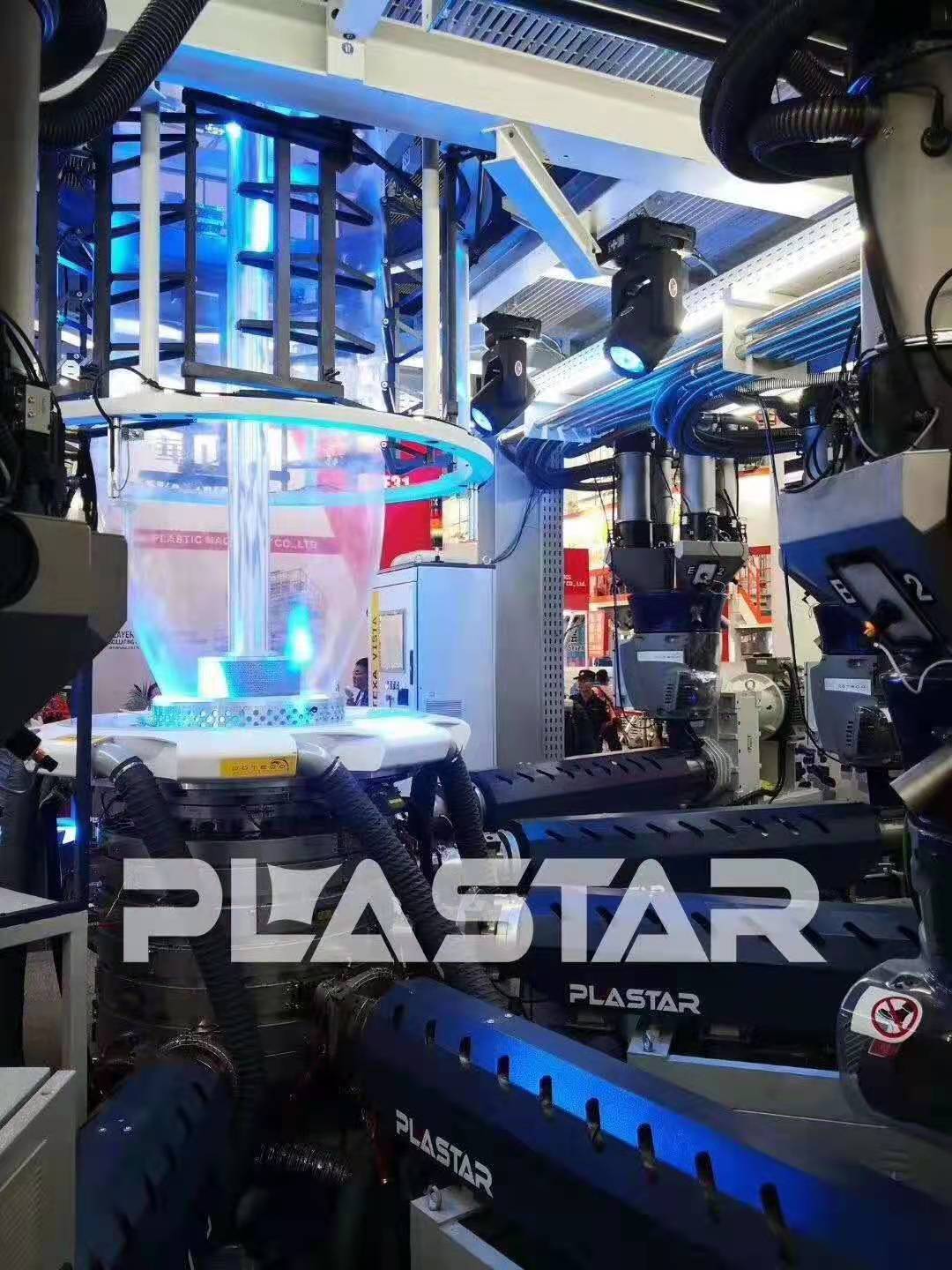

PLASTAR High Speed 5 Layer Stretch Hood Production Line PP Blown Film Machine for Efficient Automatic Spec Control

Products Description

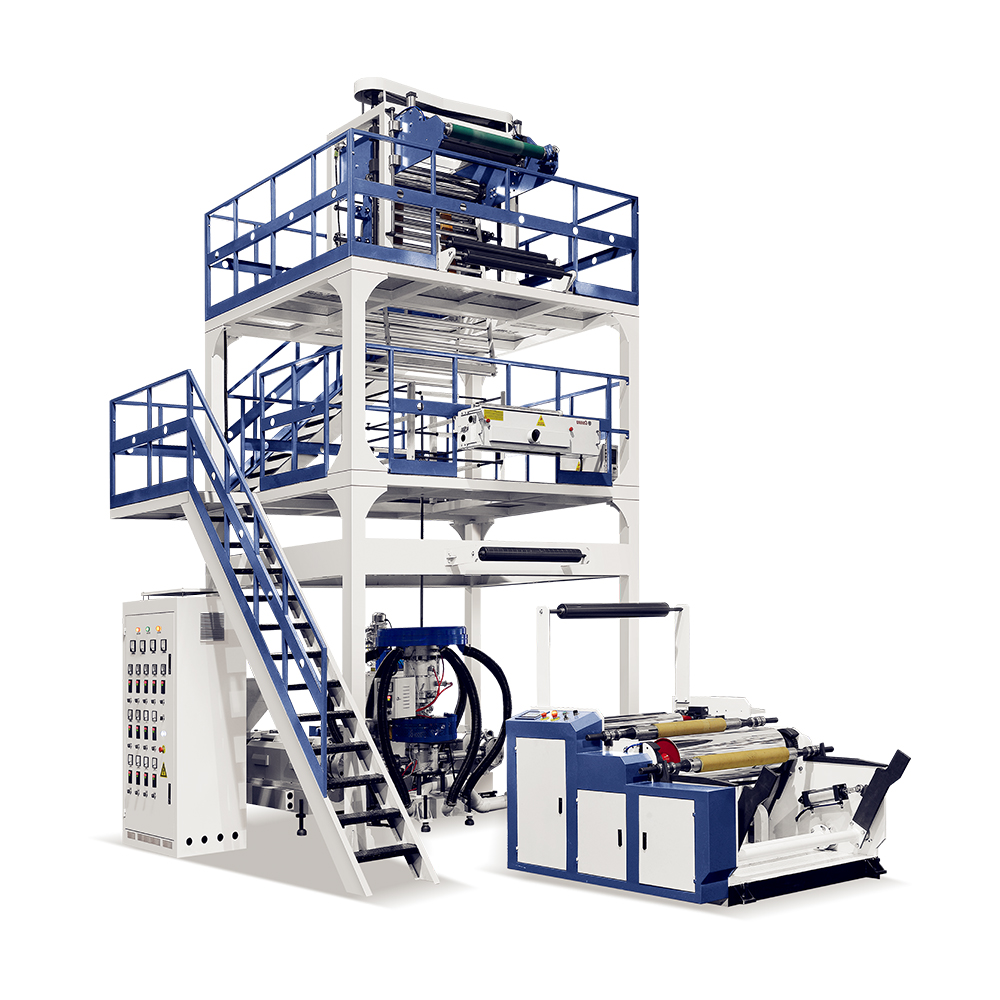

Product Application

The production line of ABA three-layer co-extrusion blown film machines can realize more energy-saving and flexible production applications at lower costs. For the production line of ABA three-layer co-extrusion blown film machines, two main motors provide three-layer extrusion. One main machine provides the inner and the outer coating layers, and the other main machine provides the inner filling layer. It can achieve the goal of reducing the number of main machines, cost, and consumption, and saving energy.

Technical Specifications

Model Specifications
Model	SD-2LABA800	SD-2LABA1000	SD-2LABA1200	SD-2LABA1500
Suitable Material	HDPE/LDPE
Film Width	800 mm	1000 mm	1200 mm	1500 mm
Film Thickness	0.008 - 0.1mm
Max. Output	100kg / h	120kg / h	120kg / h	200kg / h

Extruder
Screw Diameter	55mm; 55mm	55mm; 55mm	55mm; 65mm	55mm; 75mm
Screw L/D	30:1
Barrel Cooling	Water Cooling
Main Motor Power	22kw; 22kw	30kw; 30kw	22kw; 37kw	22kw; 45kw
Total Power	70kw	100kw	100kw	105kw

Die Head & Traction
Die Head Type	Three layers ABA die head
Air Ring	Double lips air ring
Traction Roller Width	1000 mm	1200 mm	1400 mm	1700 mm
Effective Width	800 mm	1000 mm	1200 mm	1500 mm
Traction Speed	120m / min

Winding Unit
Winding Type	Friction type automatic single / double winder
Winding Speed	120m / min
Voltage	380V, 50Hz
Dimension	5000 * 3000 * 6500 mm	6000 * 4000 * 7000 mm	6000 * 4000 * 6500 mm	6000 * 4000 * 8500 mm
Weight	4.5 T	5 T	5 T	5.5 T

Key Components

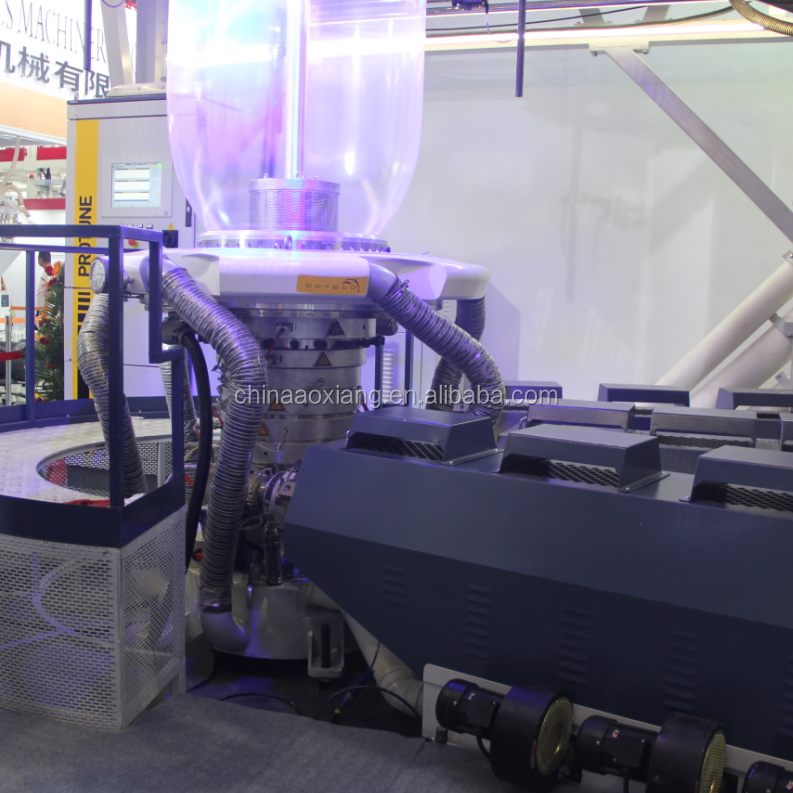

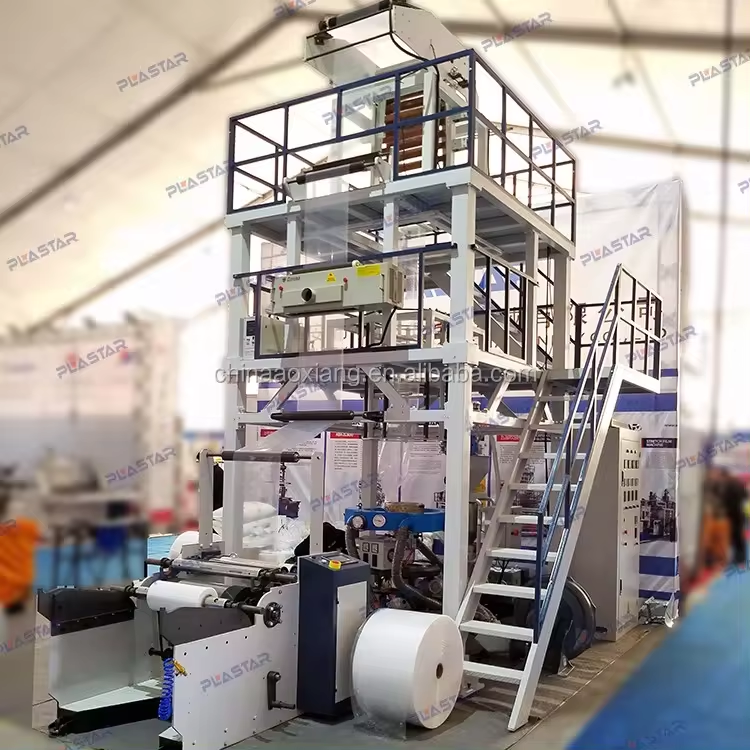

MAIN EXTRUDER

Key Parts: Main motor, gear box, screw, screen changer, die head.
Origin: China

Plastify PE materials by main extruder, control materials important parts. Die head technology decides the film quality.

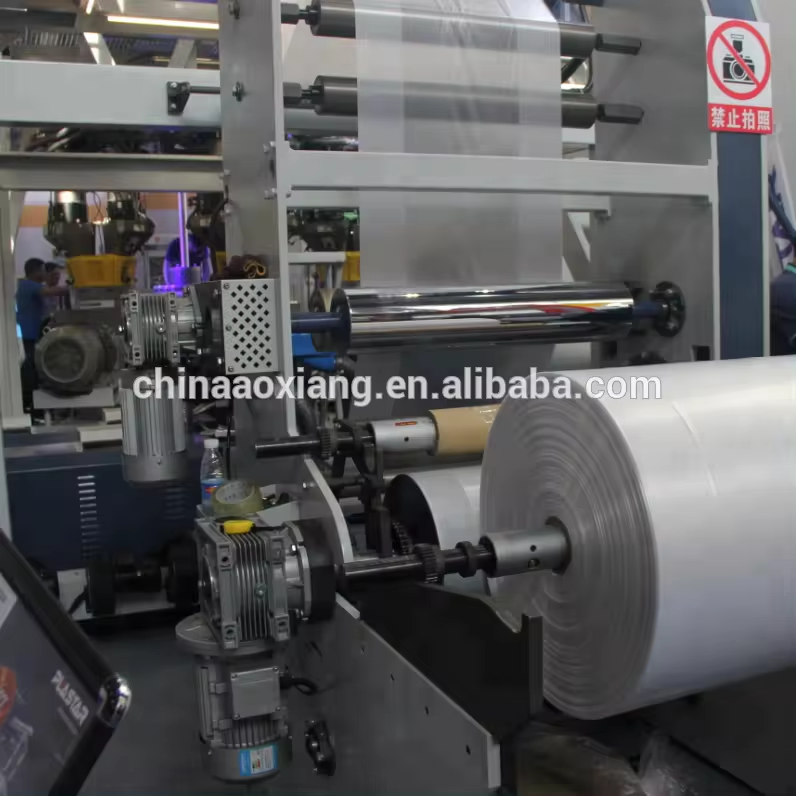

MANUAL SINGLE WINDER

Main Winder Motor: 1.1kw
Main Winder Motor Inverter: 1.1kw
Main Winder Steel Roller: 1pcs

Main Features

Specifications are subject to change without notice for improvement. Mini 600mm HDPE plastic bag film extruder are standard type blown film machine.

Simple structure with automatic device, easy installation, and maintenance.
High output and stable running machine, max output: 50kg/h.
Using virgin material, the machine can make thin film down to a thickness of 0.006mm.
Loss-in-weight gravimetric system controls extruding output and thickness by gram/meter.

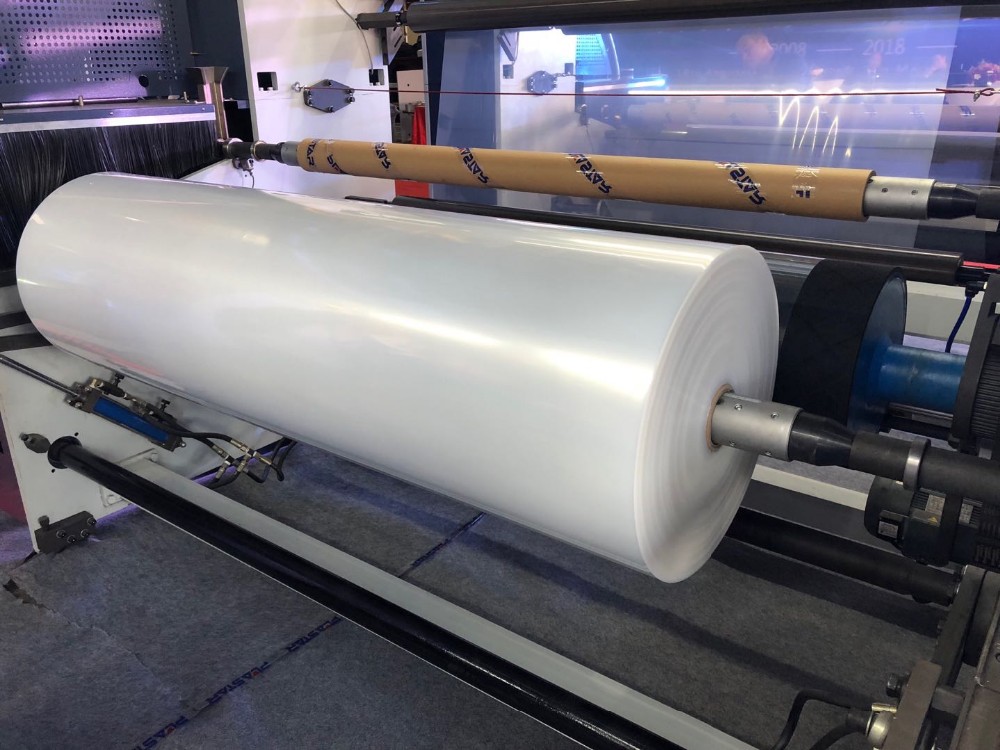

Winding roller can handle a heavy film roller. The max film roller can be 1100mm in diameter.
Easy change film roller design; when the film roller is full, just move the arm to change the airshaft. Easy to cut.

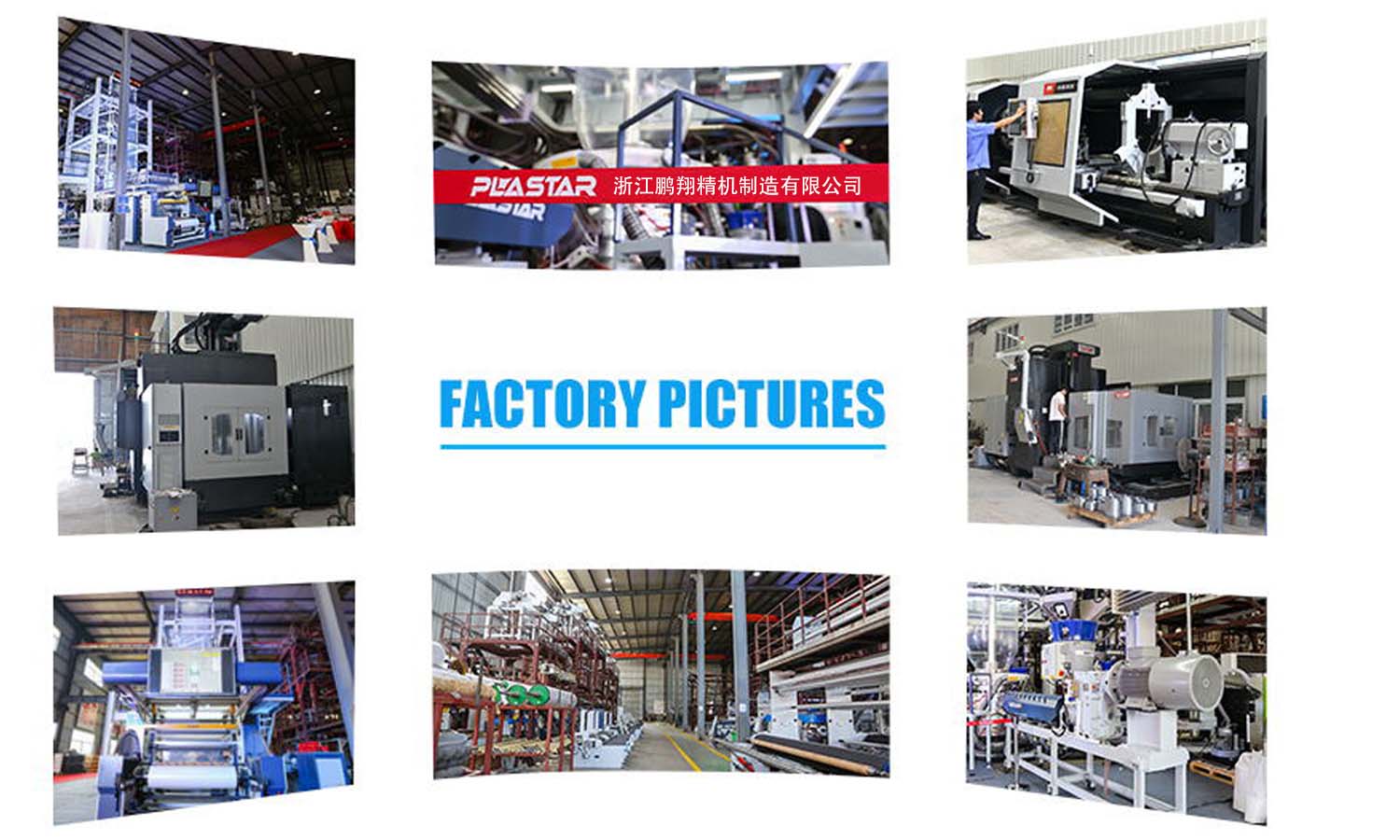

Company Profile

Certifications

Exhibition

Product Packaging

Frequently Asked Questions

Why should I buy from you rather than other suppliers?

We are a professional blown film machines factory from China. We have extensive experience to ensure our machines are quality-controlled and reliable. We also have our own CNC center for making machine die heads.

What certificates do your blown film machines have?

Our factory fully implements the ISO9001:2015 quality management system and has passed TUV certification covering design, production, and delivery. We also hold Swiss SGS certification and EU safety CE certification to meet global safety standards.

What are the main markets of your blown film machines?

Our blown film machines are sold to 93 countries worldwide, including major regions across Europe, the Middle East, Southeast Asia, the United States, Canada, and Latin America.

What is the general delivery time of blown film machines?

Production of a blown film machine usually takes about 30 to 60 working days, depending on the specific size and configuration requirements of the machine.

How long is the warranty period of blown film machines?

All our blown film machines come with a one-year warranty, starting from the date the machine arrives at the customer's factory and finishes commissioning. During this period, we provide a full warranty except for consumables.

What kind of after-sales service do you provide if a machine encounters technical problems?

We provide remote video support to resolve technical issues. If a problem cannot be resolved remotely, we can arrange for an engineer to visit. Non-consumable parts damaged within the warranty period are replaced free of charge.
