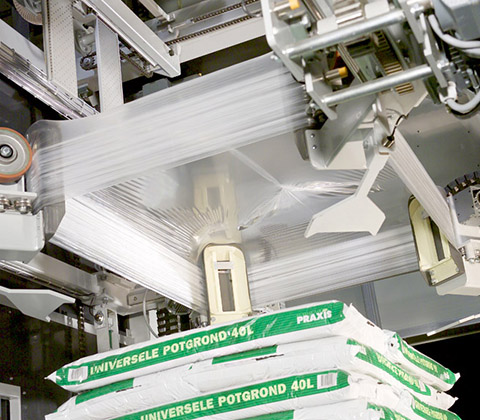

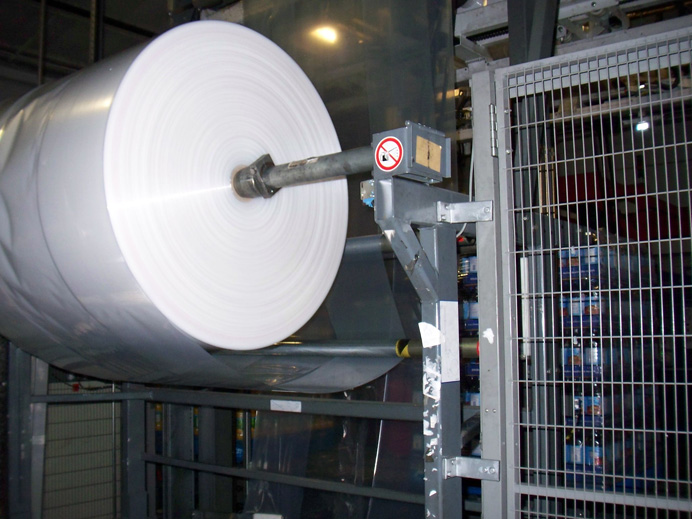

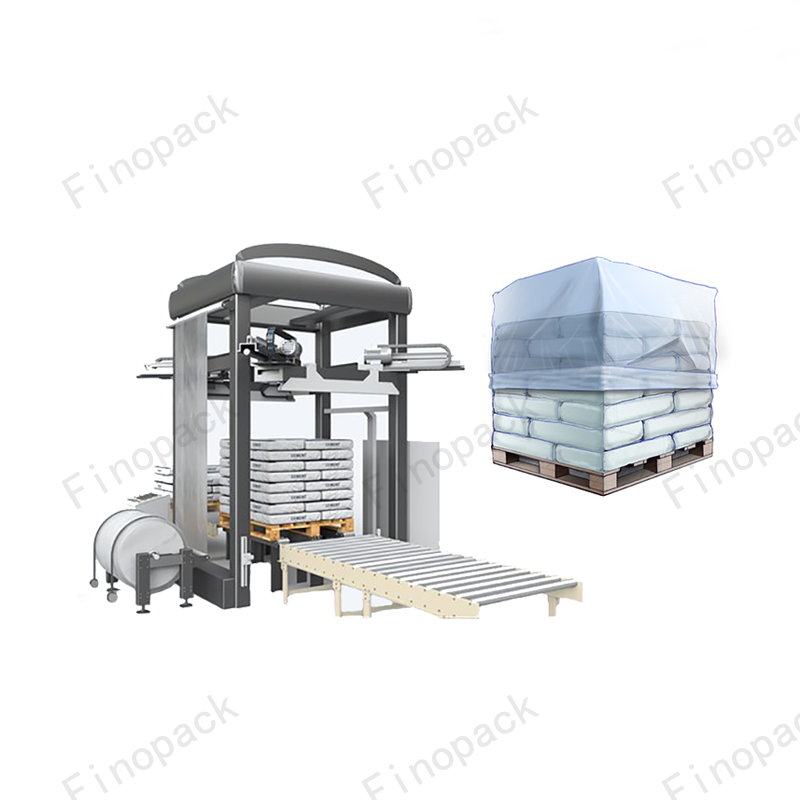

CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine
CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine
CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine
CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine
CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine
1 / 5
CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine
CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine
CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine
CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine
CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine

CE Certification Stretch Hooder Machine PE Film 70 Pallets/h Stretch Hood Pallet Wrapping Machines Stretch Wrapper Machine

Send Inquiry

Product Description

Automatic Cold Stretch Hood Machine Banner

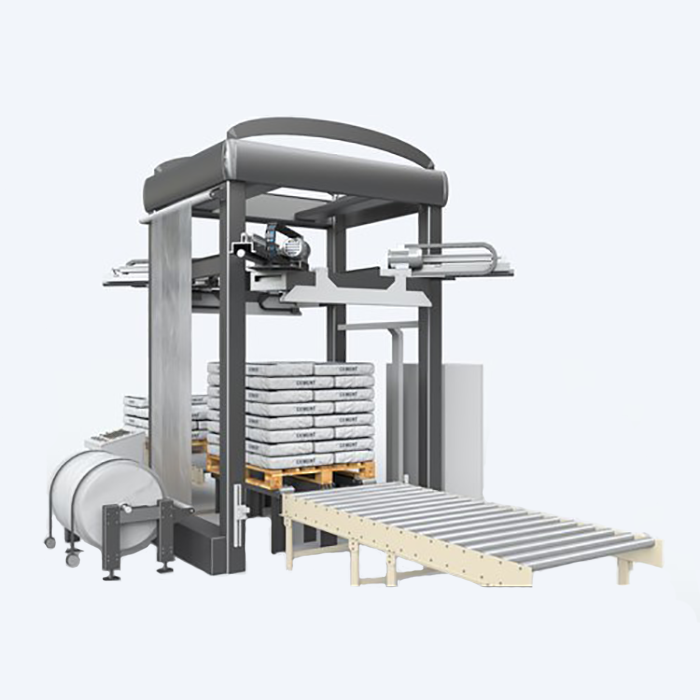

Automatic Cold Stretch Hood Machine Overview
Automatic Cold Stretch Hood Machine
  • ✓Automatic stretch hood method instead of traditional manual winding makes stack more stable, which also increases production, operates fast and conveniently.
  • ✓Confirm film length according to the stack height detected automatically by ultrasonic induction.
  • ✓Using cold stretch film in place of usual wrapping film can save costs for enterprise.
  • ✓Stretch Hood Machine takes up small space and it's convenient to install.
  • ✓The equipment adopts the modularized design, which makes the connection and assembly of equipment easier.
  • ✓The equipment is suitable for Chinese and international universal pallet, and stack height can be customized.
  • ✓Using the variable-frequency drive, servomechanism, PLC produced by SIEMENS, makes the running stable and reliable. The Human Machine Interaction is also very easy to use.

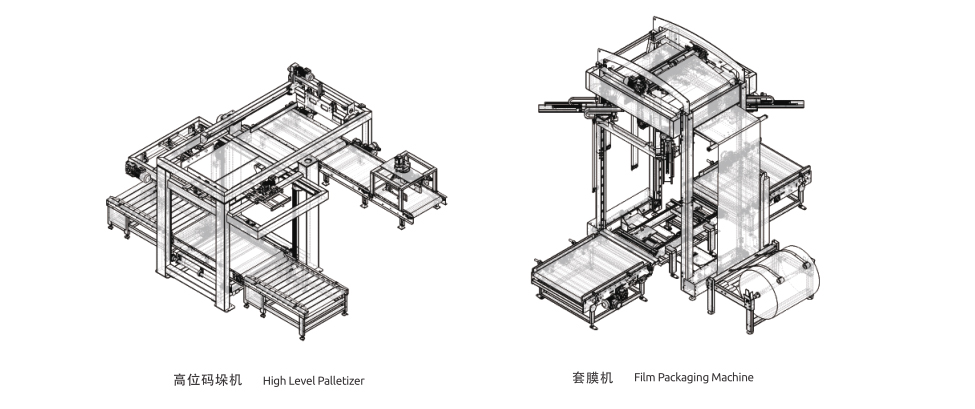

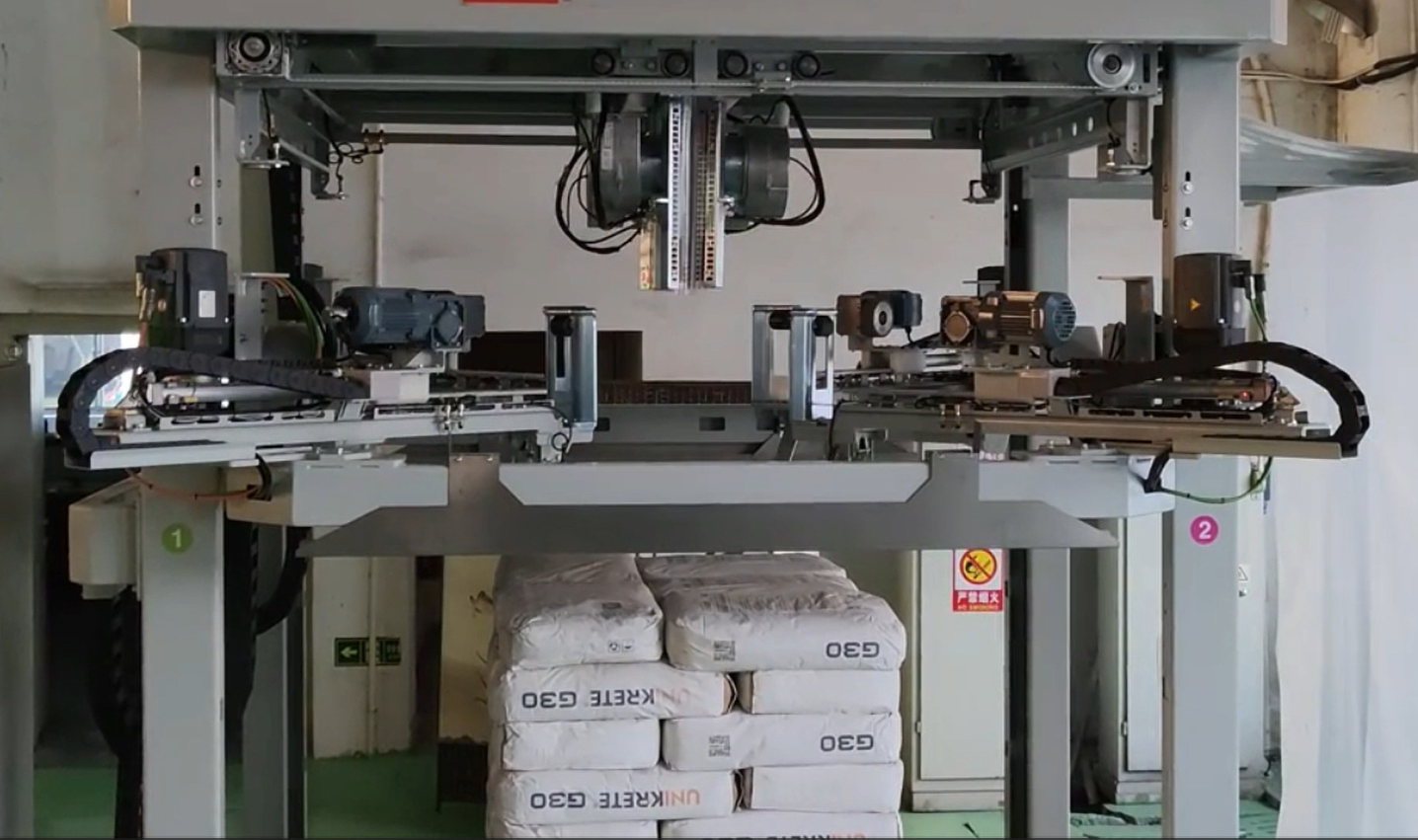

Machine Detail 1
Machine Detail 2
Applicable pallet Pallets for bag, ton bag, carton, barrel, etc.
Film roll material Heat-sealable PE film roll
Applicable film thickness 120~150μm
Inner diameter of reel Φ76 mm
Diameter of film roll ≤ Φ1000 mm
Film roll width ≤ 1000 mm
Pallet material Wooden pallet, engineering plastic pallet, iron pallet, corrugated paper pallet
Fork form Two-sided or four-sided fork
Full pallet size 1200mm*1000mm or 1100mm*1100mm, height ≤ 2000mm
Machine Detail 3
Full pallet height ≤2000mm(including pallet)
Full pallet weight Maximum 2 tons (including pallet)
Working form Cold Stretch Hood
Equipment material Carbon steel spray
SH-50 50 pallets/hour (pallet height ≤ 2000mm, including pallets)
SH-70 70 pallets/hour (pallet height ≤ 1600mm, including pallets)
Application 1

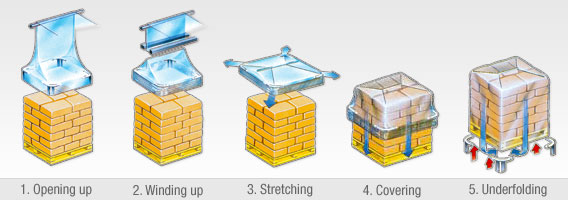

Application 2
Application 3
Production Process 1

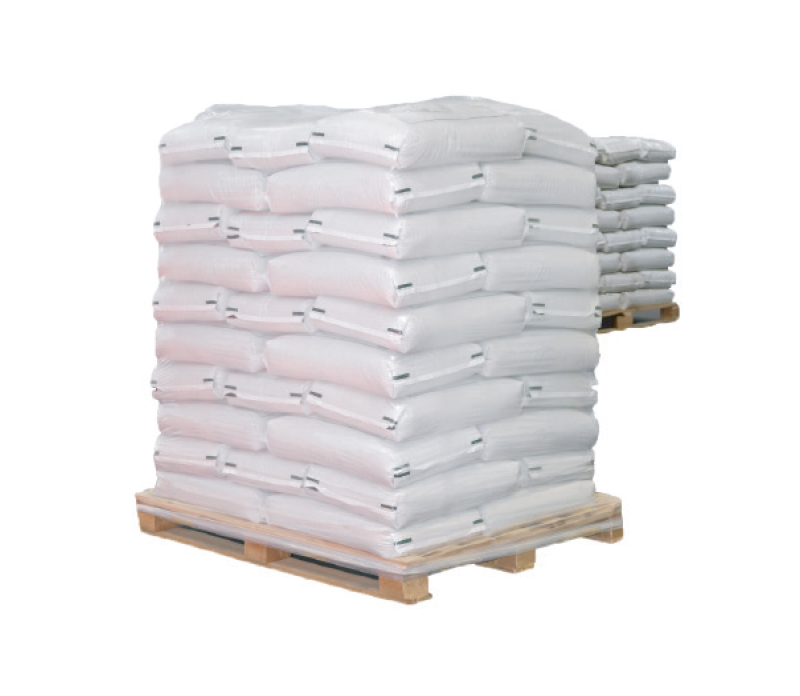

Production Process 2
Our Workshop

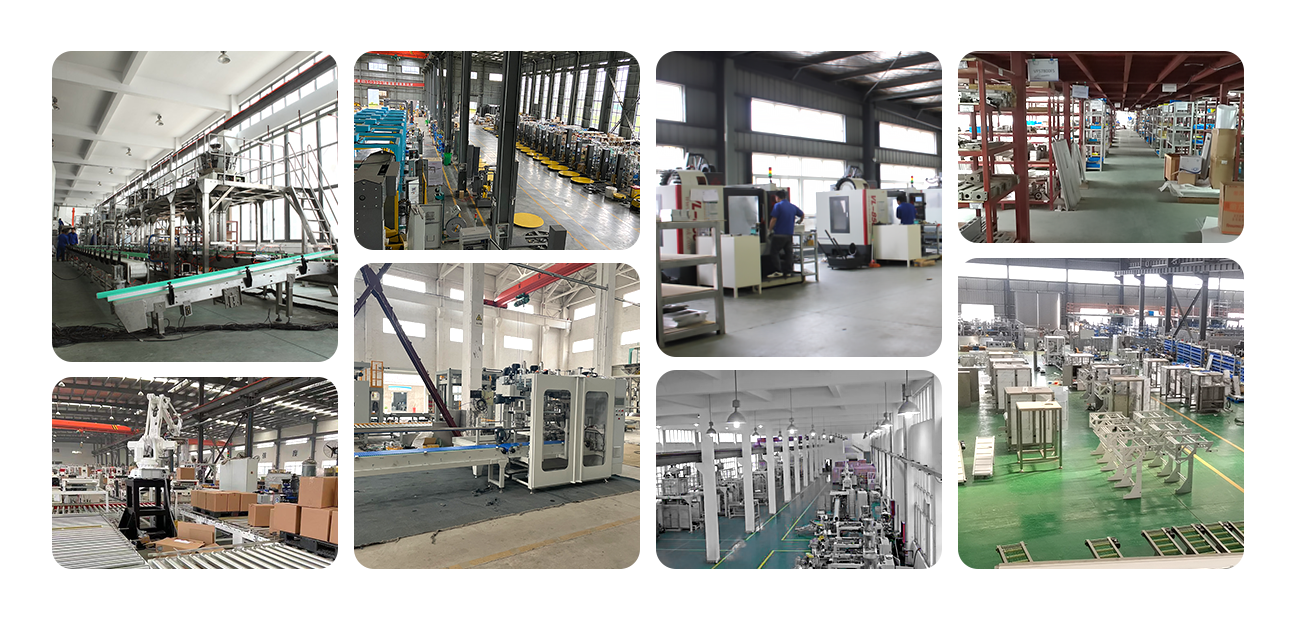

Factory Workshop Overview
Certifications
Product Certifications
Sales and Service Network
Global Network Map
Network details 1
Network details 2
Network details 3
Frequently Asked Questions
Q1 Are you a factory or a trading company?
We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2 How to choose suitable packaging machine?
Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3 How about the payment way?
Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4 How to ensure the quality of the machine?
We usually delivery the machine after successful inspection in our factory. We have our own quality control department, before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5 How to install the equipment?
We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
