Automatic Stretch Hooding Machine for Pallet Wrapping Fully Automated Stretch Film Wrapper for B2B Packaging Solutions

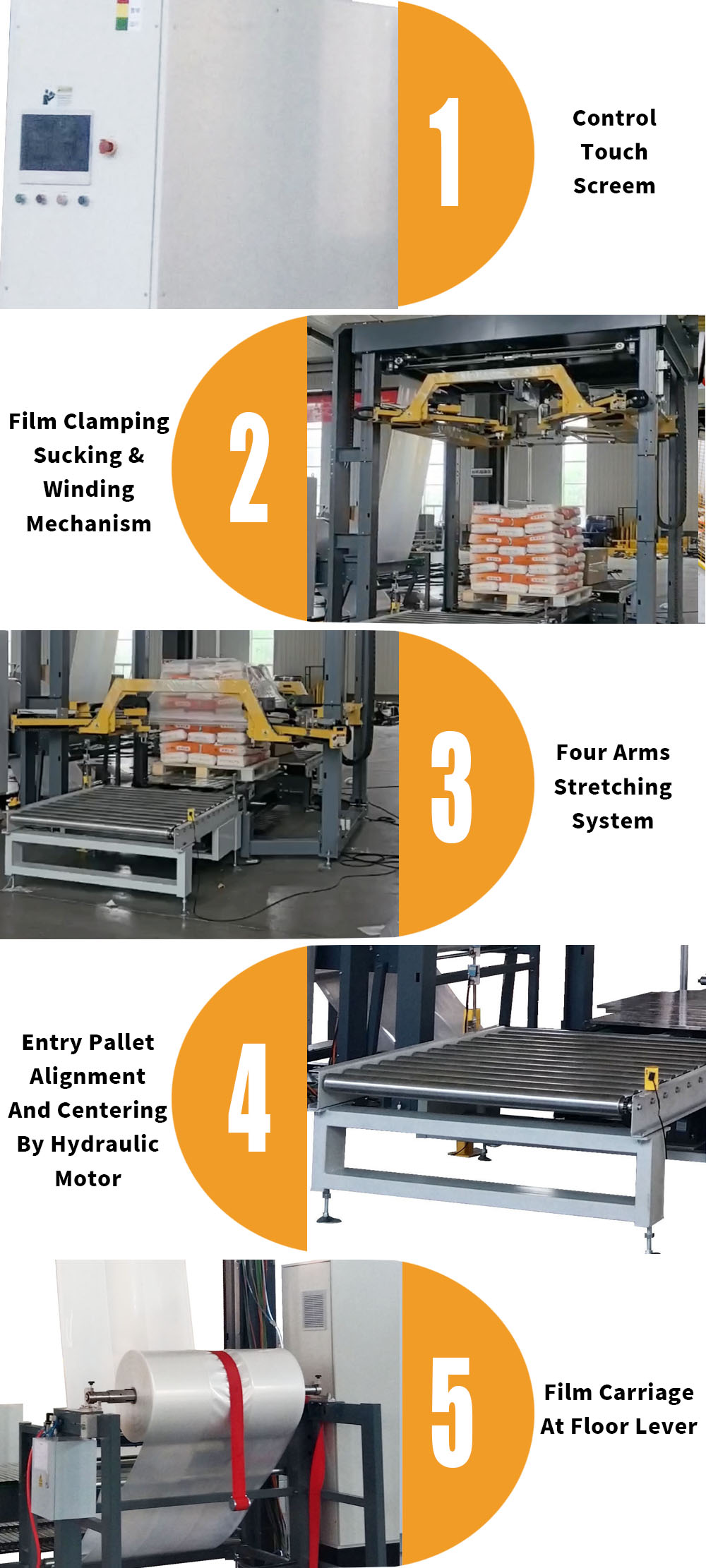

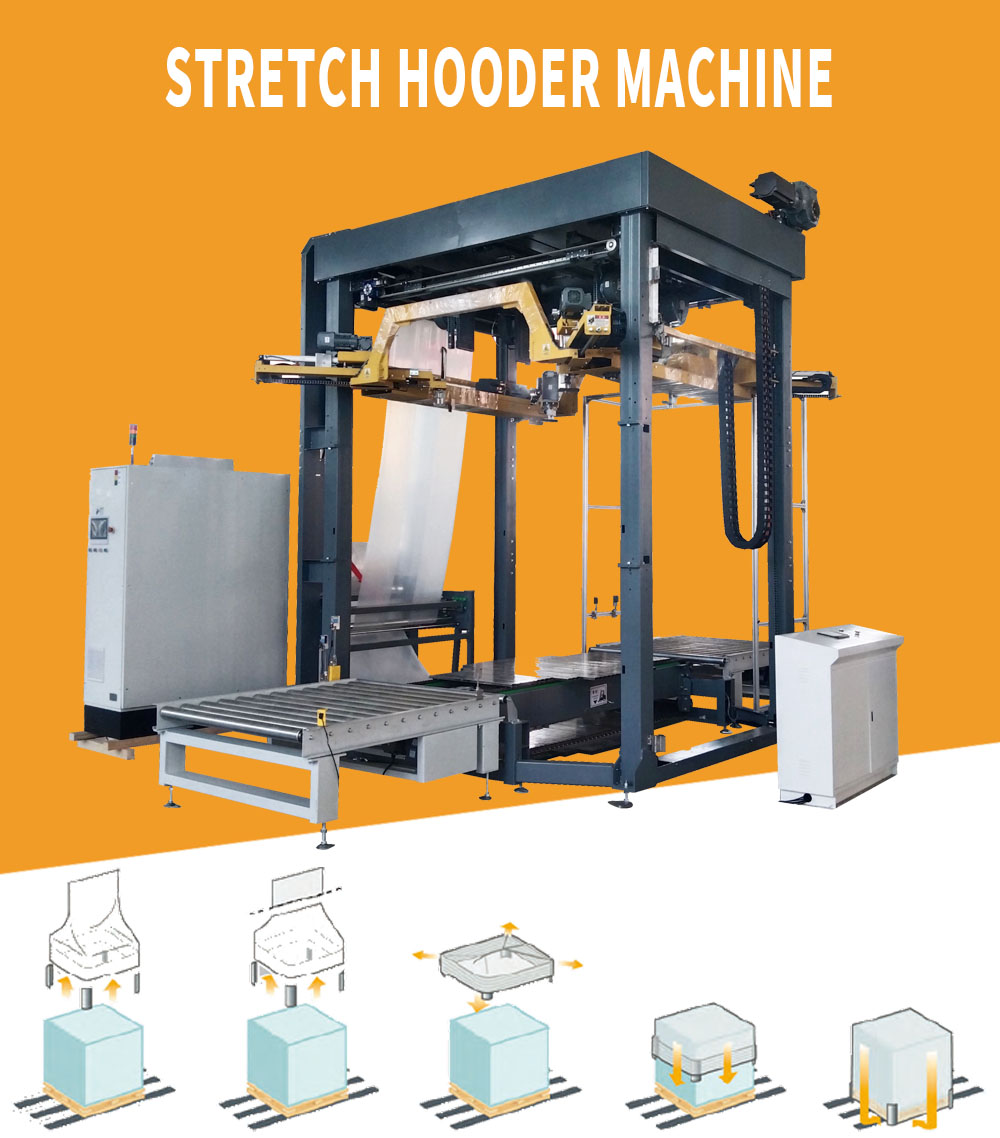

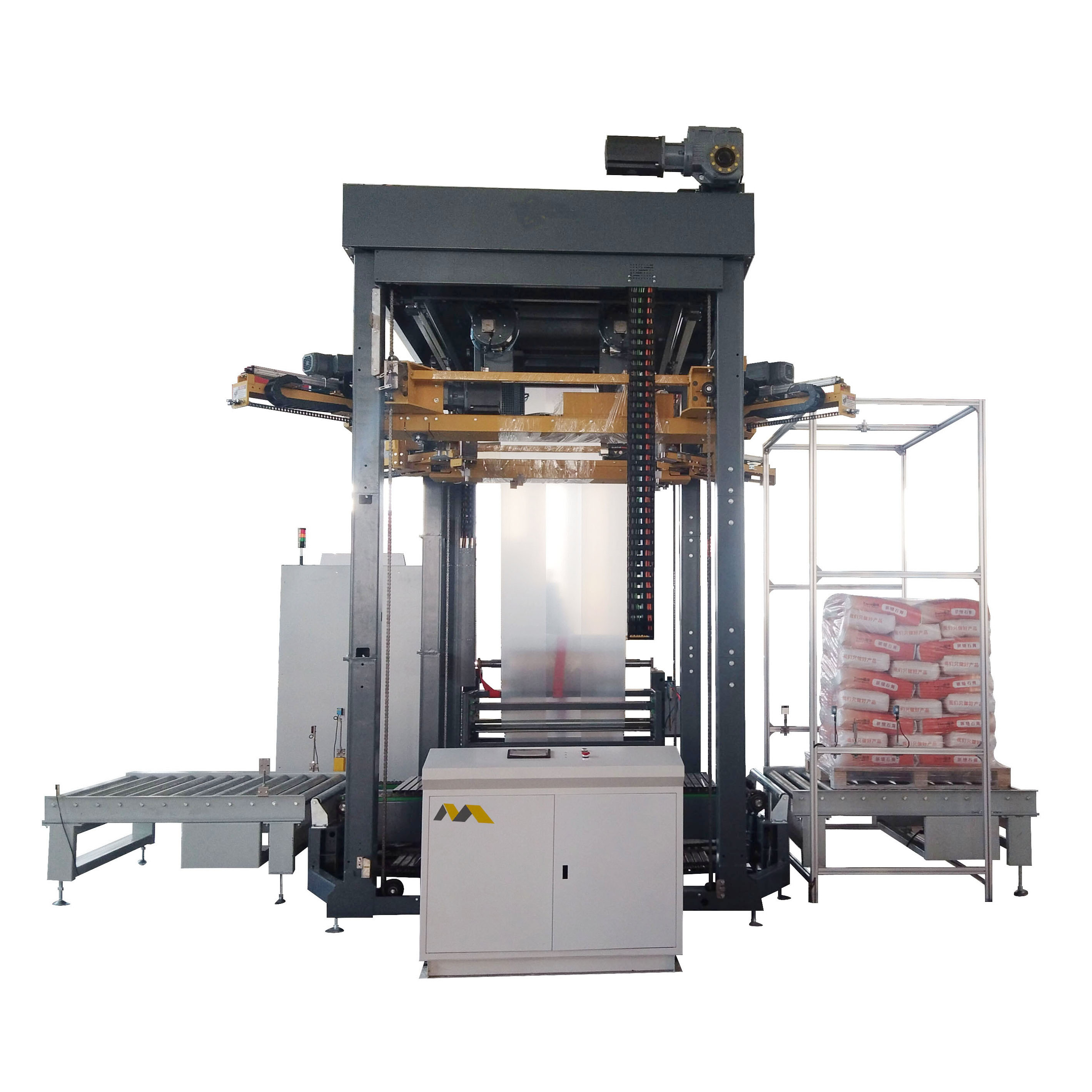

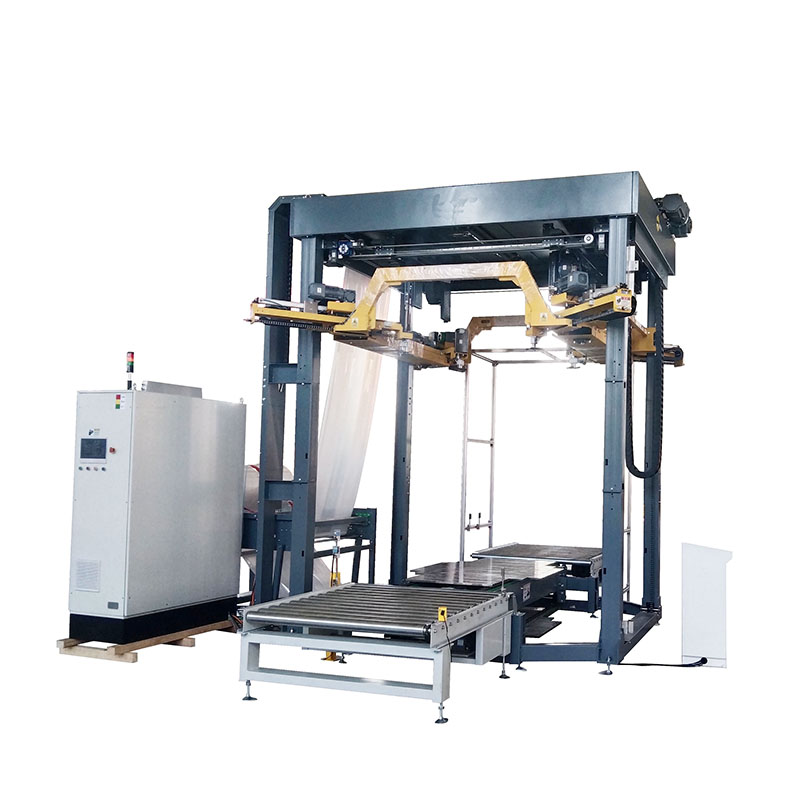

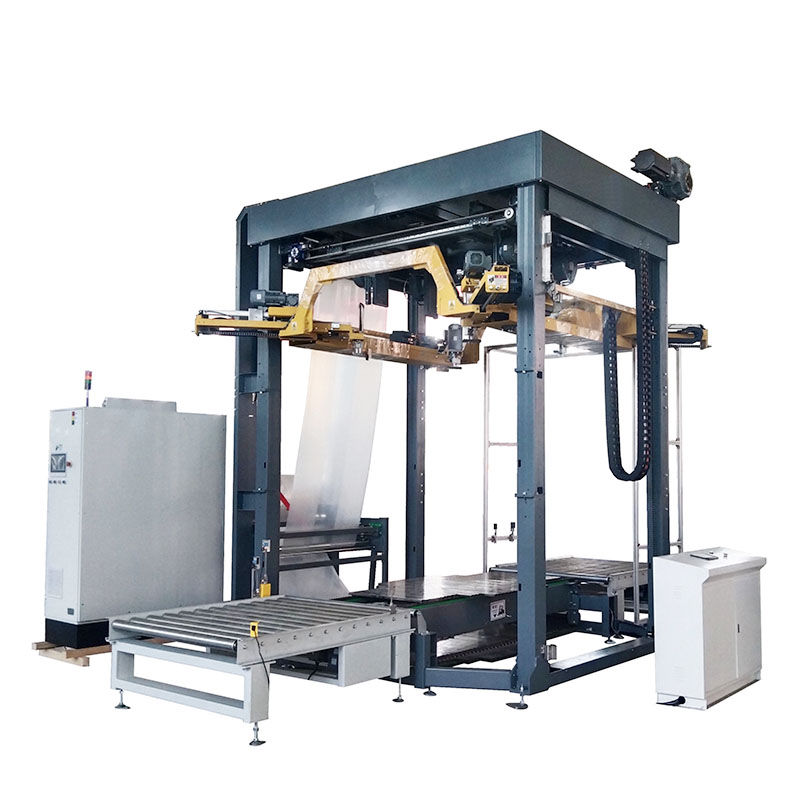

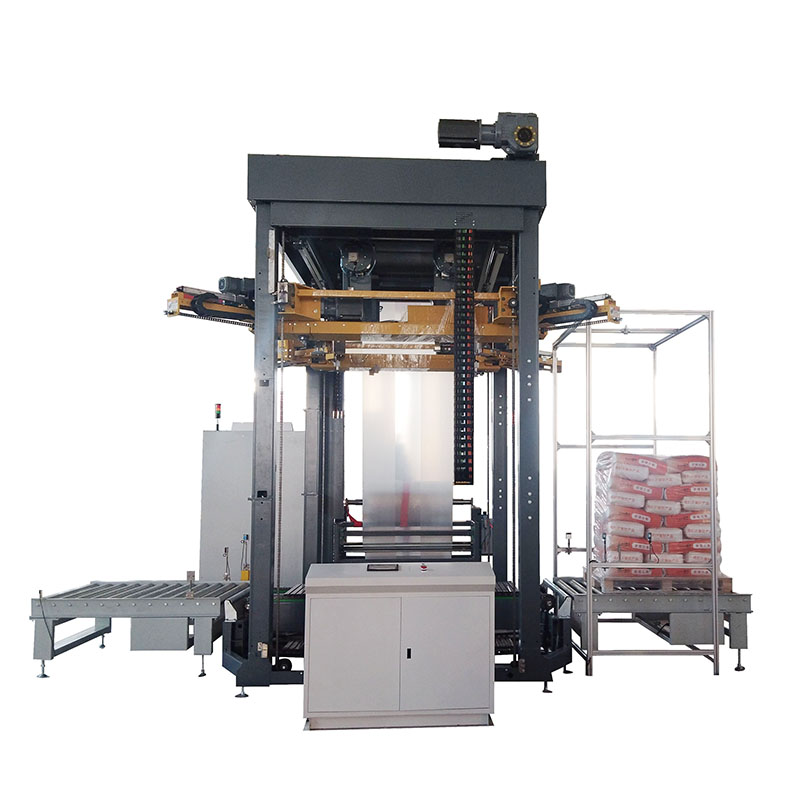

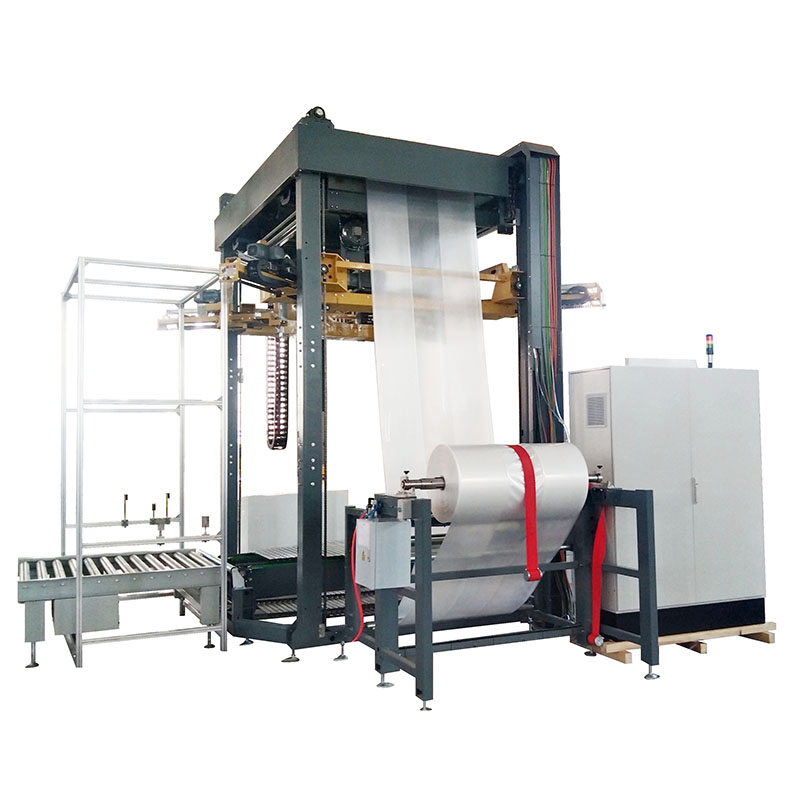

Stretch Hooder Machine

The max production capacity is about 100 pallets per hour (according to the pallet’s height, the capacity may have slightly differences).

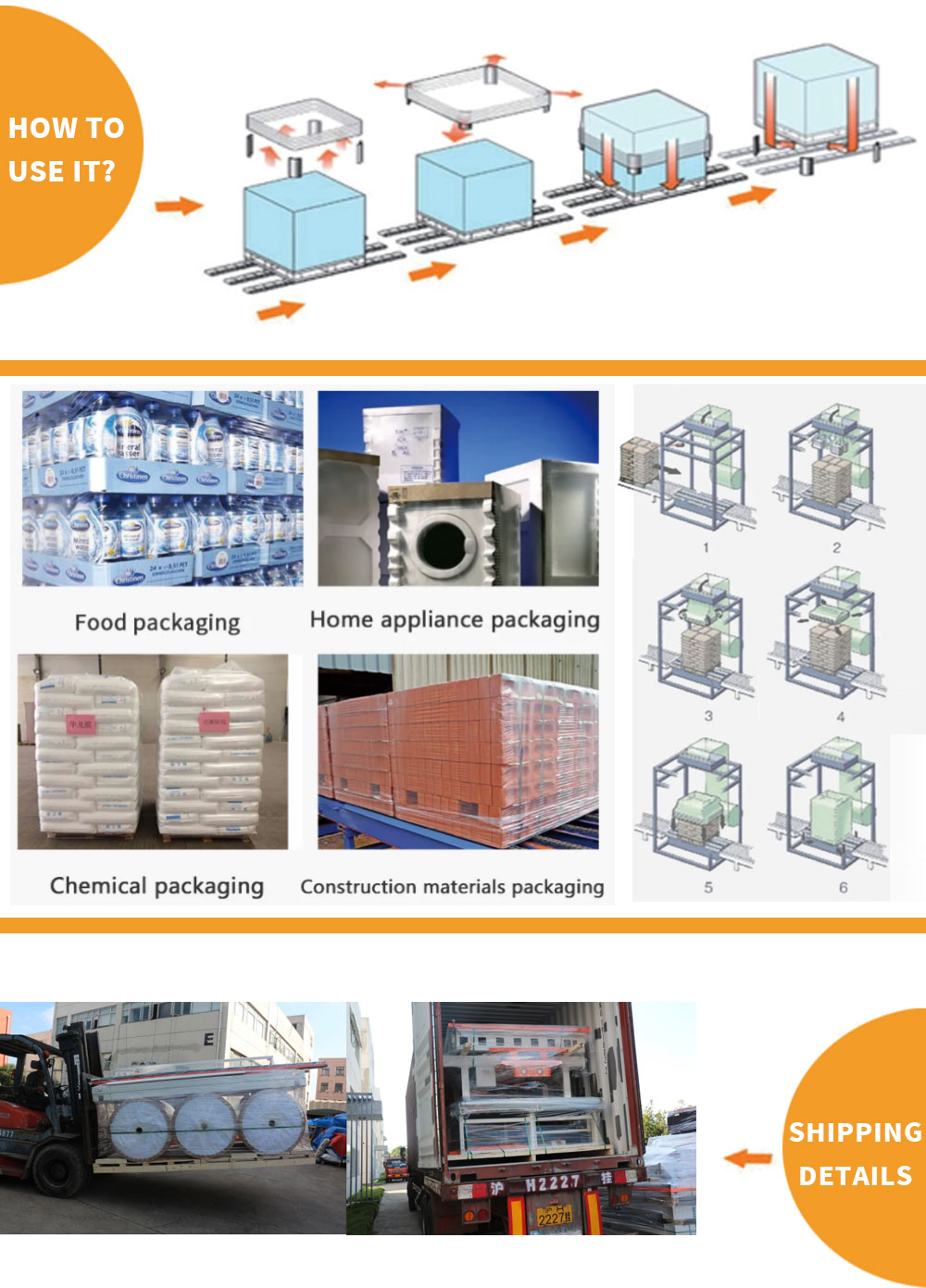

The film which is sealed on the top becomes the bag and it is effectively waterproof.
The products which are packaged together by the film in the pallets are very suitable for transportation. And it can effectively prevent product shedding.
The machine contains the protection feature from the shrink wrap film and the economical shrink wrap machine.
The machine can be designed according to your requirements.

Technical Specifications

Pallet dimensions (length x width)	1300x1050x2360mm
Minum height palletized load	300 mm
Maximum height palletized load	2400 mm
Maximum weight palletized load	1000 kg
Stretch perimeter	5560-5960mm
Transport direction	The long side is parallel to the conveyor, and the short side is perpendicular to the direction of the goods' movement
Feeding pallet requirements	Before the product is transported to the packaging station, the pallet centering accuracy should reach ± 10mm;
The distance	between the outer contour of the product palletizing type and the longitudinal and transverse centerline of the pallet is ± 10mm.
Machine capacity	60 Pallets/h
Kind of consumable material:	Stretch hood
Maximum film thickness	150 my
Minimum film thickness	80my
Conveyor line speed	14m/min
Conveyor line height	600mm
Standard voltage	380 V 3F Neutral
Auxilisaries voltage	24V
Allowed voltage variation	% +/-10
Net frequency	60 Hz
Protections:	Ground
Motors protections	IP 54
Insulation class for motors:	F
Laws	CE 2006/42 and following modifications
Compressed air:	6 Bar
Compressed air consumption	Machine 200 NL for hood
Environment temperature ranges for equipment running	+0°C - +40°C
Environment moisture ranges for equipment running	Max 80%
Electrical power installed	18.5 kw

Company Profile

We are a full-service provider of the packaging sector, specialised in end-line solutions. We boast approximately 300 employees, 3 subsidiaries and 2 production facilities in the Packaging zone. We operate in more than 100 countries and provide global customer service. Specifically, Group production ranges from semi-automatic wrapping machines with smart technology to innovative automatic solutions, from industrial wrapping machines to shrink wrapping machines and cartoning machines, sealing machine, strapping machine, to tailor made packaging solutions.

Our Advantages

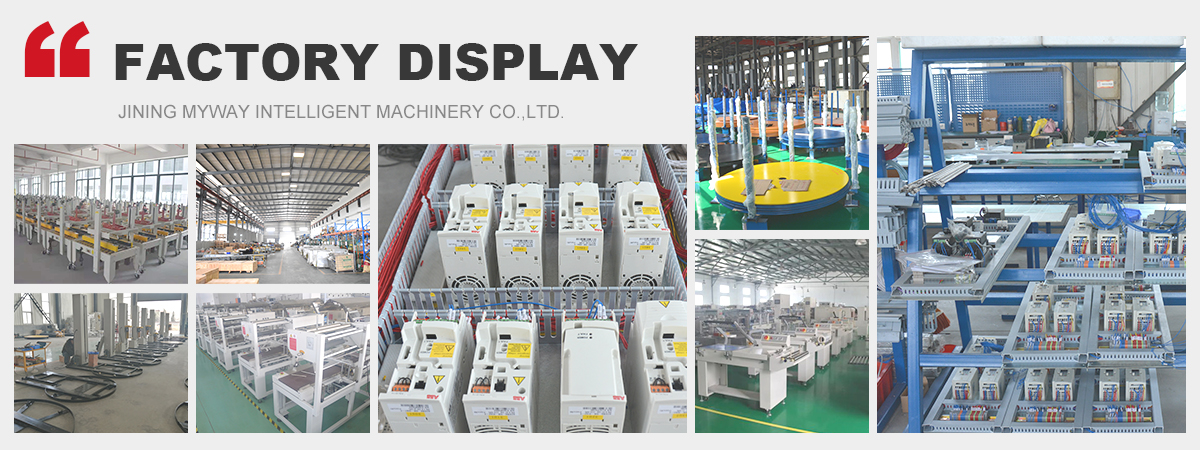

More than 15 years factory experience, knowing each mechanical progress.
More than 15 years experience during market of wrapping machine, shrink packaging machine, strapping machine, Guarantee excellent machine quality for customer with Competitive price.
More than 15 years experience for international trade, Supply 24 hours service, on time solve any problem for customer.
Golden supplier status, offering up to US$300,000 trade assurance options for safe business cooperation.

Our Team

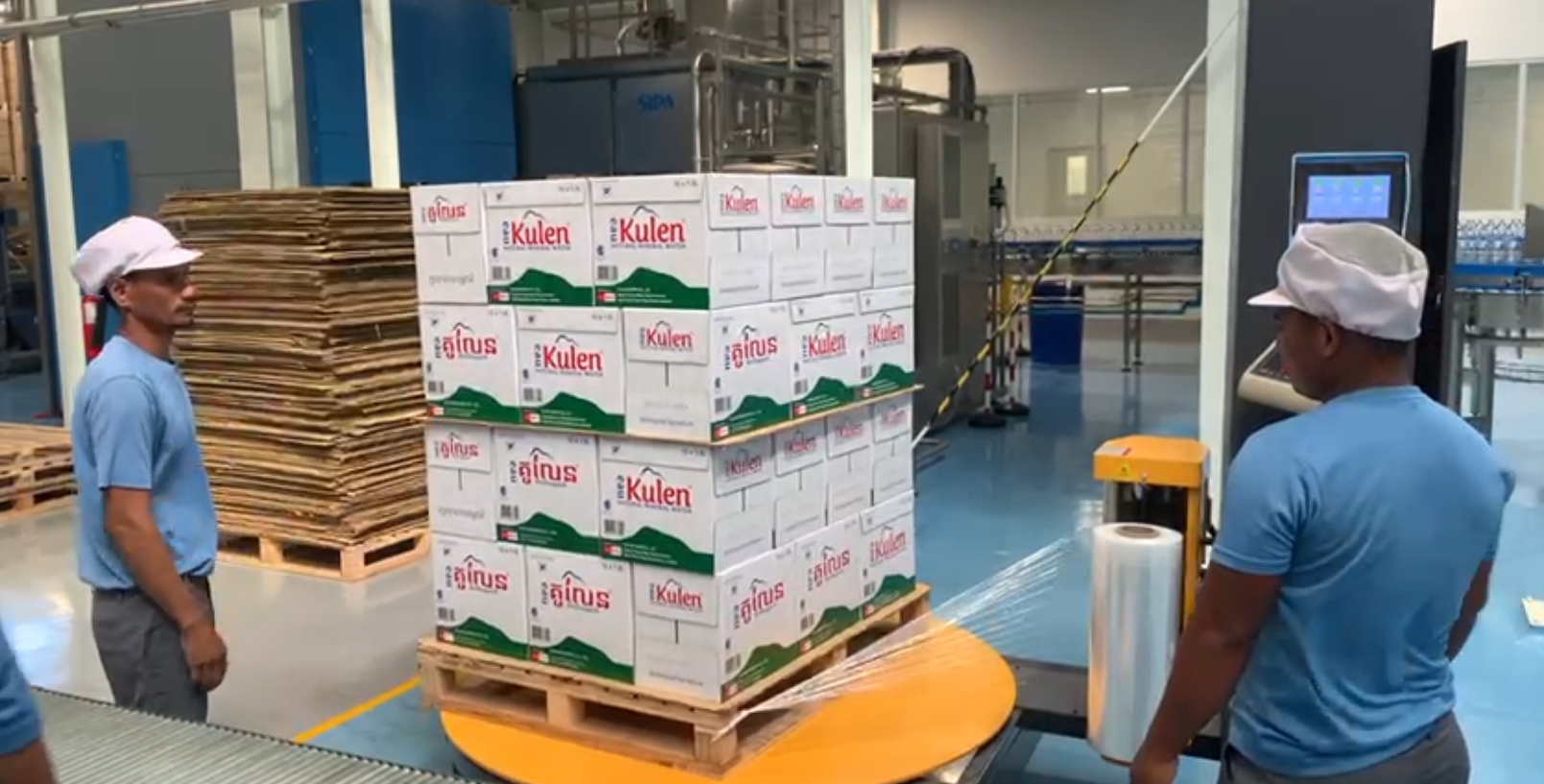

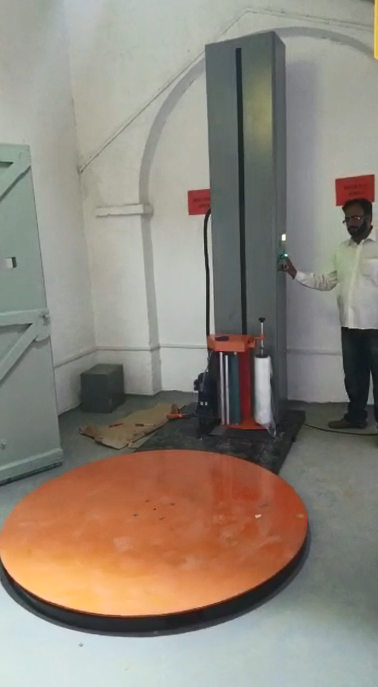

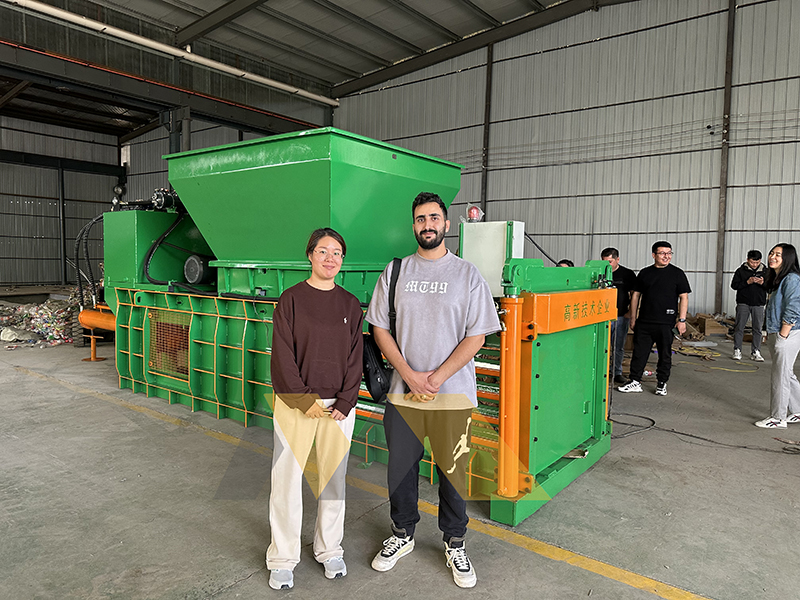

Our Customers

Exhibition

Frequently Asked Questions

1. What about your machine quality?

Our factory has 16 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer's good reputation.

2. What about your machine price?

Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, sure you will get reasonable and satisfied price!

3. Can you send me the video to show how the machine work?

Certainly, we have made video of every machine and uploaded them. Please contact us, and we will send you the machine operations video.

4. What about your installation service and sales service for machine?

1) Guarantee is two year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7 days.
2) We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3) It is free to train your worker in our factory or in your side or by video.

5. Can the stretch hooder machine handle customized pallet dimensions?

Yes, our machines can be custom-designed and adjusted to handle different pallet specifications and packaging heights according to your specific warehouse demands.

6. What voltage standard does this packaging system support?

The standard voltage setup is 380V 3Phase Neutral, but customized electrical settings can be built to match your local power standard configurations.
