Product Description

Product Description

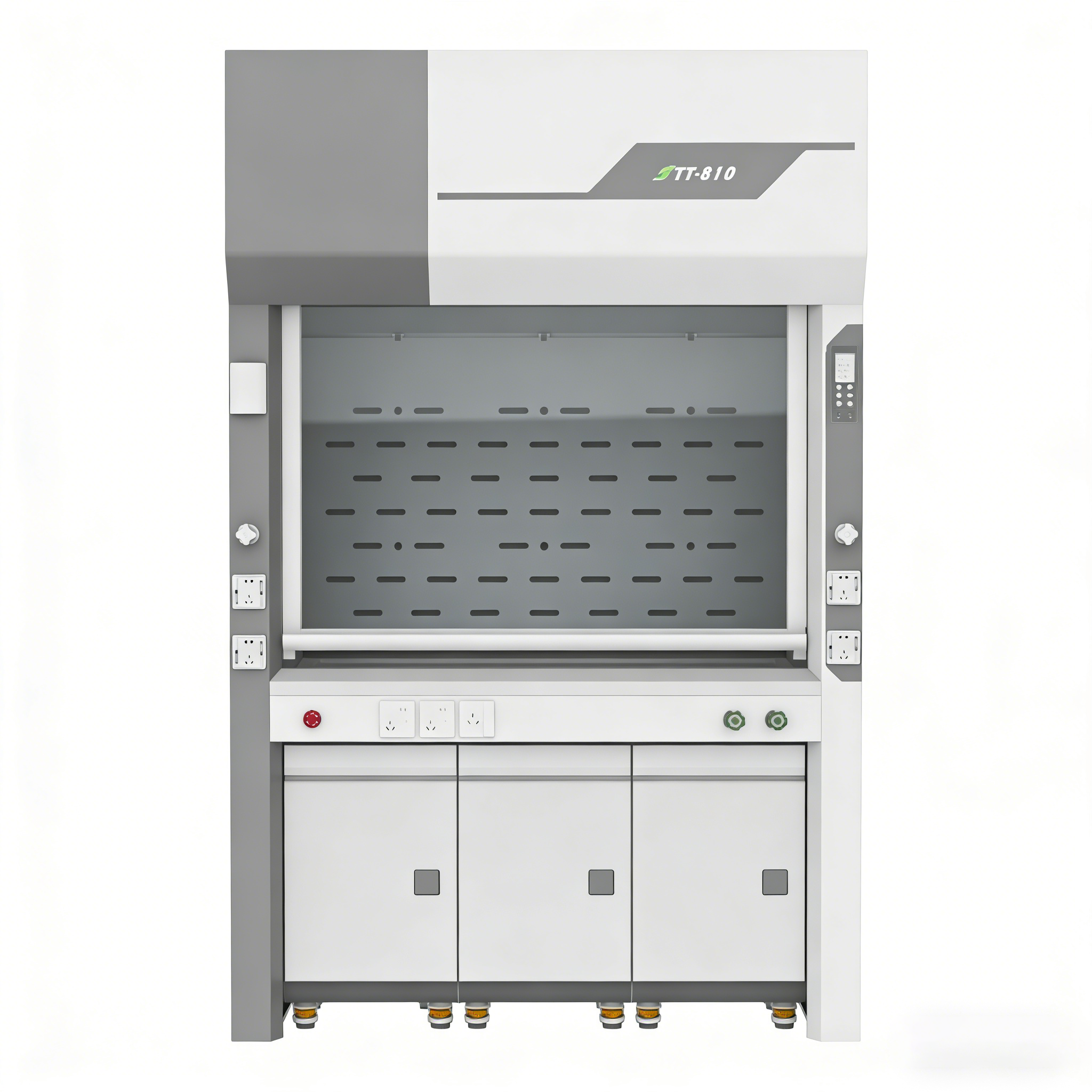

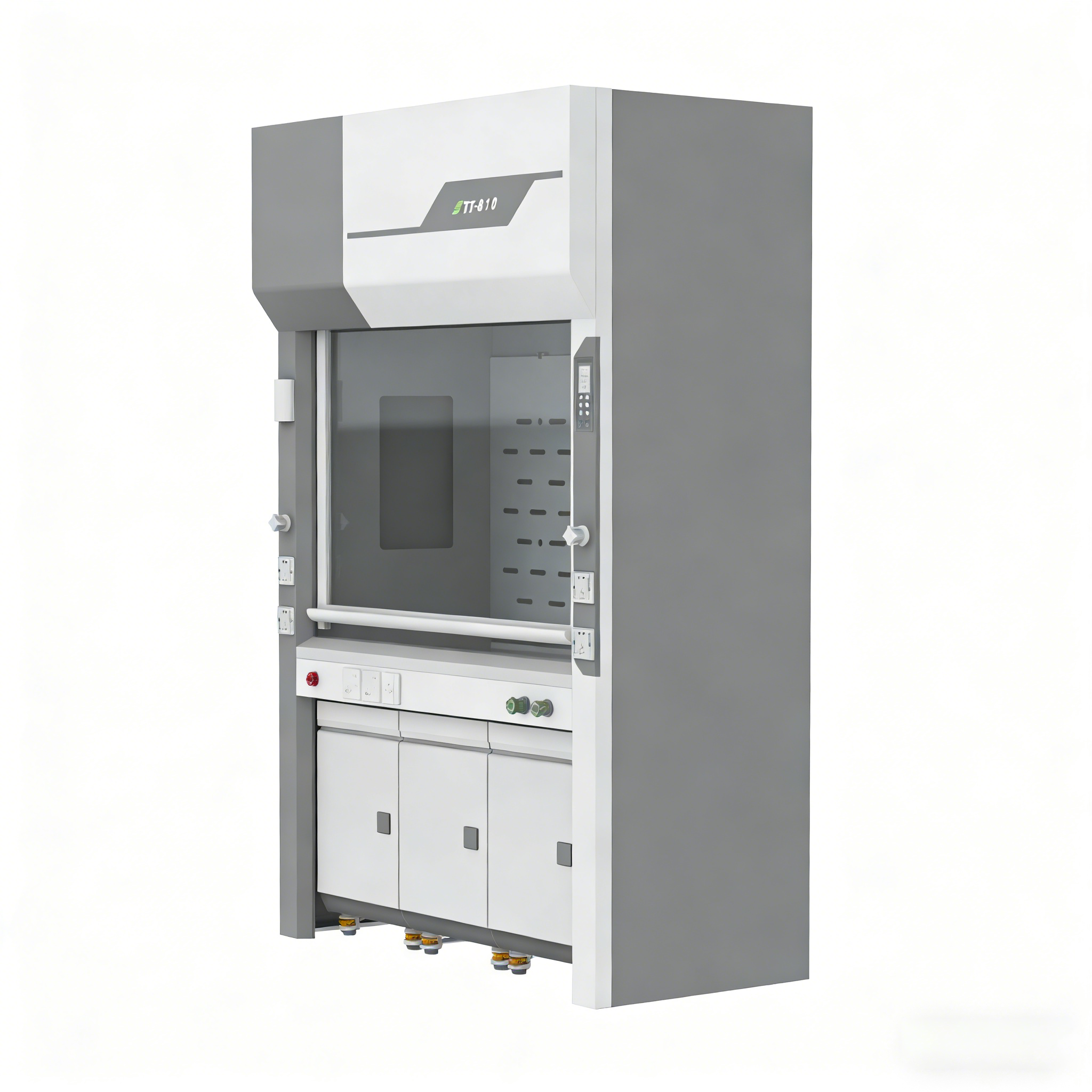

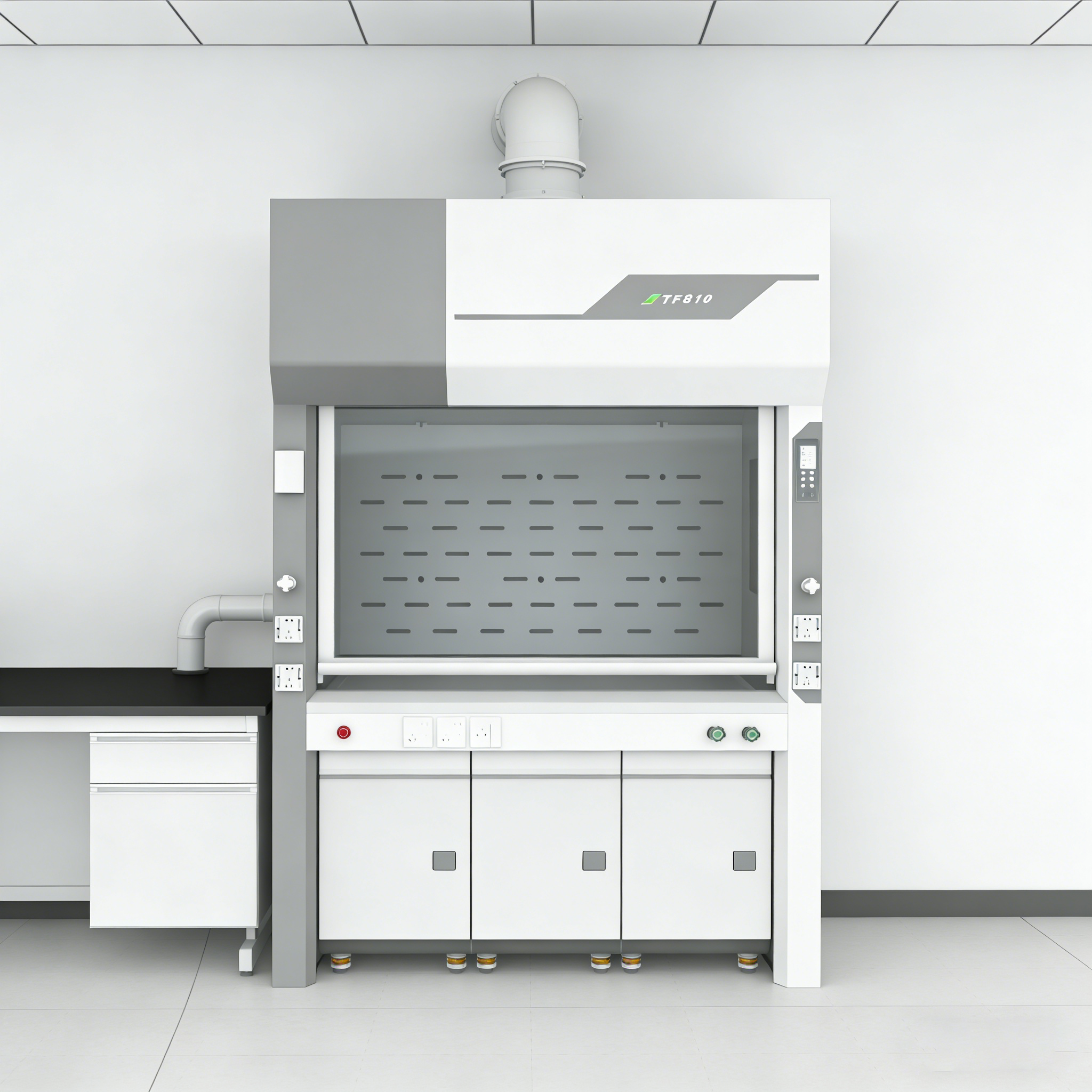

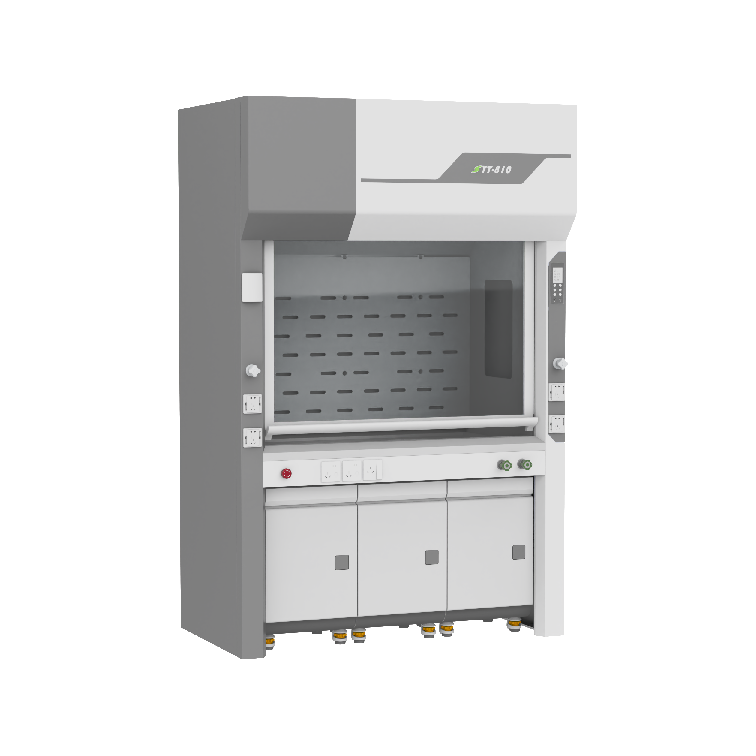

Steel Laboratory Fume Hood Overview
Fume Hood Internal Design
Fume Hood Testing
The Full Steel Laboratory Fume Hood is designed to provide a safe and efficient ventilation solution for chemical laboratories. With an integrated steel structure and high-performance exhaust design, it effectively removes hazardous fumes, vapors, and particles generated during laboratory operations. Suitable for school laboratories, universities, research institutes, hospitals, and industrial labs.

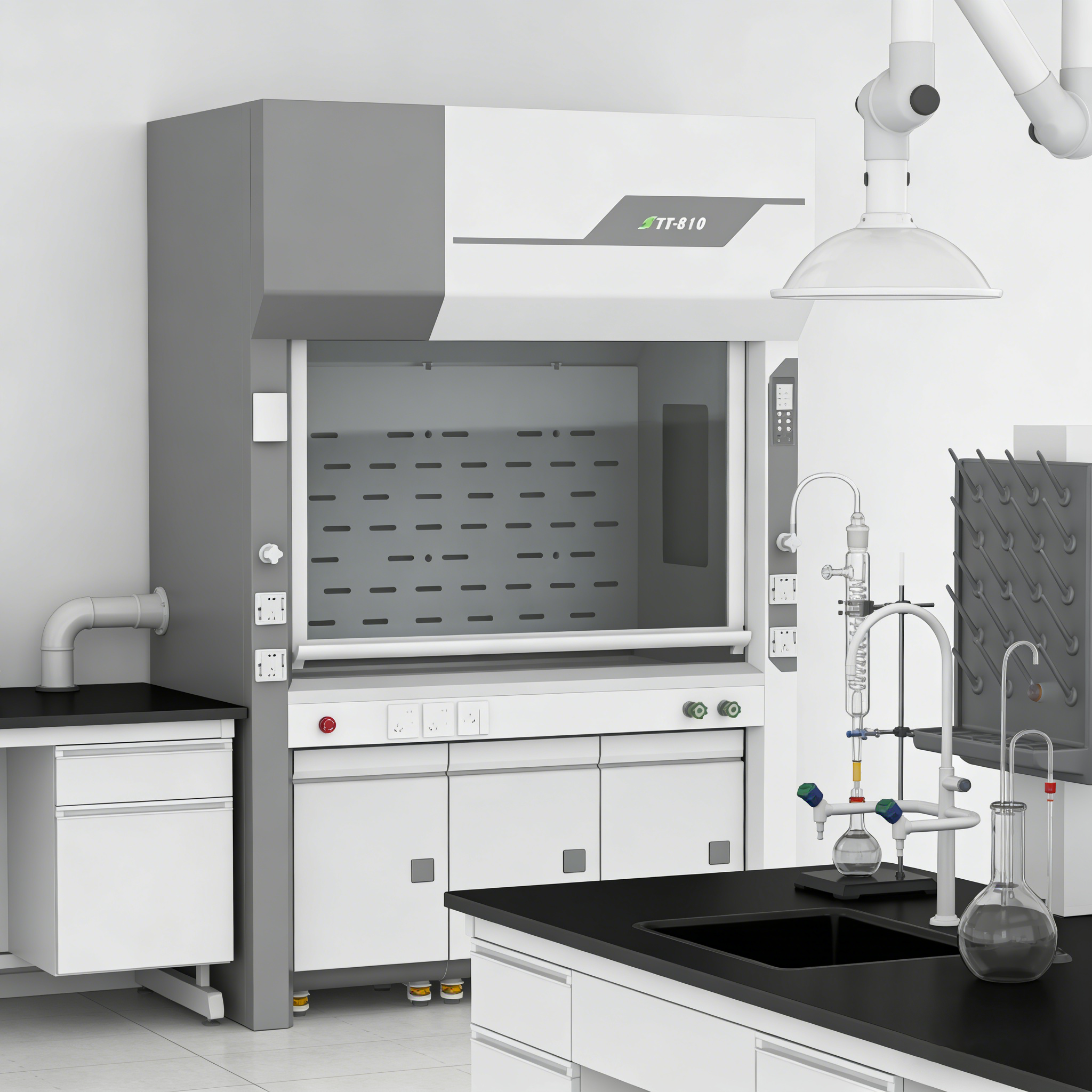

Dimension Drawing Front

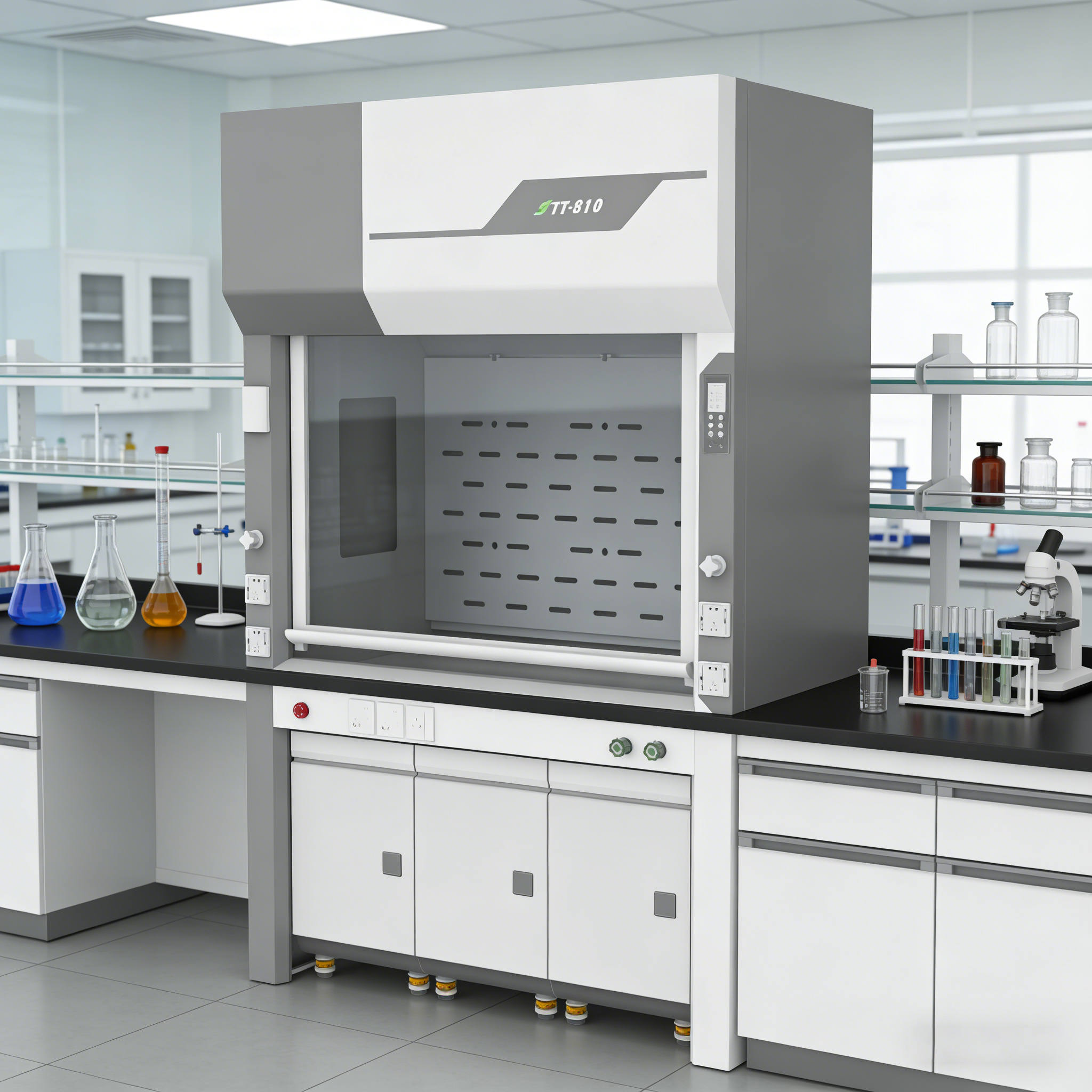

Dimension Drawing Side
Product Name Steel Laboratory Fume Hood
Dimensions 1200 × 950 × 2350 mm
Structure & Construction Integrated full steel structure, upper and lower cabinet in one-piece design
Floor-mounted side panels with sliding sash window
Lower storage cabinet included
Inner lining: Compact laminate (Trespa type)
Sliding sash: 5 mm tempered glass
Worktop Multiple laboratory-grade worktops available to meet different chemical resistance requirements:
Phenolic resin: 12.7 / 16 / 19 / 25 mm
Epoxy resin: 15 / 19 / 25 mm
Ceramic: 15 / 20 mm
Trespa: 13 / 16 / 19 mm
Stainless steel: 25 mm
Technical Parameters Worktop height: 850 mm
Sash opening height: 750 mm
Operating depth: 600 mm
Static pressure loss: 70 Pa
Exhaust outlet diameter: Ø250 mm

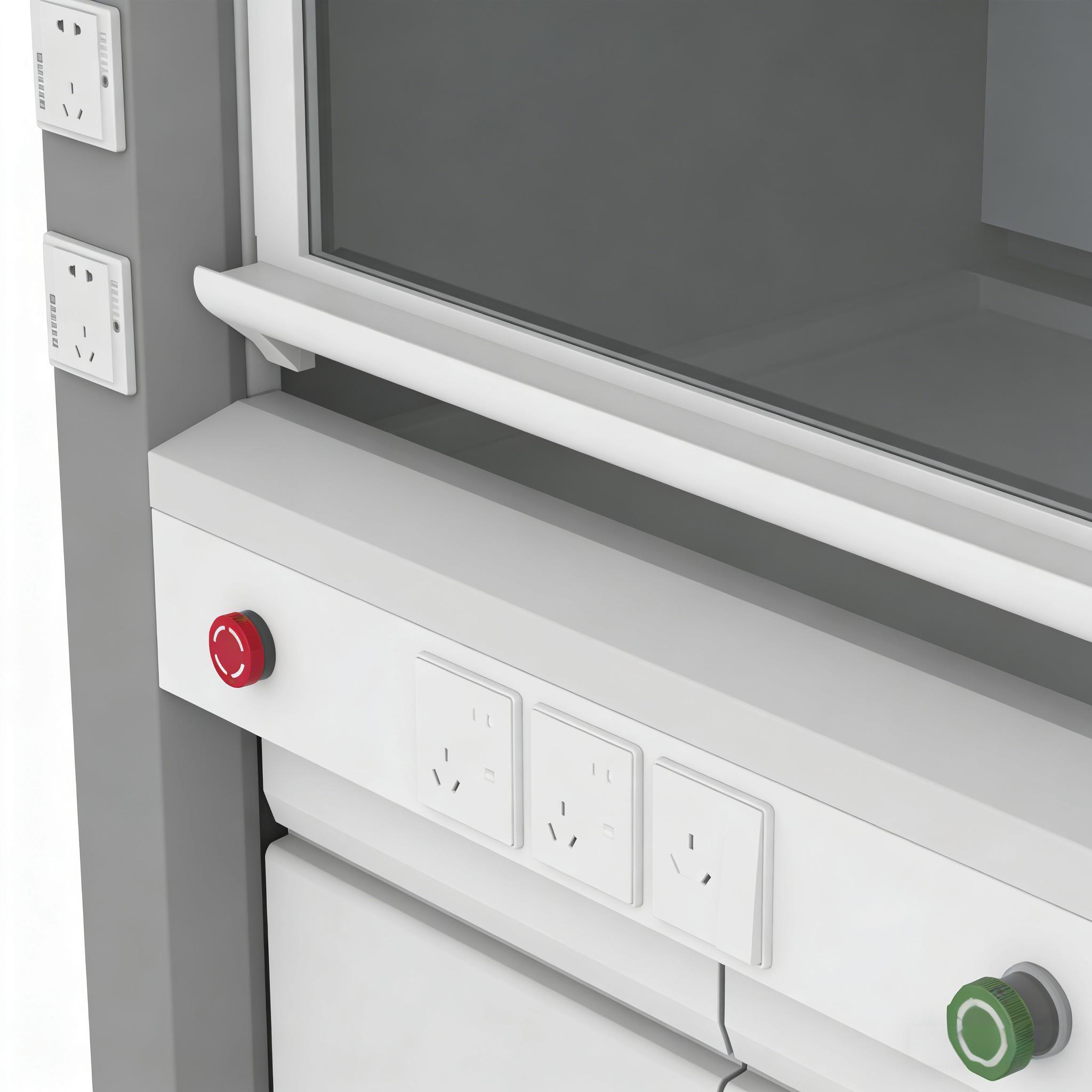

Accessory Standard Accessories:
Control display panel, 4 × electrical sockets, LED lighting system, Circuit breaker

Optional Configuration:
Sink: PP / ceramic / epoxy resin material
Faucet: Brass valve body, ceramic valve core, epoxy resin powder-coated surface

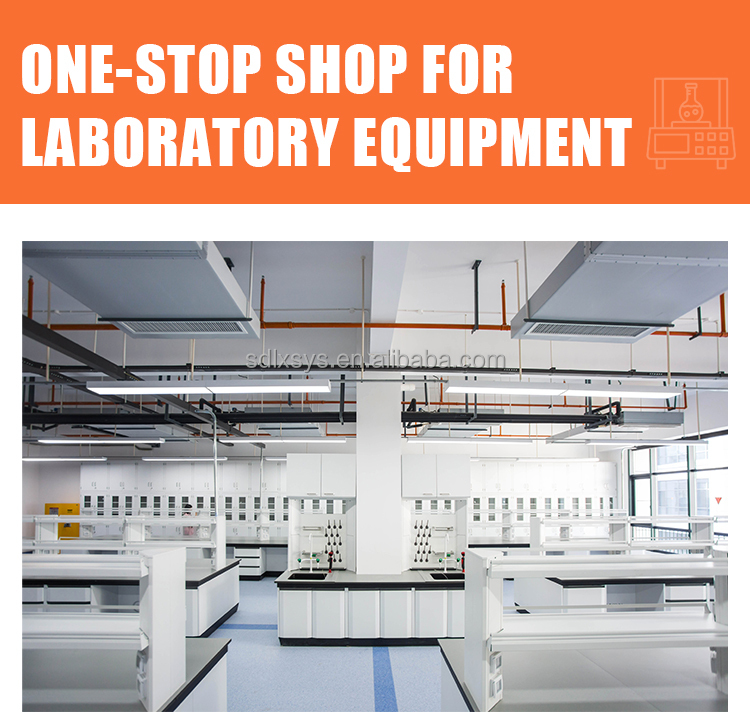

Production Process View 1

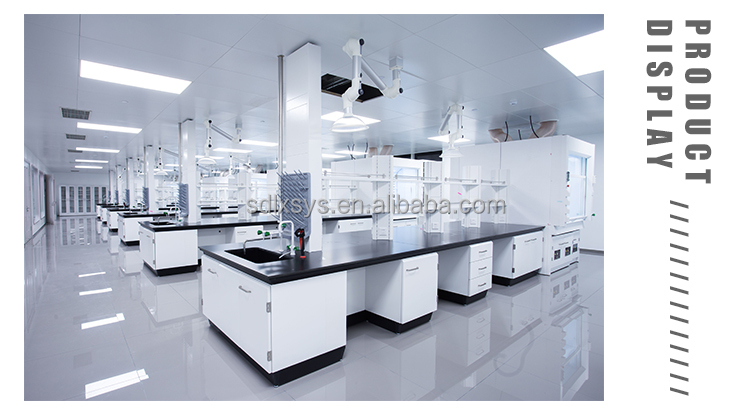

Production Process View 2
Production Process View 3
Production Process View 4

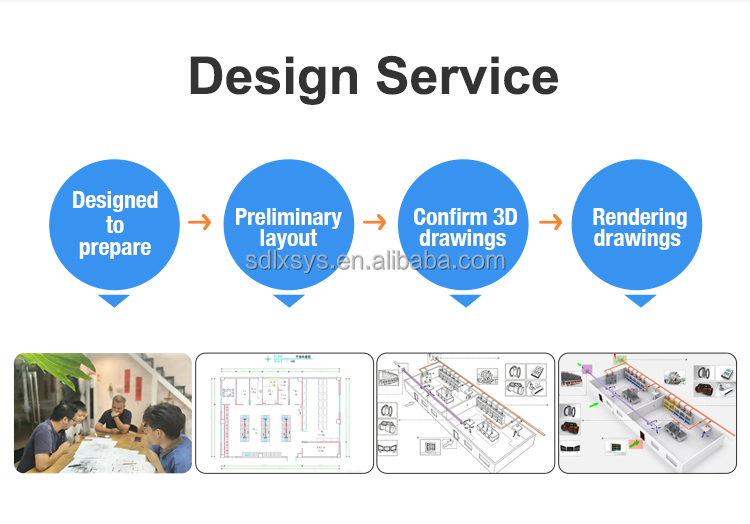

Production Process View 5
Production Process View 6
Quality Inspection View 1

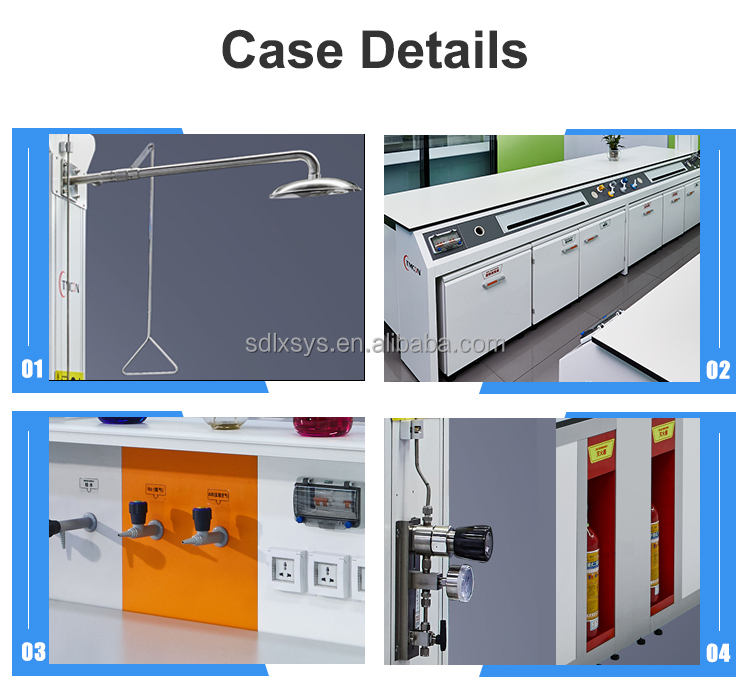

Quality Inspection View 2

About Our Operations

With 27 years of experience, we focus on the R&D and manufacturing of laboratory furniture, including laboratory benches and fume hoods. We provide integrated laboratory workspace solutions to improve safety, efficiency, and organization. Equipped with advanced machinery and a professional engineering team, we support OEM and ODM services for global customers.

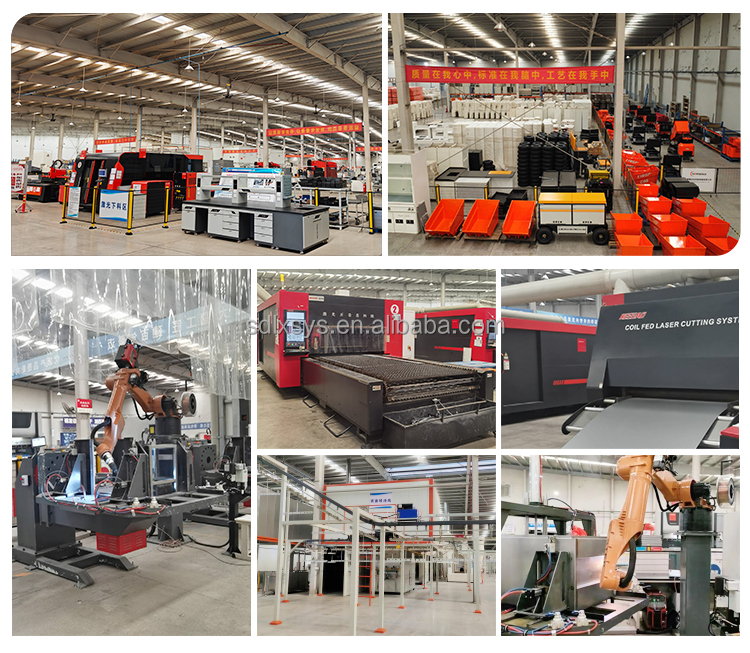

Facility Infrastructure View 1
Facility Infrastructure View 2
Facility Infrastructure View 3
Facility Infrastructure View 4
Facility Infrastructure View 5

Frequently Asked Questions

What laboratory furniture do you manufacture?
We manufacture laboratory benches, cabinets, workstations, and fume hoods designed for educational, research, clinical, and industrial labs.
Can you provide laboratory layout and design?
Yes. We provide layout planning and technical drawings tailored to your specific laboratory space, ventilation requirements, and application needs.
Do you support customized laboratory projects?
Yes. OEM and ODM customization options are available. You can customize the dimensions, structures, colors, materials, and functional configurations of our furniture.
What worktop materials are available for the Fume Hood?
We offer various laboratory-grade worktops including Phenolic Resin (12.7/16/19/25mm), Epoxy Resin (15/19/25mm), Ceramic (15/20mm), Trespa (13/16/19mm), and Stainless Steel (25mm) to meet your chemical resistance demands.
What accessories are included in the standard package?
Standard configuration includes a control display panel, 4 electrical sockets, an LED lighting system, and a circuit breaker. Sinks (PP/ceramic/epoxy resin) and faucet fixtures are optionally available.
What is the structure of the Steel Laboratory Fume Hood?
It features an integrated full steel structure, a one-piece upper and lower cabinet, floor-mounted side panels, a 5mm tempered glass sliding sash window, and built-in lower storage cabinets.
