Product Description

Stretch film tire wrapping machine shrink film wooden box pallet wrapper stretch hood tray packing machine

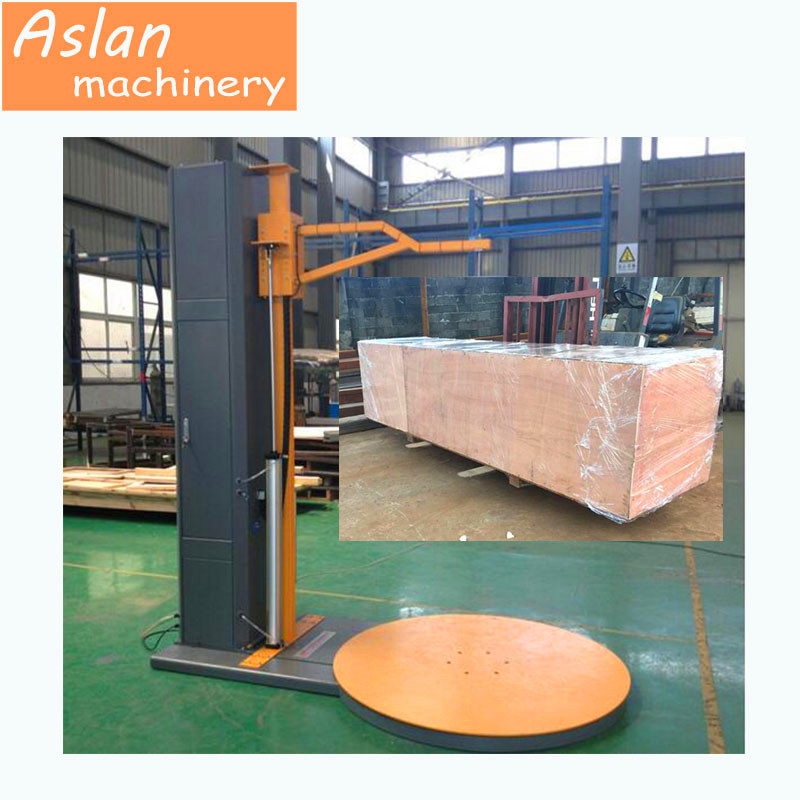

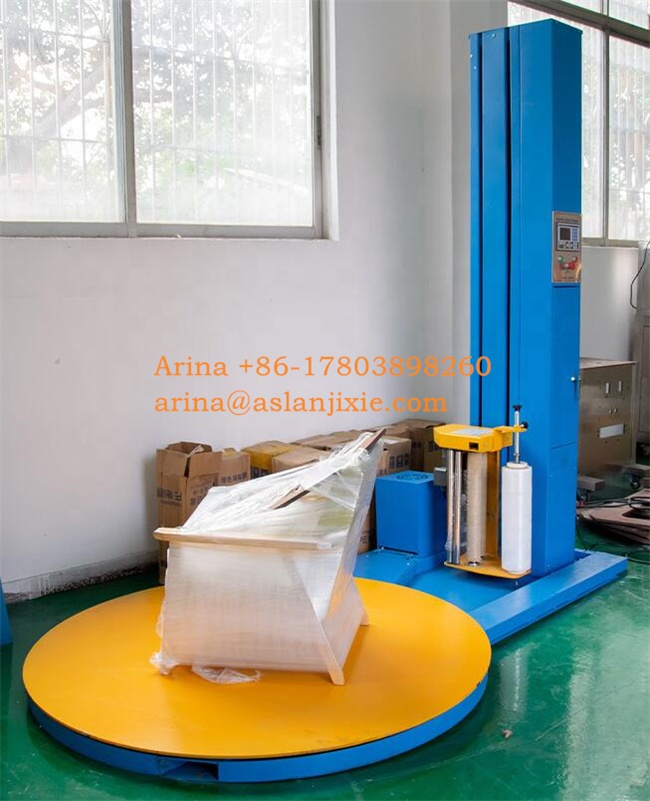

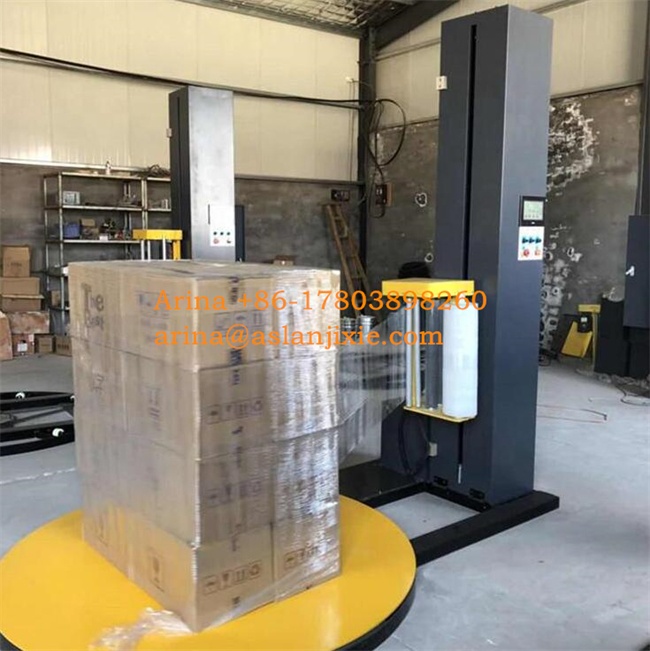

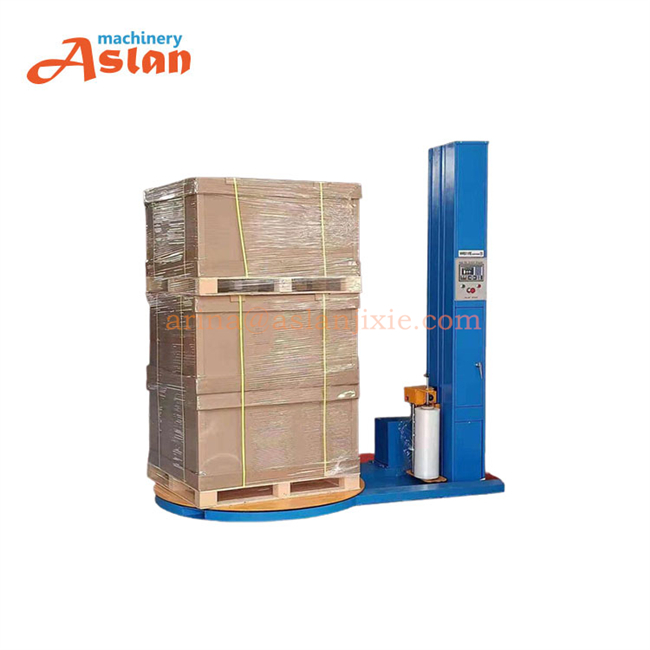

Stretch film tire wrapping machine

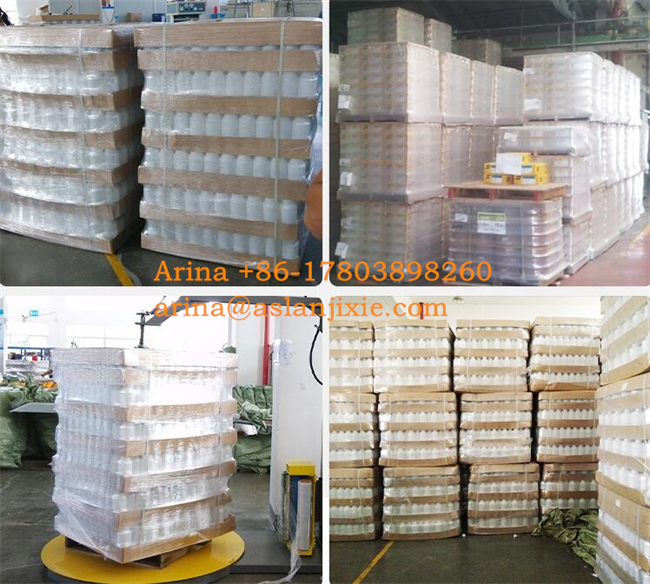

Pallet wrapper packaging setup
Products Description
Brief Introduction

This turntable type stretch film wrapping machine is also called tray or pallet shrink film wrapping packing machine, pre-stretch film packing machine. Mainly suitable for bulk cargo container and spare parts winding packing. Thus highly improve logistics efficiency, reduce loss during transportation. It has so many advantages such as dust proof, moisture-proof, etc. It must be the ideal choice for you to increase the packing level.

Working Principle
  • Pre-stretch film frame system: The pre-stretch ability can be up to 250%, feed film automatically, film tension can be adjusted by speed control system.
  • Vertical Lift column: Double chain structure, lifting speed is adjustable.
  • Control system: PLC programmable control, button operation panel, easy to operate.
  • Operating function: Set the top and bottom winding number, lifting times, etc. Sensing cargo height, photoelectric shielding, turntable get back to the original point automatically.
Features & Advantages
  • Widely used for many industries, such as exporting, food and beverage, plastic chemical industry, glass and ceramic, electronic appliances packing.
  • High quality raw materials: Pallet, vertical column, horizontal frame all adopt good steel, better than the standard specifications.
  • Adopting imported well-known electrical components, guaranteeing the machine quality, low maintenance rate.
  • English and Chinese language LCD operation panel, easy to operate.
  • Low price with factory directly supplying, give consumers most benefits.
Product Parameters

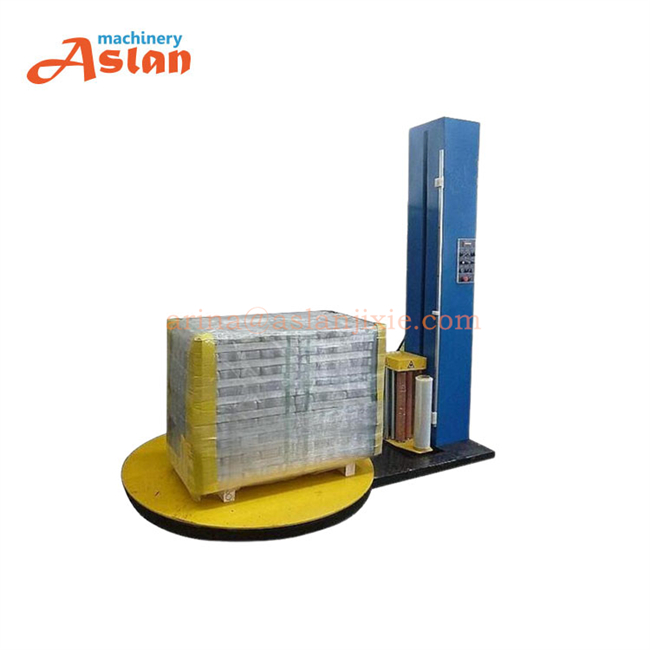

Turntable wrapper dimensions
Model ASL-ZKHMJ50
Power 1.5KW
Voltage 220V/50HZ
Turntable speed 6-14r/min
Turntable diameter 1650mm
Machine size 2650*1650*2500mm
Weight 700kg
Load bearing of turntable 2000kg
Machine Details Photos

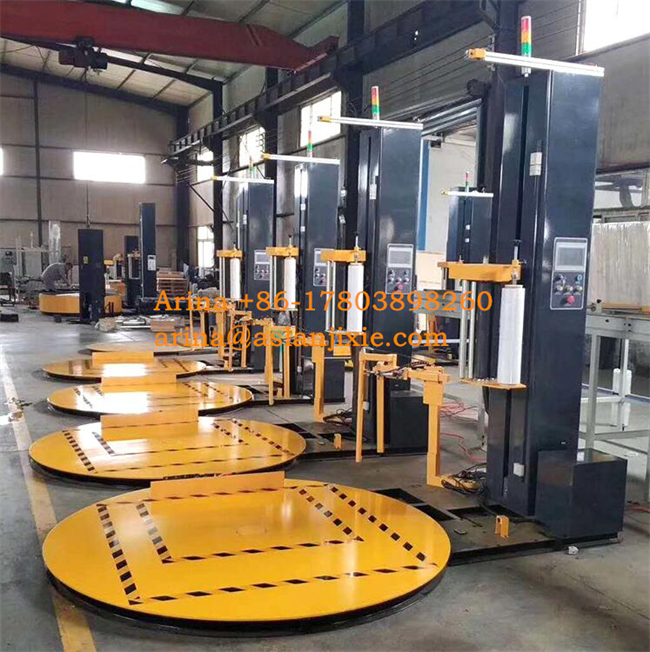

Detail 1

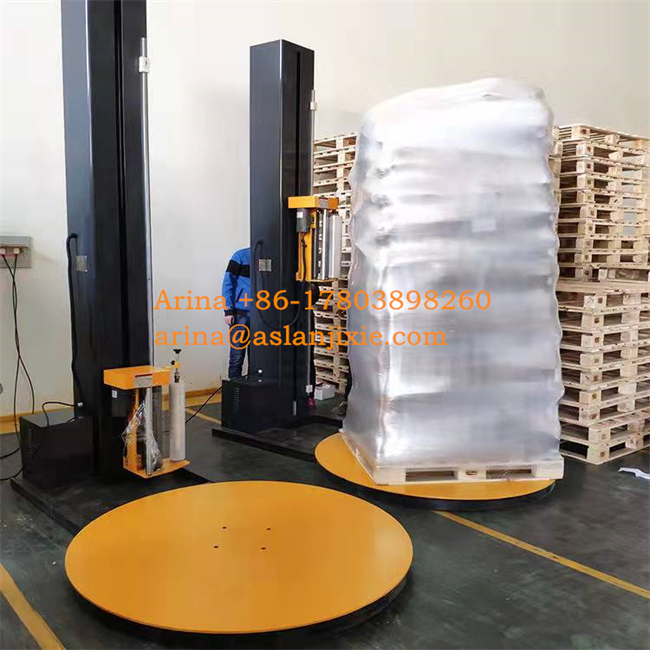

Detail 2

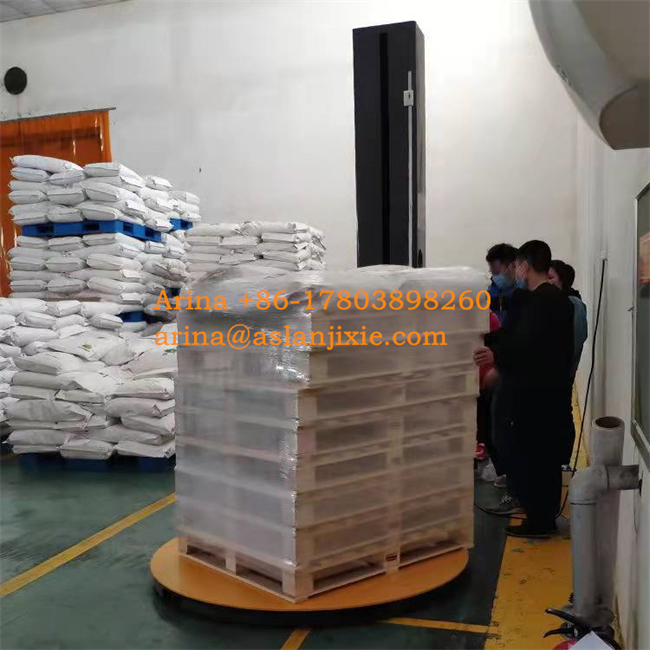

Detail 3

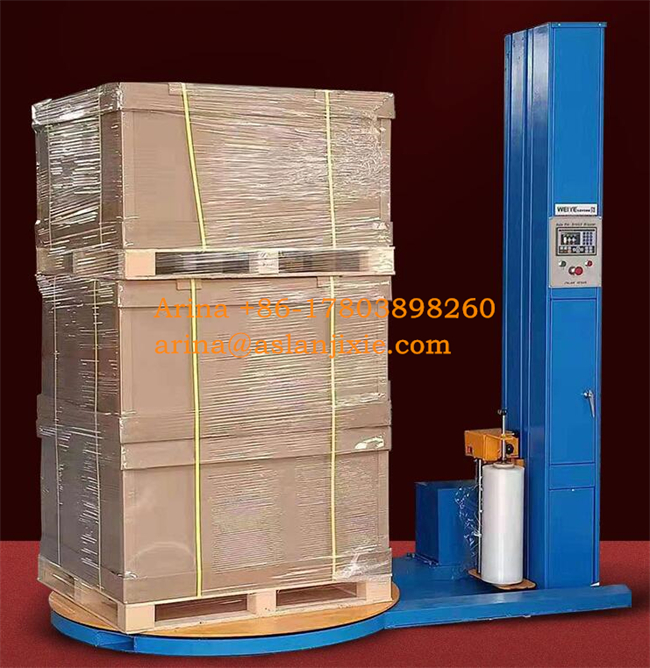

Detail 4
Detail 5
Detail 6
Working Effect Photos
Stretch wrapping application 1

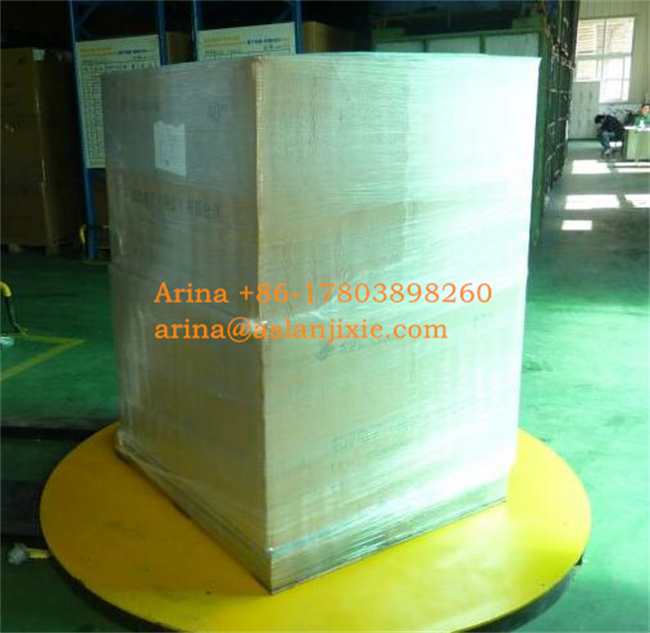

Stretch wrapping application 2

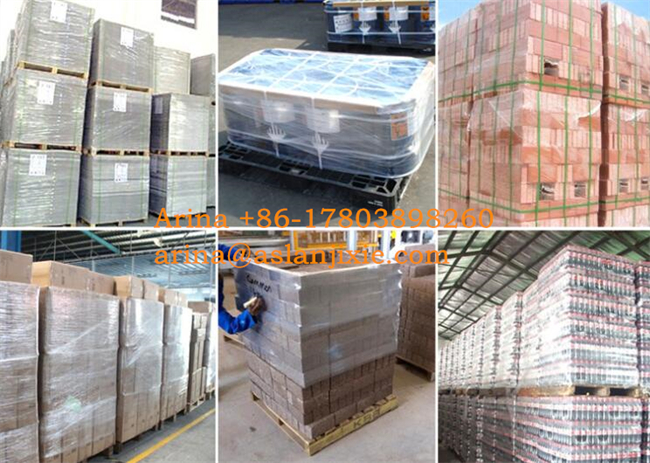

Stretch wrapping application 3

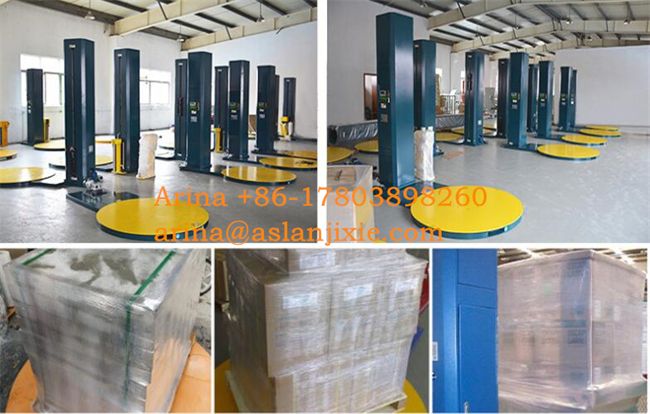

Stretch wrapping application 4
Package and Shipping
Packaging method 1

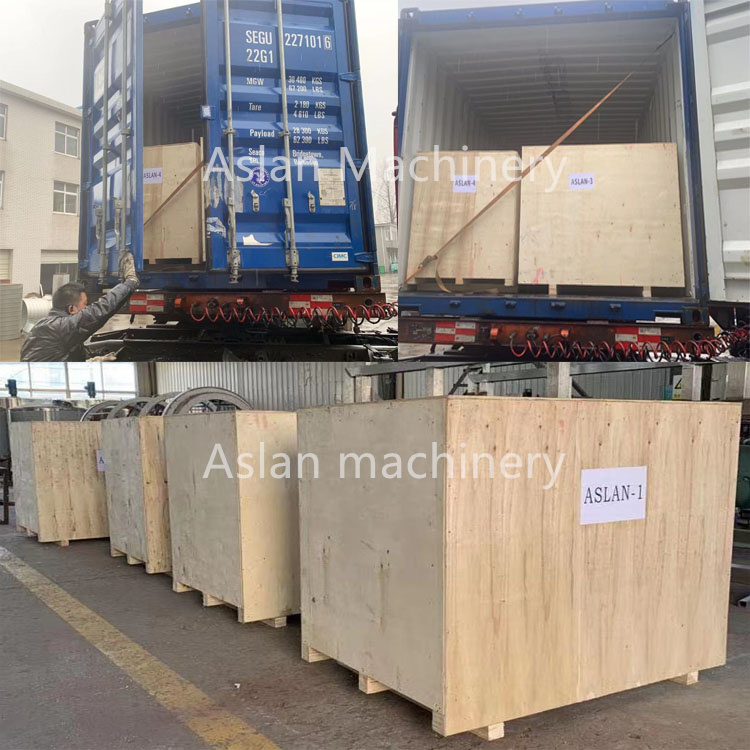

Packaging method 2
Packaging method 3
Packaging method 4
Our Service

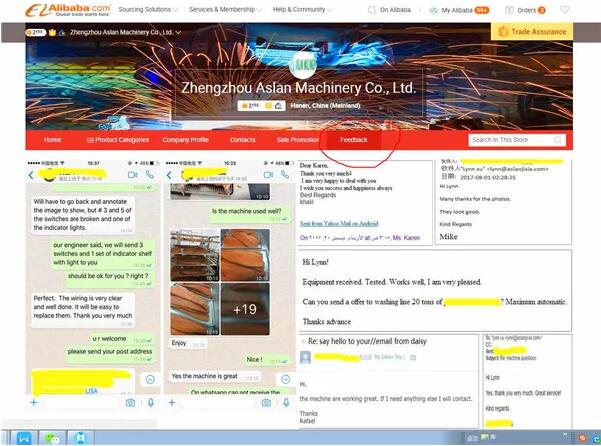

Service and Support
Warranty Policy & After-Sale Service

Usually machine guarantee time is about 1 year. Within guarantee time, machine breaking caused by machine itself design defect, we are responsible for it. We can provide free of charge breaking part and other after-sale services. If machine breaking is caused by operation reasons, the user takes responsibility for it; we will help to maintain the machine until it works well. Of course, beyond the guarantee time, we are also here for support.

Frequently Asked Questions
1. What is the pre-stretch ratio capability of this machine?
The pre-stretch film frame system can achieve a stretching ratio of up to 250%. It features automatic film feeding, and the film tension can be easily adjusted by the integrated speed control system to ensure secure wrapping.
2. What industries can benefit from this stretch wrapping machine?
This wrapping machine is widely used in multiple sectors including exporting, food and beverage, chemical industries, glass and ceramic manufacturing, and electronic appliances packaging, providing optimal dust and moisture protection.
3. How is the machine controlled and is it easy to operate?
It uses a PLC programmable control system combined with an intuitive button operation panel. The system supports dual English and Chinese languages, enabling users to easily configure parameters like top/bottom wrapping loops and lift cycles.
4. What are the key load and dimension specs of the turntable?
The turntable has a diameter of 1650mm and is designed to handle a maximum load bearing weight of 2000kg. The standard speed ranges from 6 to 14 rotations per minute (r/min).
5. What does the warranty cover?
The machine includes a 1-year guarantee. Deficiencies or breakdowns caused by design defects within this period are our responsibility, and we will provide replacement parts free of charge. Support and maintenance services remain available after the warranty period expires.
6. How robust is the structure of this pallet wrapper?
The pallet, vertical columns, and horizontal frames are constructed using high-quality steel that exceeds basic standard industry specifications. Key electrical components are sourced from well-known imported brands to ensure reliability.
