Please contact us to confirm the price. We will provide the best price for you.

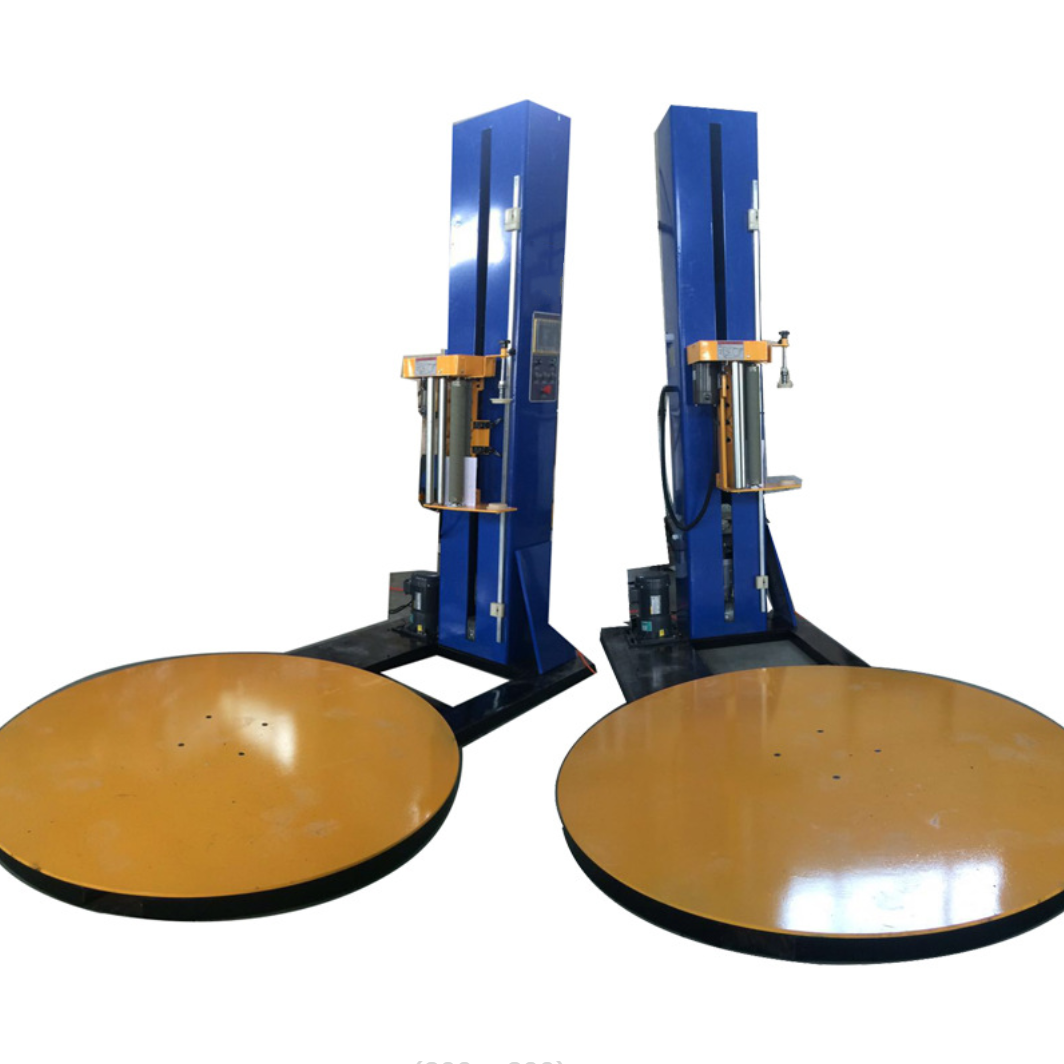

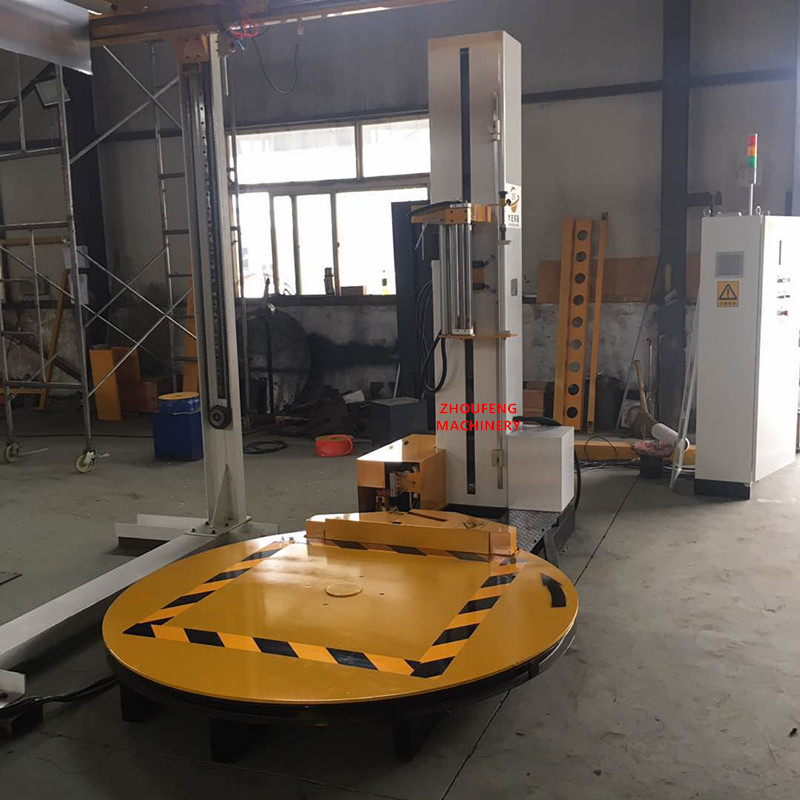

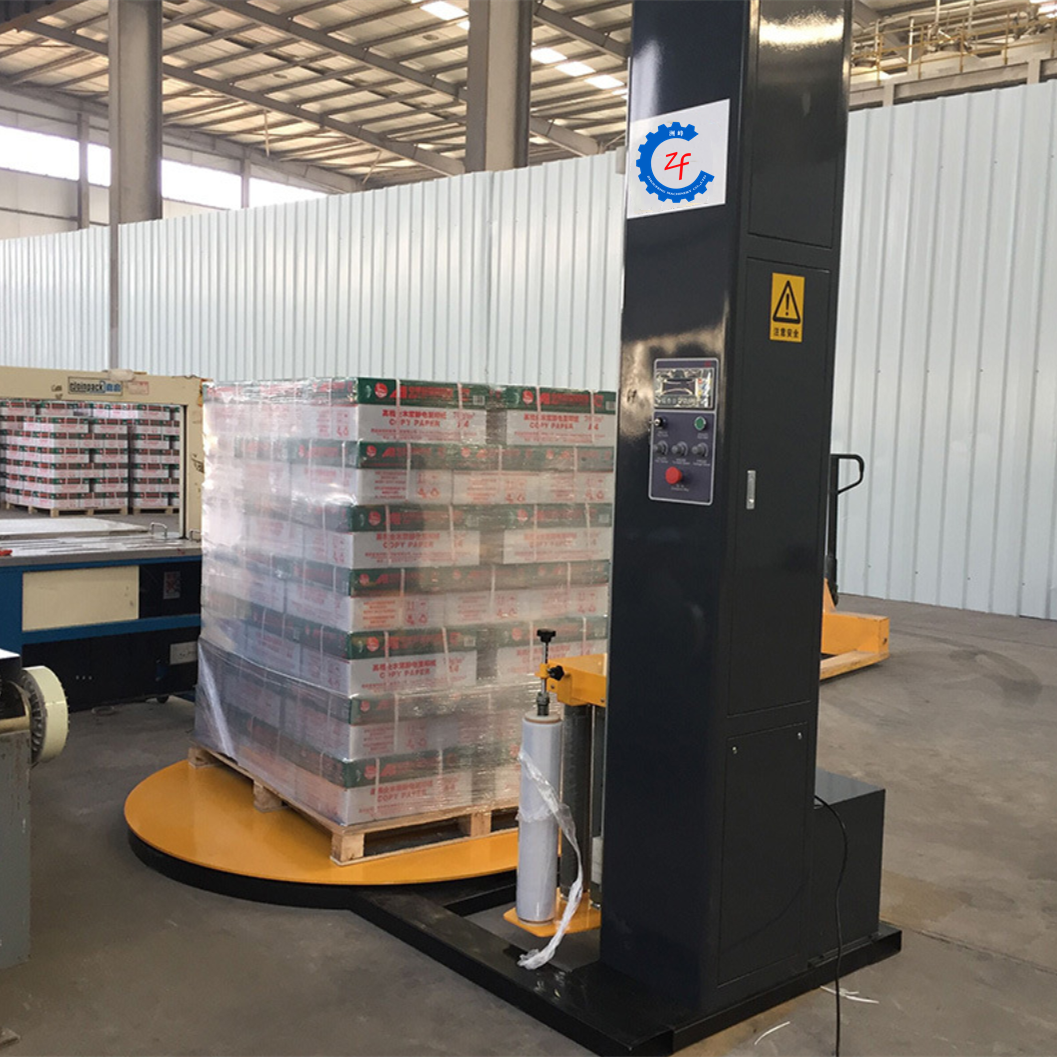

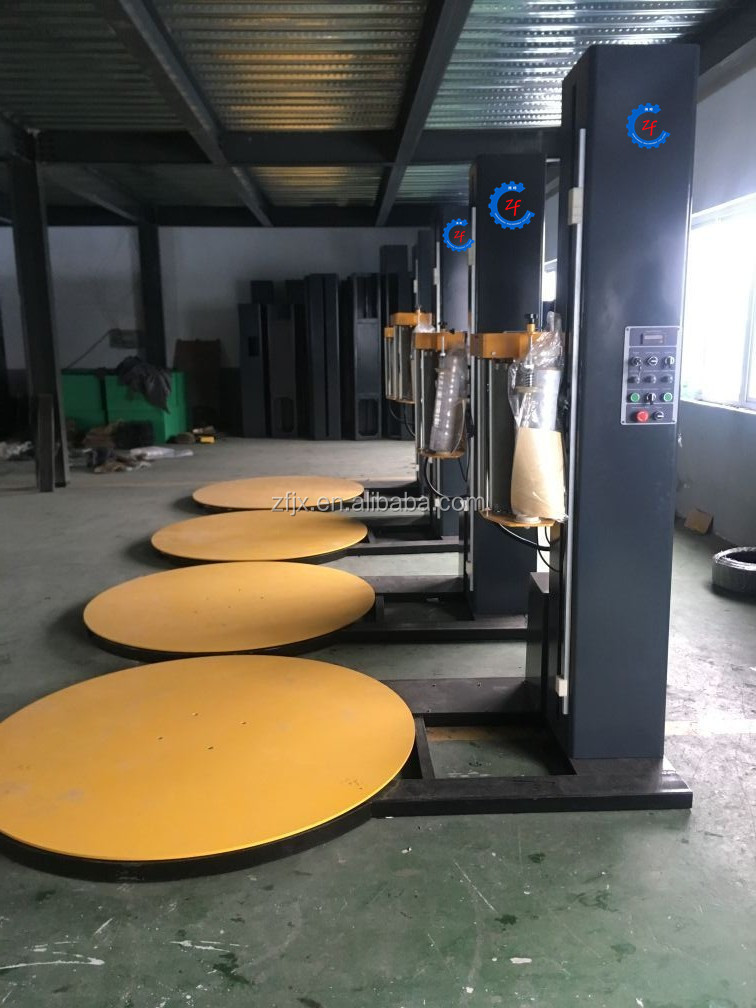

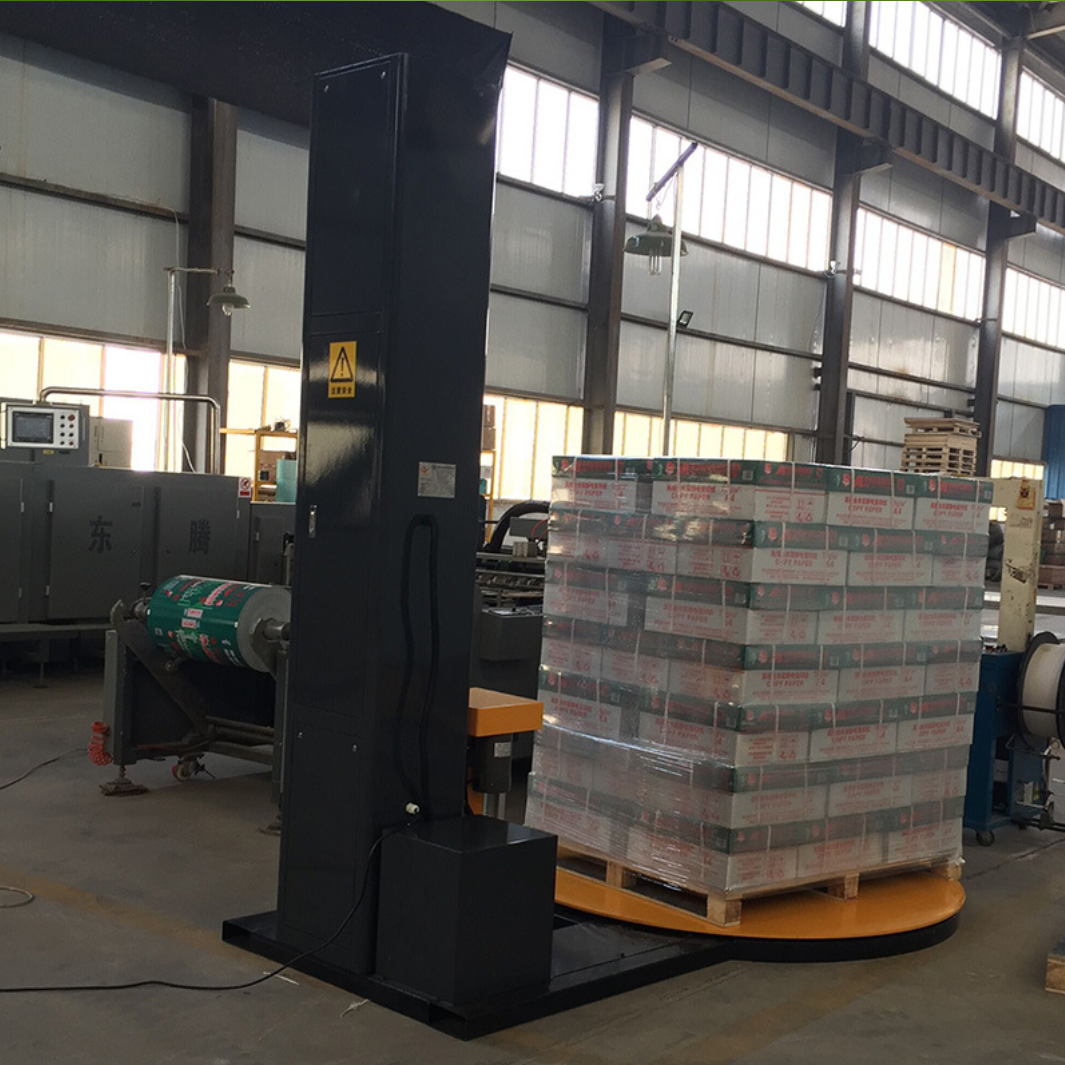

Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified.
Stretch pallet wrapper is widely used in chemical industry, electronic industry, building materials, home appliances, papermaking, foodstuff & drink, etc.
The machine uses a standard type of stretch film packaging material to create a hard-to-tear, resistant, and waterproof cover over the baggage. The film is fully recyclable.
Specifications:
| Parameter | Value / Detail |
|---|---|
| Wrapping size (L*W) | (500-1200)mm * (500-1100)mm |
| Max packing height | 2000mm |
| Packing efficiency | 20-40 loads/hour |
| Turntable speed | 0-12rpm |
| Turntable diameter | Diameter: 1650mm, Height: 85mm |
| Max pallet weight | 2000kg |
| Up-down frame | Double-chain, Up-down speed variable |
| Film carriage | Pre-stretch |
| Control system | PLC |
| Machine weight (max) | 600kg |
| Machine size | 2650mm * 1650mm * 2400mm |
| Electrics | Single-phase 220v / 50hz |
| Power | Turntable: 0.75kw, Film carriage: 0.37kw, Up-down: 0.4kw |

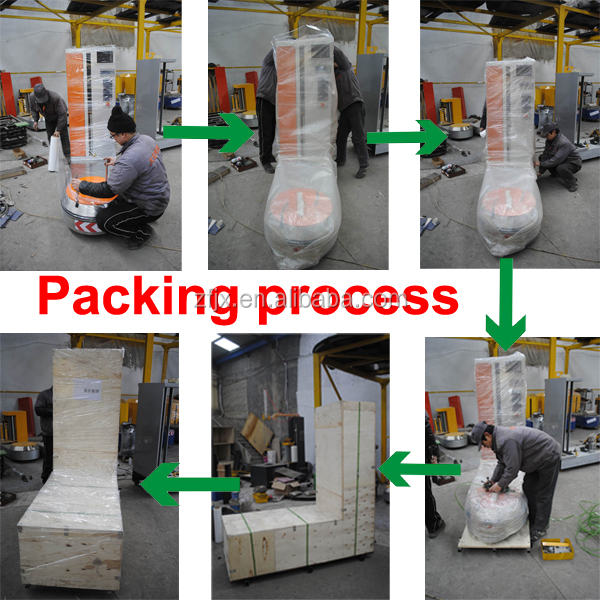

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We are a manufacturer of charcoal making lines, pellet making lines, corn shelling machines, grain feed crushers, food machines, charcoal ball machines and farm machines with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in farms, food production lines, recycling areas, and other industries.

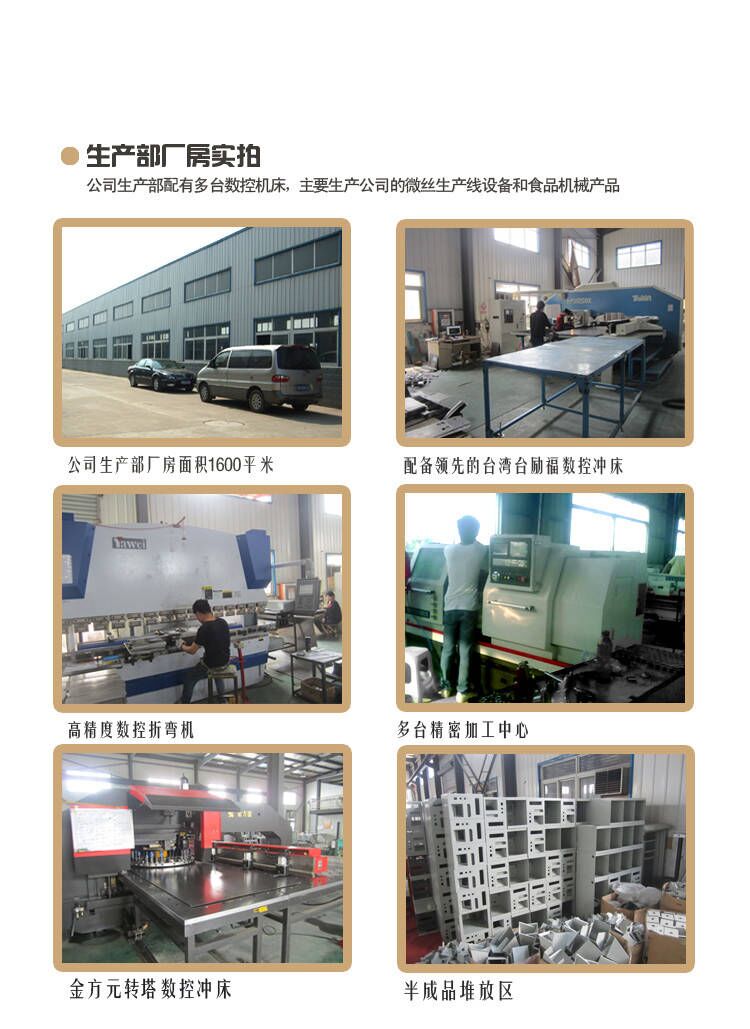

Our facility was established in 2002 and is staffed with dedicated members, including research and development technicians. We provide high-quality products and premium services, earning a high reputation among global clients. We consistently prioritize long-term, mutually beneficial relationships with our customers. Welcome to visit our factory!
Yes, we are a manufacturer with more than 10 years of professional production experience in industrial machinery.
We always provide a pre-production sample before mass production and conduct a final strict inspection on every machine before shipment.
Any order quantity is warmly welcomed. We cater to both small-scale users and large wholesale clients.
Yes, we provide customization options to meet our clients' specific engineering and layout requirements.
This machine is designed for standard stretch film with a width of 500mm, thickness of 20-25 microns, and a maximum weight of 16kg.
The machine can handle a maximum packing height of 2000mm and a maximum pallet weight of up to 2000kg.
