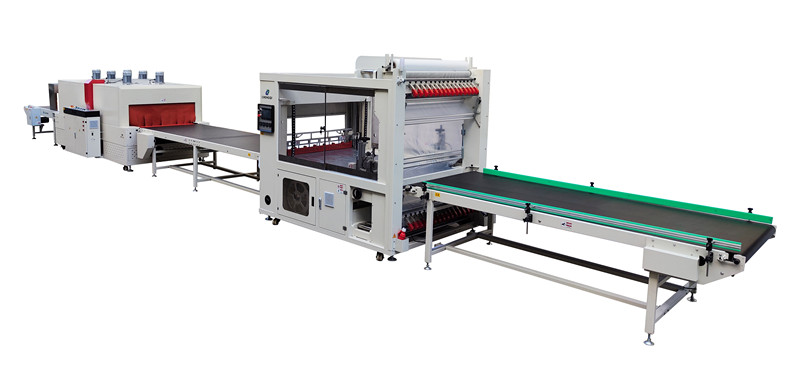

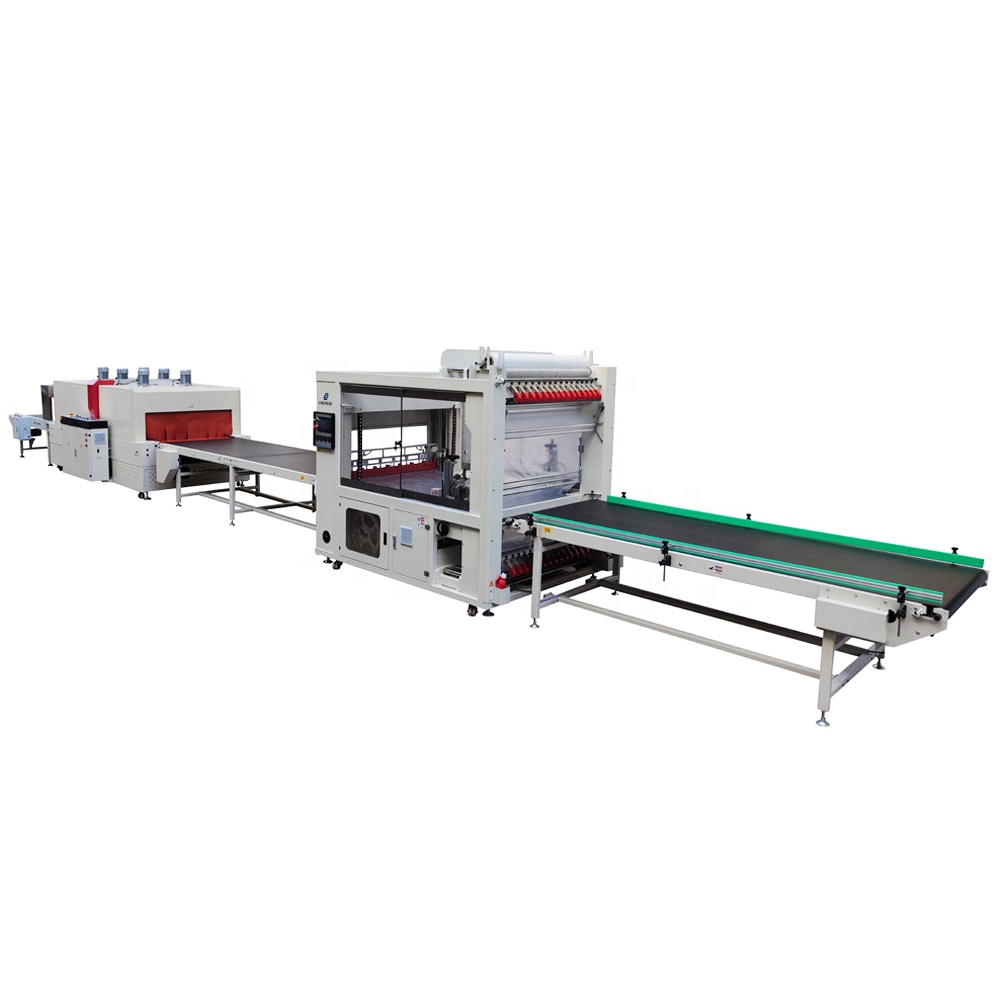

Fully Auto Horizontal Door Frame Window Aluminum Profile Timber Pipe Panel shrink packaging machine
Performance Features

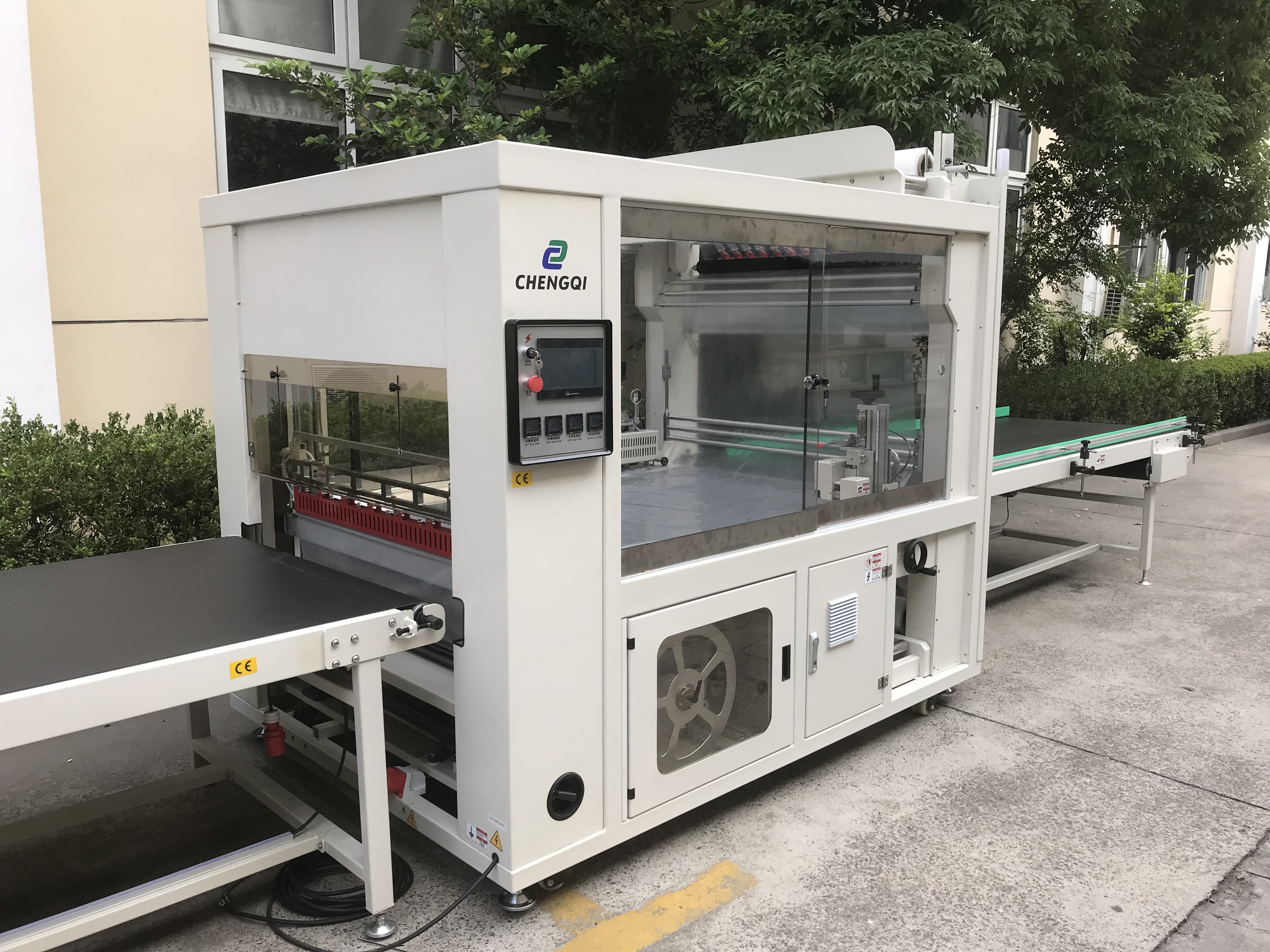

ESD1200D is fully automatic double side sealer, it has up & down single film rollers, no limits of the item length make it particularly suitable for longer, wider and heavy products fully closed packaging, such as doors, flooring, glass, gypsum board.
The use of double sealing mechanism and side sealing front design, the operation process is stable, smooth, it will not break the film.
Using imported digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate which can be set arbitrarily.
With automatic fault monitoring function, a variety of alarm information will be displayed on the man-machine interface.
Electrical control of the Transverse sealing height, simple operate, convenient, adapt to different height products.

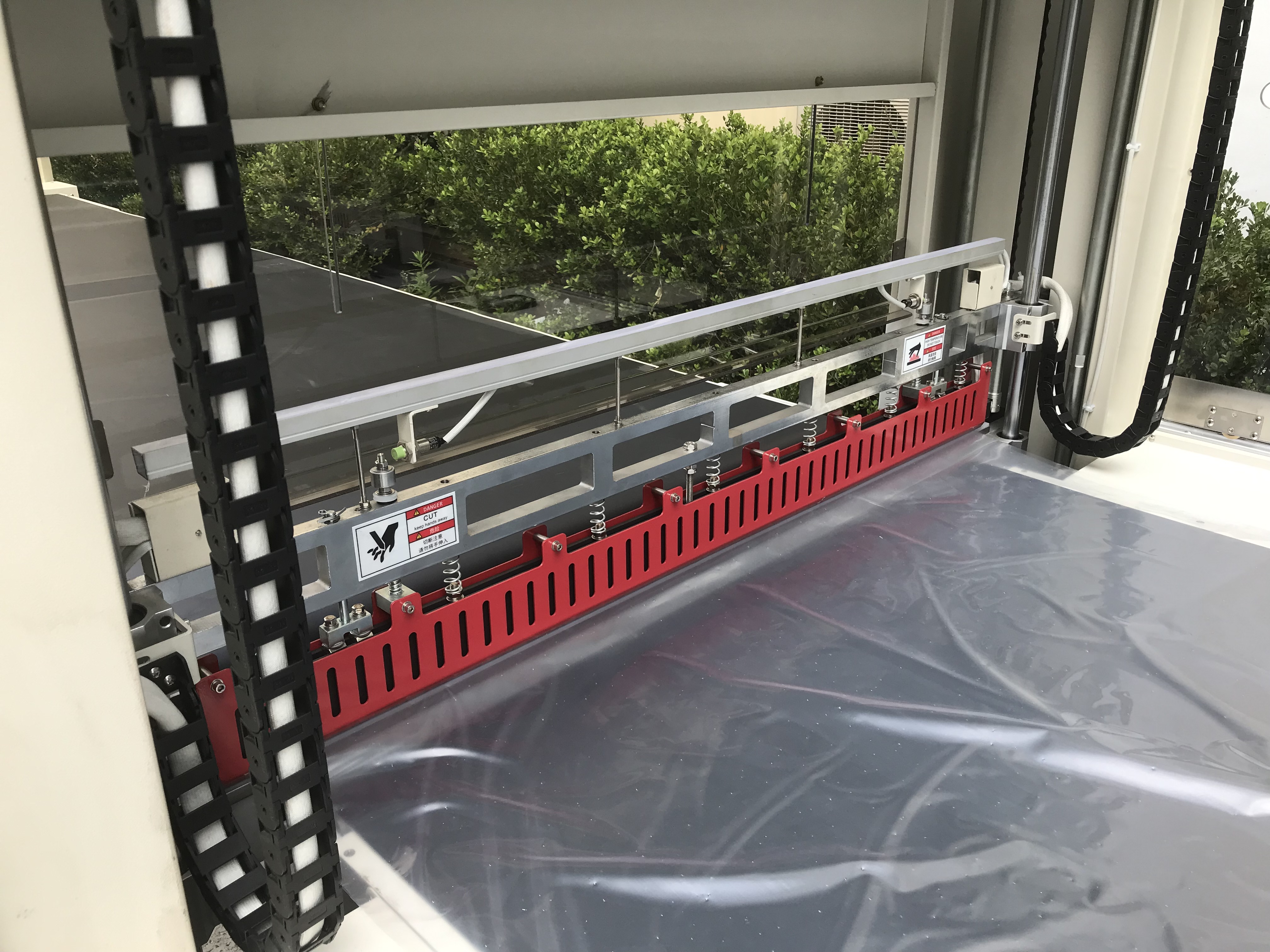

The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.
Imported photoelectric sensor, positioning accuracy, fast response.
Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation.
Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.
Using imported conveyor motor and frequency inverter controls transmission speed to achieved step less speed regulating.
The entire machine realizes unmanned operation with the production line connecting.
BS12060PE heat shrink tunnel adopts four hot air circulation motor makes the hot air in the tunnel is even, constant temperature.
The chain conveyor made of solid steel covered with imported durable silicone tube.
With cold wind equipment which play an effective role in cooling.

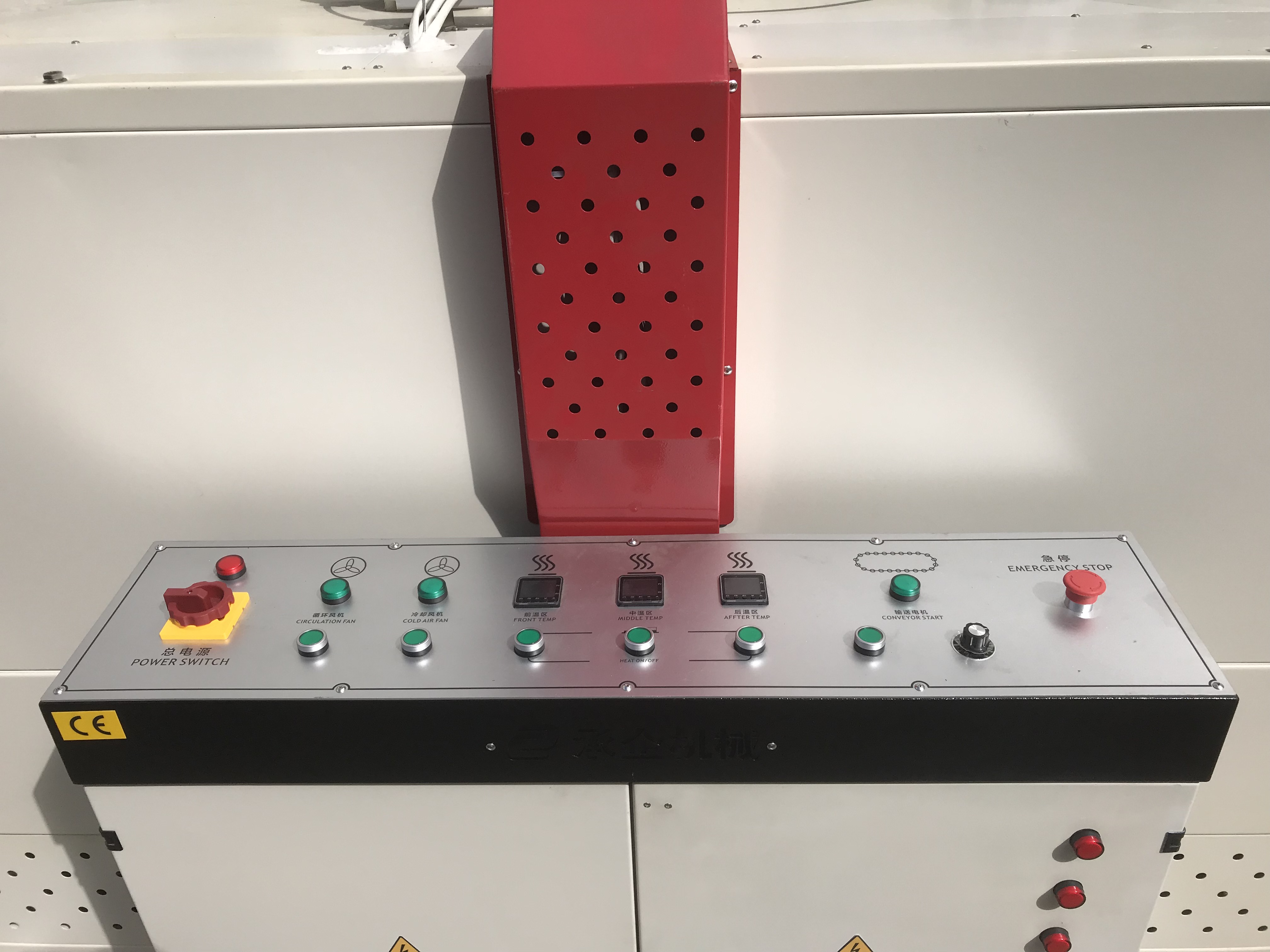

The separate control box makes sure the electrical components with good ventilation.

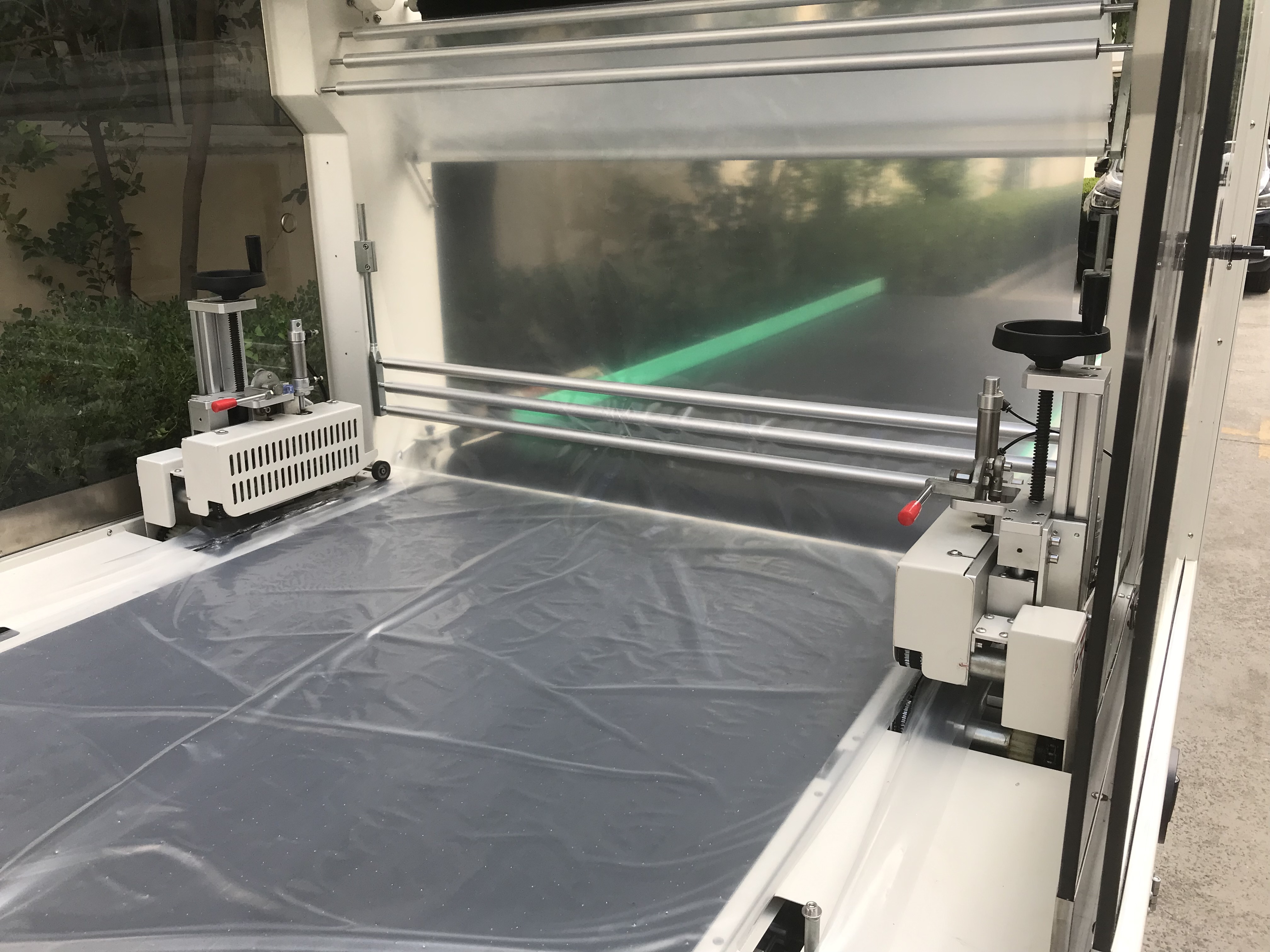

Detailed Images
Technical Parameter
Model: ESD-1200D
Power supply
220V/380 3PH 50/60Hz
Power
4KW
Packing Size
(L)unlimited;(W+H)<1200mm;(H)<300mm
Horizontal cutter blade Size
(W)1200mm
Table height
800mm
Packaging speed
1~15pcs/min(determined by the product size)
Air source
6kg/cm2
Shrink film
PE/POF
Shrink film size
(W)≤1300mm;(D)≤250mm;(weight)≤45KG
Sealing form
Roller full closed
Overall dimension
(L)2440×(W)1770×(H)2150mm
Machine weight
1500kg
Model: BS12040PE
Power supply
220V/380 3PH 50/60Hz
Heating power
36KW
Total power
45KW
Table height
800mm
Conveyor load
80KG
Conveyor speed
1-15m/min
Shrink film
PE/POF
Tunnel size(L×W×H)
3000×1200×400mm
Overall dimension(L×W×H)
3570×1980×1780mm
Machine weight
1600Kg

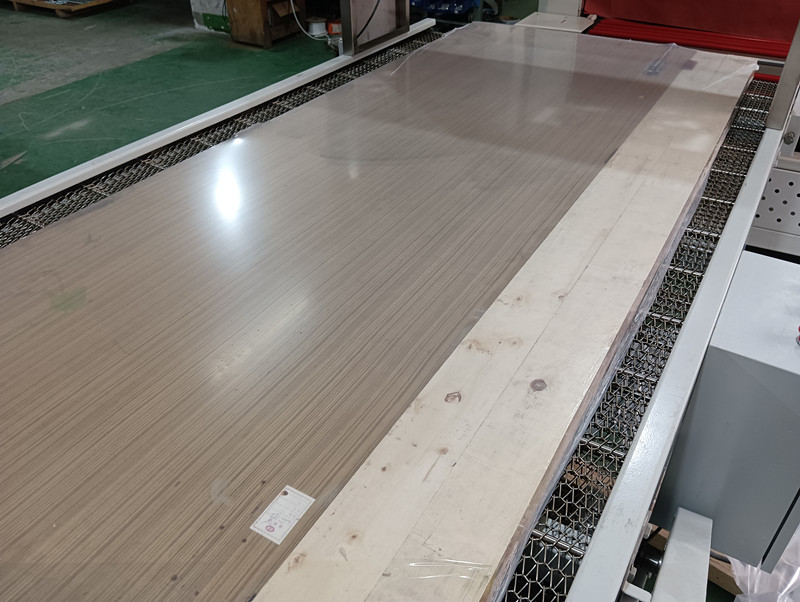

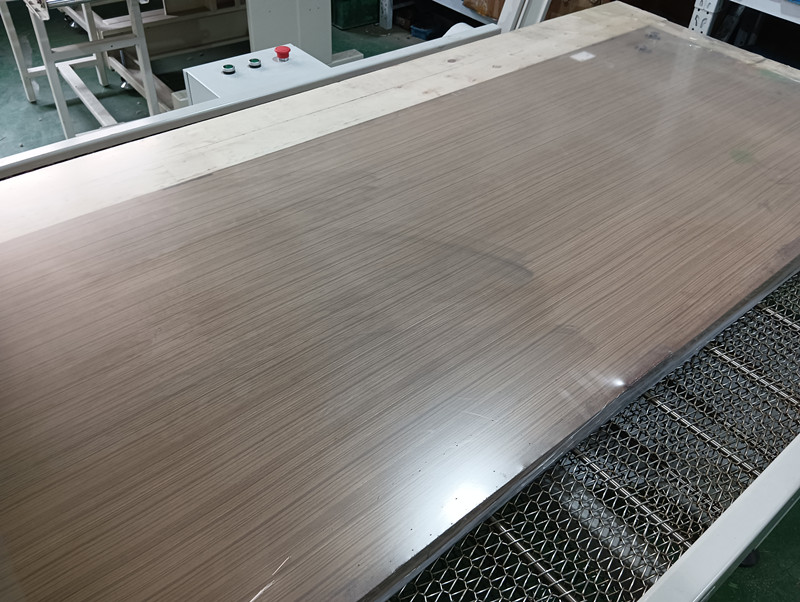

Packed Sample
Our Company
Packing & Delivery
Packaging Details: Standard Export Wooden Box
Delivery Detail: Common specifications are available in stock
Our Service
We can customize machine according to your requirements and your products.
One year Warranty. We will replace the spare parts for free within one year which are non-man made damage except the wearing parts. After the guarantee, we will offer you the most favorable lifelong spare parts.
Frequently Asked Questions (FAQ)
Q1How do we test your machine?
When the machine complete manufactured, we will send video for you check, you can also come to our factory to test and learn how to operate it.
Q2What information shall I provide you when I need your offer?
Normally, please tell us what product you plan to pack and please send us your product size (L*W*H) with weight, then we can quote exactly what you need.
Q3What products are suitable for the ESD1200D shrink packaging machine?
It is particularly suitable for fully closed packaging of longer, wider, and heavy products, such as doors, flooring, glass, gypsum board, aluminum profiles, timber, pipes, and panels.
Q4What types of shrink films are compatible with this machine?
This packaging machine is designed to work efficiently with both PE and POF shrink films.
Q5Does the machine have protection features for the sealing blade?
Yes, the sealing blade itself is equipped with an automatic protection function which effectively prevents accidental cutting during operation.
Q6What is the warranty policy for this shrink packaging machine?
We provide a one-year warranty. We will replace spare parts for free within one year for non-man-made damage (excluding wearing parts). Lifelong support and favorable pricing for spare parts are provided after the warranty.
