| Model | GH-3015L | SF-5030LG |
|---|---|---|
| Power | 2.5kw | 22kw |
| Power Supply | AC220V 1/3PH 50/60Hz | AC380/220V 50/60Hz |
| Cross Blade Length | 490mm | / |
| Packing Size (L x W x H) | L(unlimited), W+H ≤ 440mm, H ≤ 150mm | Chamber Size: 2000 x 500 x 300mm |
| Min. Packing Width | 50mm | / |
| Max. Dia. of Film Roll | 350mm | / |
| Packing Speed | 15m/min | 15m/min |
| External Air Source | 6~8bar | / |
| Shrink Film | POF | POF |
| Machine Size (L x W x H) | 1748 x 975 x 1650mm | 2300 x 1035 x 1260mm |
| Crate Size (L x W x H) | 1710 x 1005 x 1750mm | 2400 x 1140 x 1460mm |
| G./N. Weight | 575/525kgs | 650/600kgs |
These automatic sealing and shrinking packing machines are highly compatible with POF, PE, and cross-link films, providing versatile choices for various application demands.

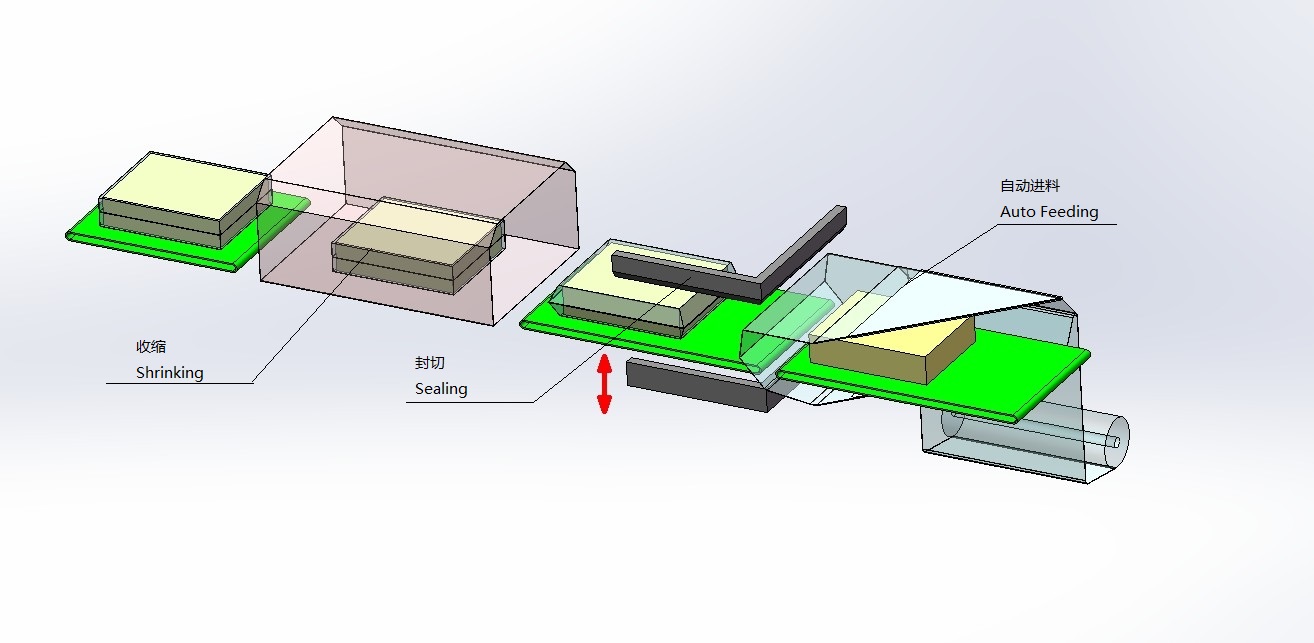

Yes. The side sealing design permits unlimited packing length, making it exceptionally suitable for extra-long products.
The formula storage function allows users to save packing parameters. You can easily retrieve preset specifications, dramatically cutting down changeover times.

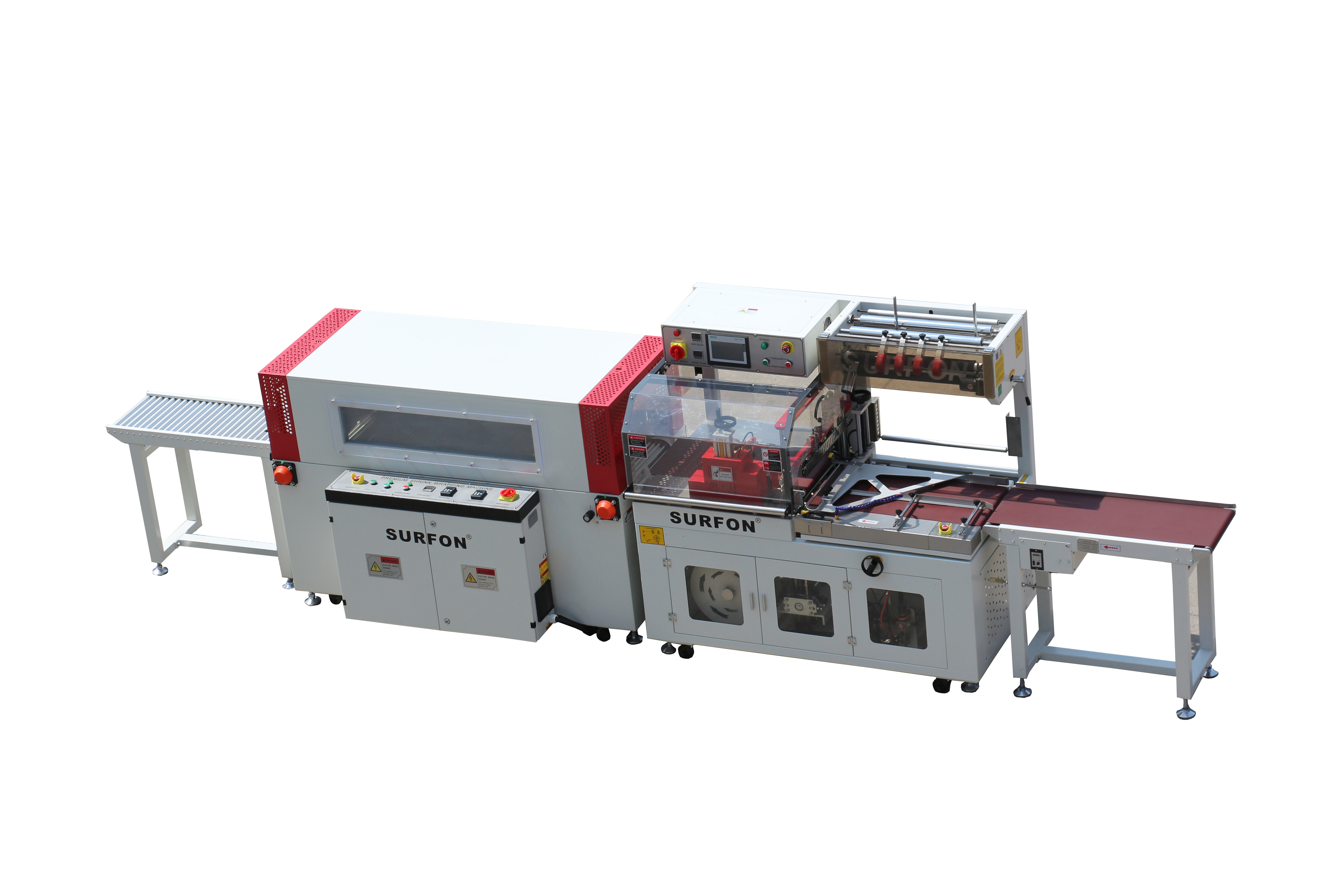

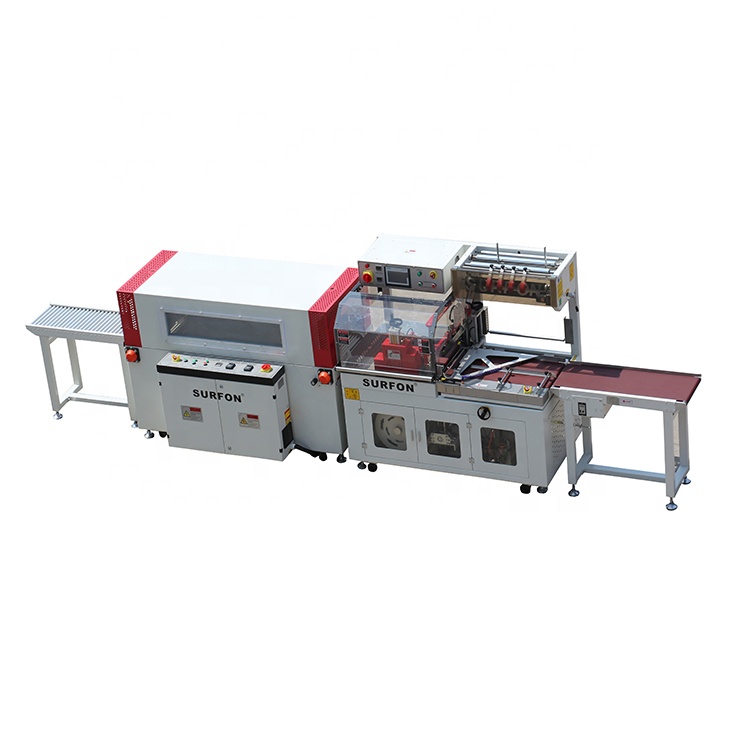

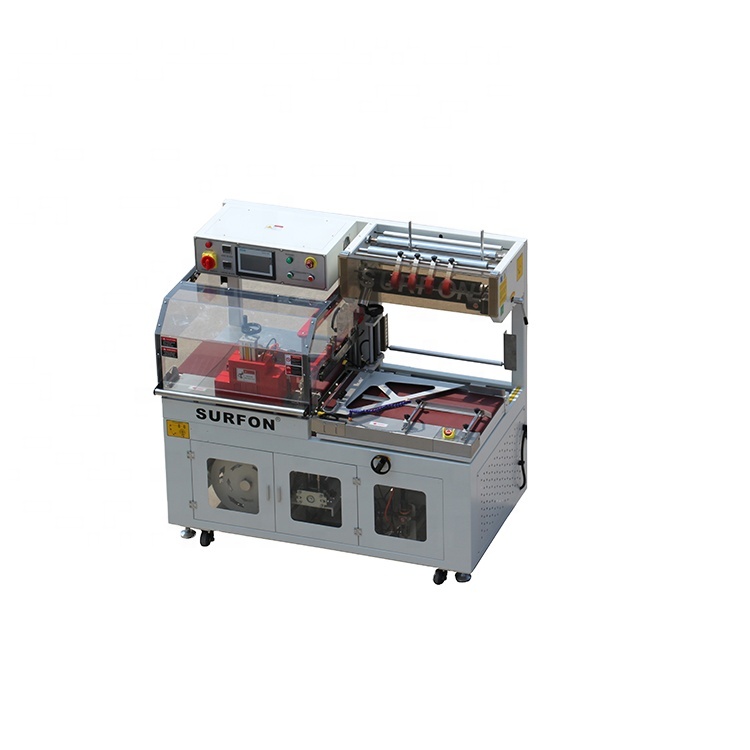

The GH-3015L is the sealing component with a 2.5kw power rating and a cross-cutting blade. The SF-5030LG is the shrinking tunnel featuring a 22kw heating system and a 2000 x 500 x 300mm chamber.
The machine features an integrated automatic waste material collection function that cleanly winds up the trimmed film edges, keeping the workspace neat.
