| BS-4522N Inner Circulation Model | BF450 Model | ||
|---|---|---|---|
| Model | BS-4522N Inner Circulation | Model No | BF450 |
| Supply voltage | 380V 60Hz | Product Name | Plastic Wrapping Machine |
| Heating power | 10KW | Voltage | 220V 50/60Hz |
| Maximum Load | 20KG | Power | 1.25KW |
| Channel size | L1300 × W450 × H220 (mm) | Conveyor belt width | 330mm |
| Applicable size | ≤ W300 × H150 (mm) | Maximum packaging size | W < 330, W + H < 350, H < 140 mm |
| Speed | 0 ~ 10 m/min | Maximum membrane width | ≤ W450 × H320 (mm) |
| Consume materials | PVC/PP/POF (max 0.04mm = 40 microns) | Packing Speed | 20/min |
| Product size | L1700 × W710 × H1320 (mm) | Working air pressure | 0.5Mpa |
| Package size | L1740 × W740 × H1280 (mm) | maximum payload | 15 - 20 kgs |
| CBM Volume | 1.67CBM | Knife size | W450mm |
| Overall weight | 205.5kg | Machine size | L1737 x W922 x H1442 mm |

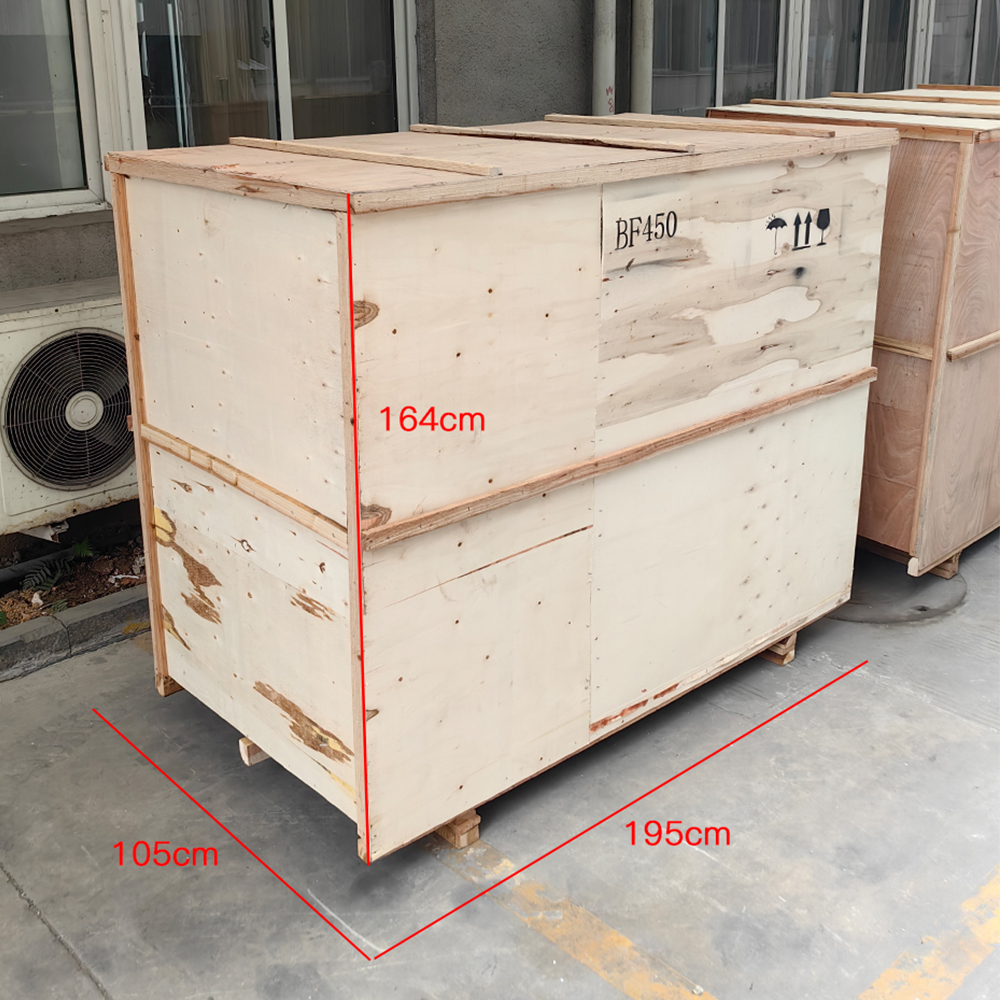

| Metal/Quartz Tube | Metal Tube 1190mm × 6 | Package Size | L2100 x W1200 x H1800 mm |
| Fan Type | Fan 150W × 2 (Wind Wheel) | Weight | 400kgs |
These machines support PVC, PP, and POF shrink packaging materials, with a maximum recommended film thickness of 0.04mm (40 microns).

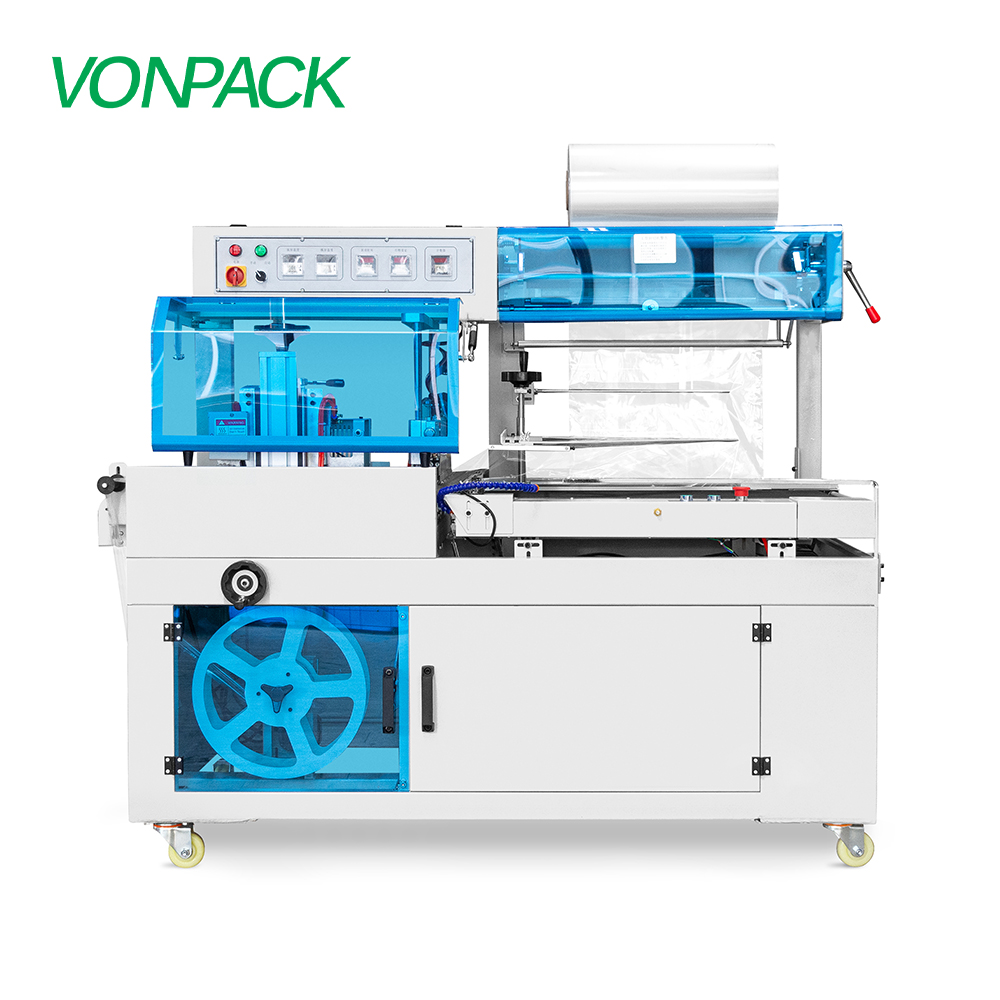

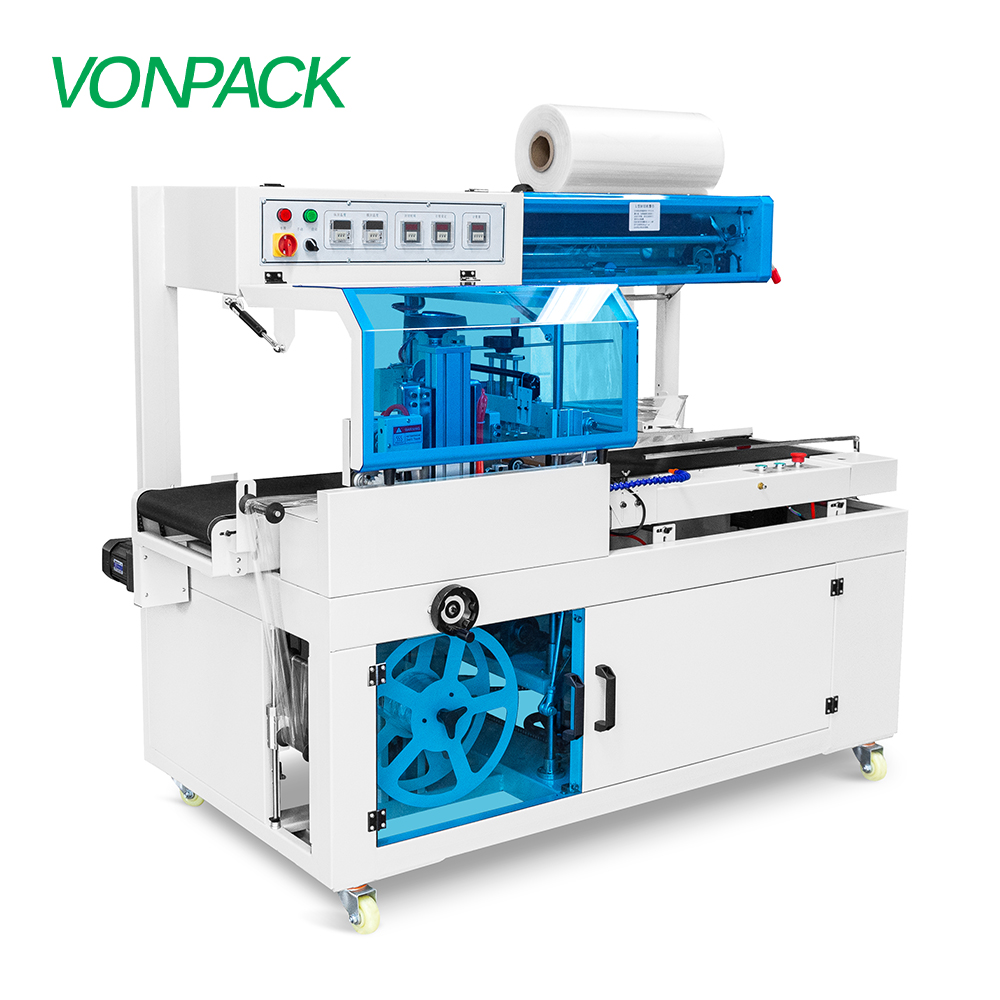

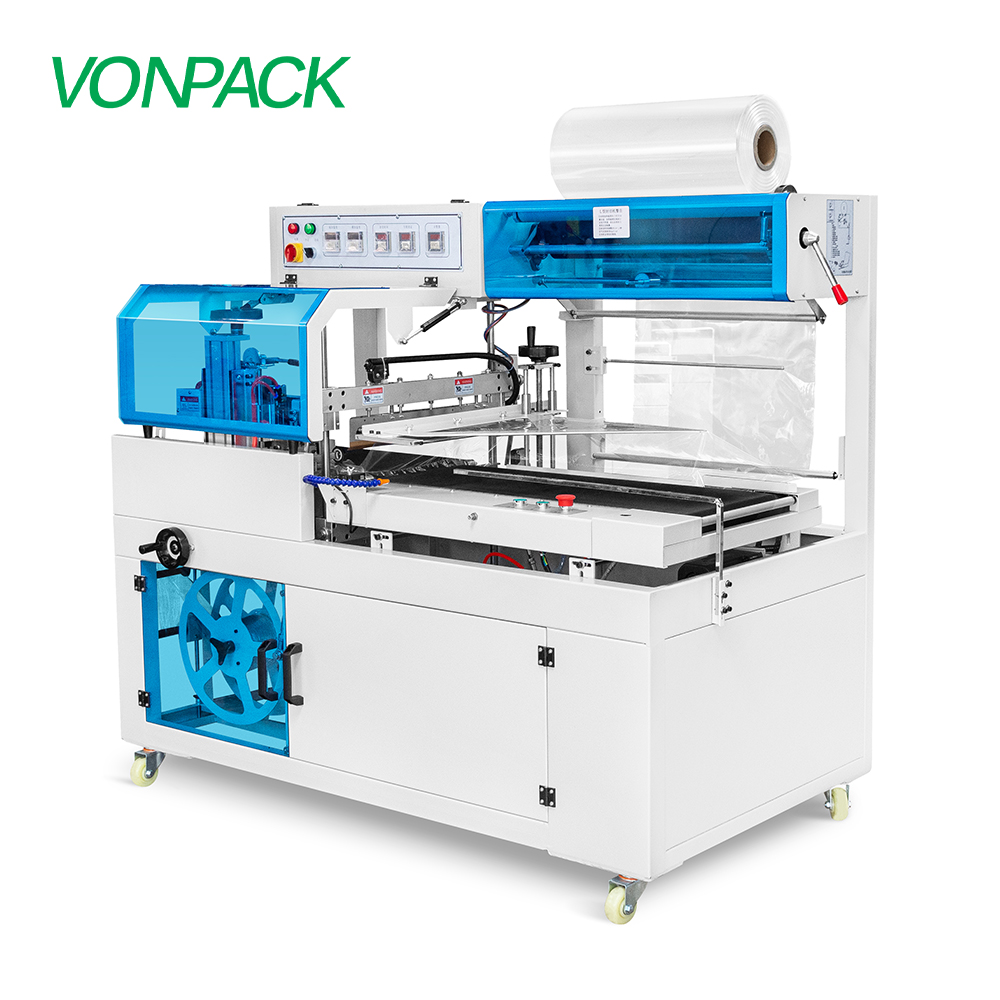

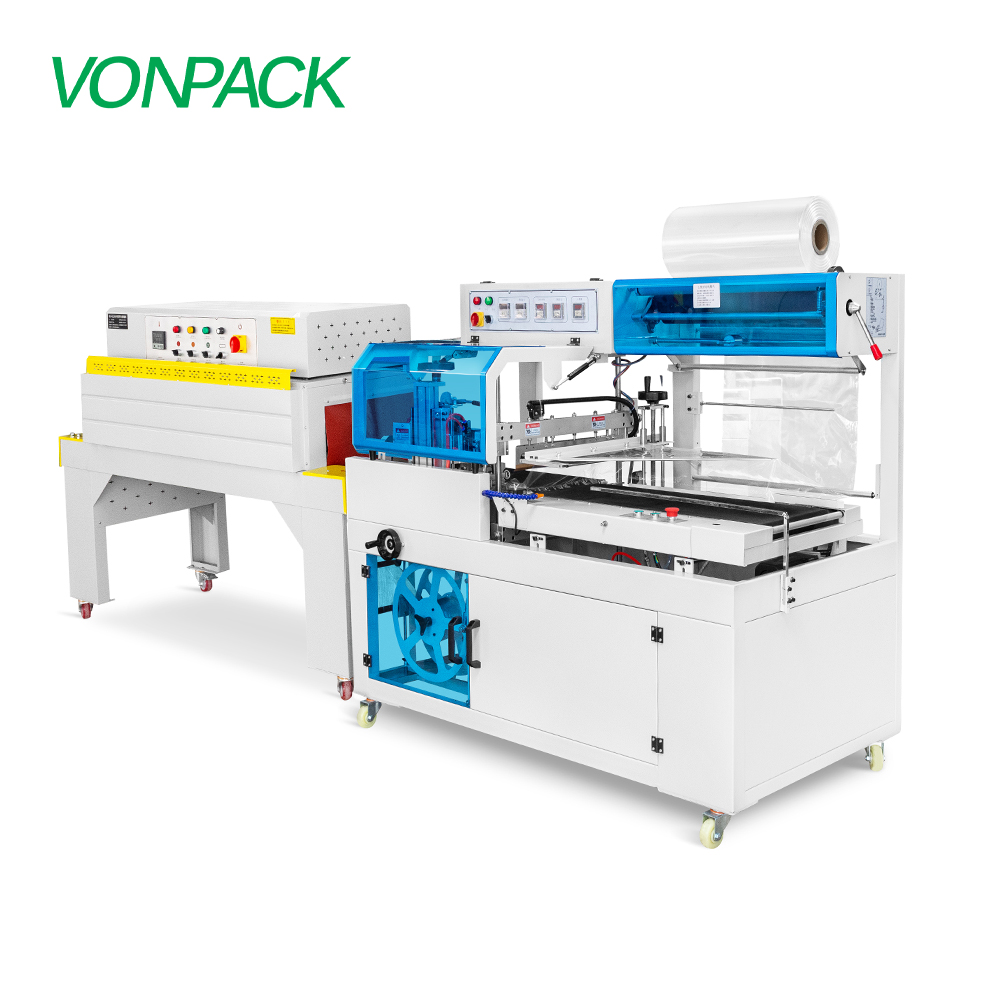

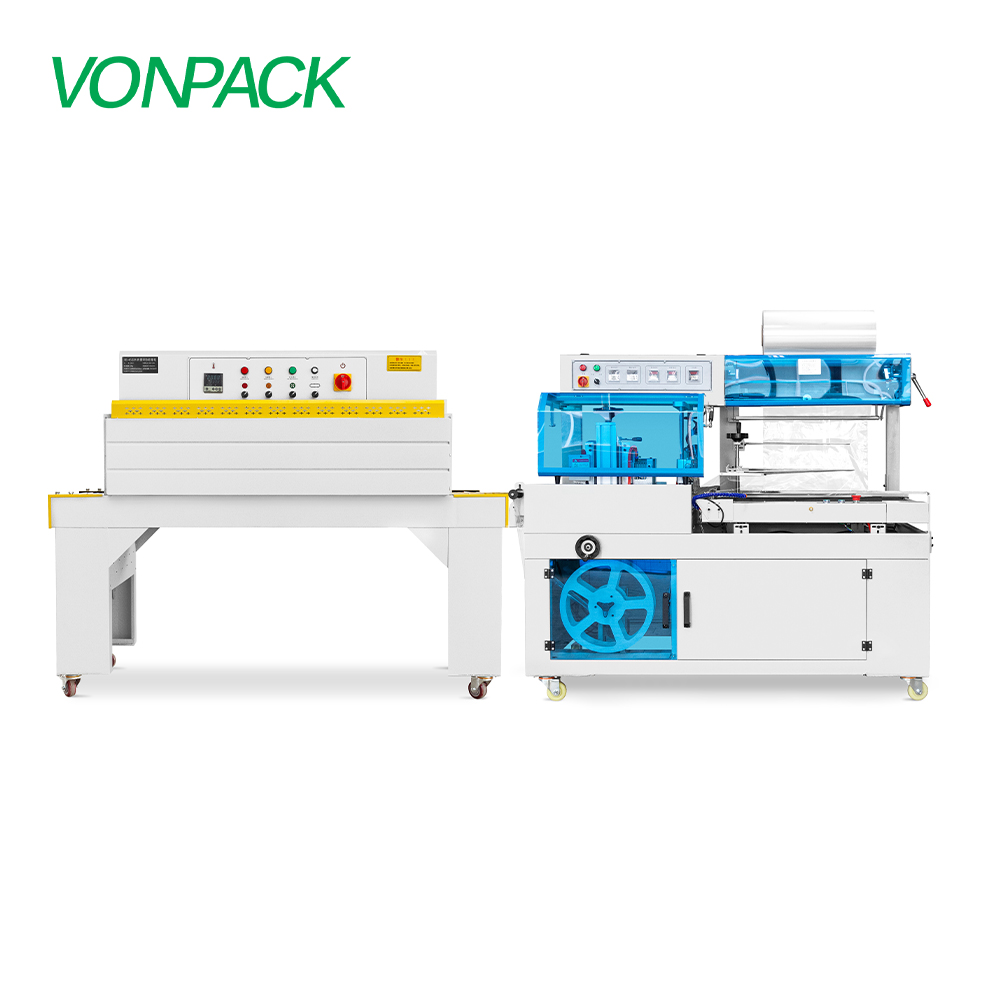

The BS-4522N is an inner circulation shrink tunnel machine powered by a 380V supply with 10KW heating capacity. The BF450 is a compact L-bar sealing or wrapping unit operating on a 220V supply with a 1.25KW power requirement.

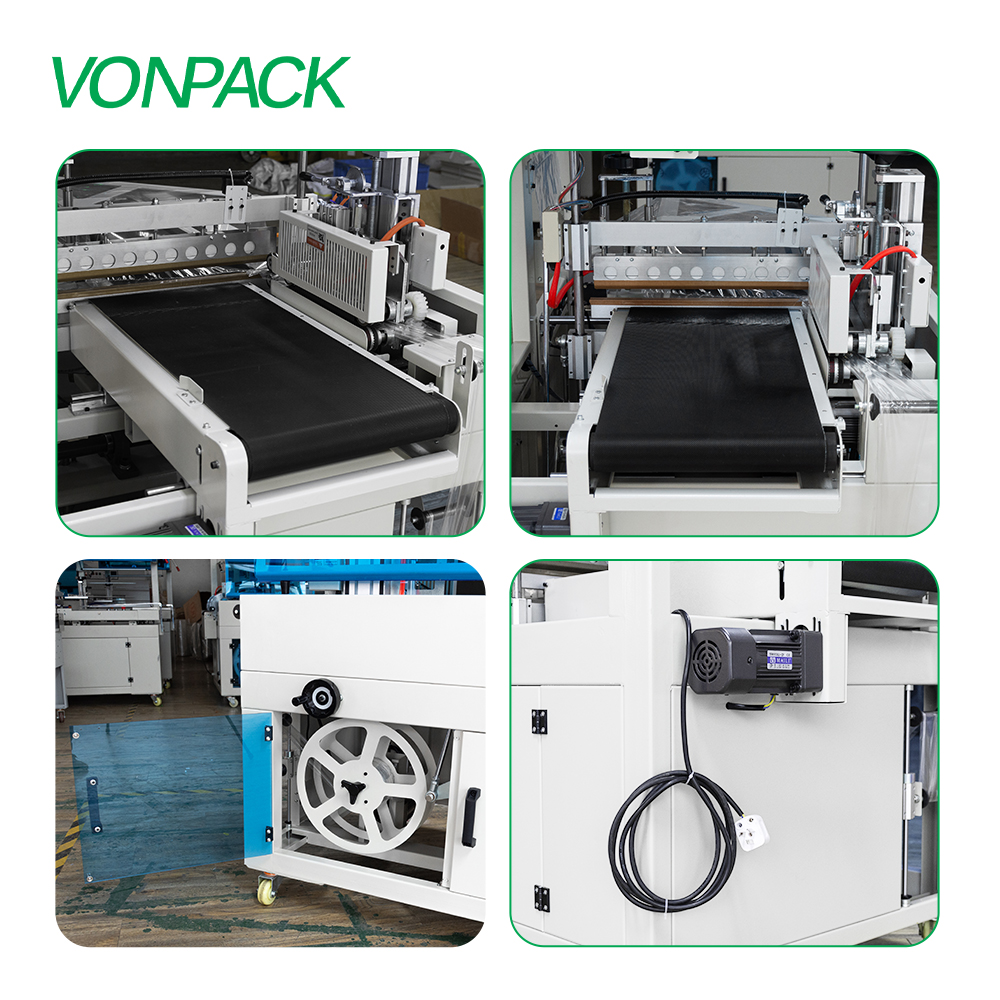

Yes, the conveyor speed is fully adjustable from 0 to 10 meters per minute to match different production outputs and film heat-time requirements.
For the BS-4522N, the applicable package size limit is ≤ W300 × H150 mm. For the BF450, the maximum object dimensions are constrained by Width < 330mm, Height < 140mm, and a combined Width + Height < 350mm.
The BS-4522N uses a total of 6 metal tubes (1190mm in length) paired with dual 150W fans to ensure stable air circulation and uniform heat distribution.

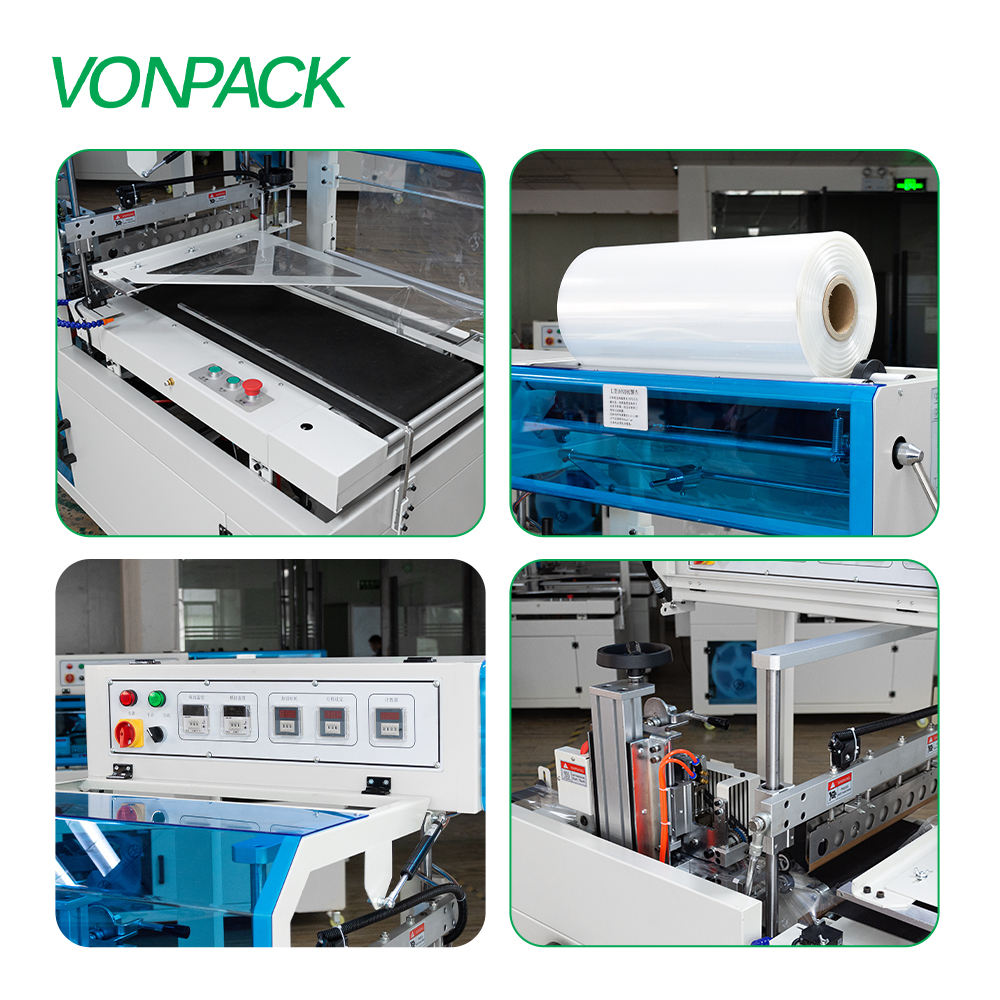

Yes, the BF450 model operates with a working air pressure of 0.5Mpa to actuate the sealing knife assembly.
