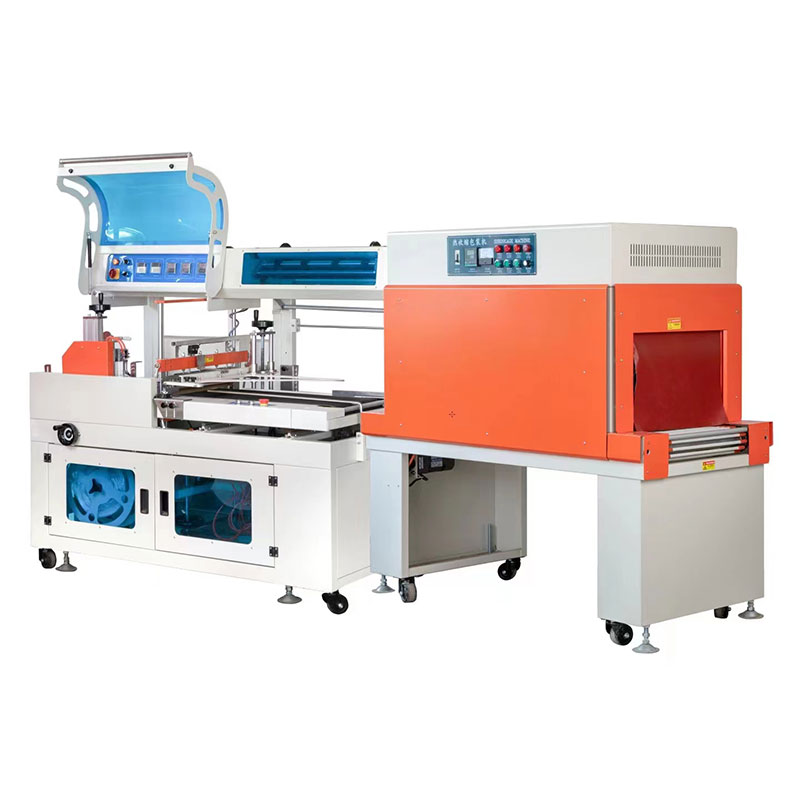

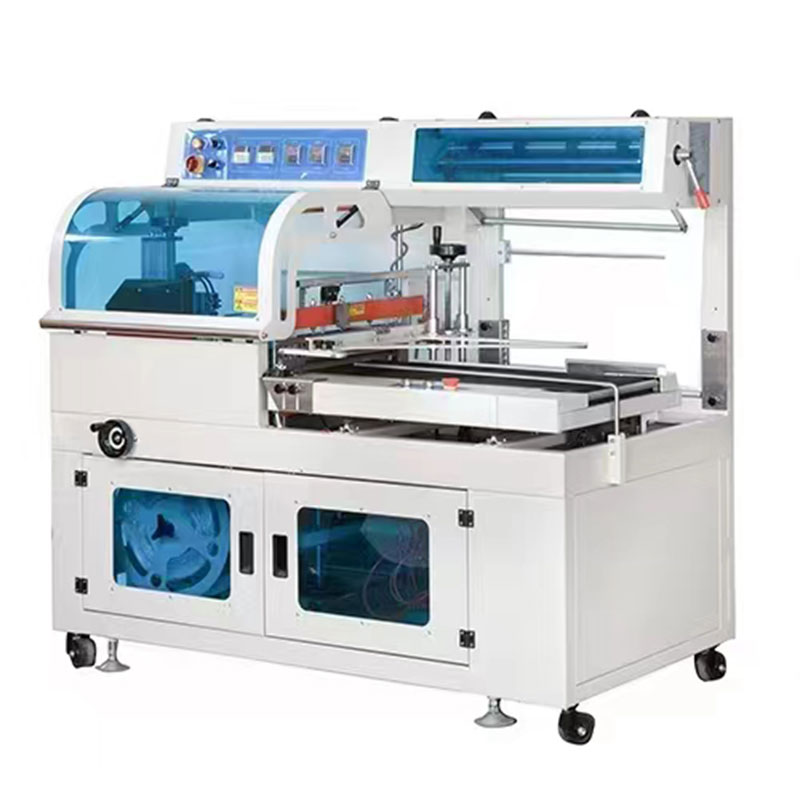

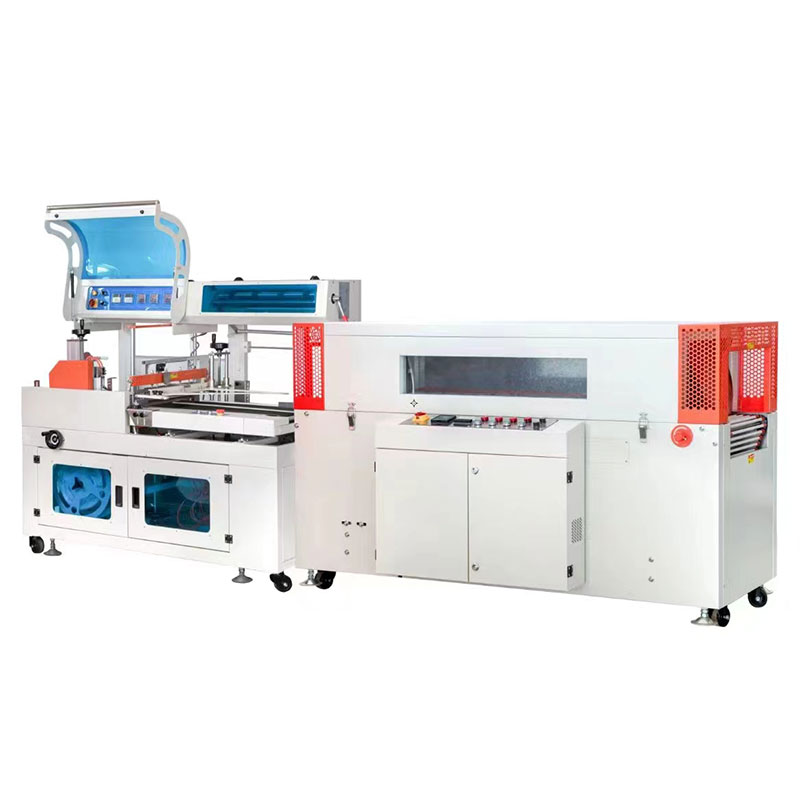

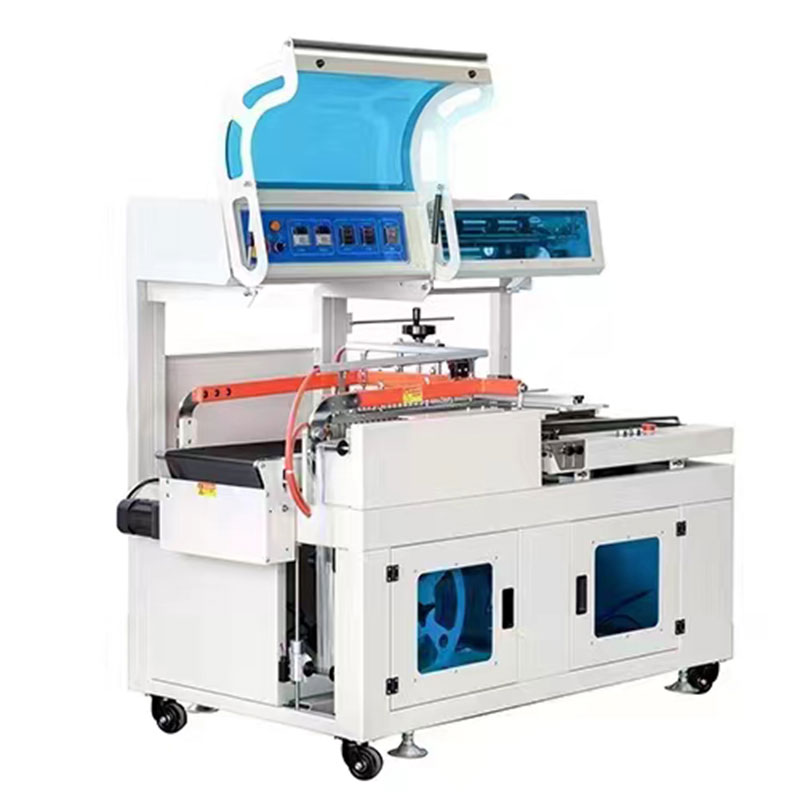

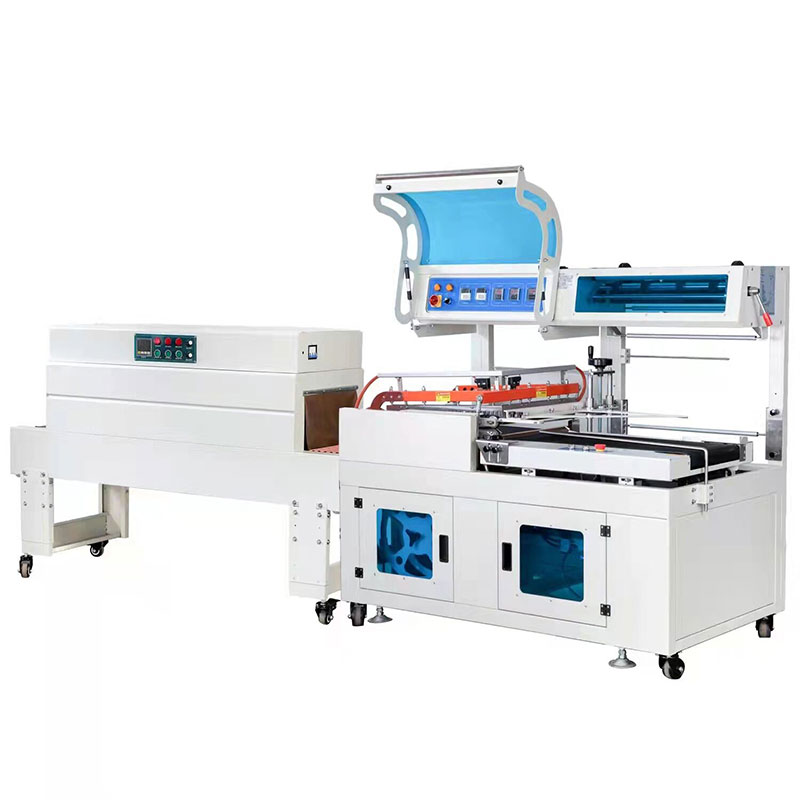

Suitable for large quantity shrink wrapping industries such as stationery, food, cosmetic, metal industries etc. It features imported PLC automatic program control, easy operation, safety protection and alarm functions to effectively prevent incorrect packaging. Equipped with imported horizontal and vertical detection photoelectrics, it is easy to switch selection. It has the function of contact, specially designed for packing small size products. The machine can be connected with the production line, requiring no additional operators.
| Machine | Sealing And Cutting | Shrink Tunnel |
|---|---|---|
| Machine size (L*W*H) | 1685*828*1480mm | 1300*700*1465mm |
| Max. packing size | (L)≤500 (W)≤430 (H)≤200mm | (L)700*(W)350*(H)200mm |
| Max. sealing size | (L)550* (W)450mm | - |
| Packing speed | 15~25pcs/min | 0-15m/min |
| Machine weight | 225kg | 260kg |
| Power | 2.5kw | 9kw |
| Voltage | 1PH 220V 50Hz | 3PH 380V 50Hz |
| Air pressure | 6-8kg/cm2 | - |
| Film material | POF | POF |
We are a full-service provider of the packaging sector, specialized in end-line solutions. Boasting approximately 300 employees, 3 subsidiaries and 2 production facilities in the packaging zone, we operate in more than 100 countries and provide global customer service. Specifically, group production ranges from semi-automatic wrapping machines with smart technology to innovative automatic solutions, from industrial wrapping machines to shrink wrapping machines, cartoning machines, sealing machines, strapping machines, to tailor-made packaging solutions.
Our factory has 16 years of experience in mechanical processing. All our machines have successfully obtained ISO9001, SGS, and CE certifications. They have been exported to many countries and regions, earning a solid reputation among our customers.
We treat quality as our lifeblood. Based on high-quality standards, we guarantee to provide our clients with reasonable, competitive, and highly satisfactory pricing.
Certainly. We have recorded operational videos for every machine model. Please reach out to us and we will promptly send you the requested videos.
We offer a two-year warranty. We supply spare parts and can dispatch engineers if needed, providing support 24 hours a day, 7 days a week. We also provide technical manuals and setup videos to ensure easy installation, along with free operator training.
This system is optimized to work with POF (Polyolefin) film materials, providing premium, tight, and reliable shrink wrapping protection.
Yes, the machine can be connected directly to your existing production line, enabling seamless automatic feed and wrapping without requiring additional operators.
