Product Description

Product Description

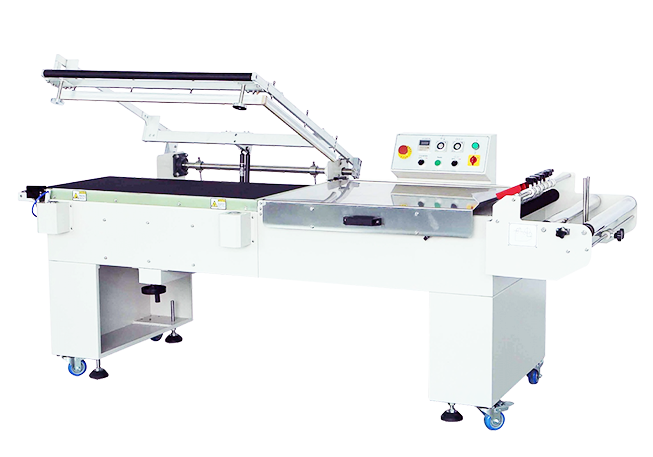

Semi-Automatic L-Bar Sealer
Semi-Automatic L-Bar Sealer
L-sealer is one of the most versatile shrink wrapper models on the market. It is built for applications that require packaging line speeds approaching those of fully automatic sealers, but where equipment cost is a factor or where the product does not lend itself to automatic handling. This machine model is especially suitable for packing irregular product.
Key Features
  • Manual or pneumatic model are available.
  • Alchrome wire sealing and cutting system provides a strong seal and smokeless operation.
  • Discharge conveyor removes the package to the shrink tunnel when the seal is complete.
  • The height of sealing table is adjustable.
  • Protection device is assembled in sealing frame.
  • LB-601 contains automatic sealing cycle function.

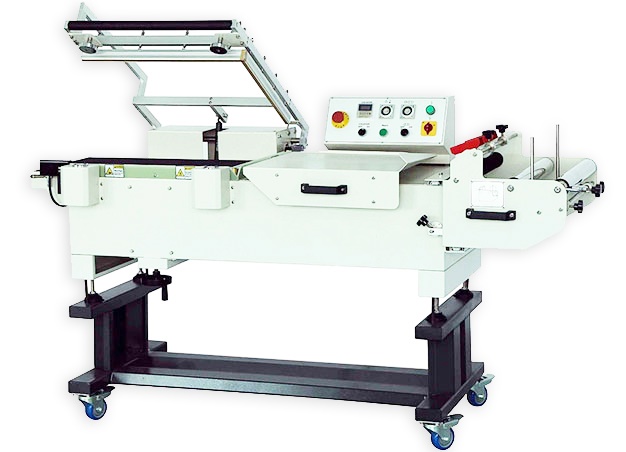

L-Bar Sealer Operations
Technical Specifications
Specifications LB-601 LB-601A LB-602
Machine Size (L x W x H) (mm) 1795 x 810 x 975 1790 x 713 x 1029 2410 x 1095 x 1515
Packing Size (L x W x H) (mm) (50-500) x (100-400) x (2-280) (50-500) x (100-400) x (2-200) (10-850) x (10-650) x (2-280)
End Seal Bar (mm) 530 x 450 30 x 450 900 x 700
Max. Film Width 20" 20" 10"
Power 220V, 1P, 2.5Kw 220V, 1P, 2.5Kw 220V, 1P, 5Kw
Packing Capacity (packs/min) Max. 10 (Depends on products)
Shrink Film Material Parameters
  • Excellent water vapor barrier
  • High abuse & puncture resistance
  • Shrinkage rate is 45%-60%
  • Thickness: 50-120 mic
  • Width: 175-550 mm | Length: 600m, 1000m, 1500m
  • Bag width: 100-1000mm
Recommend Products
FAQ
Do you accept OEM?
Yes, we do.
What's your delivery time?
15-25 working days.
What's your production capacity?
About 20 ton per day.
What's your payment term?
We accept T/T, L/C, Western Union, Paypal, and Cash.
Do you provide free sample? And how many days it will take?
Yes, we can provide free sample, of course it is better if you would like to pay the courier charge.
How can we know whether the quality is good or not?
We can arrange you free sample and our certificates.
