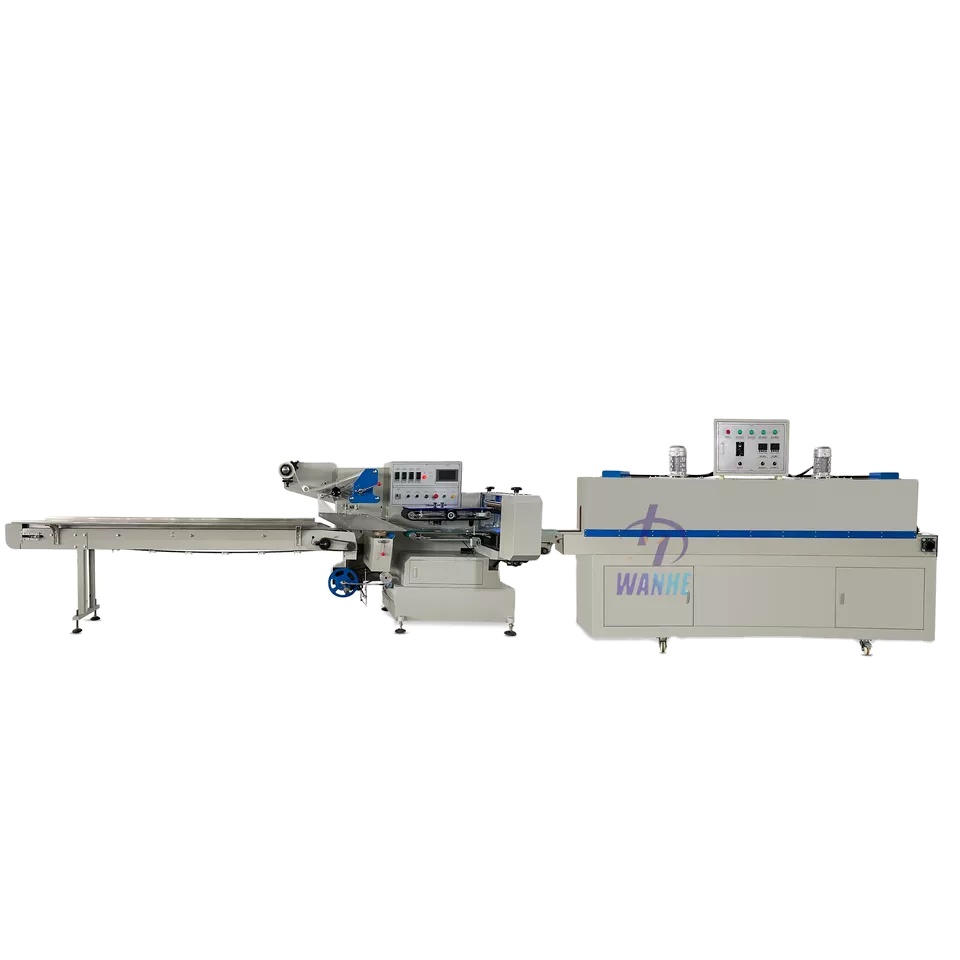

KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine
KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine
KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine
KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine
KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine
1 / 5
KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine
KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine
KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine
KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine
KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine

KDS-600 Automatic Heat Shrink Packaging Machine Flow Wrapper /pillow Horizontal Packaging Machine

Send Inquiry

Product Description

Product Display

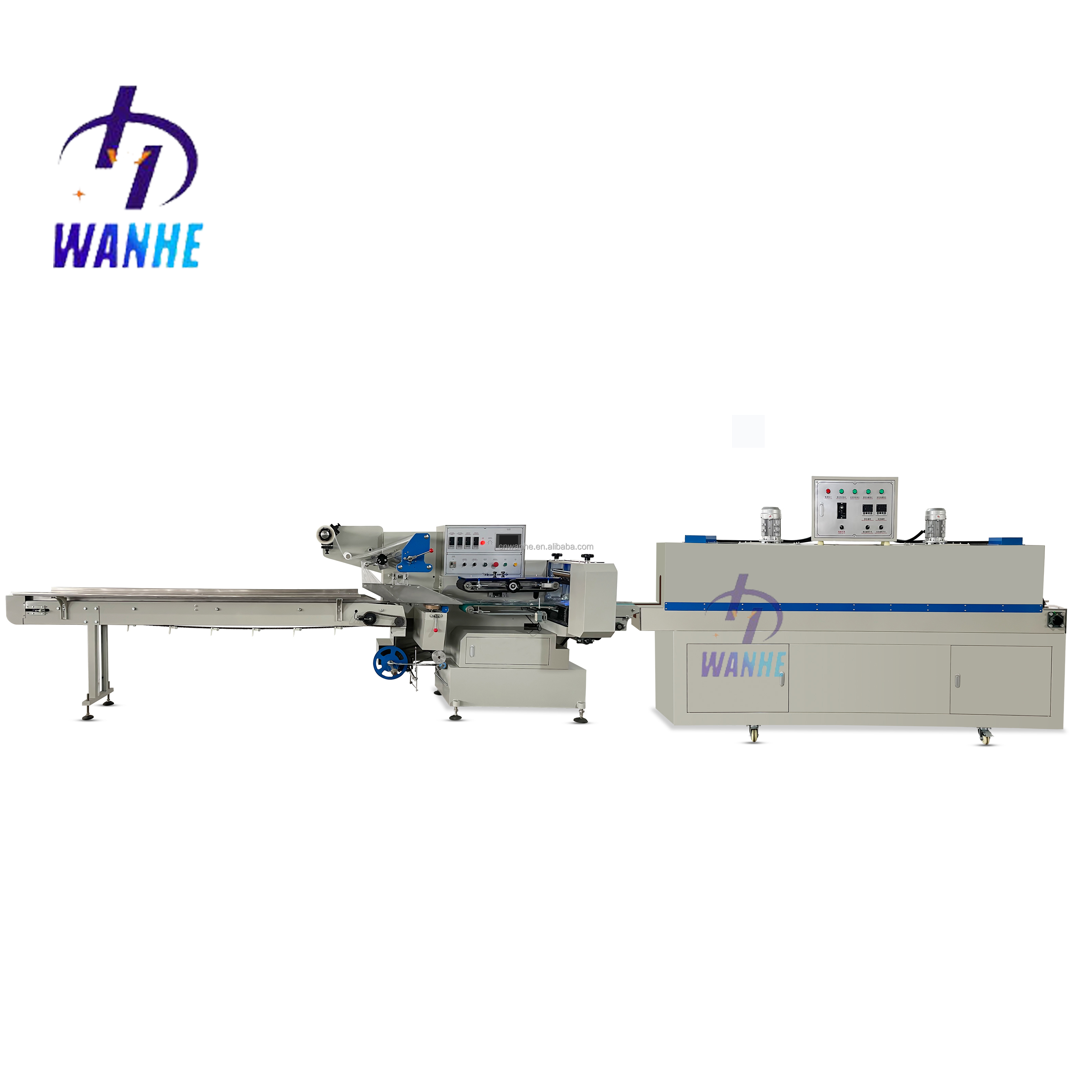

KDS-600 Packaging Machine Product Display

Specification

Model KDS-600
Packing Speed 50-150 bags/min Depends on product
Packing Material PVC; POF Shrinking Film
Max Film Width ≤590mm
Packing Size L:60-320mm W:10-200mm H:5-35mm
Packing Size L:100-450mm W:10-200mm H:35-70mm
Packing Size L:150-530mm W:10-200mm H:75-110mm
Packing Size L:180-600mm W:10-200mm H:80-135mm
Total Power 3.6kw+16.5kw 50/60Hz AC220V
Packing Machine 220V 50HZ
Shrinking Tunnel 380V 80HZ
Dimension(L*W*H) 5000x1105x1450mm/2400x600x1700mm
Weight 1000kg/600kg

Machine detail

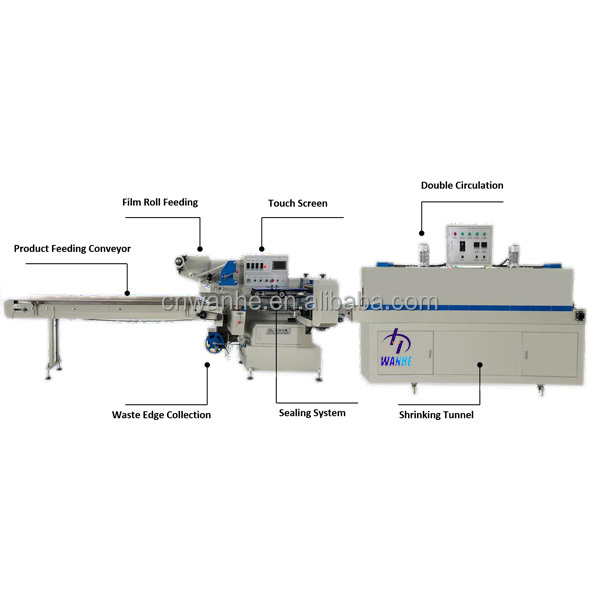

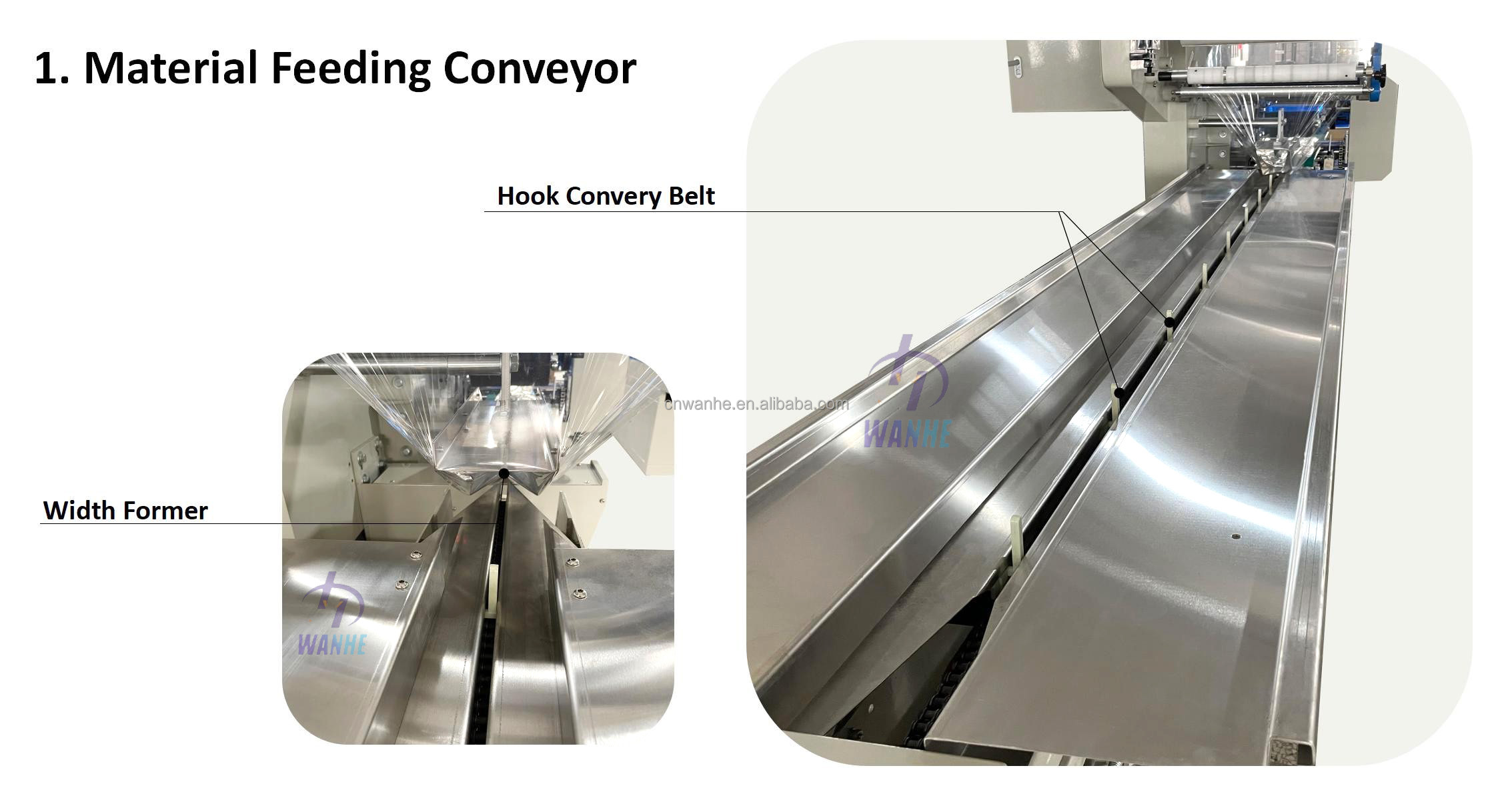

Machine component view 1

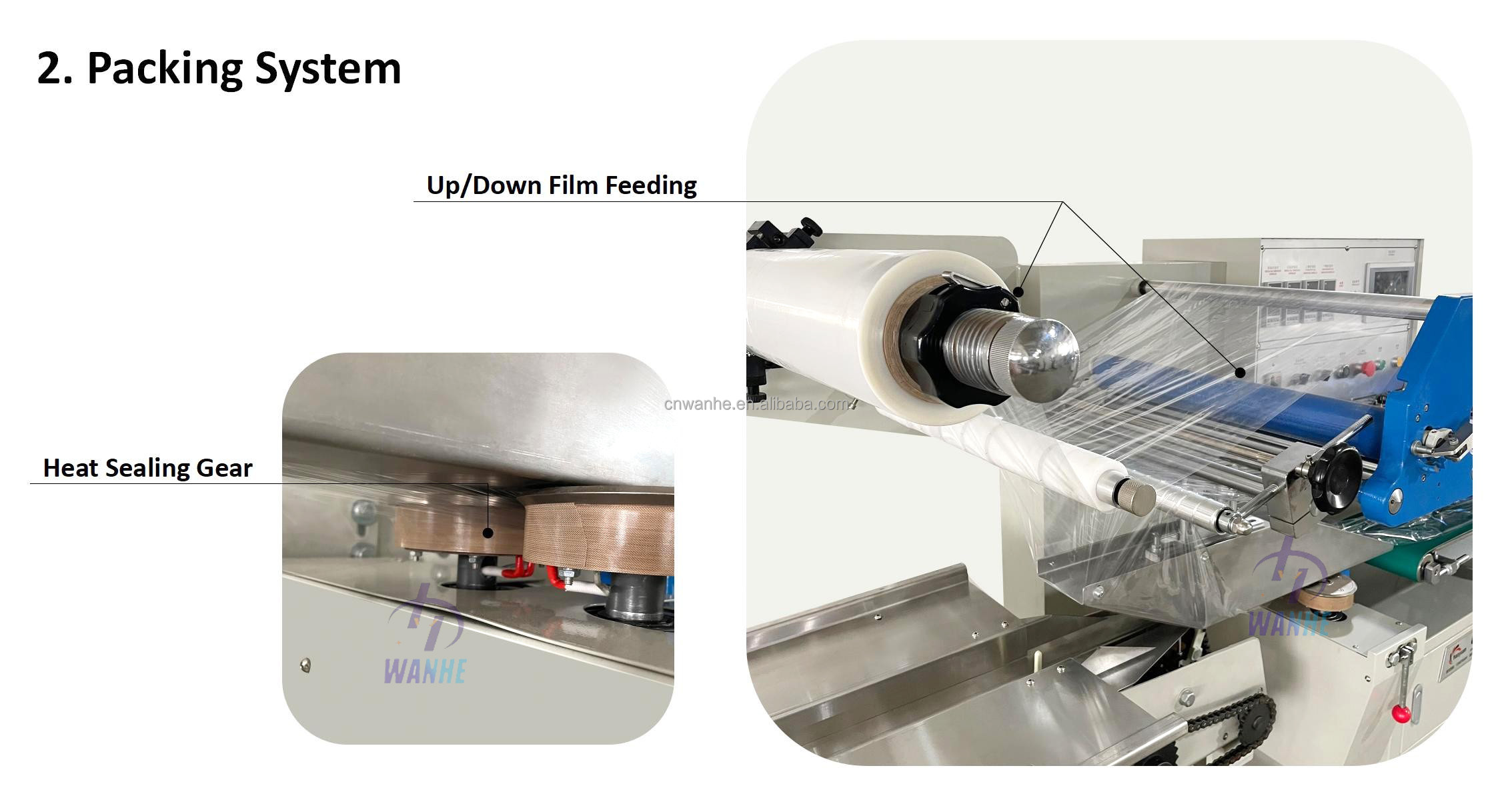

Machine component view 2

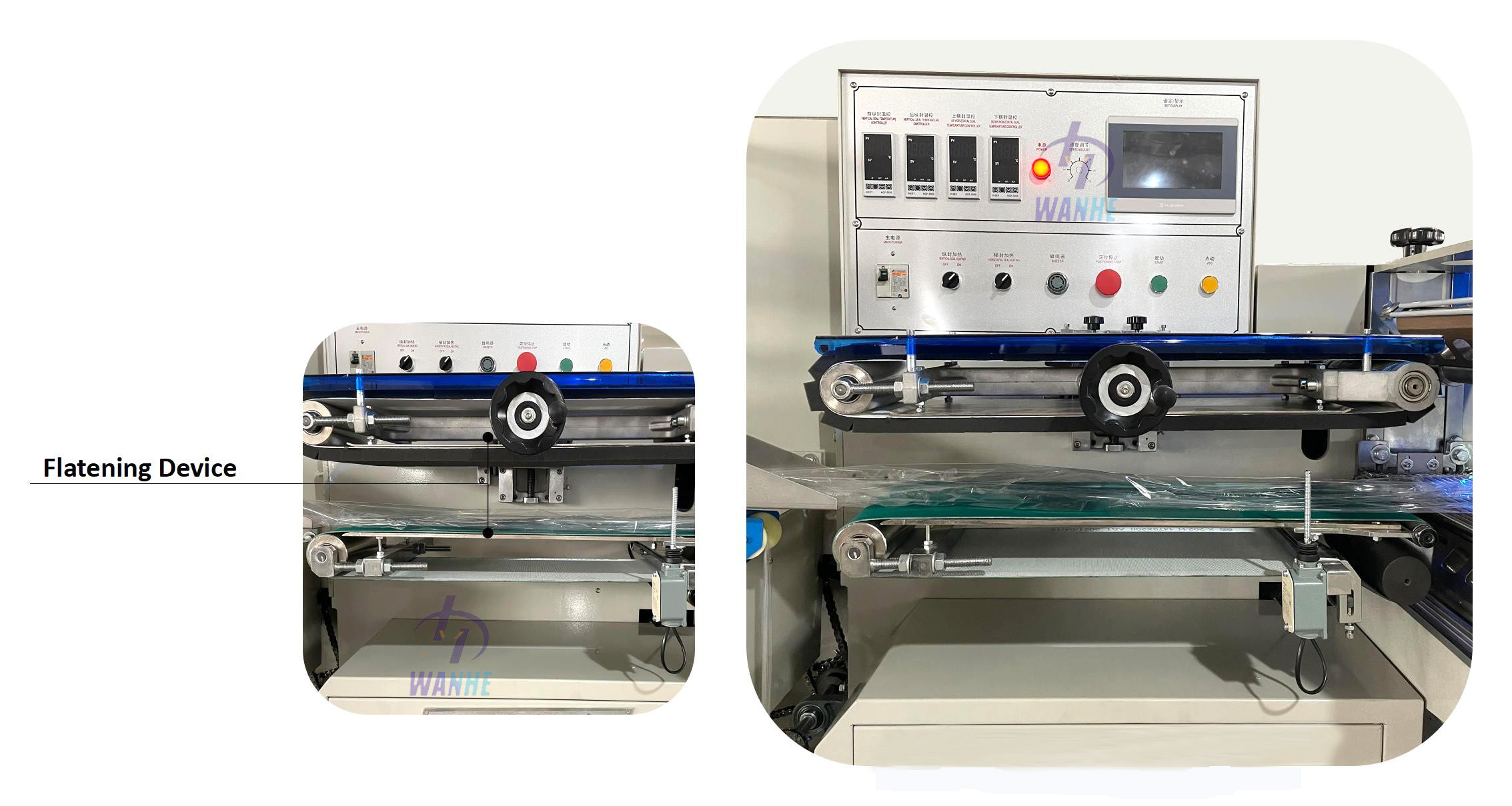

Machine component view 3

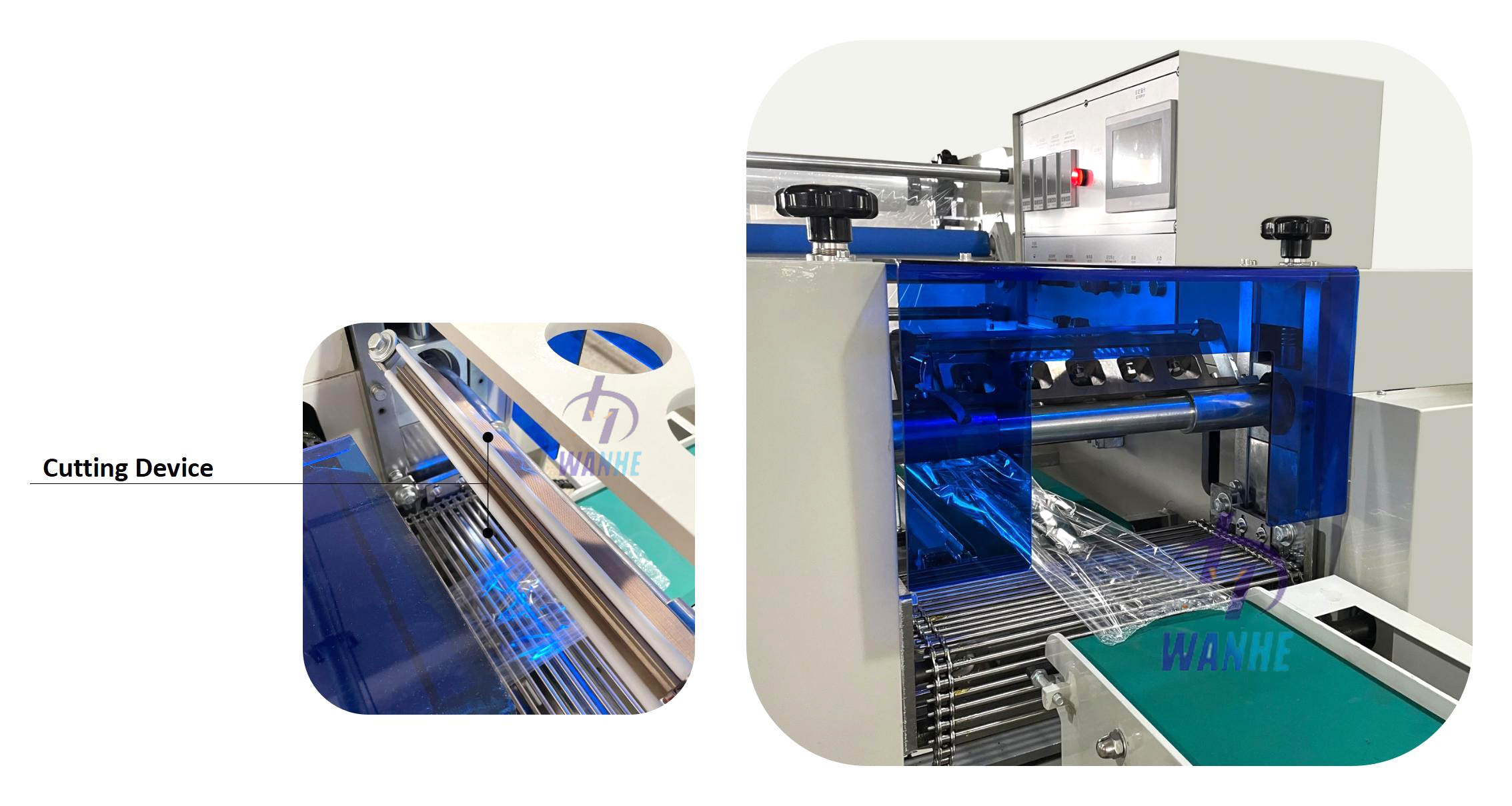

Machine component view 4

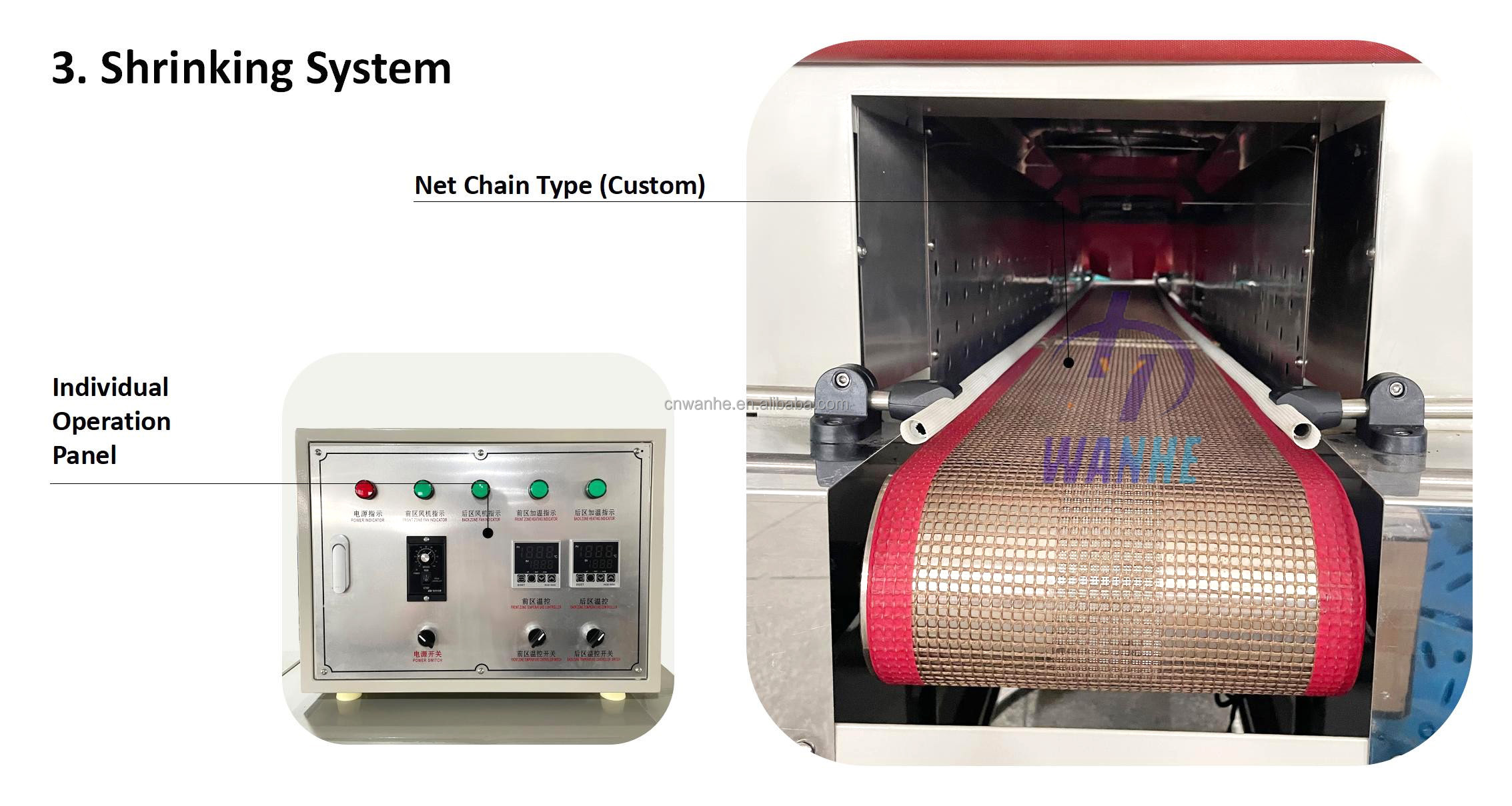

Machine component view 5
Detailed view of machine processing unit
Shrinking tunnel and belt assembly
Full machinery production setup

Frequently Asked Questions

Q: Which packaging materials are compatible with the KDS-600?
A: The KDS-600 is designed to run efficiently with PVC and POF shrinking films to meet various application needs.
Q: What is the maximum film width supported by this machine?
A: The machine can accommodate roll packaging film up to a maximum width of 590mm.
Q: What is the output capacity/packing speed of this system?
A: It offers a packing speed range of 50 to 150 bags per minute, which varies depending on the specific characteristics and sizes of the packaged product.
Q: Can this machine handle products of different height configurations?
A: Yes. Depending on the product layout adjustments, it can handle heights ranging from a minimum of 5mm up to a maximum of 135mm across different packing size templates.
Q: What are the power specifications required for installation?
A: The machine runs on a total power of 3.6kw + 16.5kw (50/60Hz). The main packing machine requires AC 220V 50HZ, while the shrinking tunnel operates under 380V 80HZ.

Related Products

Automatic Type Pallet Shrink Wrap Machine Box Stretch Wrapping Plastic Film Packing Machine With Scale Price

Automatic Type Pallet Shrink Wrap Machine Box Stretch Wrapping Plastic Film Packing Machine With Scale Price
BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine

BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine
Fully Close Automatic Side Sealing and Shrinking Packing Machine Box Shrink Wrapping Machine Shrink Wrapping Tunnel

Fully Close Automatic Side Sealing and Shrinking Packing Machine Box Shrink Wrapping Machine Shrink Wrapping Tunnel
BSL-450 + BS-4525 Automatic High Quality Electric Film Sealing And Cutting Machine POF Plastic Film Shrink Wrapping Machine

BSL-450 + BS-4525 Automatic High Quality Electric Film Sealing And Cutting Machine POF Plastic Film Shrink Wrapping Machine
Automatic And Full Seal Shrink Wrapper And Wrapping Machine

Automatic And Full Seal Shrink Wrapper And Wrapping Machine
Stretch Film Wrapping Machine For Desktop Stretch Film Wrapper

Stretch Film Wrapping Machine For Desktop Stretch Film Wrapper
Hand Auto Integrated Aluminum Profile PVC Heat Shrink Film Packaging Bagging Machine Servo Control Heat Shrink Bagging Machine

Hand Auto Integrated Aluminum Profile PVC Heat Shrink Film Packaging Bagging Machine Servo Control Heat Shrink Bagging Machine
Horizontal PVC Film Capsule Heat Shrinker Beverage Capping Sleeve Sealing Machine for Wine Bottles and Cans Wrapping

Horizontal PVC Film Capsule Heat Shrinker Beverage Capping Sleeve Sealing Machine for Wine Bottles and Cans Wrapping
Yaomatec Heat Shrink Film Pillow Packing Machine Horizontal Flow Wrapper with Shrink Function for Bottles Cans Cartons

Yaomatec Heat Shrink Film Pillow Packing Machine Horizontal Flow Wrapper with Shrink Function for Bottles Cans Cartons

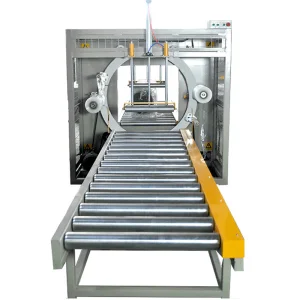

New Design Horizontal Orbital Wood Door Shrink Wrapping Machine
