Product Description

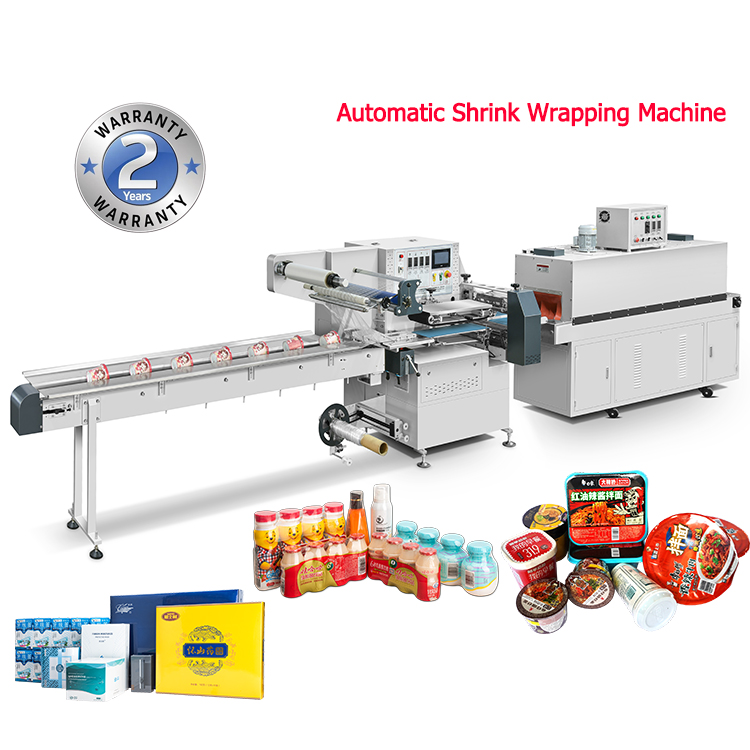

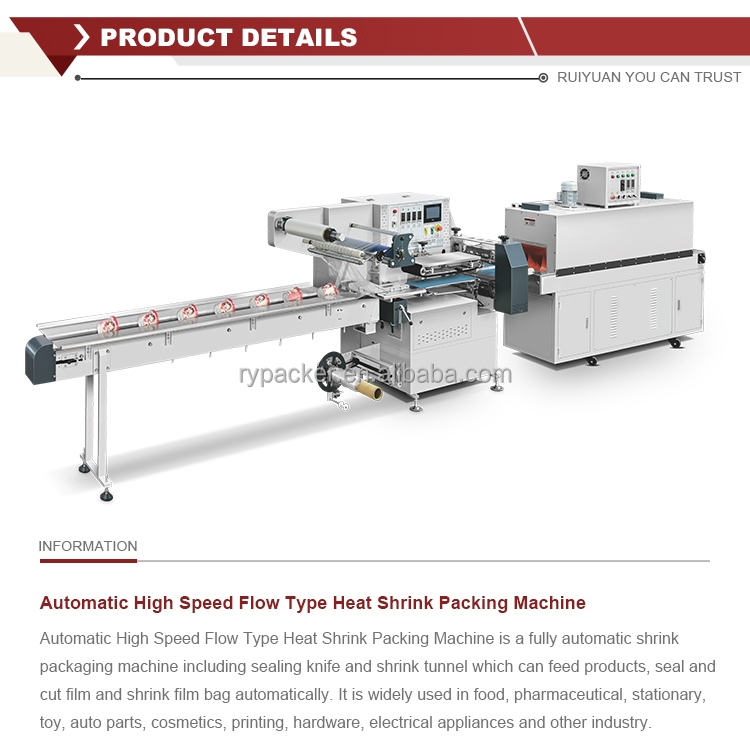

Automatic High Speed Shrink Packing Machine

Application

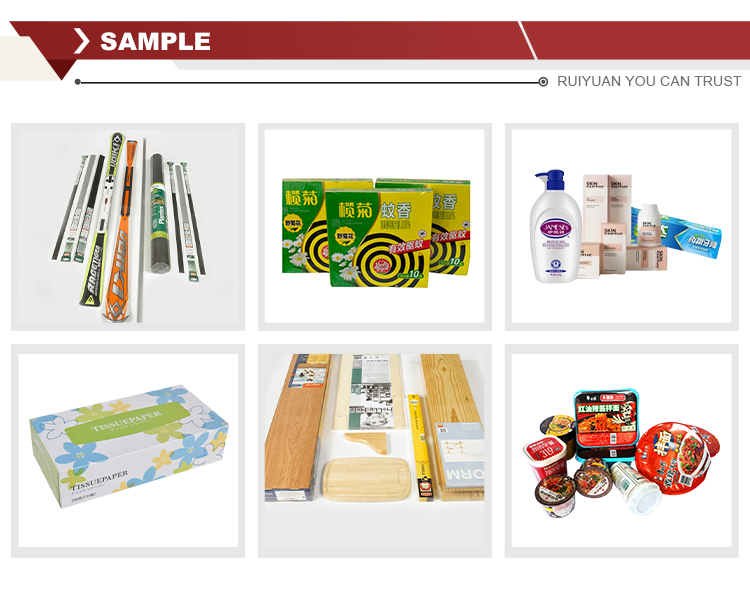

The RS-590 + RT-3025S automatic high speed shrink packing machine including infeed chain conveyor, automatic sealing machine and shrink tunnel. This machine is suitable for shrink wrapping the products like food/ cosmetic/ medicine boxes, single bottles, garbage roll, paper plate, wallpaper, incense with high packing speed.

Shrink Packing Process Details
Automatic Sealing Mechanism
Automatic Sealing Machine Specification
Power Supply 220V/380V; 1Phase/ 3Phase; 50-60Hz
Sealing Height 10-120mm
Packing Width 20-170mm
Packing Length 20-450mm
Packing Speed 60-150 packs per minute (Depends on product dimensions)
Film Type Single layer POF film
Maximum Film Roll Size Width 590mm * Outer diameter 280mm
Power Consumption 3.5kw
Control System Three servo motors controlled
Shrink Tunnel Specification
Power Supply 220V/380V; 1Phase/ 3Phase; 50-60Hz
Tunnel Conveyor Chains with rotating silicon coated rods
Tunnel Oven Size L*W*H: 2000*450*250mm

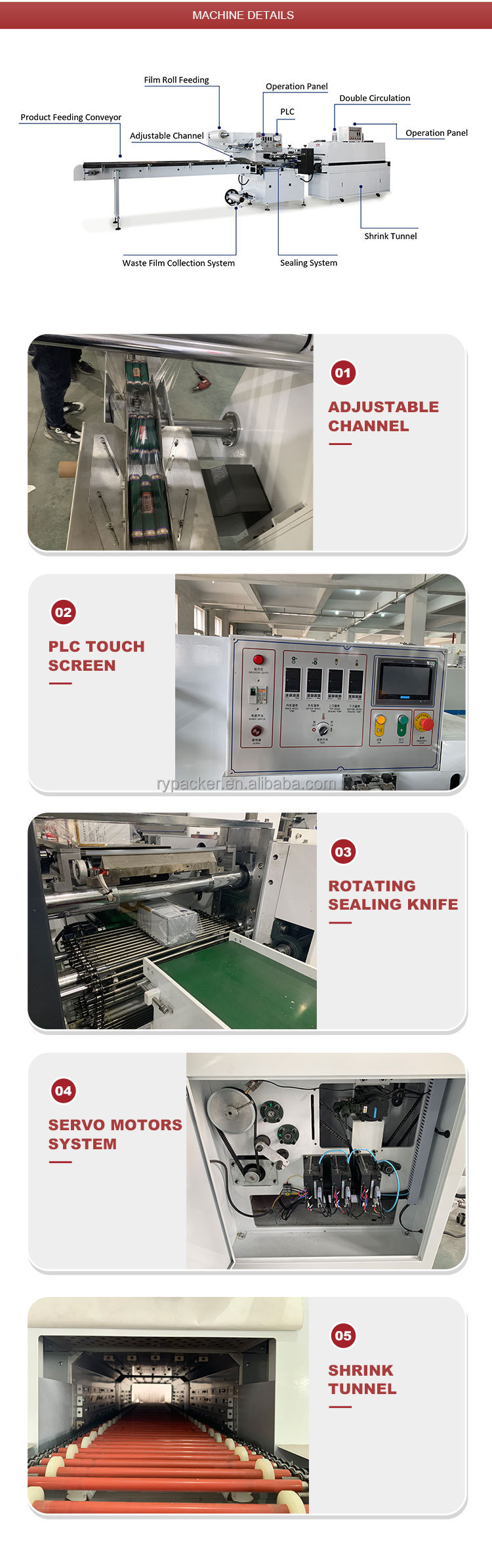

Shrink Tunnel Equipment View

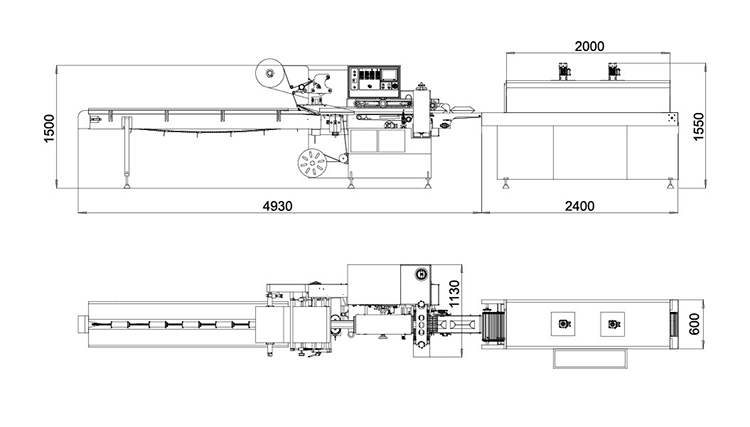

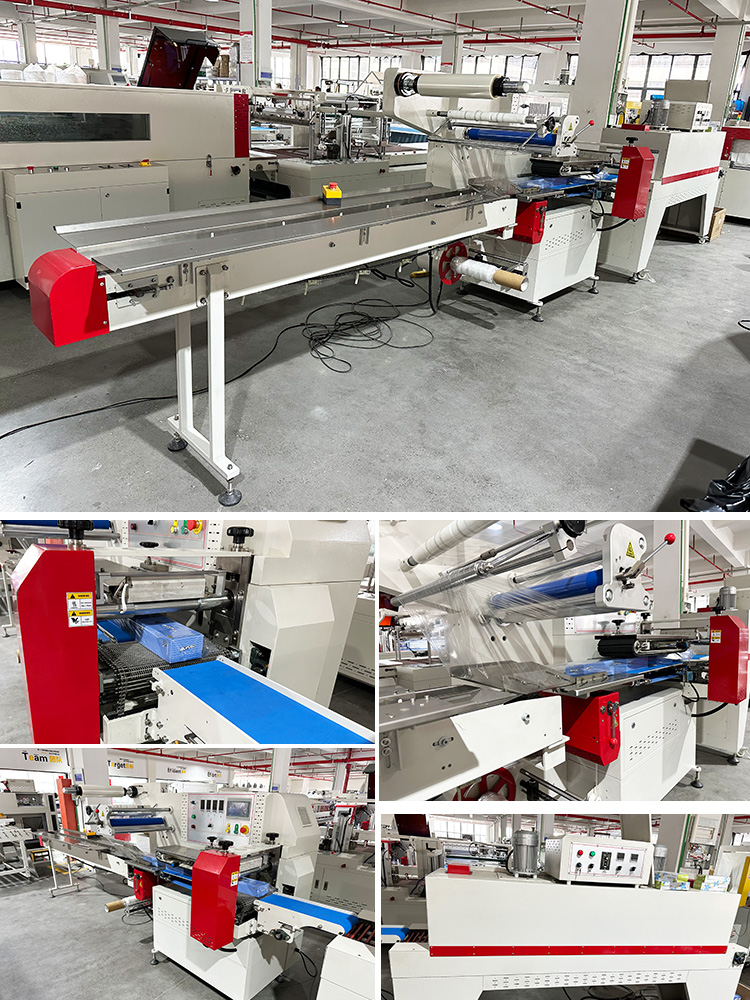

Machine Configuration Layout Left

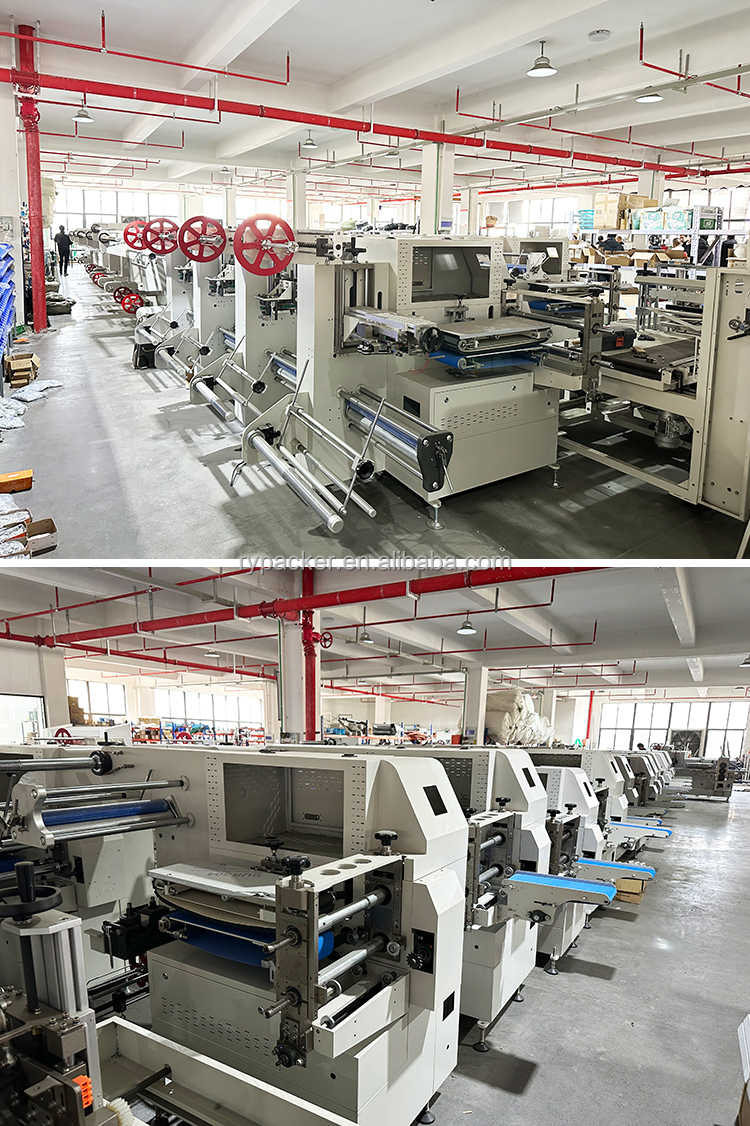

Machine Configuration Layout Right
Sealing Components
Feeding Conveyor System
Film Feed Reel
Control Panel Settings
Internal Servo Drive Assembly
Wiring and Electronics Block
High Speed Wrapping Output

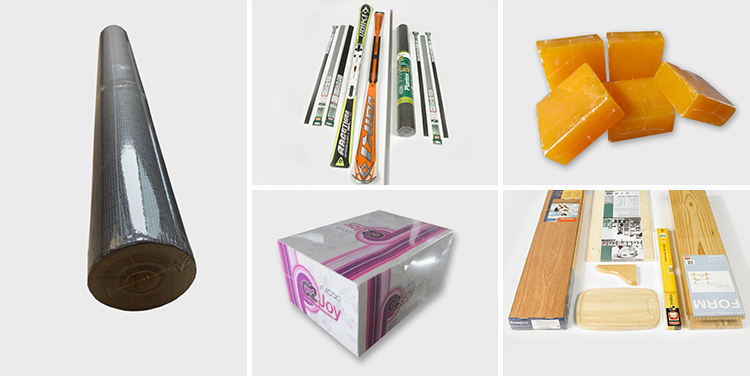

Shrink Packaging Final Result

Frequently Asked Questions

1. What items can be packaged using the RS-590 + RT-3025S shrink packing machine?
This system is designed for high-speed shrink wrapping of various products such as food boxes, cosmetic packages, medicine containers, single bottles, garbage rolls, paper plates, wallpaper rolls, and incense.
2. What is the maximum wrapping speed of the sealing machine?
The automatic sealing machine can process between 60 to 150 packs per minute. The actual packaging speed depends on the specific dimensions of the product being wrapped.
3. What kind of packaging film does this machine require?
It is designed to work with single-layer POF (Polyolefin) film. The maximum film roll size it accommodates is a width of 590mm with an outer diameter of 280mm.
4. How is the sealing system controlled for accuracy?
The automatic sealing machine is driven and controlled by a system of three precise servo motors, which ensures stable, accurate, and high-speed operation.
5. What are the key features of the shrink tunnel conveyor?
The RT-3025S shrink tunnel uses a robust chain conveyor system paired with rotating silicon-coated rods, providing uniform heating and prevents damage to the packaged items.
6. What power supply configuration does the system require?
Both the automatic sealing machine and the shrink tunnel are compatible with standard industrial power setups, supporting 220V/380V, 1 Phase/3 Phase at 50-60Hz.
