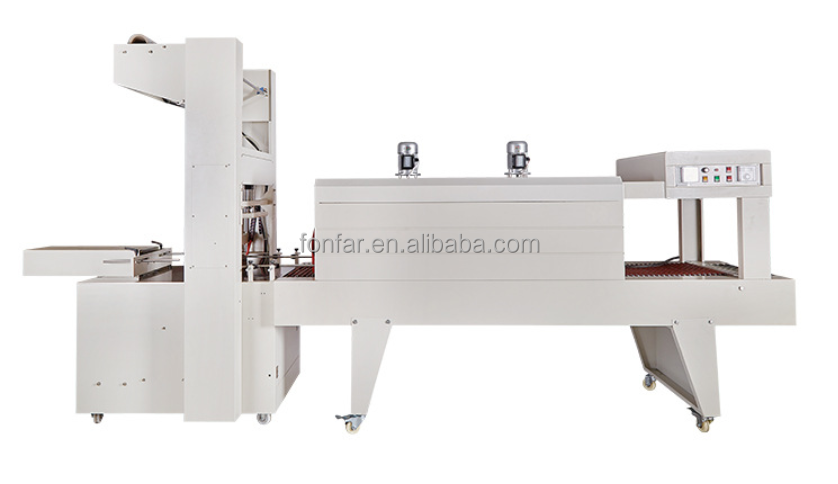

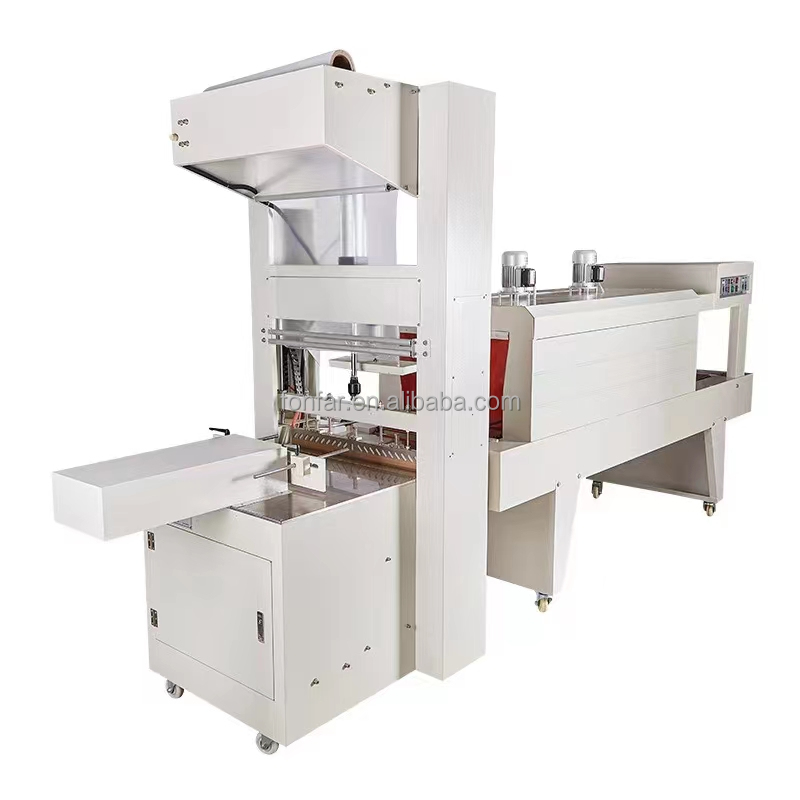

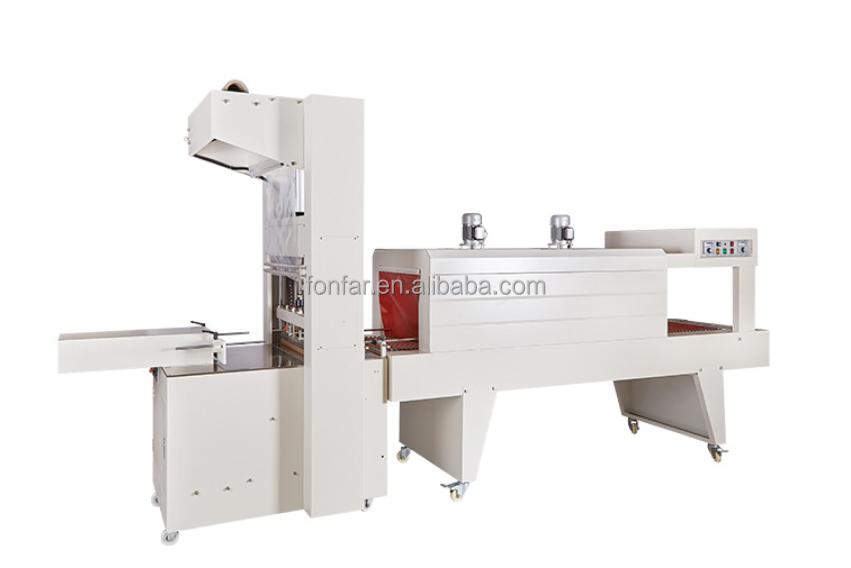

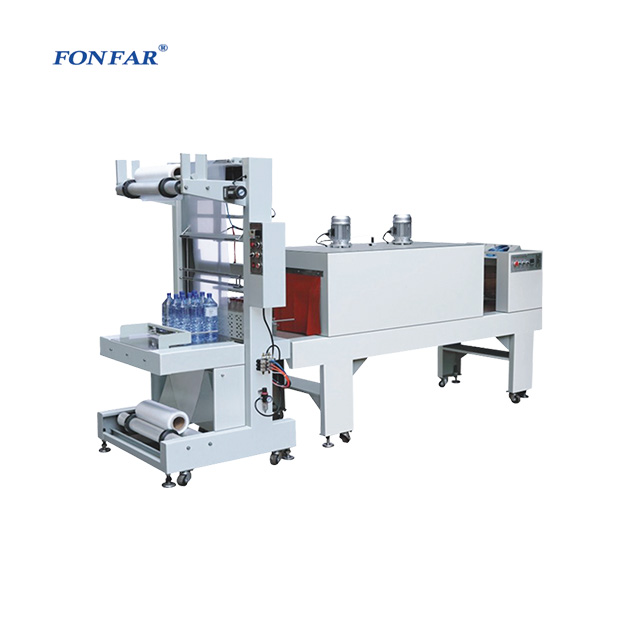

The Automatic Mobile Phone Box Thermal Shrink Wrap Pet Bottle Heat Film Shrink Wrapping Machine is applied to toys, books, tableware, hardware, stationery, cosmetics and daily use chemical, consists of shrinking tunnels and automatic sealing cutting machine.

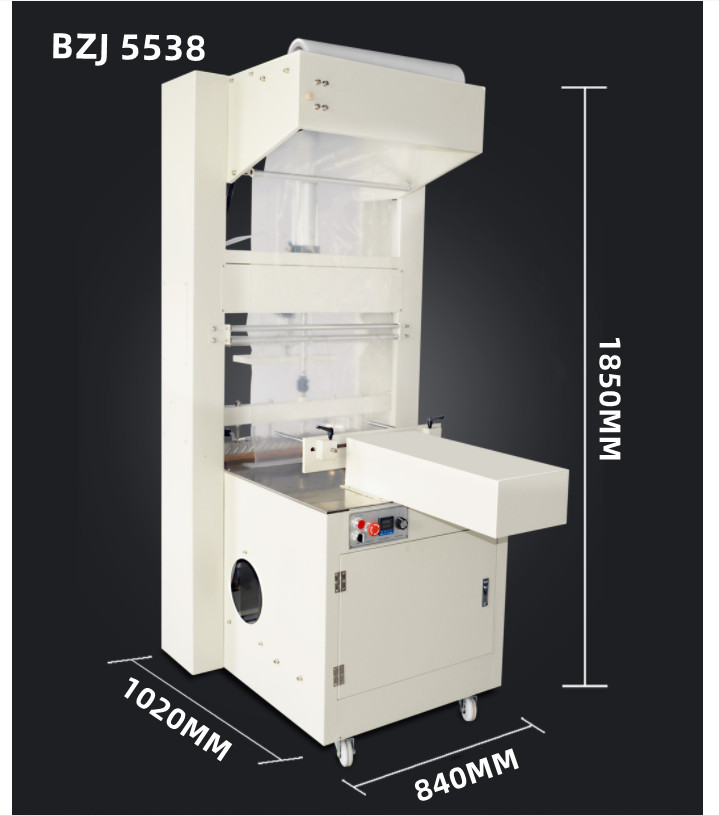

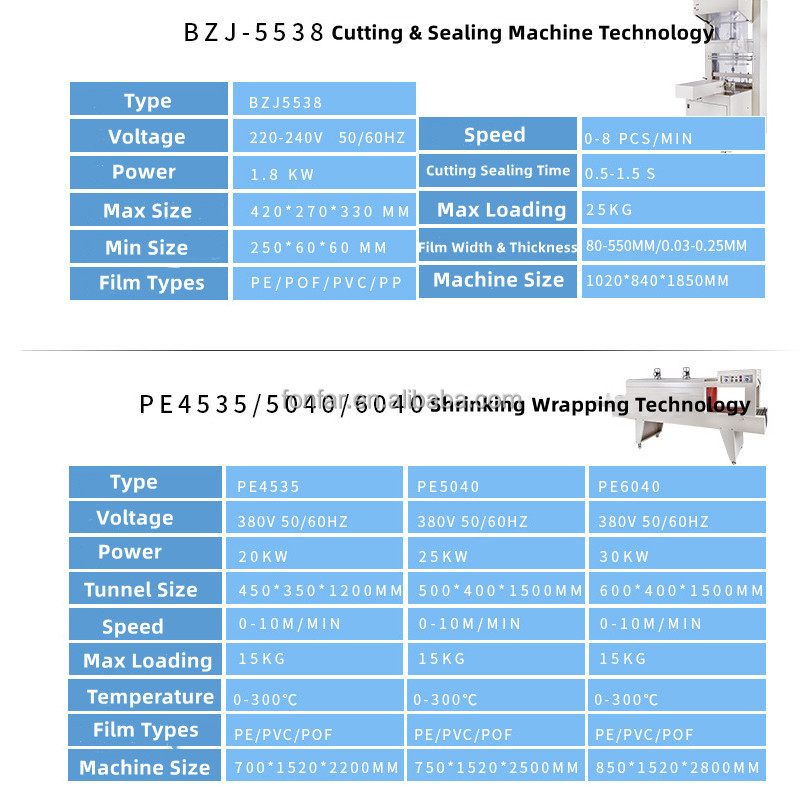

| Model | BZJ-5538 |
| Name | Cutting & Sealing Machine |
| Power | 1.8KW |
| Max load | 25kgs |
| Film width / Thickness | 80-550mm / 0.03-0.25mm |
| Sealing time | 0.5-1.5s |
| Film types | PE / POF / PVC / PP |
| Max packing size | 420*270*330mm |
| Min packing size | 250*60*60mm |
| Packing speed | 0-8 pcs/min |
| Voltage | 220V/50Hz 110V/60Hz |
| Machine size | (W)840mm * (H)1850mm * (L)1020mm |

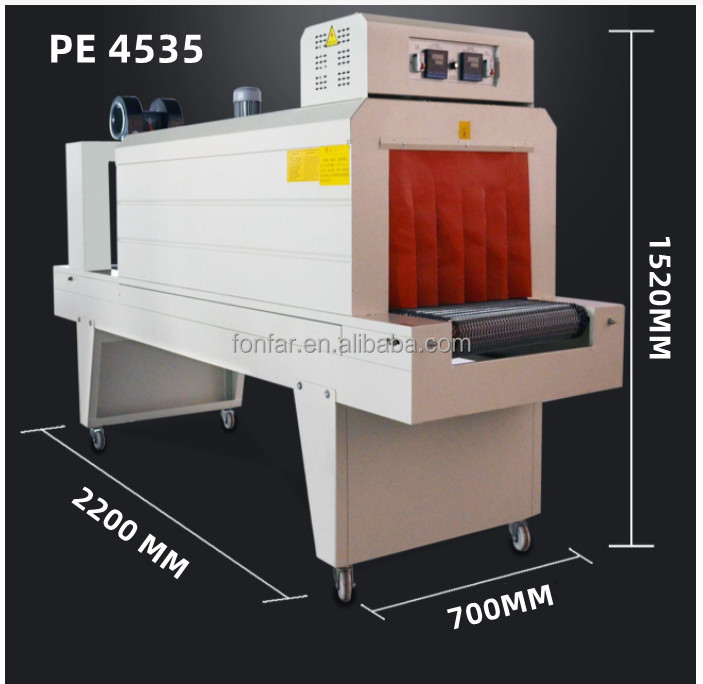

| Model | PE 4535 heating tunnel |
| Power | 20 KW |
| Max loading weight | 15kgs |
| Tunnel size | (L) 1200 * (W)450 * (H)350mm |
| Packing speed | 0-10/min |
| Voltage | 380V/50Hz /60Hz |
| Machine size | (L)2200mm * (W)700mm * (H)1520mm |
| Temperature | 0-300℃ |

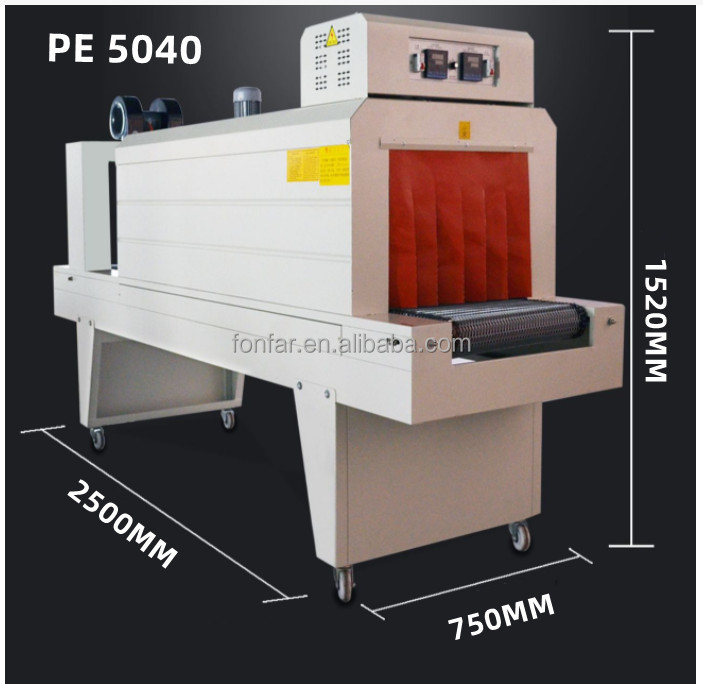

| Model | PE 5040 heating tunnel |
| Power | 20 KW |
| Max loading weight | 15kgs |
| Tunnel size | (L) 1500 * (W)500 * (H)400mm |
| Packing speed | 0-10/min |
| Voltage | 380V/50Hz /60Hz |
| Machine size | (L)2500mm * (W)750mm * (H)1520mm |
| Temperature | 0-300℃ |

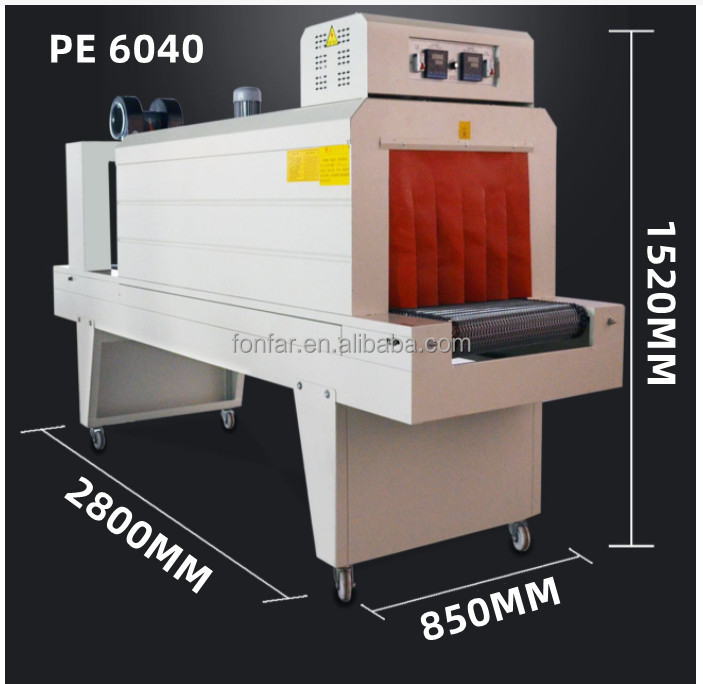

| Model | PE 6040 heating tunnel |
| Power | 30 KW |
| Max loading weight | 15kgs |
| Tunnel size | (L) 1500 * (W)600 * (H)400mm |
| Packing speed | 0-10/min |
| Voltage | 380V/50Hz /60Hz |
| Machine size | (L)2800mm * (W)850mm * (H)1520mm |
| Temperature | 0-300℃ |
Hot Coding Foil, Hot Stamping Foil, Hot Ink Roller, Thermal Transfer Ribbon, Coding and Sealing Machine and packing machine.
- For the hot coding foil: The width, the length, the color, the quantity and the type.
- For the hot ink roller: The outer diameter, the height, the color, the quantity and your printing temperature.
- For the coding machine: The type and the quantity.
- For the sealing machine: The type and the quantity.
- The destination port.
- The shipping term: By sea, by air or by courier.
We are legitimate certification company, and we support payment terms like L/C, Escrow, Trade Insurance to ensure your safety.
At first, our package is standard for shipping and before packing, we will confirm product undamaged, otherwise, please contact within 2 days. Because we've bought insurance for you, we or the shipping company will be responsible!
By sea, by air, or by courier (DHL, FEDEX, TNT, UPS, EMS, etc.).
