Servo Motor Reciprocating Horizontal Knife Sealing and Cutting Heat Shrink Packaging Machine Box Shrink Wrapping Machine

Product Description

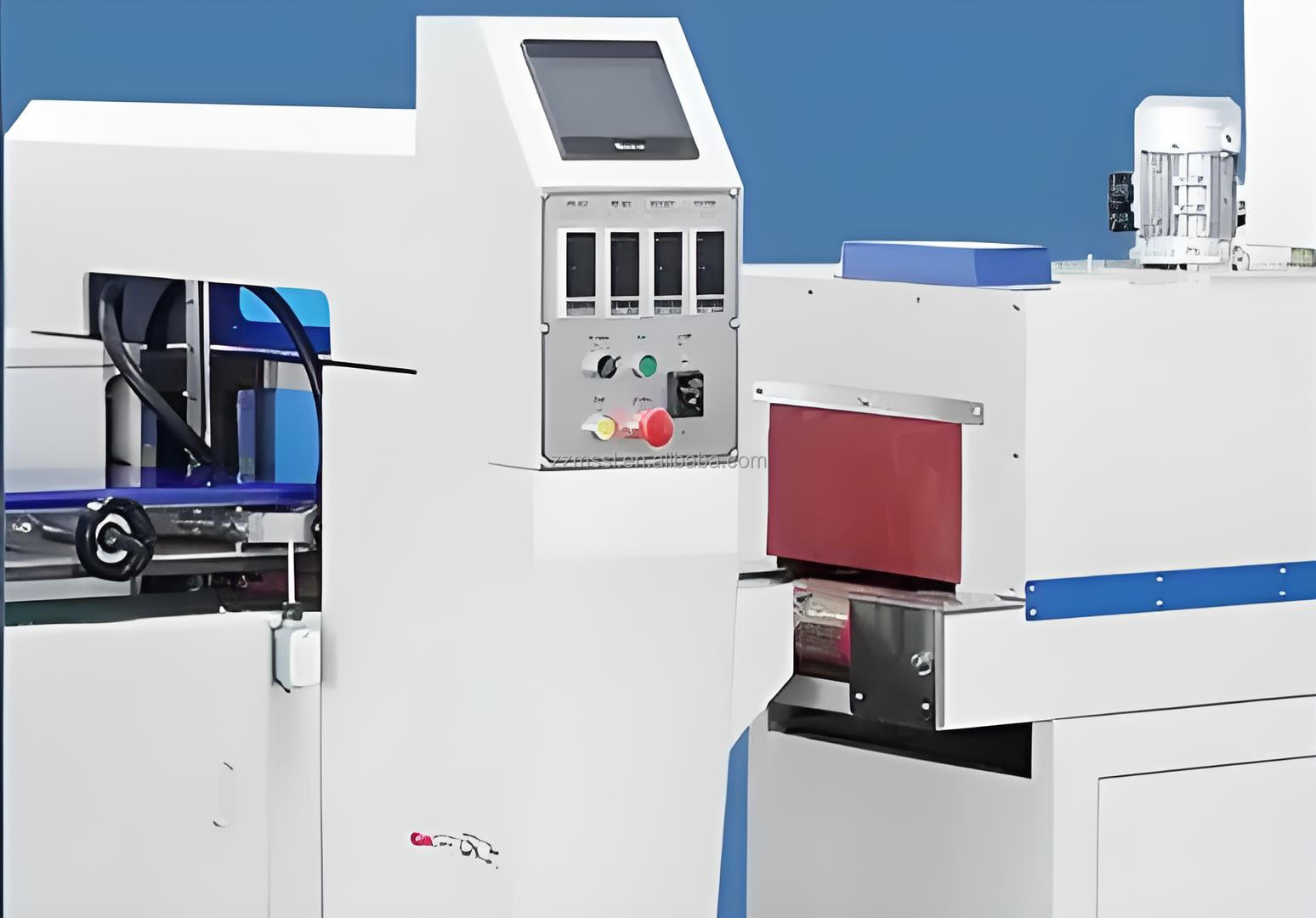

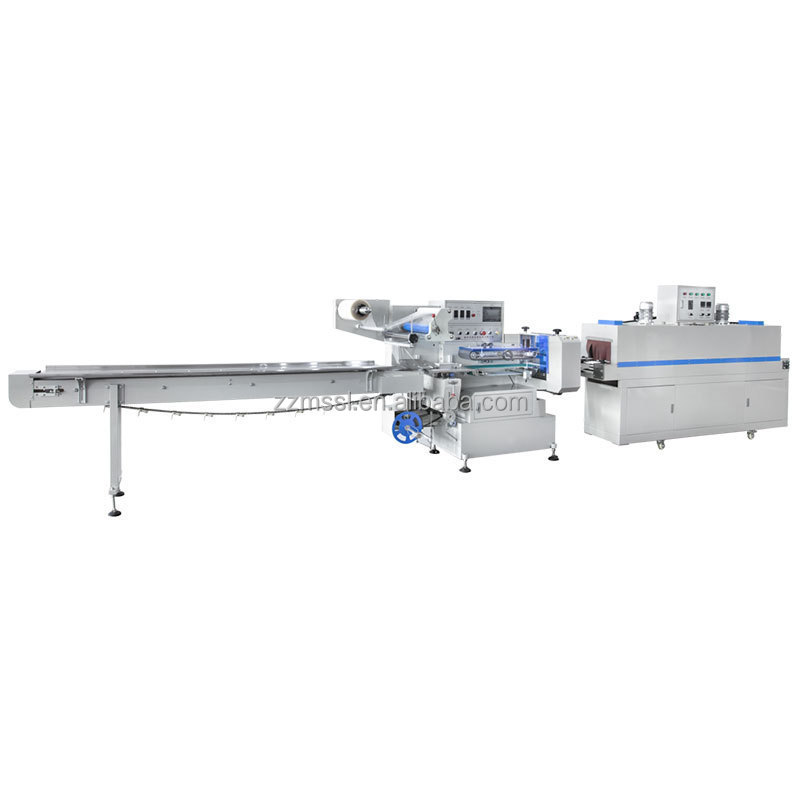

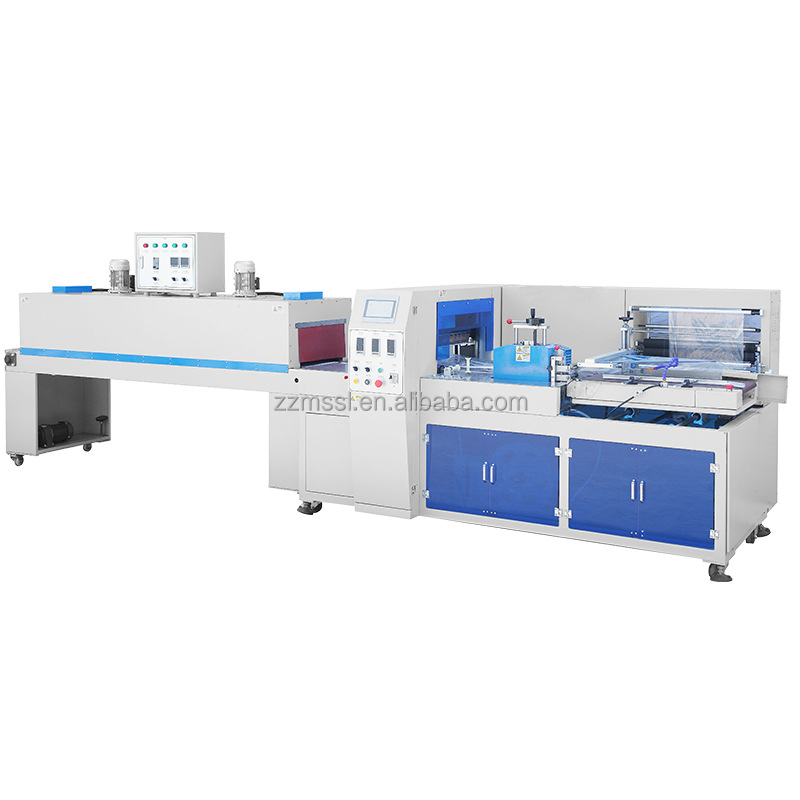

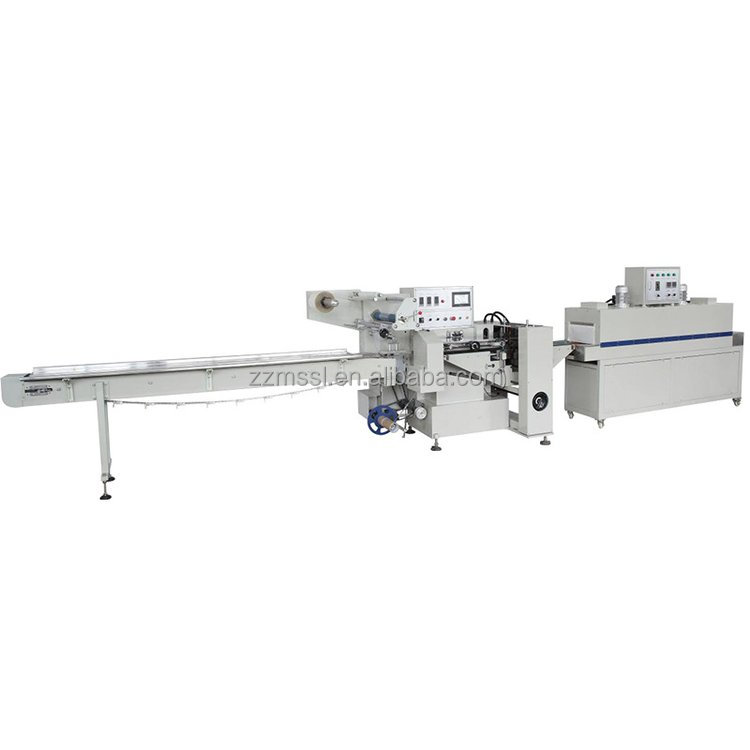

Servo Motor Reciprocating Horizontal Knife Sealing and Cutting Heat Shrink Packaging Machine Box Shrink Wrapping Machine

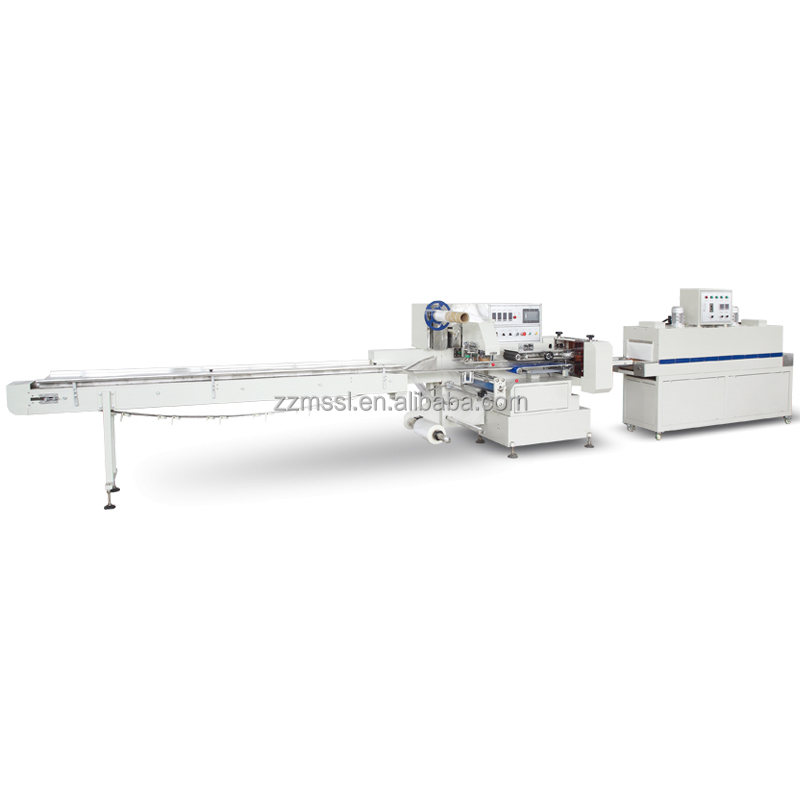

Servo Motor Reciprocating Horizontal Knife Sealing and Cutting Heat Shrink Packaging Machine
Wide Application Range: Food, medicine, beverage group packaging, bowl noodles, milk tea, mosquito coils, wallpaper, exercise books, filters, electrical switches, plastic wrap, garbage bags, various stationery, industrial parts, daily cosmetics skin packaging, and more.
Fewer mechanical parts greatly reduce the failure rate of mechanical parts, ensuring easy maintenance and lower operating noise. Side sealing can utilize electrostatic adsorption instead of heat sealing and cutting, which effectively saves packaging film costs while producing a smoother and more aesthetically pleasing sealing line. The machine features a durable cantilever frame design body, temperature-independent PID control for compatibility with various film materials, positioning stop function to prevent knife sticking, and a simplified transmission system for reliable, convenient maintenance.
Specification
Parameter ZWG590-120 ZWG590-180 ZWG590-240
Film width ≤590mm ≤590mm ≤590mm
Bag length L60-320mm L150-530mm L210-650mm
Product width W10-200mm W10-200mm W10-250mm
Product height H5-35mm H65-100mm H100-150mm
Speed 30-150 packages/min 30-135 packages/min 30-80 packages/min
Film Material PVC, POF, heat shrink film
Tunnel size 2300 * 250 * 200mm
Power Packaging machine 4.75KW (4.95KW for options), Tunnel 13.5KW
Voltage Packaging machine 220V, 50/60HZ, AC. Tunnel 380V, 3phase
Dimension 4800 * 1170 * 1500mm / 2600 * 600 * 1750mm
Weight 1110kg
Product Details

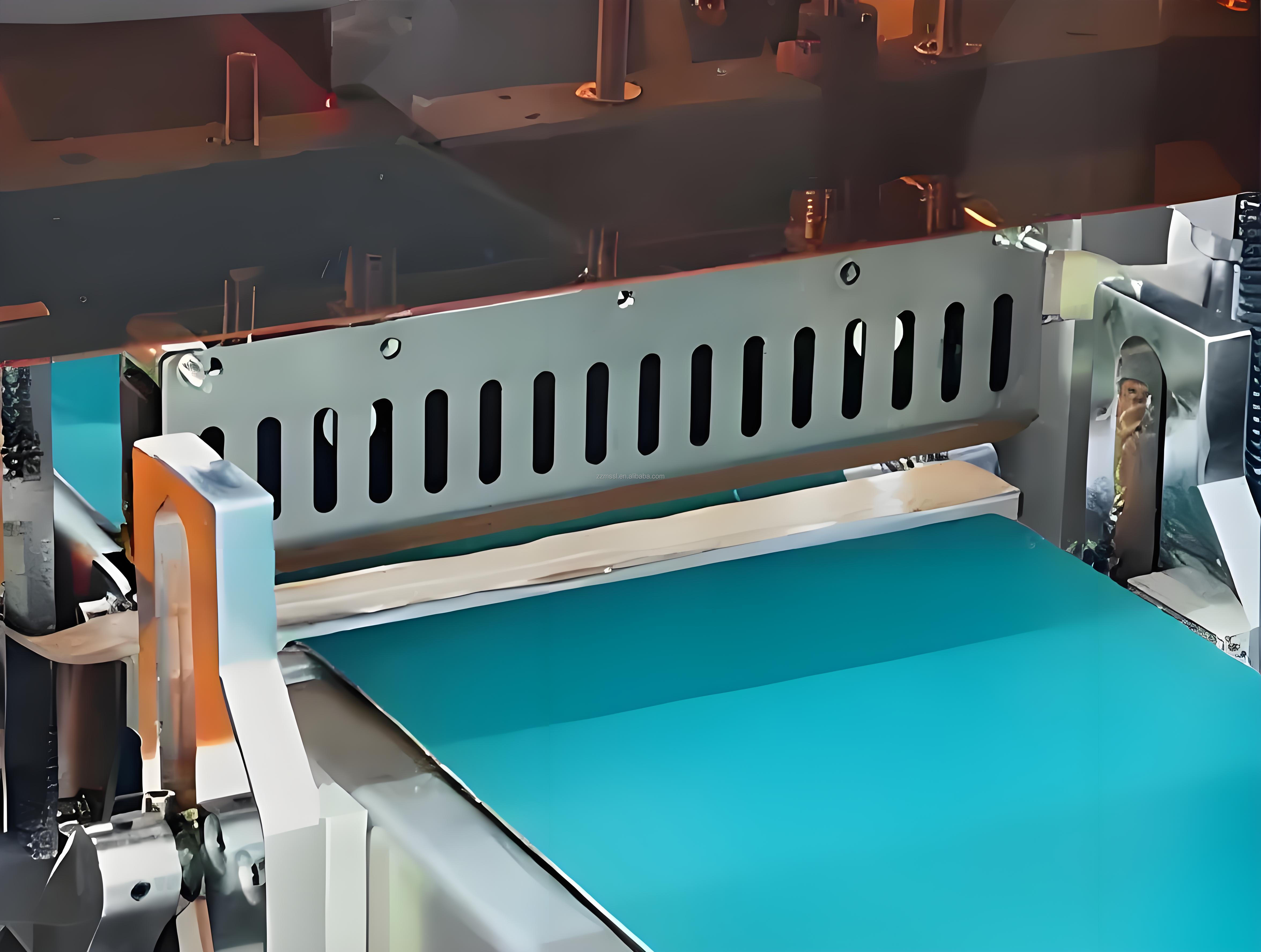

Reciprocating transverse sealing knife seat
Reciprocating Sealing Seat
Adopt reciprocating transverse sealing knife seat design, ensuring a beautiful packaging appearance and superior sealing performance.

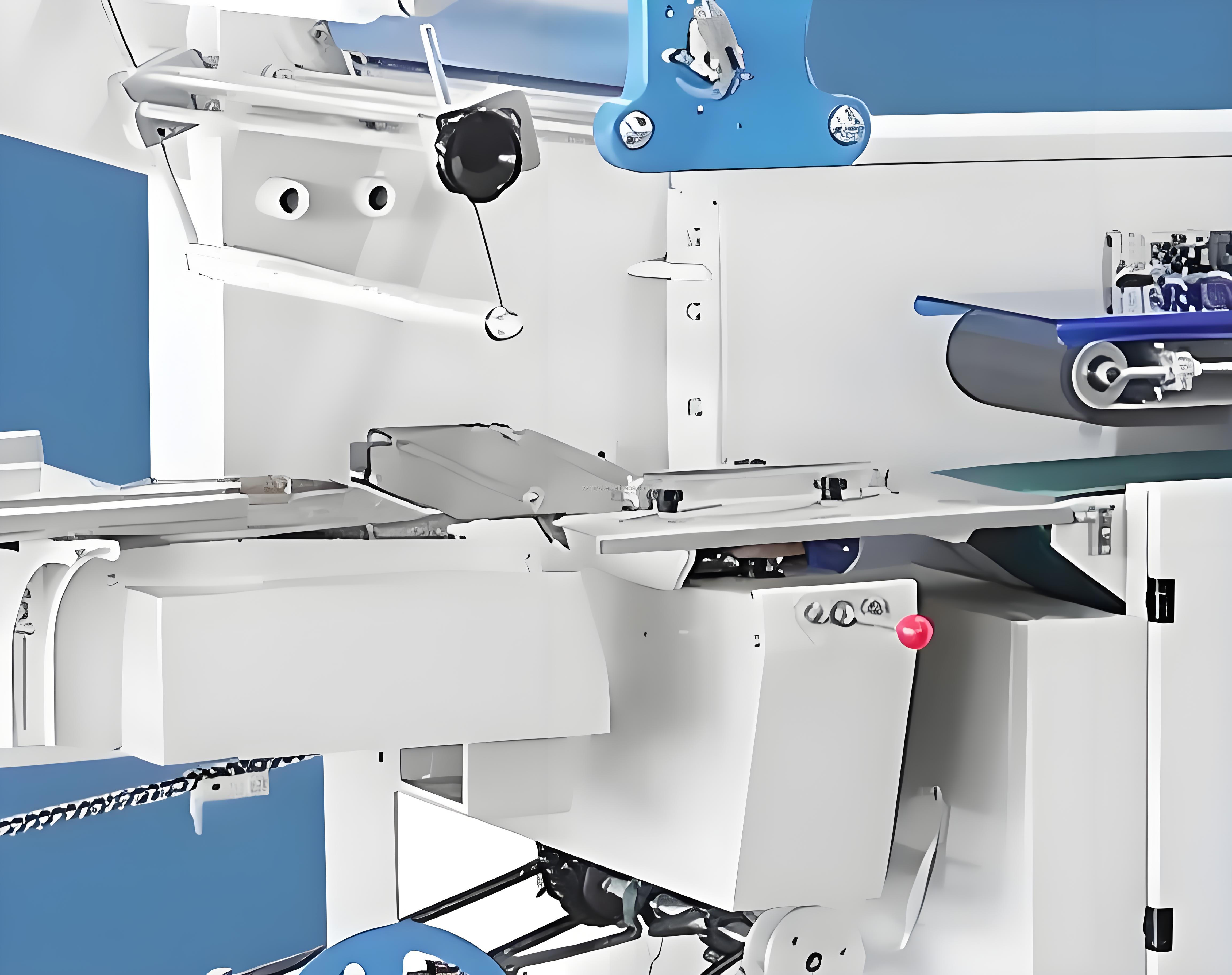

High-sensitivity photoelectric eye
Photoelectric Eye Tracking
High-sensitivity photoelectric eye color mark tracking, along with mathematical input for sealing and cutting positions, makes the operations highly accurate.
Auto reverse mechanism
Automatic Reverse Function
The product automatically reverses when switched on, and can be turned on directly after restart for simplified, safe operations.

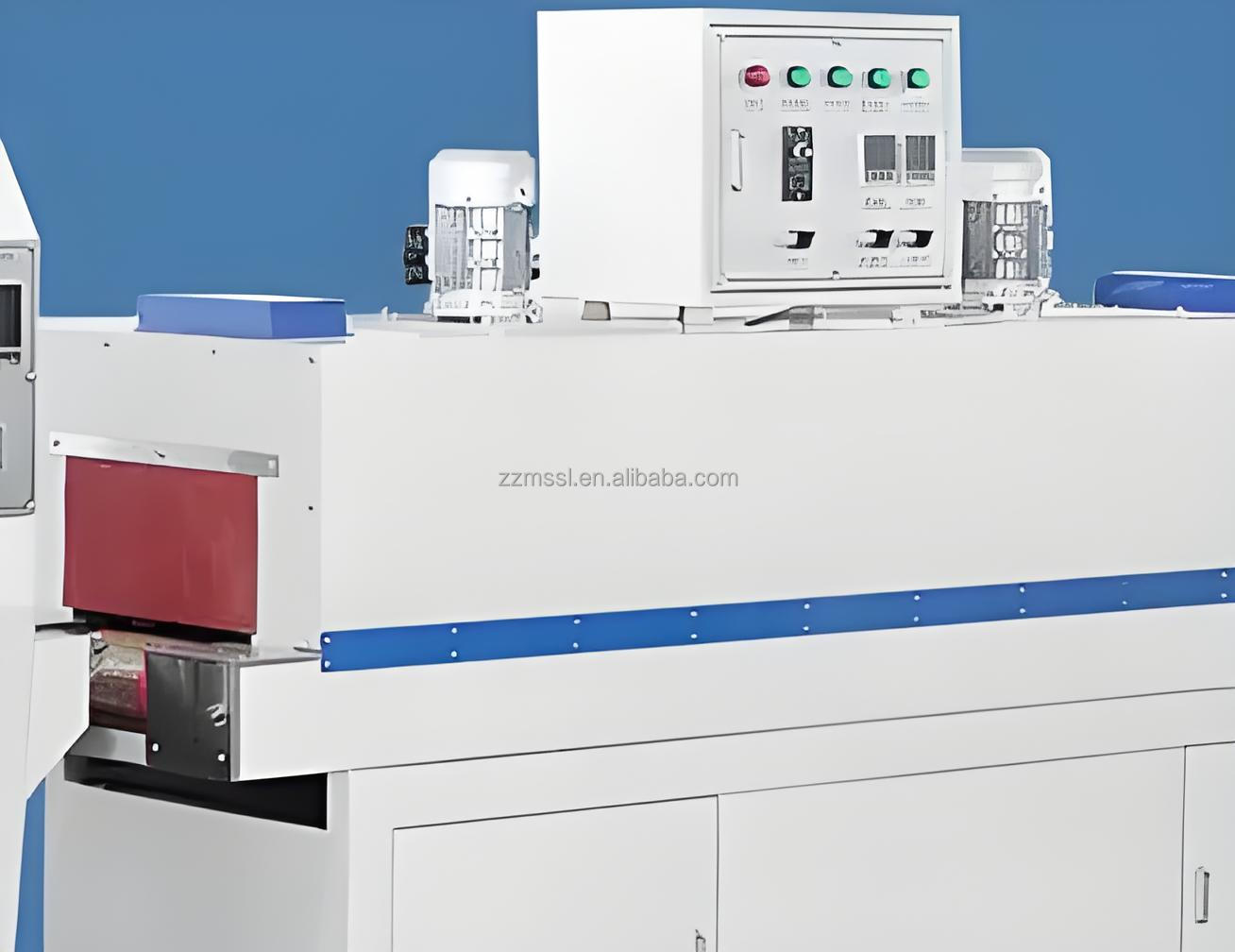

Three servo motor drive system
Triple Servo Motor Drive
Three independent servo motors drive the entire machine, delivering high operating stability, simple control parameters, and top-tier packaging efficiency.
Machine structure overview
Packing & Delivery
Packing and Delivery process
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided, or customized according to your request.
Profile Overview
We are a dedicated manufacturer of professional card wrapping equipment and playing card cutting slitting machinery, supported by complete testing facilities and strong technical capabilities. With a broad product portfolio, reliable quality, competitive pricing, and modern designs, our equipment is extensively applied in printing, packaging, and related industries. Our machinery is widely recognized and trusted by users to meet evolving economic and social demands.

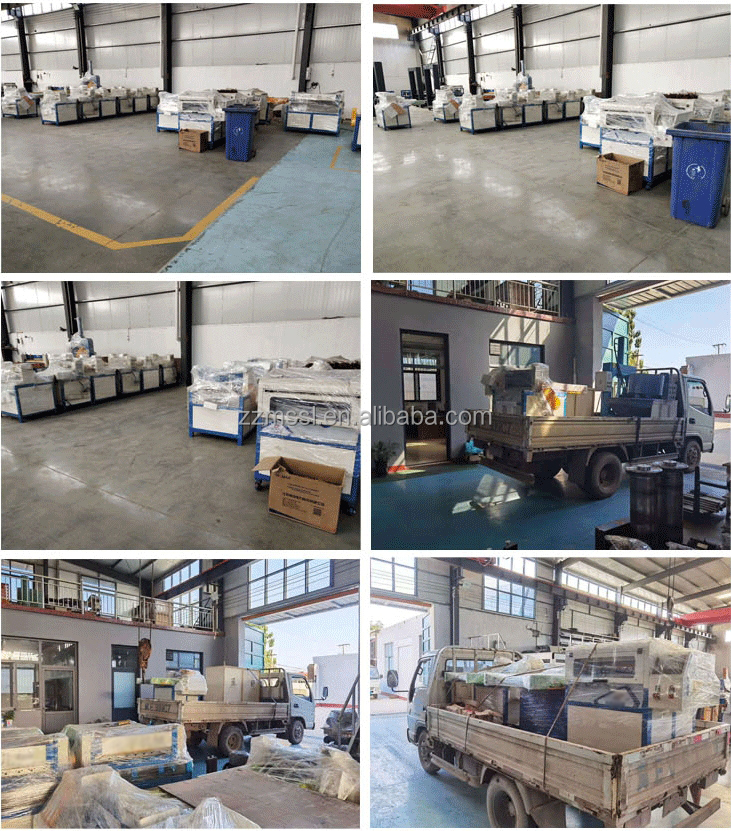

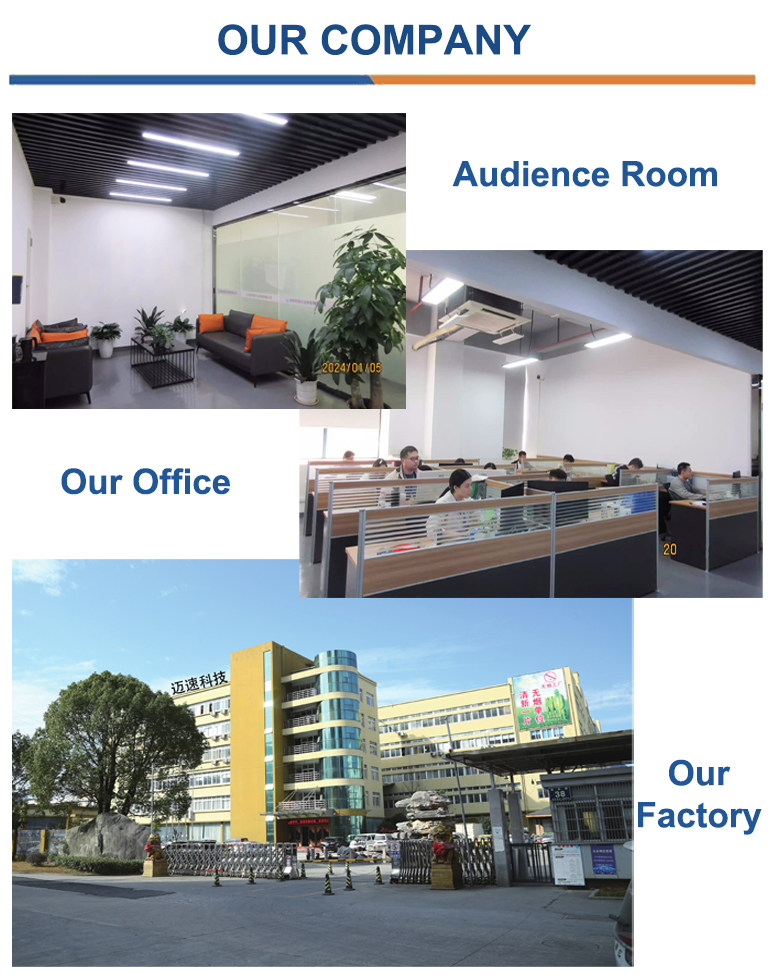

Factory workshop view
Production facility
Why Choose Us

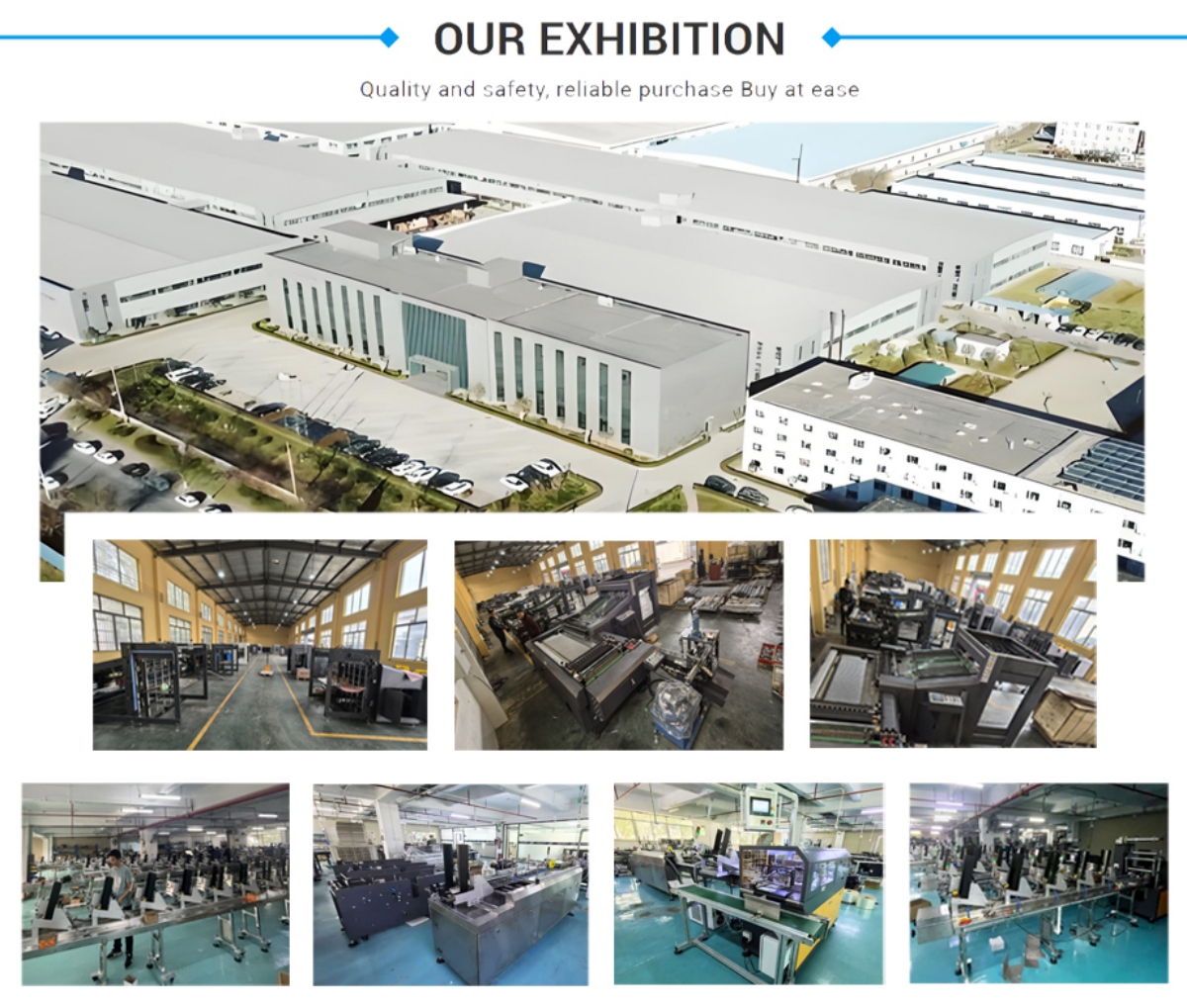

Quality control team
Honors and certificates
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we have been manufacturing packaging and cutting machines for over 10 years, and we are also a professional exporter.
2. What is your payment term?
Mostly, we require 30% T/T in advance as a deposit, and the remaining 70% T/T balance when the machine is finished before shipping.
3. What is the machine warranty?
We provide a one-year warranty after sales. During the warranty period, we will send spare parts free of charge if they break down due to quality issues.
4. What is your after-sales service policy?
Any inquiries will be responded to within 24 hours via email, Skype, call, or chat applications.
5. What is the average delivery time?
Usually, it takes 5 to 10 working days, depending on the specific machine configuration.
6. What packaging film materials are compatible with this machine?
The sealing and cutting machine operates effectively with PVC, POF, and standard heat shrink film materials.
