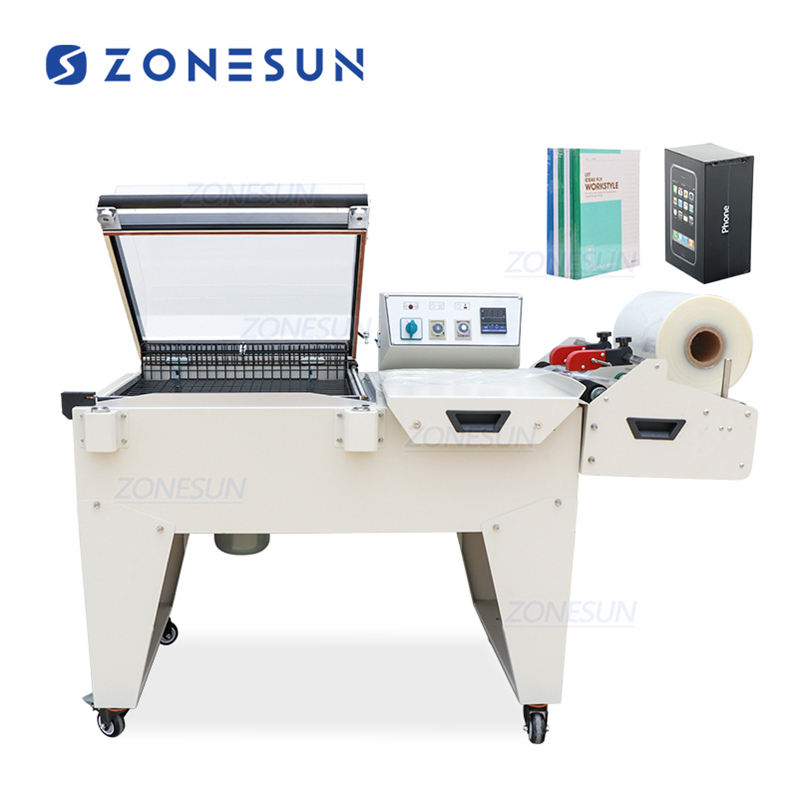

ZONESUN ZS-SX5540 Semi-automatic Cosmetic Perfume Paper Boxes Film Cutting Shrink Sealing Wrapping Machine With Dispenser Sealer

Product Description

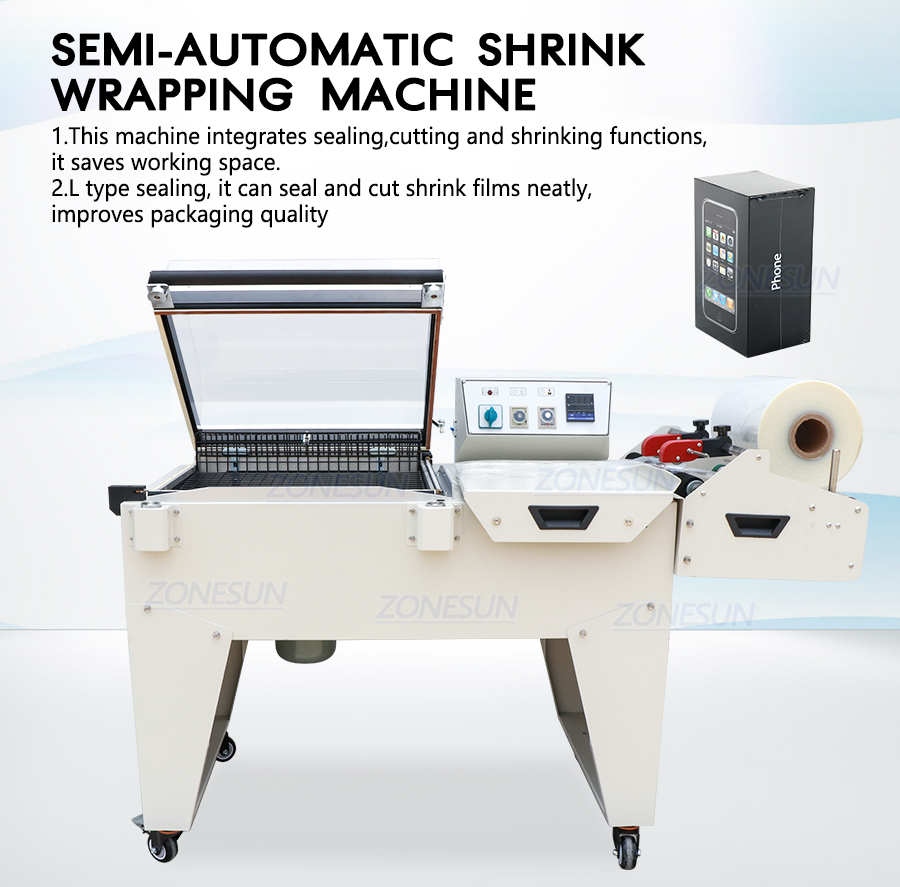

Shrink Packaging Machine
Products Description
The machine integrates sealing, cutting and shrinking functions, thereby shortening the entire packaging time and space. This machine can perform continuous sealing, cutting and shrinking work for a long time, improving packaging efficiency. It is suitable for small-scale packaging production such as mobile phone boxes, earphone boxes, and perfume boxes.
Packaging Machine Side View
Packaging Machine Front View
Machine model ZS-SX5540
Machine voltage AC220-240V/50-60Hz 4.57KW
Sealing and cutting time 0-3sec
Shrinking time 0-30sec
Packaging speed 0-800 pieces/h
Suitable package film POF PVC
Film thickness 0.015-0.08mm
Maximum packaging size 550*400*230mm
Machine size 1570*720*1060(1320)mm(L*W*H)
Machine net weight 128kg
Shrink Wrapping Device
Packaging Chamber View

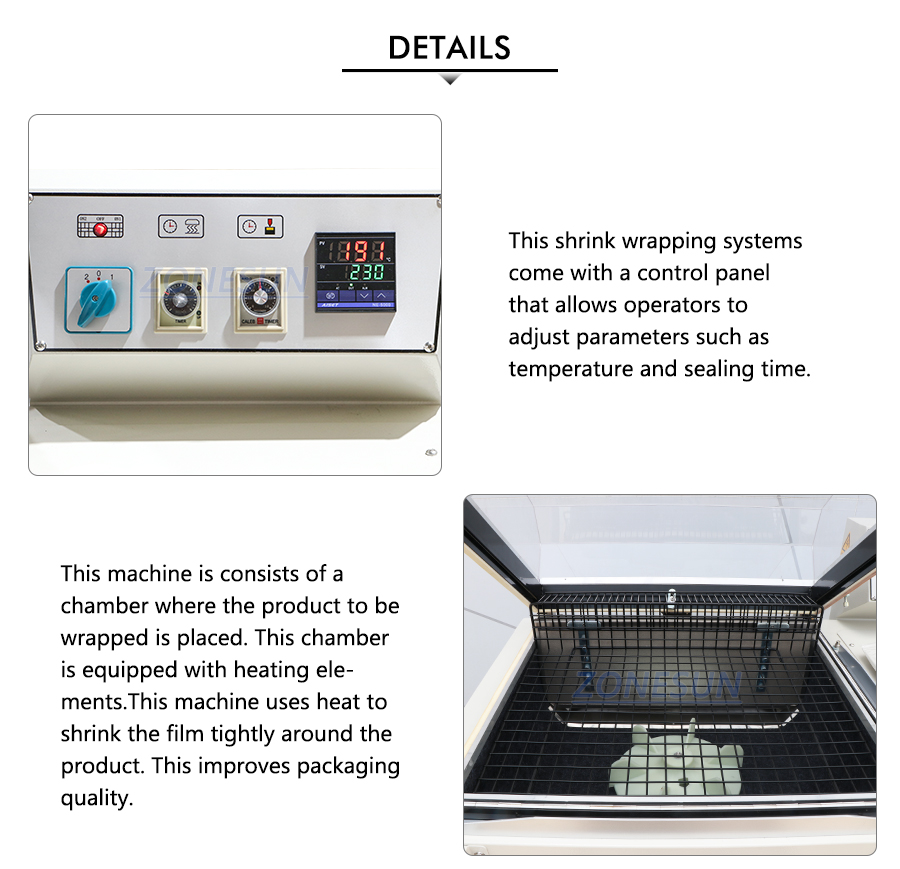

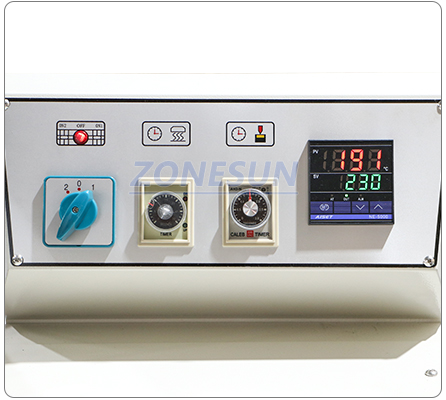

Control Panel details

This shrink wrapping systems come with a control panel that allows operators to adjust parameters such as temperature and sealing time.

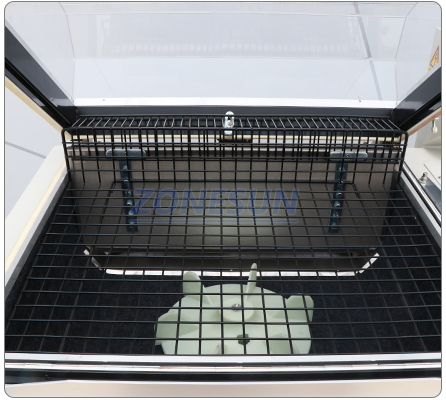

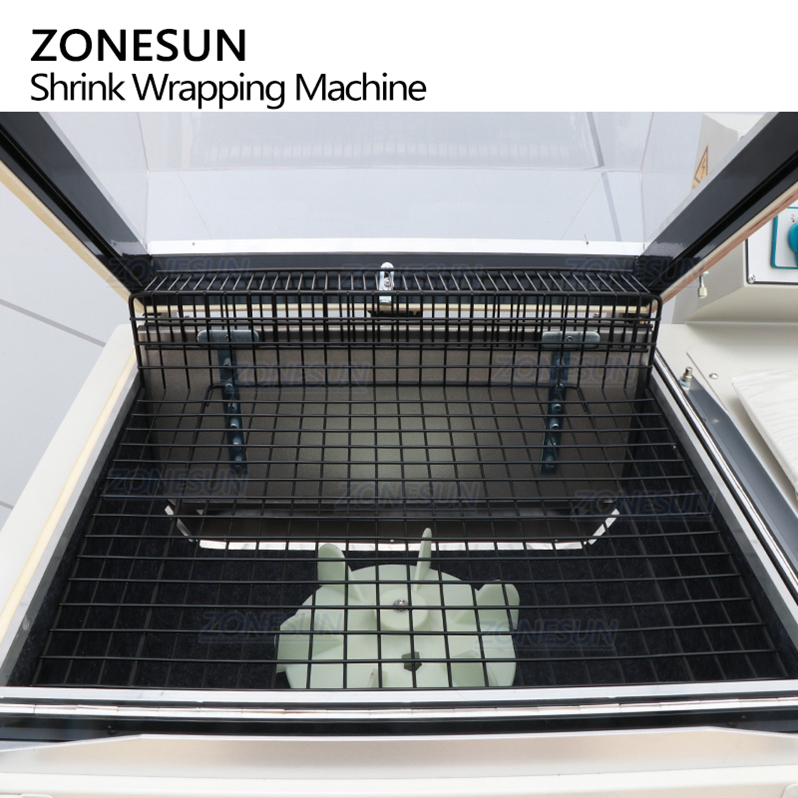

Heating elements details

This machine is consists of a chamber where the product to be wrapped is placed. This chamber is equipped with heating elements. This machine uses heat to shrink the film tightly around the product. This improves packaging quality.

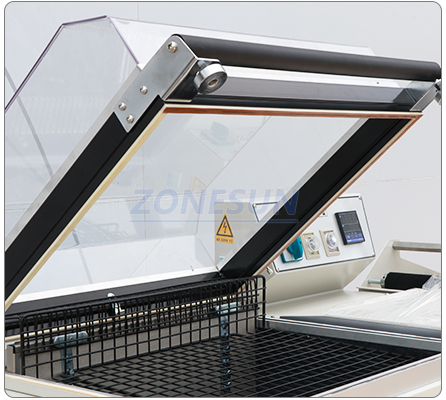

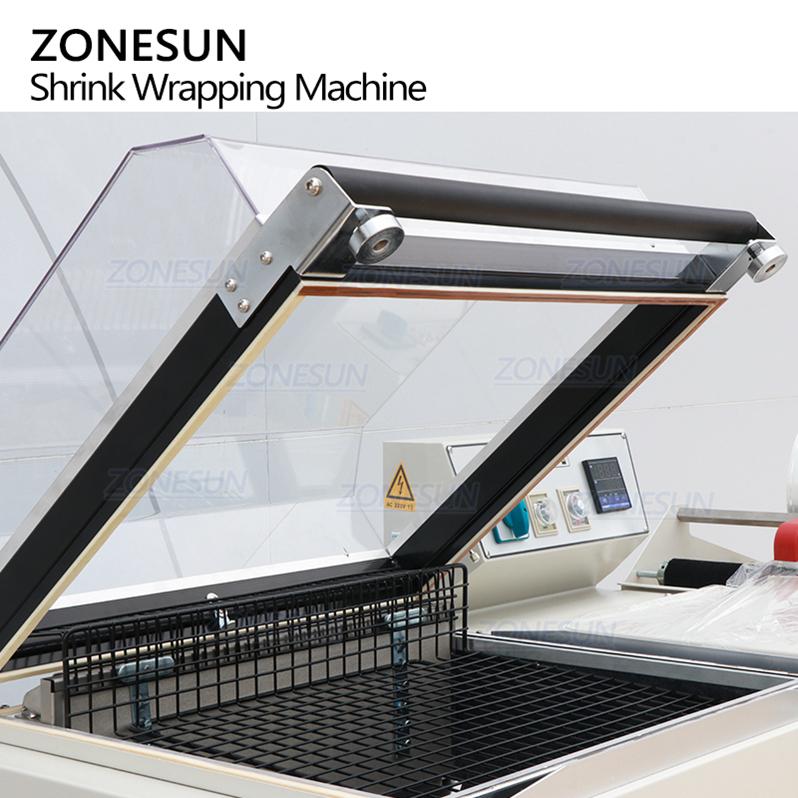

L Sealer Component details

This machine is equipped with L type sealing and cutting component, it can handle a variety of products, including individual items, boxes, trays, and more. It is suitable for packaging both regular and irregular-shaped products, offering versatility in packaging applications.

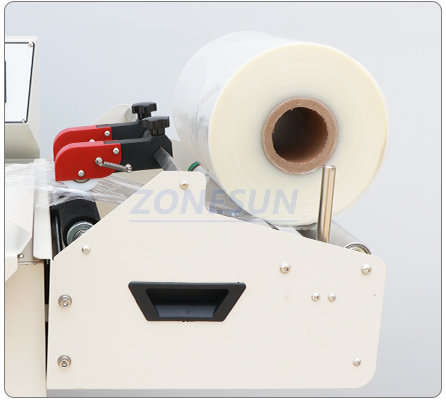

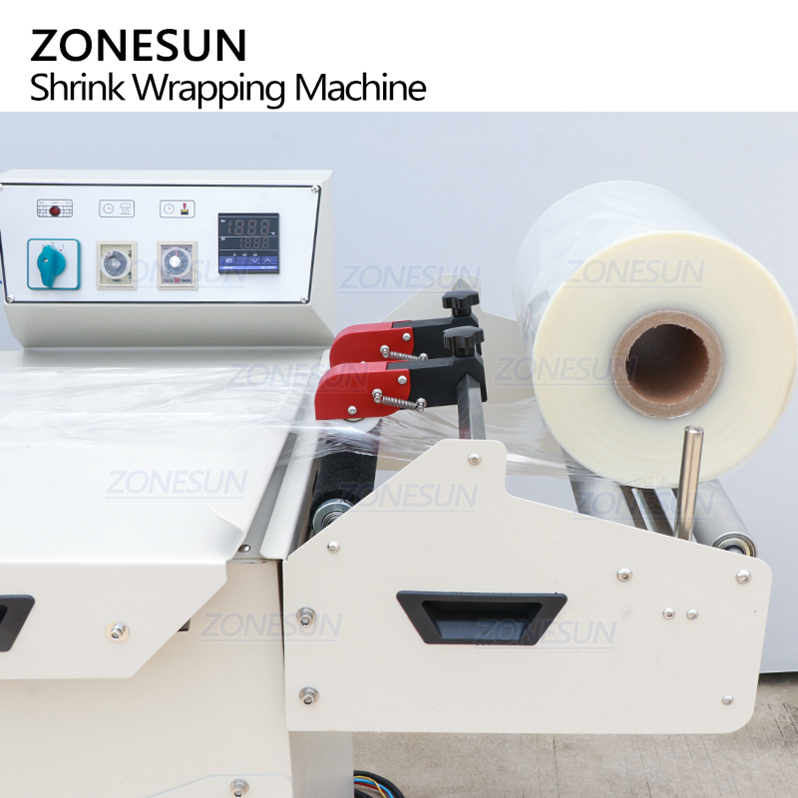

Roll film holder details

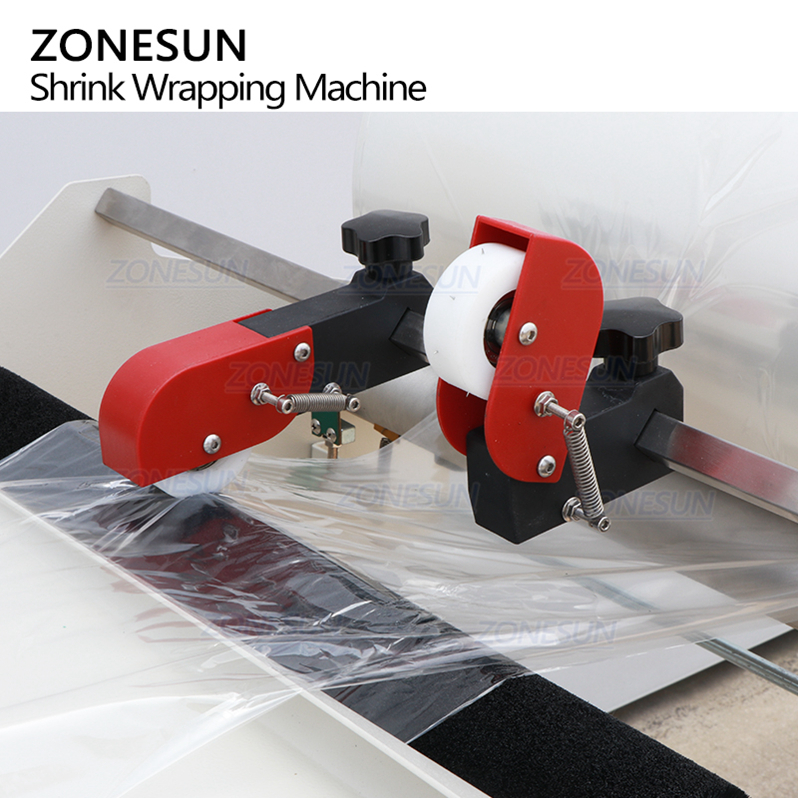

The roll film holders is designed to be user-friendly, with features such as adjustable tension control and film guides to ensure smooth and consistent film feeding. There are two adjusting components to make the packaging size more accurate.

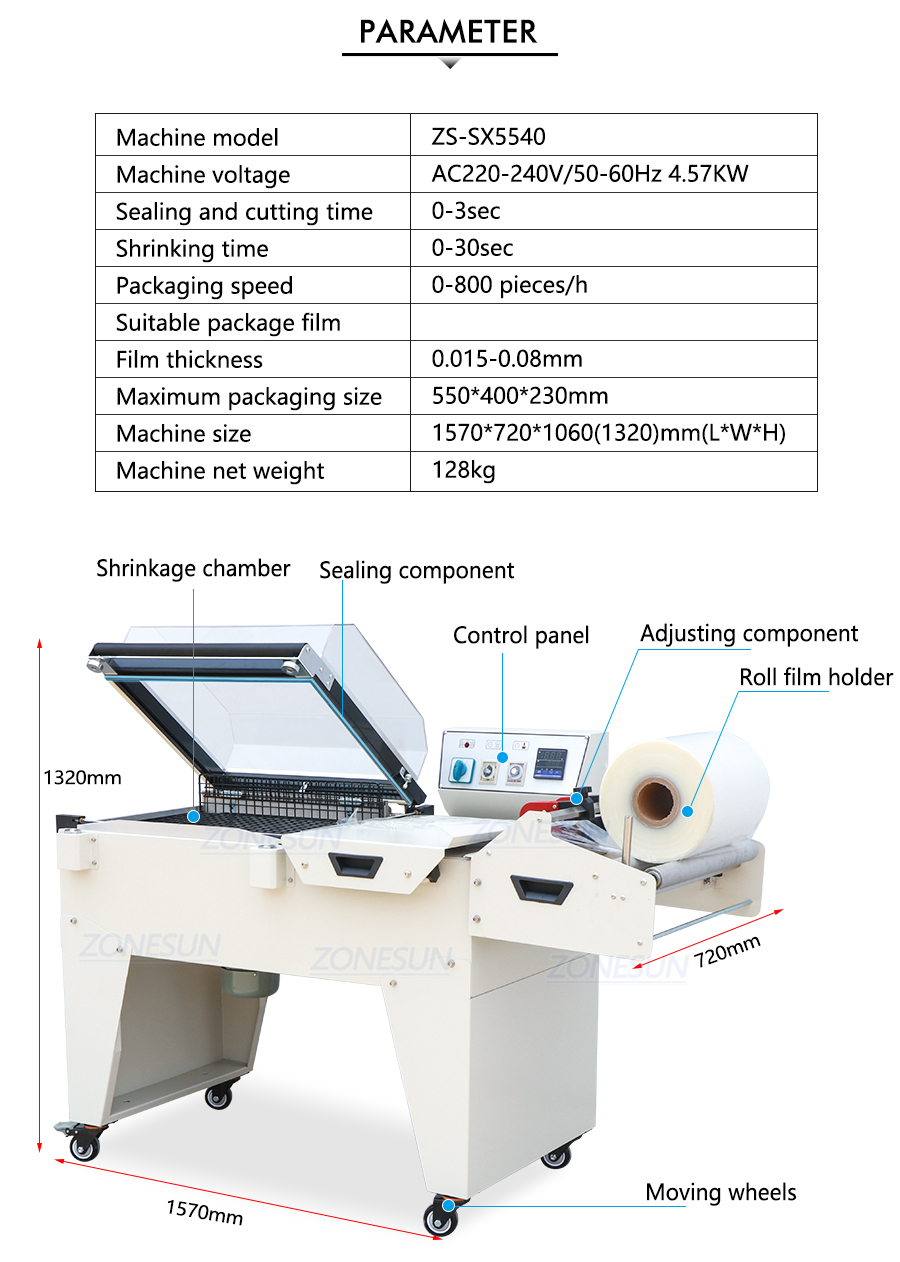

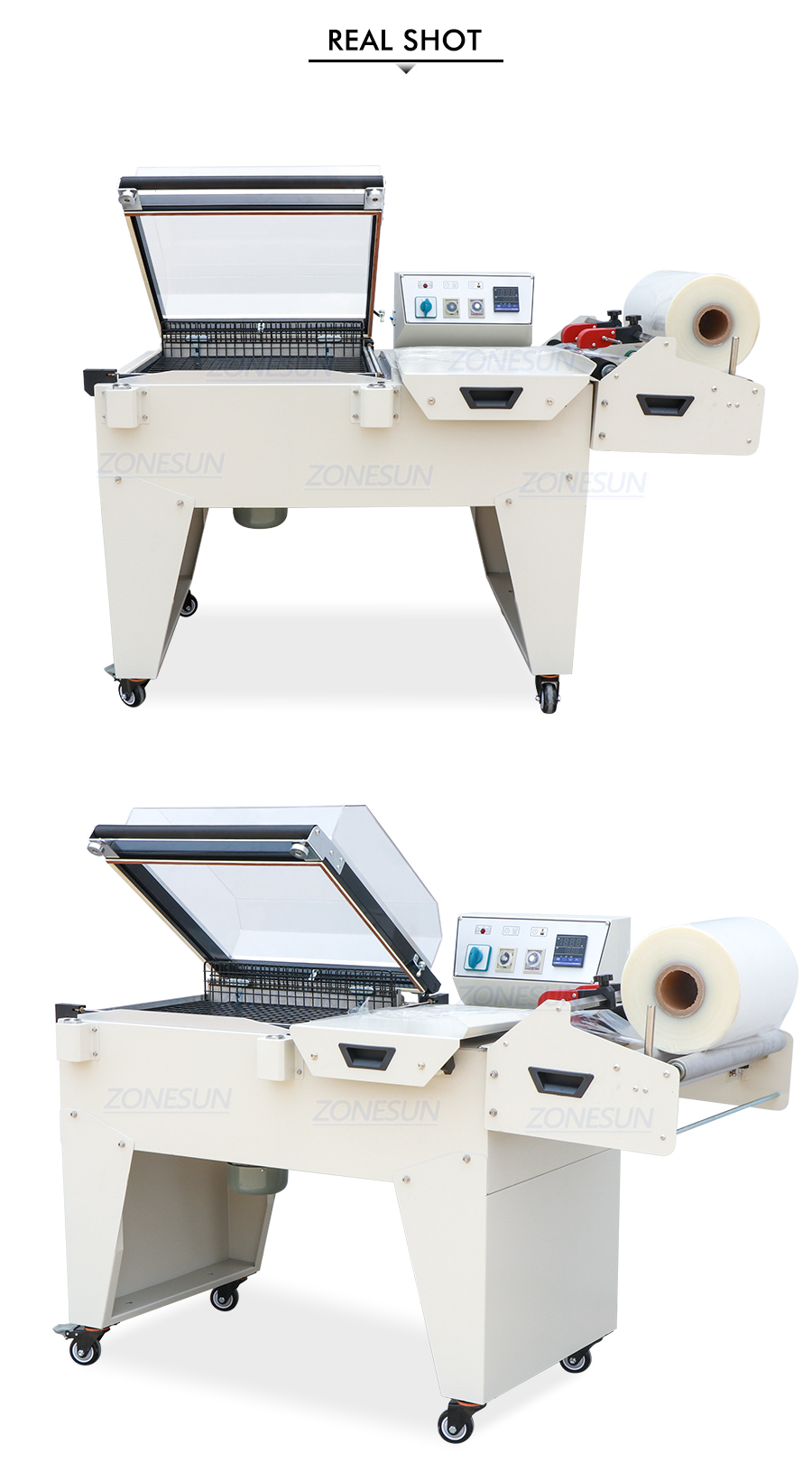

Packaging Machine Structure Overview
Related Products
Production Facility Showcase
Factory Environment 1
Factory Environment 2
Factory Environment 3
Equipment Detail Image 1
Equipment Detail Image 2
Equipment Detail Image 3
Equipment Detail Image 4
Equipment Detail Image 5
Equipment Detail Image 6
Equipment Detail Image 7
Frequently Asked Questions
What are the core capabilities of the ZS-SX5540 shrink packaging machine?
This machine integrates sealing, cutting, and shrinking functions into one unified structure. It is designed to run continuously for long periods, which shortens packaging time, saves floor space, and boosts overall output.
What types of products are best suited for this machine?
It is well-suited for small-scale production lines, especially for items such as earphone boxes, mobile phone boxes, perfume boxes, and various other regular or irregular-shaped goods.
Which packaging films can I use, and what is the supported thickness?
The machine is fully compatible with POF and PVC shrink films, supporting film thicknesses from 0.015mm to 0.08mm.
Can I adjust parameters like temperature and sealing duration?
Yes, the integrated control panel lets operators set custom temperatures, sealing and cutting times (adjustable from 0 to 3 seconds), and shrinking times (adjustable from 0 to 30 seconds) for accurate operation.
What is the maximum packaging size and speed capacity?
The machine can package products up to 550*400*230mm in size, achieving a maximum packaging speed of up to 800 pieces per hour depending on operator pace.
