Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
1 / 2
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device

Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device

Send Inquiry

Product Description

Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Introduction

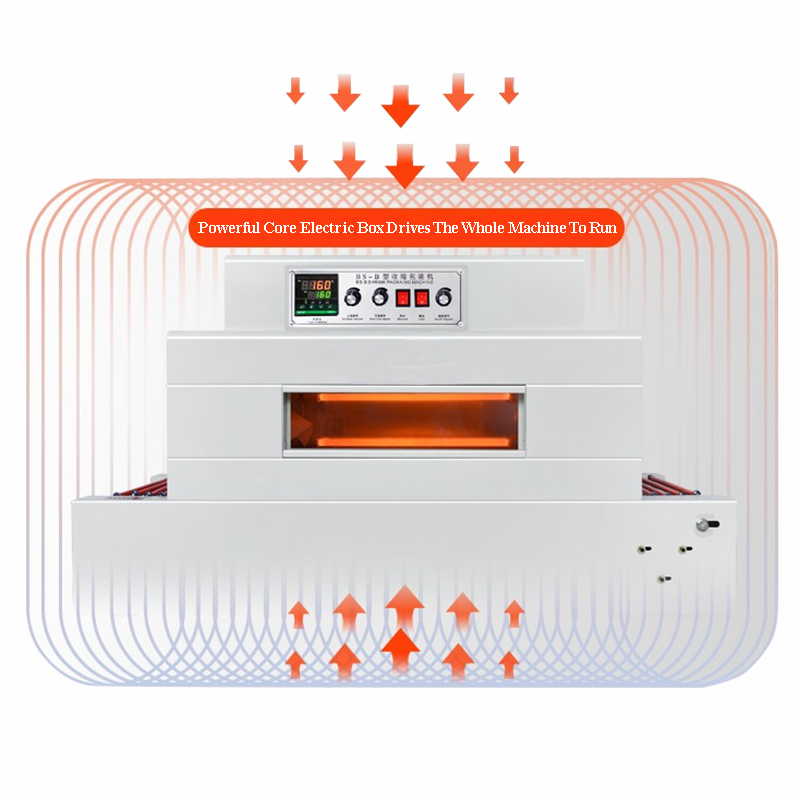

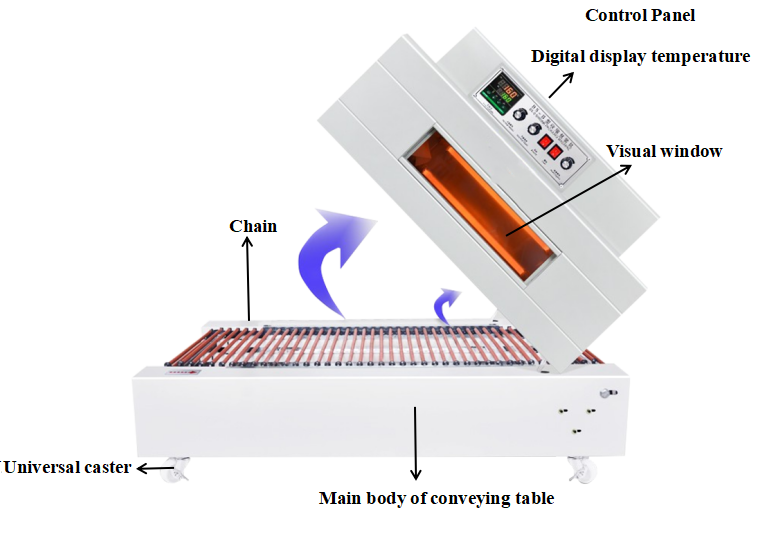

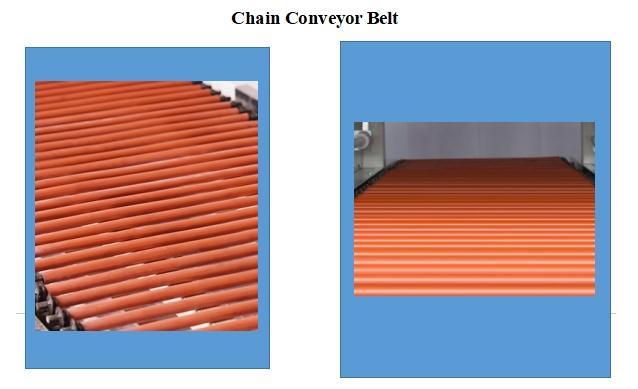

The far-infrared shrink packaging machine is the latest automatic continuous shrink packaging equipment in the market. The shrink temperature and motor drive speed are stable and controllable, the adjustment range is wide, and there are instrument displays. The original roller auto-transmission device can work continuously.

Features
  • Using far-infrared tube for heating, saving more than 15% energy.
  • Advanced design, stable and reliable performance, efficient power saving, good shrinkage effect, novel and beautiful structure, convenient operation and maintenance, etc.
Specification
Parameter Details
Voltage 220V 50Hz
Power 5.5KW
Speed 0-10m/min

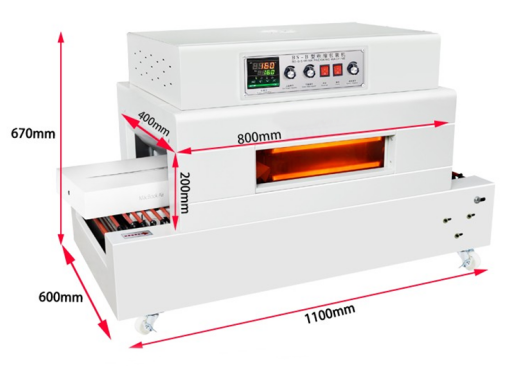

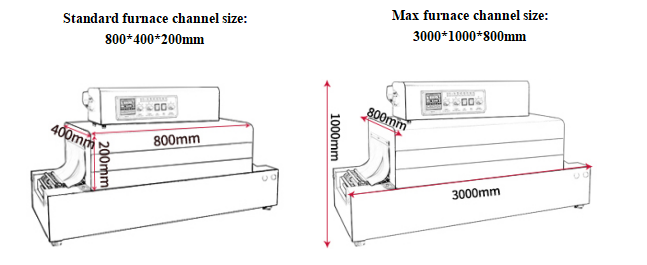

Furnace channel size 800*400*200mm (customizable)
Machine size 1100*600*670mm
Max. loading weight 15kg

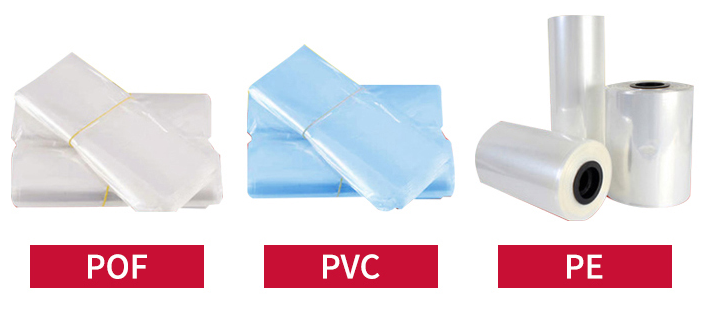

Application material PVC POF PP
Maximum scope of application Unlimited length, Width 37cm, Height 17cm
Shrink Film Temperature / Time Comparison Table
Film PVC PP POF
Thickness 0.02-0.06mm 0.02-0.04mm 0.03-1.1mm
Heating time 5-10S 6-12S 8-16S
Shrinking temperature 110-130C 130-170C 130-170C
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Product Image
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device

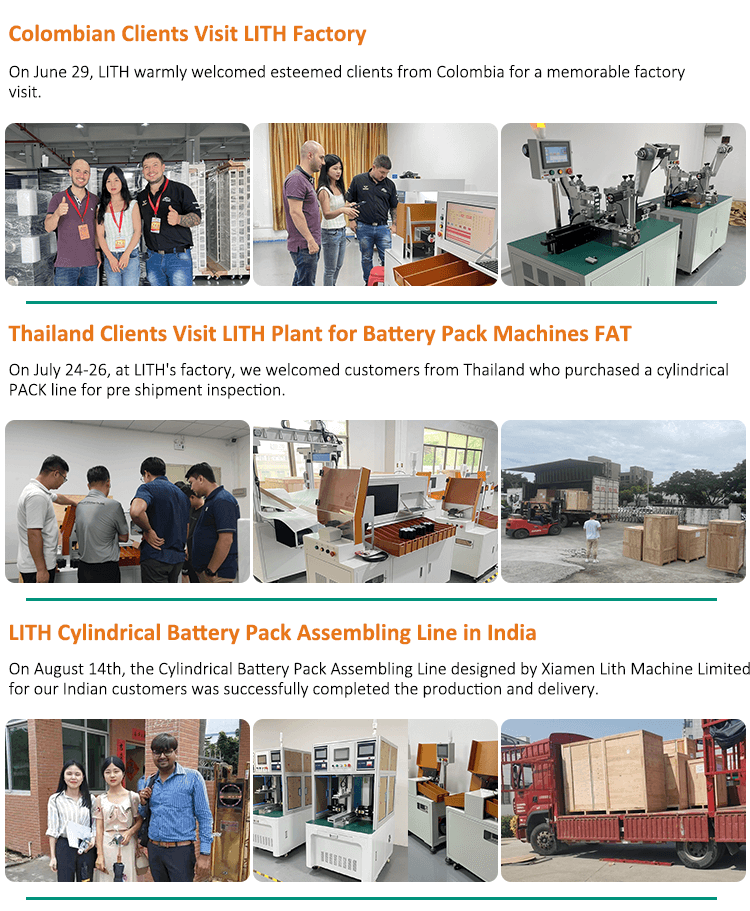

Project Display
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device

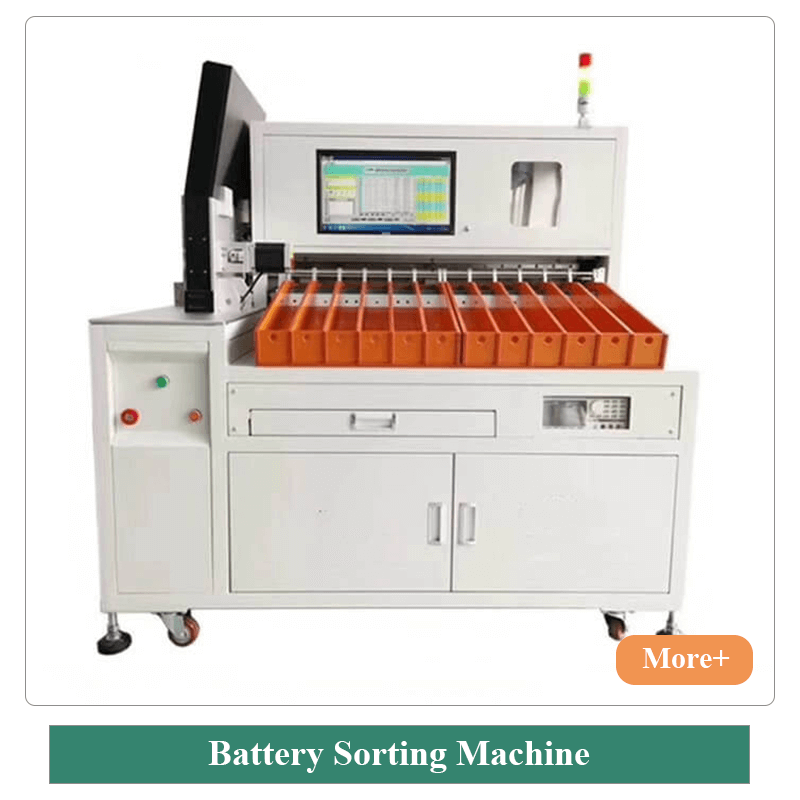

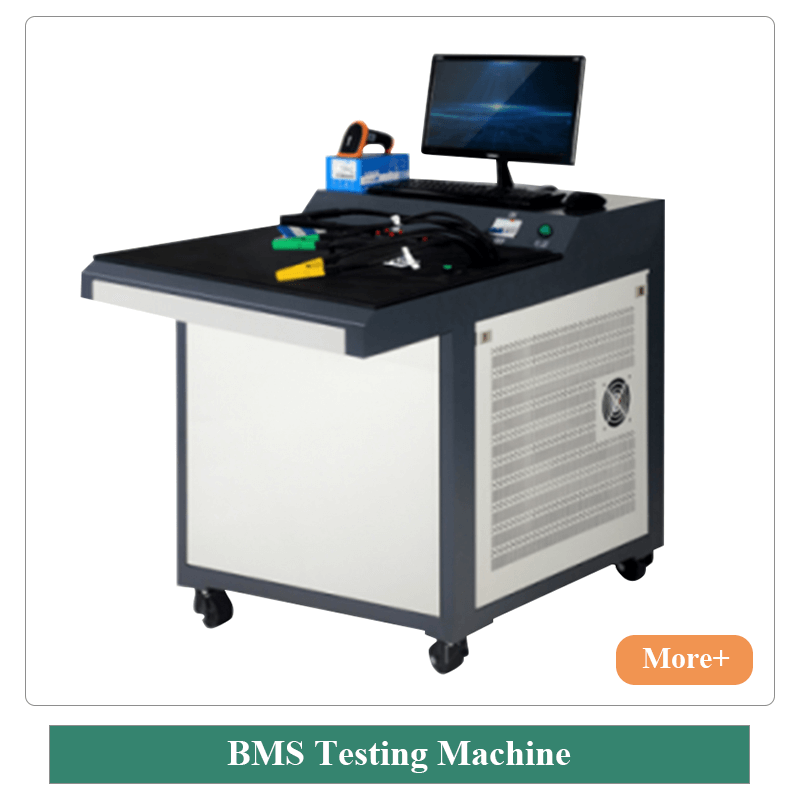

Related Products
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Certifications
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Cooperative Partners
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Automatic Battery Pack Continuous Shrink Packaging Machine PVC PP Film Heat Tunnel Wrapping Device
Frequently Asked Questions
What types of shrink films can this packaging machine use?
This continuous shrink packaging machine is compatible with PVC, POF, and PP shrink films.
How much energy can be saved with the far-infrared heating tube?
By utilizing a far-infrared tube for heating, this machine can save more than 15% energy compared to traditional heating methods.
Are the furnace channel dimensions customizable?
Yes. The standard furnace channel size is 800*400*200mm, but it can be customized according to your specific packaging requirements.
What is the maximum loading weight and package dimension support?
The machine supports a maximum loading weight of 15kg. The maximum application scope allows for unlimited length, a width of up to 37cm, and a height of up to 17cm.
Can the temperature and speed of the machine be controlled?
Yes, both the shrink temperature and the motor drive speed are stable and fully controllable with wide adjustment ranges and built-in instrument displays.
