Product Description
Performance Features
- Patented rotary cross seal motion for smooth high speed performance.
- Four Servo motors for high speed accuracy and repeatability.

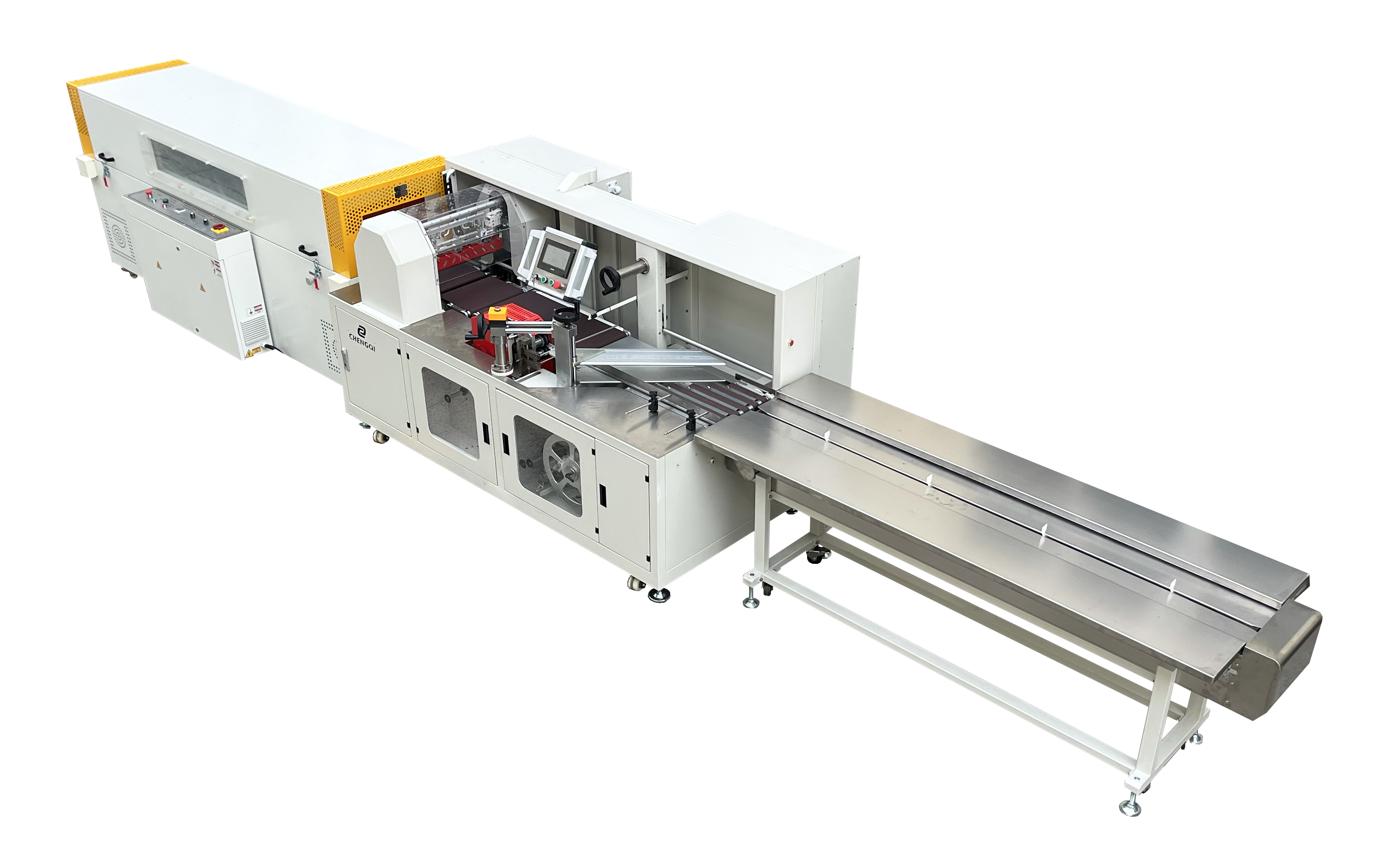

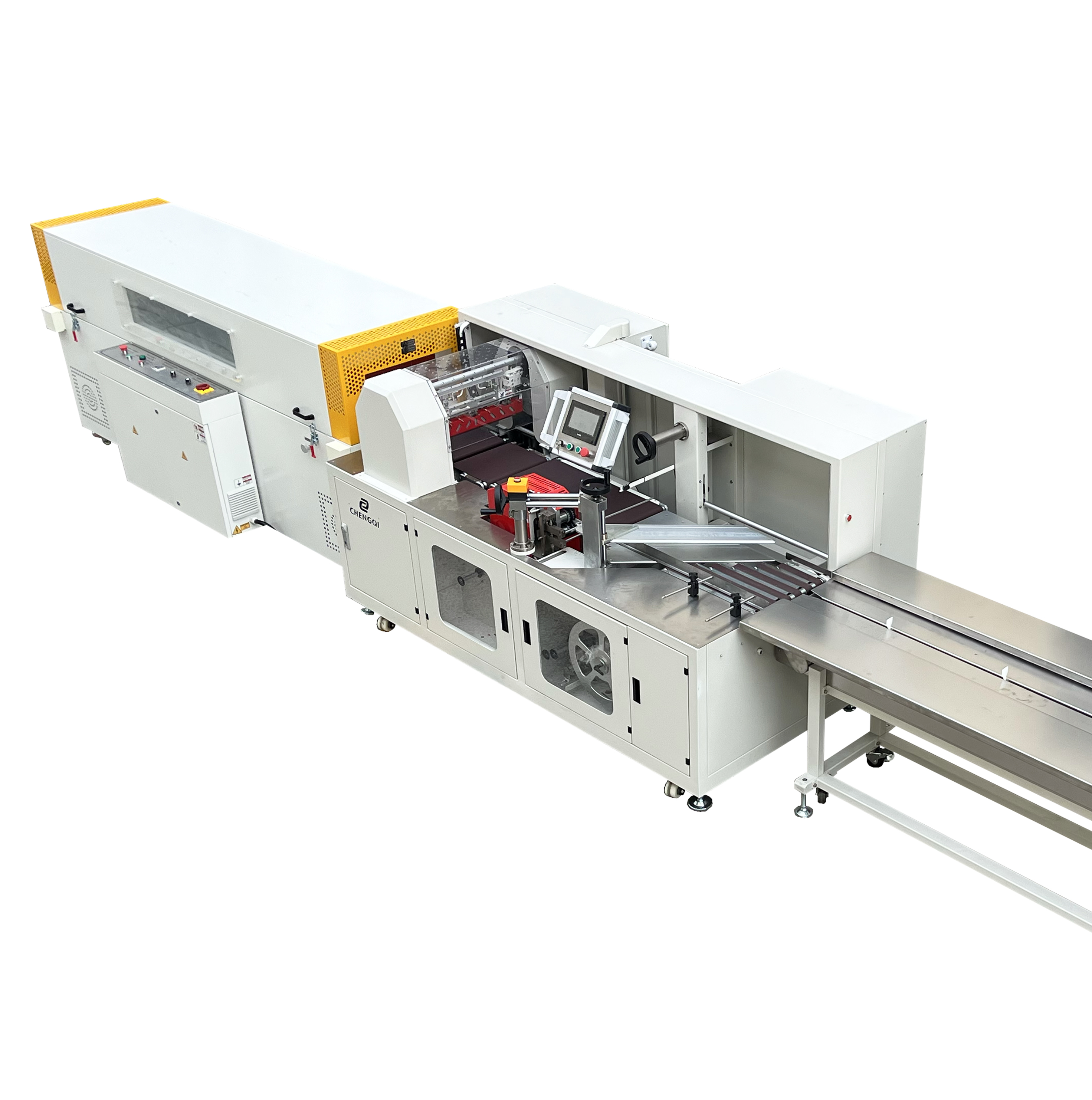

- GS350 Continuous Motion Servo Rotary Wrapper integrates the functions of automatic film feeding, punching, coating, sealing, cutting, and automatic waste film rolling into a single operation, making it ideal for mass production packaging lines. It can be easily connected directly to production lines.
- The feeding product is detected by a sensor to prevent running empty bags.
- The sealing unit consists of transverse sealing and side sealing, both independently controlled via a lifting mechanism. This guarantees a sealing line in the exact middle of the product for a perfect sealing effect.
- The transverse sealing section is driven by a servo motor. Film cutting has uniform strength, resulting in a stable and fast seal.
- A manual adjustment film-guide system and feeding conveyor platform make the machine highly adaptable for items of varying widths and heights.
- The side sealing unit continuously pulls, seals, and cuts the film.
- Quick product changeover is facilitated by retrieving preset product formulas directly from the touch screen, simplifying operation.
- Waste film is automatically rolled. Using independent motor control, the rolling speed remains uniform and smooth—neither too tight nor too loose—avoiding breakage. The rewinding plate is designed for easy disassembly.
- Equipped with a digital temperature controller featuring a built-in PID function. The sealing blade temperature is highly sensitive, accurate, and can be set arbitrarily.
- Incorporates a Panasonic PLC programmable controller and a WEINVIEW 7-inch man-machine interface for simple operation.
- The sealing blade features an automatic protection function to prevent accidental cutting.
- Automatic and manual modes can be switched seamlessly at any time, facilitating easy replacement of the shrink film.
- Widely applicable for packaging photo frames, picture frames, flooring, aluminum profiles, wood products, and other similar items.
Technical Parameters
GS350 Model Specifications
| Model |
GS350 |
| Power supply |
380V 3ph 50/60Hz |
| Power |
5KW |
| Packing range |
(L)100-380mm; (W)50-300mm; (H) < 130mm |
| Sealing Size |
(W)500mm |
| Table height |
800mm |
| Packaging speed |
60-100 pcs/min (Depending on product size) |
| Air source |
6kg/cm² |
| Shrink film |
Center folded POF shrink film |
| Shrink film size |
(W) ≤ 580mm, (D) ≤ 250mm, (weight) ≤ 35KG |
| Sealing form |
Full closed |
| Overall dimension |
(L)2400 × (W)1400 × (H)1320mm |
| Feeding Device Size |
(L)2600 × (W)680-960mm adjustable × (H)800mm |
| G./N. weight |
1290/1190KG |
BS5030LW Model Specifications
| Model |
BS5030LW |
| Power supply |
380V 3ph 50/60 Hz |
| Power |
25KW |
| Table height |
800mm |
| Conveyor load |
30KG |
| Conveyor speed |
1-20m/min |
| Tunnel size |
L2500 × W500 × H300mm |
| Machine size |
L2800 × W1020 × H1260mm |
| G./N. weight |
620/560Kg |

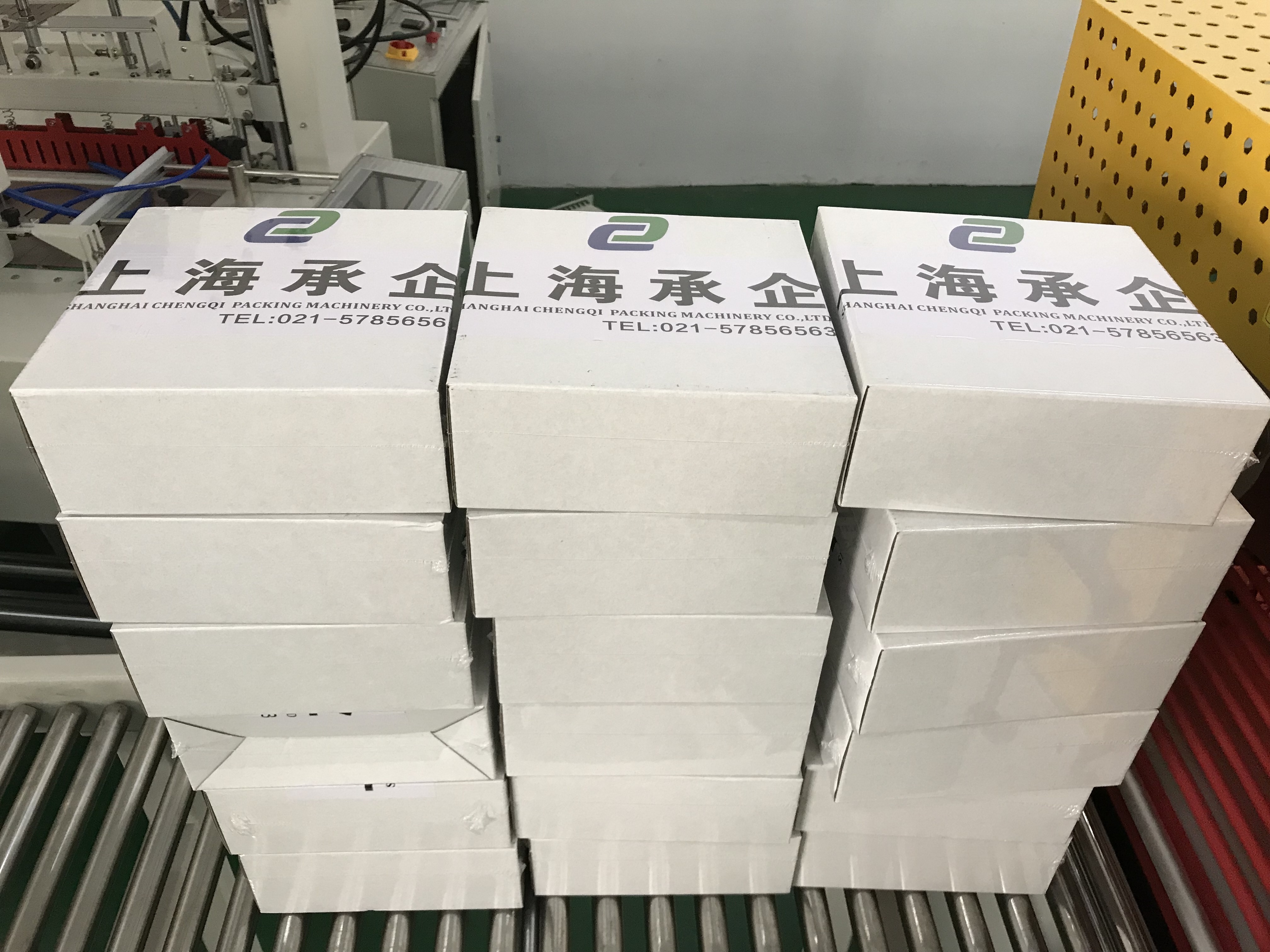

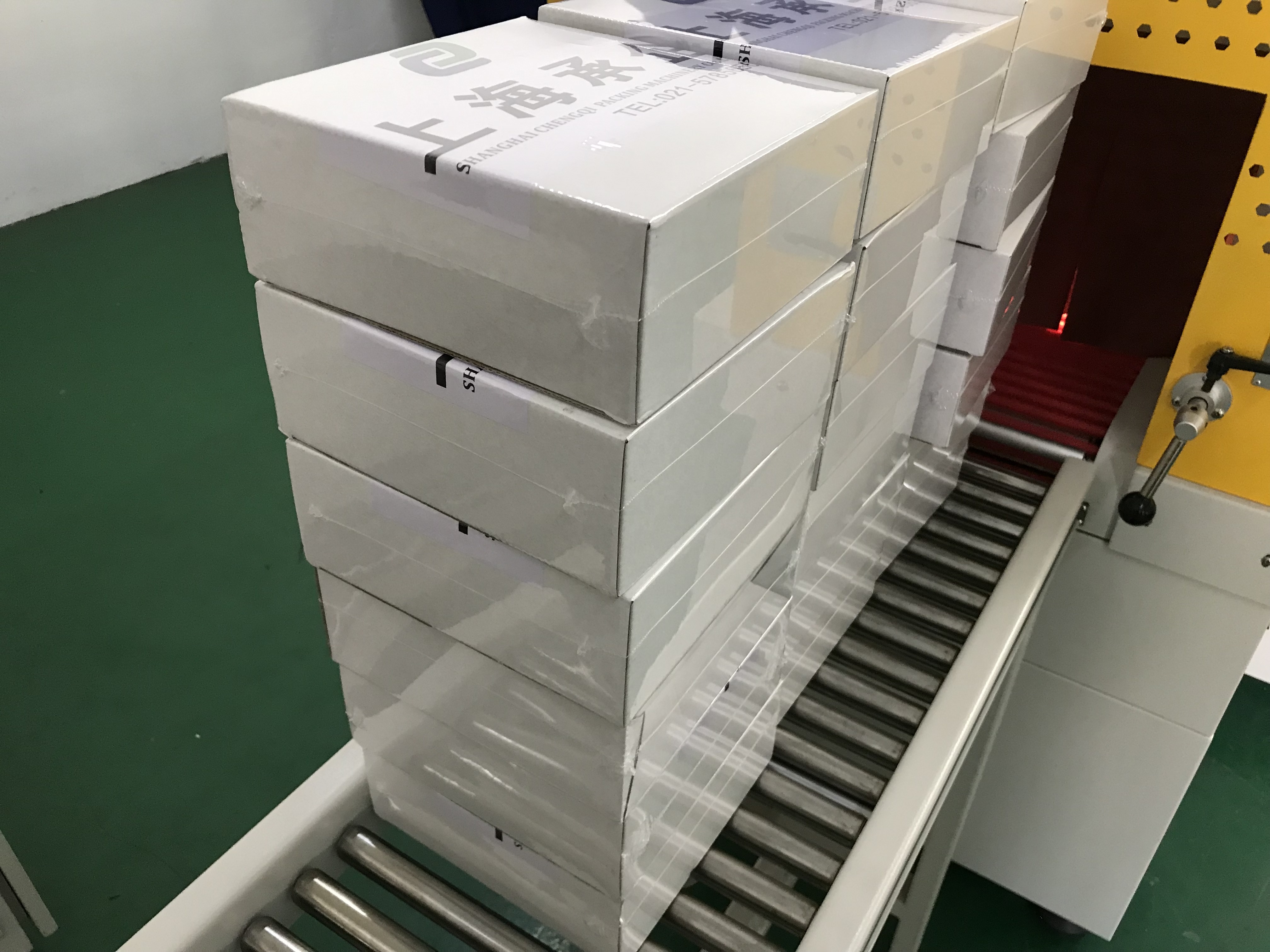

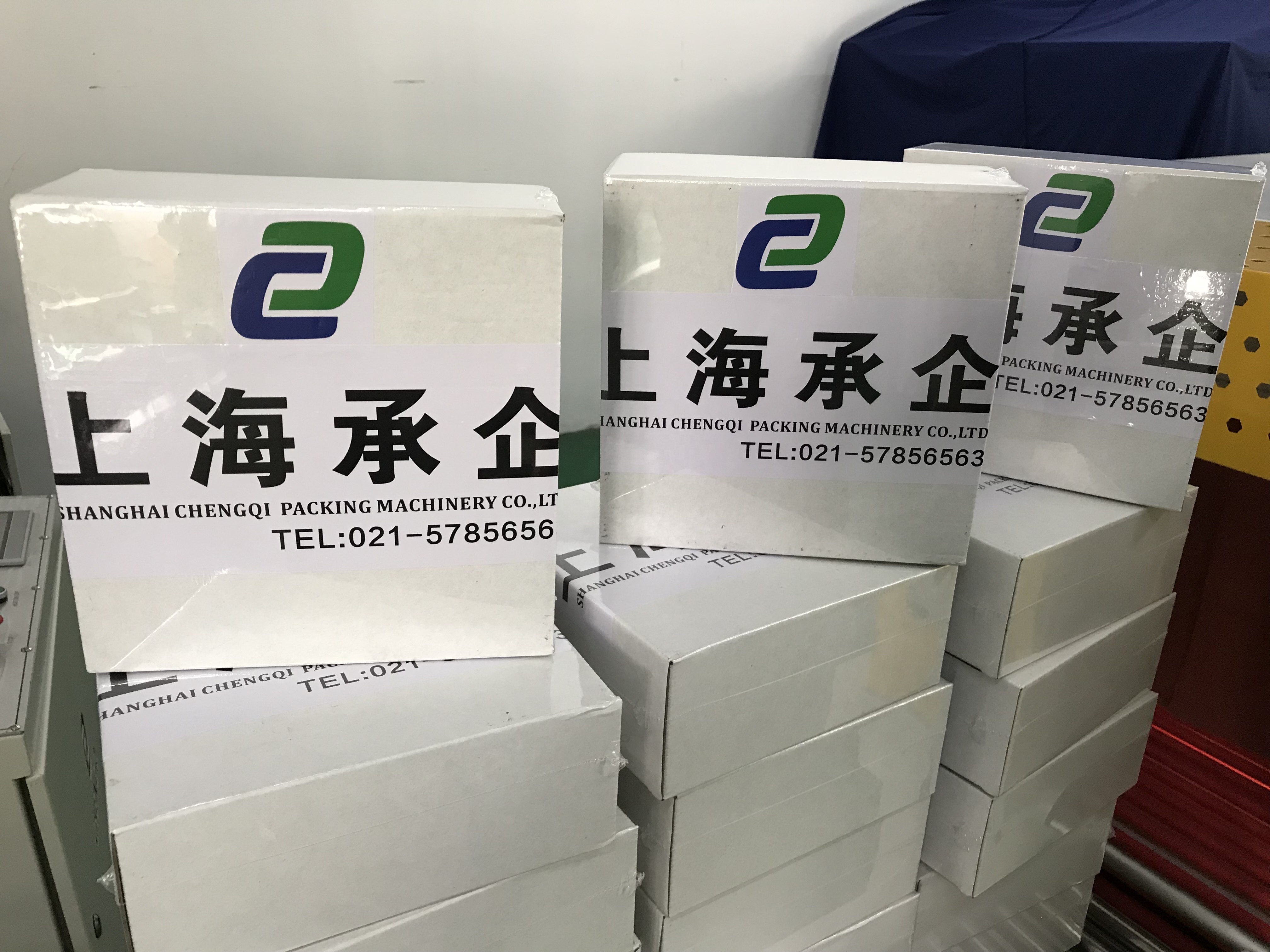

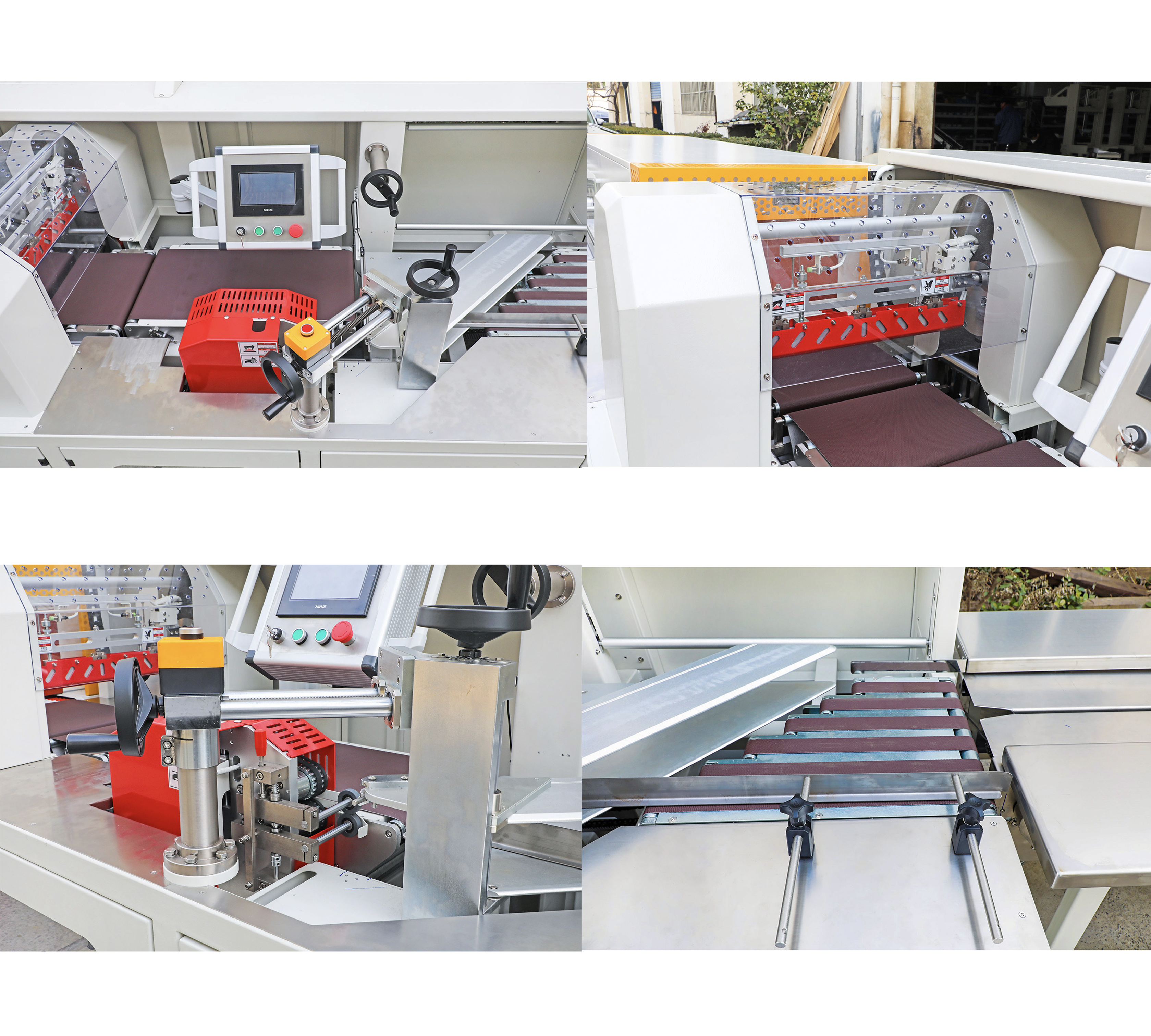

Detailed Images
Application Range

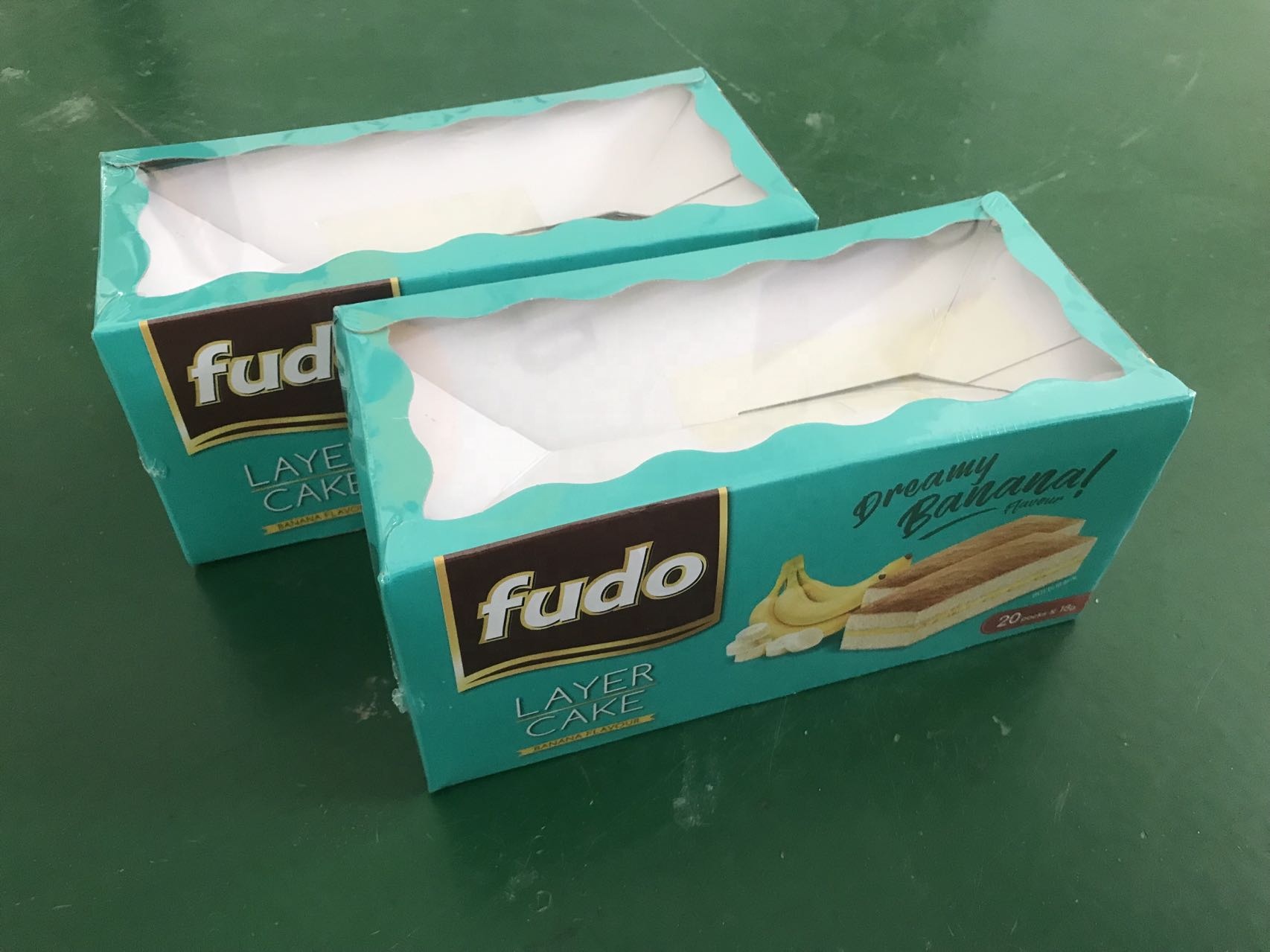

Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware, and other industries requiring large-quantity shrink wrapping.

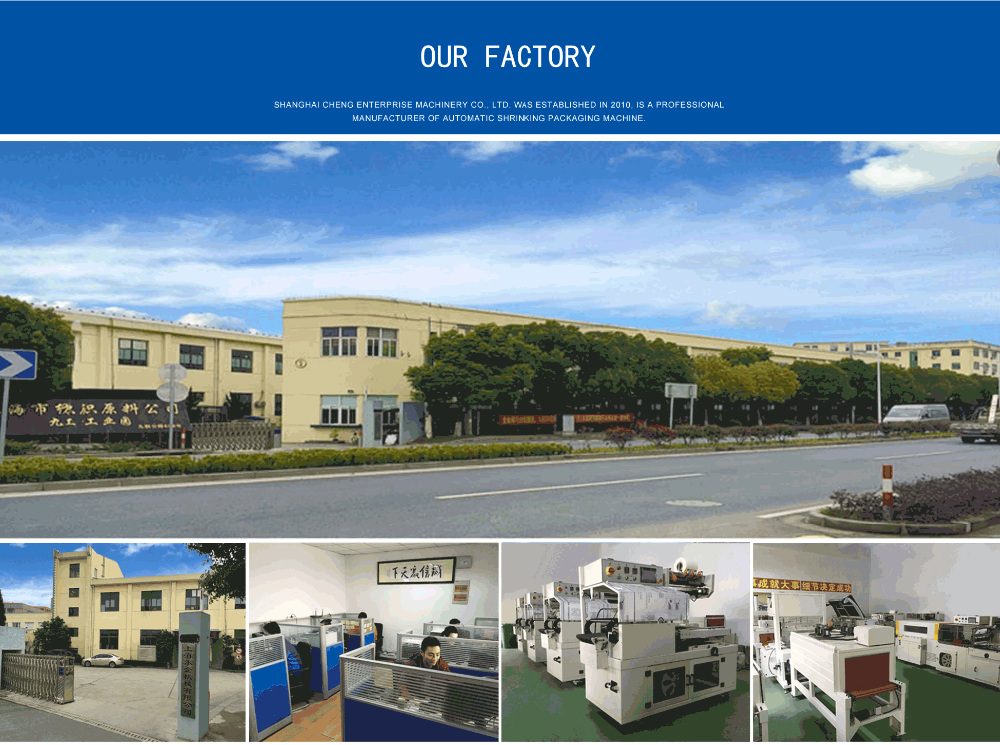

Production Facility
Packing & Delivery
Packaging Details: Standard Export Wooden Box
Delivery Detail: Common specifications are available in stock
Our Service
- We can customize machines according to your specific requirements and product dimensions.
- One-year Warranty: We will replace non-human-damaged spare parts for free within one year (excluding wearing parts). After the guarantee period, we offer lifelong spare parts support at highly favorable prices.
Frequently Asked Questions
How do you test the machine before delivery?
When the machine is completely manufactured, we will send you a test video for your review. You are also welcome to visit our facility to inspect the machine and learn how to operate it firsthand.
What information should I provide to get an accurate quotation?
Please let us know what product you plan to pack, along with the product's dimensions (Length × Width × Height) and weight. This information allows us to quote the exact specifications you need.
Can this packaging machine be customized?
Yes, we can customize the machine and feeding systems to fit your specific requirements, product types, and line configurations.
What kind of film does this packaging machine use?
The machine uses center-folded POF shrink film, with a maximum film width of 580mm and weight up to 35KG.
What is the warranty and after-sales support policy?
We offer a one-year warranty on non-wearable parts for damage not caused by human error. Beyond the warranty period, we provide lifelong technical support and cost-price spare parts.
How fast can this shrink wrapping machine package items?
The GS350 model has a packaging speed of 60 to 100 pieces per minute, depending on the dimensions of the product being processed.
