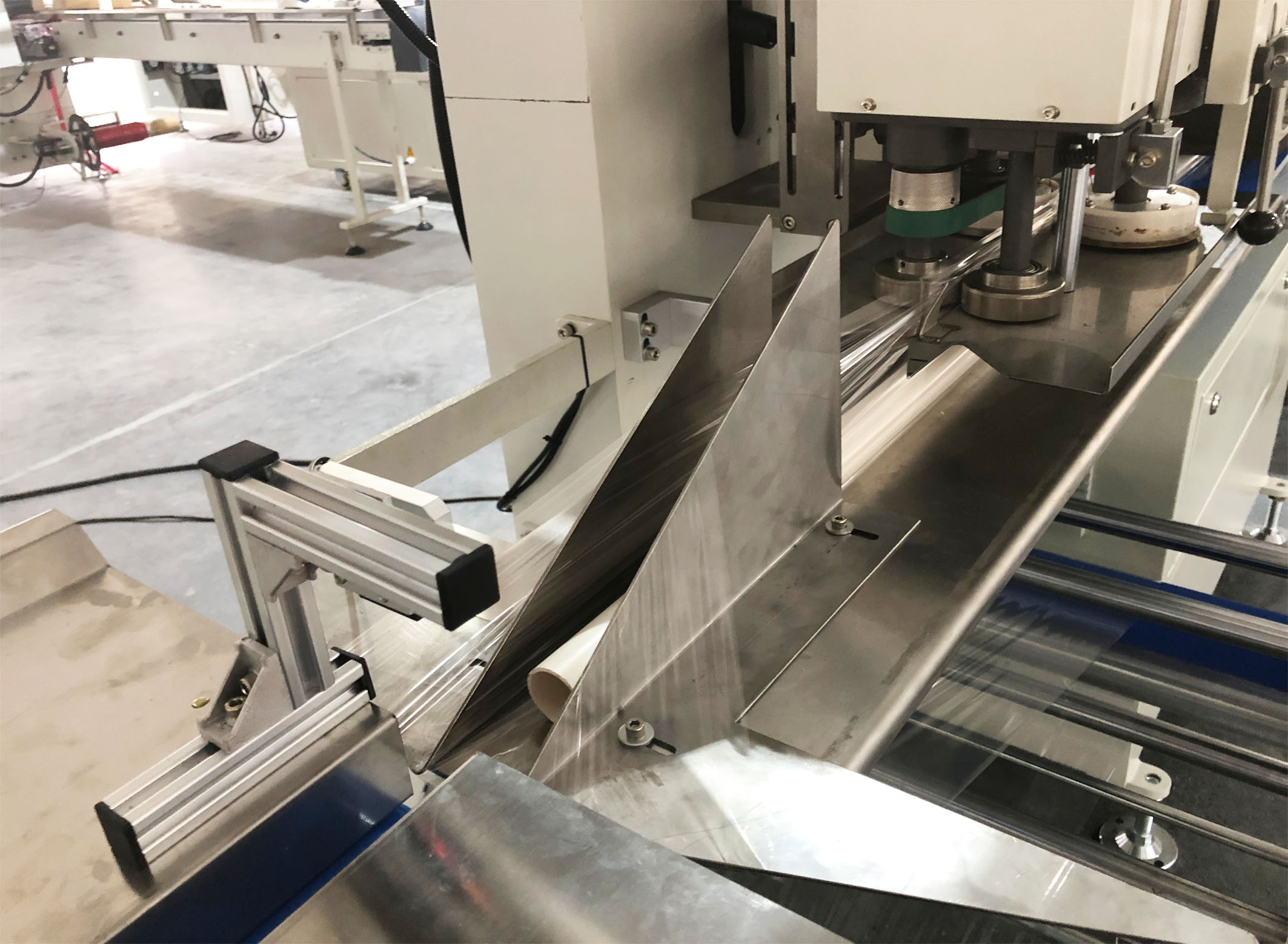

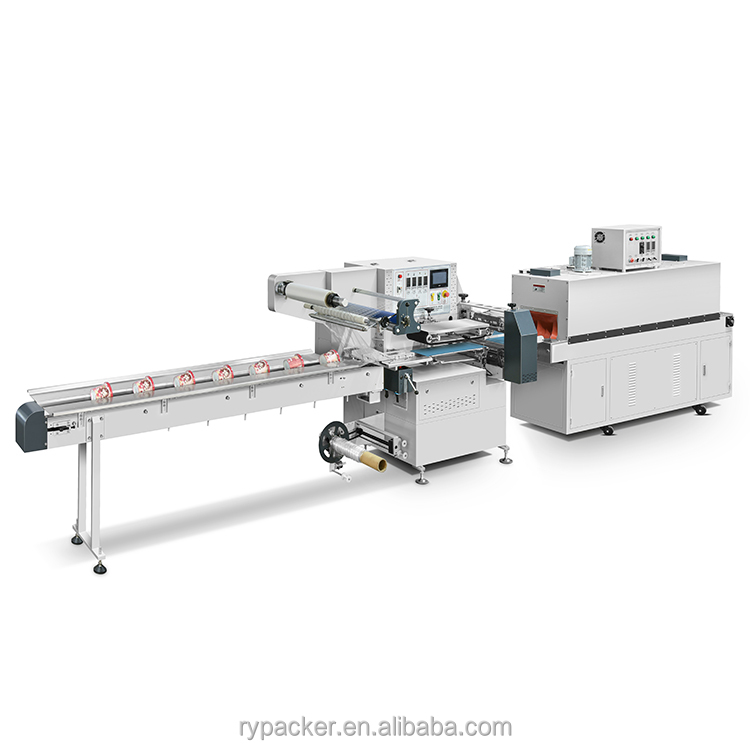

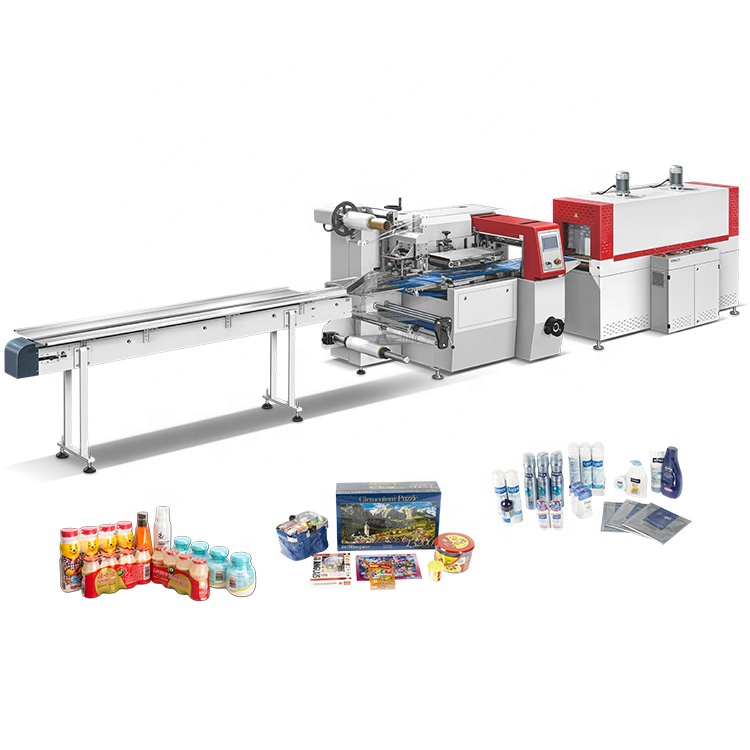

Automatic Continuous Motion Shrink Wrapping Machine RS-590 POF Film Flow Shrink Wrap,Sealing Wrapper

Product Description

Automatic Continuous Motion Shrink Wrapping Machine RS-590 POF Film Flow Shrink Wrap,Sealing Wrapper
Good Packing Shrink Packing Machine Film Sealing Machine
Application Divider

Instant noodle cup or bowel, milk cup, carton, wallpaper rolls, cosmetic bottle, filter, etc.

Features Divider Application Details Specifications Divider
  • Driven by three servo motors.
  • Dual temperature zones inside shrink chamber.
  • The cutting length, speed and temperature can be adjusted individually.
  • Easy to operate, less maintenance.
  • Cutting safety device prevents wrong cutting.
  • High-sensitivity photoelectric tracking makes sealing and cutting more accurate.
  • Simple transmission system, more reliable and convenient.
Parameters Divider
MODEL RS-590A
Sealing Type High Speed Flow Sealing
Installed Power Sealer: 220V/50-60Hz/1Phase, Tunnel: 380V/50-60Hz/3Phase
Packing Capacity 30-120 Packs per Minute (Depends on Product Size)
Sealing Height 110MM
Packing Width 180MM
Packing Size Width + Height ≤ 450MM
Film Type Single Layer POF Film

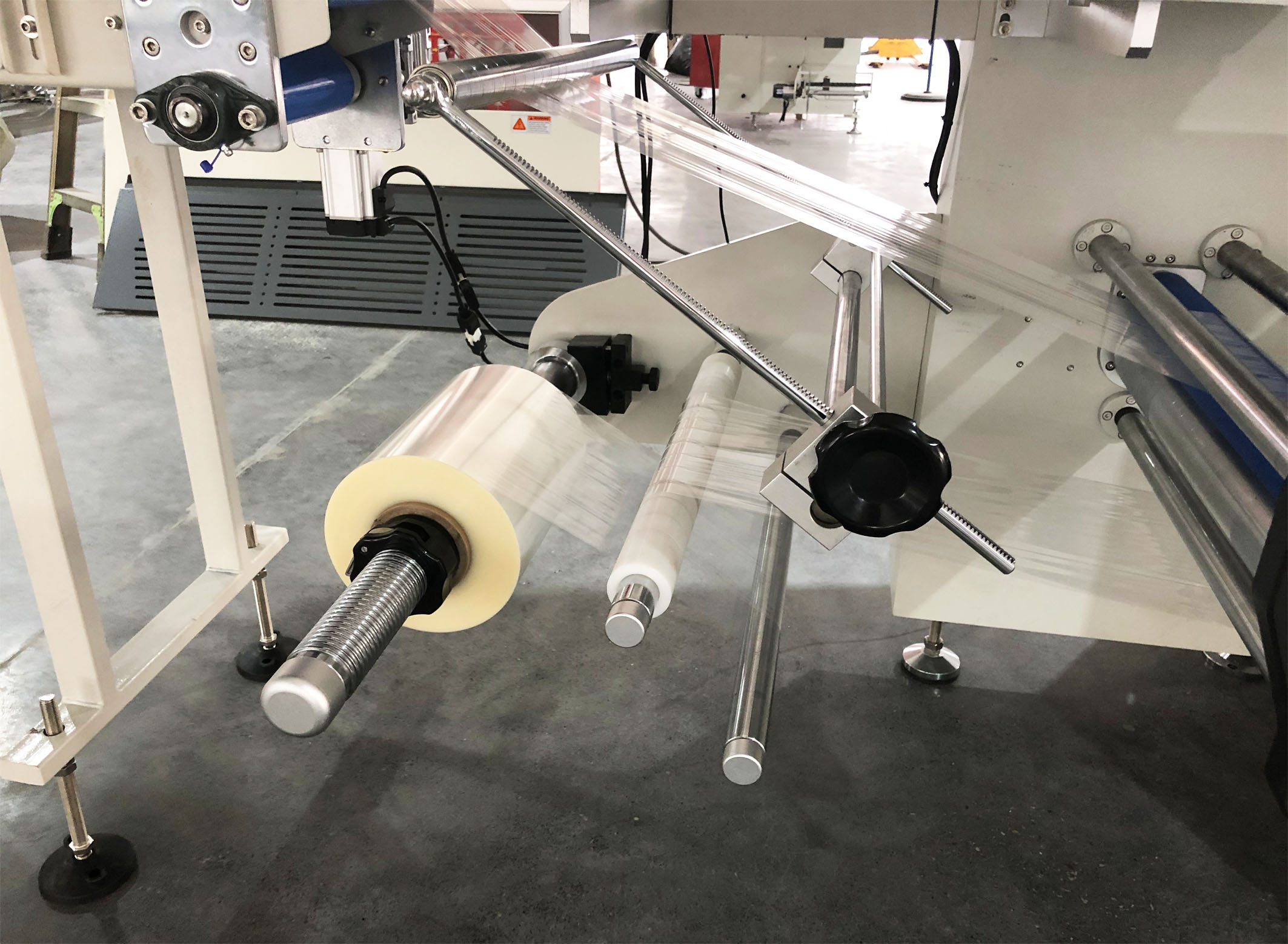

Max Film Roll Size 590MM (Width) X 280MM (Outer Diameter)
Working Height 780-850 MM

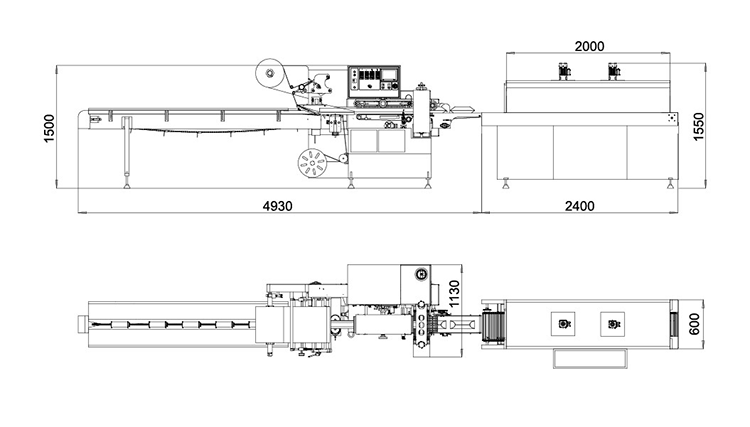

Sealing Machine Dimensions 4930 X 1130 X 1500 MM
Conveyor Chains with Rotating Silicon Coated Rods
Rated Power Consumption Max. 16 KW
Working Height 780 - 850 MM
Machine Material Carbon Steel
Tunnel Machine Dimensions 2400 X 600 X 1550 MM
Weight (Net/ Gross) 1600KGS/ 1680KGS (For Reference Only, Including Sealer and Tunnel)

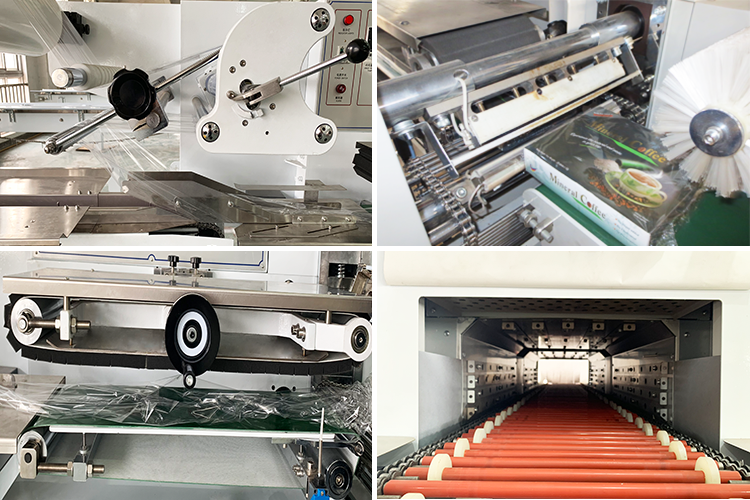

Visuals Divider Automatic Continuous Motion Shrink Wrapping Machine Details Gallery Divider

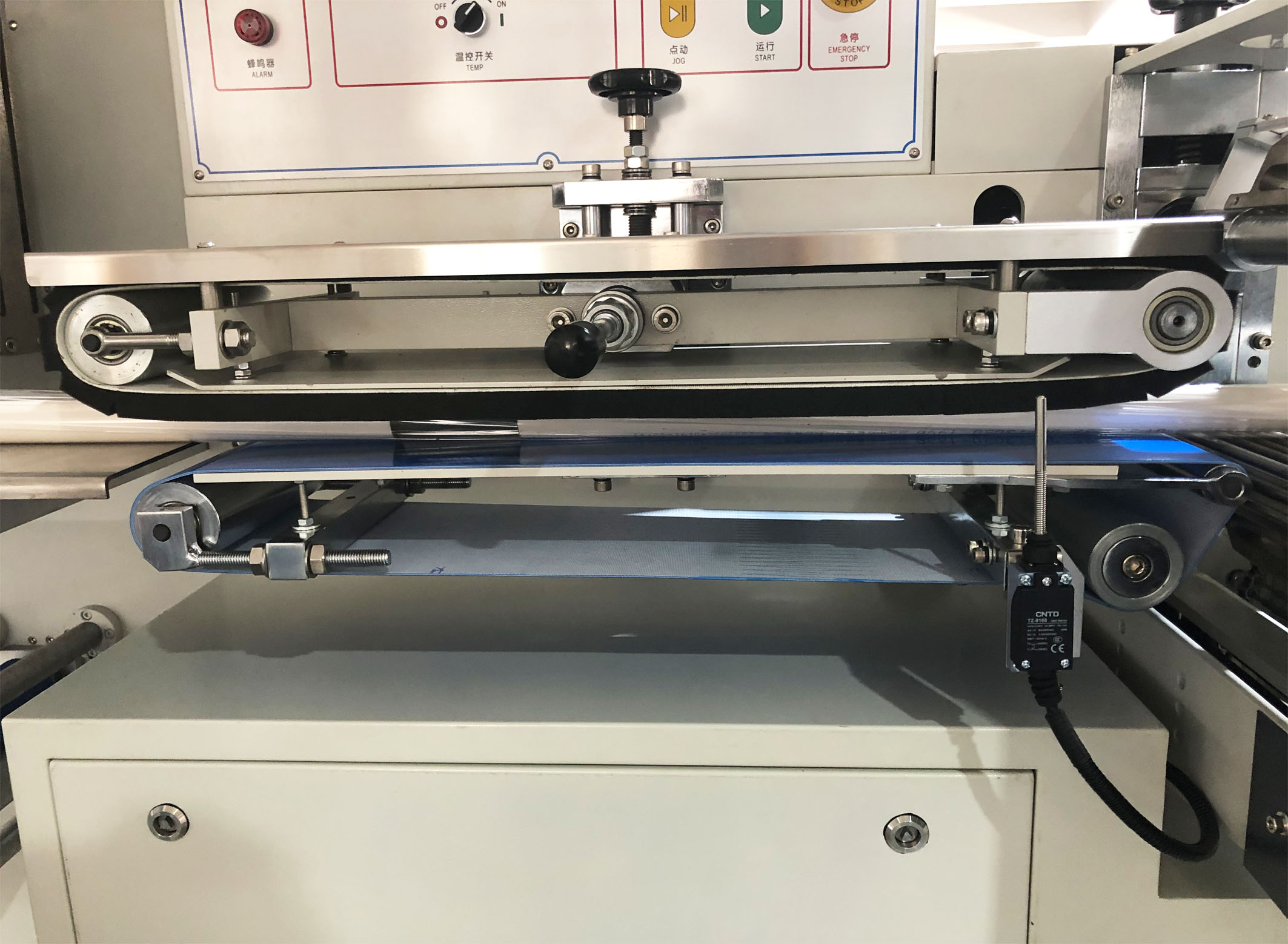

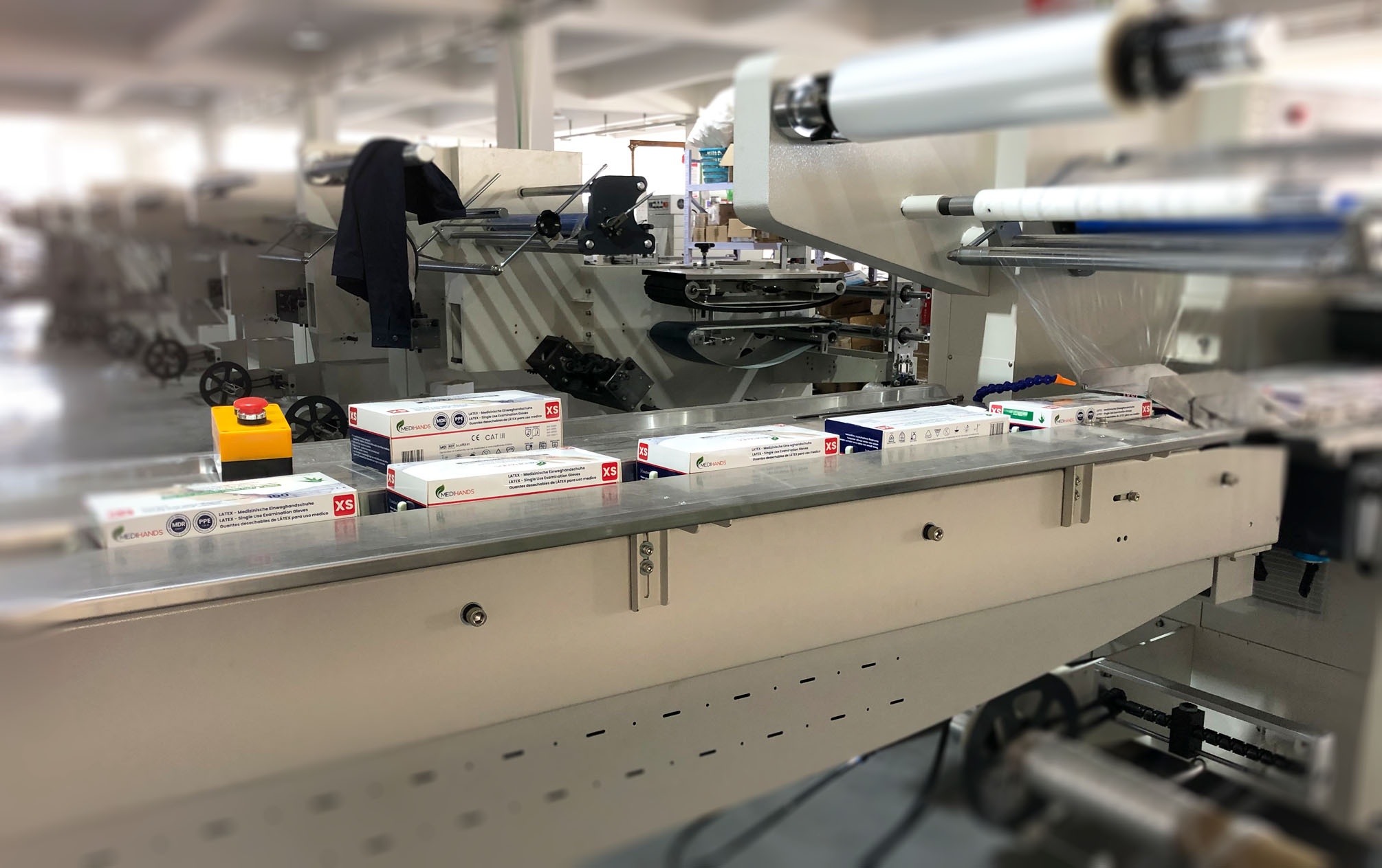

Details View 1
Details View 2
Details View 3

A technology-based enterprise and professional manufacturer of automatic heat shrink packing machinery. In the shrink wrapping industry, there is a constant drive for improvements, targeting high-quality packaging machines without compromise.

The ISO and CE certified shrink packing equipment includes automatic L sealer, automatic continuous side sealer, automatic horizontal flow sealer and automatic sleeve sealer, shrink tunnel, etc.

Besides the complete shrink wrapping systems, customized projects on infeed and discharge automation such as products package grouping, automatic feeding, rotating and labeling etc. are also produced. A suitable shrink packaging solution is available for your products!

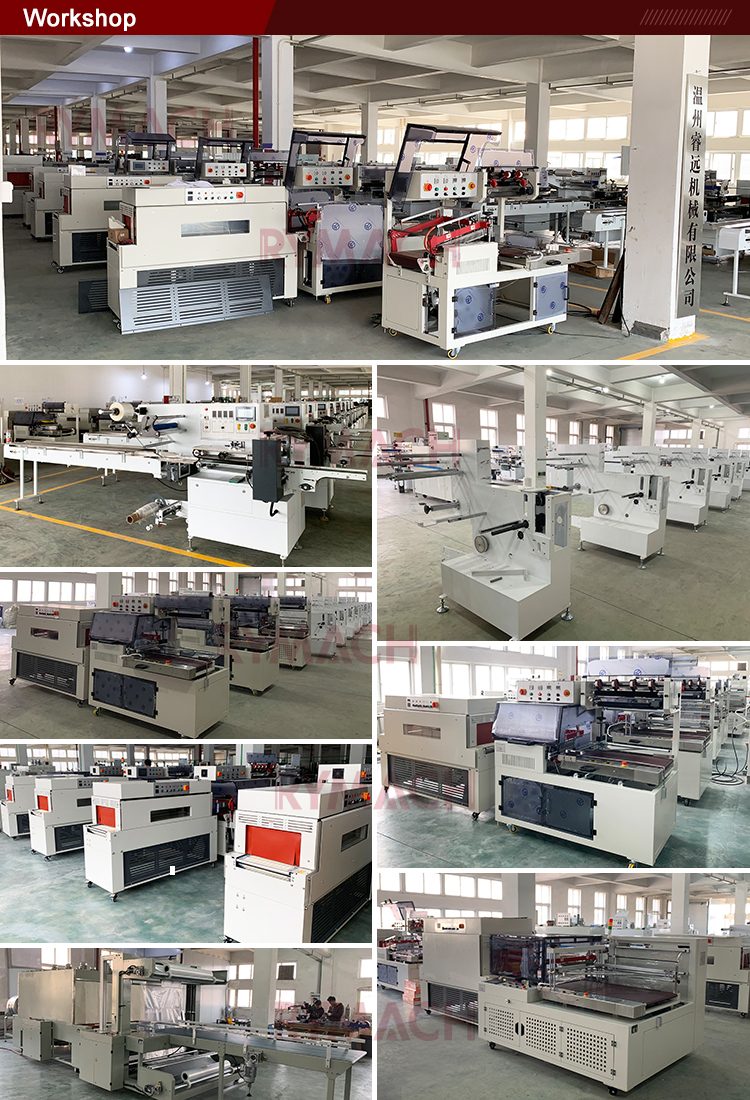

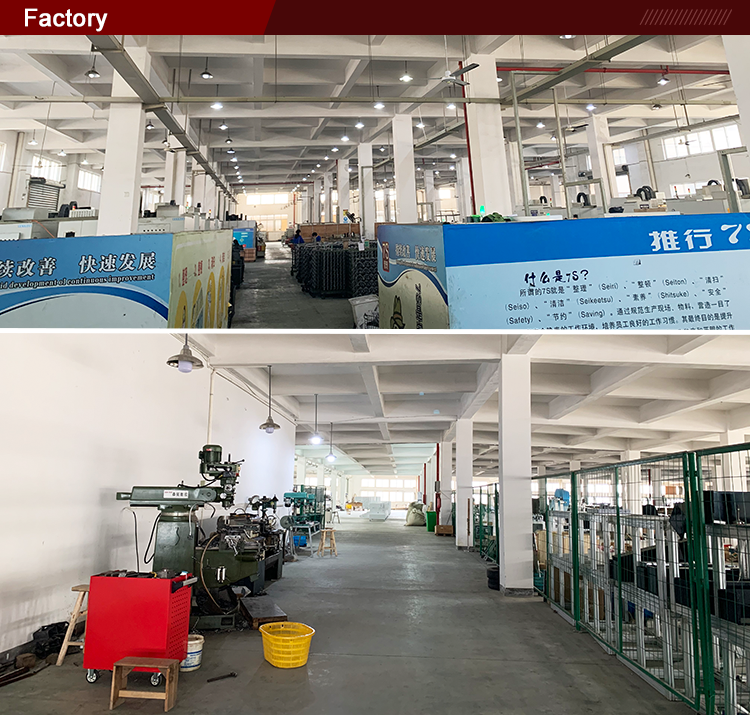

Production Facility Quality Certification
Packaging Case Sealer
Packaging Case Tunnel

The machine will be packaged by two standard export wooden cases, one for automatic sealer, another for shrink tunnel. Machine will be protected well by stretch film, then fixed in the wooden cases.

Frequently Asked Questions
Q:Are you trading company or manufacturer?
A: We are a manufacturer. We have our own factory and export entitlement.
Q:How fast can you deliver the machine?
A: Standard machine delivery time is 7 days, customized machine delivery time is 20-30 days.
Q:How about the machine guarantee?
A: We guarantee the machine for 1 year. It means during this period, if any defect parts (excluding heaters, sealing knife) are found, we will courier a new one to you for free.
Q:What type of machines do you produce?
A: The ISO and CE certified shrink packing equipment includes automatic L sealer, automatic continuous side sealer, automatic horizontal flow sealer and automatic sleeve sealer, shrink tunnel, conveyor belt etc. Applications are widely used in beverage, food, pharmaceutical, stationery, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industries.
Q:What is the packing capacity of the machine?
A: The packing capacity ranges from 30 to 120 packs per minute, depending on the specific product size and configuration.
Q:What type of film does this packaging line support?
A: The machine is specifically designed to use single layer POF film, with a maximum film roll width of 590mm and an outer diameter of up to 280mm.
