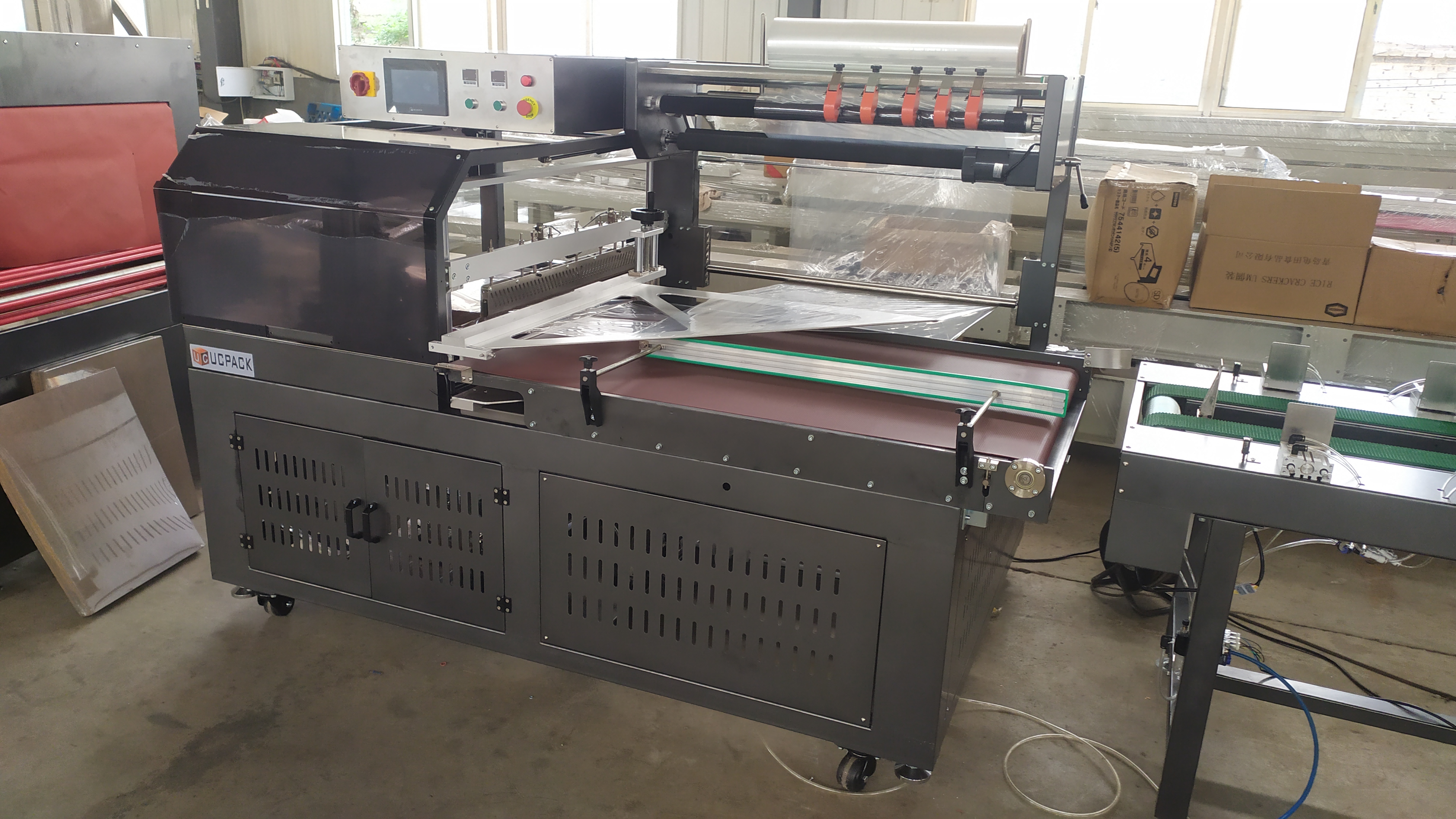

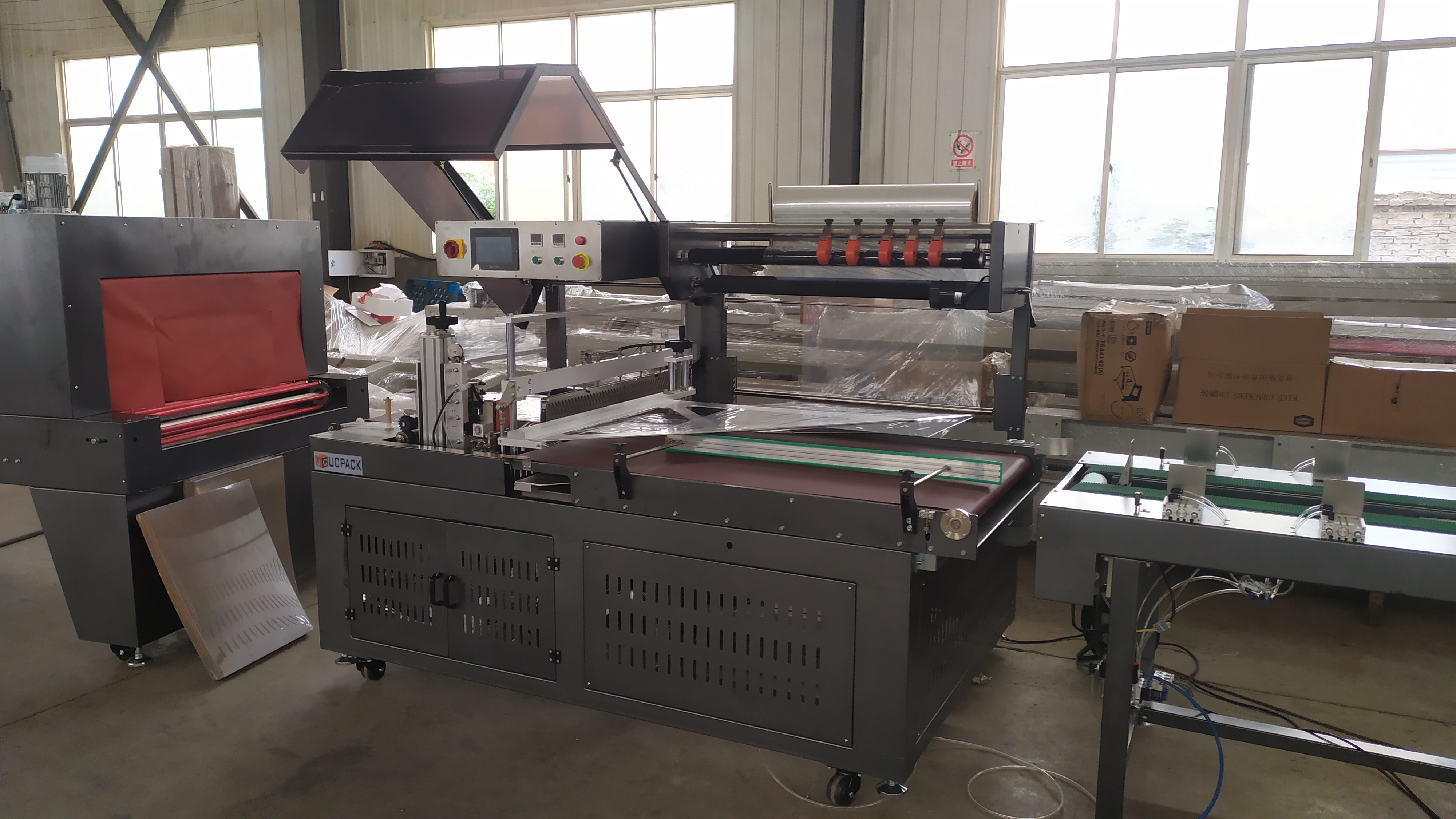

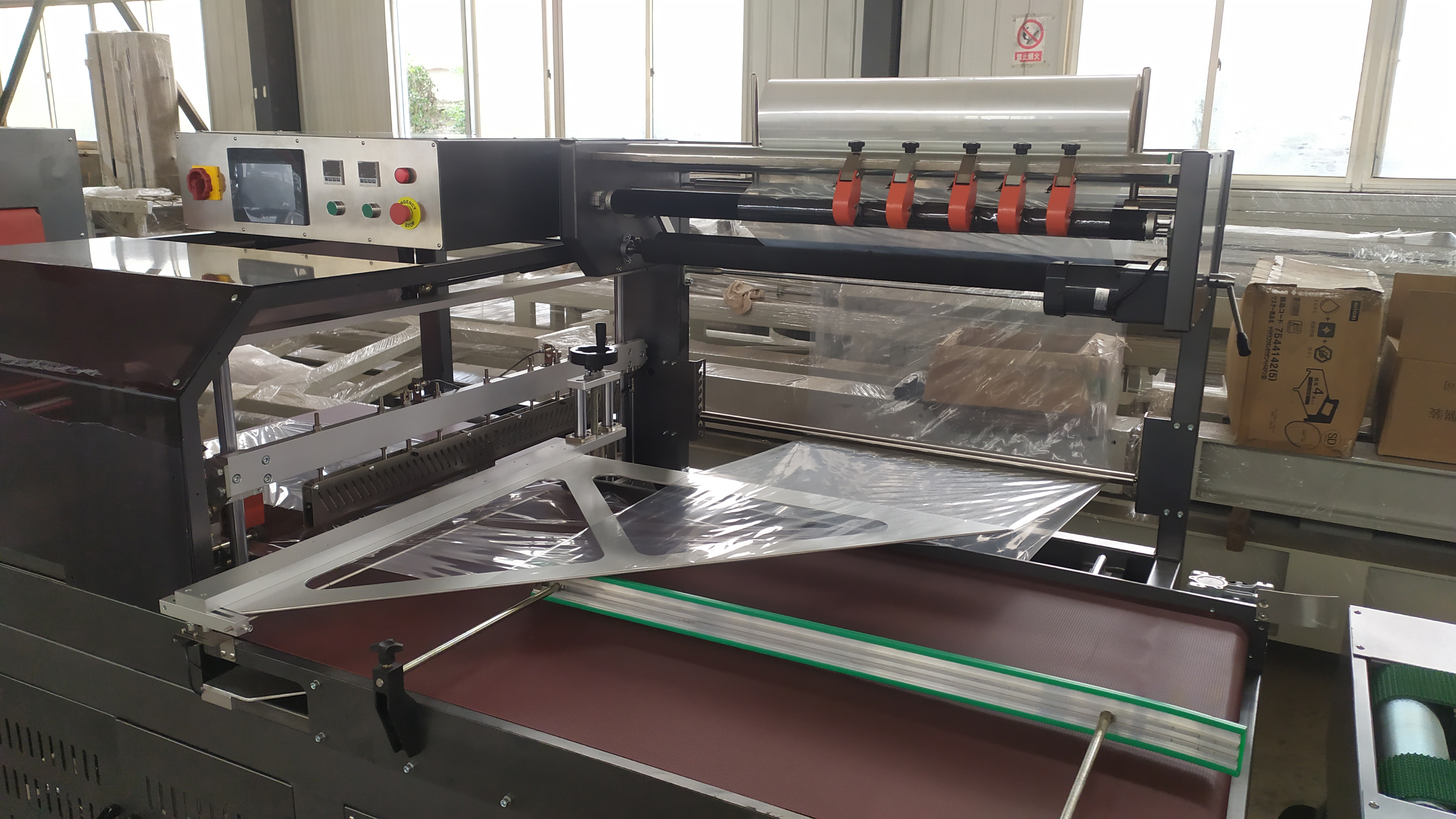

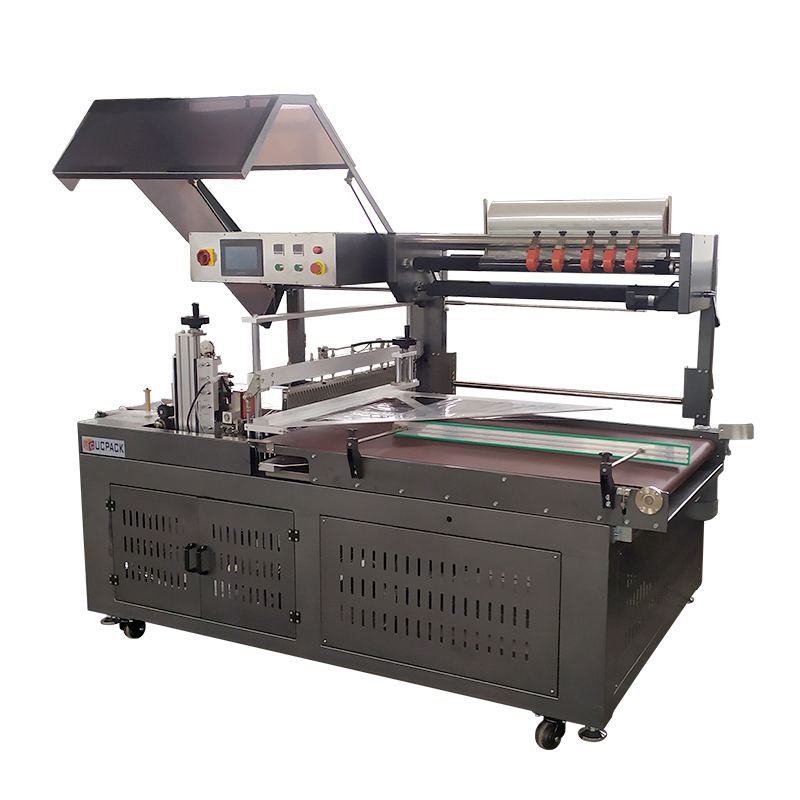

The UBF-450A Automatic Continuous Side Sealer Comes Standard with a 450 mm Long PTFE Coated Cross Sealing Bar, Max. 150 mm Packing Height and a High-Volume Output Up to 25 Pcs/min. Using with PVC and Polyolefin (POF) Films, This Model Can be an Ideal Solution for Continuous Shrink Wrapping of Long and Tall Products.

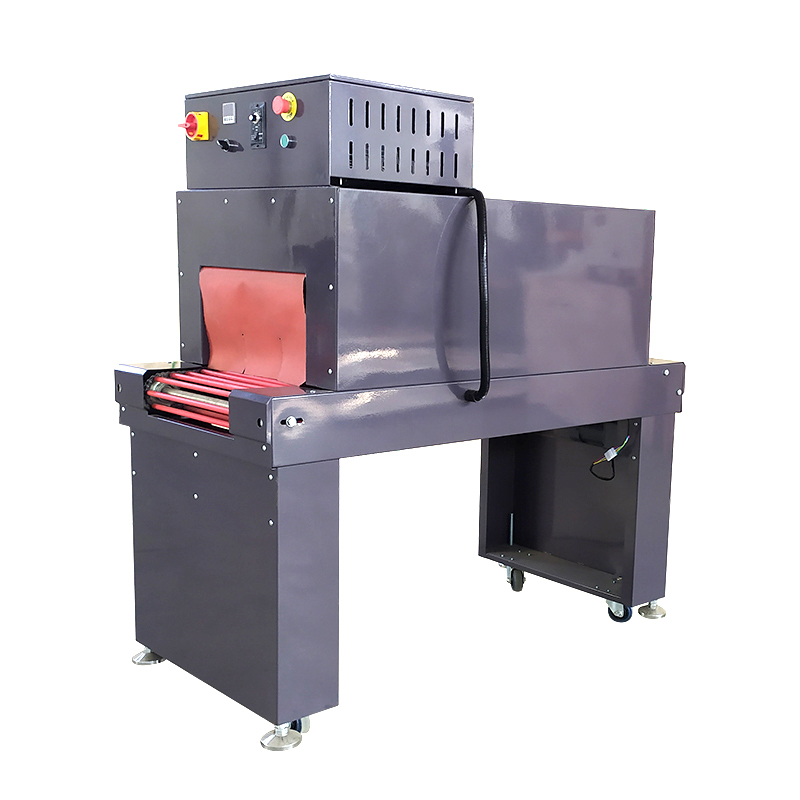

An Optional Extra is the UR-4525A Heat Shrink Tunnel which can be Attached to the Continuous Side Sealer for Shrinking the Wrapped Products of PVC and POF Films.
The UR-4525A Heat Shrink Tunnel Comes Standard with a L 1000 mm x W 450 mm x H 250 mm Sized Chamber, Digital Read-Out Makes it Easy to Set Up the Perfect Shrink Chamber Temperature Up to 200°C, Energy Saving Automatic Thermostats, 12 m/min Adjustable Conveyor Speed and Std. Individually Replaceable Silicone Coated Roller Conveyor Table.
| Model | UBF-450A Continuous Side Sealer | UR-4525A Heat Shrink Tunnel |
|---|---|---|
| Packing Size Max. | L: Unlimited; W + H ≤ 400 mm; H ≤ 150 mm; |
L 700 mm × W 350 mm × H 200 mm |
| Sealing Bar | 450 mm | / |
| Chamber Size | / | L 1000 mm × W 450 mm × H 250 mm |
| Worktable Height | 750mm with 50mm adjustable feet | 750 mm with 50 mm adjustable feet |
| Load Capacity Max. | 25 kg | 50 kg |
| Efficiency | 15 - 25 pcs/min | 0 - 12 m/min, variable |
| Film | PVC and POF shrink film in 19 - 25 um thickness | PVC and POF shrink film in 19 - 25 um thickness |
| Air Supply | 0.5 - 0.7 Mpa | / |
| Voltage | 220 VAC 1 ph 50/60 Hz | 380 VAC 3 ph 50/60 Hz |
| Power | 2.0 kw | 10 kw |
| Machine Size | L 1700 mm × W 950 mm × H 1520 mm | L 1340 mm × W 680 mm × H 1500 mm |
| Machine Weight | 420 kg | 200 kg |
450 mm Long PTFE Coated Constant Temperature Cross Sealing Bar for PVC and POF Films (PE Sealing Bar for PE Shrink Film Optional). Supports temperature adjustment and customizable length.

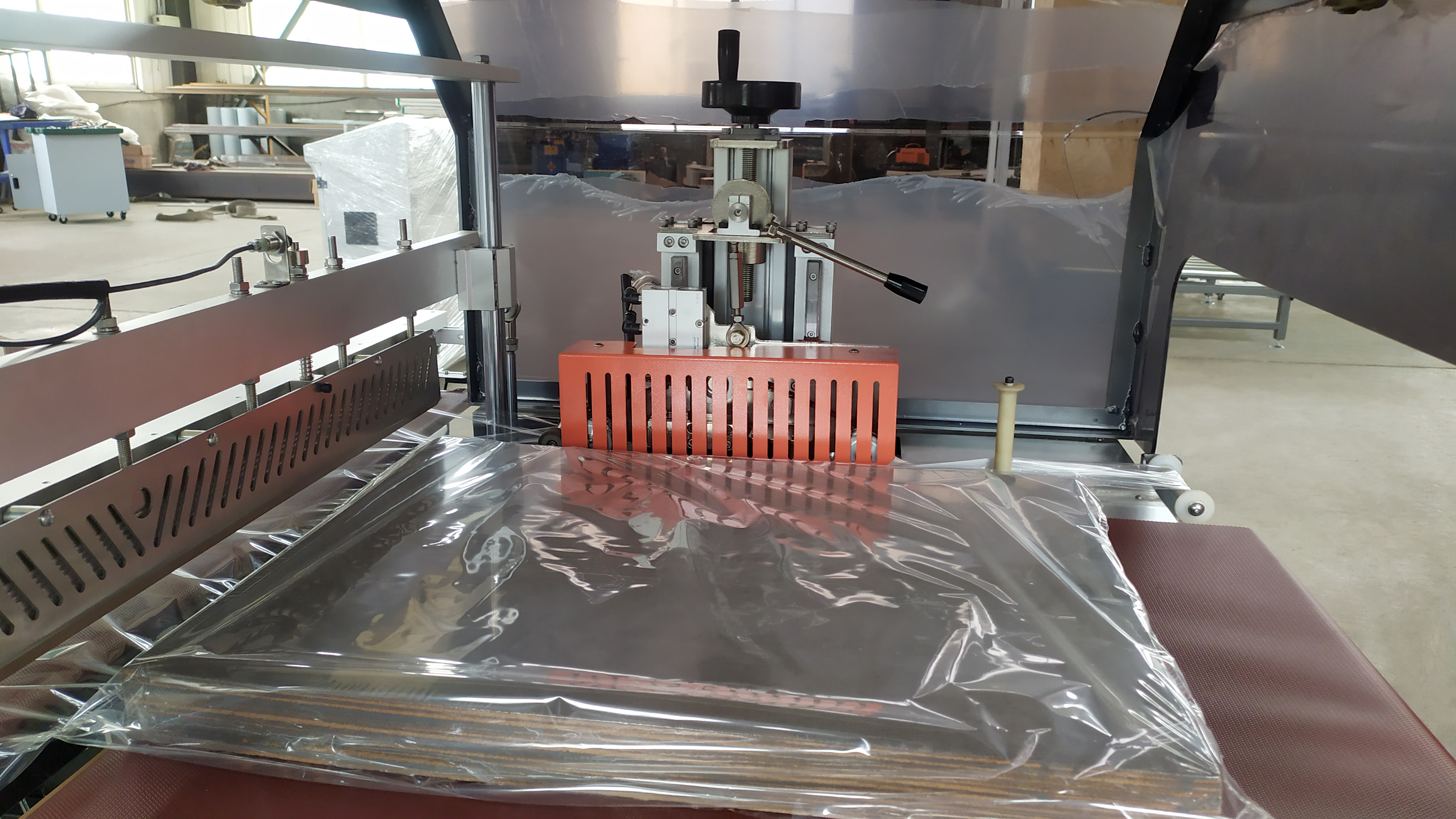

Continuously Seals the Package Side. Height manually adjusts to center the seal mid-way between the top and bottom of the package.
Offers unlimited package length capabilities, supporting products where width + height is less than or equal to 400 mm.
Handles products up to 150 mm in height. Products exceeding this height will require a customized configuration.
Conveyor speed, sealing temperature and sealing time adjustable on WEINVIEW Touch Screen and Omron Temperature Controller.
Automatically rolls up the waste film during continuous operations to keep the workspace clean and organized.
Perforation wheels punch holes to let air escape during shrink wrapping. Durable SUS304 anti-rust structure and position adjustable.

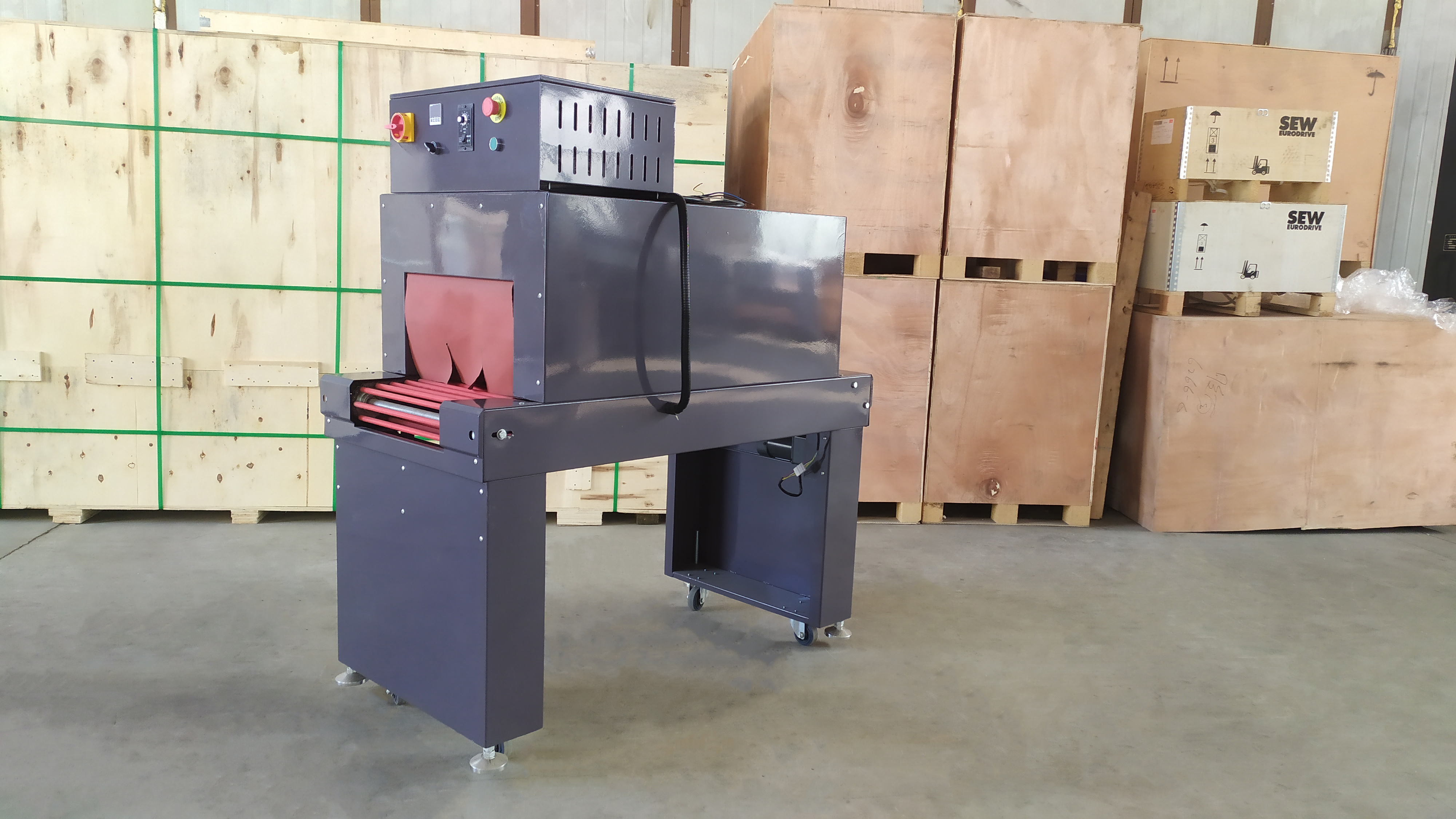

Standard L 1000 mm x W 450 mm x H 250 mm chamber size for packaging max L 700 mm x W 350 mm x H 200 mm products.

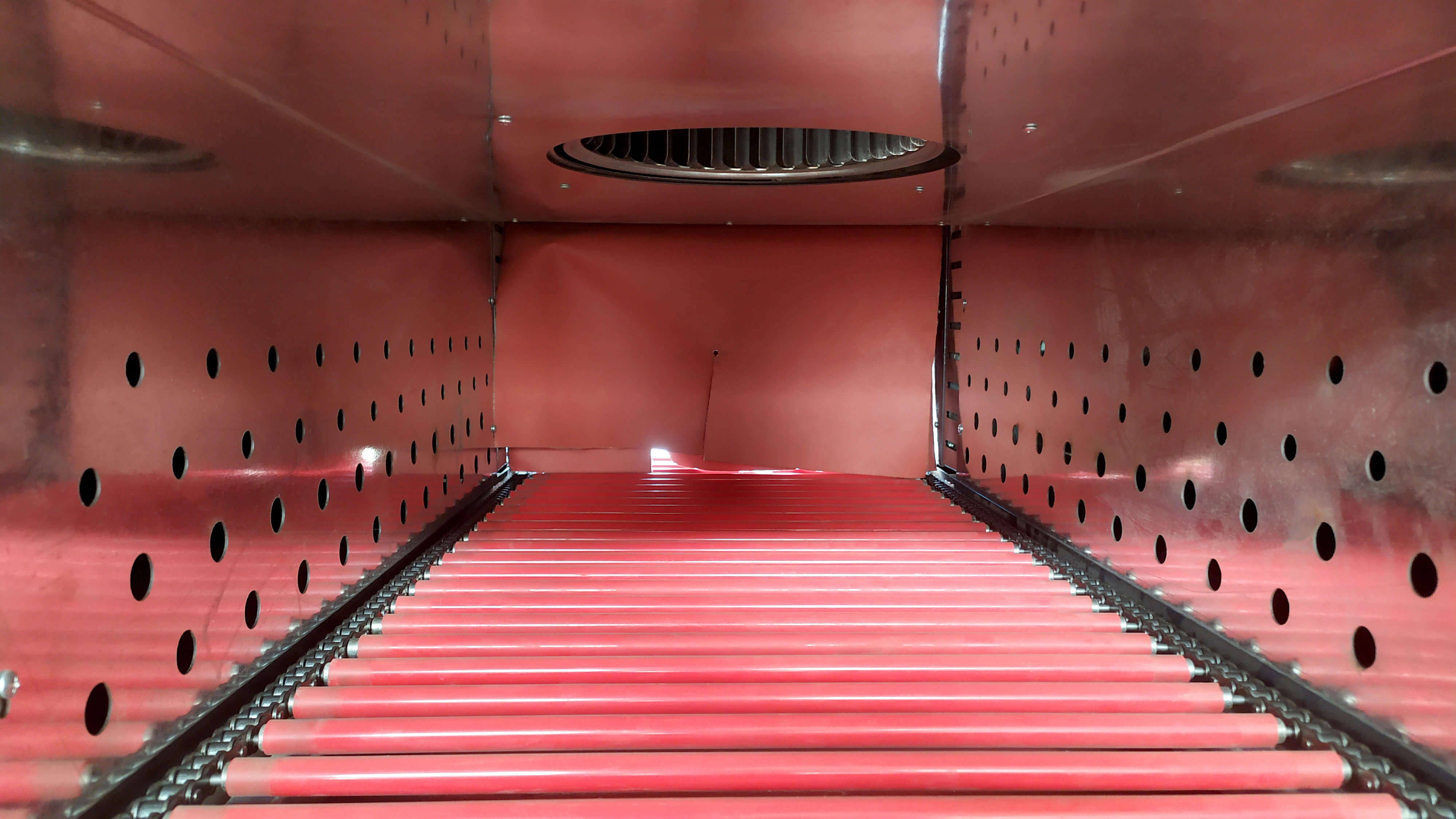

Standard individually replaceable silicone coated roller table. Optional PTFE wire mesh belt conveyor table available.

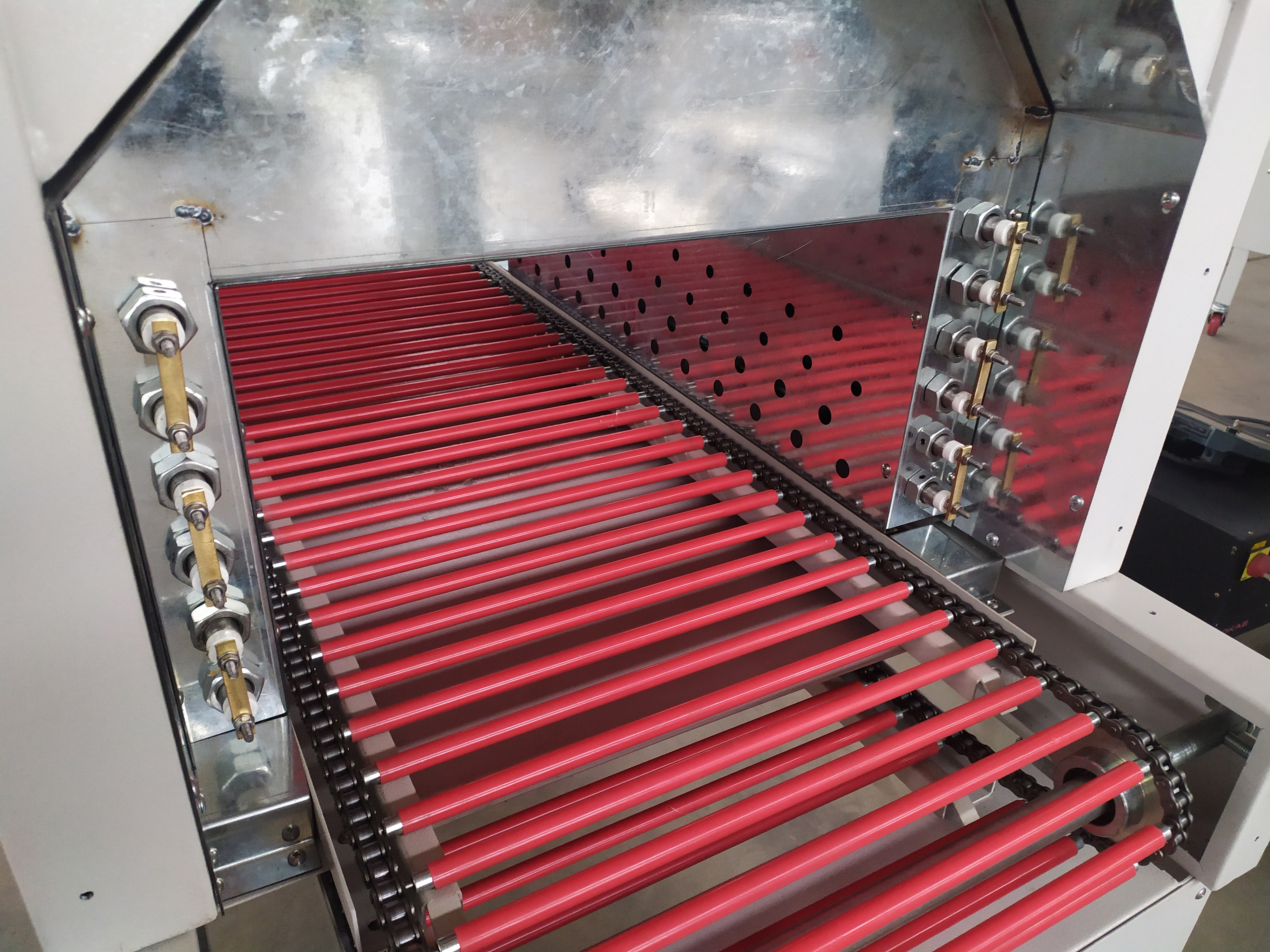

Side wall mounted stainless steel heating tube and totally enclosed shrink tunnel design with thick heat insulation shell.

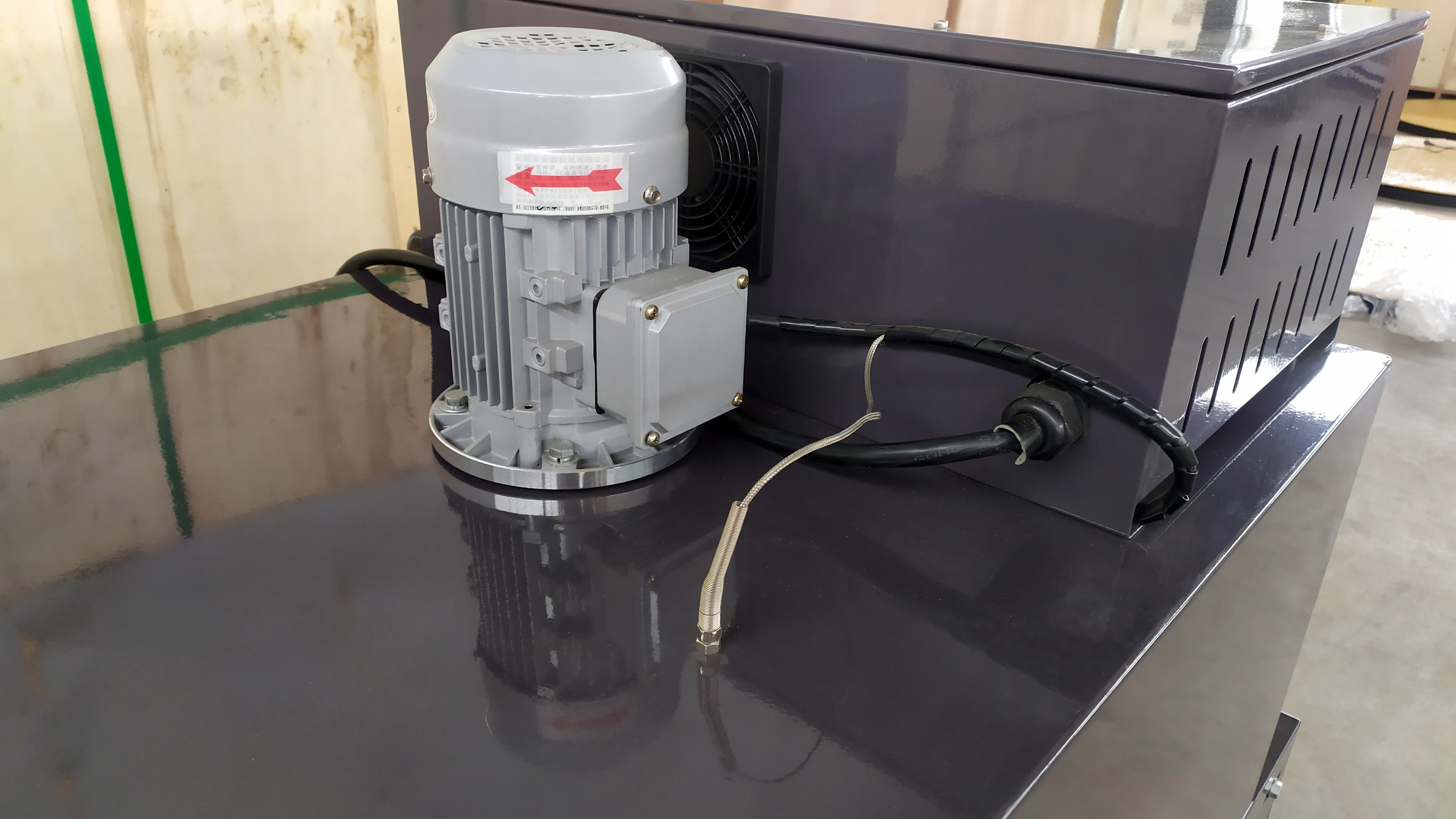

Top mounted blower and highly sensitive temperature probe for maintaining even air circulation inside the chamber.

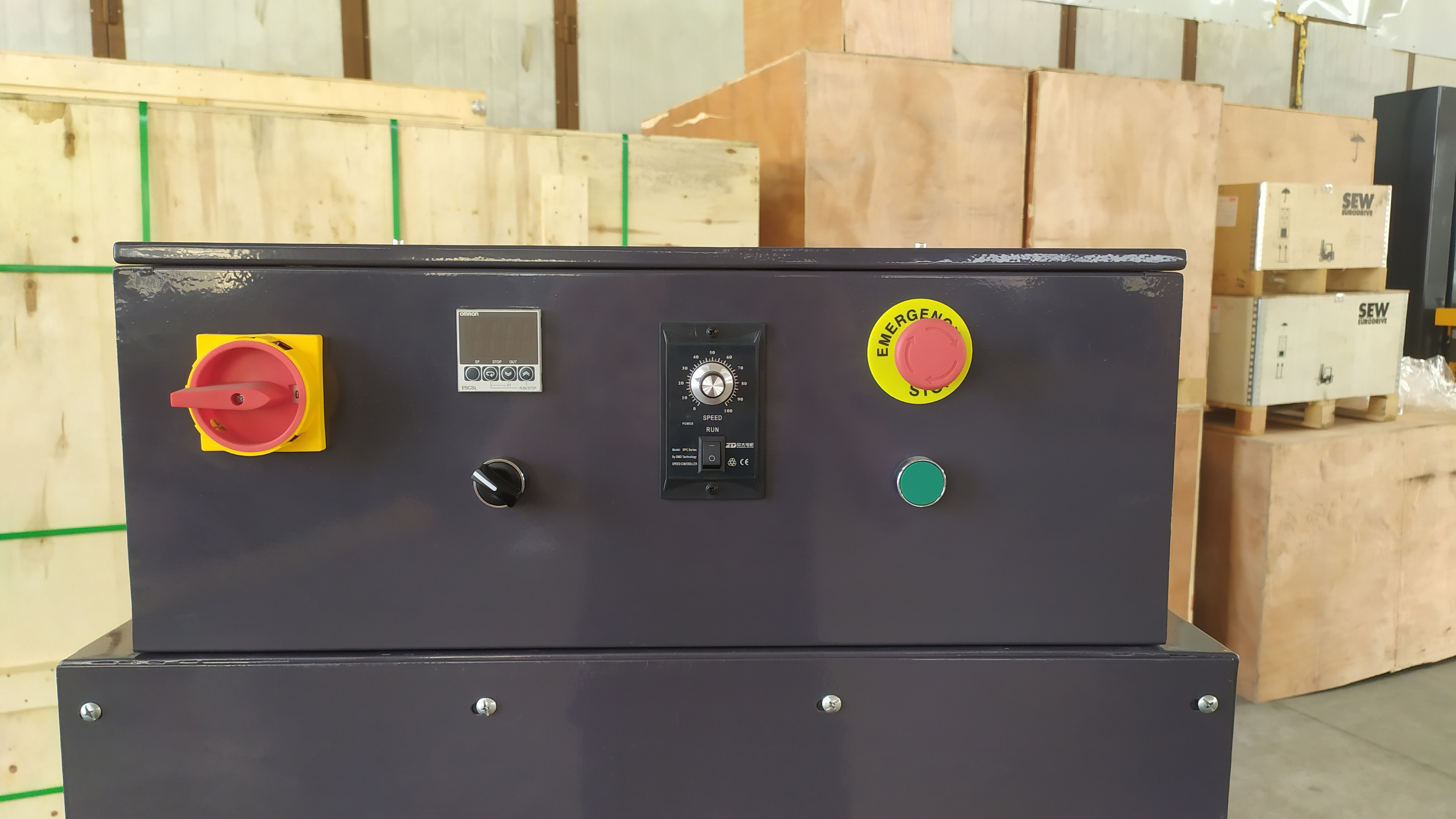

Digital read-out makes it easy to set the perfect shrink chamber temperature up to 200°C. Variable conveyor speed up to 12 m/min.
