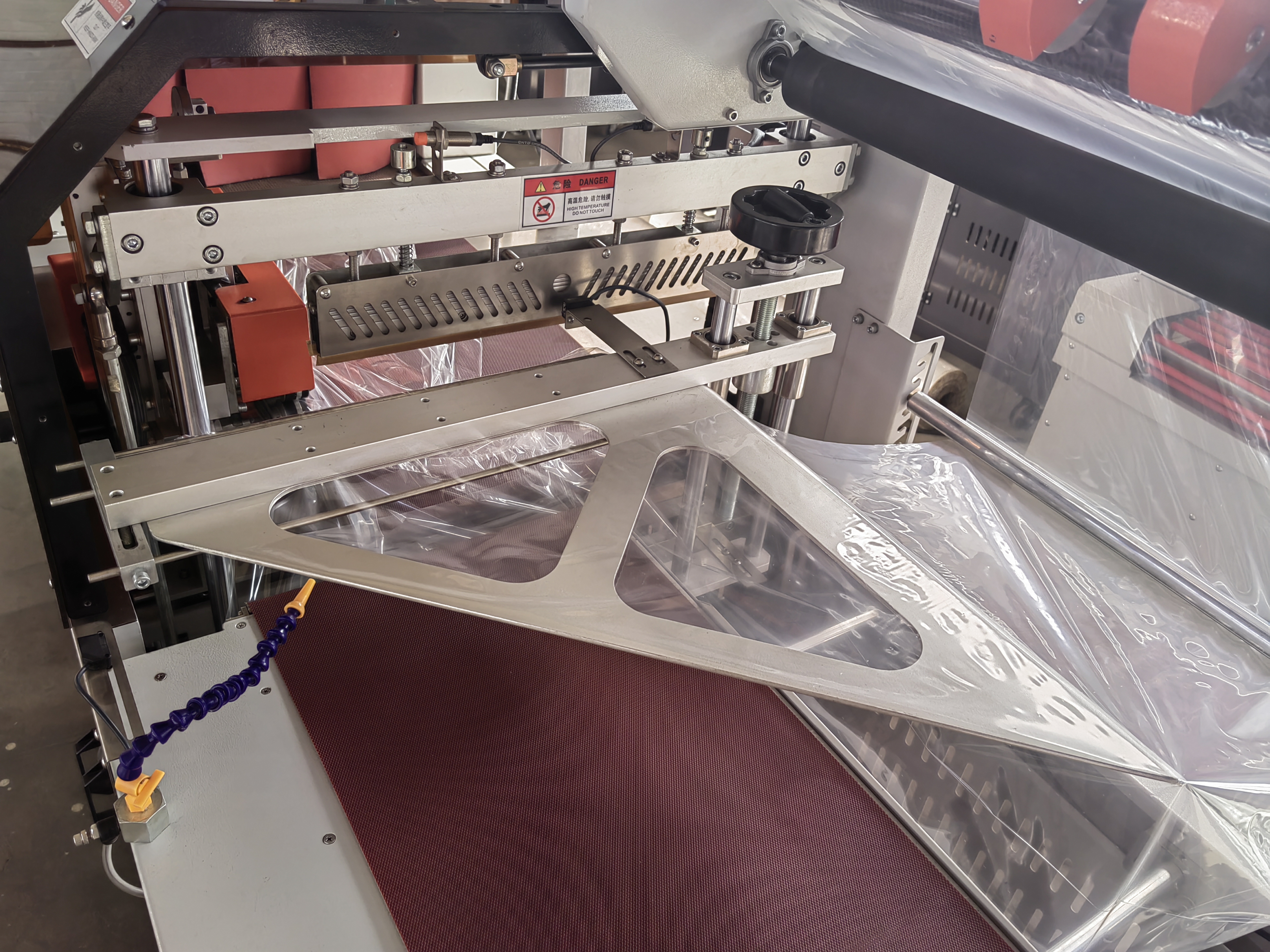

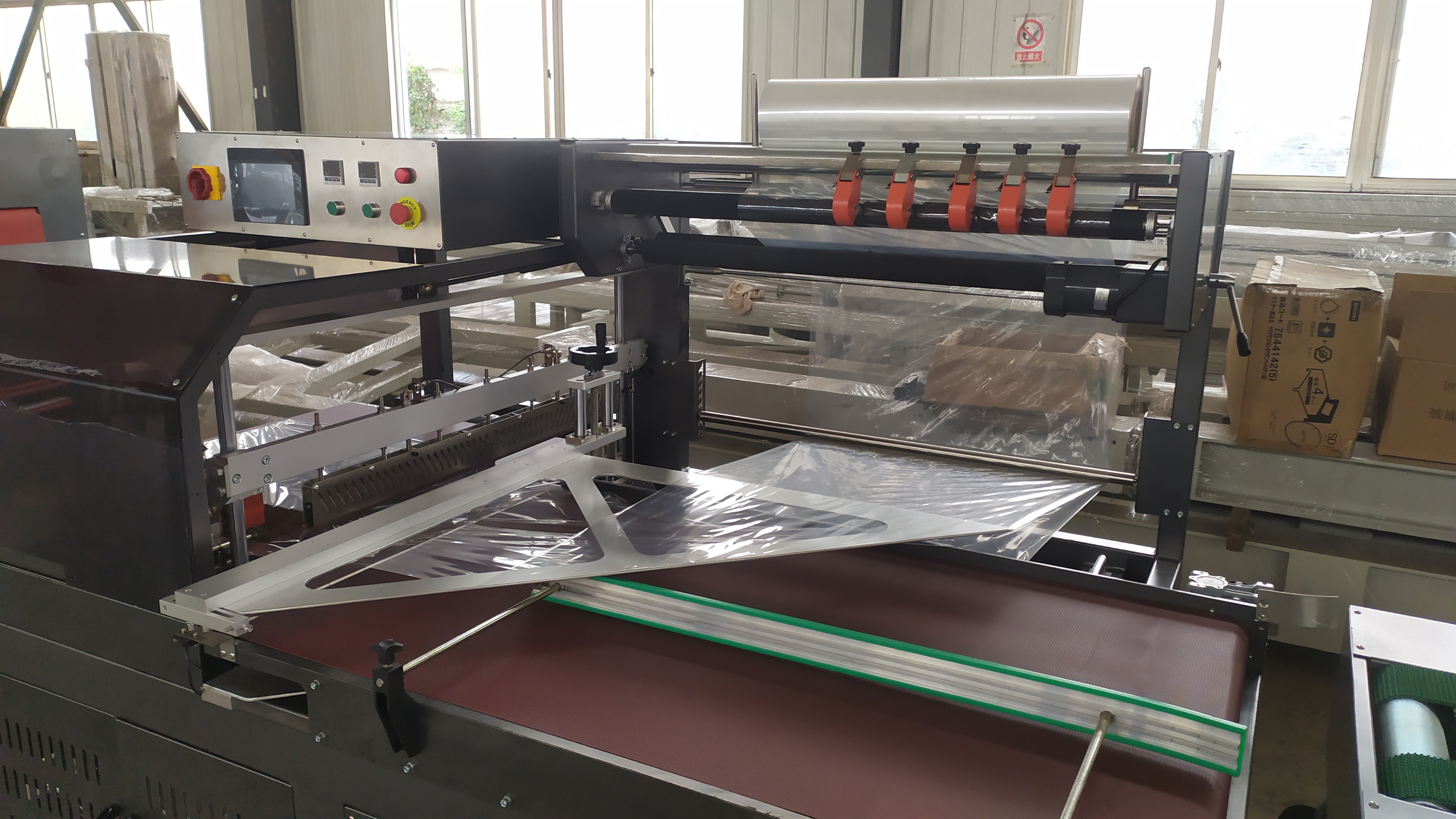

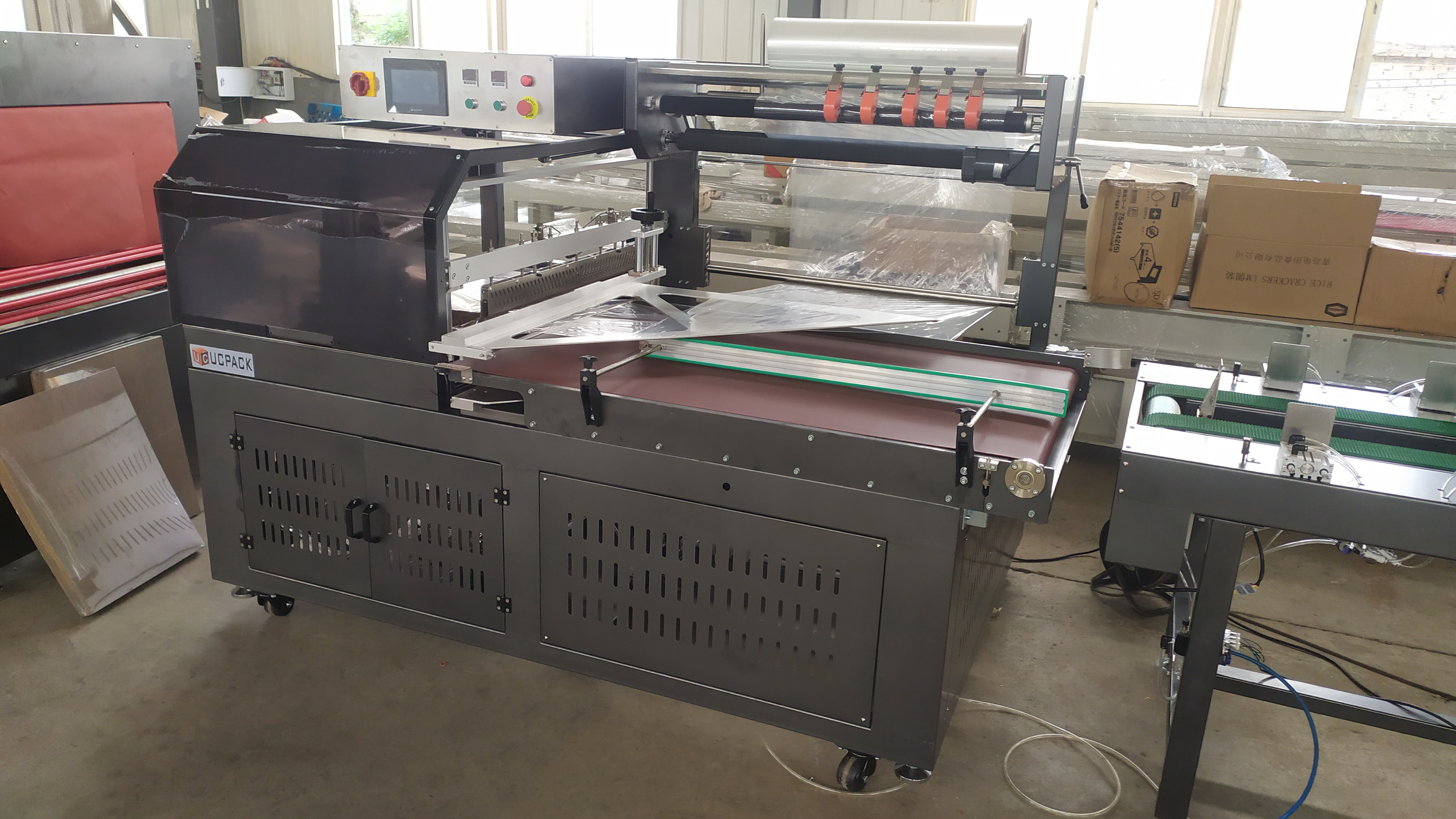

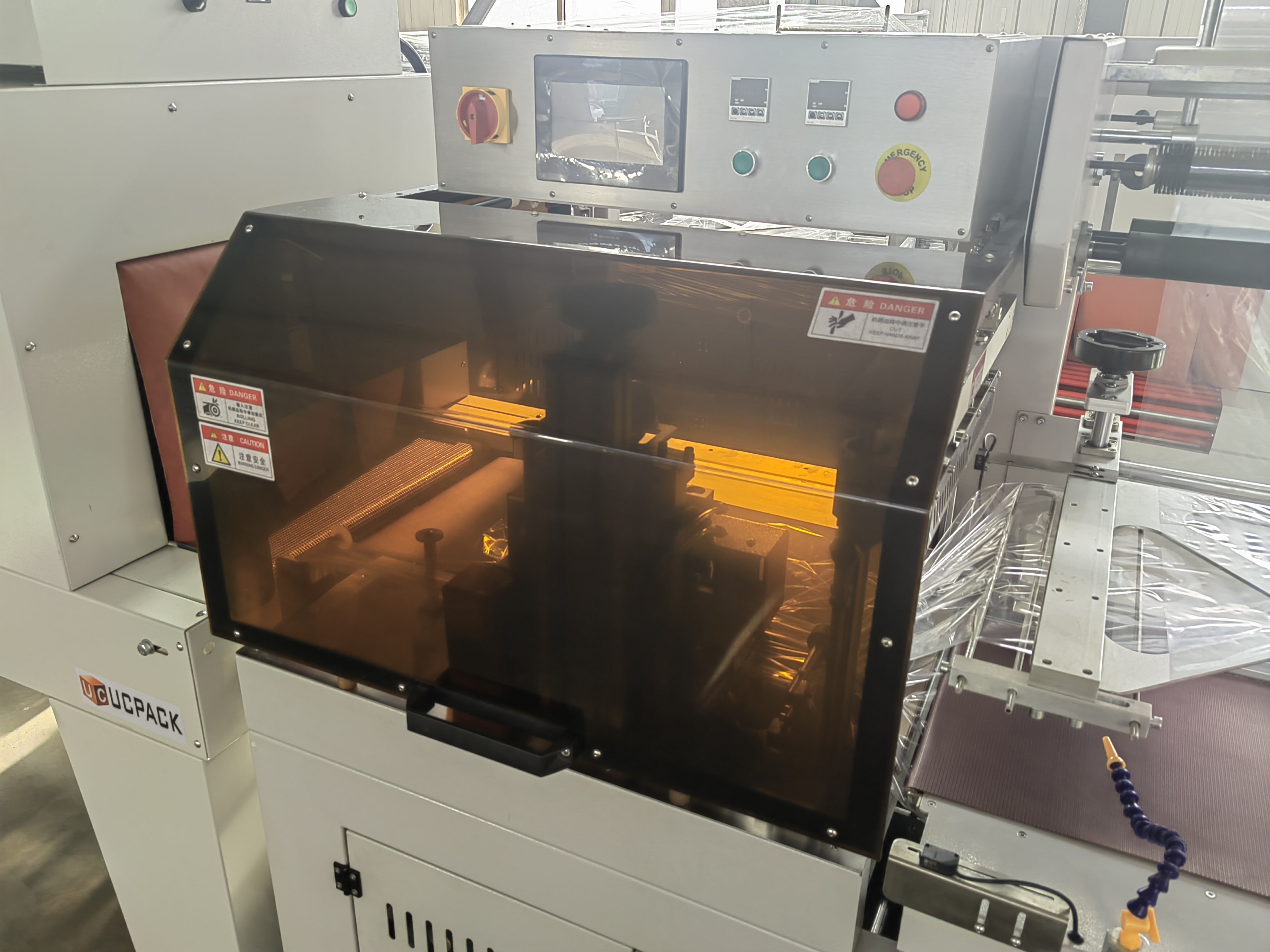

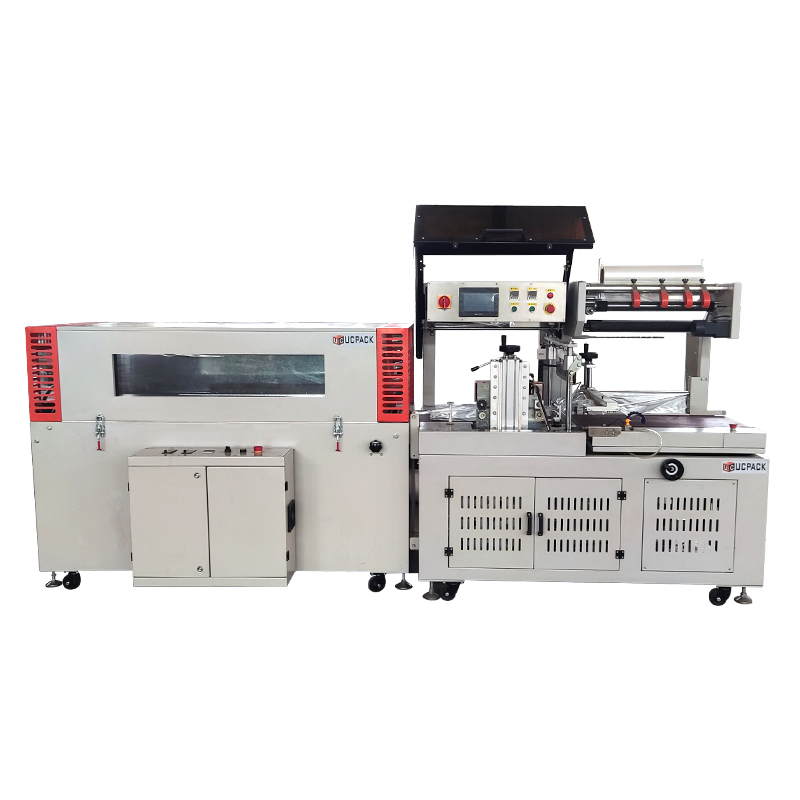

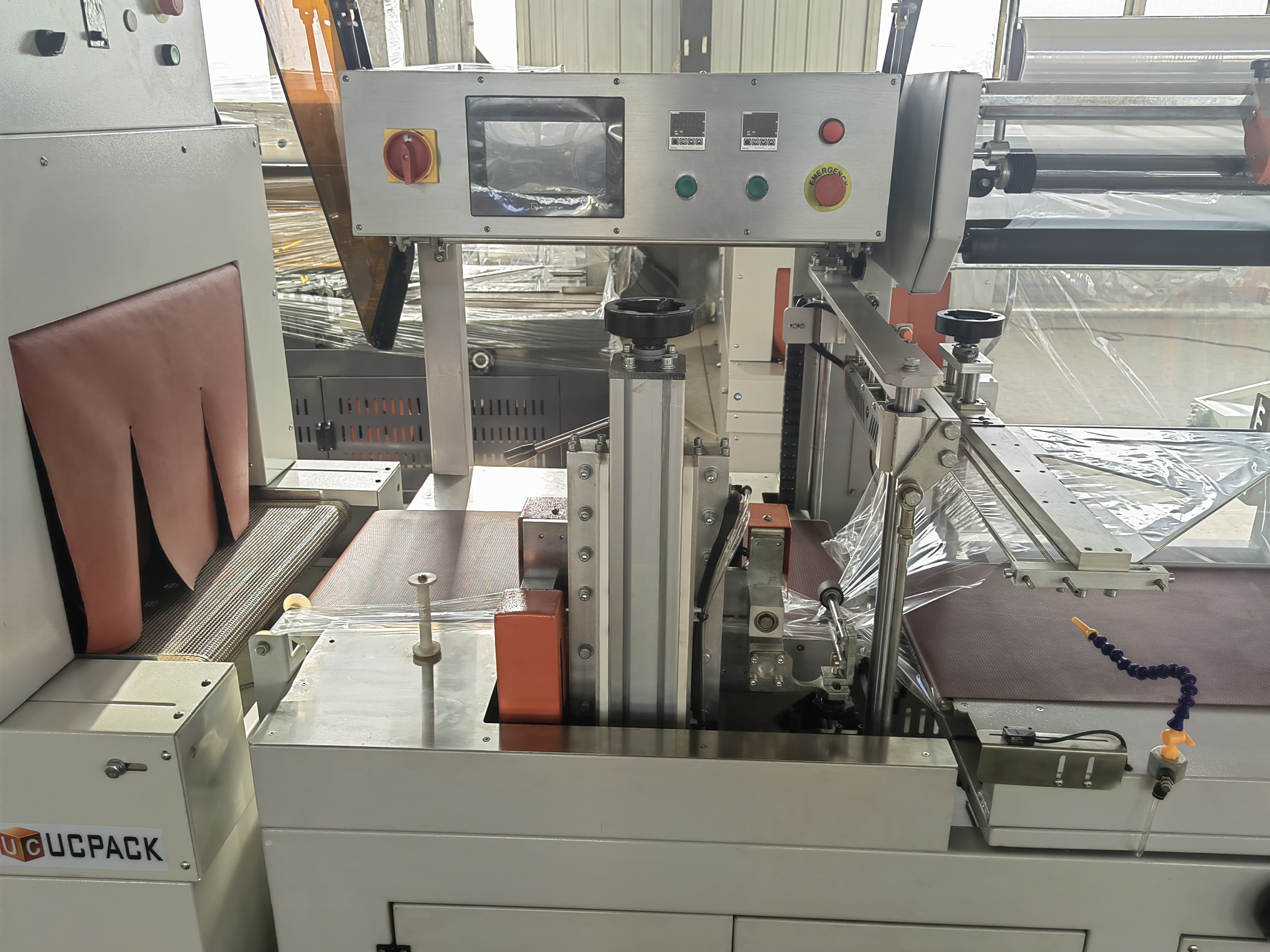

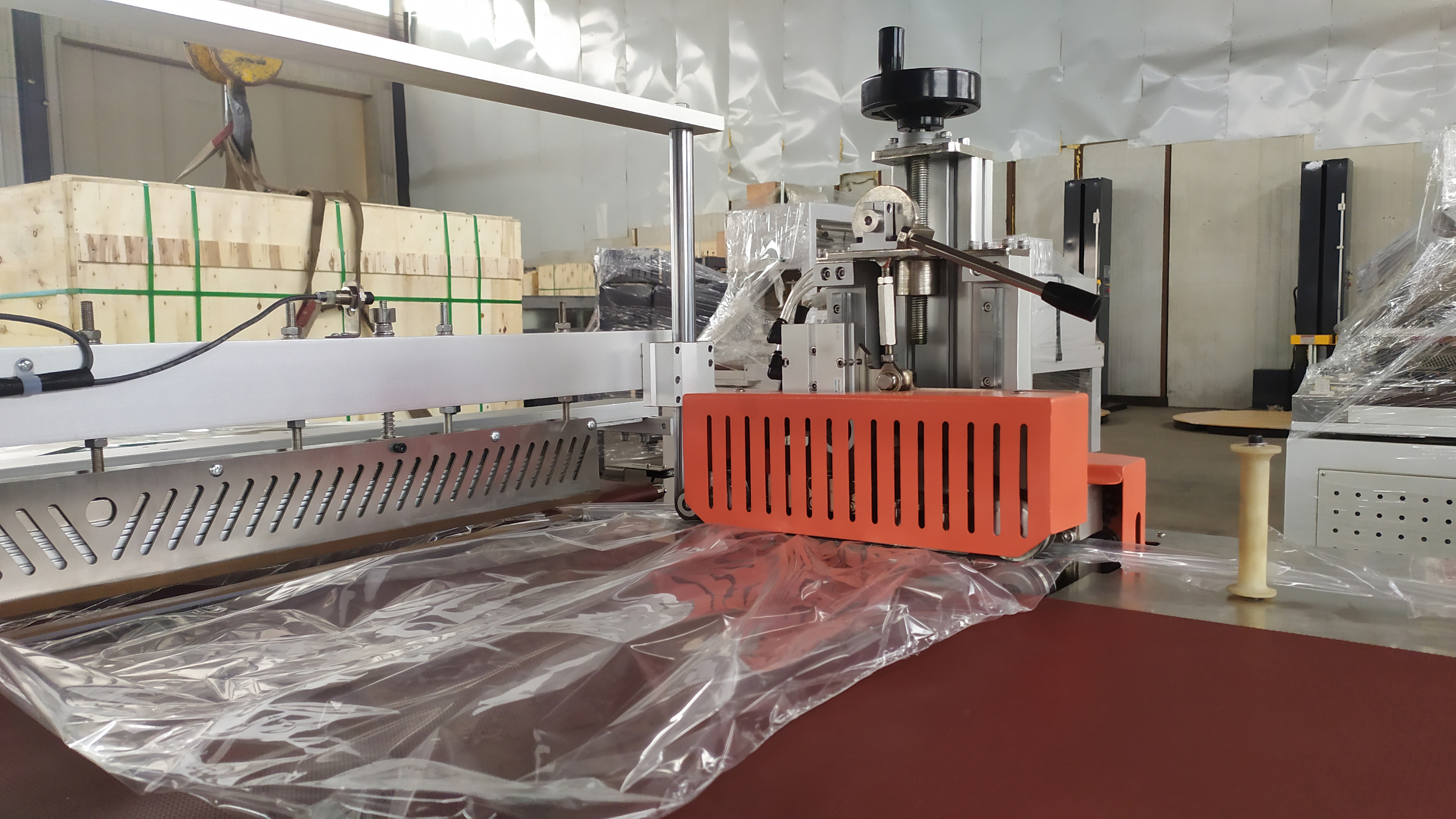

Automatic Continuous Side Sealer Continuously Seals the Package Side, A photo Sensor Detects the Package Length and Activates the Cross Sealing Bar. This Means There is No Limit to the Package Length and Allows for Higher Output and Less Film Waste.

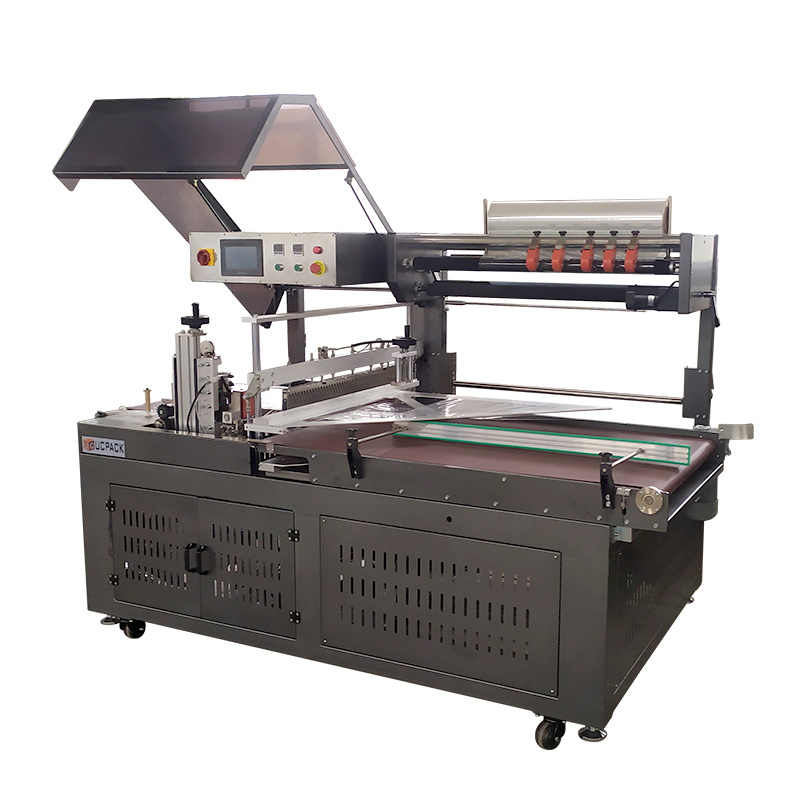

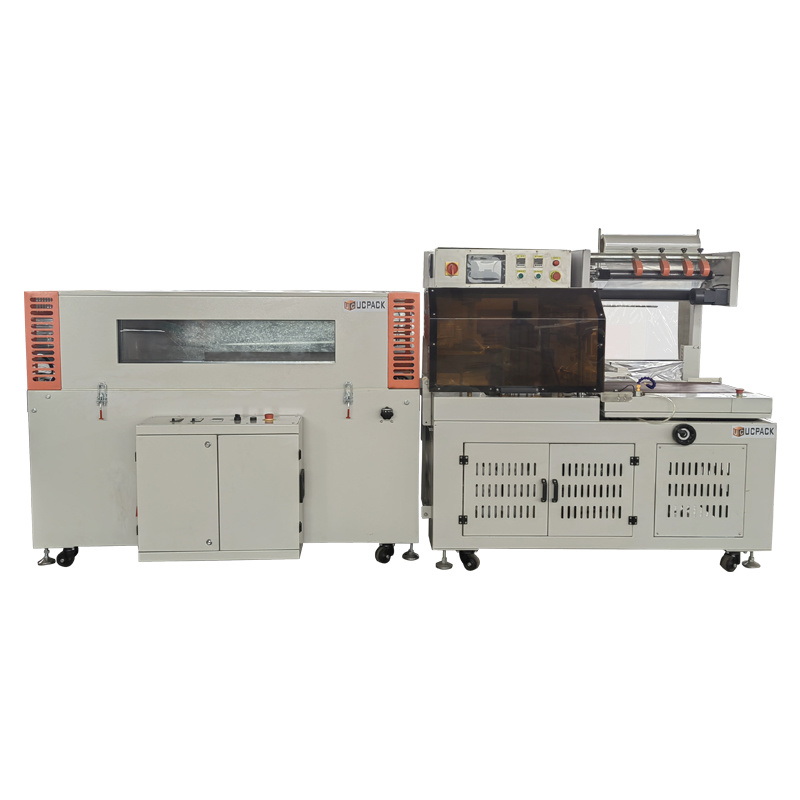

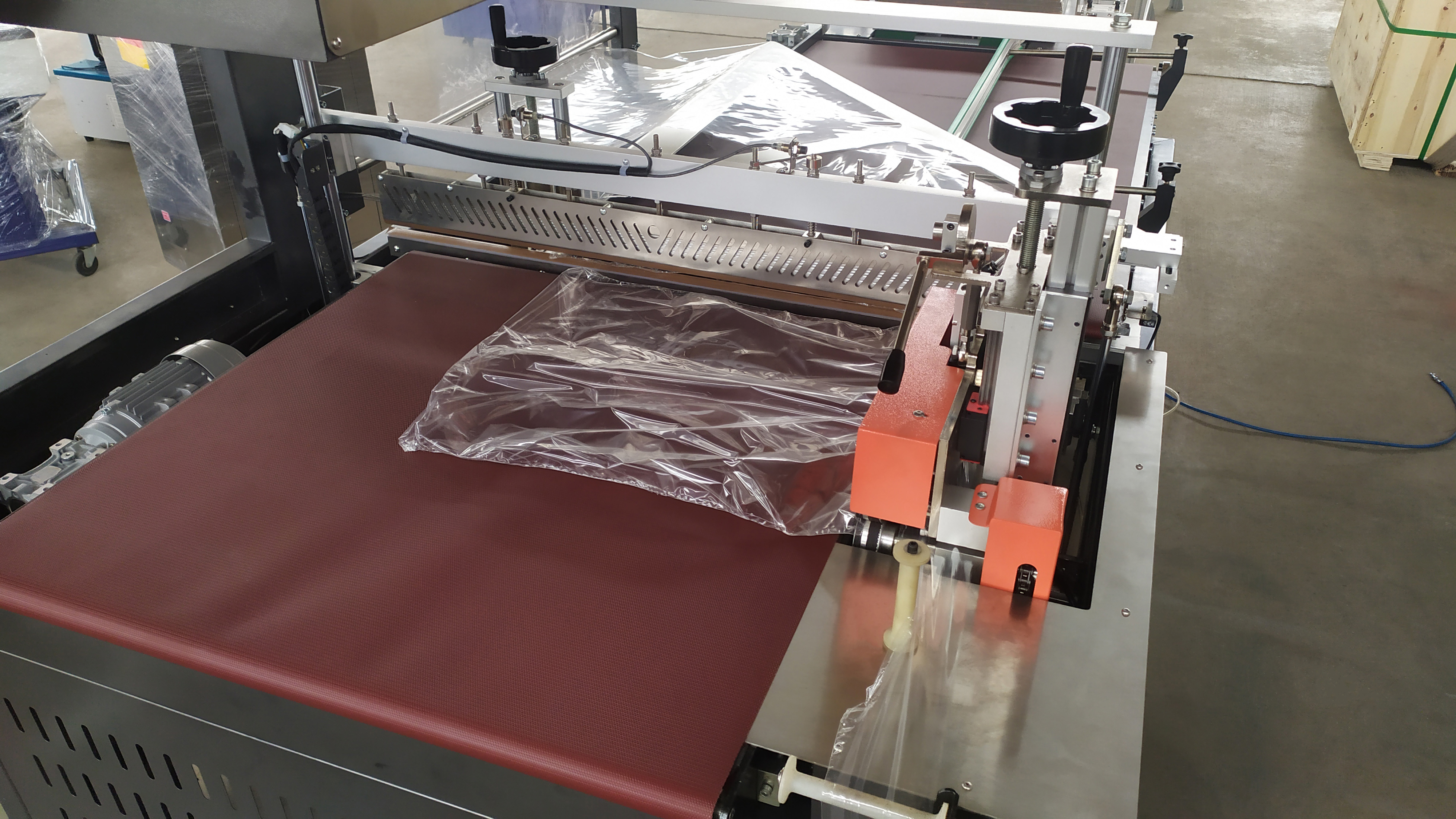

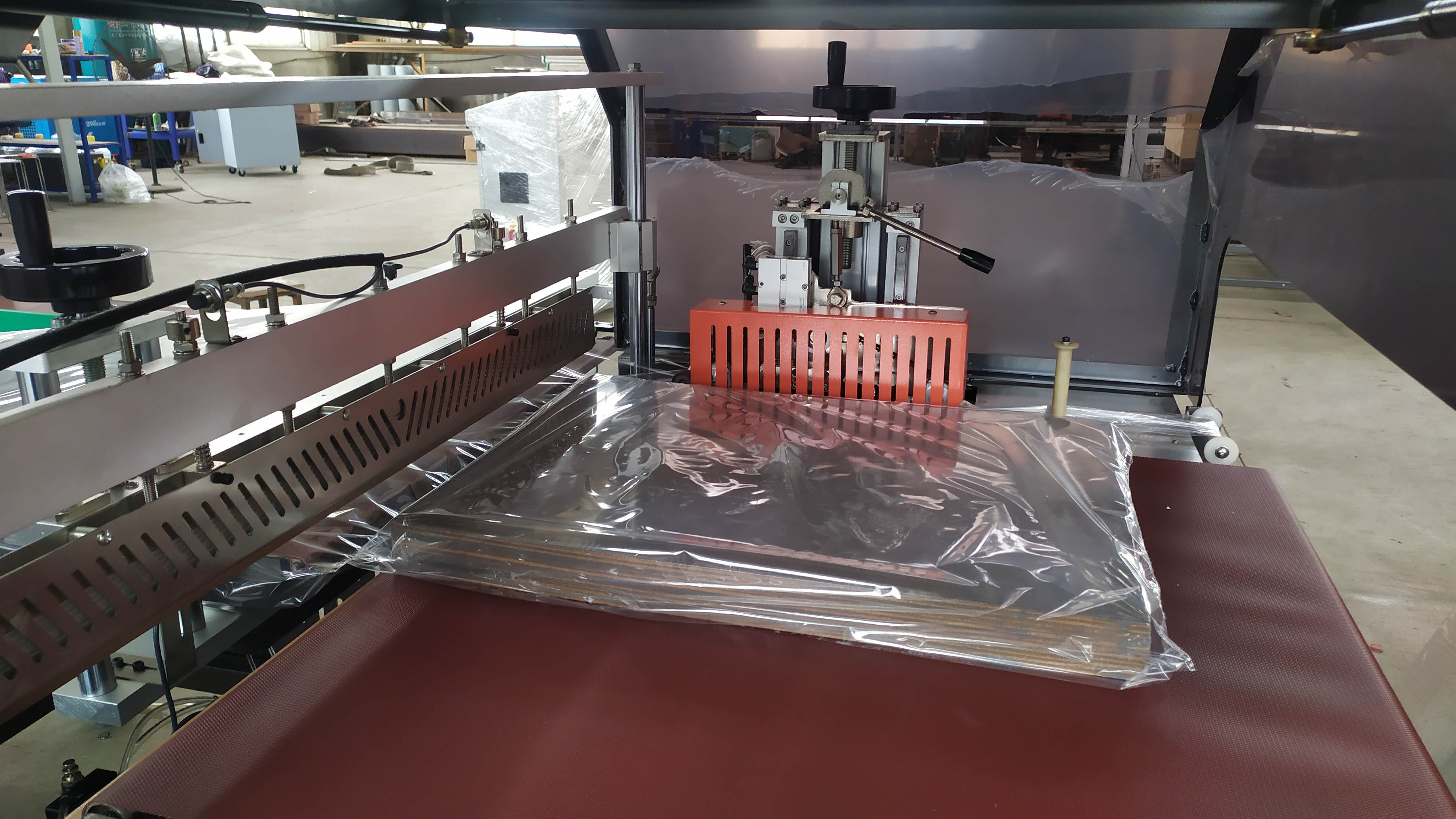

The UBF-550A Automatic Continuous Side Sealer Comes Standard with a 550 mm Long PTFE Coated Cross Sealing Bar, Max. 190 mm Packing Height and a High-Volume Output Up to 25 Pcs/min. Using with PVC and Polyolefin (POF) Films, This Model Can be an Ideal Solution for Continuous Shrink Wrapping of Long and Tall Products.

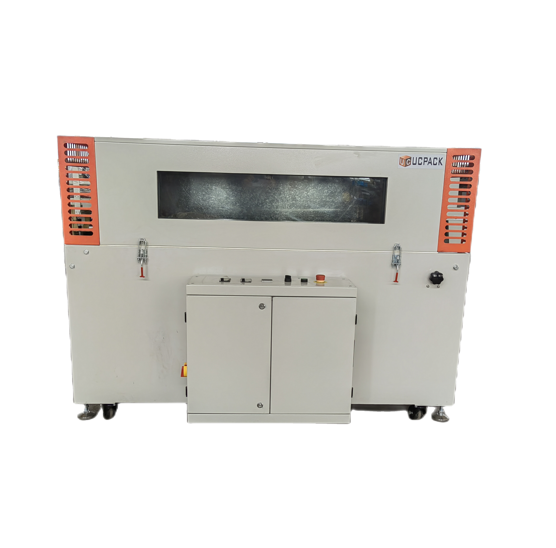

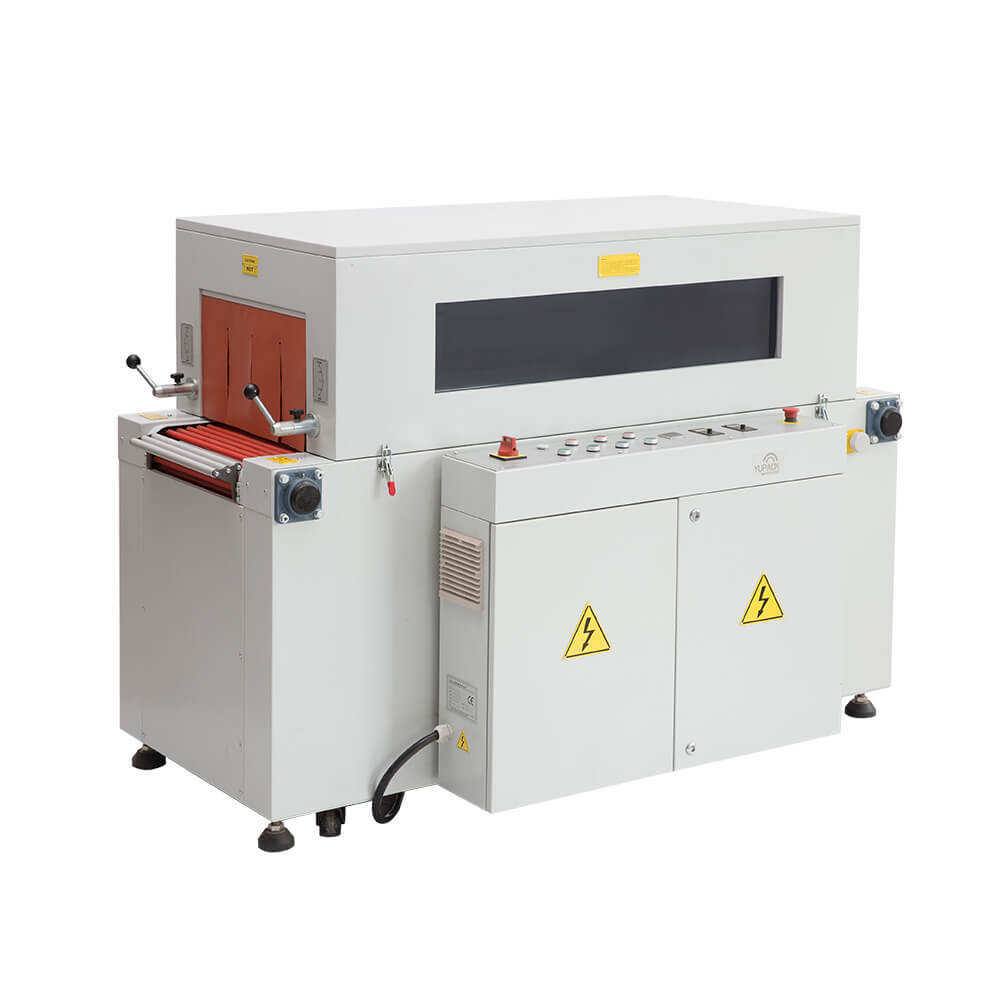

The UG-5030A High Performance Heat Shrink Tunnel features, Top of The Line; Bottom-mounted Fan and Heating Tube Circulate Air More Evenly Around Packages, Total Control of Shrink Tunnel Temperature, Airflow Direction and Volume; Visual Window and Open Type Chamber.
| Model | UBF-550A Continuous Side Sealer | UG-5030A heat tunnel |
|---|---|---|

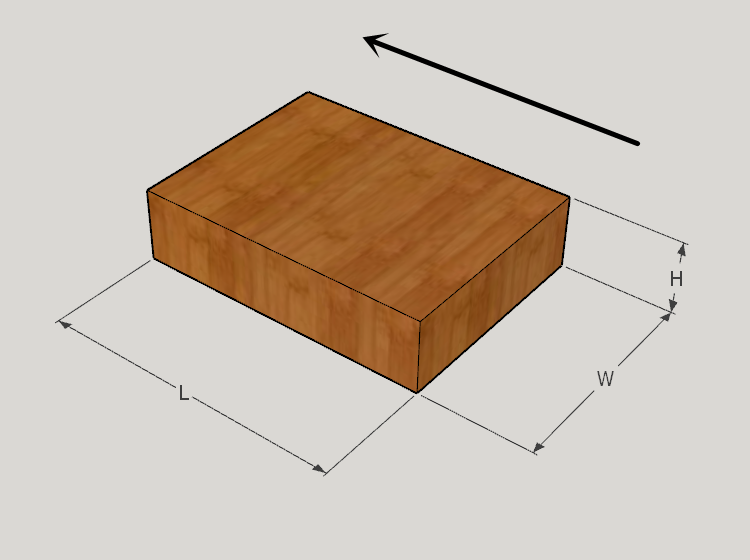

| Packing Size Max. | L: Unlimited; W + H ≤ 500 mm; H ≤ 190 mm; |
W 500 mm × H 300 mm |
| Sealing Bar | 550 mm | / |
| Chamber Size | / | L 1500 mm × W 500 mm × H 300 mm |
| Worktable Height | 750mm with 50mm adjustable feet | 750 mm with 50 mm adjustable feet |
| Load Capacity Max. | 25 kg | 50 kg |
| Efficiency | 15 - 25 pcs/min | 0 - 12 m/min, variable |
| Film | PVC and POF shrink film in 19 - 25 um thickness | PVC and POF shrink film in 19 - 25 um thickness |
| Air Supply | 0.5 - 0.7 Mpa | / |
| Voltage | 220 VAC 1 ph 50/60 Hz | 380 VAC 3 ph 50/60 Hz |
| Power | 2.0 kw | 10 kw |
| Machine Size | L 1700 mm × W 950 mm × H 1520 mm | L 1800 mm × W 990 mm × H 1280 mm |
| Machine Weight | 420 kg | 200 kg |

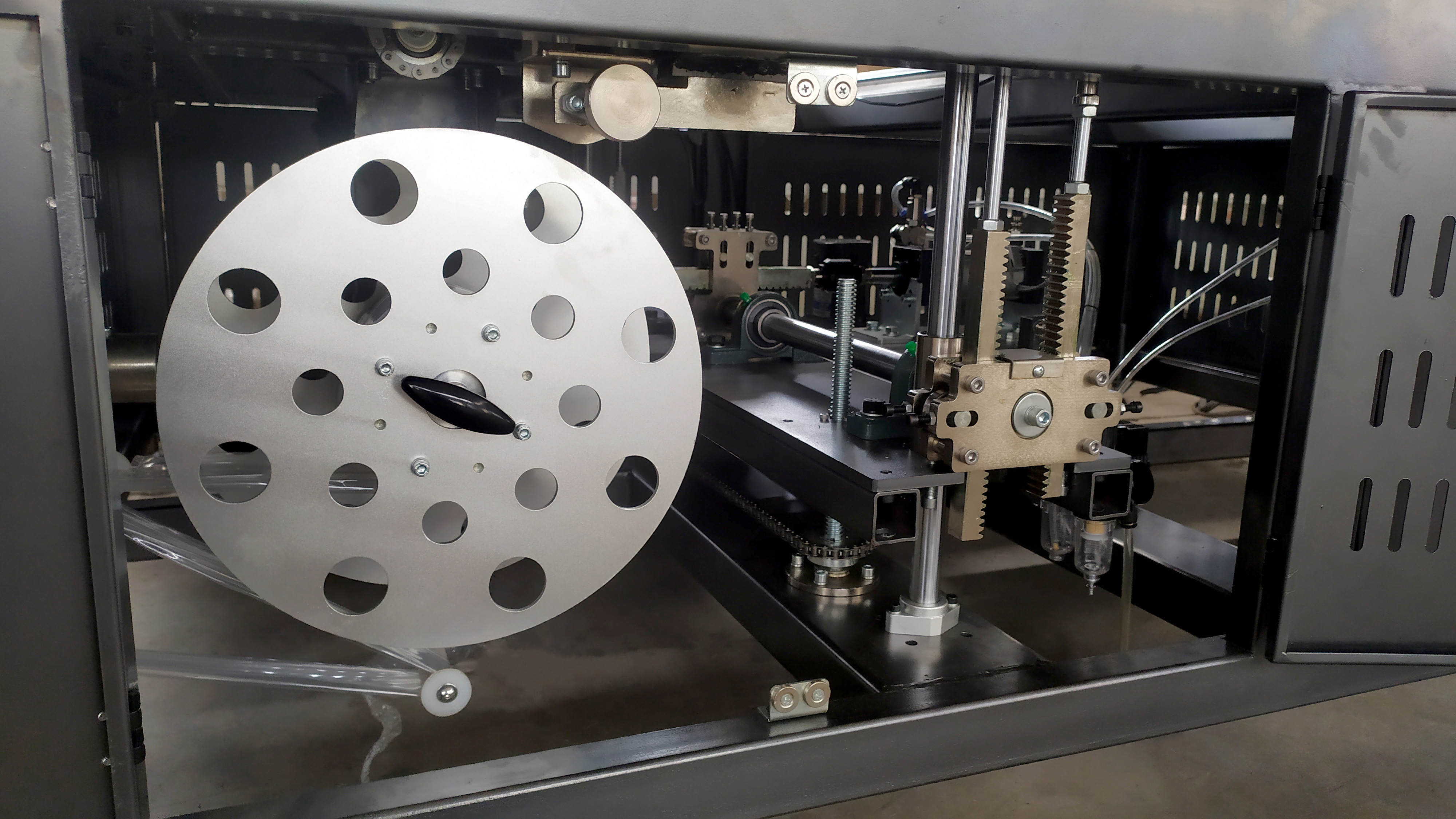

Film Waste Winder Automatically Rolling the Waste Film Up When Continuous Running.

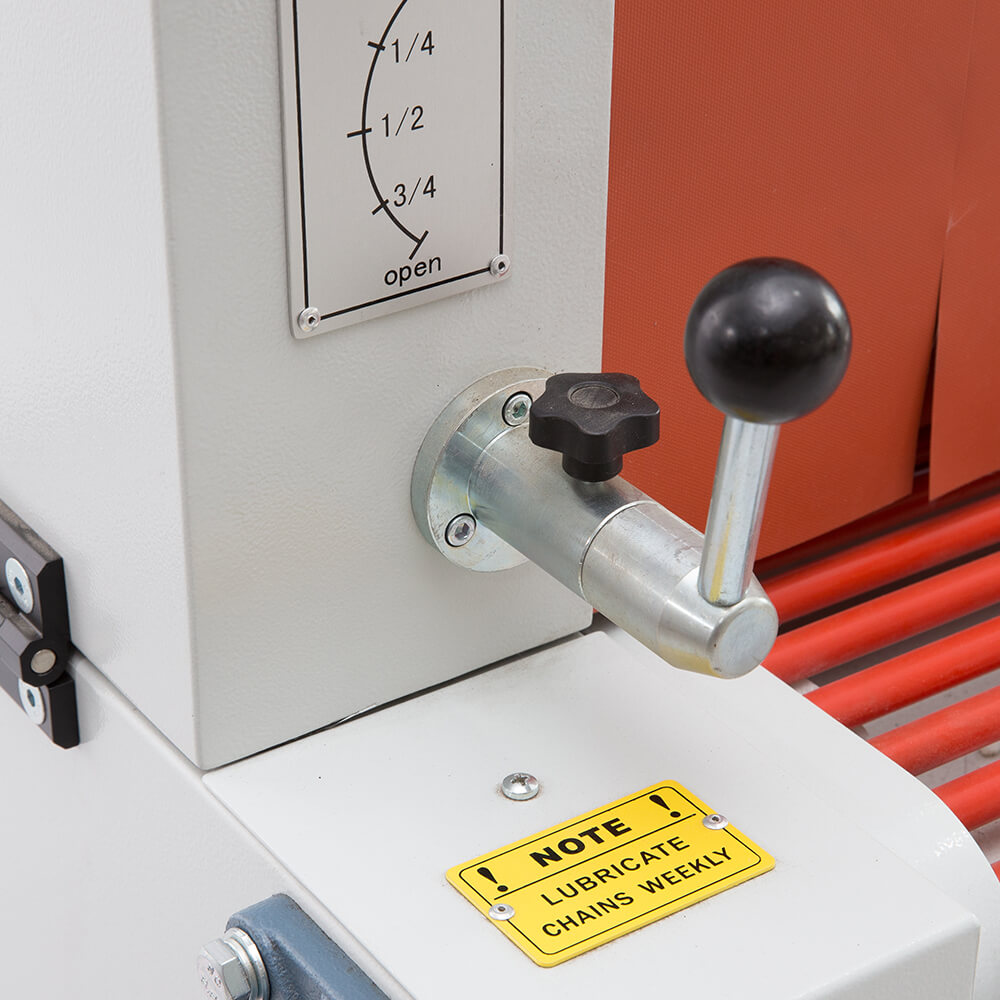

Adjust the fan direction and blast capacity, realize perfect packaging performance.

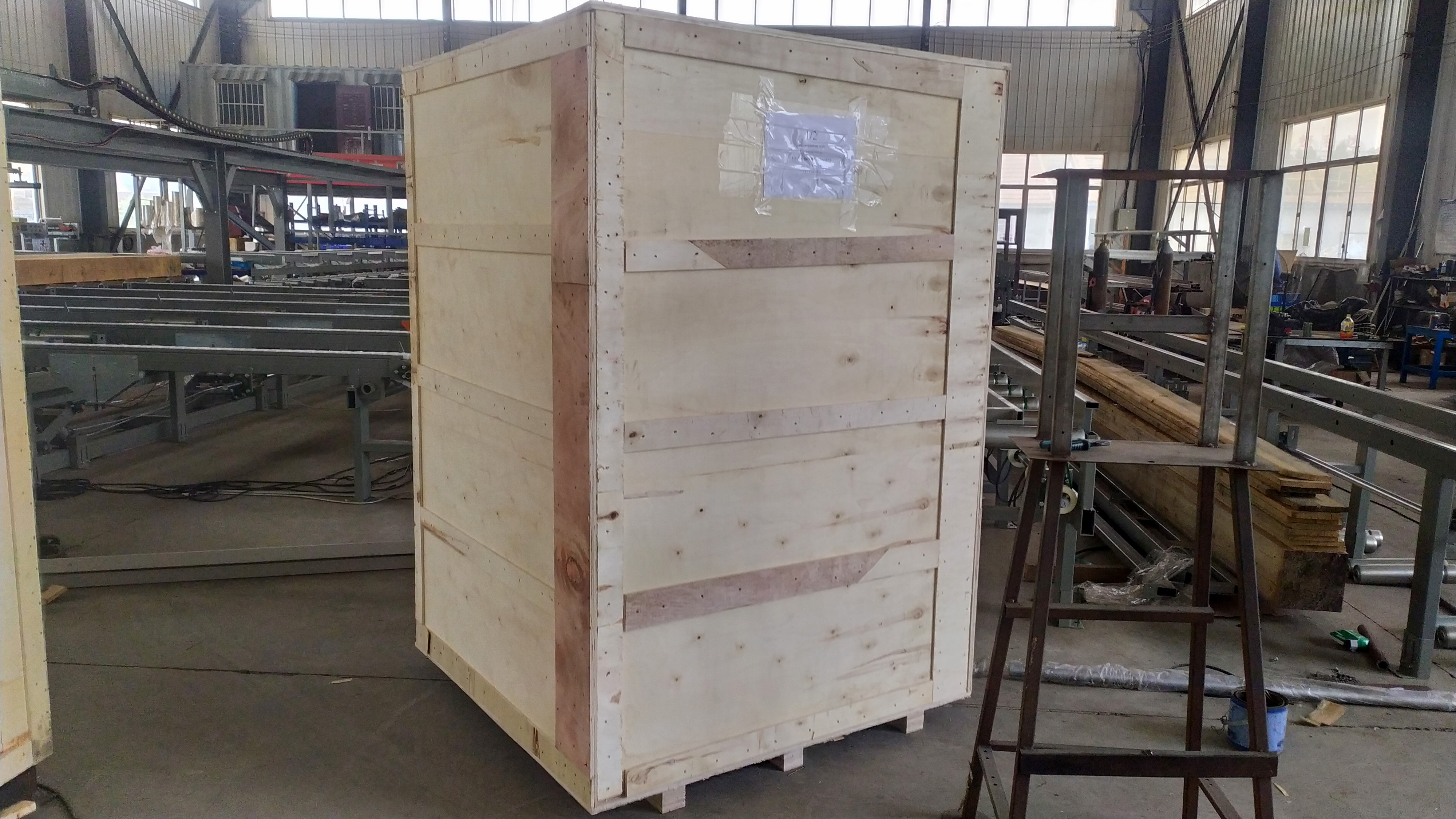

Plywood Seaworthy Wooden Case for LCL; Stretch Wrapping and PET Strap Reinforce for FCL.
Established in 2015, we specialize in the design, development and manufacturing of packaging machinery as well as automation packaging solutions. With continuous growth, we can now offer more than 100 kinds of machines in 8 series including Pallet Wrapper, Shrink Wrapper, Strapper, Case Erector, Case Sealer, Vacuum Packing Machine, Palletizer and Conveyor System. Especially in the area of Shrink Wrapping, Pallet Handling and Timber Handling, we are experienced and knowledgeable to provide customization overall solutions to meet the various needs of customers.
All our machines have passed CE certification and benefit from our experienced engineer team, we have obtained a number of patented technologies in Shrink Wrapper and Conveyor System. Relying on our excellent product quality and service, we have won lots of customers in the market of North America, Europe, Australia etc.
