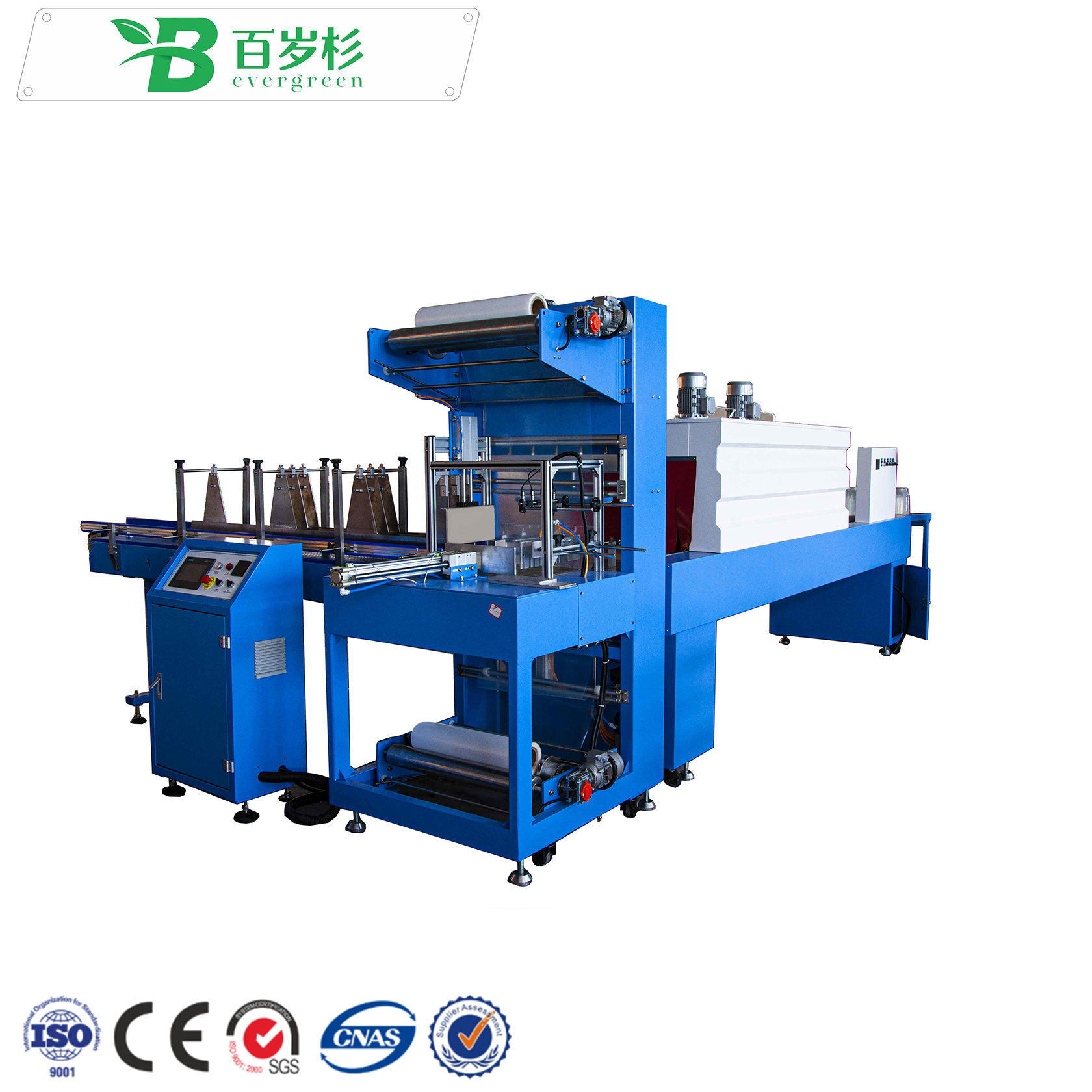

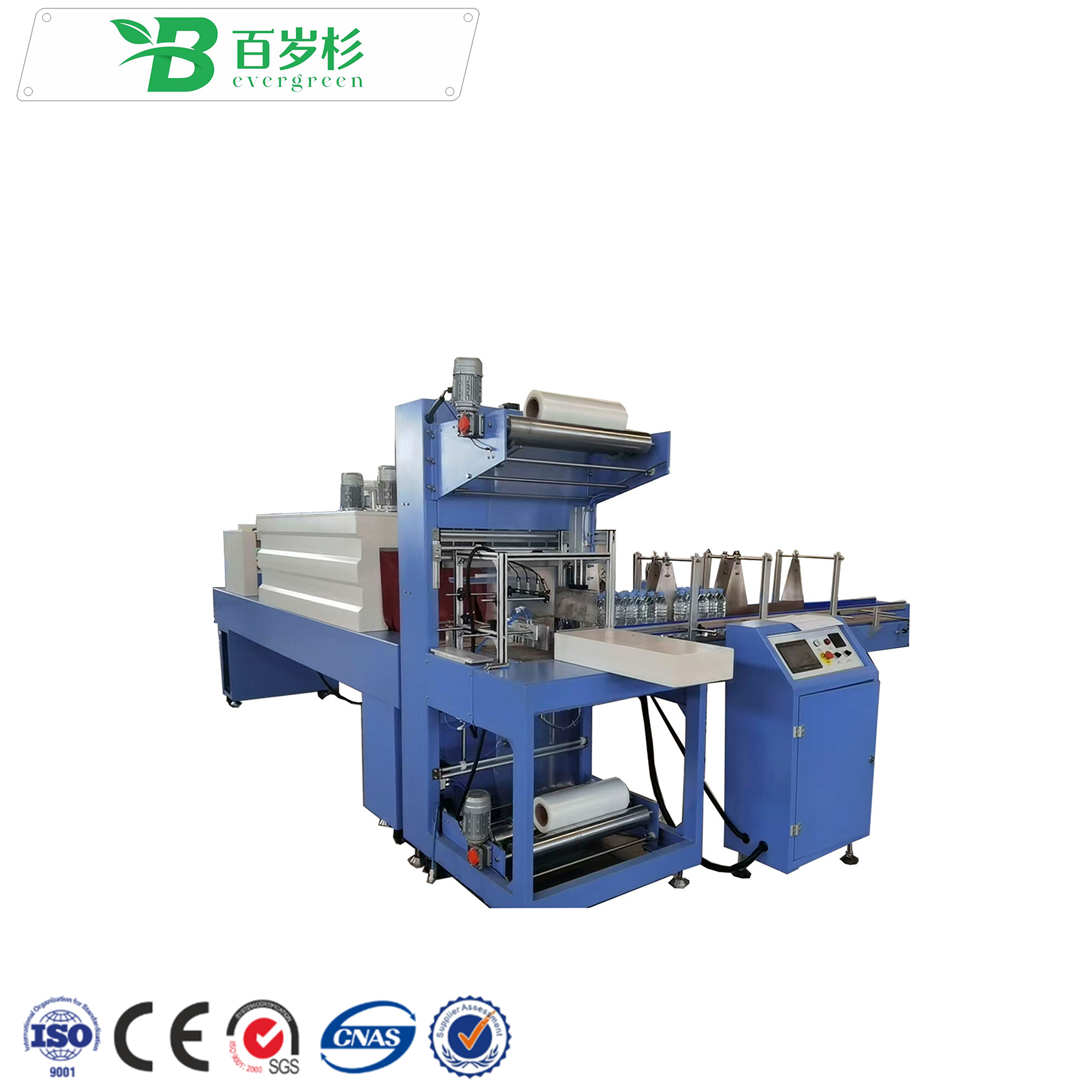

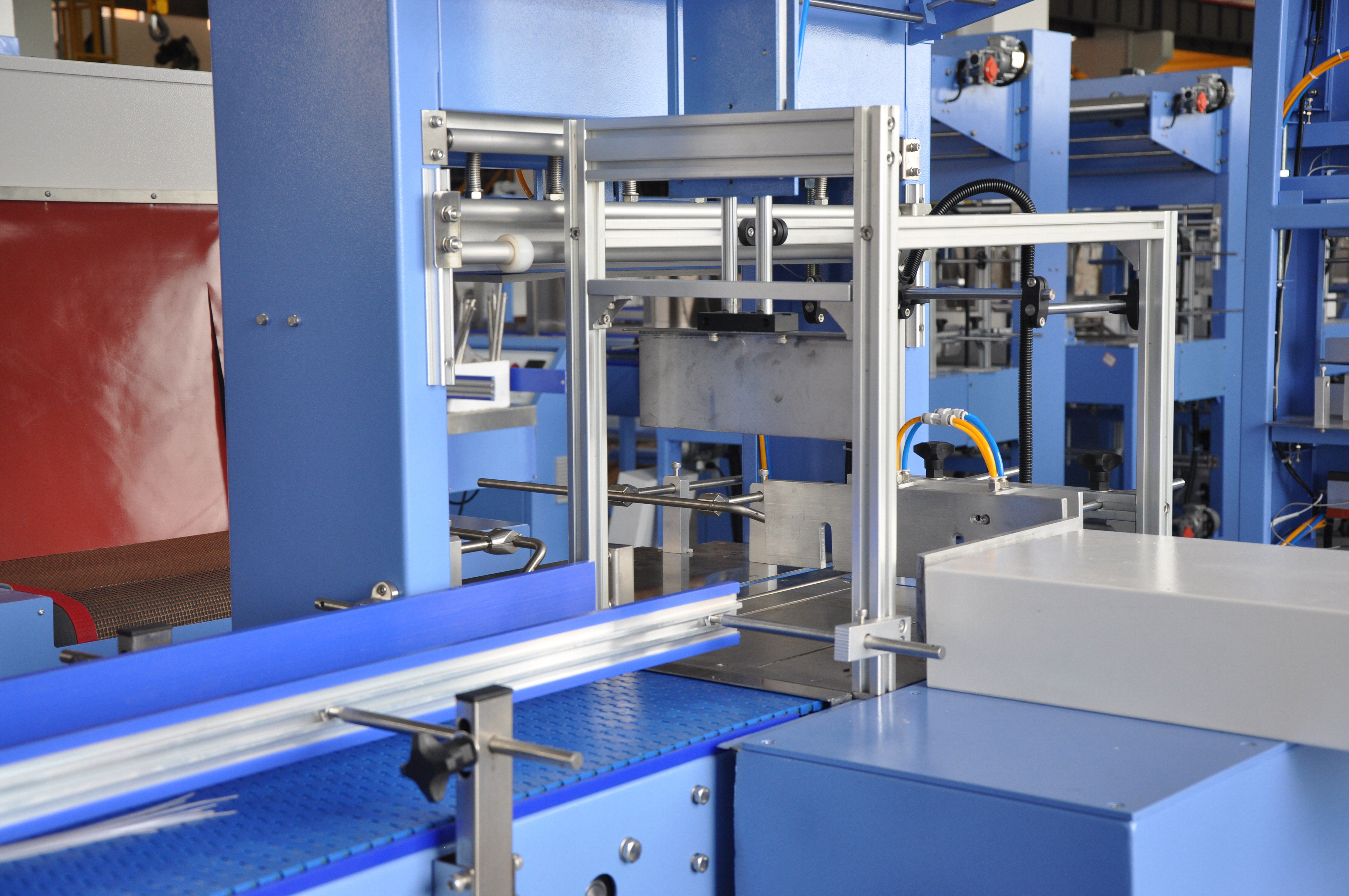

The Automatic Thermal Shrinkage Film Wrapping Machine integrates the advantages of similar domestic and overseas equipment. It is widely used in combined packaging for beverages, food, and medical-chemical products, and is suitable for packaging items without pallets or cartons, as well as those in rectangular, round, or flat shapes, with the advantages of low cost and good appearance.

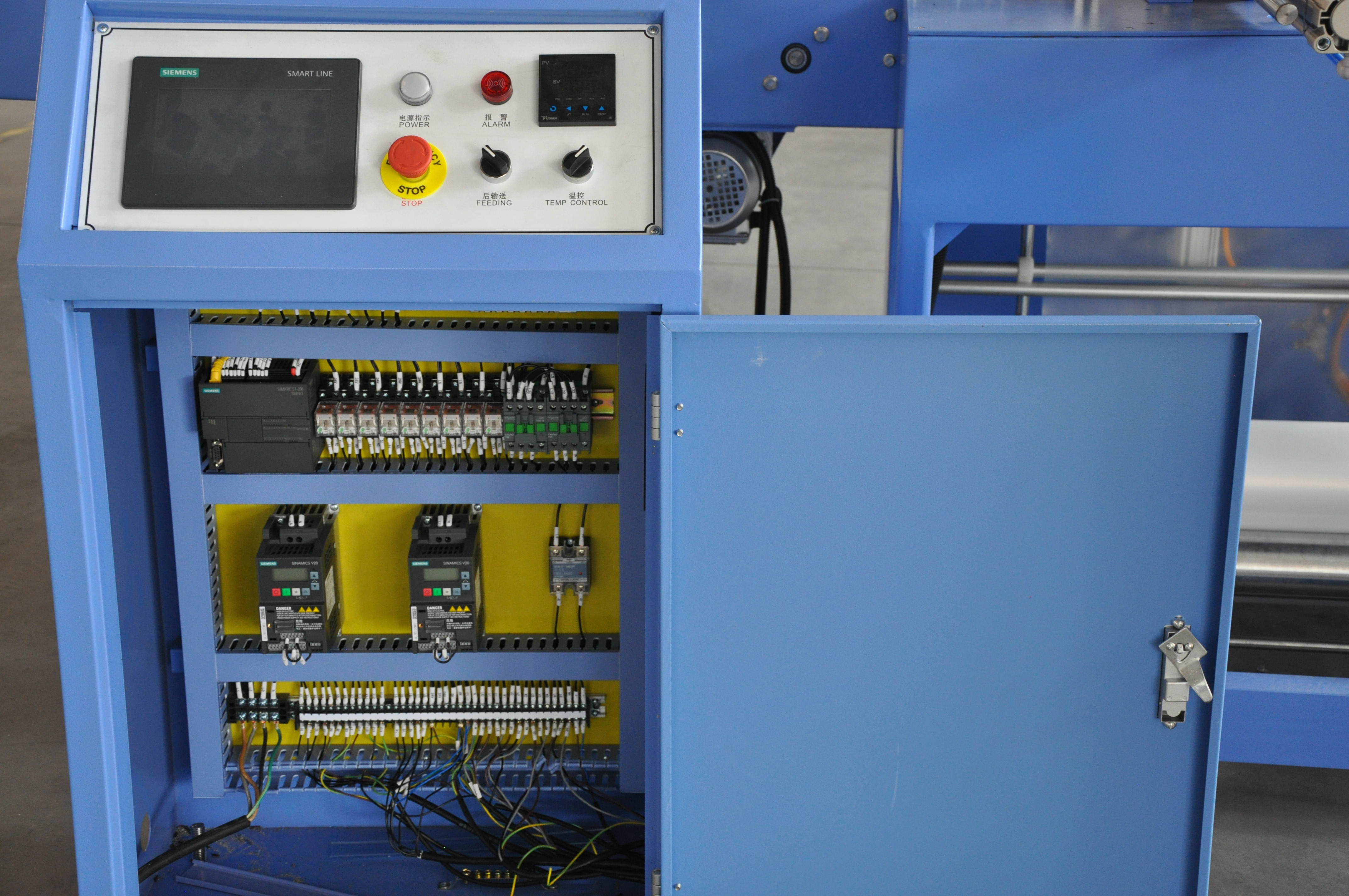

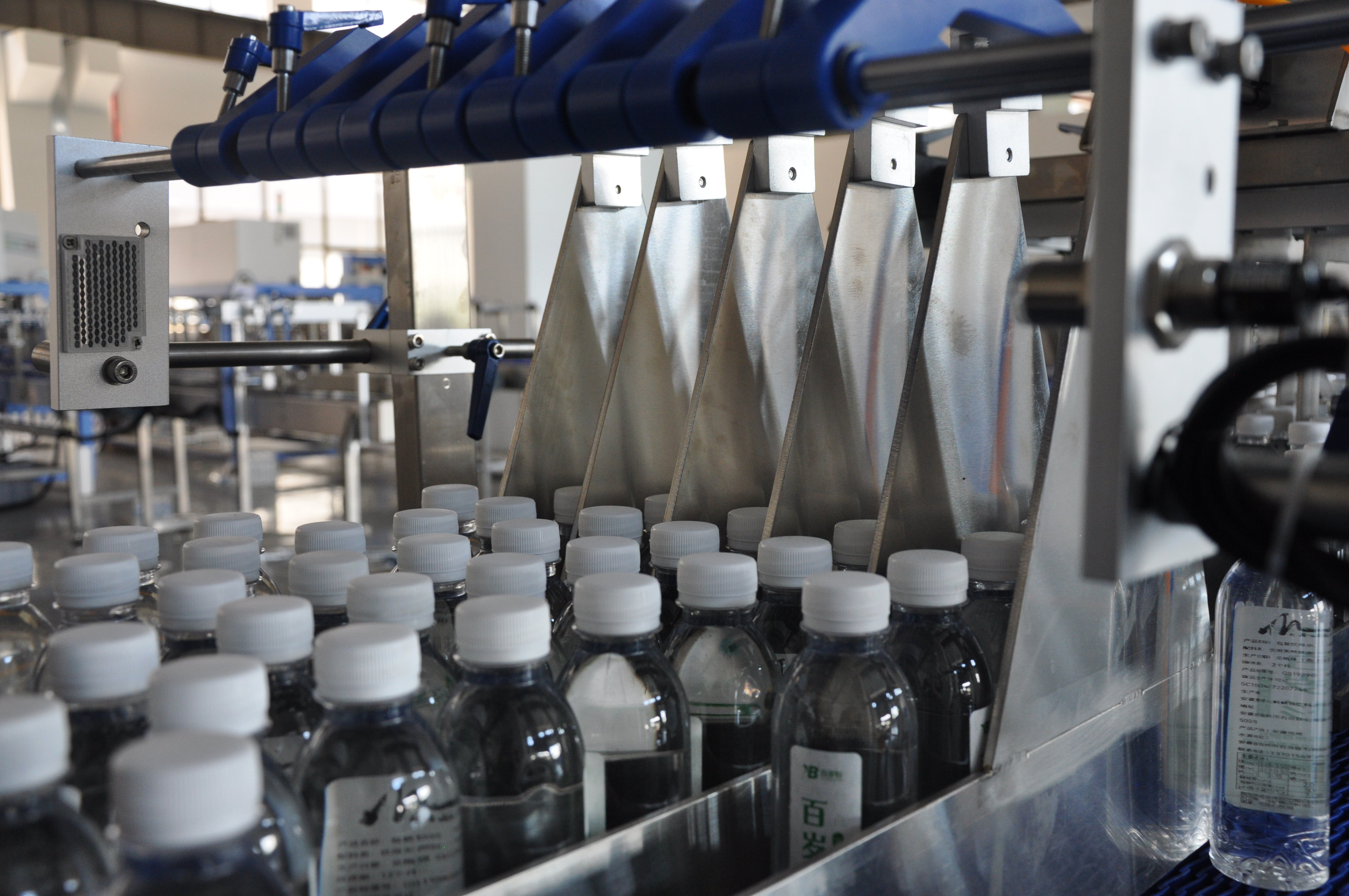

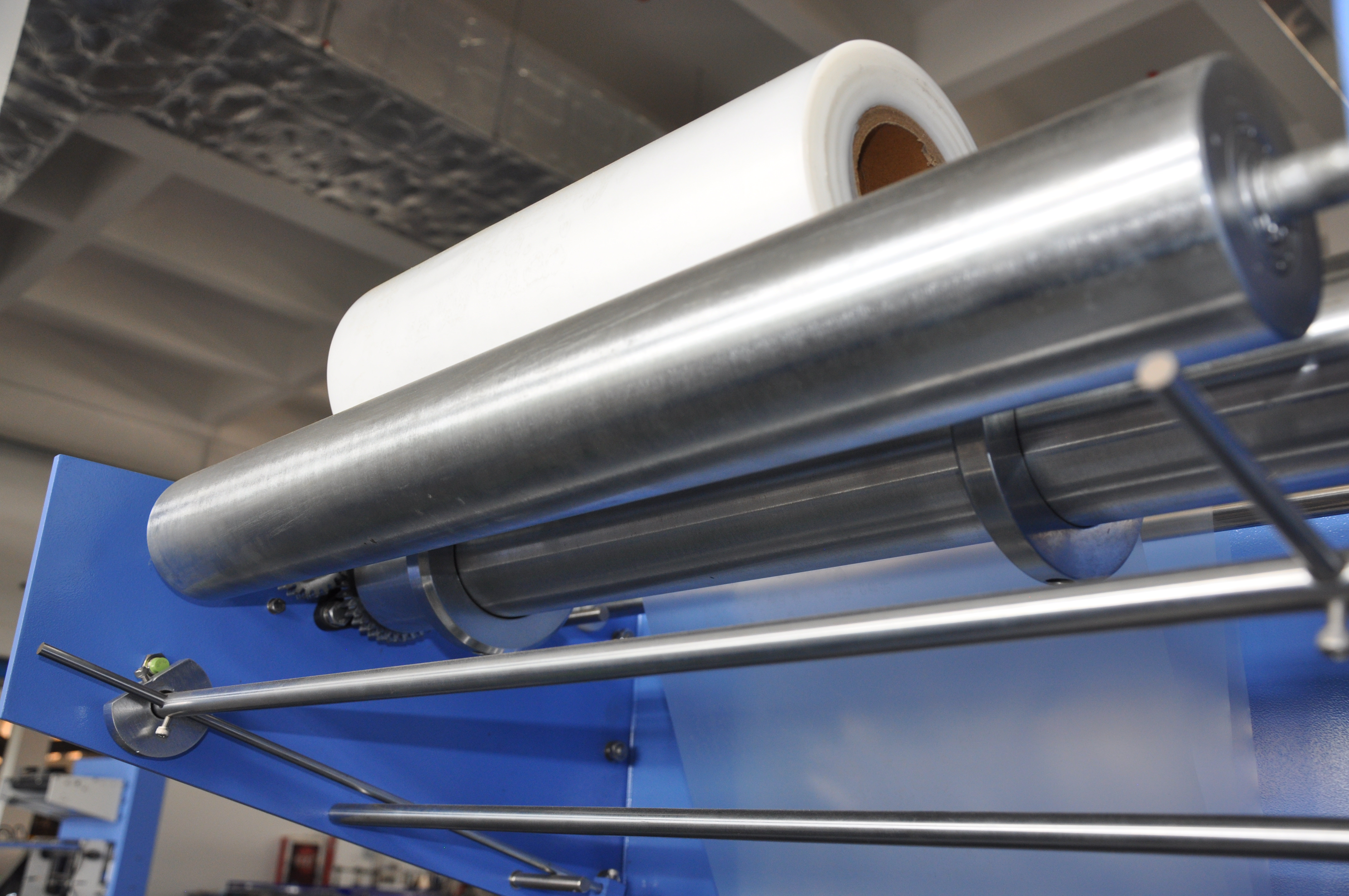

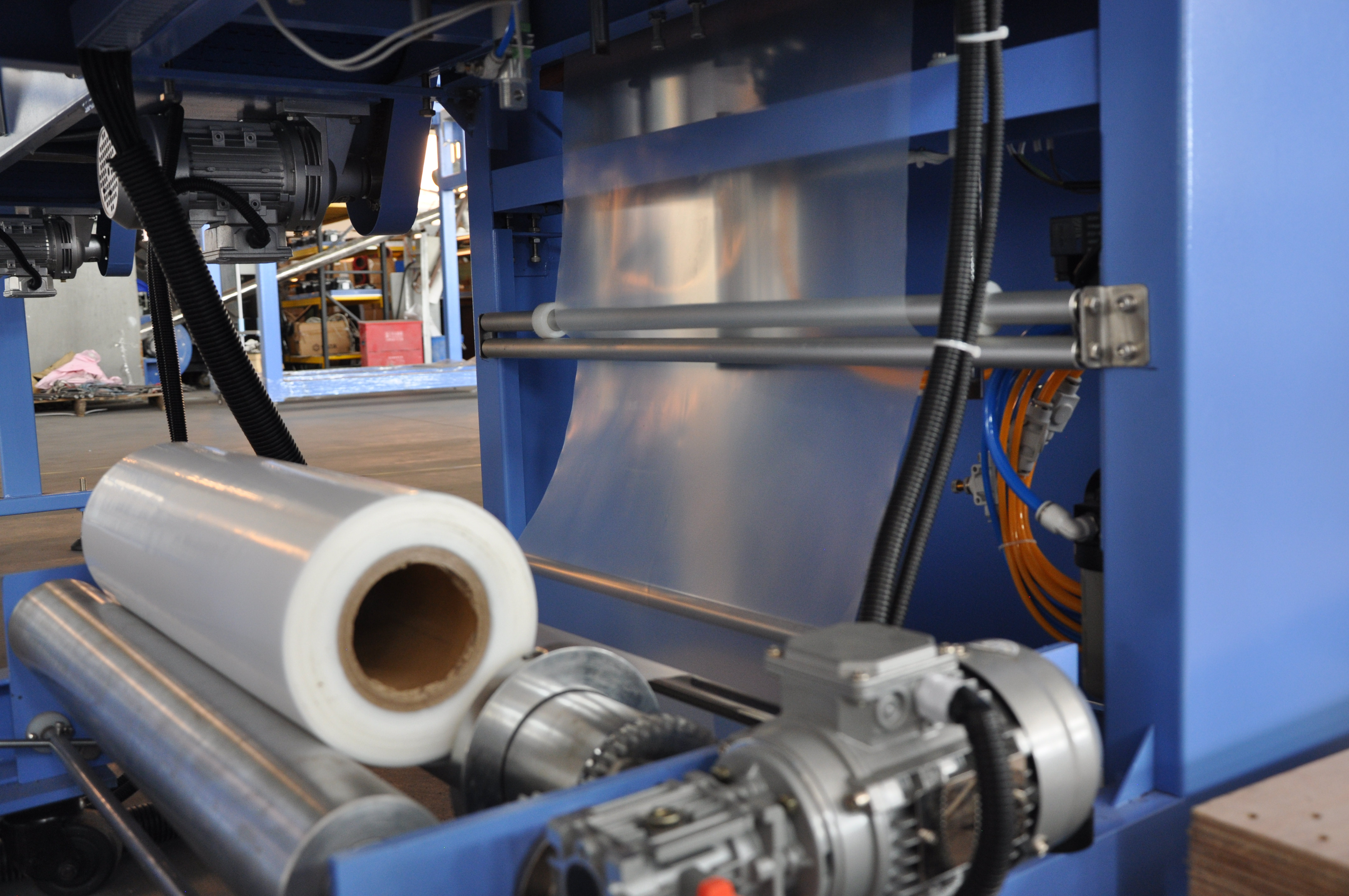

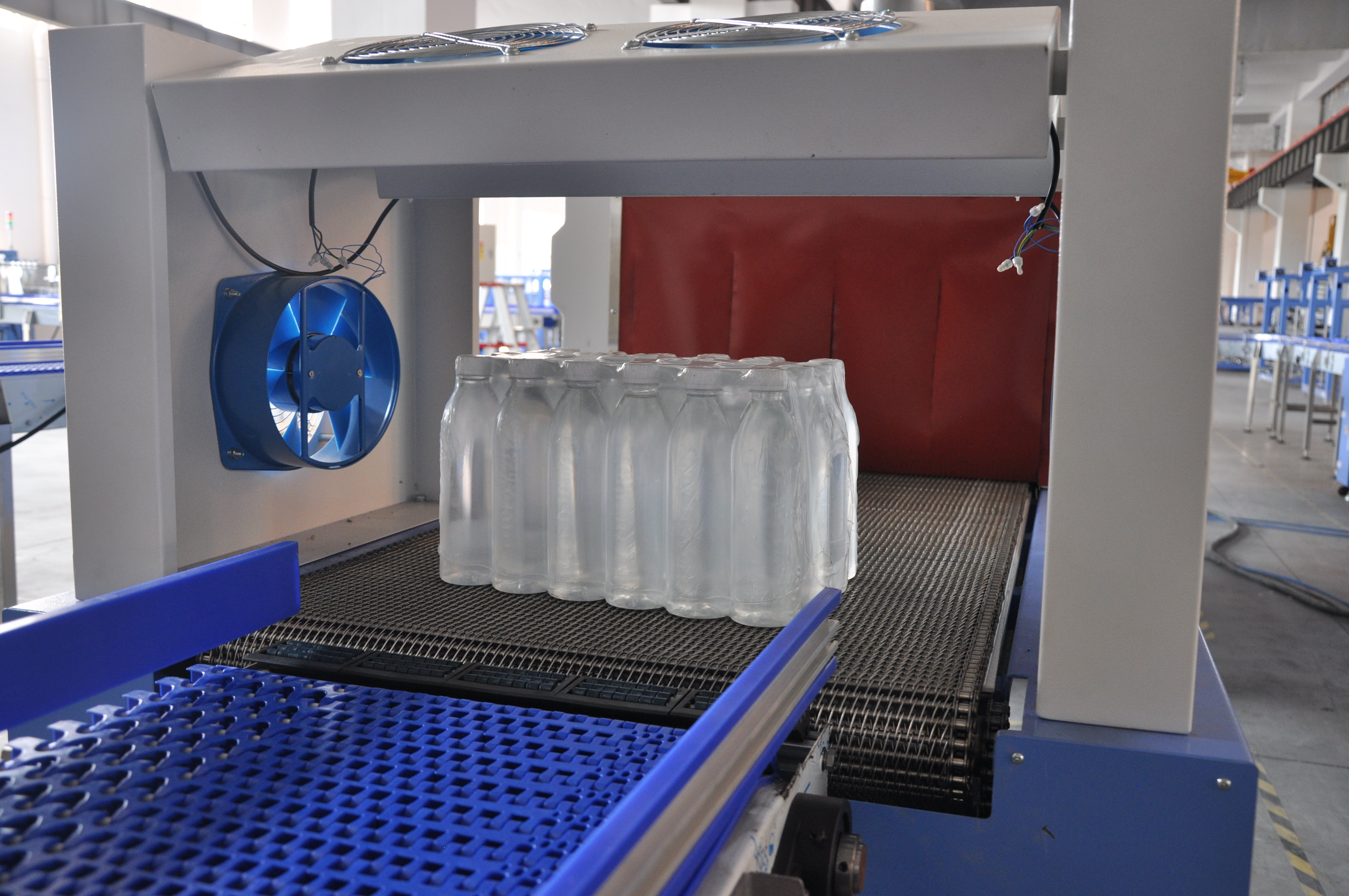

Adopting a PLC automatic controller and a human-machine interface, it prevents bottle falling and bottle shortage, and features flexible adjustment, safety, and aesthetic appeal. Its adjustable hot air circulation structure enables it to be compatible with various thermal films (including color-printed ones), and film replacement is convenient.
Equipped with a fault alarm and locking device, it operates reliably. The entire machine is made of high-quality steel and stainless steel, with a compact and durable structure, making it an ideal equipment for beverage filling lines.
| Product Model | BS-10L | BS-15L | BS-18L |
|---|---|---|---|
| External Size | 5050*3300*2100mm | 8400*1250*2200mm | 14500*1100*2100mm |
| Packaging Max Size | 420*280*350mm | 420*280*350mm | 420*280*350mm |
| Weight | 1500KG | 2000KG | 2500KG |
| Power Supply Voltage | 380/220V | 380/220V | 380/220V |
| Power | 20KW | 25KW | 32KW |
| Actual Power | 15KW | 20KW | 27KW |
| Max Output | 10 bags/min | 13-15 bags/min | 18-20 bags/min |
| Shrinkage Temp. | 160 - 250° | 160 - 250° | 160 - 250° |
| Film Thickness | 0.07-0.1mm | 0.07-0.1mm | 0.07-0.1mm |
