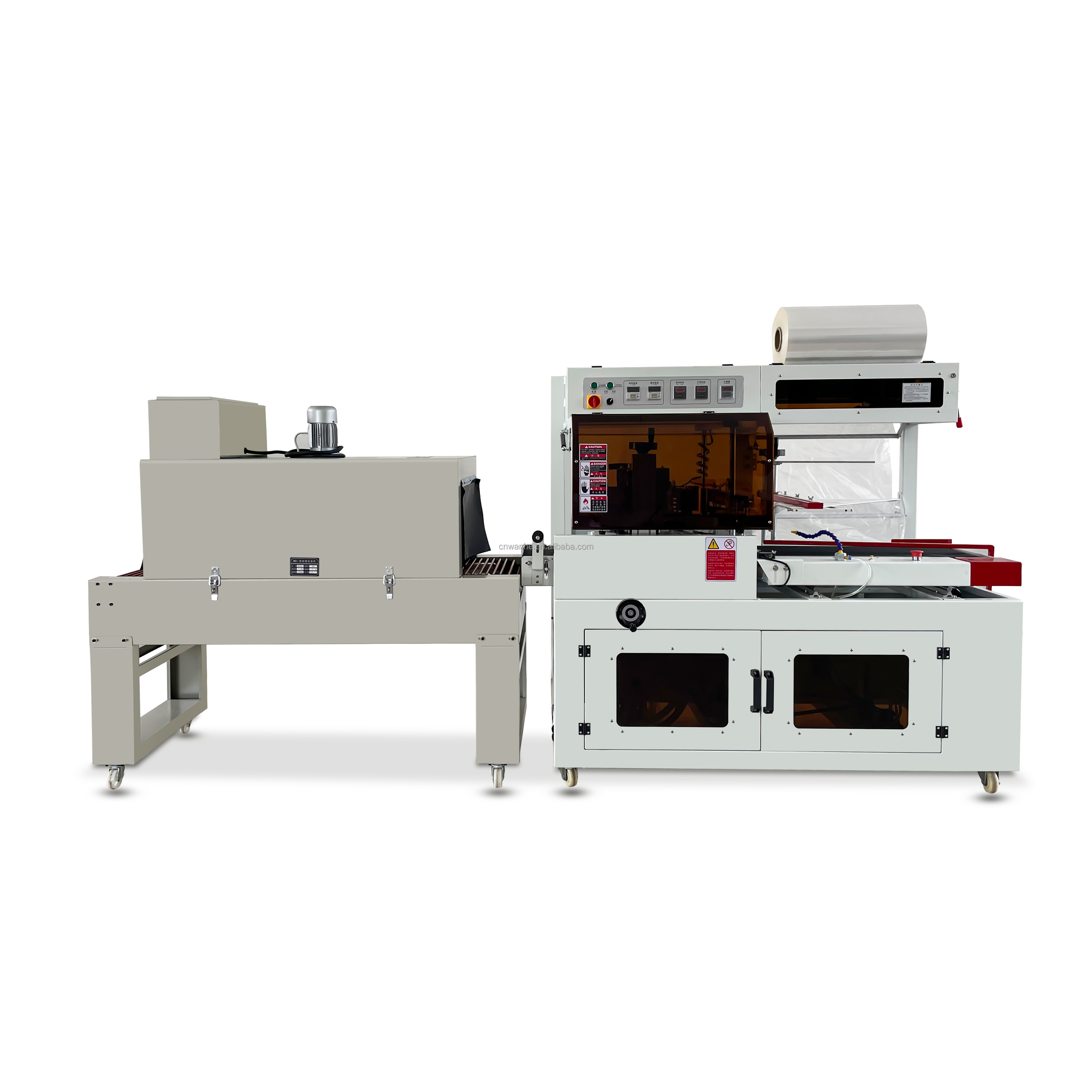

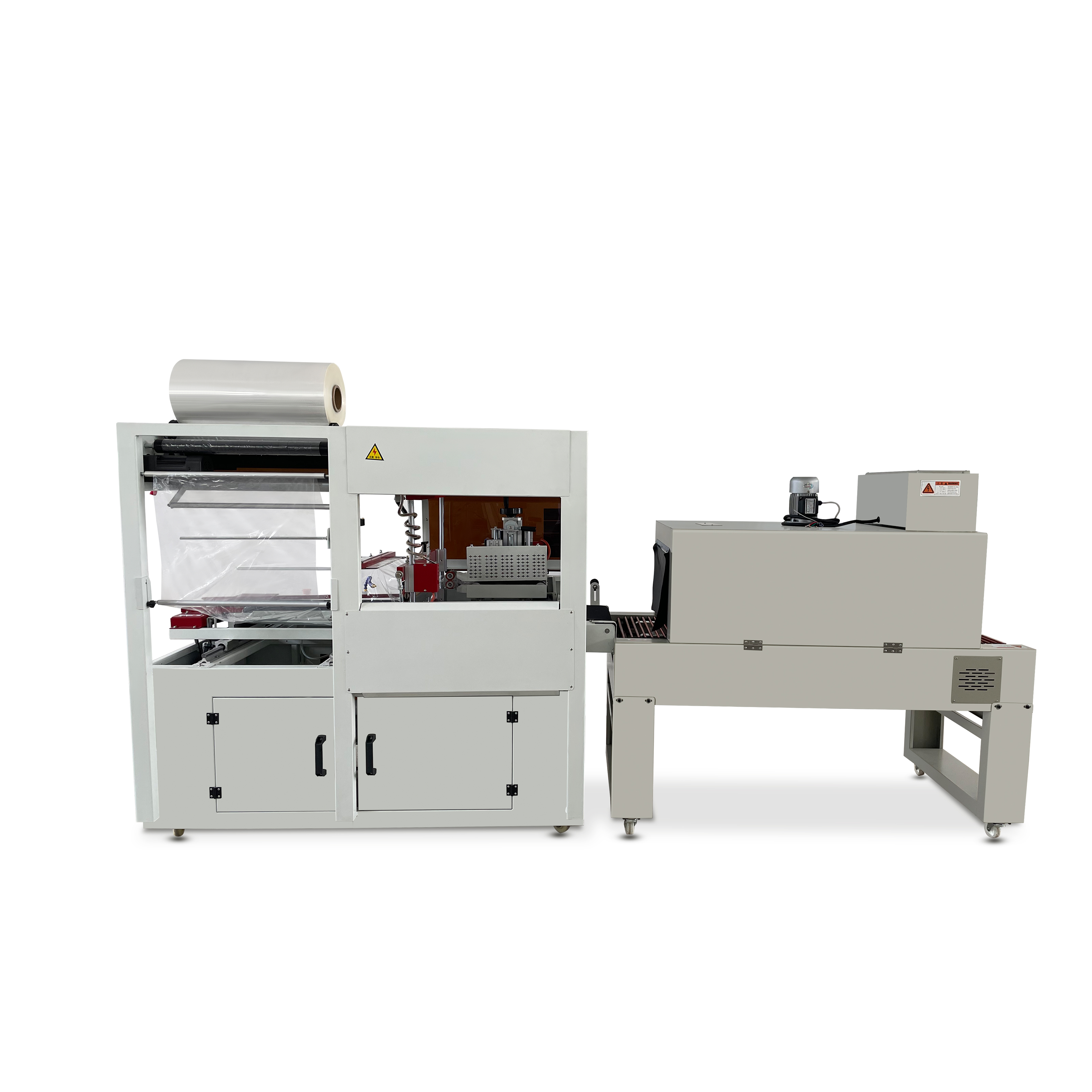

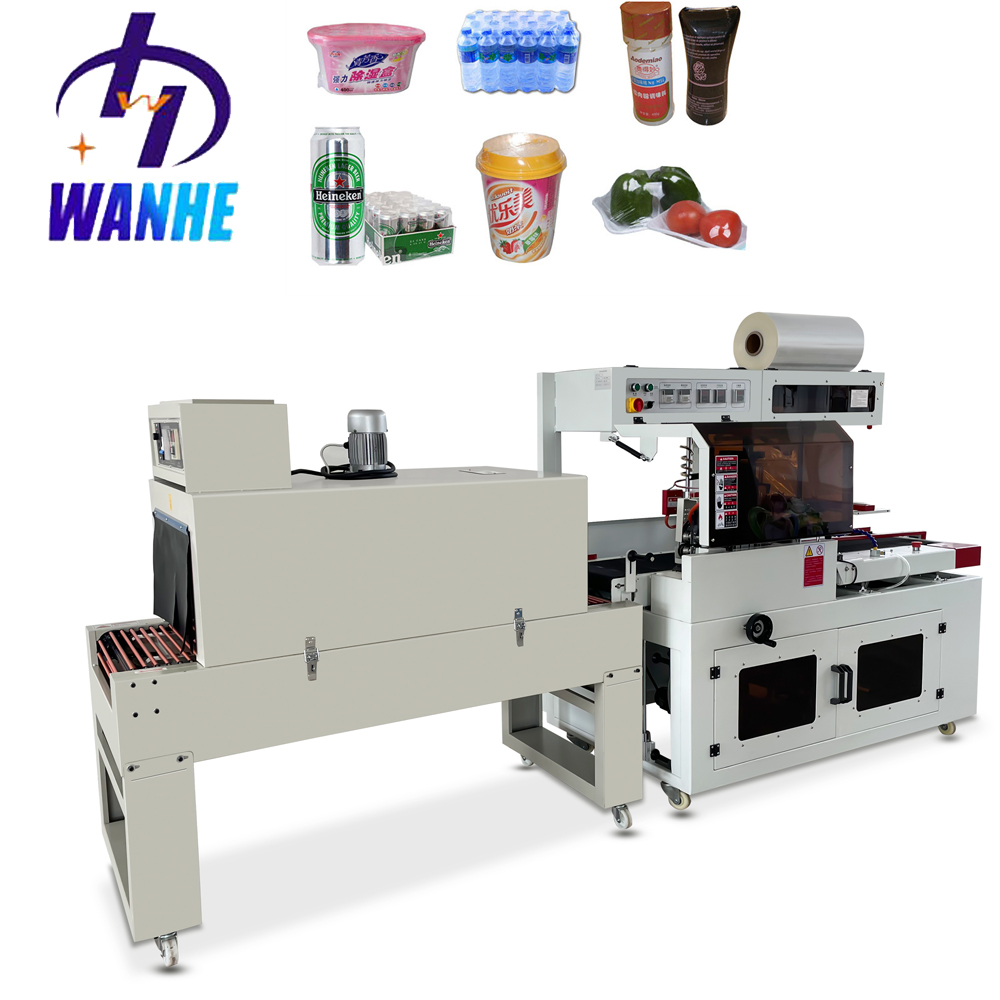

The Automatic side Seal shrink wrap machine is a great solution. The Shrink Tunnel will assist with shrinking high volume, heat absorptive surfaces and irregular shaped packages. The machine has a longer single chamber which increases shrink capacity at higher speeds. Also, the fully controllable air temperature allows you to customize shrinking conditions to the application.
Specifications
| Max packing size(L)(W+H)mm |
≤400(H)≤200 |
≤500(H)≤200 |
≤600(H)≤200 |
≤800(H)≤200 |
| Max sealing size |
(W+H)≤450mm |
(W+H)≤550mm |
(W+H)≤650mm |
(W+H)≤850mm |
| Packing speed |
15-35bag/min |
15-35bag/min |
15-35bag/min |
15-35bag/min |
| Electric supply & power |
220V/50HZ 1.35KW |
220V/50HZ 1.35KW |
220V/50HZ 1.35KW |
220V/50HZ 2.0KW |
| Max Current |
16A |
16A |
16A |
18A |
| Air pressure |
5.5kg/cm³ |
5.5kg/cm³ |
5.5kg/cm³ |
5.5kg/cm³ |
| Weight |
300kgs |
350kgs |
400kgs |
450kgs |
| Dimensions(L*W*H) mm |
1650*800*1460 |
1810*980*1460 |
2010*1080*1460 |
2510*1480*1460 |
| Production speed |
0-15 M/min |
| Bag packing type |
Thermal contraction Heat shrinkable |
| Packaging film material |
POF fold film |
| Machine operating height |
750-850mm |
| Total power |
9.6KW |
| Voltage |
380kw 50/60HZ Three phase |
| Weight |
200kgs |
| Size (L x W x H) |
1910x680x1330mm 1480x450x230 (Furnace road) |
Sample
Product Detail

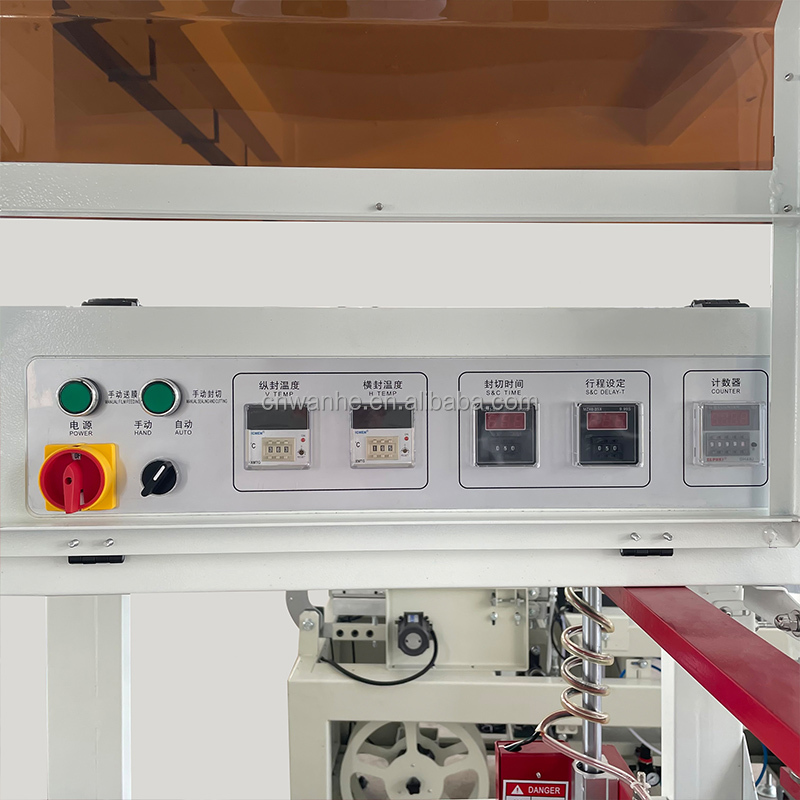

Operation Panel
High Configuration

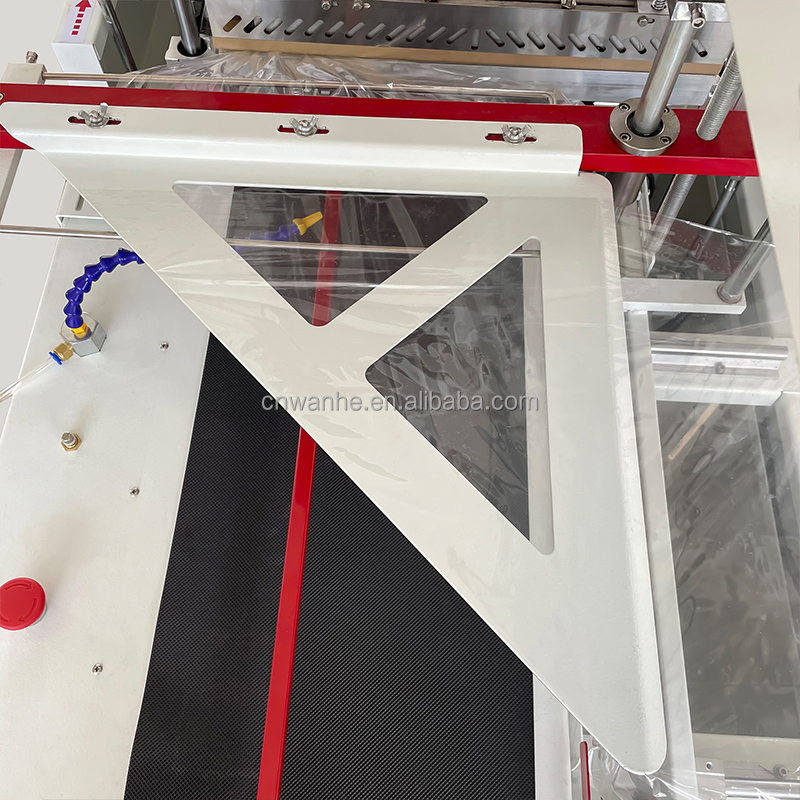

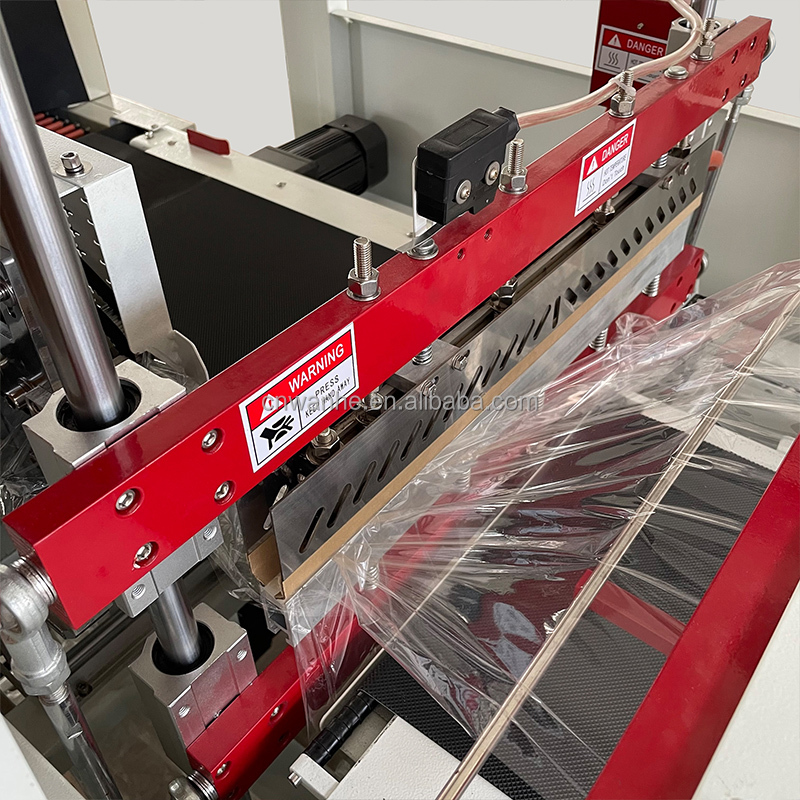

Packing System
Width Adjustable & Length Unlimited

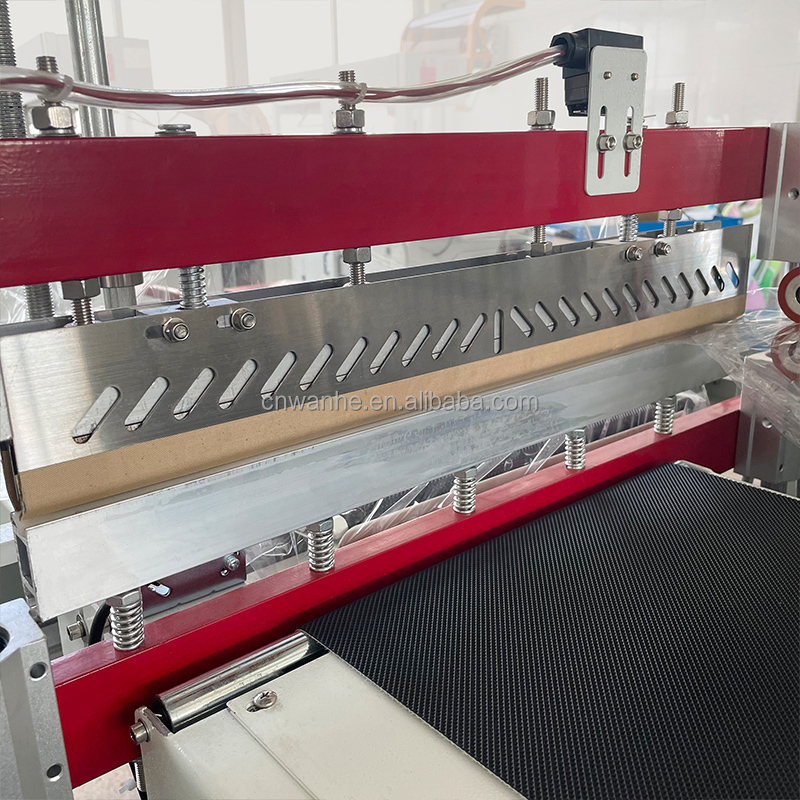

Horizontal Sealing
Sealing knife adopts American Dupont Teflon Coating

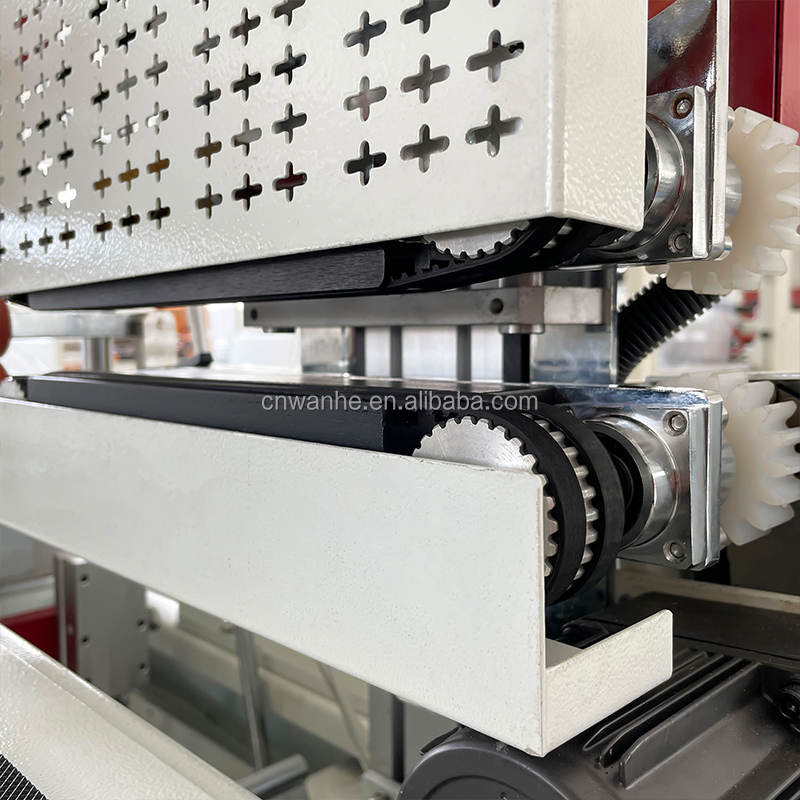

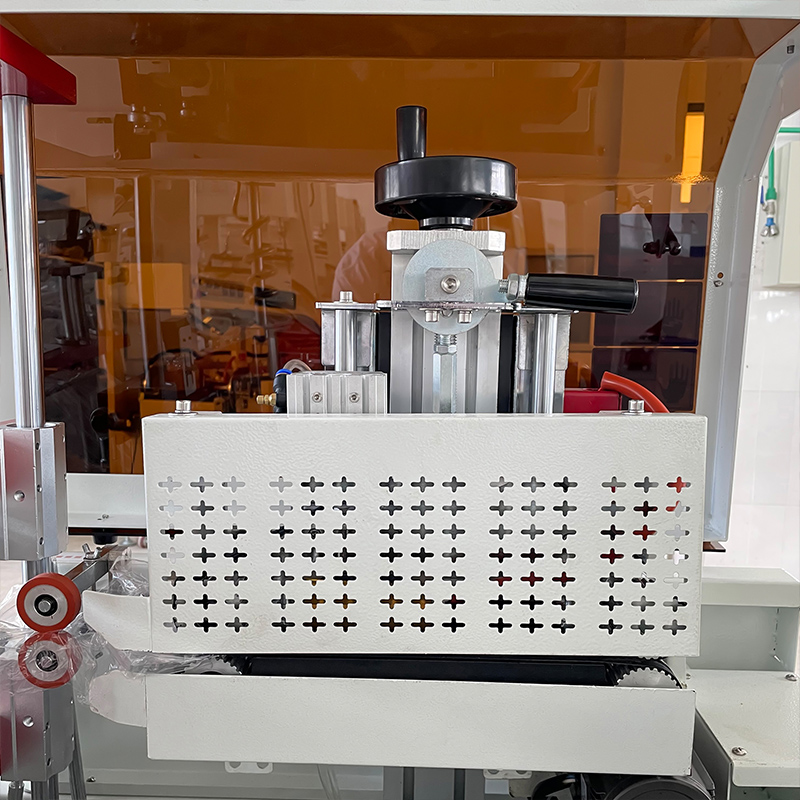

Side Sealing
Edge sealing design, product length unlimited, sealing height adjustable

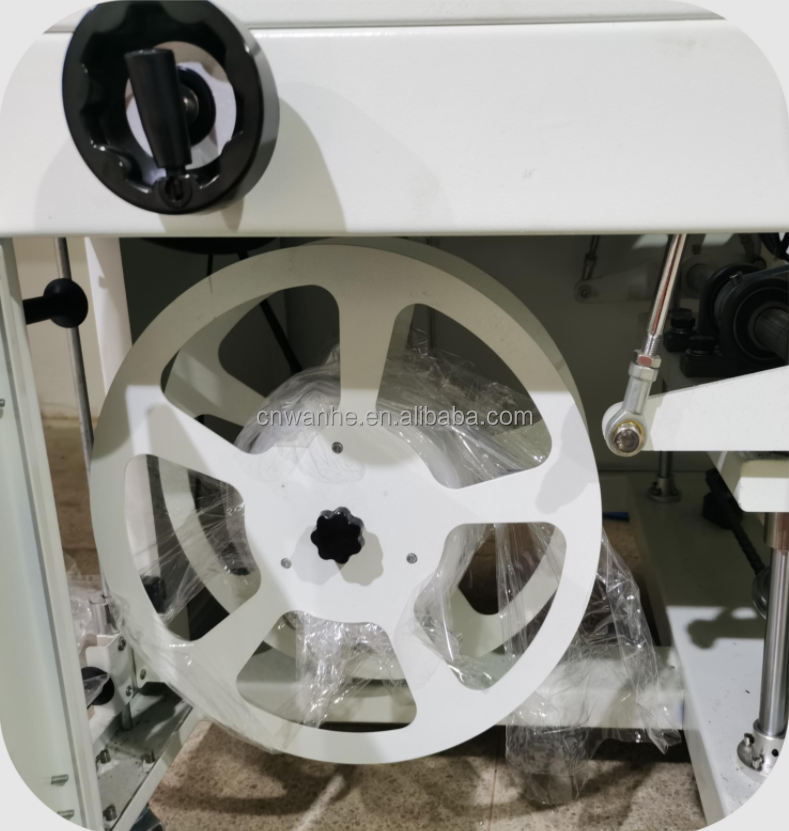

Waste Film Collection
Automatic winding of film remnants

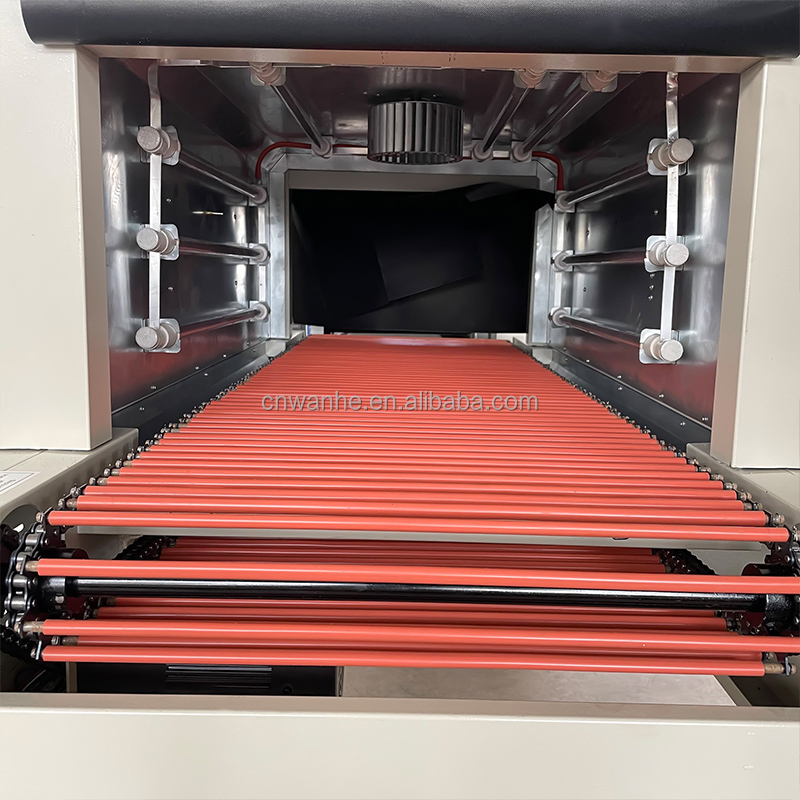

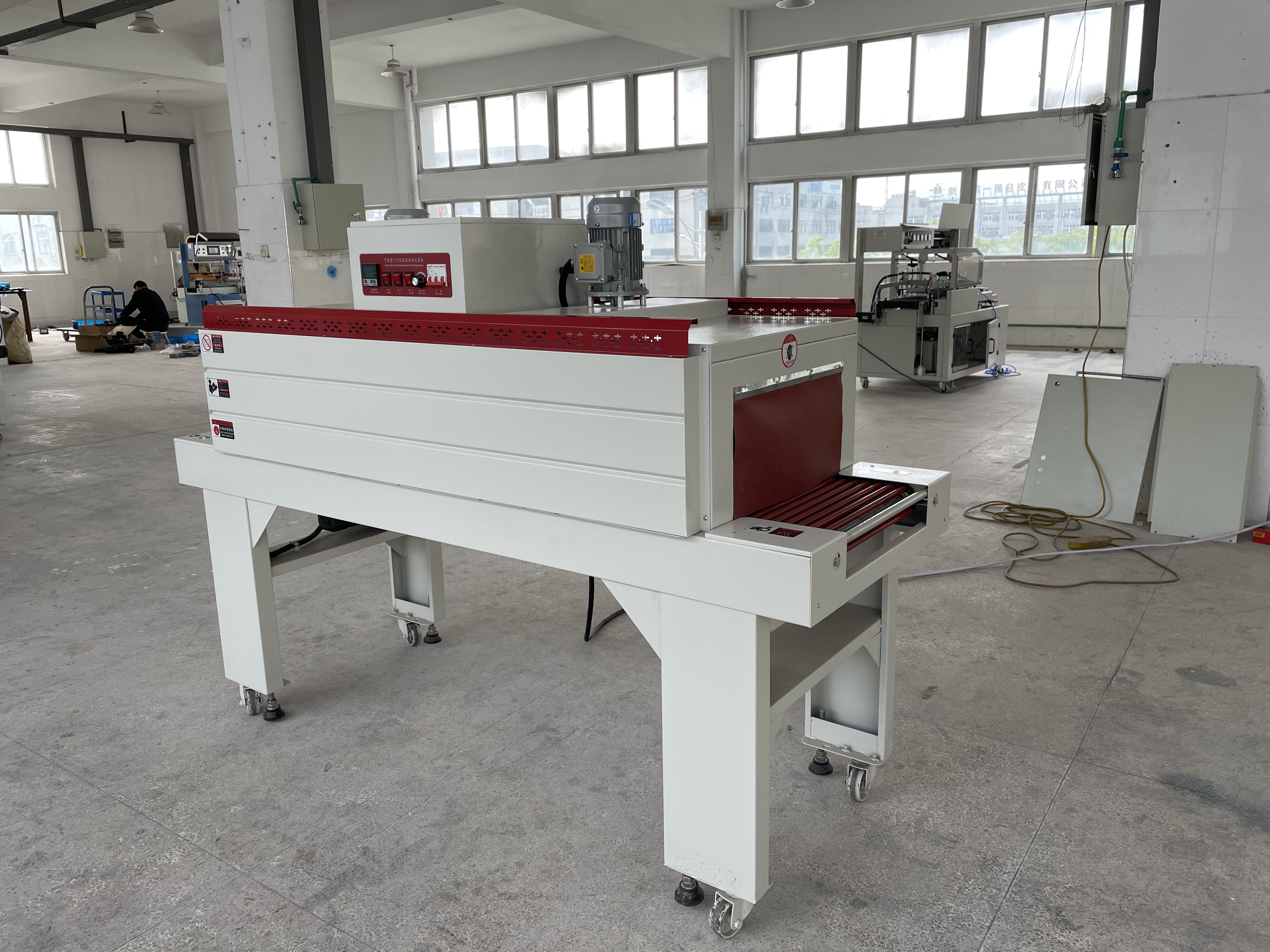

Shrink Tunnel
Conveyor speed adjustable
Client Feedback

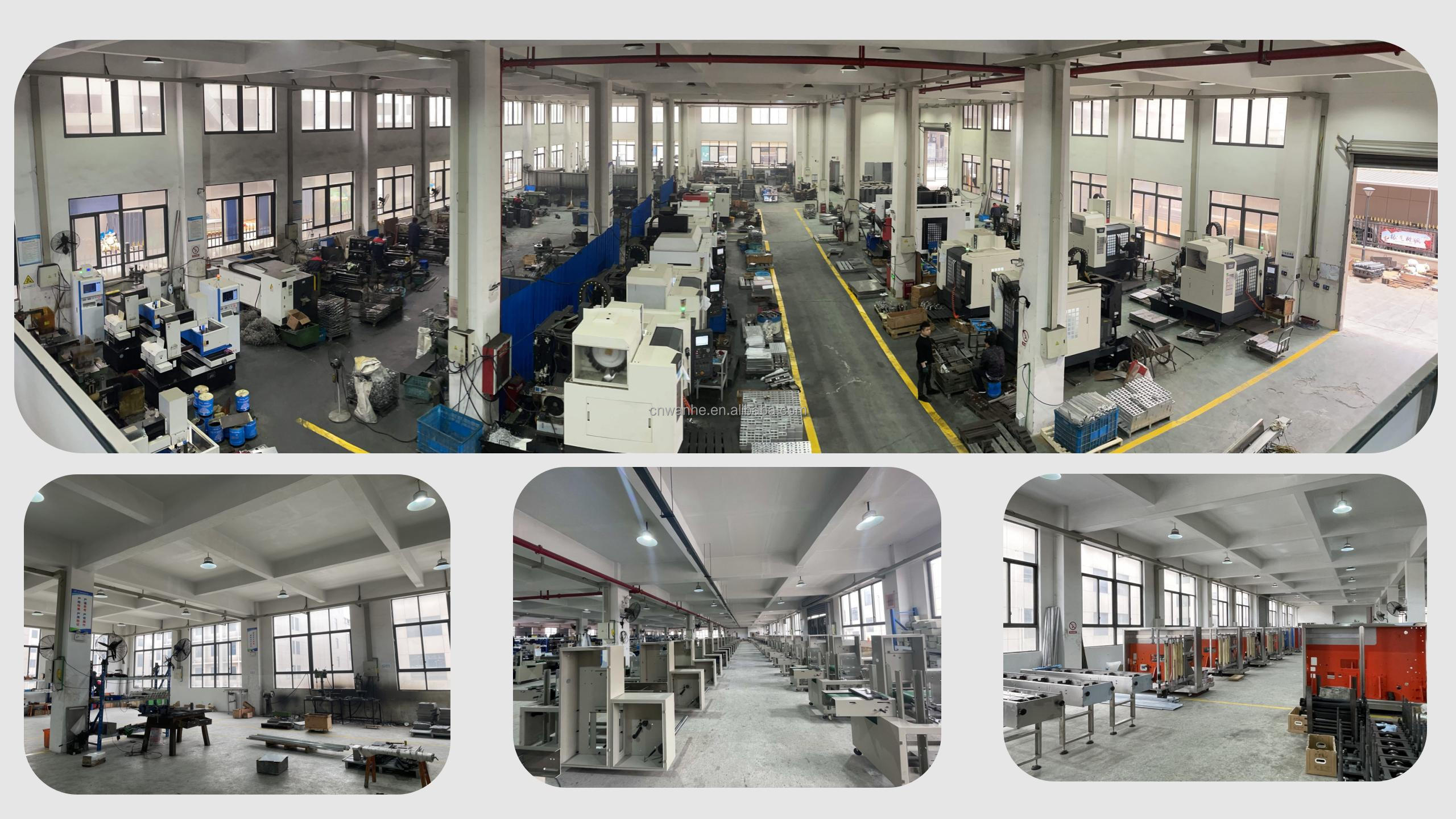

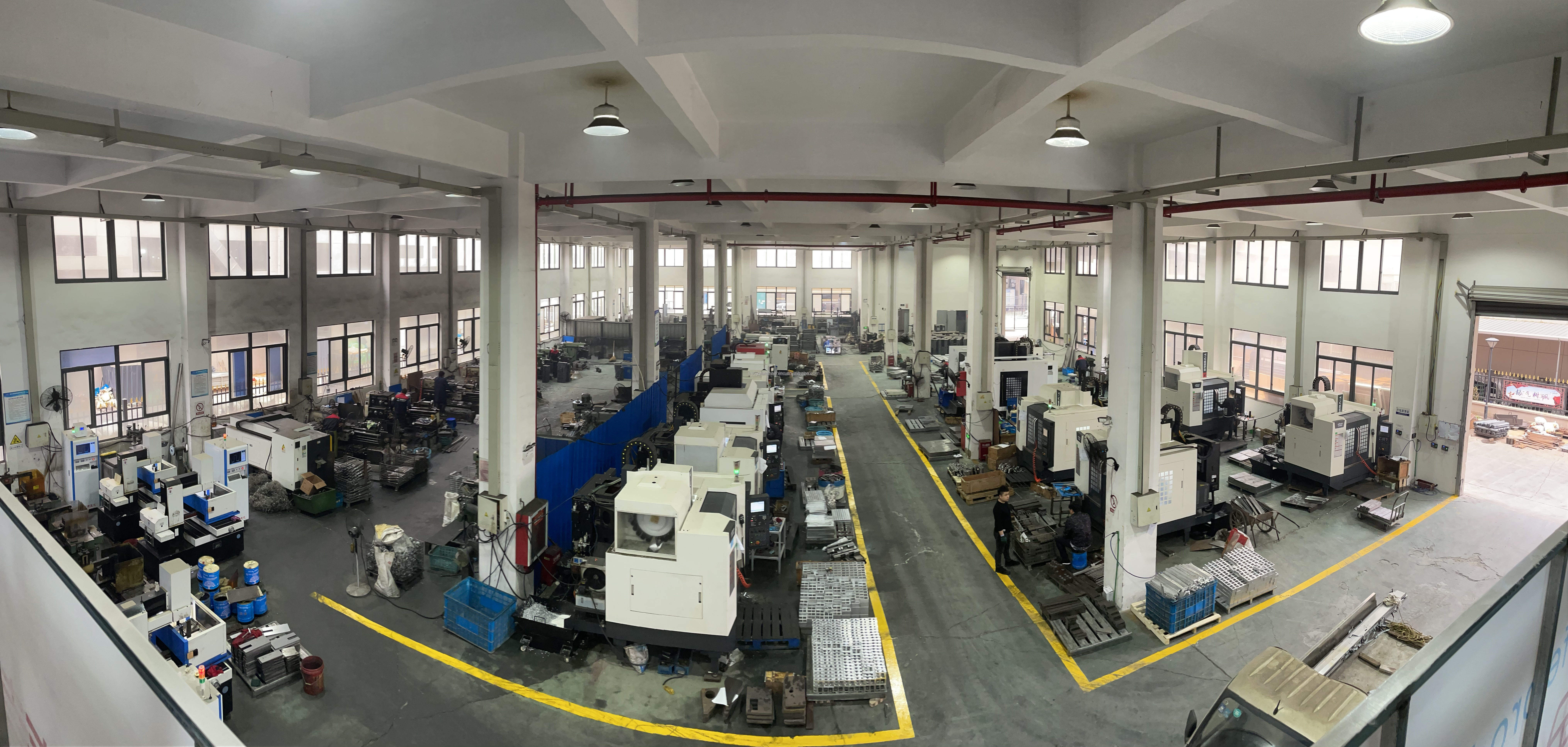

Factory Showcase
Customer View
Frequently Asked Questions
What is the advantage of a side seal shrink wrap machine compared to an L-bar sealer?
Unlike L-bar sealers which have limitation on package length due to the fixed frame size, a side seal machine utilizes a continuous sealing mechanism. This enables packaging of items with unlimited lengths, making it ideal for longer profiles, piping, rolls, and oversized products.
What materials can the shrink wrapping machine handle?
This machine is highly optimized to work with POF (Polyolefin) fold film. The high quality sealing knife and controlled heating in the shrink tunnel ensure a tight, clean, and professional finish without burning or tearing.
What coating is used for the sealing blades?
The sealing knife adopts a premium American DuPont Teflon Coating. This heavy-duty coating prevents film sticking, minimizes maintenance, ensures smooth cutting, and increases the lifespan of the sealing elements.
Can the conveyor speed and temperature be adjusted?
Yes, the shrink tunnel comes with fully adjustable conveyor speed control (0-15 M/min) and precise, controllable air temperature settings. This allows you to customize the shrink wrap conditions according to different film thicknesses and package profiles.
How does the waste film collection system operate?
The machine features an integrated automatic waste film winding system. As the film is sealed and cut, the remaining edge trim is instantly wound up to keep the operation clean, continuous, and hassle-free.
