Fully Automatic Online Skid Wrapping Pallet Stretch Wrapper Packaging System For Food Case Foil & Paper Materials
Fully Automatic Online Skid Wrapping Pallet Stretch Wrapper Packaging System For Food Case Foil & Paper Materials
Fully Automatic Online Skid Wrapping Pallet Stretch Wrapper Packaging System For Food Case Foil & Paper Materials
Fully Automatic Online Skid Wrapping Pallet Stretch Wrapper Packaging System For Food Case Foil & Paper Materials
1 / 4
Fully Automatic Online Skid Wrapping Pallet Stretch Wrapper Packaging System For Food Case Foil & Paper Materials
Fully Automatic Online Skid Wrapping Pallet Stretch Wrapper Packaging System For Food Case Foil & Paper Materials
Fully Automatic Online Skid Wrapping Pallet Stretch Wrapper Packaging System For Food Case Foil & Paper Materials
Fully Automatic Online Skid Wrapping Pallet Stretch Wrapper Packaging System For Food Case Foil & Paper Materials

Fully Automatic Online Skid Wrapping Pallet Stretch Wrapper Packaging System For Food Case Foil & Paper Materials

Send Inquiry

Product Description

Products Description

Pallet Wrapping Machine

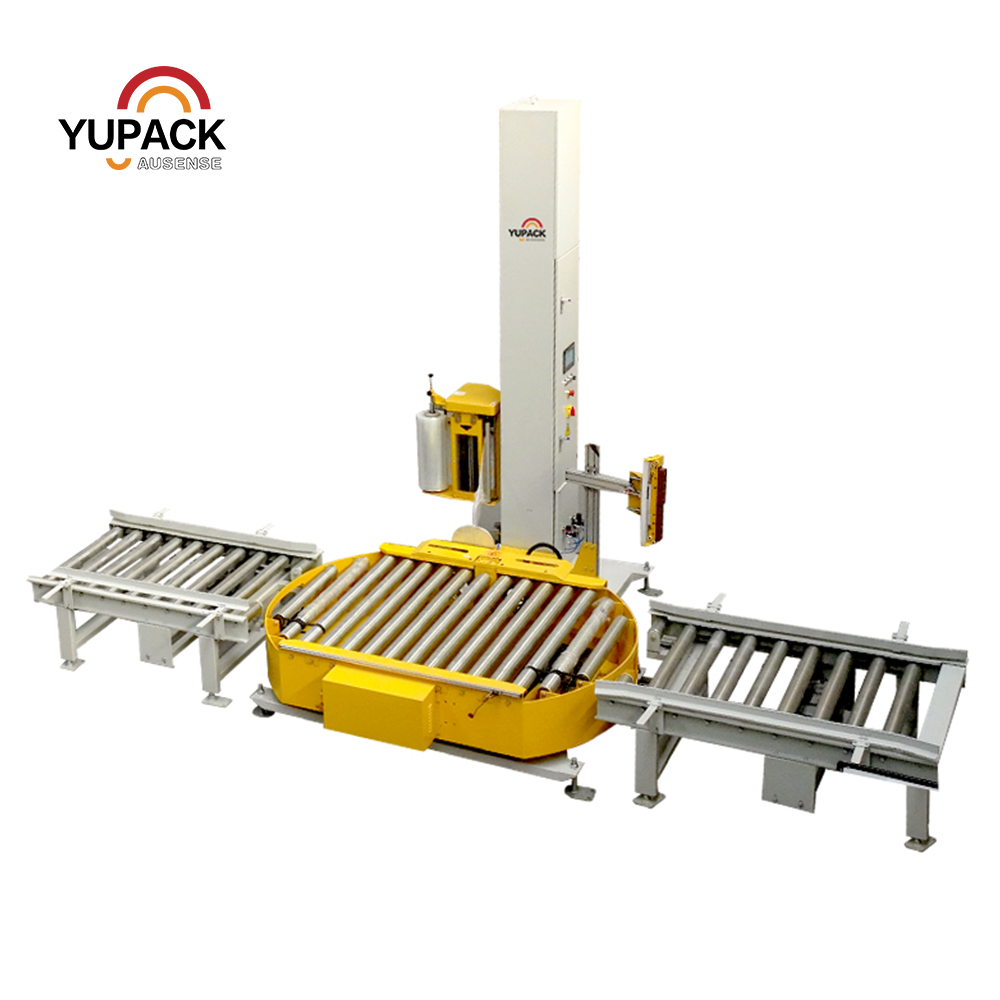

Heavy Duty Large Online Fully Automatic Pallet Wrapping Machine with Conveyor
TP2000FZ fully automatic pallet wrapping machine is a traditional turntable type machine that has been designed to be as automatic as possible. Once the film has been loaded into the film jaw clamps there is no need to attach the film to the pallet in the normal way. At the end of the cycle the machine cuts the film with a hot wire, secures the tail end on to the pallet and then grips the film ready for the next load.

Product Parameters

Model TP2000FZ
Voltage 220/380V 50/60HZ 3P
Power Turntable Motor: 0.75kw, Film Motor: 0.4kw, Column Motor: 0.37kw
Wrapping Size(L*W mm) (500-1100)*(500-1200)
Wrapping Height 500-1800/2400
Capacity 20-40 Pallet/Hour
Turntable size 2000mm
Turntable Height 400mm
Max loading 2000kg
Speed Adjustable
Machine Size 3200*2000*2100mm

Product Advantages

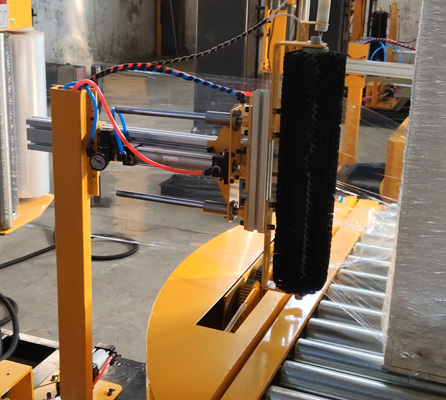

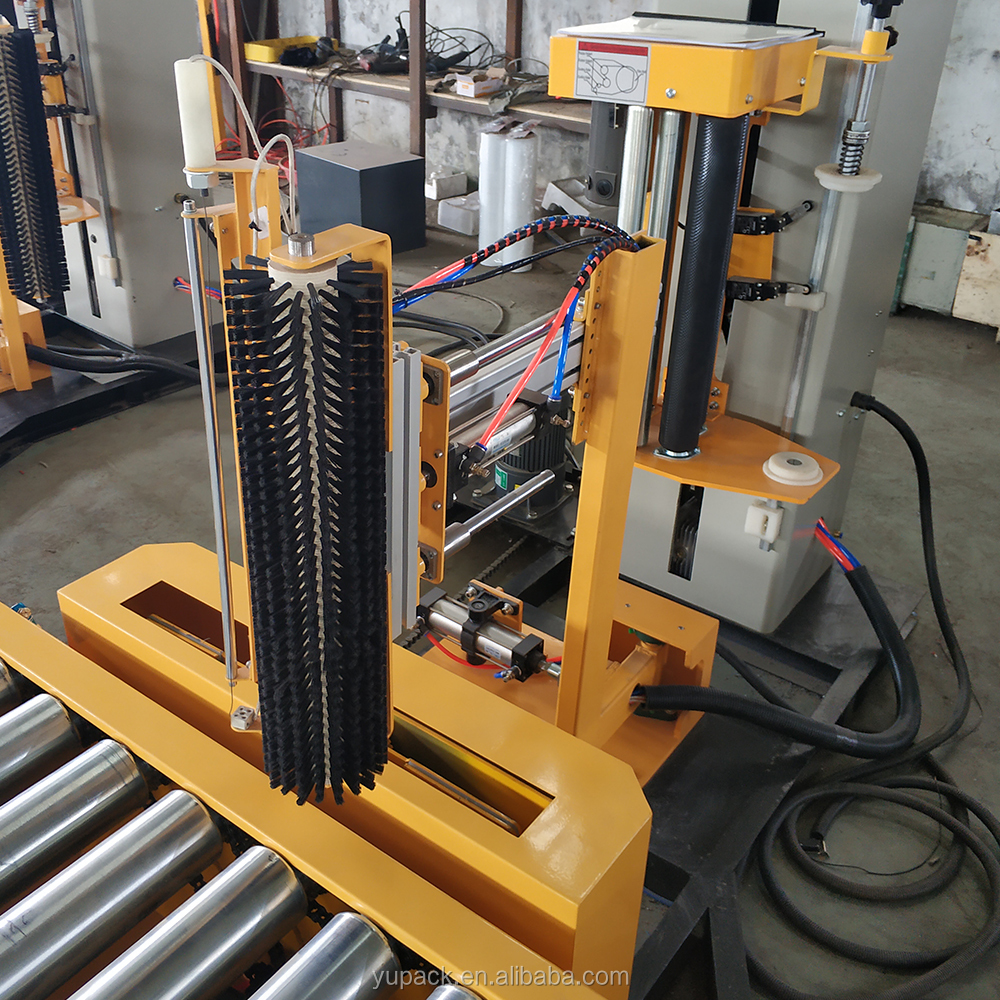

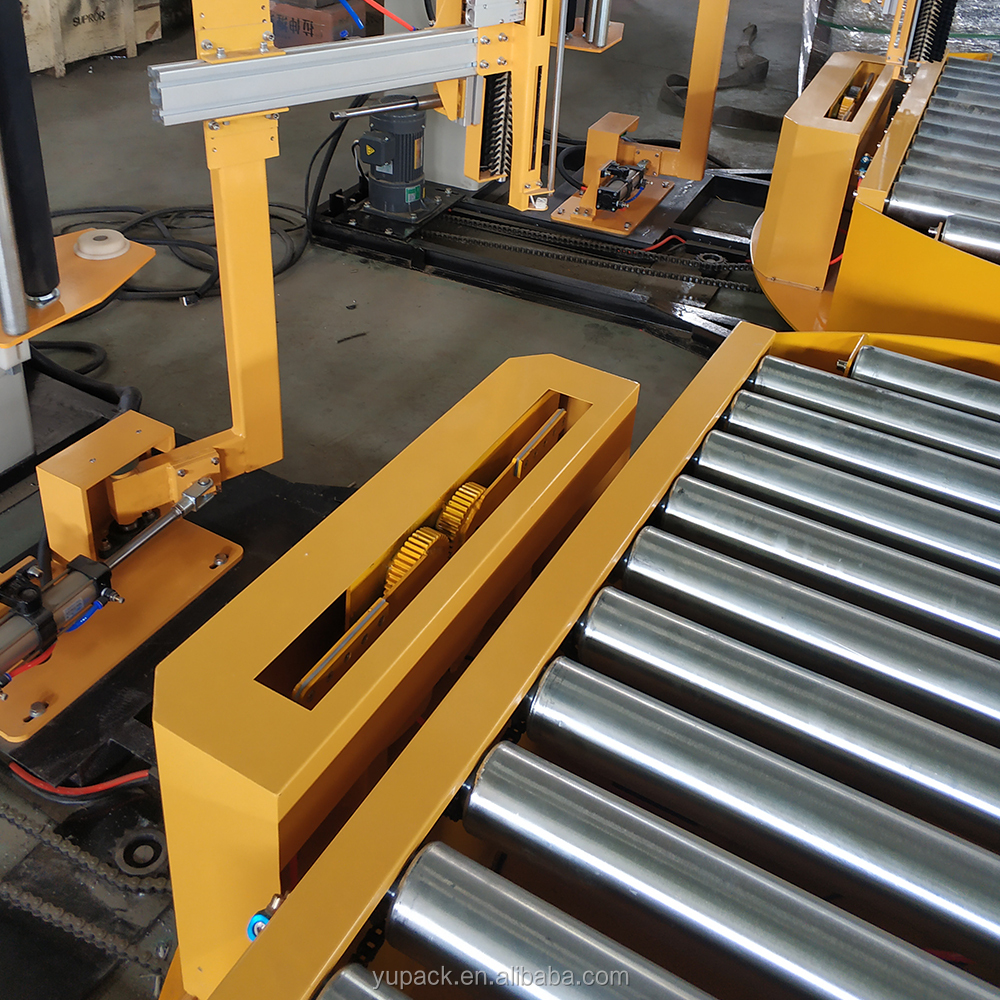

Automatic stretch foil cutting
NO.1
Automatic stretch foil cutting and applying system.

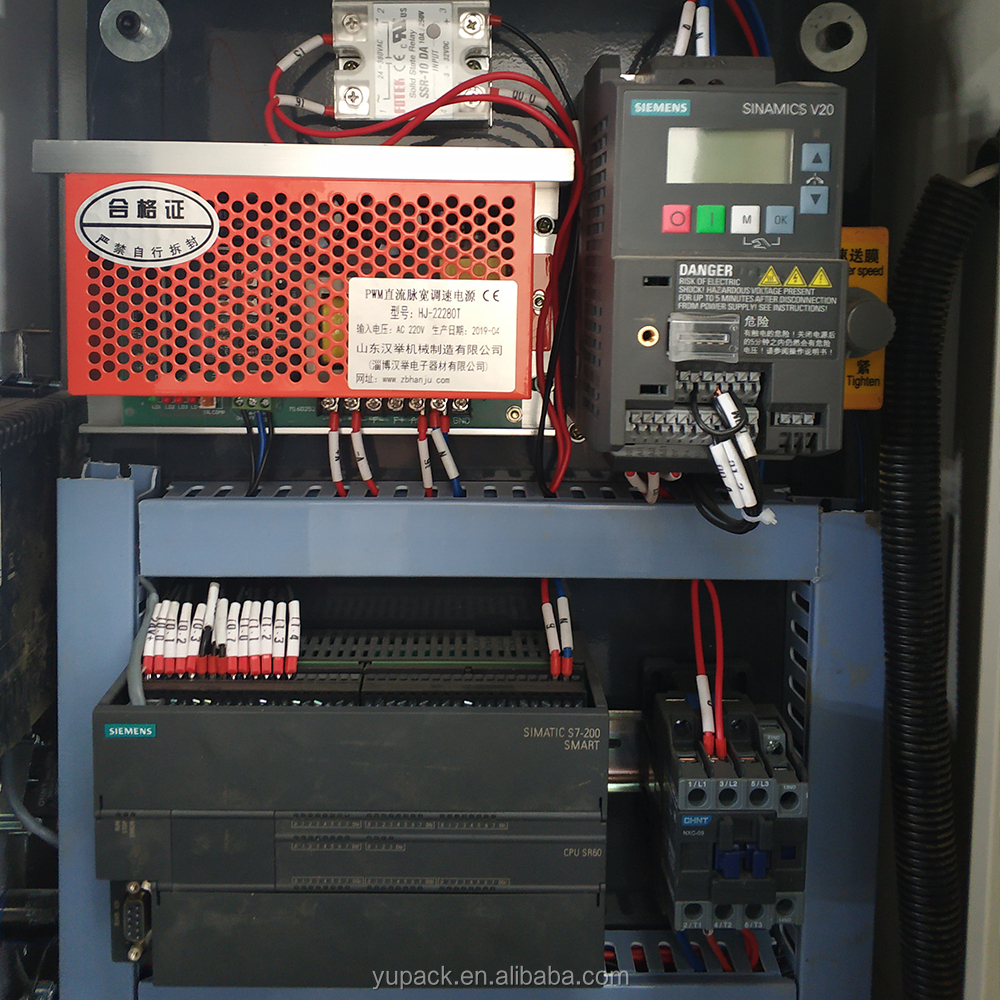

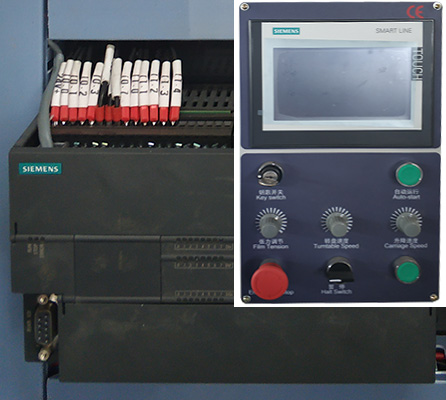

Siemens PLC and touch screen
NO.2
Siemens PLC and touch screen.

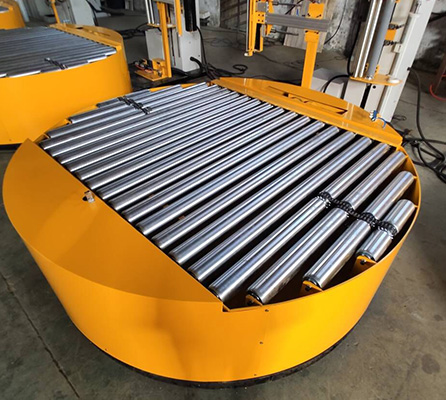

Motorized roller conveyor
NO.3
Motorized roller conveyor, input and output automatically.

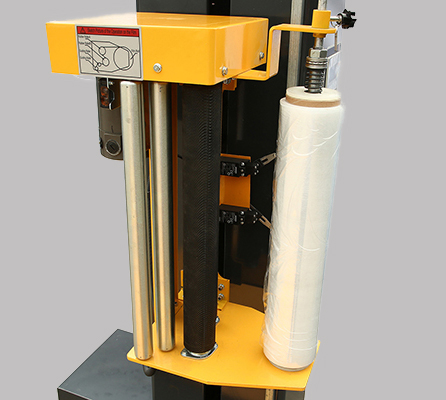

Pre-stretch film
NO.4
Pre-stretch film up to 300%.

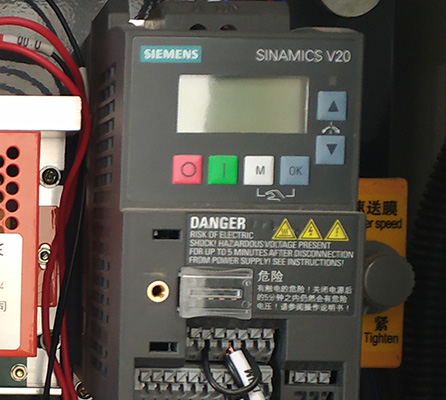

Speed adjustable
NO.5
Speed adjustable.

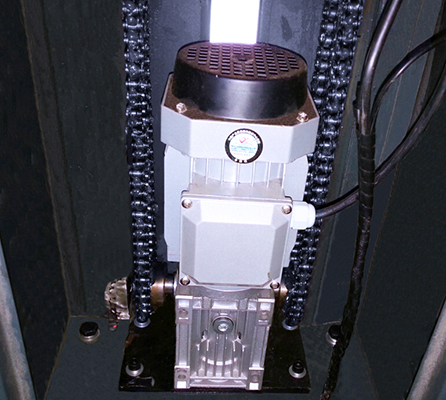

Lifting column
NO.6
Lifting column for double chain structure.

Our Workshop

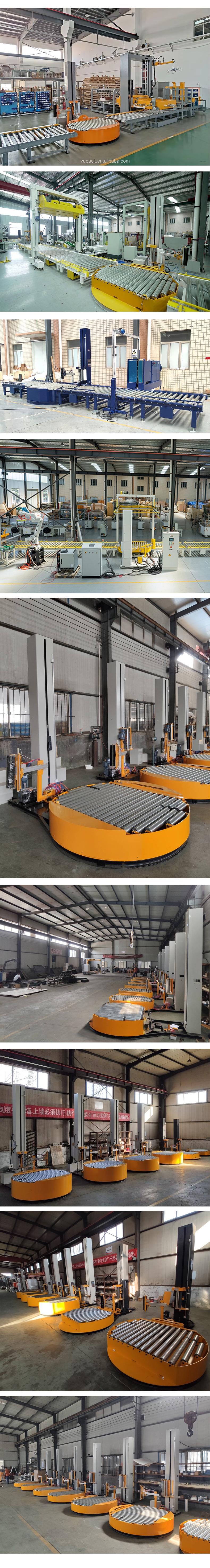

Workshop overview

More Related Products

Related packaging machinery models

Frequently Asked Questions

? Are you a manufacturer or trading company?
We are a professional manufacturer of packaging machines with over 10 years of experience, dedicated to providing high-quality automated wrapping solutions.
? Can you do OEM?
Yes, we support OEM services. We can customize specifications and print your logo directly on the machinery according to your brand requirements.
? Are the wrapping machines CE approved?
Yes, all of our machines have been CE and BV approved, ensuring compliance with international quality and safety standards.
? Can you help us coordinate with shipping agents?
Yes. We work closely with professional shipping forwarders to secure optimal services and competitive freight rates. You can also utilize the machinery dimension and gross weight specifications to arrange freight via your preferred shipping agent.
? What is the maximum wrapping height and weight capacity?
The standard wrapping height ranges from 500-1800/2400 mm, and the turntable handles a maximum load capacity of 2000 kg. Custom sizes and capacities are available upon request.
? How does the pre-stretch system work?
This fully automatic machine features an integrated motorized pre-stretch film carriage capable of stretching film up to 300%. This maximizes wrap efficiency and significantly cuts down on overall plastic consumption.
