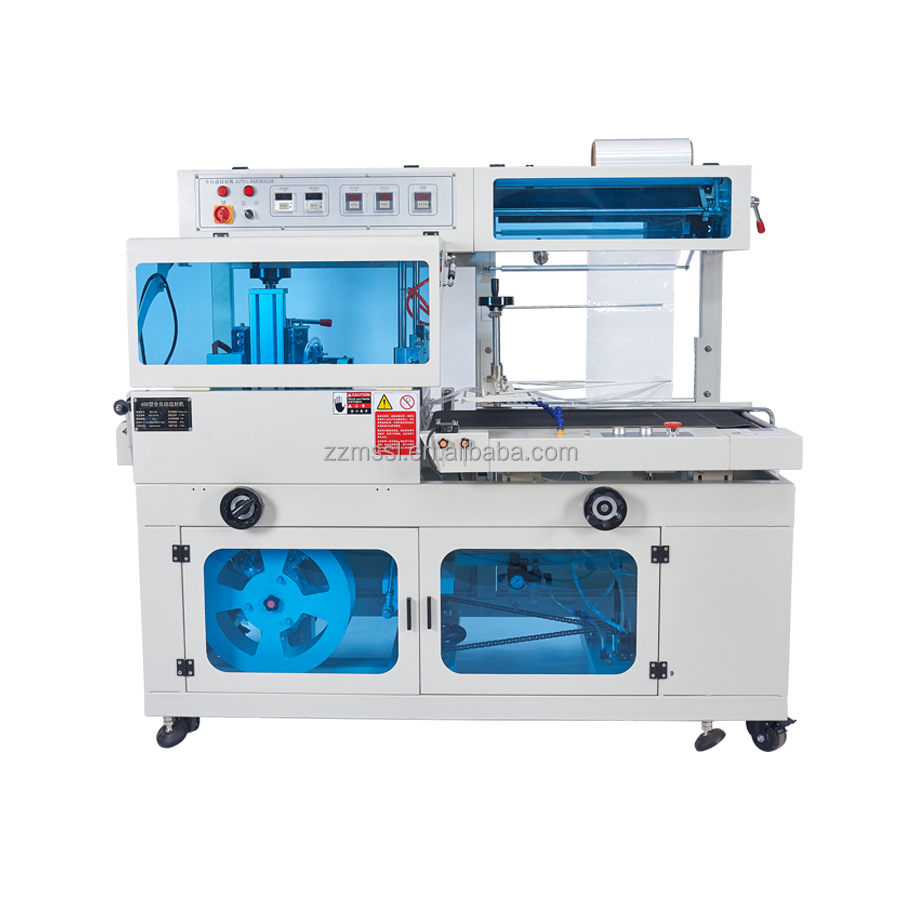

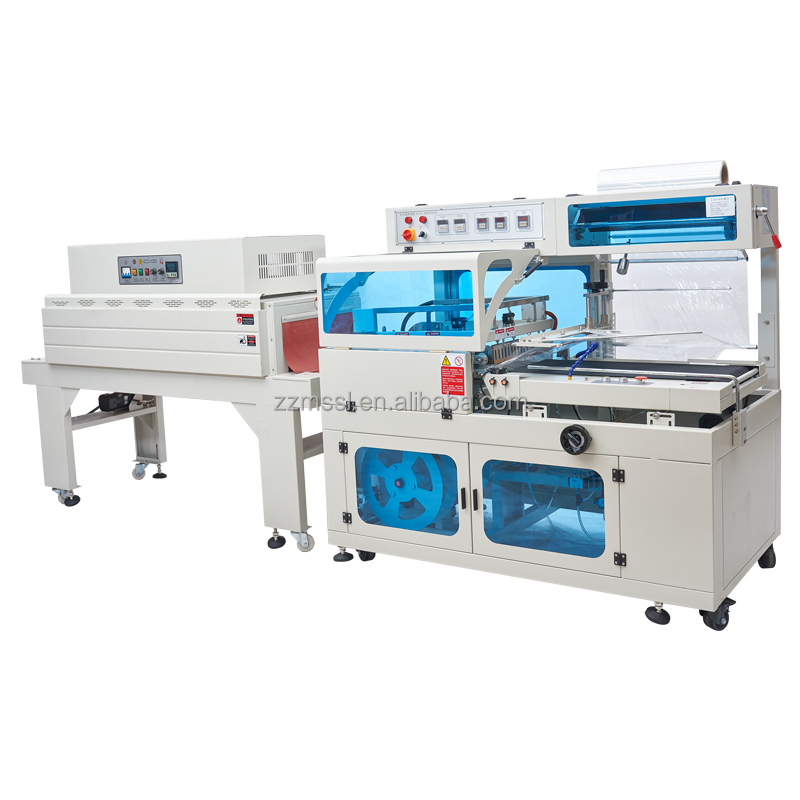

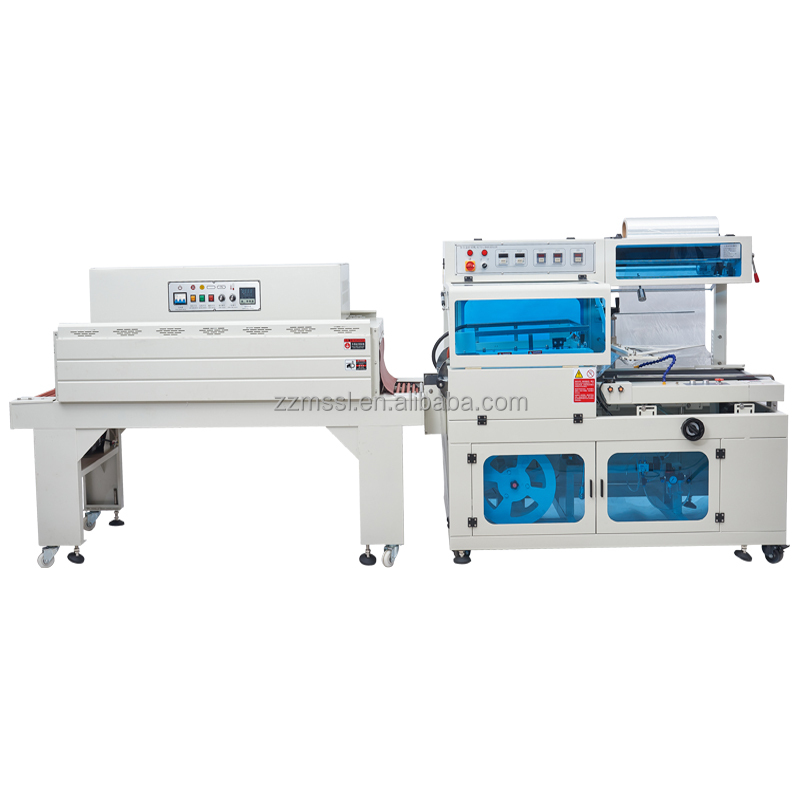

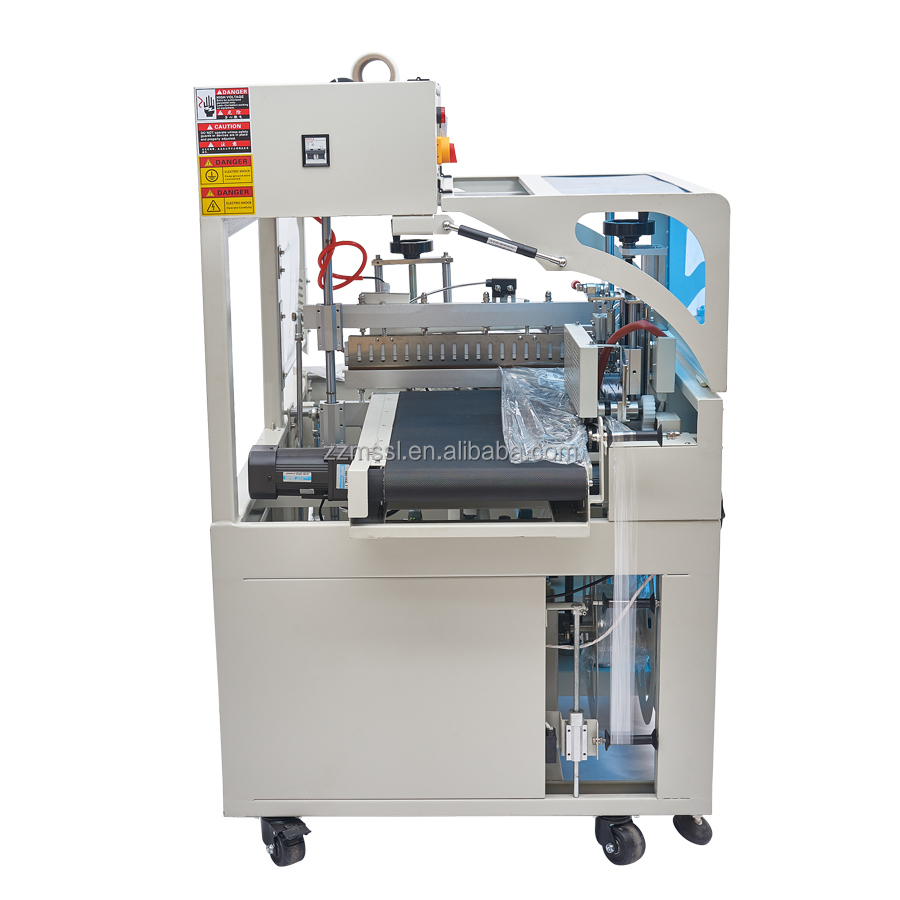

Automatic sealing machine is wrapped with shrink film on the outside of the product or package. After heating, the shrinking film shrinks and wraps tightly around the product or package.
| Model | MT-BF450 | MT-BF550 | MT-BF650 | MT-BF750 | MT-BF850 | MT-BF950 |
|---|---|---|---|---|---|---|
| Voltage | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |
| Power | 1.25KW | 1.35KW | 1.45KW | 1.55KW | 1.65KW | 1.75KW |
| Packing speed | 15-25bags/min | 15-25bags/min | 15-25bags/min | 15-25bags/min | 15-25bags/min | 15-25bags/min |
| Max packing size | W+H≤400mm H≤180mm |
W+H≤500mm H≤250mm |
W+H≤600mm H≤250mm |
W+H≤700mm H≤250mm |
W+H≤800mm H≤250mm |
W+H≤900mm H≤250mm |

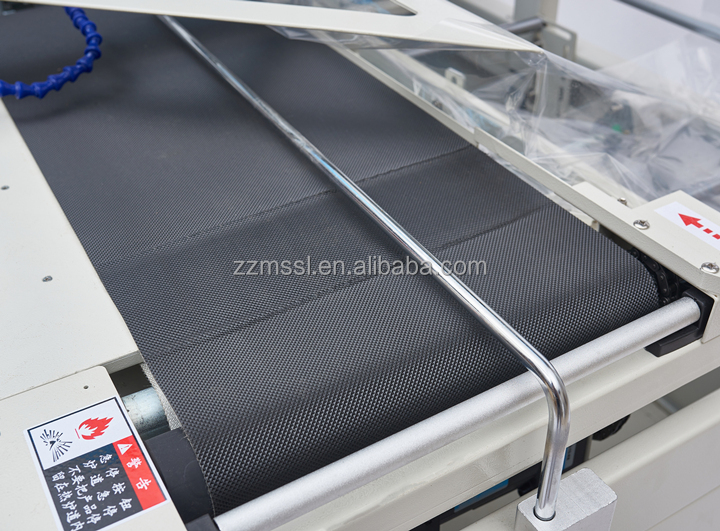

| Conveyor belt width | 330mm | 430mm | 500mm | 600mm | 700mm | 800mm |
| Applicable Scope | POF/PE | POF/PE | POF/PE | POF/PE | POF/PE | POF/PE |
| Pressure | 0.5MPA | 0.5MPA | 0.5MPA | 0.5MPA | 0.5MPA | 0.5MPA |
| Dimension | 1750*980*1580mm | 2100*1140*1710mm | 2200*1240*1710mm | 2300*1230*1470mm | 2550*1330*1470mm | 2750*1430*1470mm |
| Weight | 330KG | 380KG | 420KG | 470KG | 520KG | 600KG |

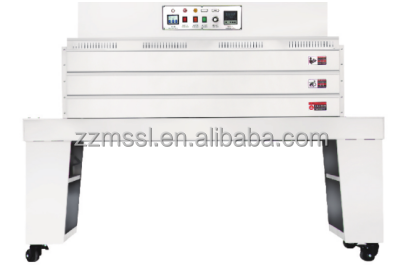

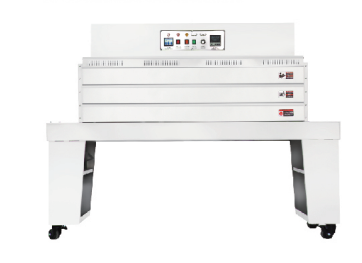

| Parameter | Specification Details (BSN-8550) |
|---|---|
| Model | BSN-8550 |
| Voltage | 380V, three-phase |
| Power | 24KW |
| Shrinking furnace size | 1800*850*500mm |
| Converyor speed | 0-15m/min |
| Conveyor load | 20KG |
| Application Scope | PVC/POF |
| Dimension | 2200*1200*1720mm |
| Weight | 340kg |
Wooden case.

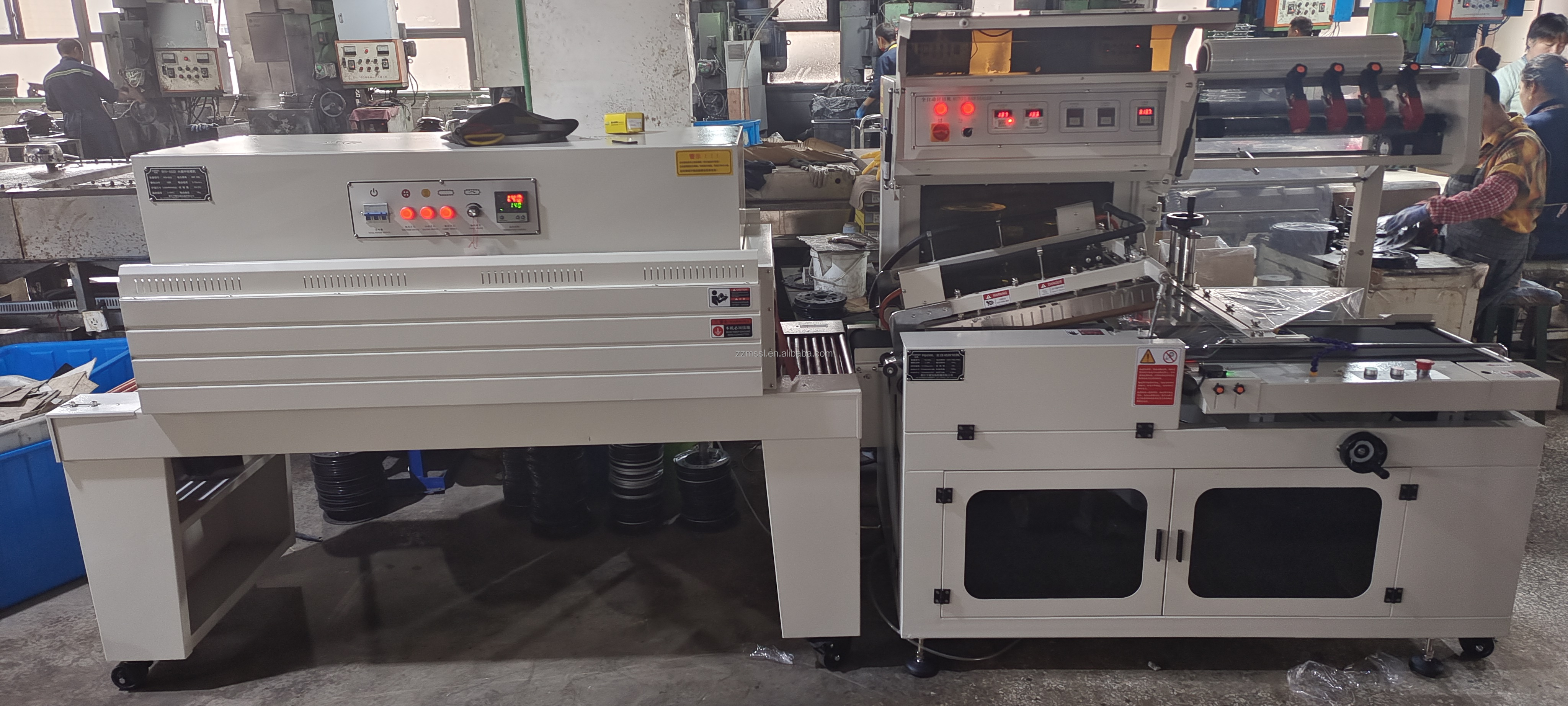

We are a professional manufacturer of filling, labeling, sealing equipment and packaging, washing machinery, with perfect testing facilities and strong technical force.
