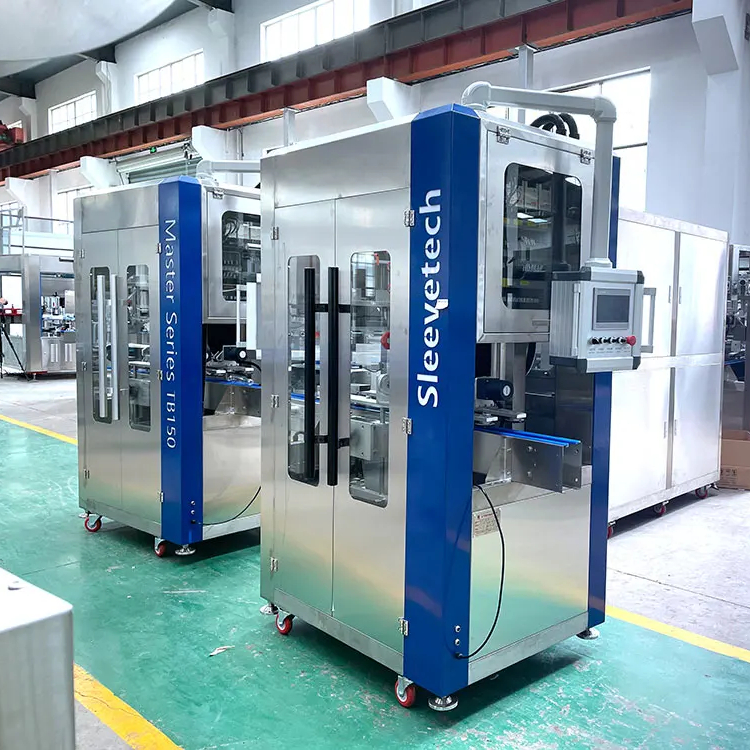

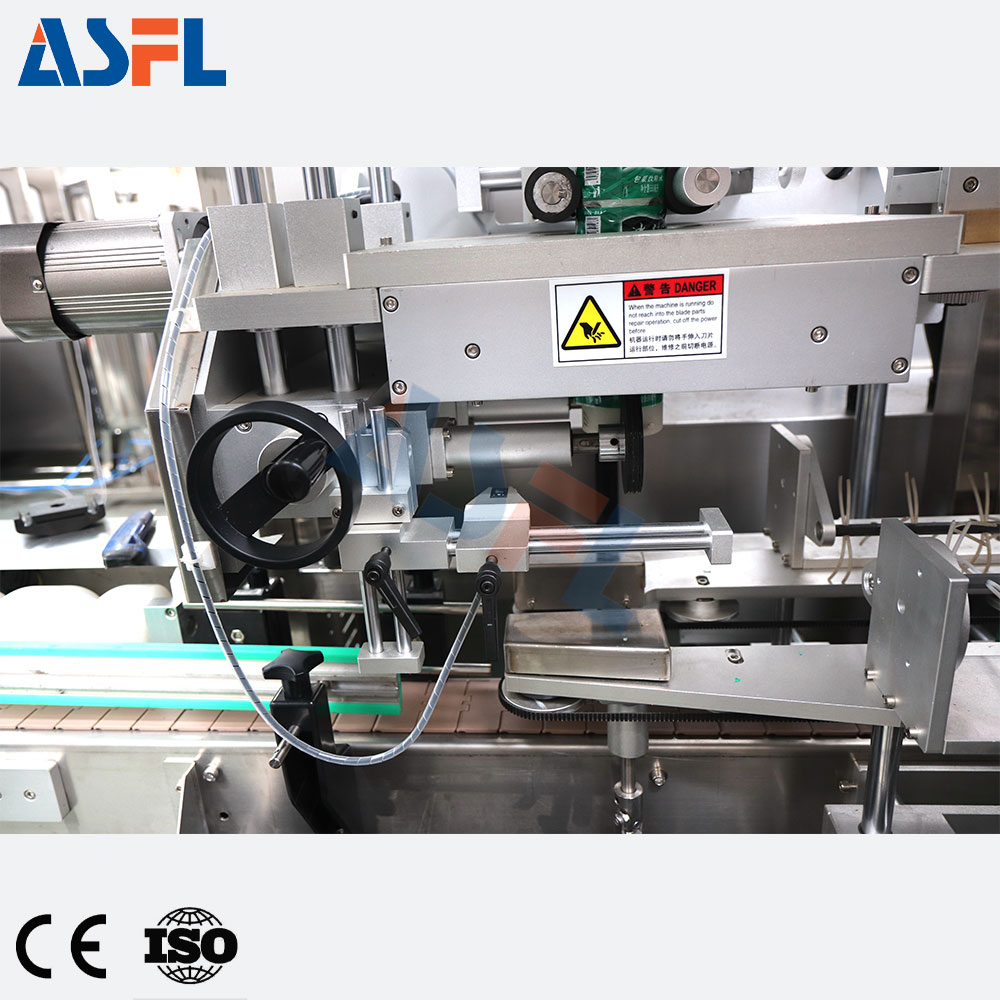

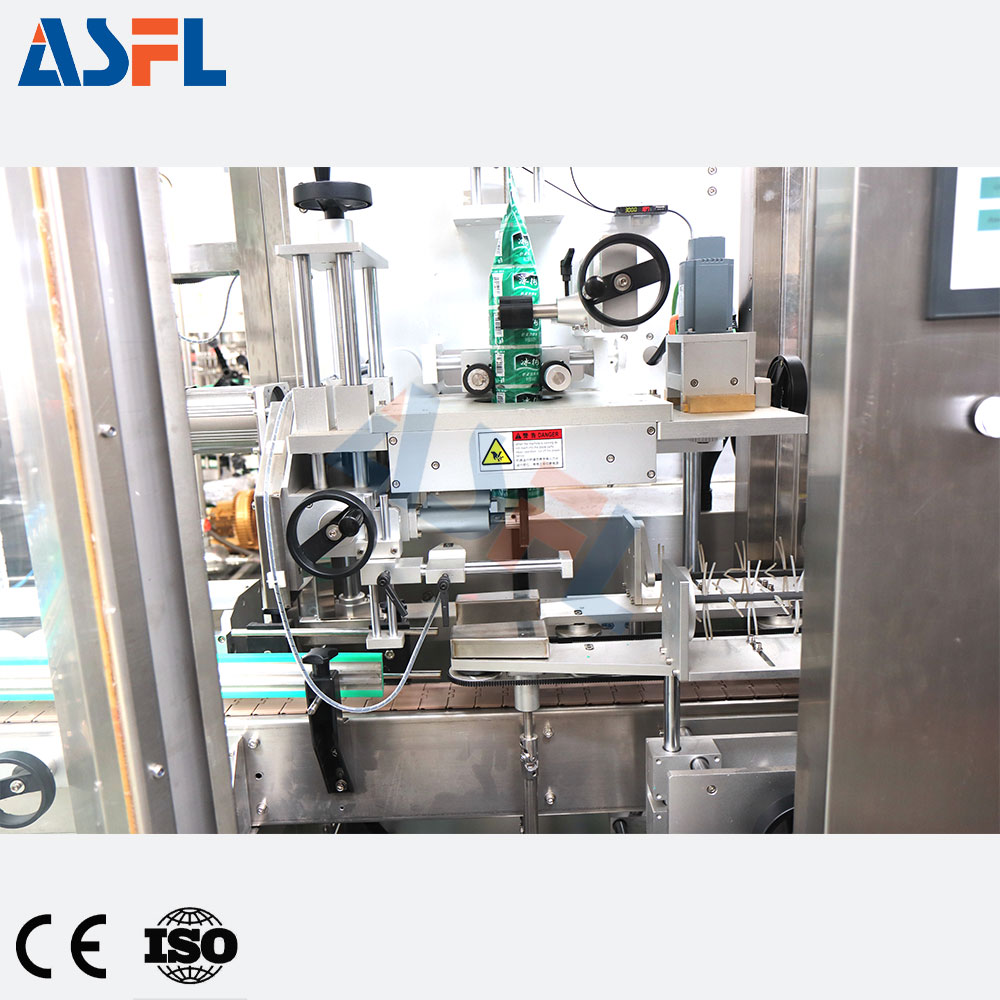

Automatic PVC Labels Shrink Sleeve Wrapping Labeling Machine For Plastic Bottle Round Bottle

Product Description

Automatic PVC Label Sleeving Machine Overview

Automatic PVC label sleeving machine adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; besides, it adopts the positioning module to ensure the casting label precise, rapid and stable. It not only has a highly precise position for casting label, but also can withstand the perfect shape of the bottle after shrinkage.

Product Description

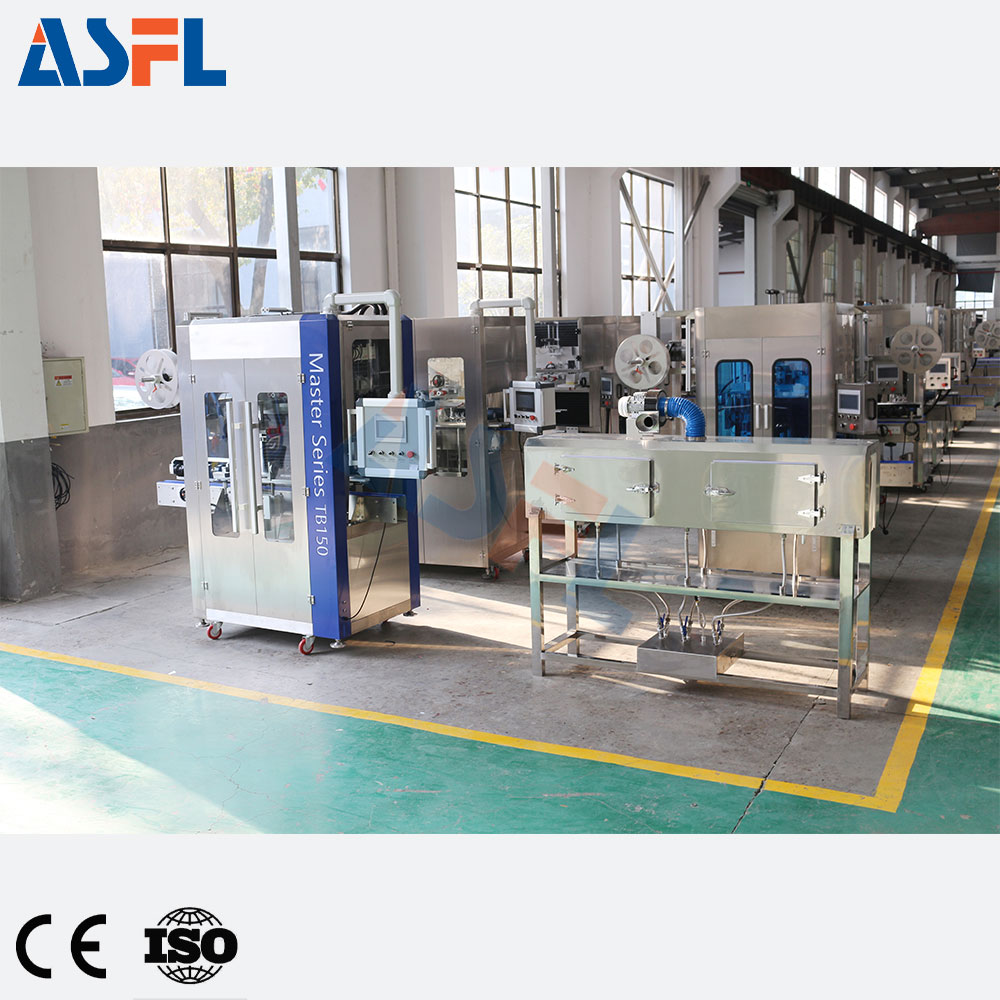

Product Description Details
Main Features
  • The machine is made of stainless steel and high quality of aluminum alloy, the reasonable, intact frame, it is easy to adjust.
  • The feet bolt is not fixed, easy to move suitable for different place.
  • The shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5-10.
  • The applicable bottle is the machine square bottle and round bottle.
  • Full automatic feeder, the flat shrinking and tension are adjusted together.
  • It is assured to low error that there is inspection of rolling label cut.
  • Particular blade design, blade base can be change by free, changing blade quickly and conveniently.
  • Oriental rolling label device can be lifting synchronal.
  • The separating bottle screw, oriental belt and conveyor are adjusted synchronal, it is easy and quick to do.
  • Adopting advanced machine automatic controlling technology, main component adopts famous brand.
Product Parameters
Parameter Item AF-150 / AF-250 Specification
Name AF-150 / AF-250
Input power 3.0KW
Input voltage 3-phase, 380V/220V AC
Productivity 150 bottles/min
Host size 2100L * 850W * 2000H
Applicable bottle diameter 28mm ~ 120mm
Applicable label length 30mm ~ 250mm
Applicable label thickness 0.03mm ~ 0.13mm
Applicable paper tube inner diameter 5" ~ 10" freely adjustable
Product Details

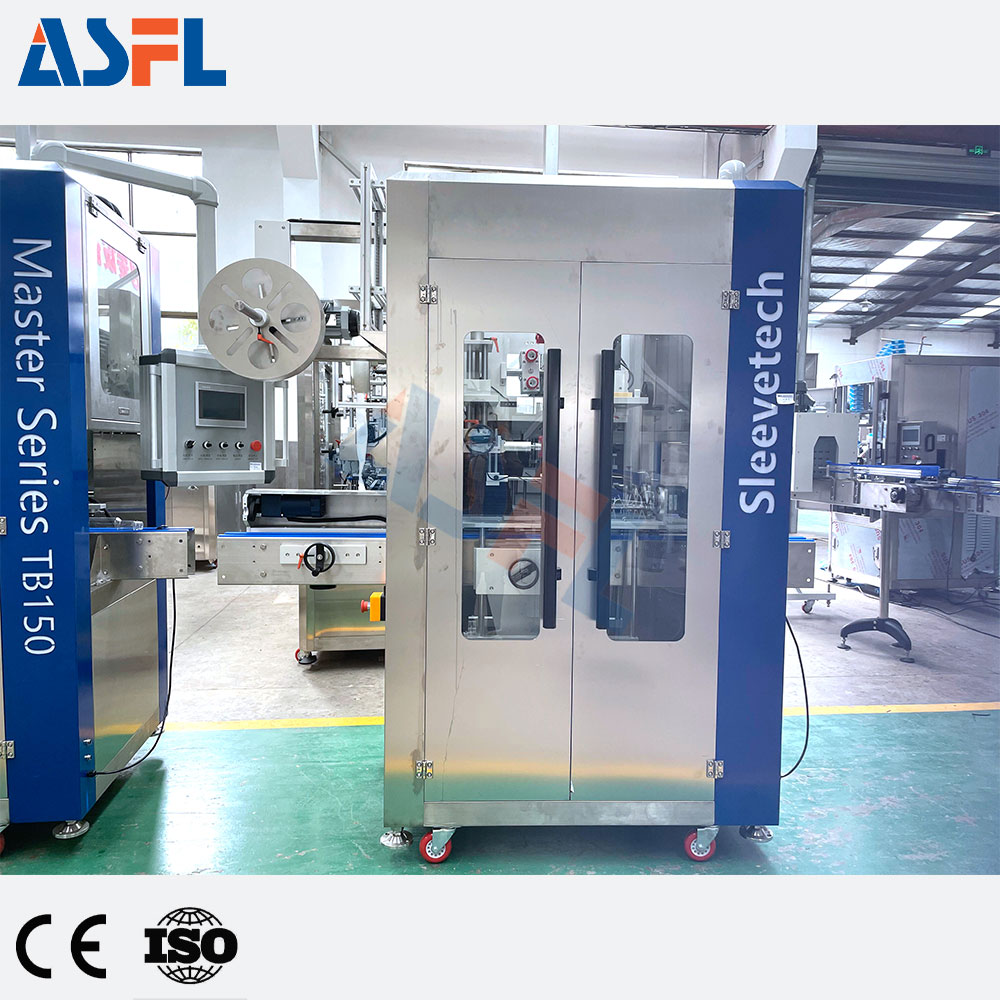

Detail Image 1

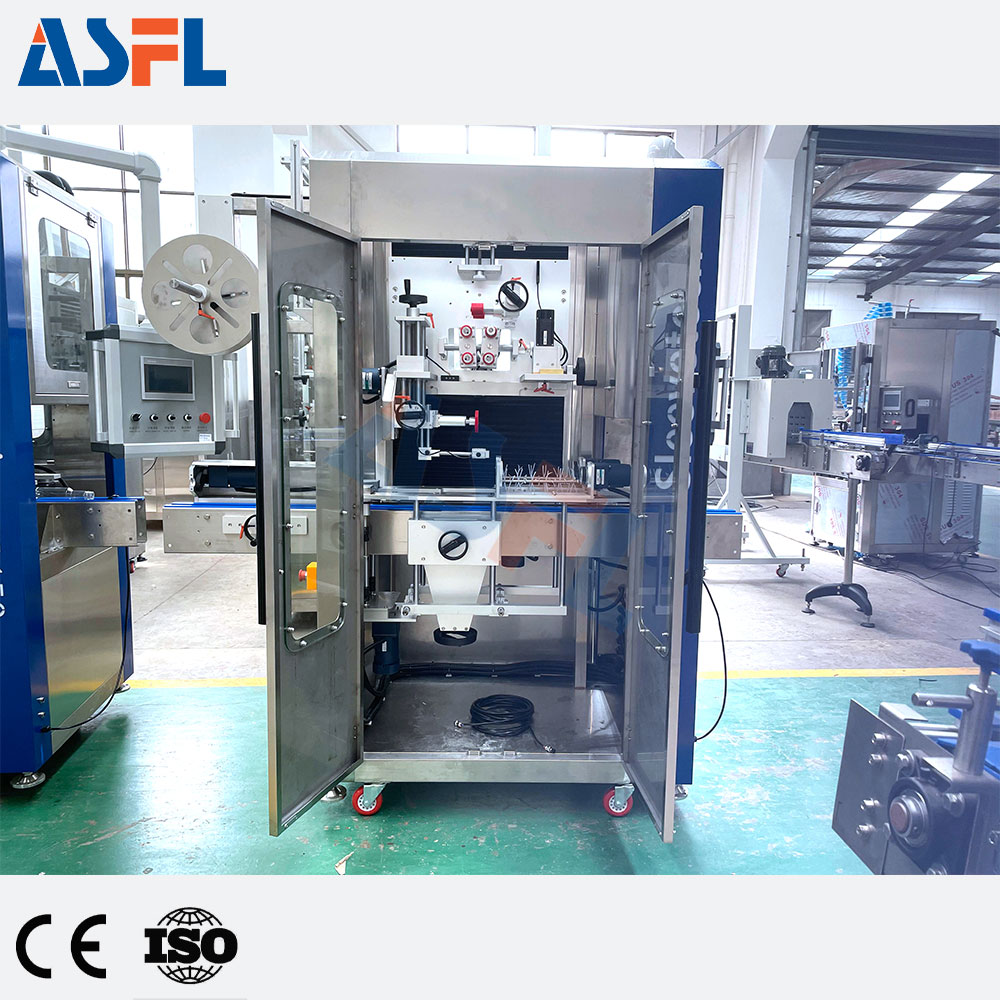

Detail Image 2
Detail Image 3

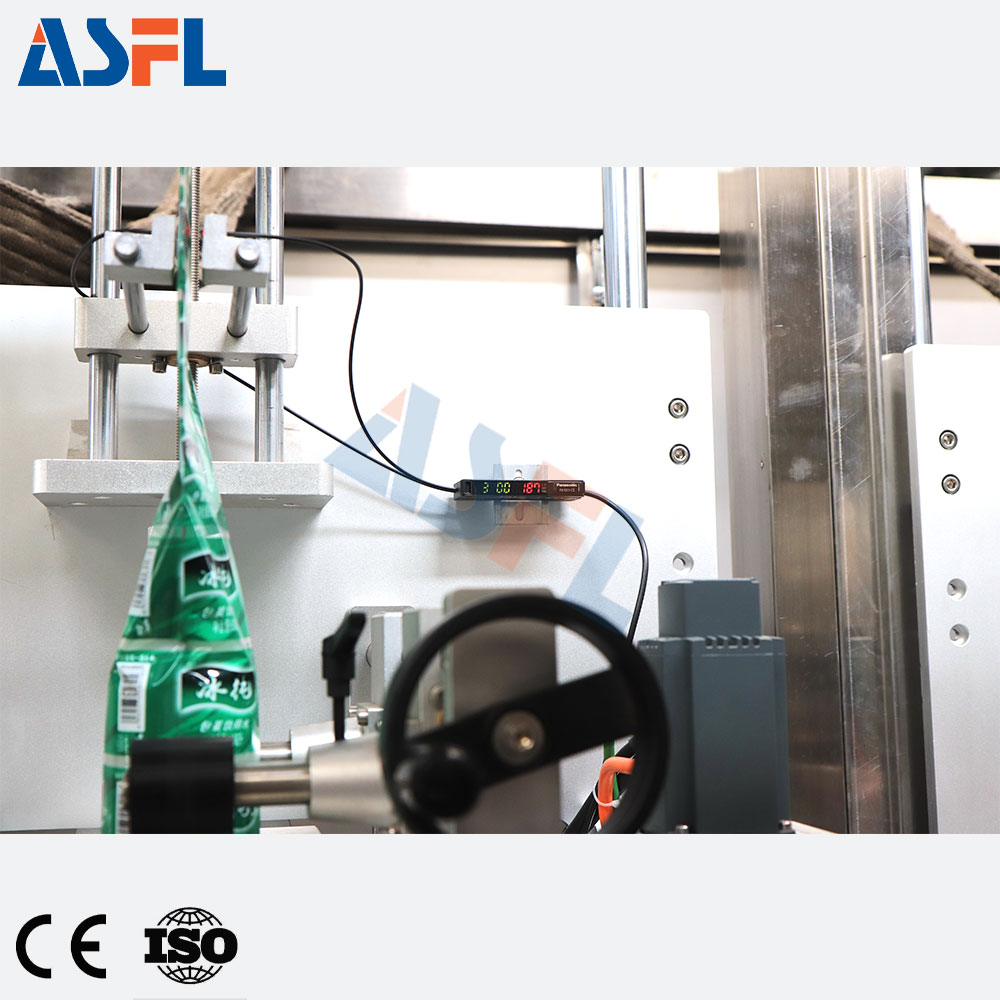

Detail Image 4

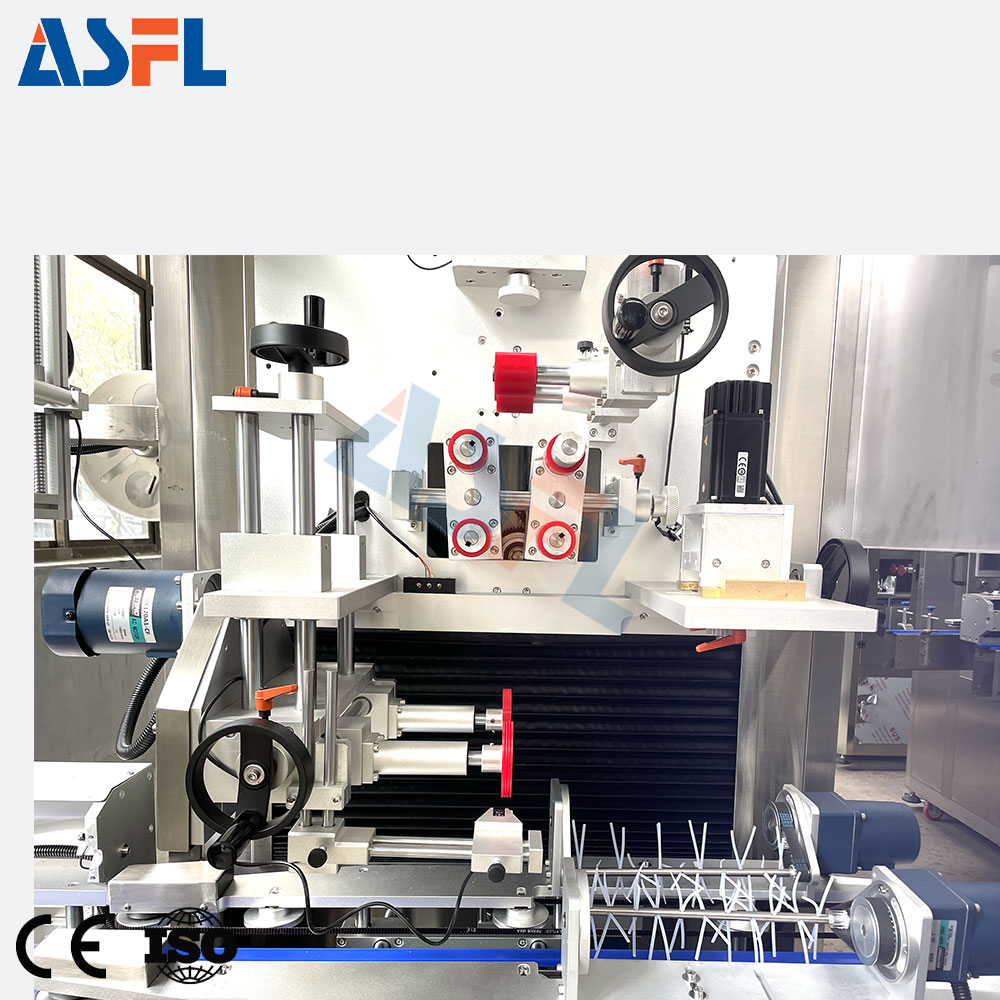

Detail Image 5

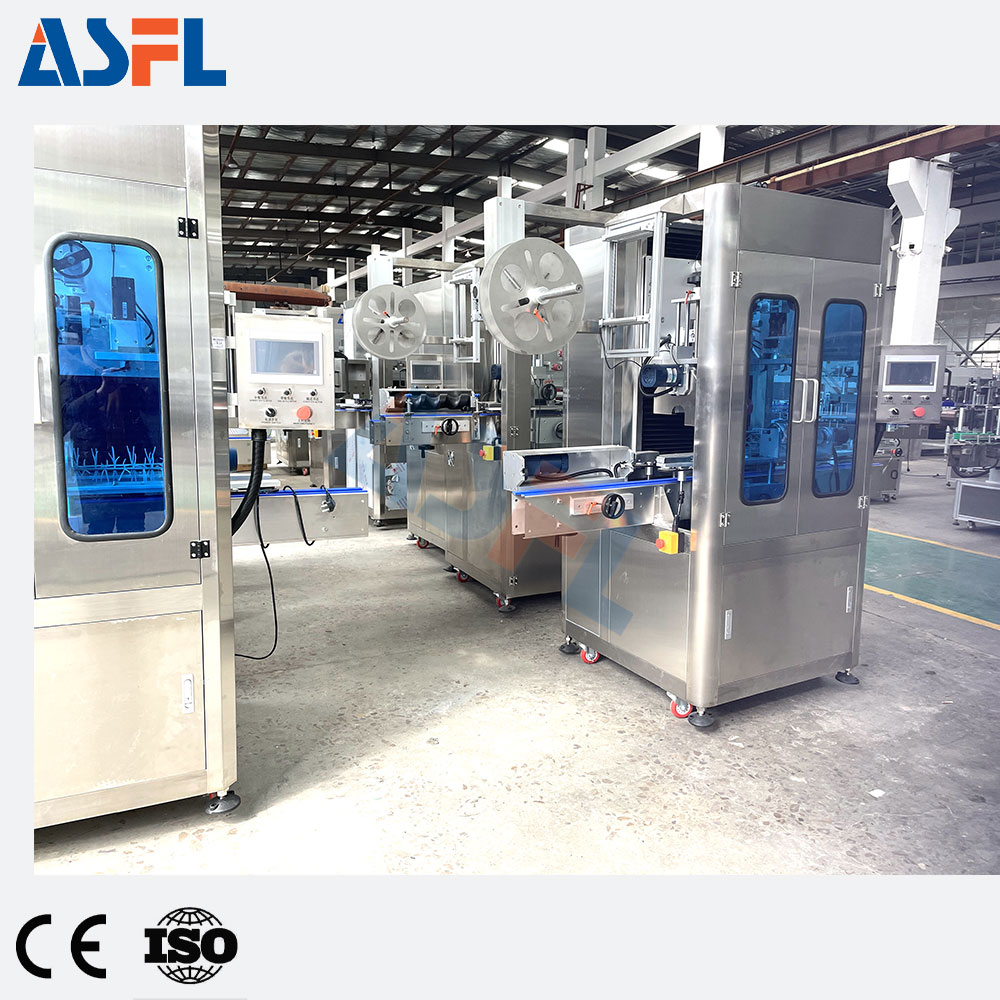

Detail Image 6
Why Choose Us
Why Choose Us Banner
Packaging Machinery Solutions

We are a professional manufacturer of liquid beverage packaging solutions. We supply bottle blowing machine, water treatment, water filling production line, carbonated drink making filling production line, beer wine alcohol filling production line, juice making filling production line, beverage canning machine, edible oil ketchup filling machine, 5 gallon filling production line, labeling machine and shrink packing machine. With our machines, bottles can be plastic bottle, glass bottle barrel and cans. In other words, machines can be customized according to client's requirements. We have exported to South East Asia, Middle East, Africa and South America and South East, more than 40 countries. We are always focusing on the researches and developments, since they are our key of enterprise innovation. They make us better doing in production, technical services and marketing sales.

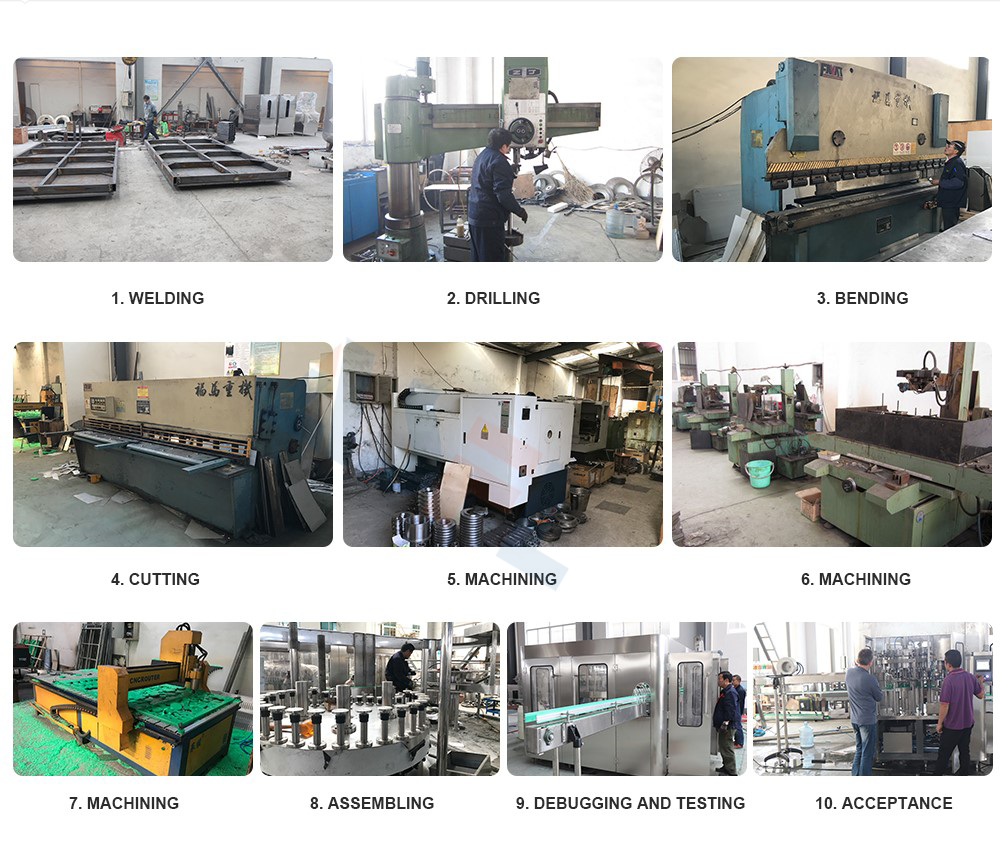

Production Process

In the production process, we strictly control the quality of the product. It consists of ten processes, including welding, drilling, bending, machining, assembling, debugging & test and acceptance. After repeated testing, the practice finally put into use.

Production Process Chart
Our Customers

We have exported to South East Asia, Middle East, Africa and South America and South East, more than 40 countries. We are always focusing on the researches and developments, since they are our key of enterprise innovation.

Our Customers Map
FAQ
Q1 Are you a manufacturer or trading company?
We are a manufacturer in the beverage machine field for more than 10 years.
Q2 Do you have any certification?
Yes, we have SGS, ISO, and CE certifications.
Q3 What about the delivery time?
Usually it takes 45 working days.
Q4 What after-sale service do you offer?
We provide a 24-month warranty. Basic issues are solved via phone, email, WhatsApp, WeChat, and video calls. If required, engineers can travel to the buyer's factory to install, test machines, and train the operation and maintenance staff. Operating manuals are sent with the machine or by email.
Q5 If our bottle size changes, can we just do some adjustments on the machine according to our new bottle?
Yes, the machine is adjustable and can be configured to support different bottle dimensions.
