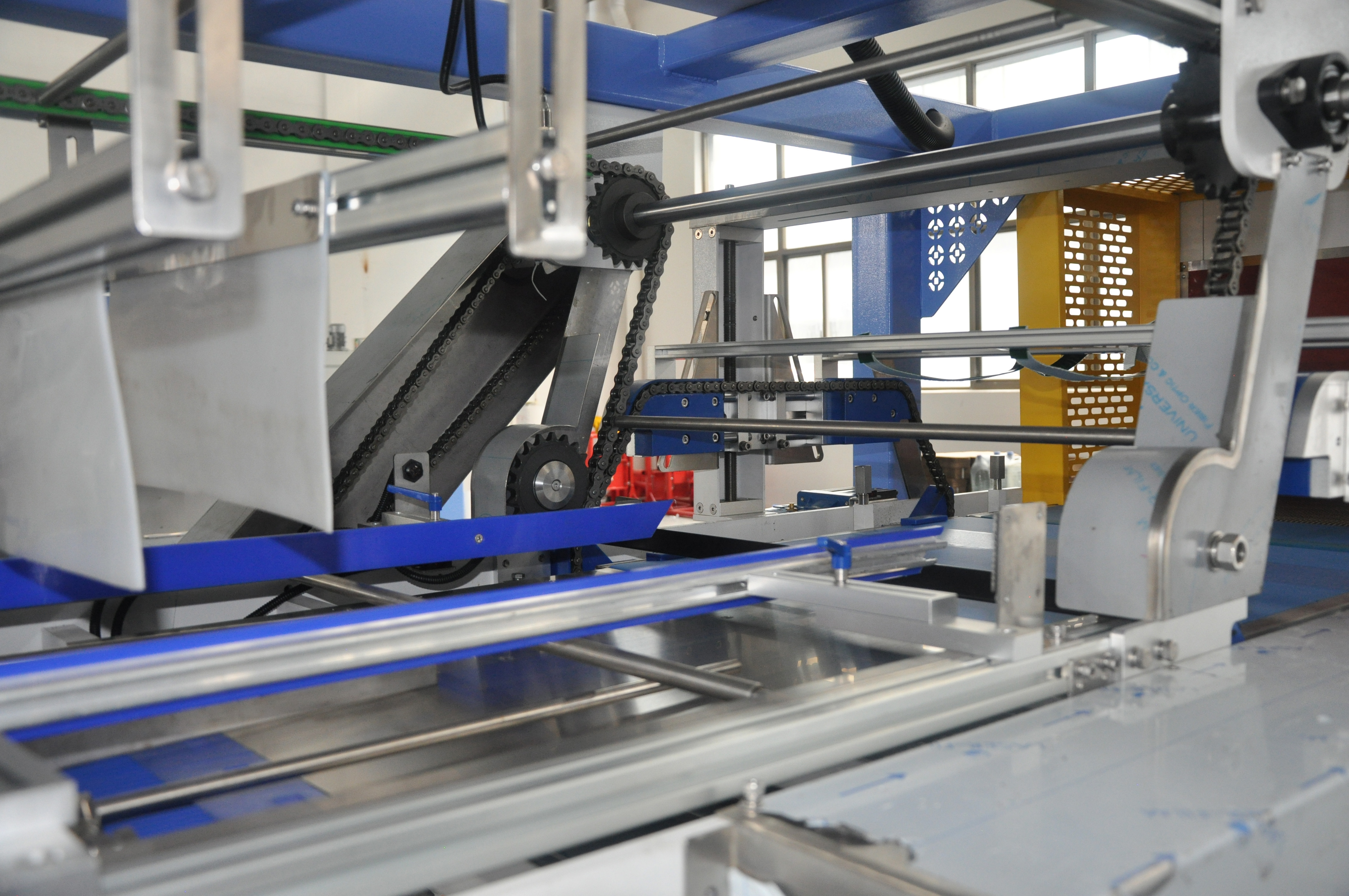

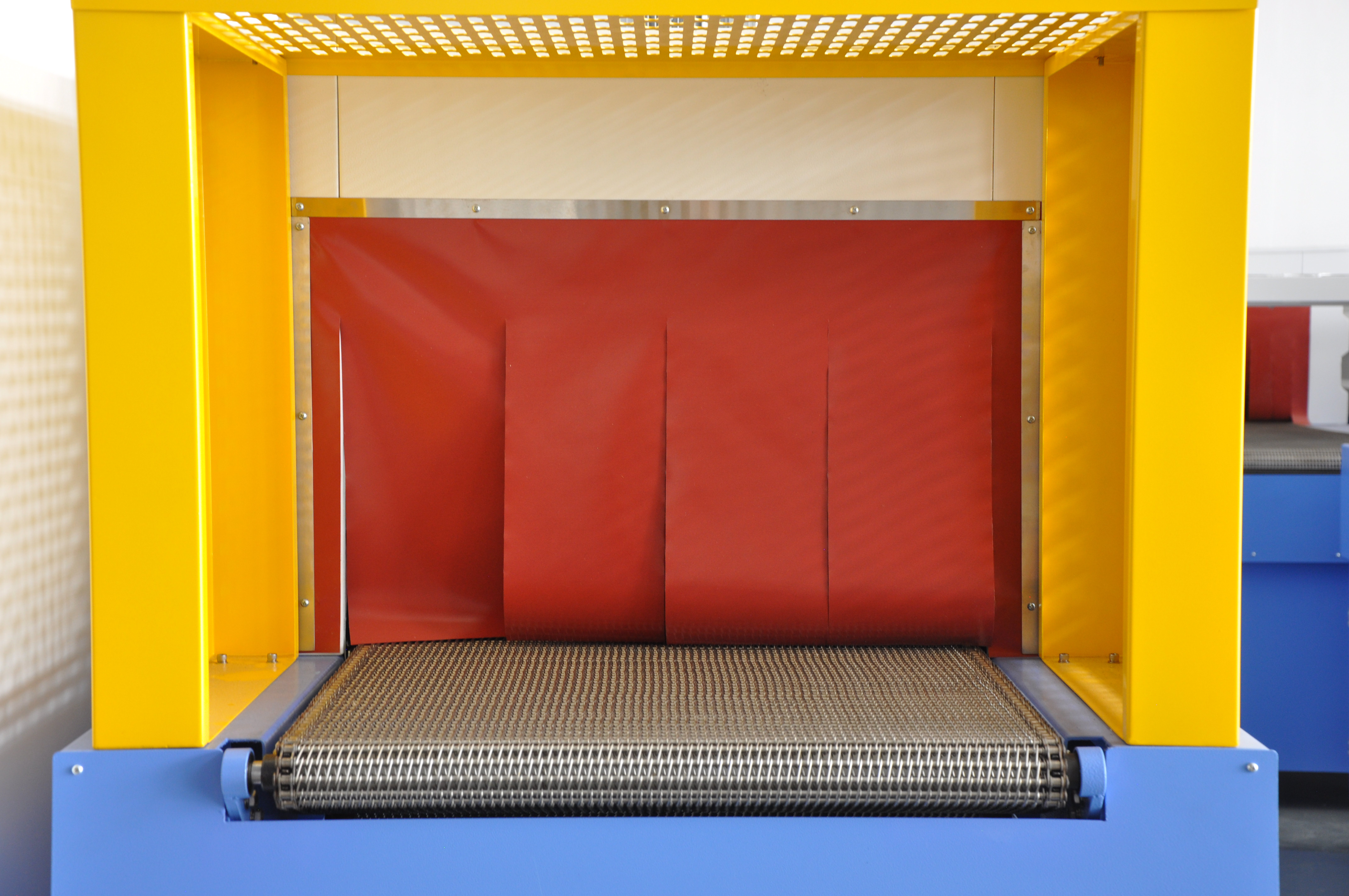

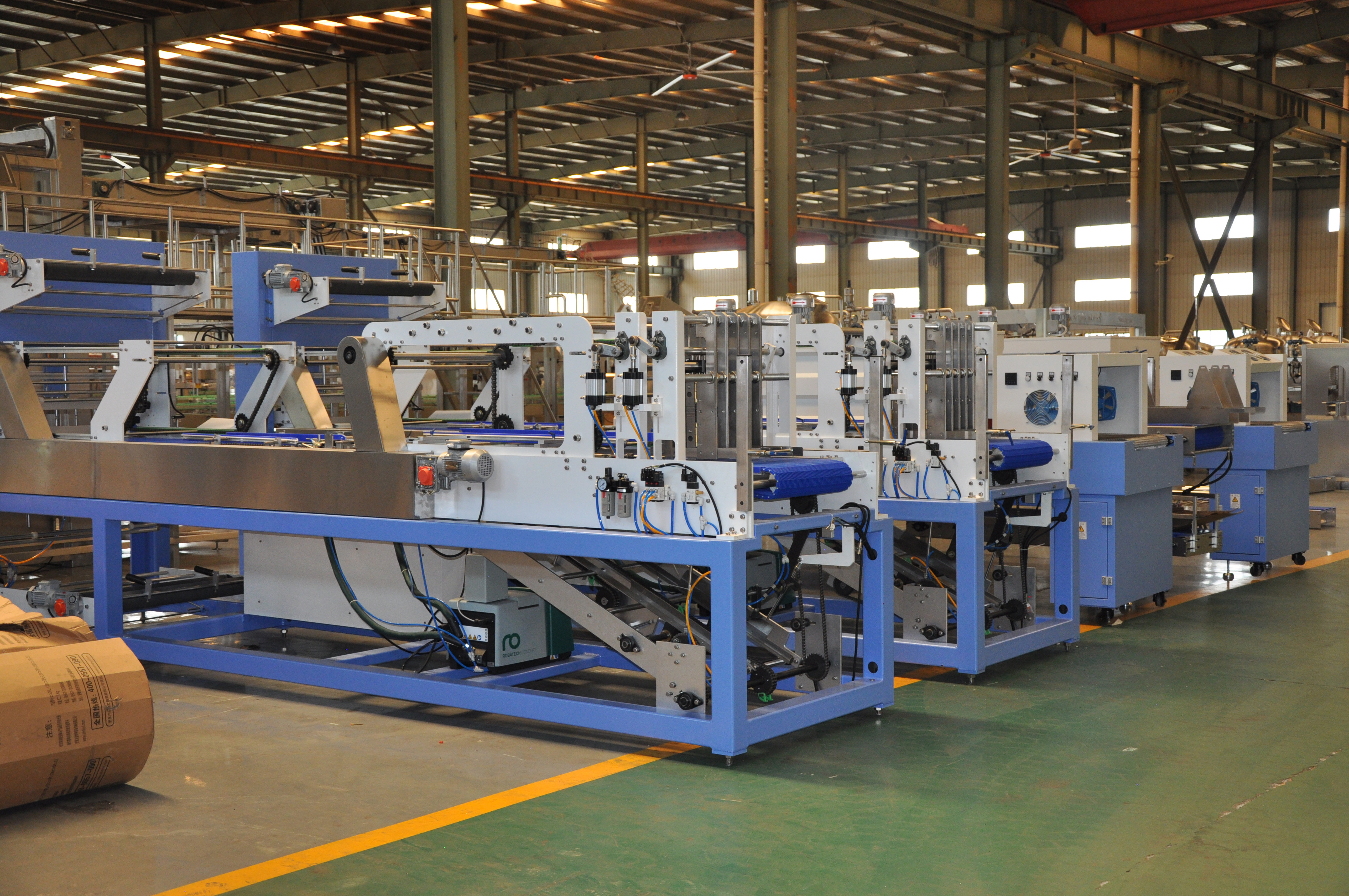

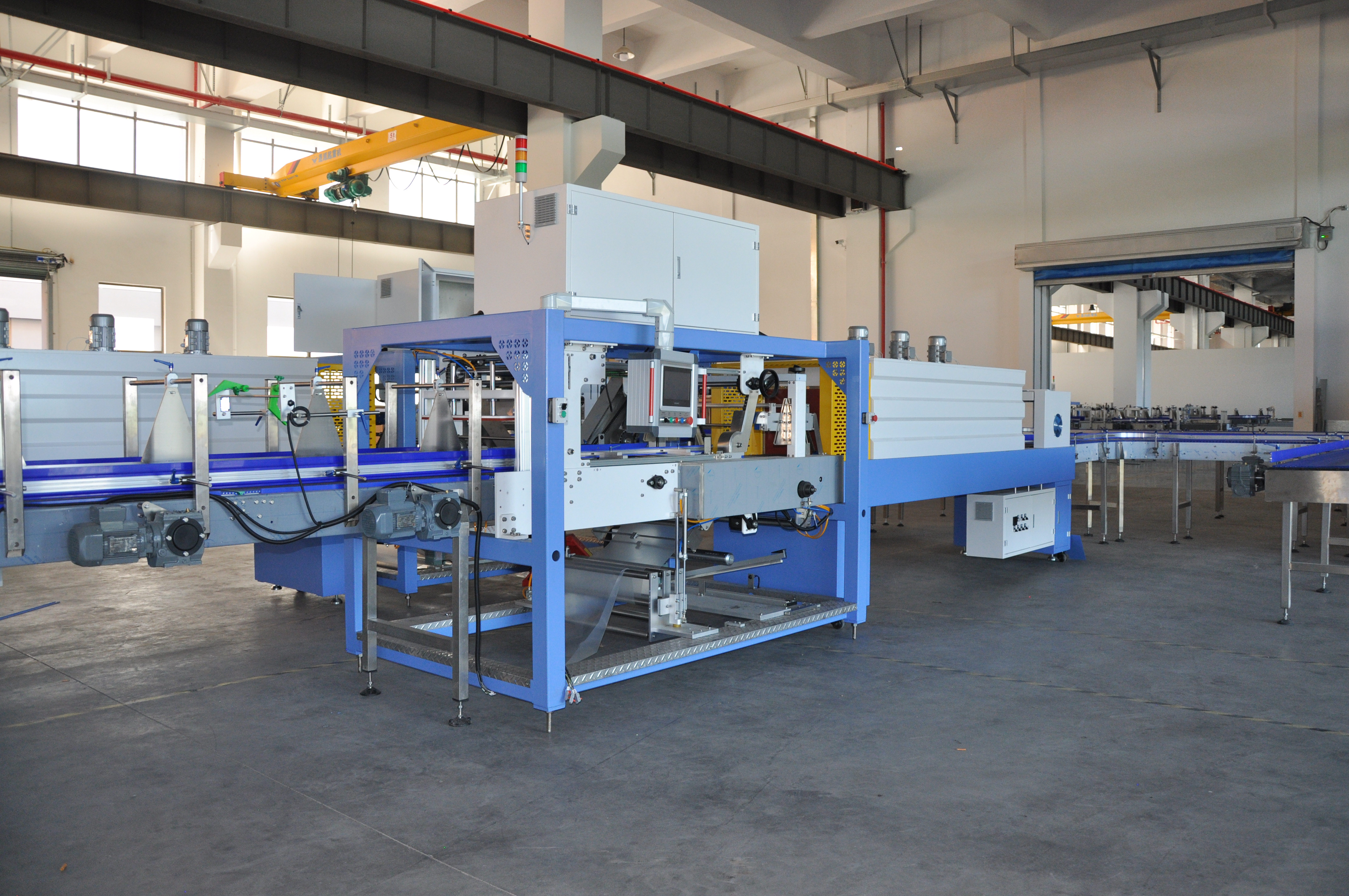

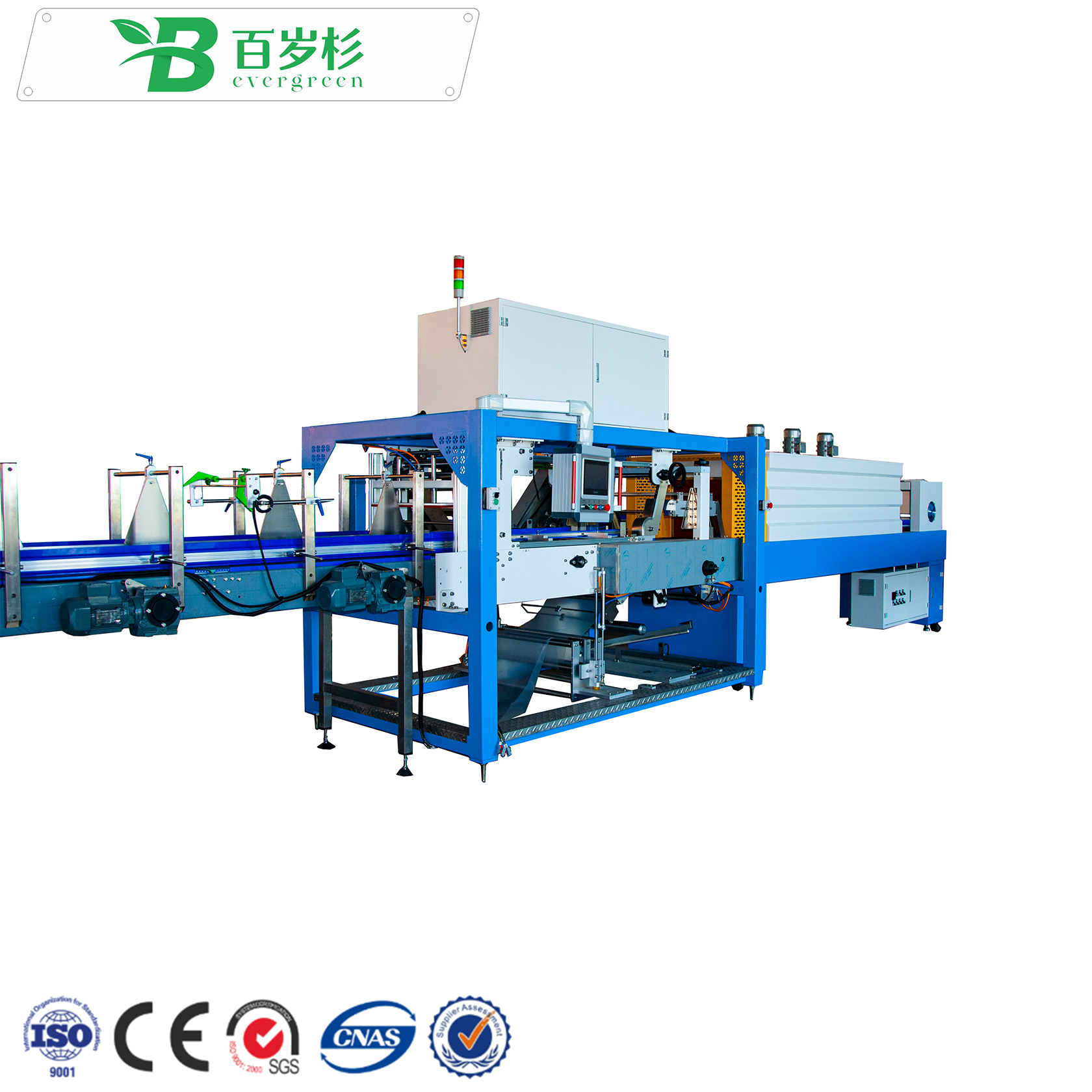

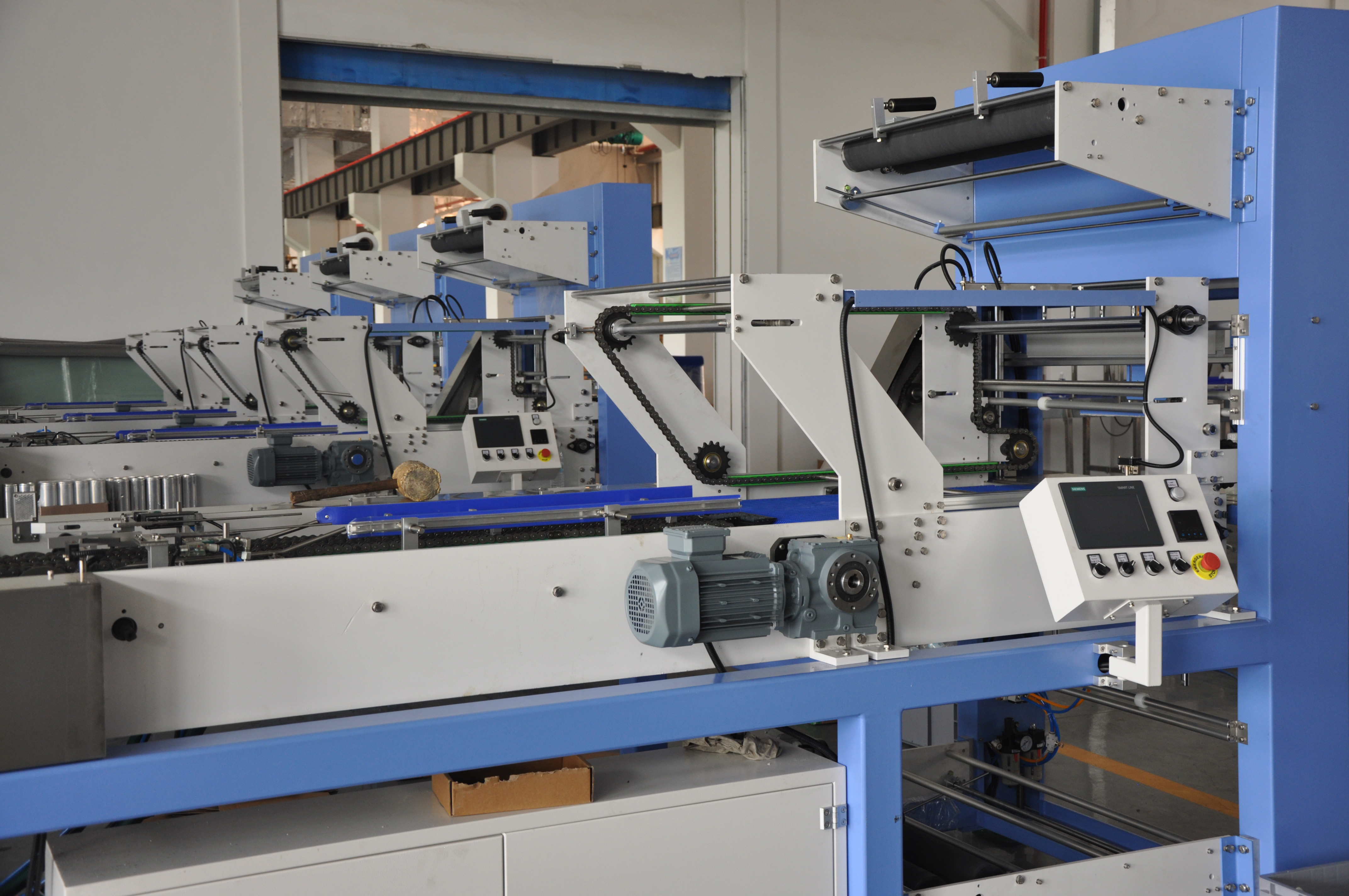

GB full automatic heat shrink film packaging machine is a kind of current beverage industry is more advanced two packaging machines, is designed for (canned, bottled) beverage line design and manufacture of. Its function is pre canned beverage bottle group outside wrapped in a layer of packaging material, packaging material mainly uses LDPVC (low density of poly chloride), then by heating the shrink packaging materials, and clings to the wrapper, thus completing the process of packaging.
| Product Model | BS-GB20 | BS-GB30 | BS-GB45 |
| External Size | 10700*1560*2450mm | 11767*1560*2450mm | 11800*1500*2400mm |
| Packaging Max Size | 420*280*350mm | 420*280*350mm | 420*280*350mm |
| Weight | 3500KG | 4000KG | 5000KG |
| Power Supply Voltage | 380/220V | 380/220V | 380/220V |
| Power | 55KW | 55KW | 60KW |
| Max Output | 18-25 packages/min | 20-30 packages/min | 40-45 packages/min |
| Shrinkage Temperature | 160 - 250° | 160 - 250° | 160 - 250° |
| Film Thickness | 0.07-0.1mm | 0.07-0.1mm | 0.07-0.1mm |
As a pioneer in beverage and packaging production equipment, we have been dedicated to providing holistic, end-to-end solutions that empower the global beverage sector.

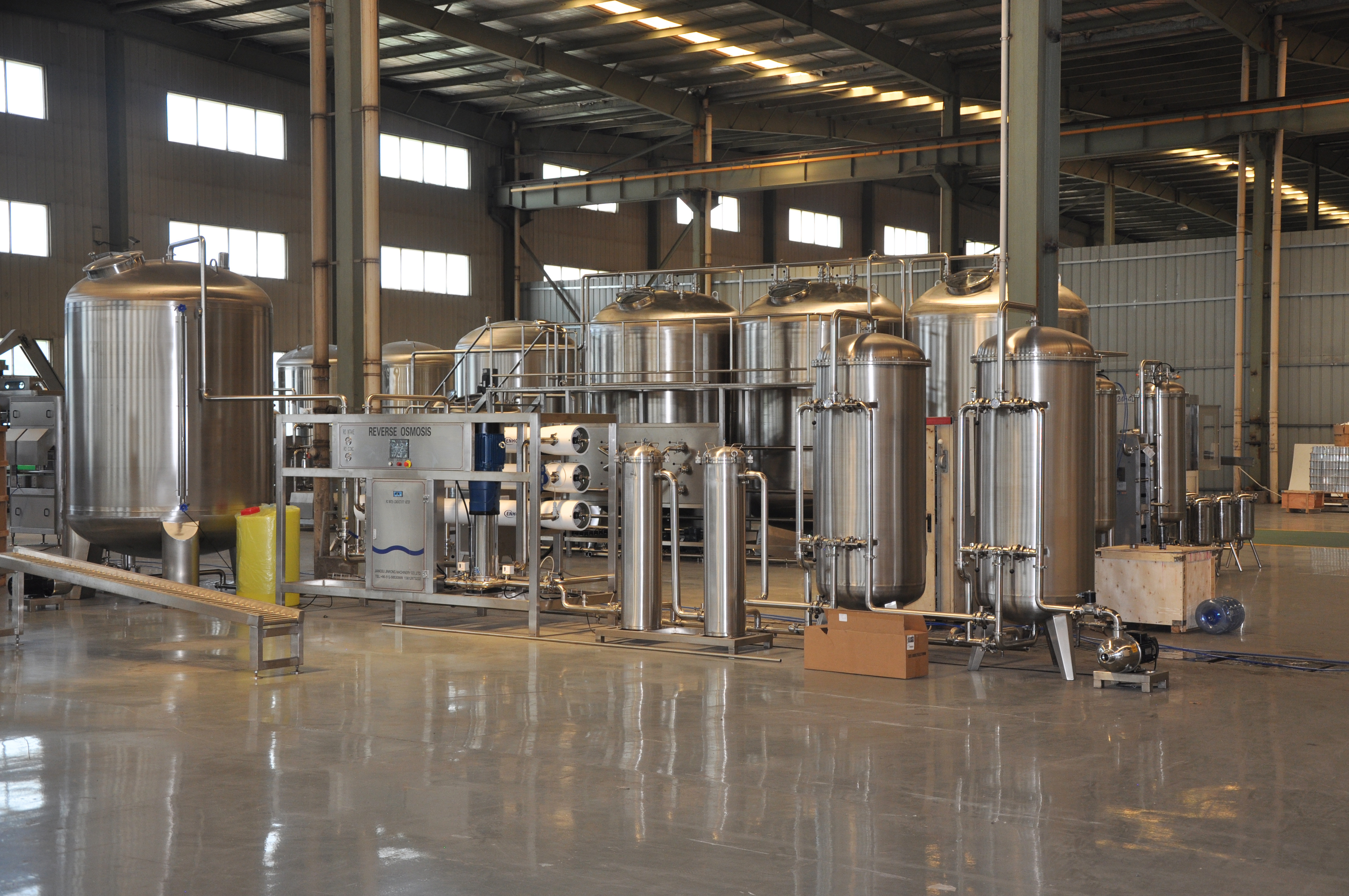

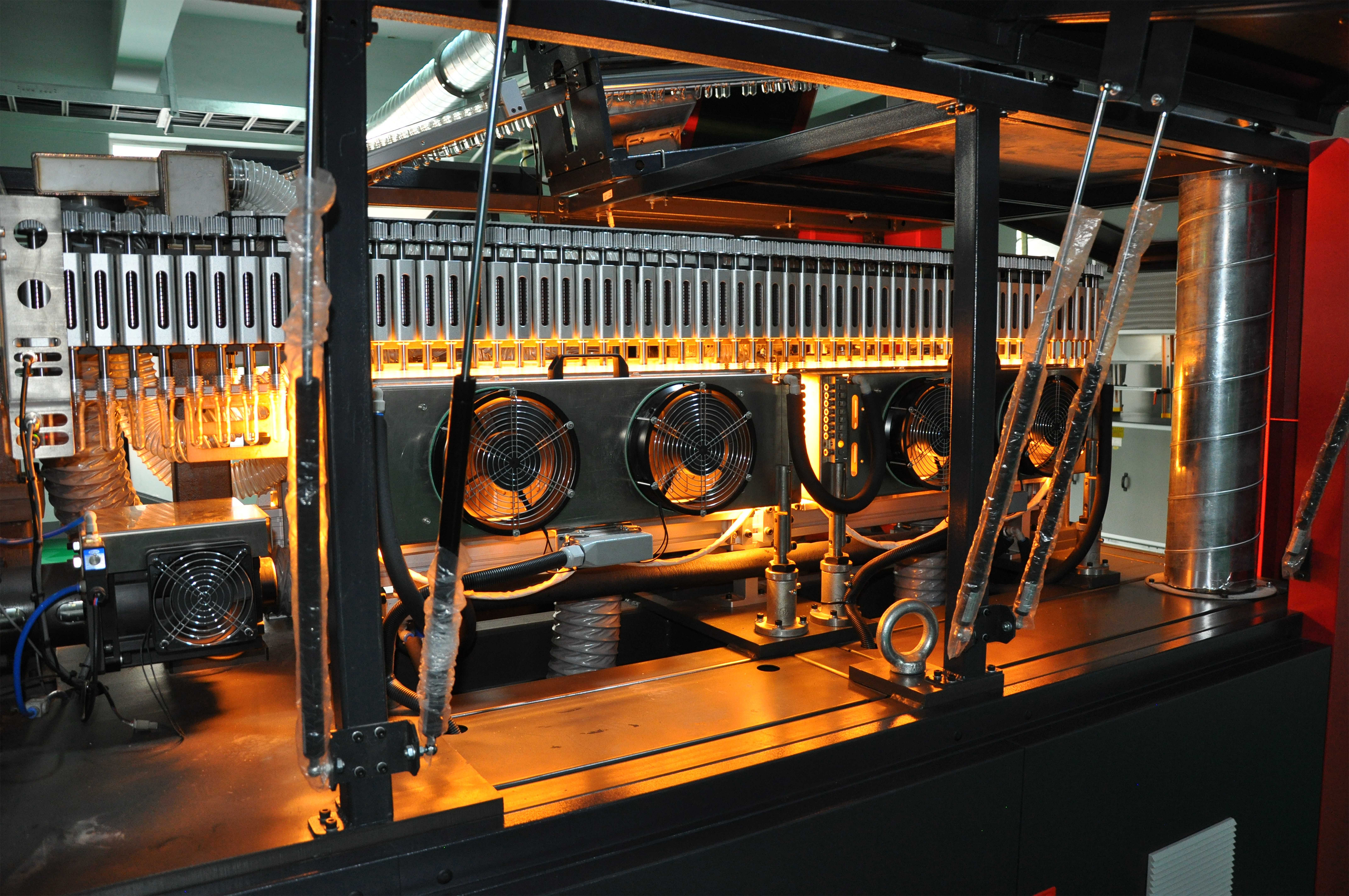

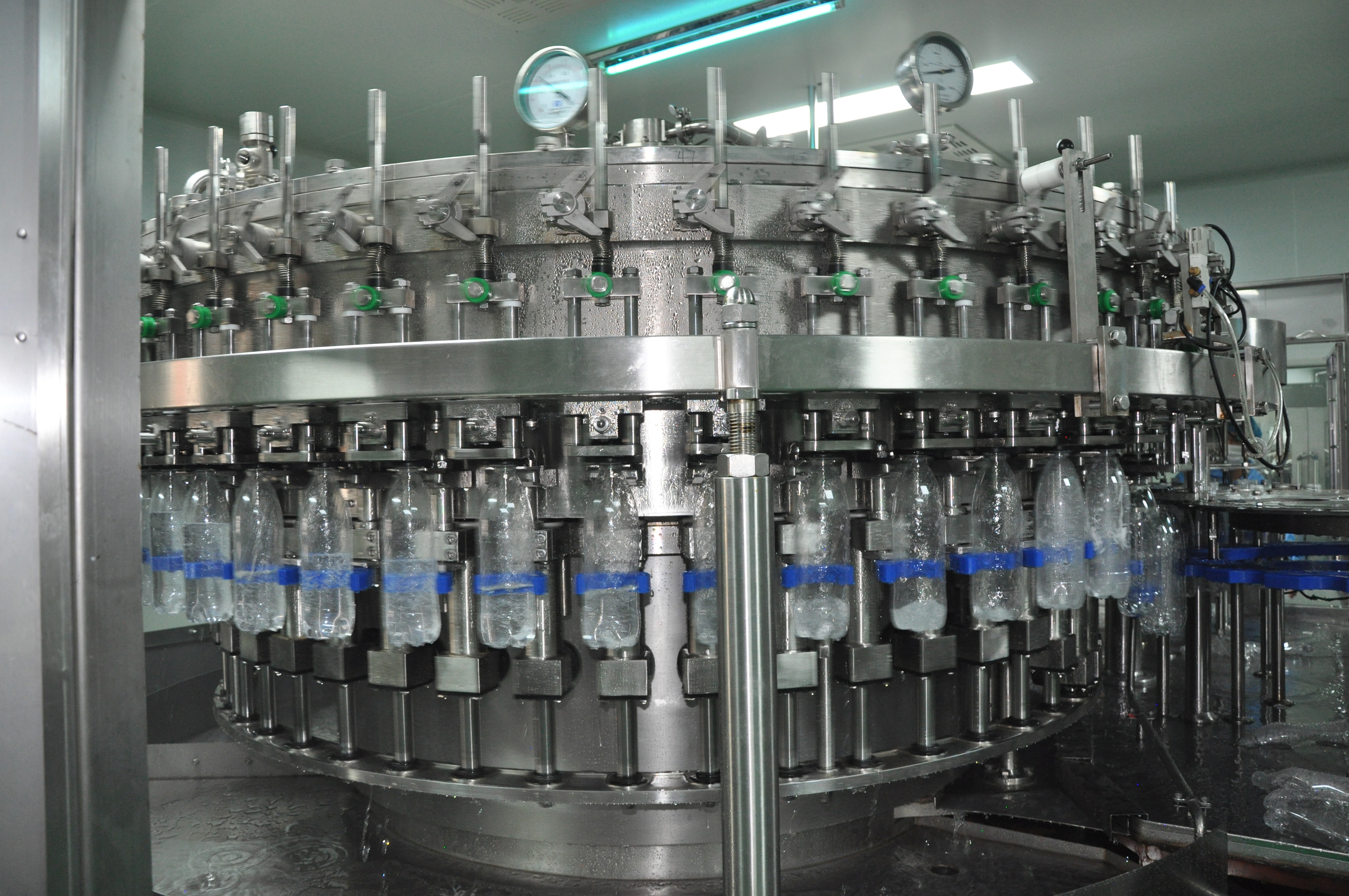

We focus on the whole processes like water treatment system, blow molding machine, filling machine to the packaging equipment. With a deep understanding of the industry's evolving needs, our expertise spans the entire beverage production cycle, covering every critical link from pre-production preparation to final packaging and logistics support.
