POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box
POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box
POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box
POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box
POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box
1 / 5
POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box
POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box
POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box
POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box
POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box

POF PE Film Heat Bottle Tunnel Shrink Wrapping Machine Automatic Film Heat Shrink Wrap Packing Wrapping Machine for Perfume Box

Send Inquiry

Product Description

Intro Banner
Products Description

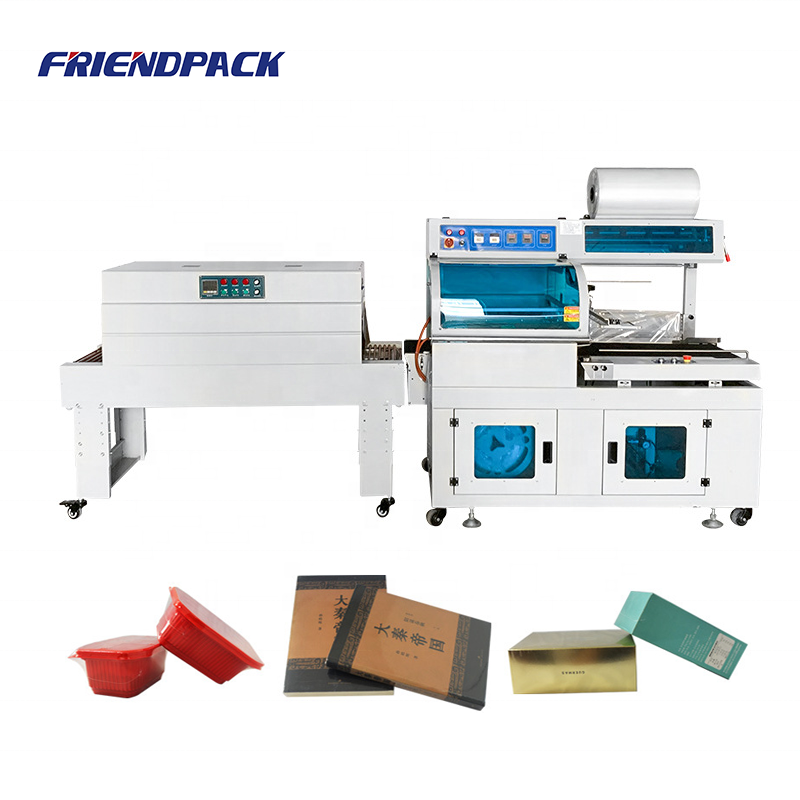

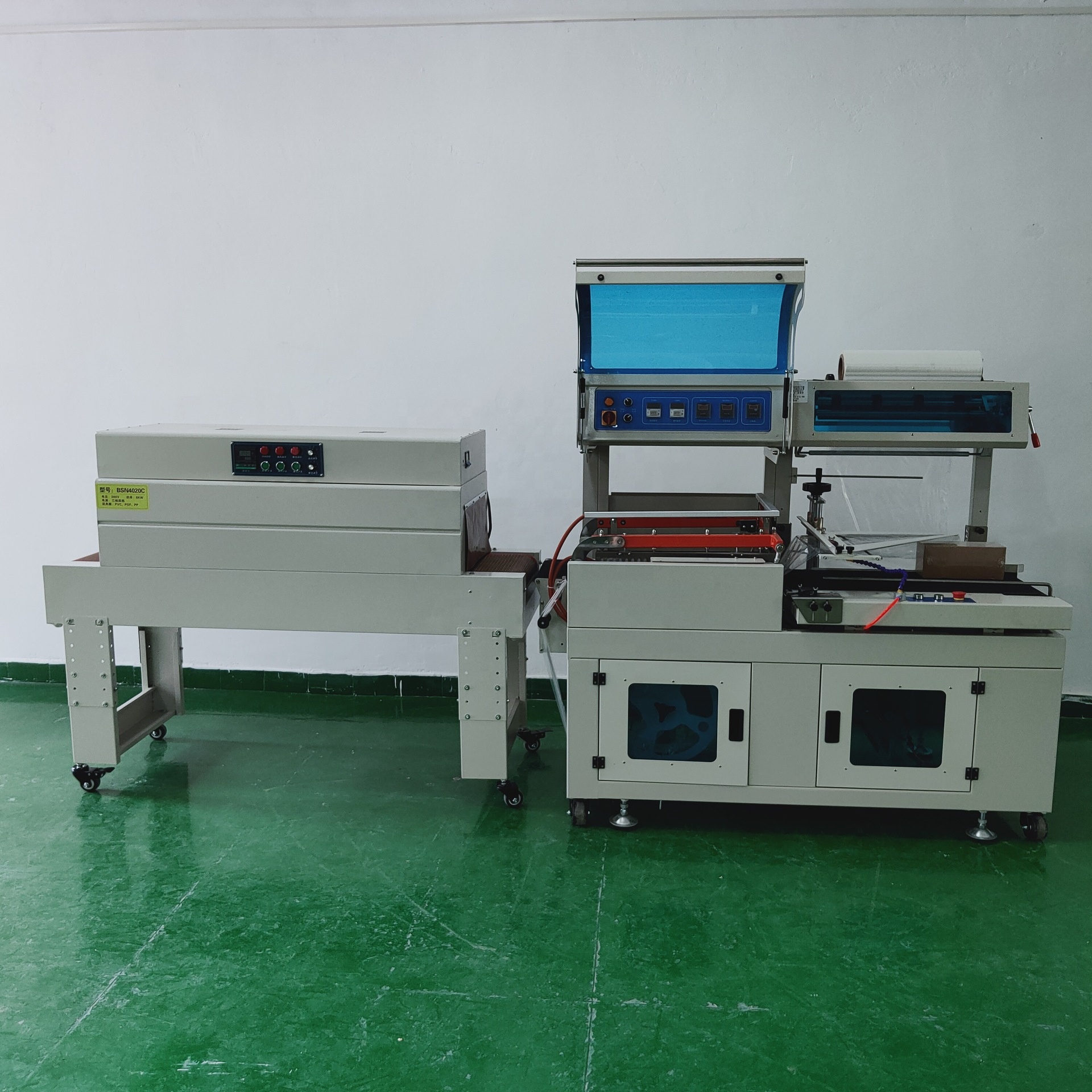

Product Layout 1 Product Layout 2 Product Layout 3

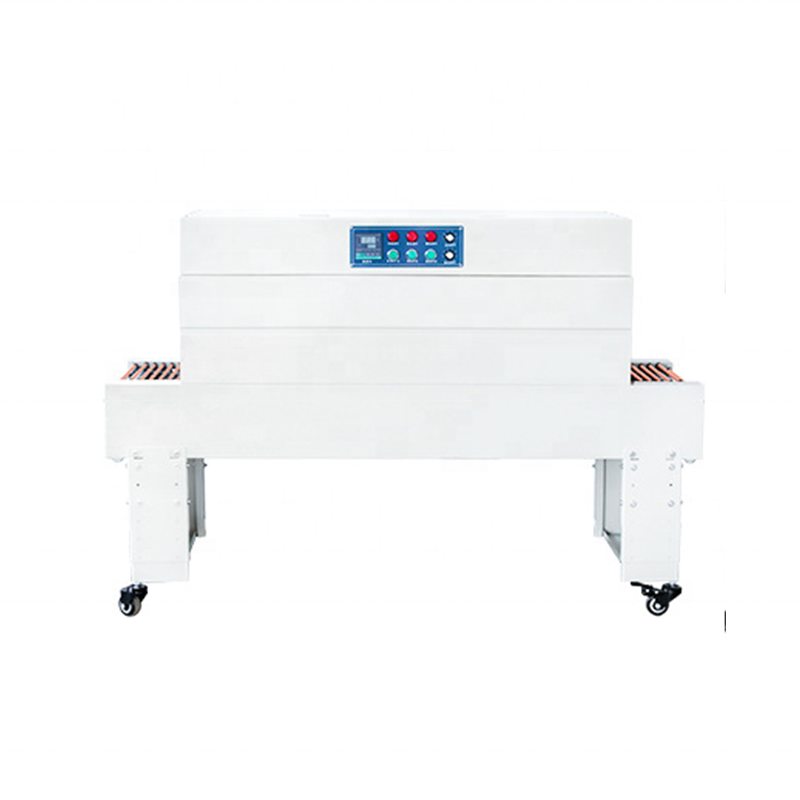

Film Cutting Machine FQL450 L Sealer Shrinking Machine BSN4020C Shrink Machine
Power Voltage 220V/50-60HZ Power Voltage 380v 50-60HZ/220V 50Hz
Gas source 5-7kg/cm³ Power 9 KW
Power 1.5KW Heat shrink Box(L*W*H) 1200*400*200mm
Packing Speed 15-30bags/min Produce Size (W*H) 350x150mm
L+H (H < 150) < 500mm Conveyor Speed 0-15m/min
W+H (H < 150) < 400MM Conveyor material roller chain
Max Height < 150mm Roller Chain Several Spare pieces
External Dimensions 1650x800x1450mm Machine Size(L*W*H) 1400x560x660mm
Weight of Machine 350kg Weight of Machine 100kg
Applicable Film POF/PE Applicable Film POF, PVC, PP
Wooden Case Package 2100*1050*1570mm Wooden Case Package 1700*820*820mm

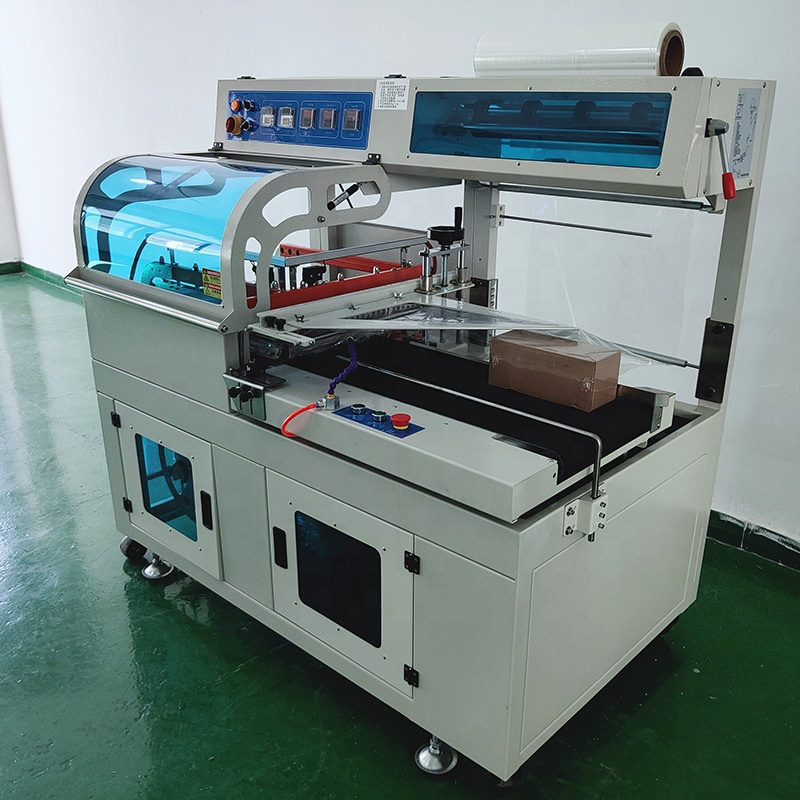

L Sealer Details Configuration Overview 1
Main Parts Configuration
Name Qty Parts Original Manufacturer
cylinder 1 AIRTAC
Motor 1 Maili China
Photoelectric switch 1 Omron
Intermediate relay 1 Omron
Digital display (temperature controller) 1 Xinpu China
Time Relay 1 C-Lin
Indicator light other small electrical switch 5 Shuangke
Micro Switch 1 Omron
Configuration Overview 2
Main Parts Configuration
Name of Parts Qty Original Manufacturer
Non-sequencing carrier 1 CHINT
AC contactor 1 CHINT
Intermediate power supply 1 CHINT
Fixed electric device 3 C-Lin
Power Switch 1 CHINT
Intelligent temperature controller 1 Yuhe
Indication Light 3 GOCHENG
power switch button 3 Shanghai Jiangda
Three-phase motor 1 SULIN Motor
Product Feature
Multiple systems
Multiple systems to ensure precise operation
The thermostat adopts a digital display thermostat with built-in PLD function, and the temperature of the sealing knife is sensitive and accurate, which can be set at will. The sealing knife itself also has an automatic protection function, which can effectively prevent the package from being cut by mistake.
Advanced cutter
Advanced cutter Seals firmly
The sealing and cutting knife part adopts Teflon coating, which is resistant to adhesion and high temperature, and the sealing does not crack, coke, or smoke. The sealing frame is made of high-quality alloy steel, and the frame is not easy to deform.
Automatic feeding
Automatic feeding Automatic adjustment
Automatic feeding, length can also be adjusted automatically by the combination of electric eye and timer. Equipped with an induction motor to automatically take up waste.
Plexiglass cover
Plexiglass protective cover Improve safety
The sealing and cutting part of the machine is equipped with a plexiglass protective cover, and has an automatic alarm function, which greatly improves the safety of the operator.
Imported detection
Imported detection photoelectric
Horizontal and vertical detection for each group.
Product Application
Application 1 Application 2
Catalog
Catalog Page 1 Catalog Page 2
Production Process
Production Process Details
About Us
We are a Professional One-Stop Packing Solution Provider of Fill-Label-Cap-Shrink-Carton-Seal-Strap-Wrap-Convey-Stack process, Which has been focusing on the planning, R&D and manufacturing of automatic packaging production line, such as automatic carton packing line, shrinking wrapping line, Fully automatic pallet strapping line, Conveyor system and so on. We are providing one-stop purchase experiences for customers. Our products have been exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Factory Image 1 Factory Image 2 Factory Image 3 Factory Image 4 Factory Image 5 Factory Image 6
Certificate 1 Certificate 2
FAQ
FAQ banner
1. Are you a factory or trading company?
As shown in the pictures above, we are a factory. Our main products include: Auto capping machines, Auto labeling machines, and some semi-auto machines. We can also customize production lines based on your requirements.
2. What's the payment terms?
We accept TT transfer, L/C, and other payment methods if it is convenient for you.
3. What's the warranty of your equipment?
We offer a 1-year warranty on the machine core after receipt check upon delivery. We will comprehensively provide you all kinds of technical support services in after-sales. We test every machine manually to make sure they are in good condition before they are sent to your place.
4. What is the service?
We provide 7 days 24 hours online support. Engineer overseas service is also available if necessary.
5. What's your advantage? Why we choose you?
A1: We have the most professional techniques and team. We are able to customize machines according to customer requirements, which is hard to find from other suppliers.
A2: We are a professional manufacturer and warmly welcome clients from worldwide to cooperate with us.
6. How can we request a proper solution for other packaging demands?
Please don't hesitate to send us an inquiry with details of your packaging requirements. We will review your specifications and get back to you shortly with a tailored professional solution.
