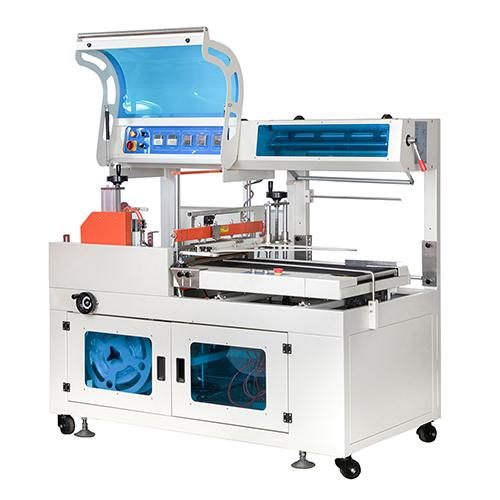

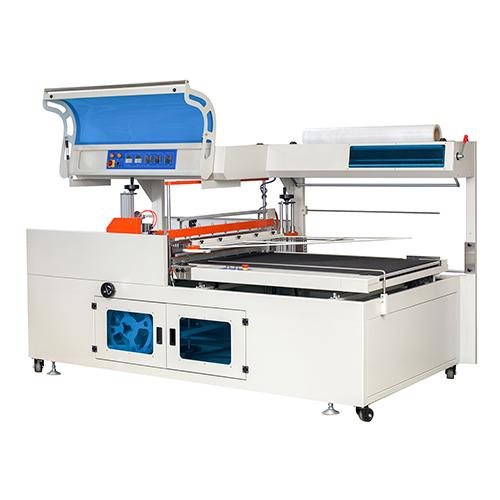

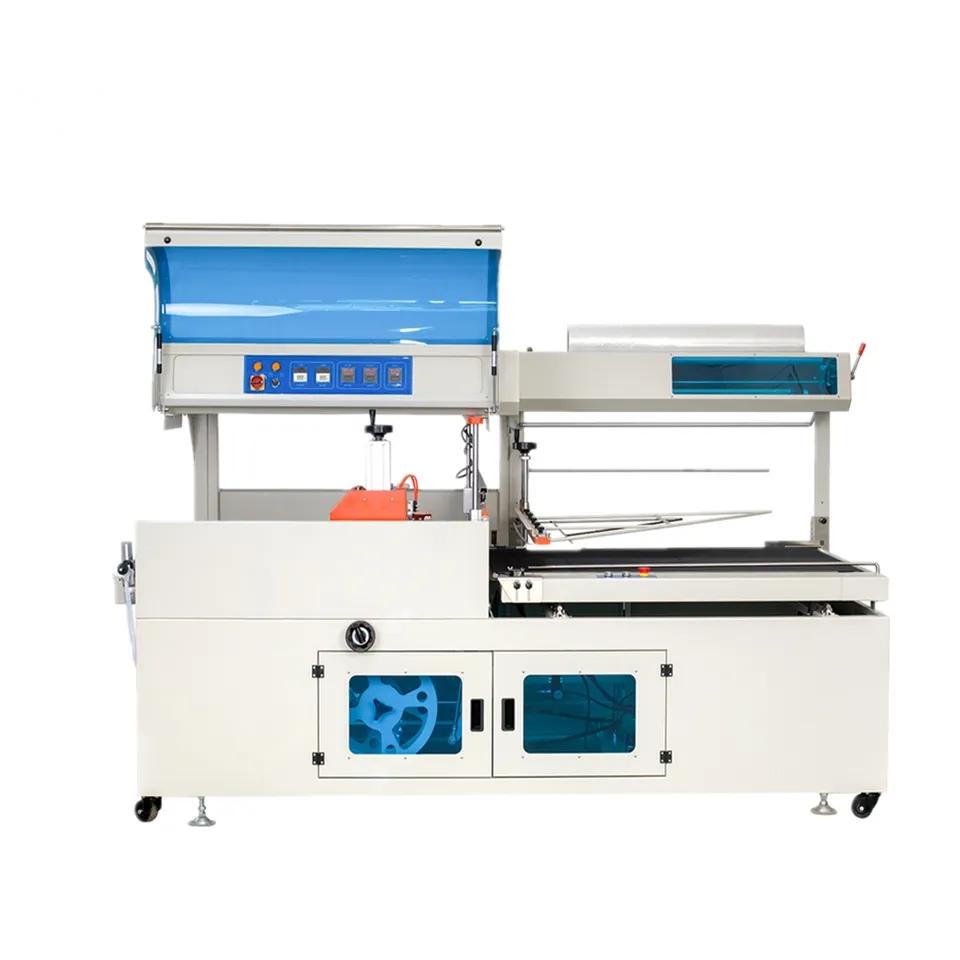

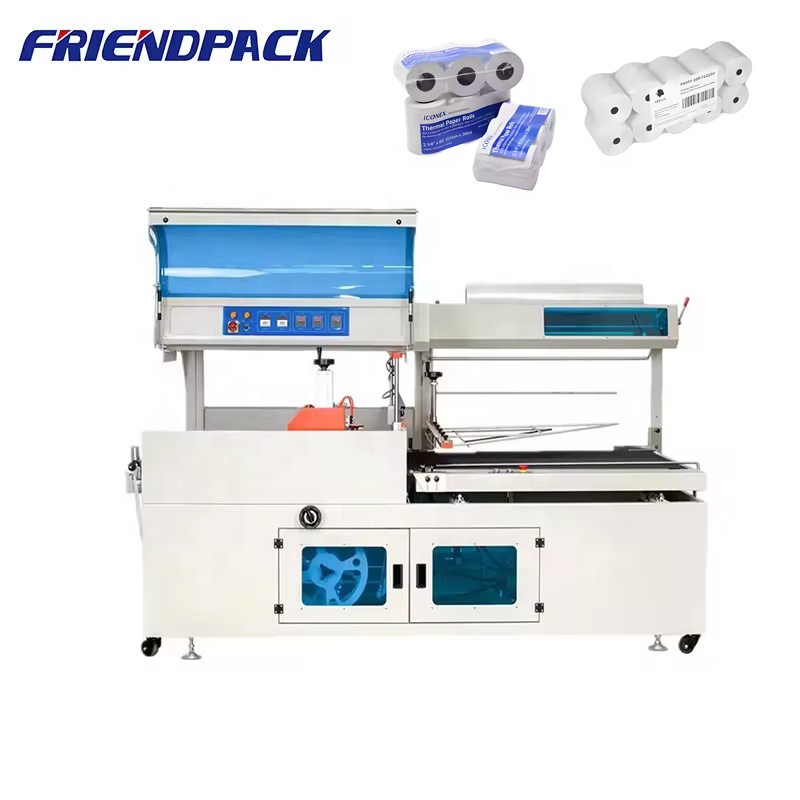

BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor
BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor
BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor
BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor
BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor
1 / 5
BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor
BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor
BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor
BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor
BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor

BF550 Automatic Plastic Film Side Sealing Shrinking Machine Heat Shrink Wrap Packing Wrapping Machine for Food Perfume Box Motor

Send Inquiry

Product Description

Recommend Products

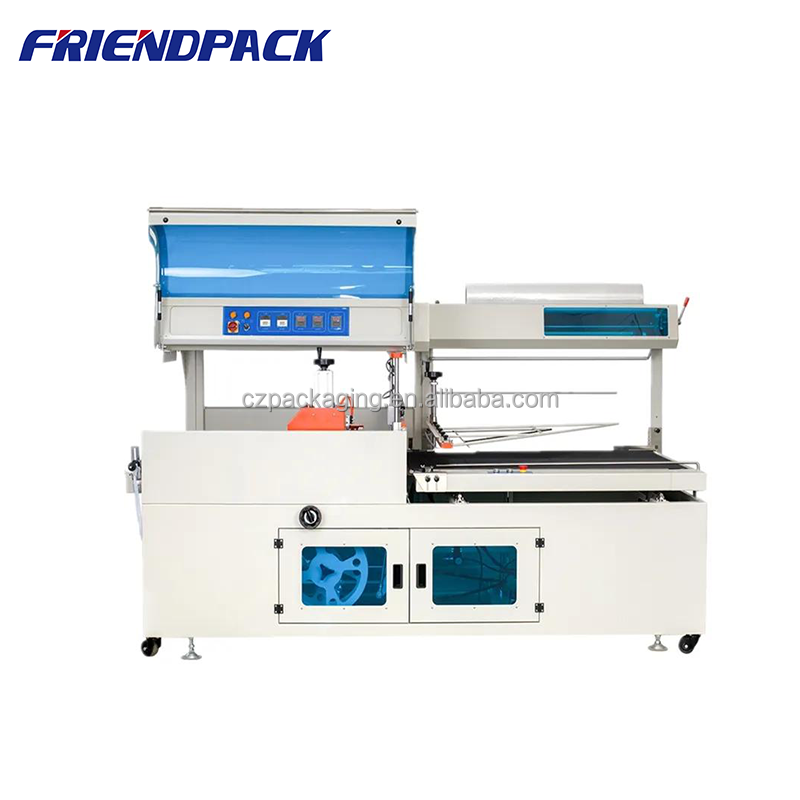

BF Side sealing machine

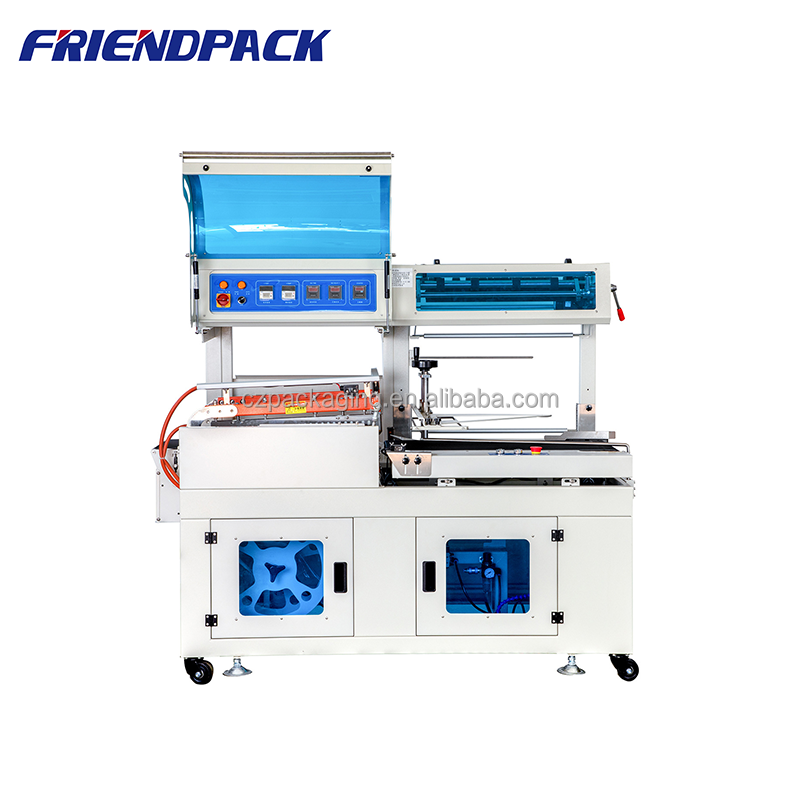

FQL L Bar Sealer Machine

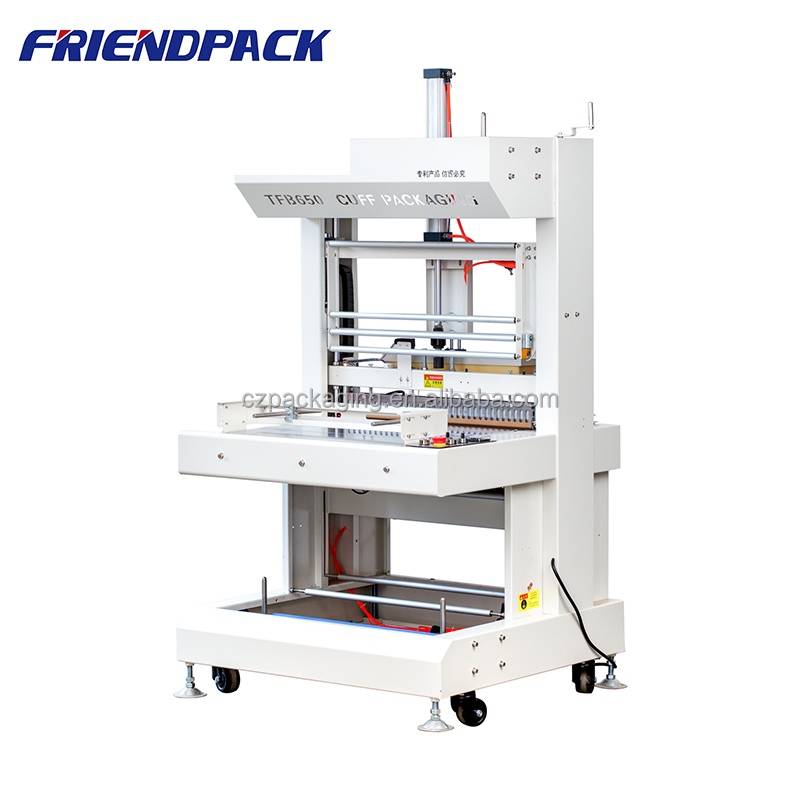

TFB Semi auto sleeve machine

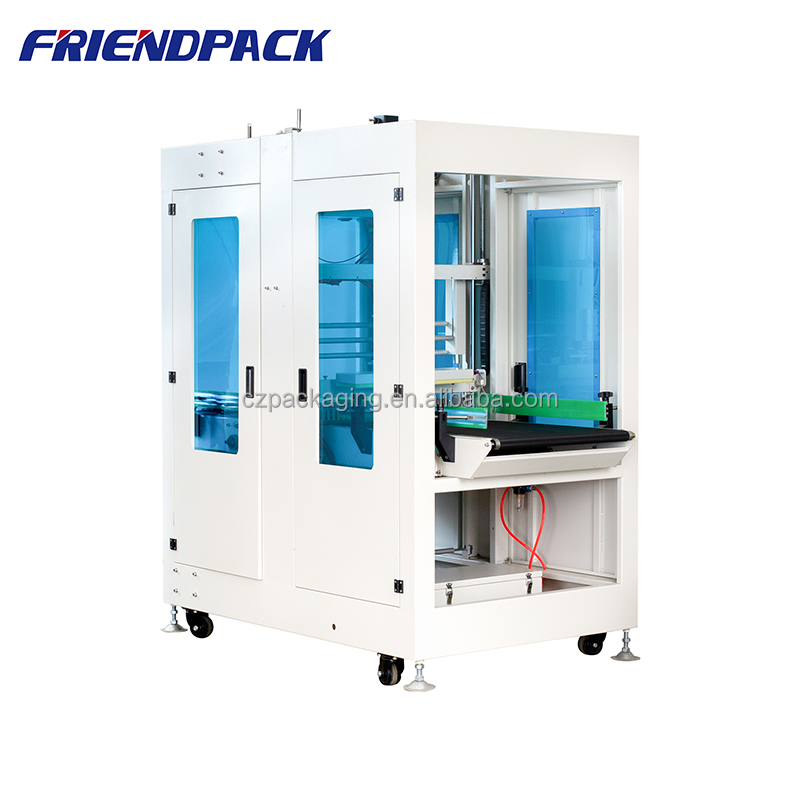

TFZ Auto sleeve machine
BF Side sealing machine  |  FQL L Bar Sealer Machine  |  TFB Semi auto sleeve machine  |  TFZ Auto sleeve machine

Product Parameters

Product Parameters Overview 1

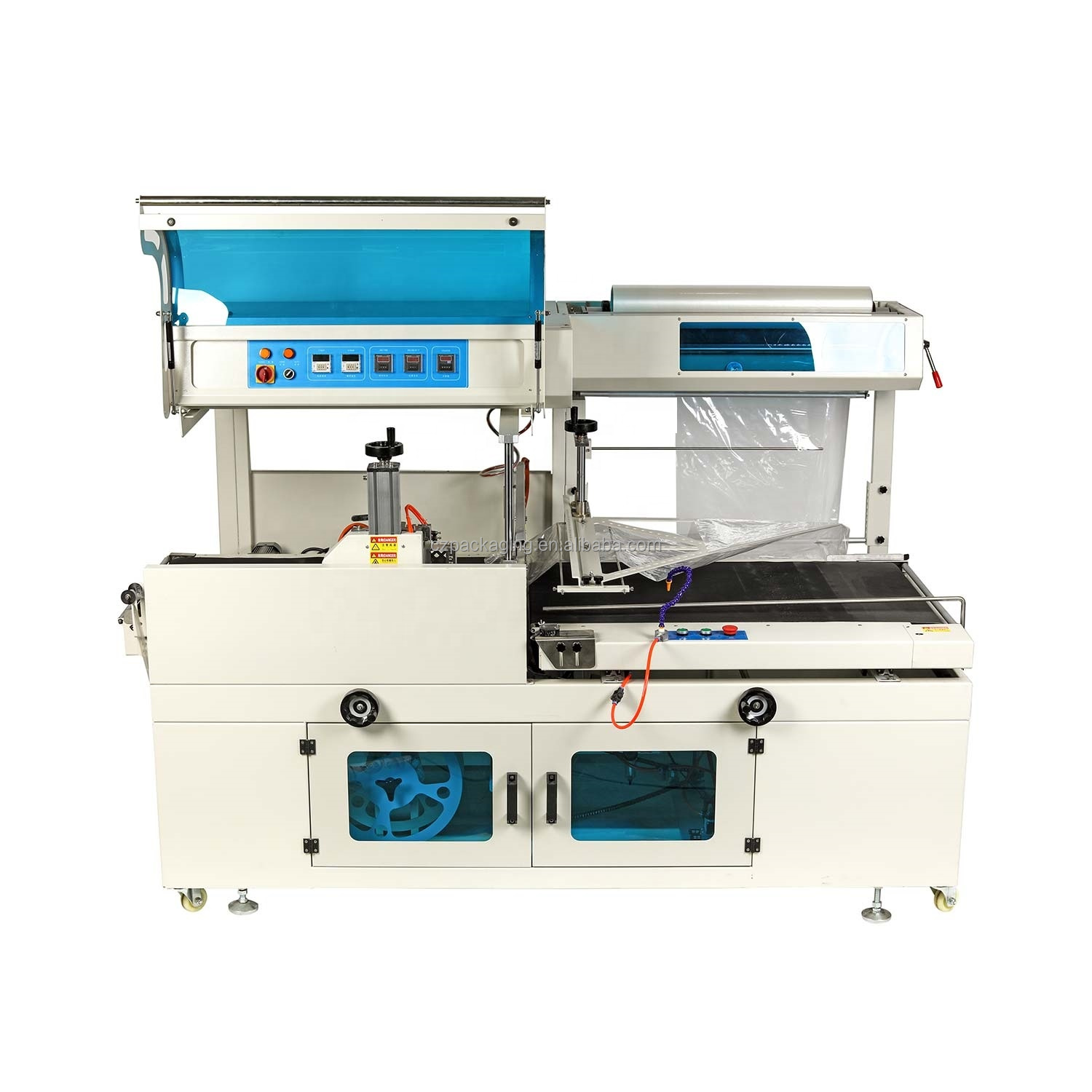

Product Parameters Overview 2
Model BF450 BF550 BF650 BF750 BF850 BF950
Power 220V/50-60HZ
Air pressure 6.0-8.0 kgf/cm²
Voltage 1.1KW 1.26KW 1.36KW 1.46KW 1.56KW 1.66KW
Packing speed 15-30 bag/min
Maximum packing size L&H L unlimited& H≤150mm L unlimited & H≤250mm
Standard packing size W&H ≤300mm ≤400mm ≤500mm ≤600mm ≤700mm ≤800mm
Maximum packing size W+H ≤370mm
H≥40mm		 ≤500mm
H≥70mm		 ≤600mm
H≥70mm		 ≤700mm
H≥70mm		 ≤870mm
H≥120mm		 ≤970mm
H≥120mm
Cutting knife size L*W L unlimited*
W470		 L unlimited*
W570		 L unlimited*
W670		 L unlimited*
W770		 L unlimited*
W870		 L unlimited*
W970
Machine size 1700*975*1440mm 1900*1075*1540mm 2100*1175*1540mm 2300*1275*1540mm 2600*1375*1540mm 2800*1475*1540mm
Machine weight 300kg 350kg 400kg 450kg 500kg 550kg
Shrink film POF/PE
Package size 1800*1000*1670=3m³ 2000*1100*1720=3.78m³ 2180*1200*1720=4.49m³ 2400*1300*1720=5.37m³ 2700*1450*1720=6.73m³ 2900*1550*1720=7.73m³
Film width formula = Product width(mm)+Height(mm)+150mm
Parameters details 1
Parameters details 2

Product Characteristics

Product Characteristics Overview

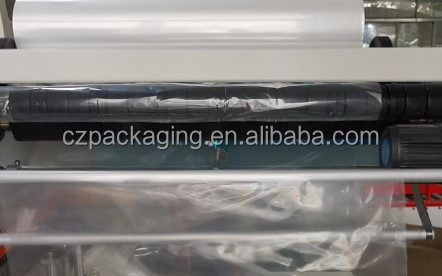

Automatic film feeding
Automatic film feeding
Automatic membrane ligation and ventilation, automatic membrane release

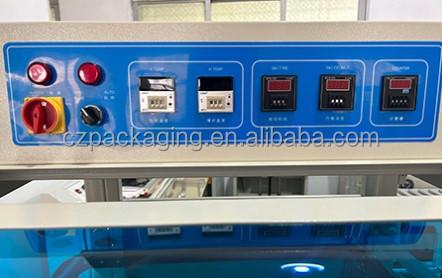

Accurate control
Accurate control
The temperature controller has a built-in PLD function accurate and effective temperature control

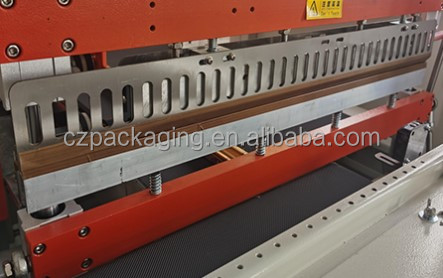

Sealing cutter knife
Sealing cutter knife
A sensitive and precise sealing knife, equipped with automatic protection function

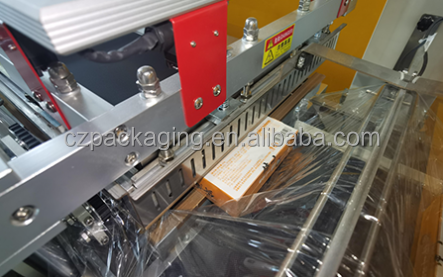

Preventing Miscutting
Preventing Miscutting
Anti miscutting function. The sealing frame is made of high-quality alloy steel, no deformation.

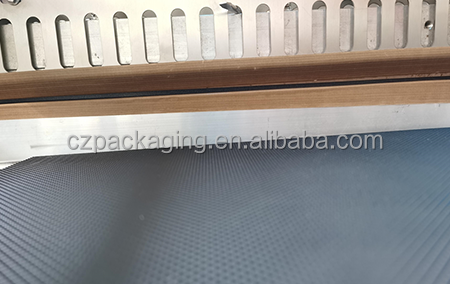

American Dupont Teflon coating
American Dupont Teflon coating
Anti-adhesion, high temperature resistance, precise cutting no coking phenomenon, no smoke, zero pollution.

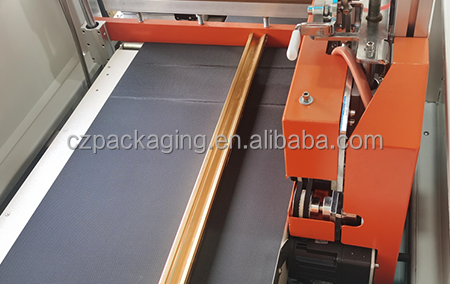

Conveyor
Conveyor
Automatic feeding. Durable and sturdy.

Machine display

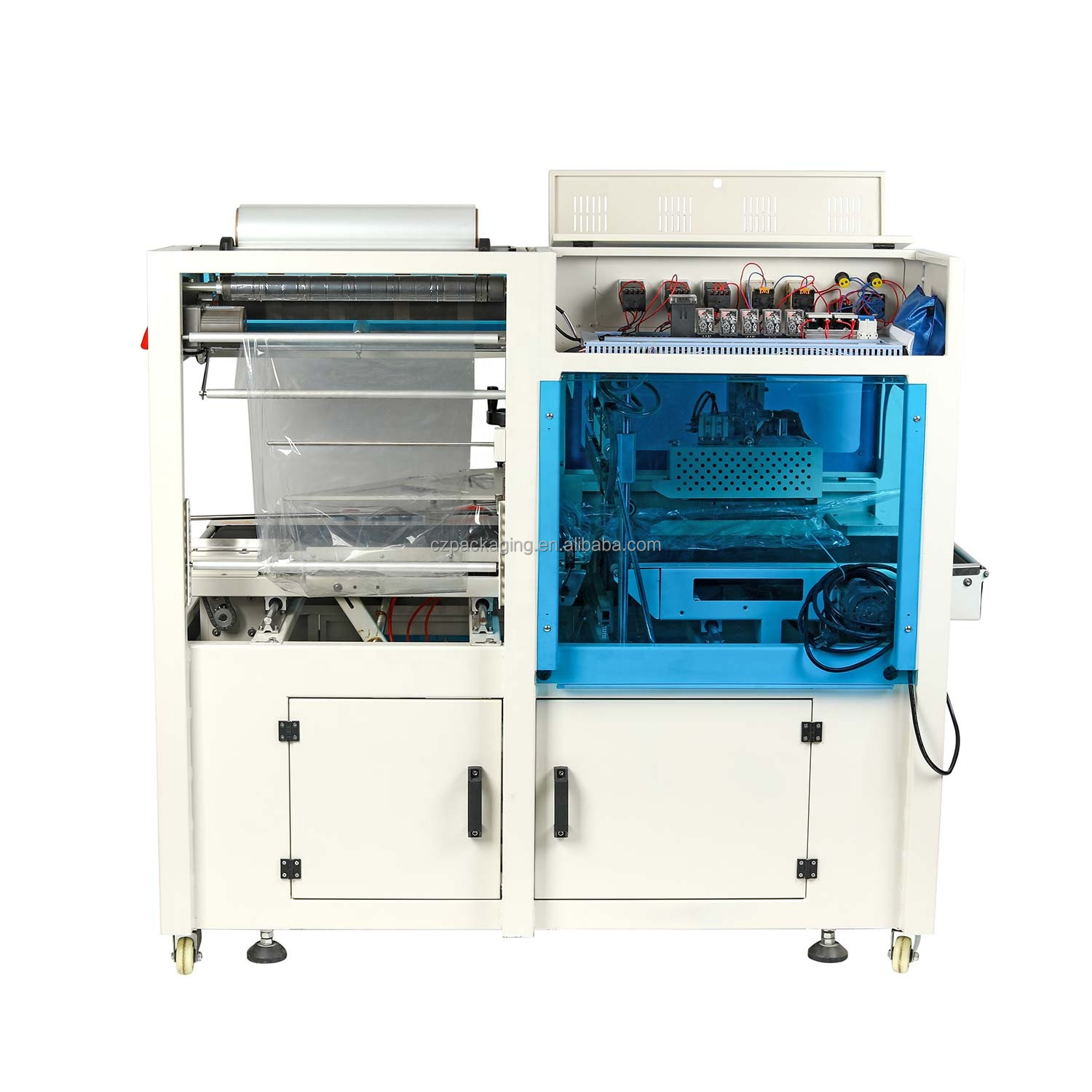

Machine Display 1

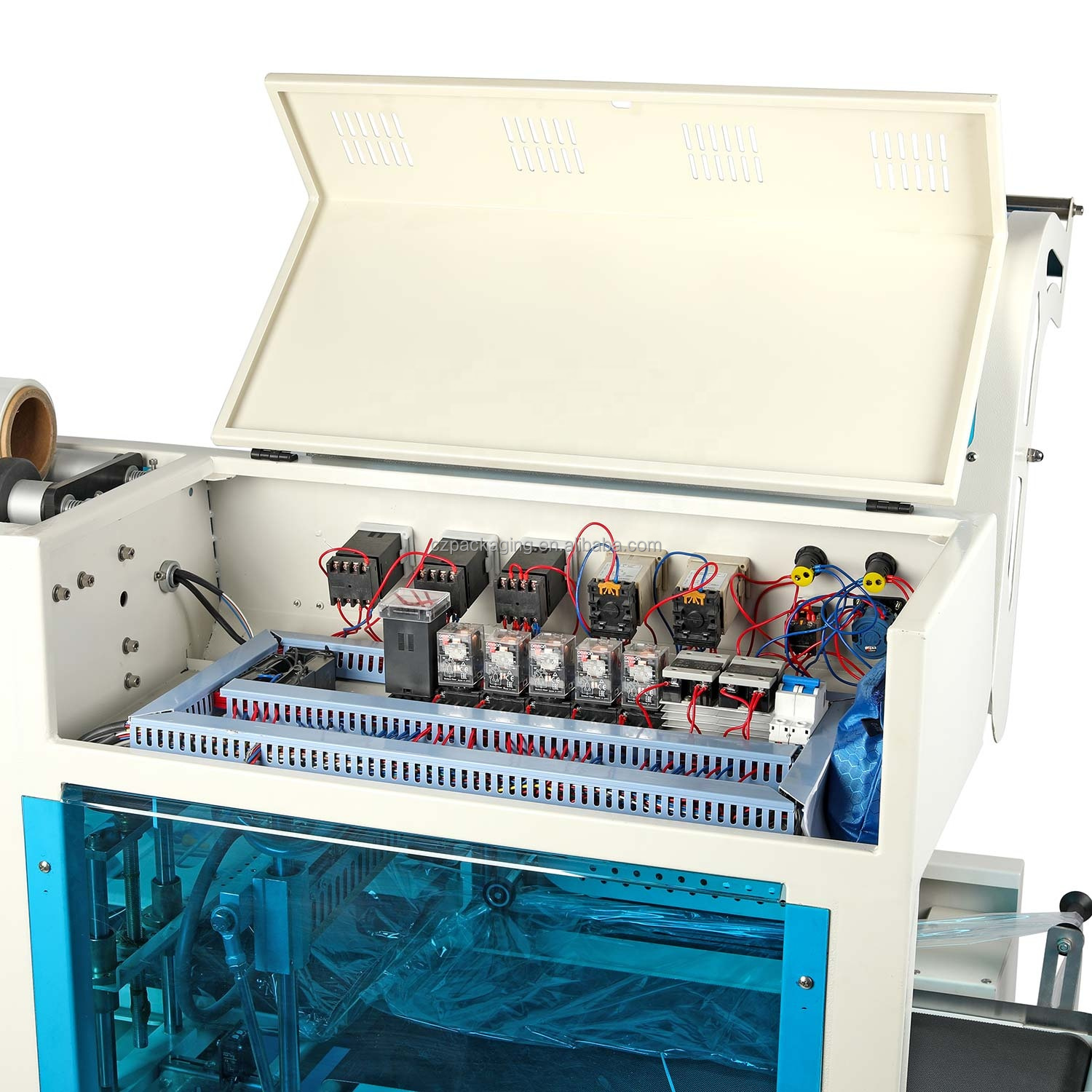

Machine Display 2

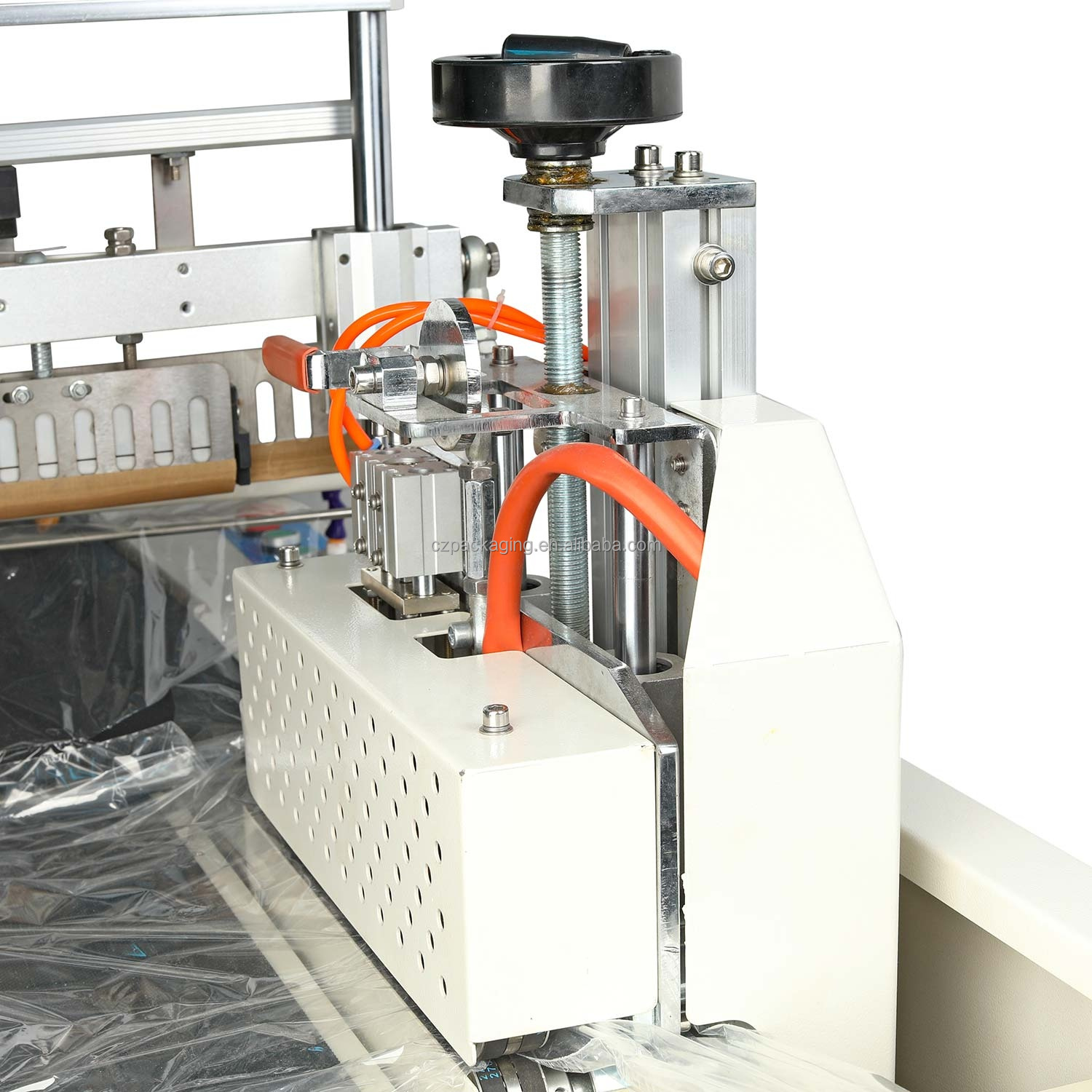

Machine Display 3

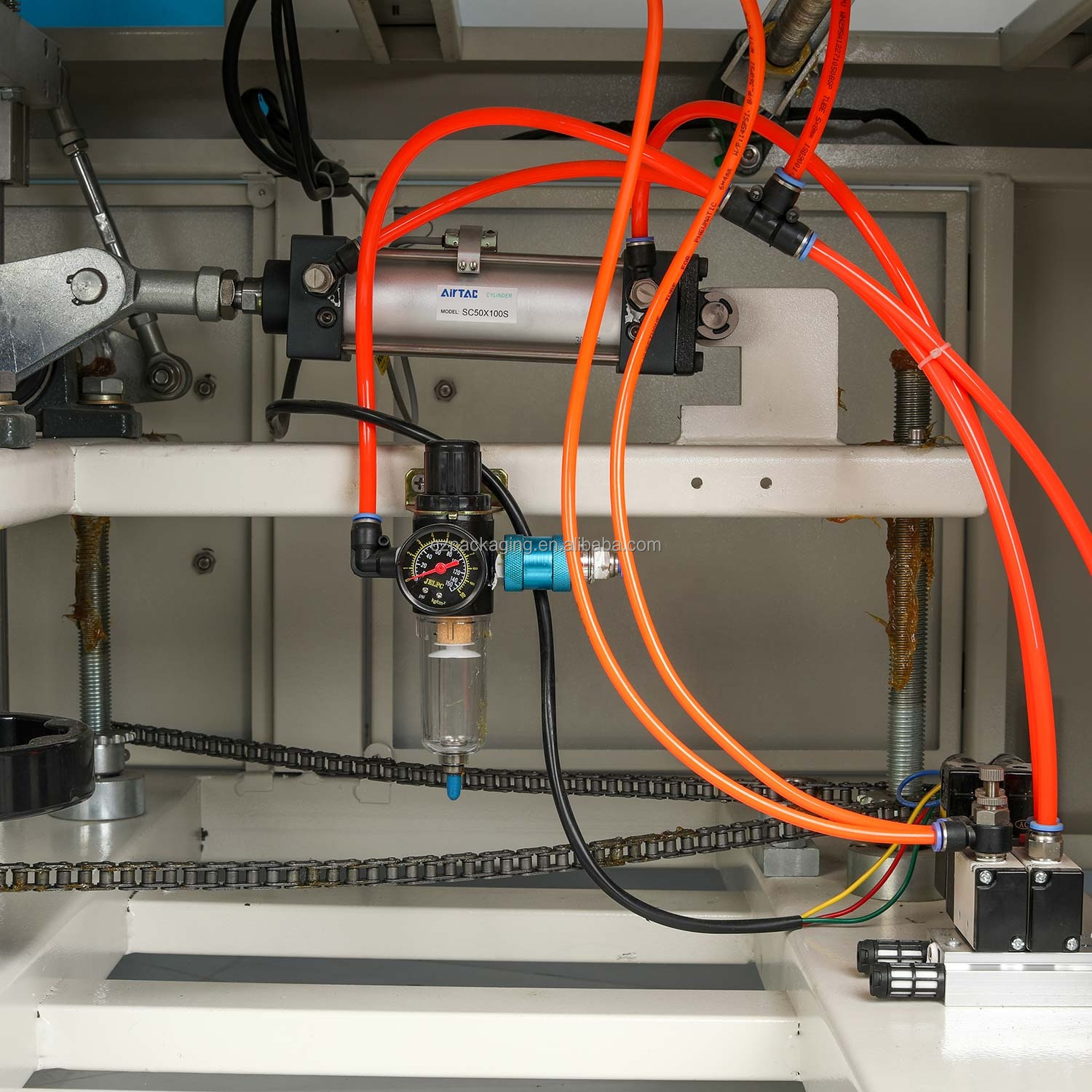

Machine Display 4

Catalog

Packaging Machine Catalog 1
Packaging Machine Catalog 2

Production Process

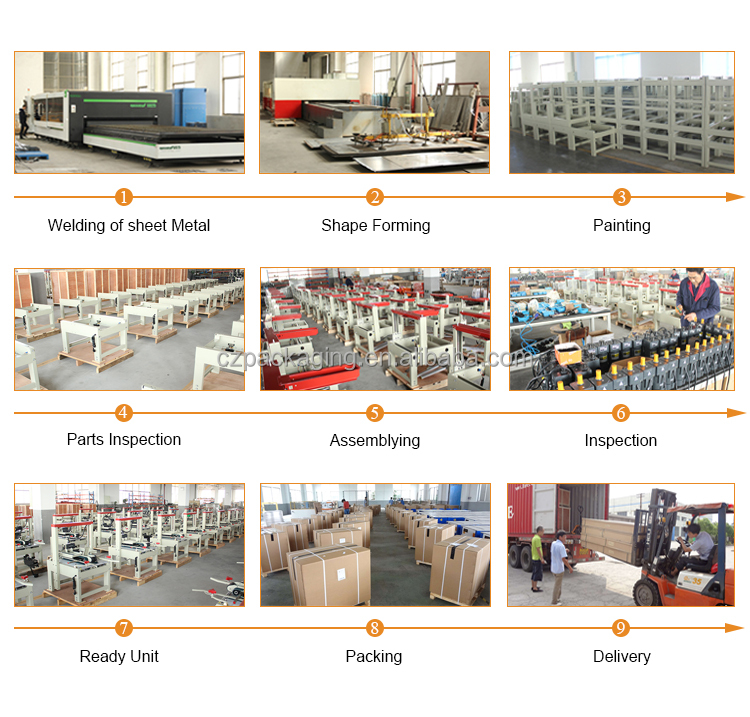

Production Process Flowchart

About Us

Factory Image 1

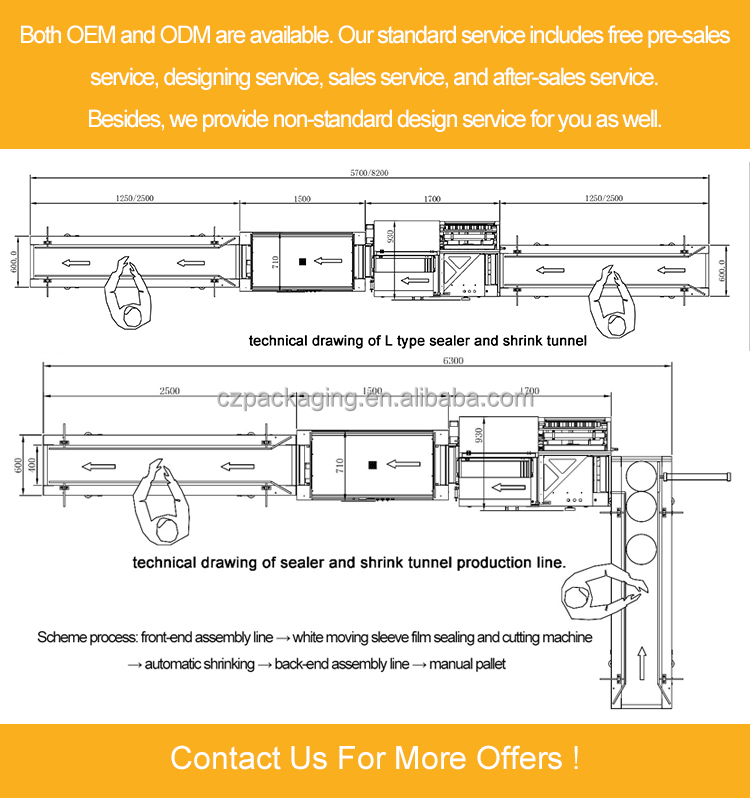

Factory Image 2
Factory Image 3
Factory Image 4
Factory Image 5

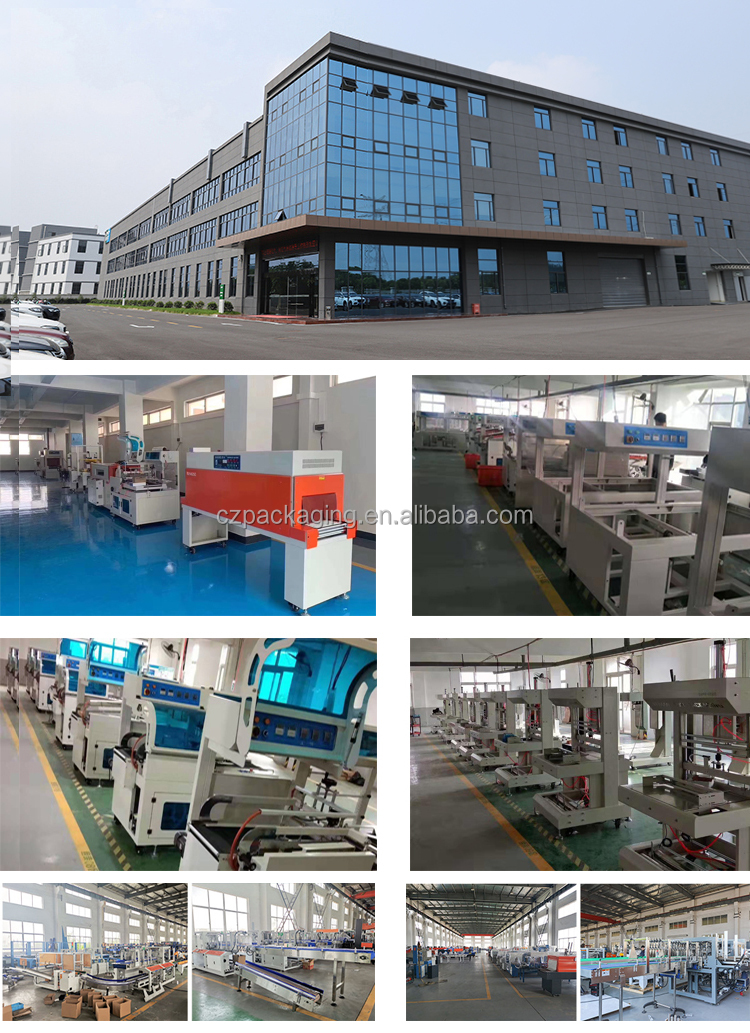

Factory Image 6
We are a Professional One-Stop Packing Solution Provider of Fill-Label-Cap-Shrink-Carton-Seal-Strap-Wrap-Convey-Stack process, Which has been focusing on the planning, R&D and manufacturing of automatic packaging production line. such as automatic carton packing line, shrinking wrapping line, Fully automatic pallet strapping line, Conveyor system and so on. We are providing one-stop purchase experiences for customers. Our productions have been exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Certificate 1
Certificate 2

FAQ

FAQ banner
Q1: Are you a factory or trading company?
A: We are the factory and our main products include Auto capping machines, Auto labeling machines, and various semi-auto machines. We can also custom design production lines based on your requirements.
Q2: What are the payment terms?
A: We accept TT bank transfer, L/C, and other payment methods according to your convenience.
Q3: What's the warranty of your equipment?
A: We offer a 1-year warranty on the machine core after delivery inspection. Additionally, we provide comprehensive after-sales technical support. Every machine is tested manually to ensure it is in excellent condition before shipment.
Q4: What kind of support service do you offer?
A: We provide 7 days 24 hours online support service, and overseas engineer service is also available if required.
Q5: What are your advantages?
A: We have highly professional technical experts and team, capable of customizing machines according to customer specifications. We are a dedicated professional manufacturer, warmly welcoming clients worldwide for cooperation.
Q6: How can I submit inquiries?
A: Please don't hesitate to send us an inquiry for any other questions. We will come back soon with proper solution.
