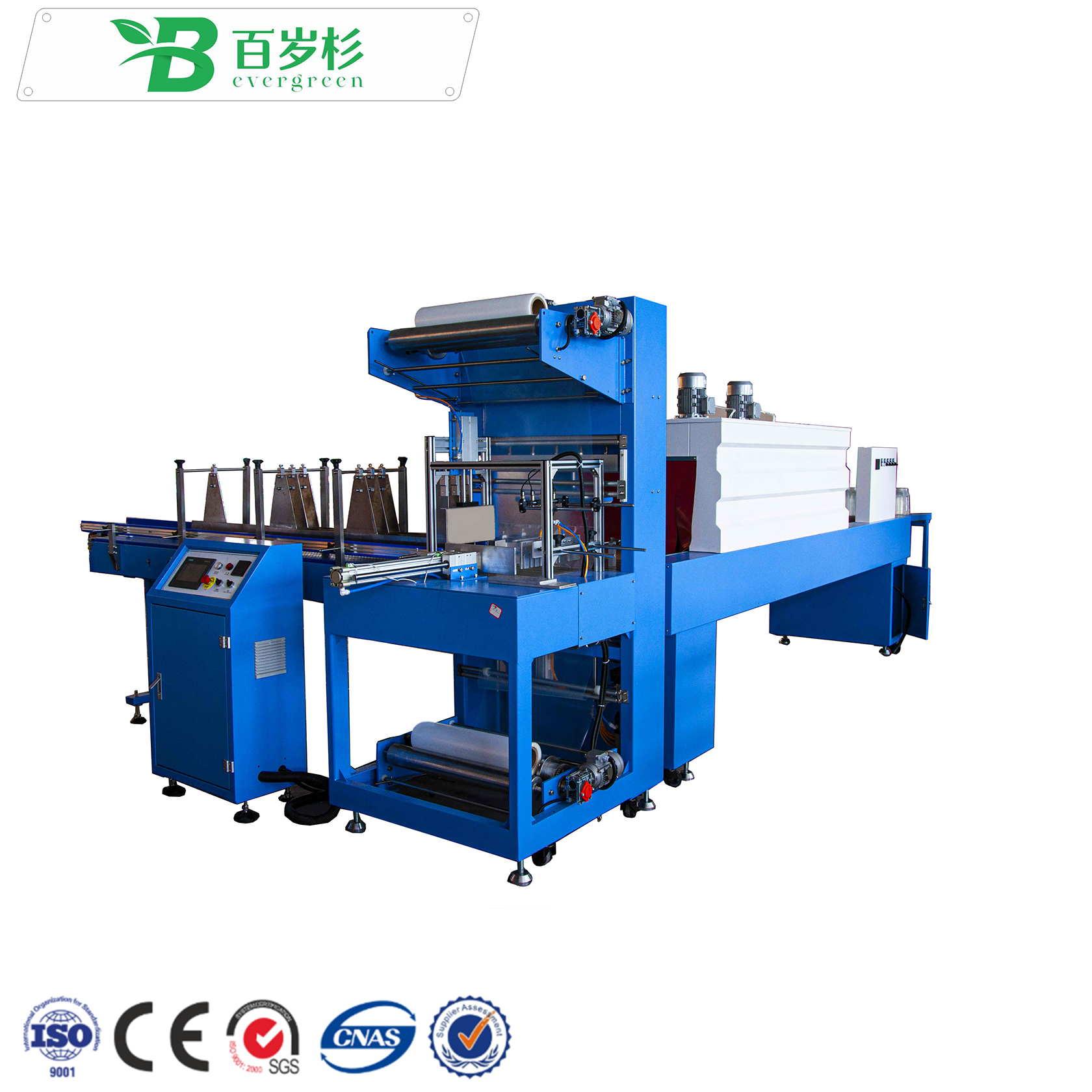

The Automatic Thermal Shrinkage Film Wrapping Machine integrates the advantages of similar domestic and overseas equipment. It is widely used in combined packaging for beverages, food, and medical-chemical products, and is suitable for packaging items without pallets or cartons, as well as those in rectangular, round, or flat shapes, with the advantages of low cost and good appearance.

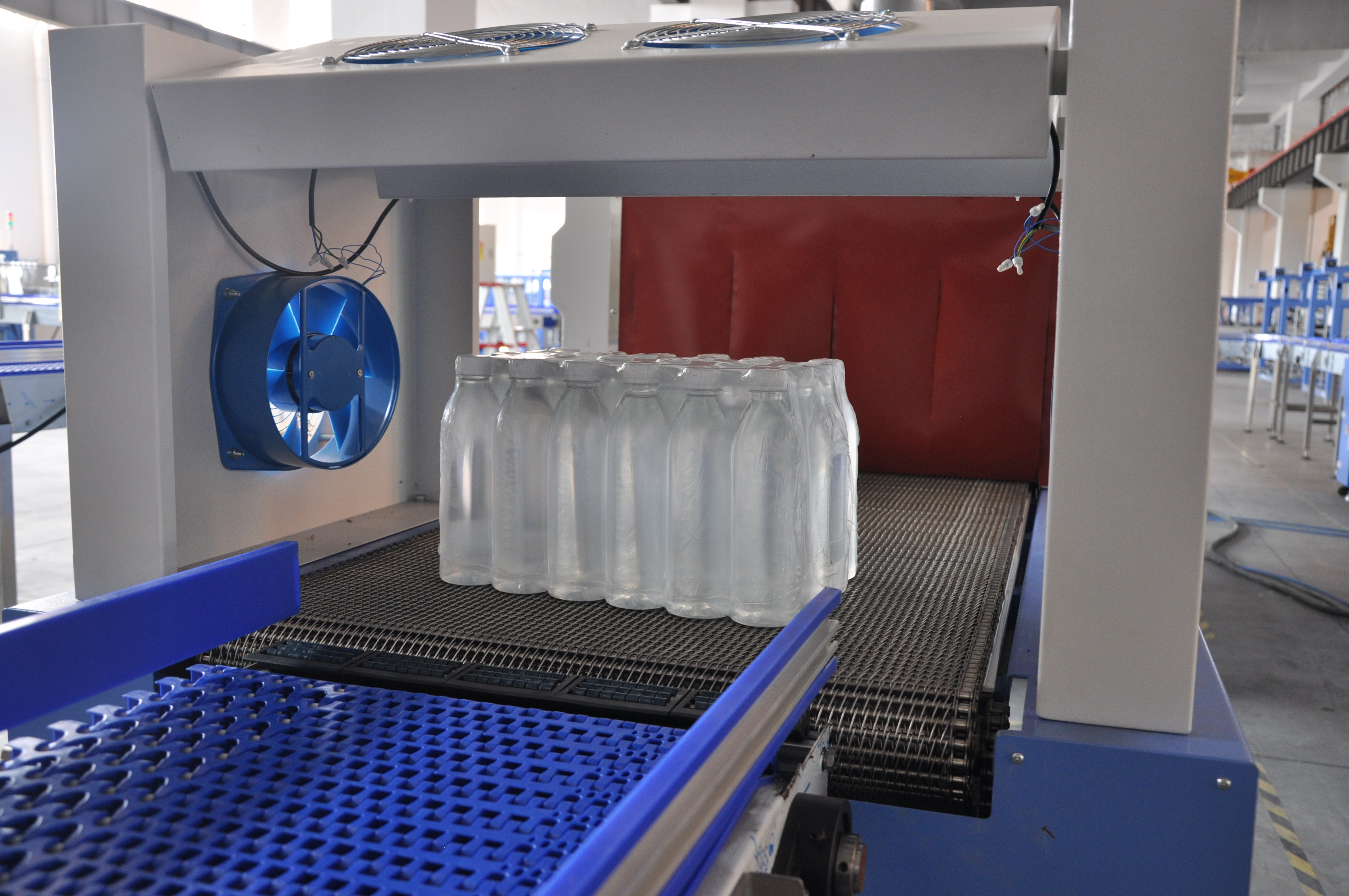

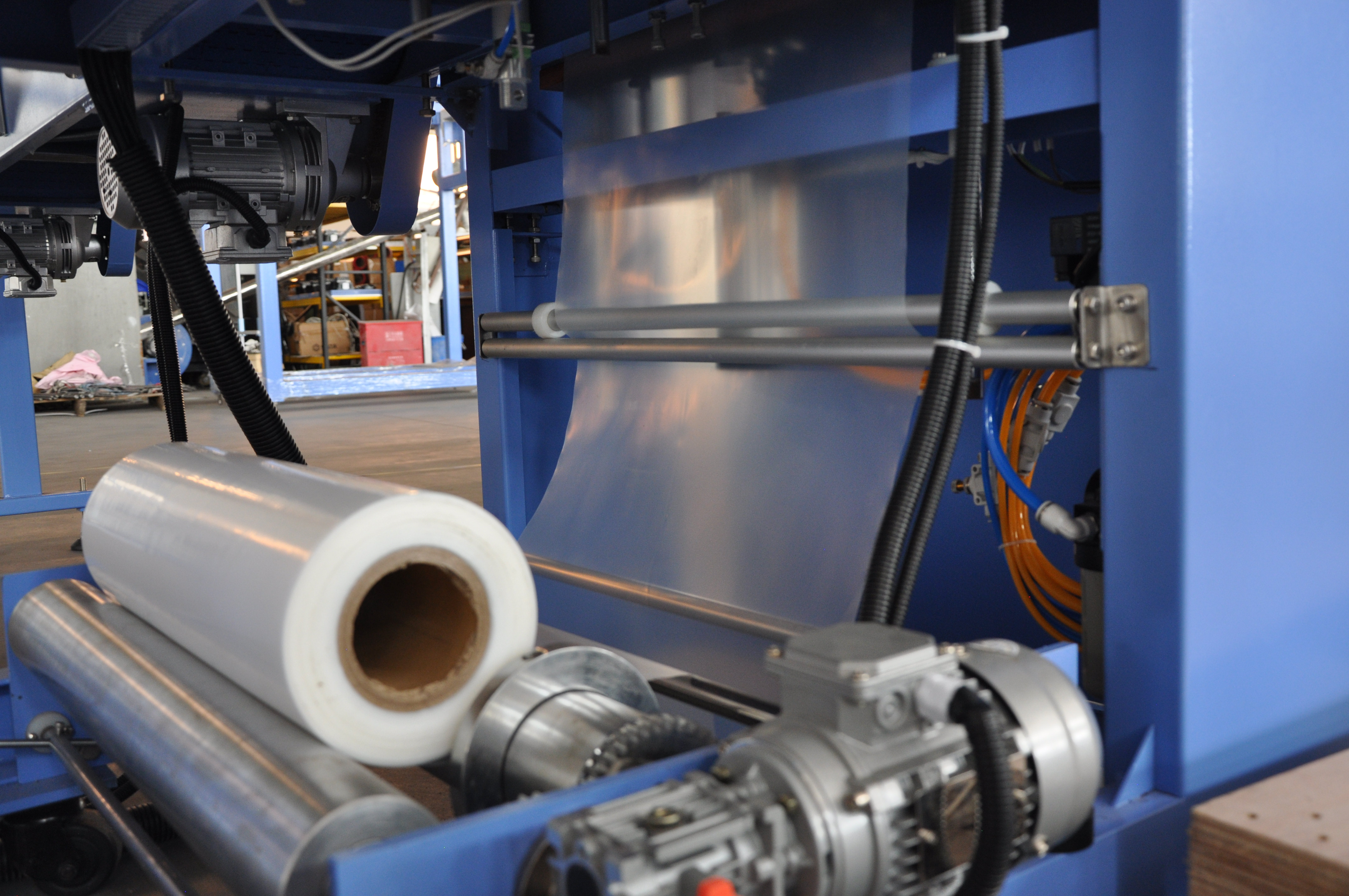

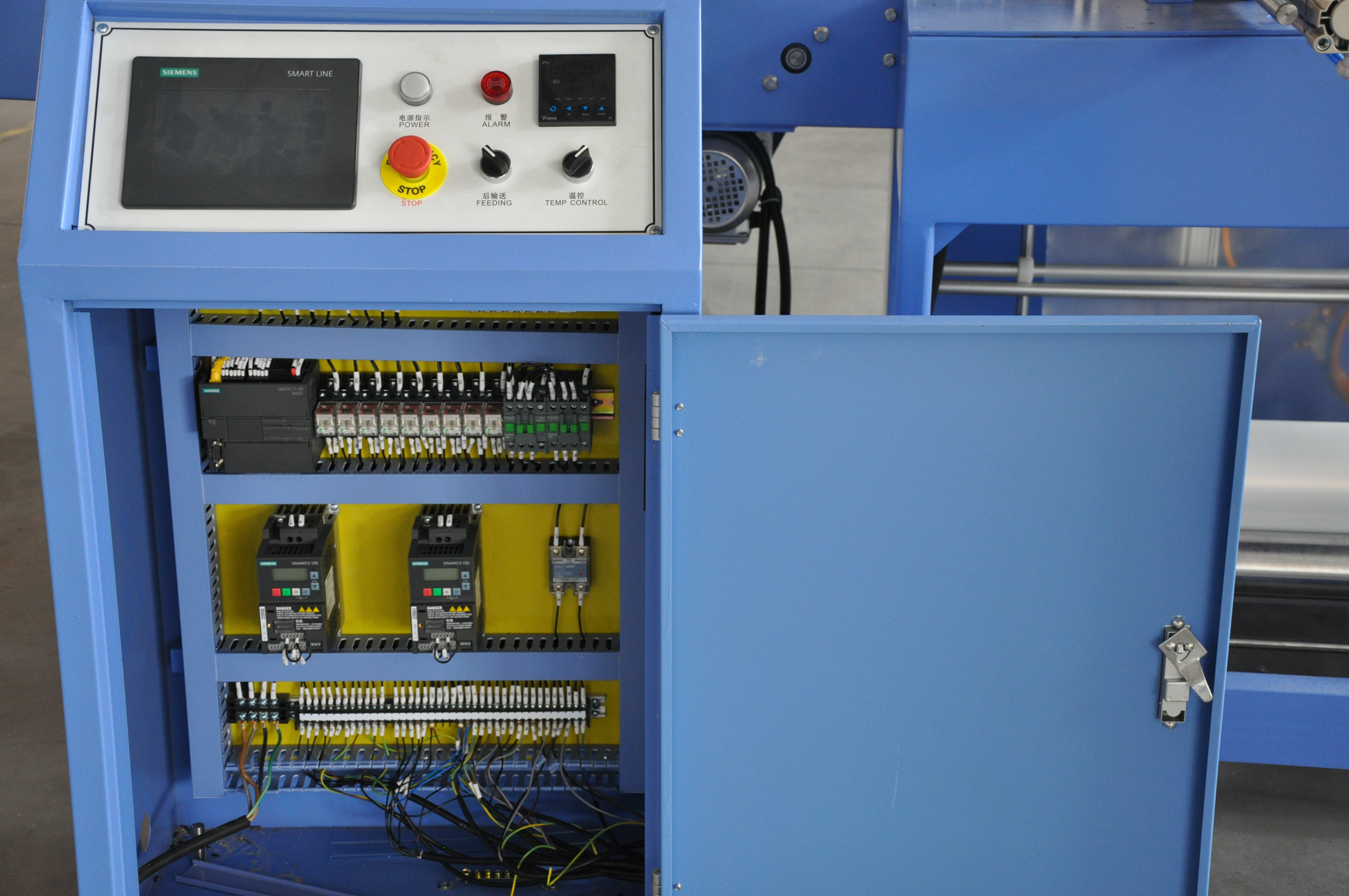

Adopting a PLC automatic controller and a human-machine interface, it prevents bottle falling and bottle shortage, and features flexible adjustment, safety, and aesthetic appeal. Its adjustable hot air circulation structure enables it to be compatible with various thermal films (including color-printed ones), and film replacement is convenient.
Equipped with a fault alarm and locking device, it operates reliably. The entire machine is made of high-quality steel and stainless steel, with a compact and durable structure, making it an ideal equipment for beverage filling lines.
| Product Model | BS-10L | BS-15L | BS-18L |
|---|---|---|---|
| External Size | 5050*3300*2100mm | 8400*1250*2200mm | 14500*1100*2100mm |
| Packaging Max Size | 420*280*350mm | 420*280*350mm | 420*280*350mm |
| Weight | 1500KG | 2000KG | 2500KG |
| Power Supply Voltage | 380/220V | 380/220V | 380/220V |
| Power | 20KW | 25KW | 32KW |
| Actual Power | 15KW | 20KW | 27KW |
| Max Output | 10 bags/min | 13-15 bags/min | 18-20 bags/min |
| Shrinkage Temperature | 160 - 250° | 160 - 250° | 160 - 250° |
| Film Thickness | 0.07-0.1mm | 0.07-0.1mm | 0.07-0.1mm |
As a pioneer in beverage and packaging production equipment, we have been dedicated to providing holistic, end-to-end solutions that empower the global beverage sector.
We focus on the entire process, including water treatment systems, blow molding machines, and filling machines, up to the packaging equipment. With a deep understanding of the industry's evolving needs, our expertise spans the entire beverage production cycle, covering every critical link from pre-production preparation to final packaging and logistics support.
We are located in Zhangjiagang city, a two-hour drive from Shanghai. We are a factory primarily manufacturing water treatment, beverage filling, and packaging machines. We provide complete turnkey solutions based on more than 20 years of industry experience.
You are welcome to visit our factory at any time. Seeing is believing. With our dedicated manufacturing workshop and research & development team, we can arrange for technical visits and ensure complete support for after-sales services.
With 20 years of experience, we focus on high-end machine construction. Our strict quality control systems involve a dedicated QC department, ensuring sample approval before mass production and systematic final inspections of all units prior to shipment.
We provide a one-year warranty alongside life-long technical support. Our services cover machine maintenance, and we deliver a complementary supply of key wear parts with the shipment to secure initial operating parameters.
After completing production, we execute run tests, record operational videos, and send photos to you. Post-commissioning, the equipment is packed in standard export cases. On-site engineer dispatch for line assembly and operations training is available upon request.
Yes. Based on your factory dimensions and specific packaging requirements, we can provide customized drawings and turnkey layouts covering everything from water treatment configurations to final shrink wrap machine outputs.
