Product Description

Product Description

DFS-450 Semi-Automatic Continuous Conveying Food Biscuit Cookie Box Package Plastic Film L type Seal-Cut-Shrink Wrapping Machine

DFS-450 Continuous seal-cut-shrink combined machine is a new product, which can achieve sealing, cutting and shrinking in one machine.

The objects will automatically conveyed into the shrink tunnel by the conveying belt when the film is sealed and cut.

Therefore, it has high efficiency. It is suitable for packing boxes, toys, electronics and so on.

  • Combined sealing, cutting, and shrinking operations in one continuous flow.
  • Automatic belt conveying system into the shrink tunnel.
  • High efficiency performance ideal for boxes, toys, and electronics packaging.

Specification

Parameter Value / Detail
Voltage 380V/ 50-60Hz
Power 12.5KW
Seal-cut time 0-3 second
Max. Sealing size L 500*W450mm
Max. Packing size L+H<500mm, W+H<450mm
Packing speed 500-800 times/H
Conveyor time 0-10m/min
Loading weight 15kgs
Film thickness 0.015-0.08mm
Machine size 1880*1200*1410mm

Product Details Gallery

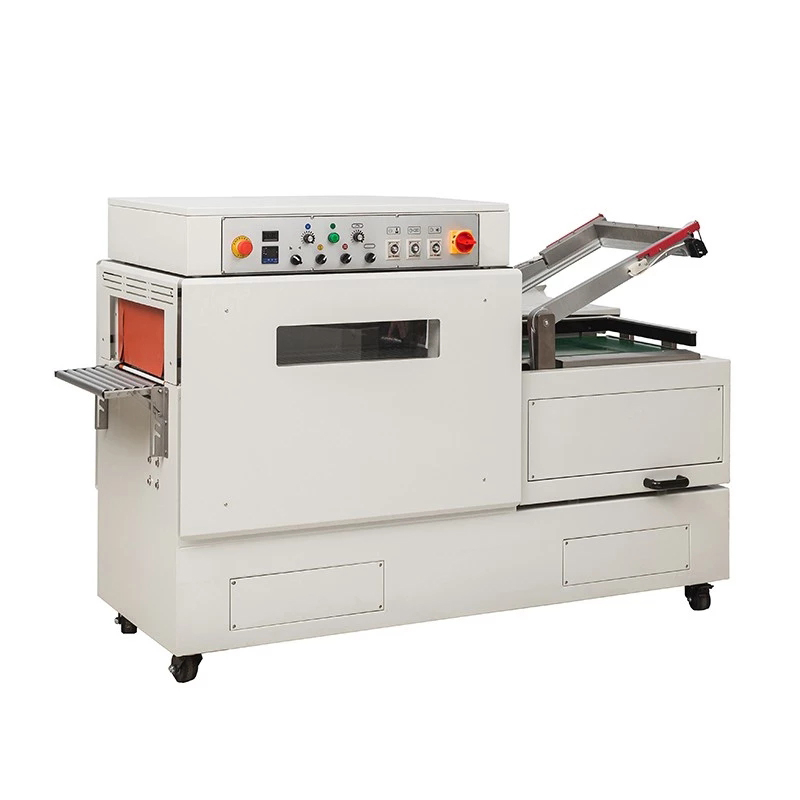

DFS-450 Wrapping Machine Detail 1
DFS-450 Wrapping Machine Detail 2

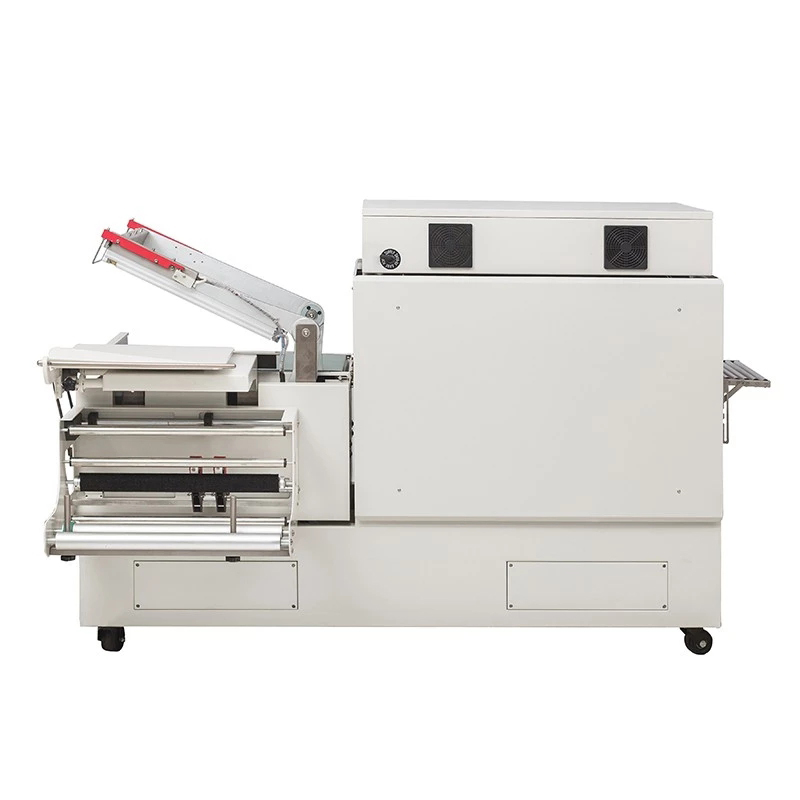

DFS-450 Wrapping Machine Detail 3
DFS-450 Wrapping Machine Detail 4
DFS-450 Wrapping Machine Detail 5

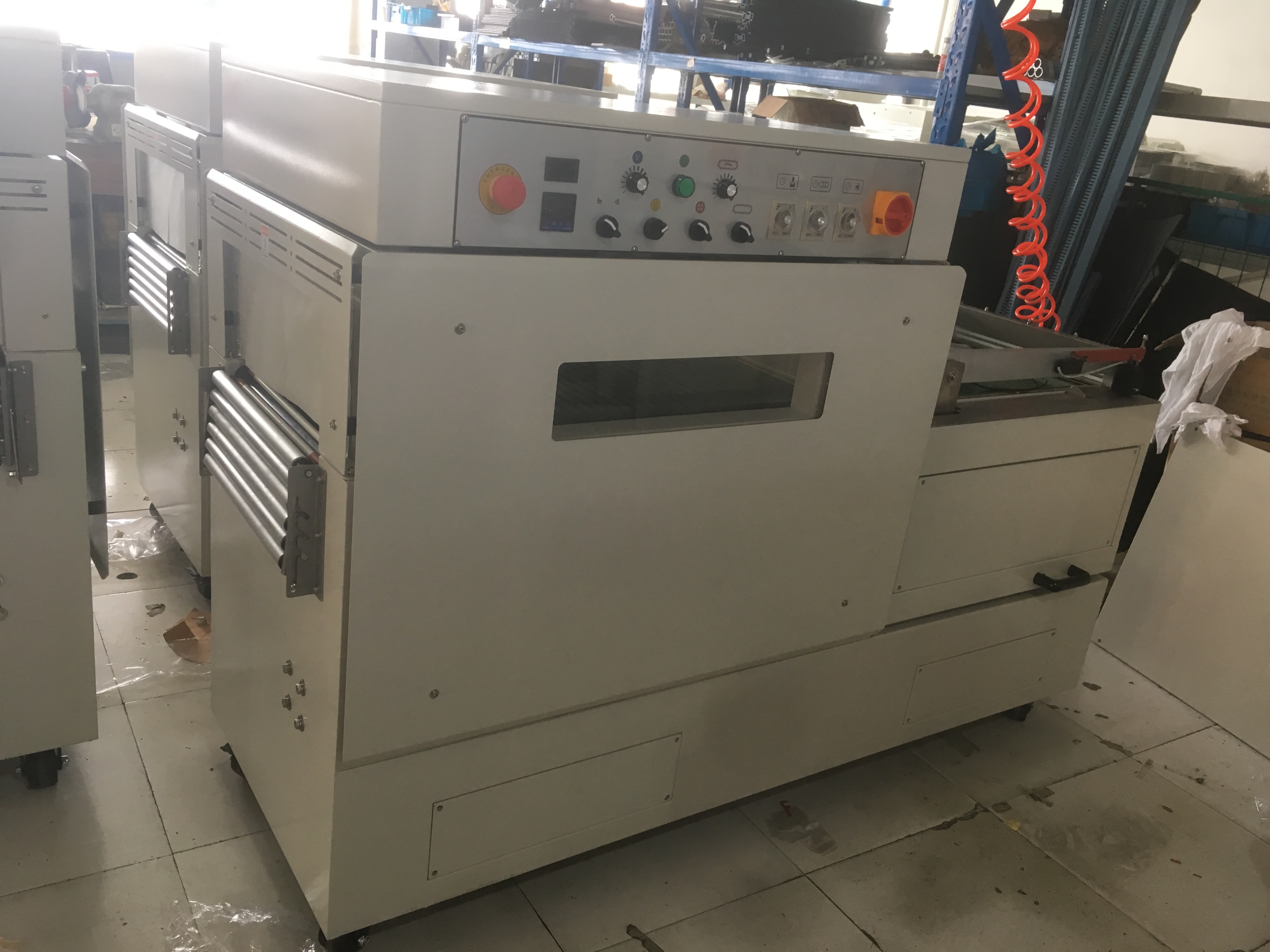

DFS-450 Wrapping Machine Detail 6

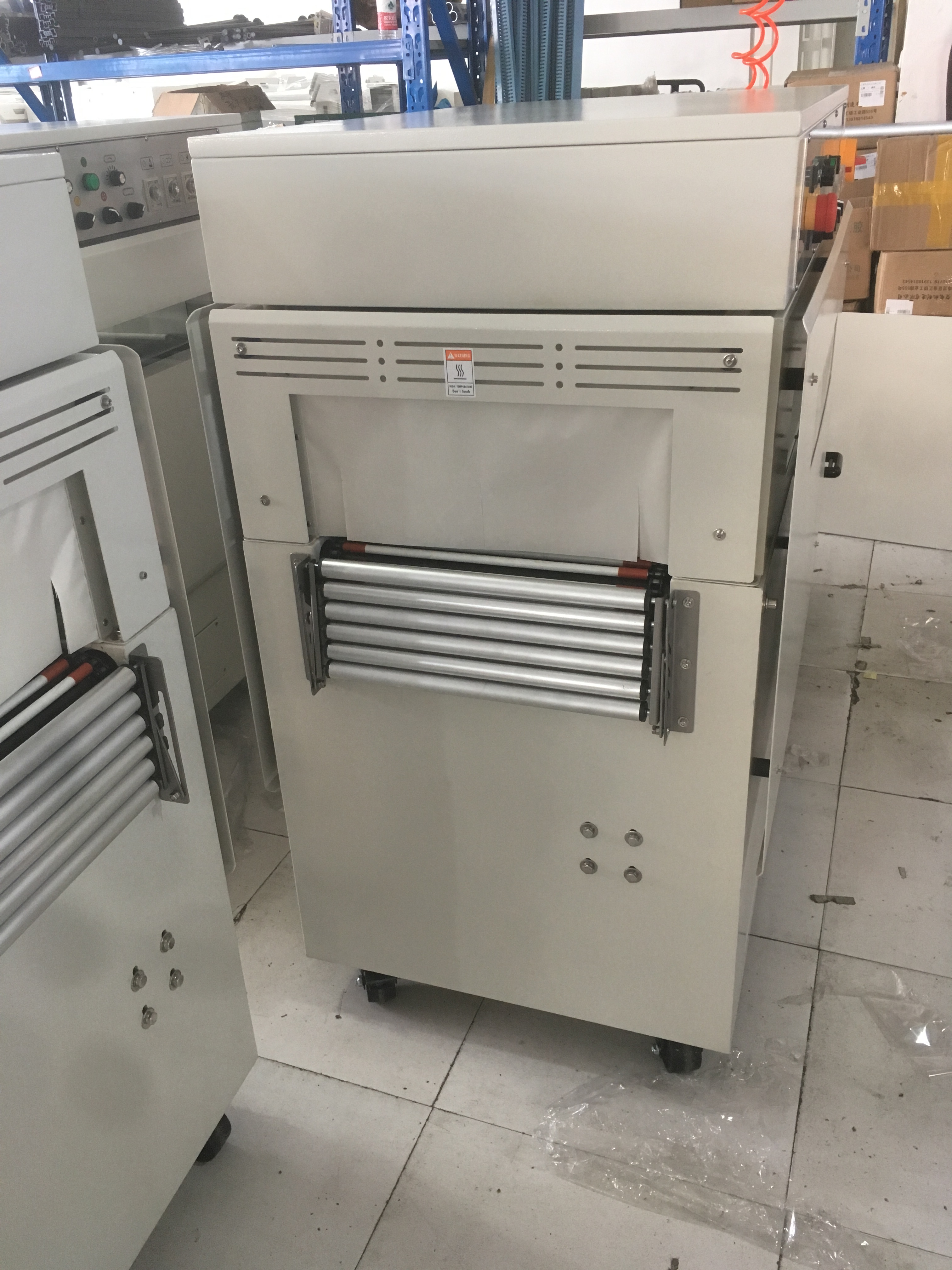

DFS-450 Wrapping Machine Detail 7

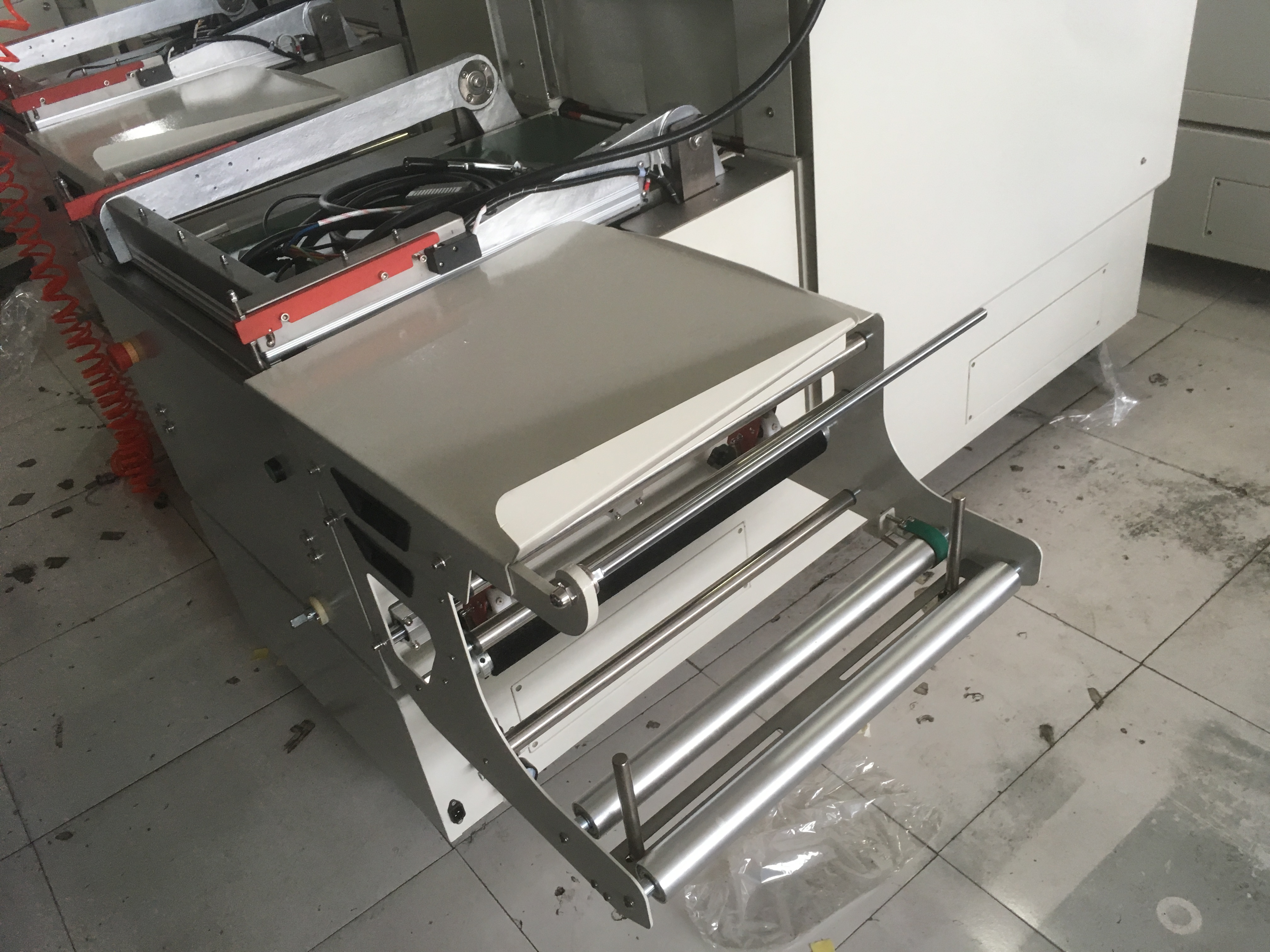

DFS-450 Wrapping Machine Detail 8

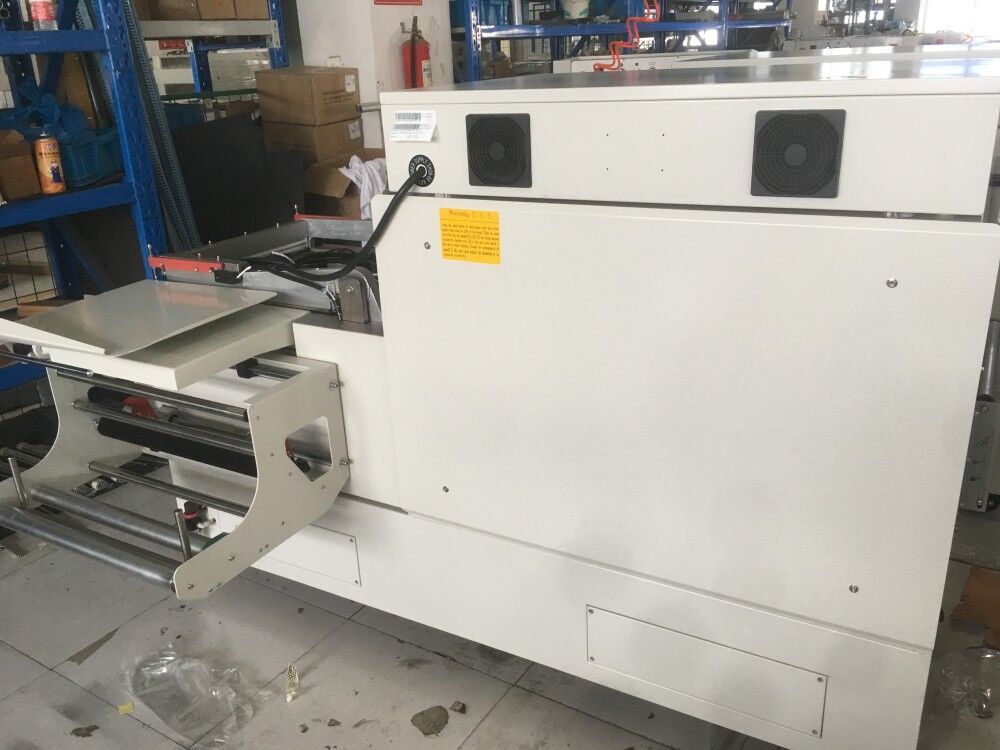

DFS-450 Wrapping Machine Detail 9

Packing & Delivery

Standard Packaging: Export wooden case packing

Packing Wooden Case 1
Packing Wooden Case 2

Frequently Asked Questions

What types of products can the DFS-450 shrink wrapping machine package?
The DFS-450 is highly versatile and ideal for packaging regular-shaped items such as food boxes, biscuits, cookies, toys, electronics, cosmetics, and various household goods.
What are the maximum product dimensions for sealing and wrapping?
The machine features a maximum sealing size of L 500 * W 450 mm. The maximum packaging size limits are L+H < 500mm and W+H < 450mm.
How does the automatic continuous conveying system work?
Once the operator seals and cuts the plastic film around the package, the built-in conveyor belt automatically moves the product directly into the heating shrink tunnel, minimizing manual handling and increasing output.
What packaging films are compatible with the DFS-450?
This wrapping machine supports standard plastic shrink films (such as POF, PVC, or PE) with a thickness range between 0.015mm and 0.08mm.
What type of packaging protection is used for transit?
The machinery is securely packaged in robust, standard export wooden cases to ensure comprehensive protection against damage during shipping and handling.
