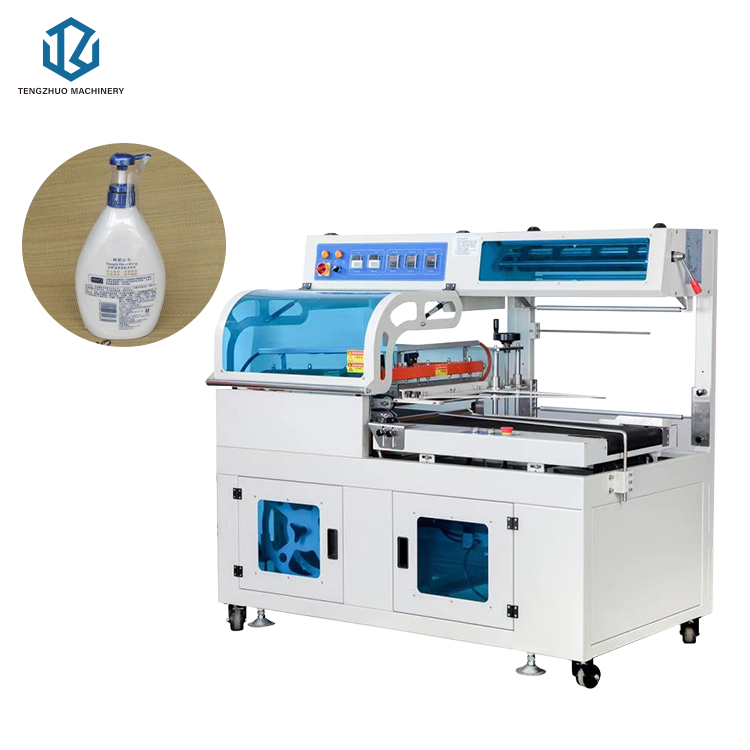

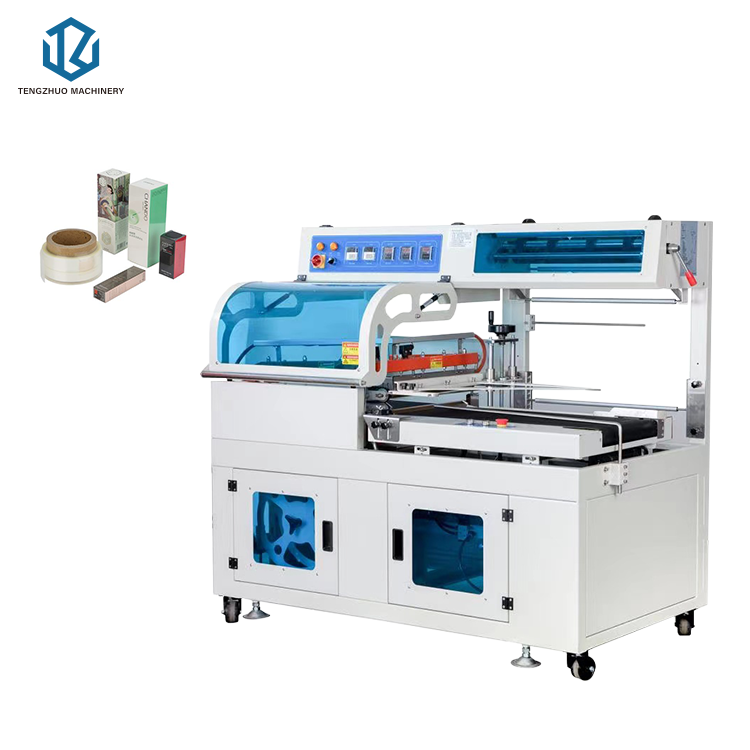

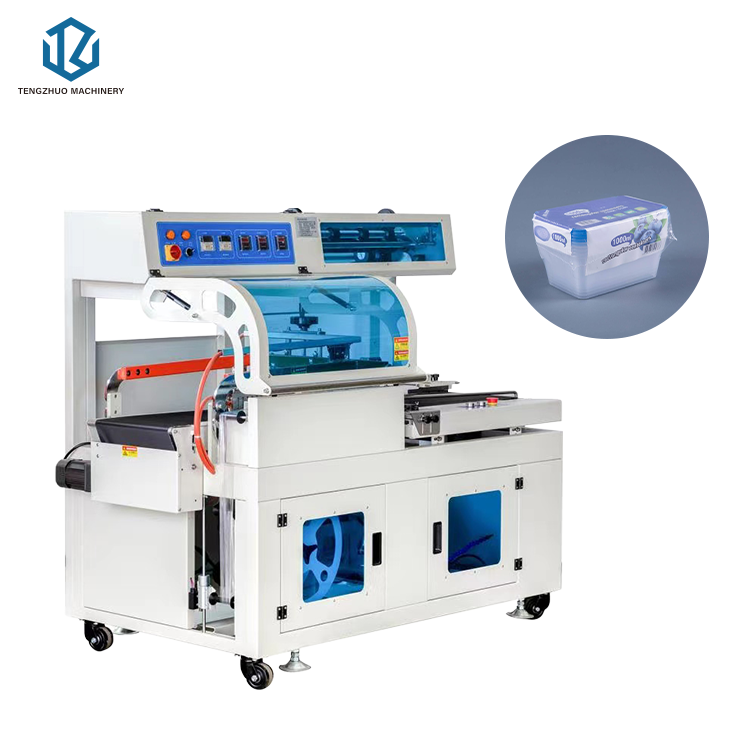

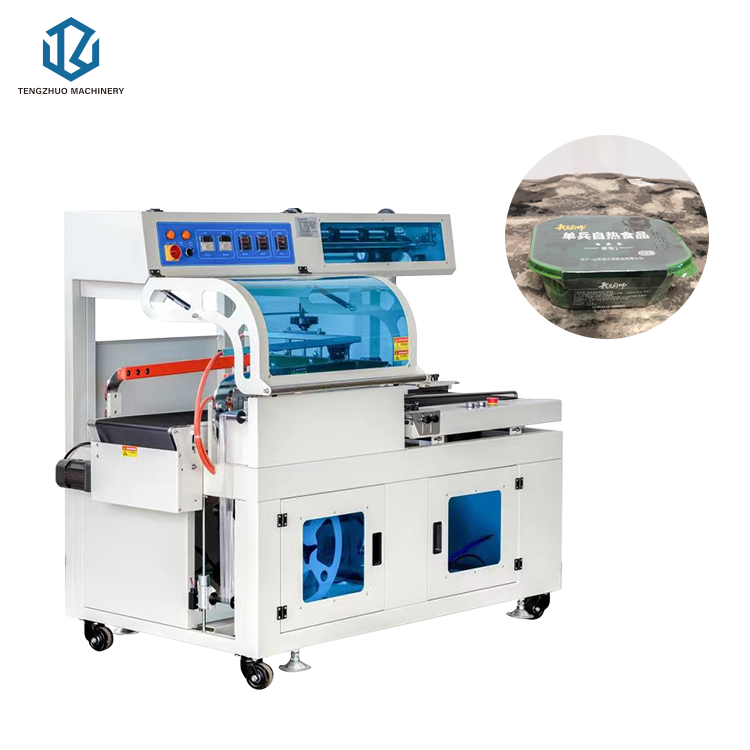

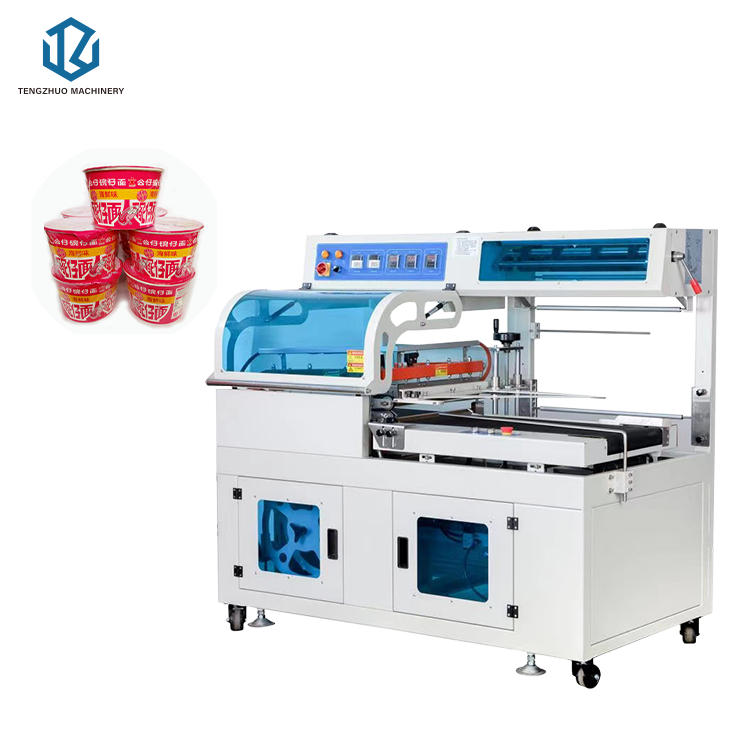

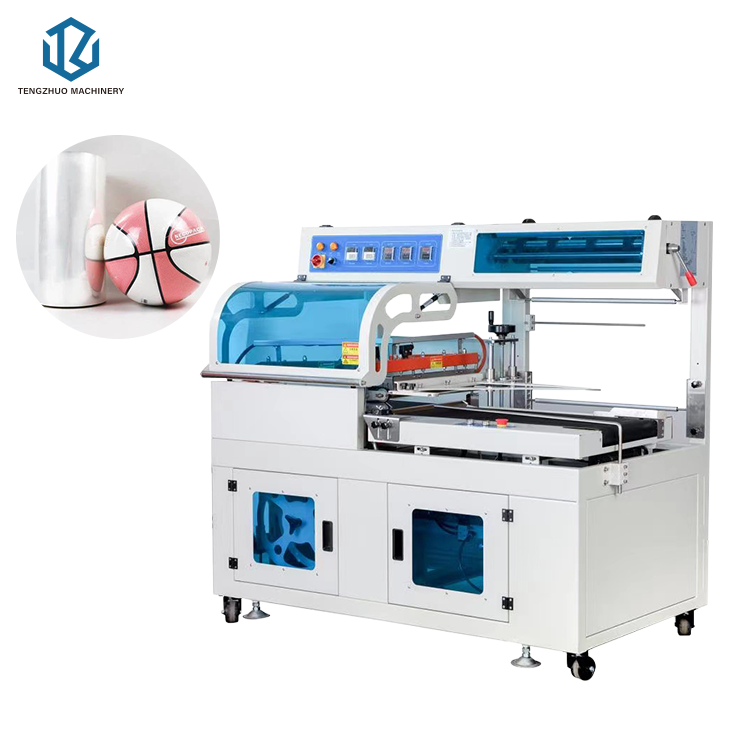

The fully automatic sealing and cutting machine can be used for fully automatic online shrink packaging of products. It uses photoelectric detection of products automatically. It can choose between automatic feeding and manual feeding modes. It uses folded film and can seal the other three sides.
The constant temperature heating sealing and cutting system can be used to seal and cut various industrial standard heat-sealing films such as PE, PVC, POF, etc. The seal is firm and beautiful, especially suitable for POF sealing and cutting. When changing the product size, only a simple adjustment is made through the hand wheel without replacing any parts, which reduces the product replacement time and is easier to operate.
The adjustable speed front feeding system and the storage work platform at the back make the whole machine truly high-speed and unmanned automatic operation.
Technical Specifications
Parameter
Specification Details
Power Supply
220V / 50-60HZ
Power
1.35KW
Sealing Speed
15-30 bags/min
Maximum Packaging Size (Length)
L+H (H<150mm) < 500mm
Maximum Packaging Size (Width)
W+H (H<150mm) < 400mm
Sealing Knife Size
L*W (mm) 550 × 450
Machine Size (L*W*H)
1650 * 800 * 1450 mm
Machine Weight
300 kg
Applicable Shrink Film
POF, PE
Main Material of Equipment
304# Stainless Steel
Widely Application
Certificate
Customer Comment

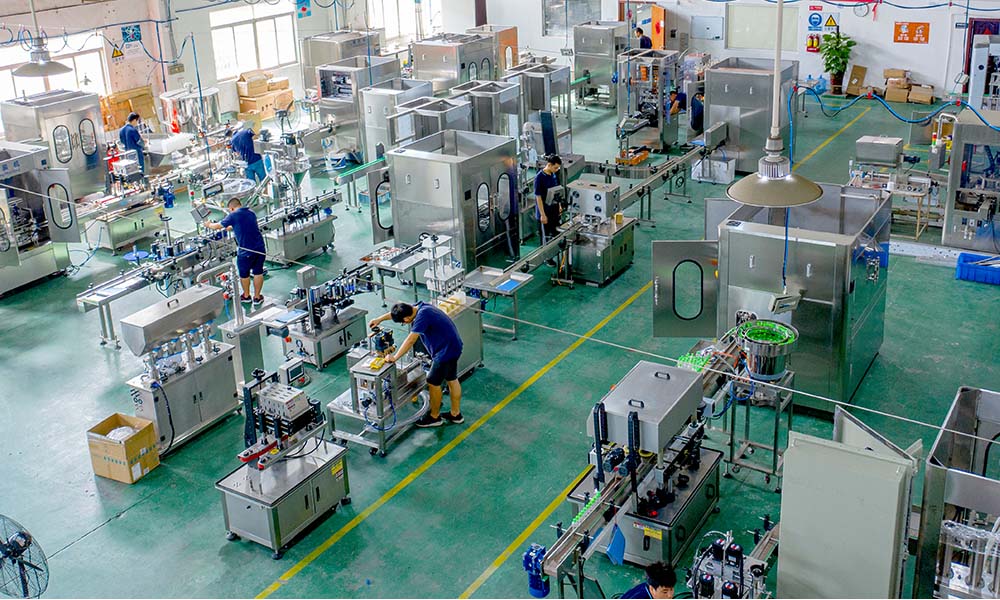

Company Profile
We specialize in manufacturing high-quality filling machines, capping machines, and labeling machines, tailored to meet the diverse needs of various industries, including liquids, sauces, oils, and more. With over ten years of experience in the packaging equipment industry, we have developed a deep expertise in creating reliable, efficient, and customized solutions.
Customized Filling Production Lines: We design filling production lines that are tailored to your specific requirements and workshop layout, ensuring optimal workflow and efficiency in your operations.
Comprehensive Product Range: Our equipment is versatile and can be applied across multiple fields, including but not limited to liquid, sauce, and oil packaging.
Certified Quality: All our products have passed CE certification, guaranteeing that they meet high safety and quality standards.
Our Capabilities:
* Experienced Team: Our company employs 16 senior engineers and designers who bring their extensive knowledge and expertise to every project.
* Advanced Manufacturing Facilities: We operate with 5 CNC lathes and milling machines, along with more than 10 other professional production machines and equipment, enabling us to deliver precision-engineered products.
Additional Services:
1. On-Site Installation: We provide on-site installation services to ensure that your machinery is set up correctly and integrated seamlessly into your production line.
2. Online Technical Support: Our dedicated support team offers online technical assistance, ensuring that any issues are promptly addressed to minimize downtime and keep your operations running smoothly.
By choosing us, you benefit from our commitment to quality, innovation, and customer satisfaction, ensuring that your packaging operations are efficient, reliable, and fully supported.
Production Process
Frequently Asked Questions
Q Does your factory offer overseas service?
Yes, we are a direct machinery manufacturer and offer overseas engineering services to ensure proper setup and support.
Q What information is required to get a suitable machine recommendation?
Please provide the details on the type of product you want to package, the required functions and speed, and your target production capacity (e.g., how many bottles/bags per hour).
Q How long is the machine guarantee period?
We provide a comprehensive 12-month guarantee for the entire machine.
Q Do you support OEM/ODM customized orders?
Yes, we accept both OEM and ODM requirements. The equipment can be fully customized according to your specifications.
Q What quality certificates do you have for the equipment?
Our machines comply with CE and GMP standards, and we hold multiple proprietary patents for our packaging designs.
Q What are the payment terms and standard lead time?
We accept T/T, Cash, and Western Union (typically a 40% deposit and 60% balance before shipment). The standard manufacturing lead time is approximately 30 to 45 days.
