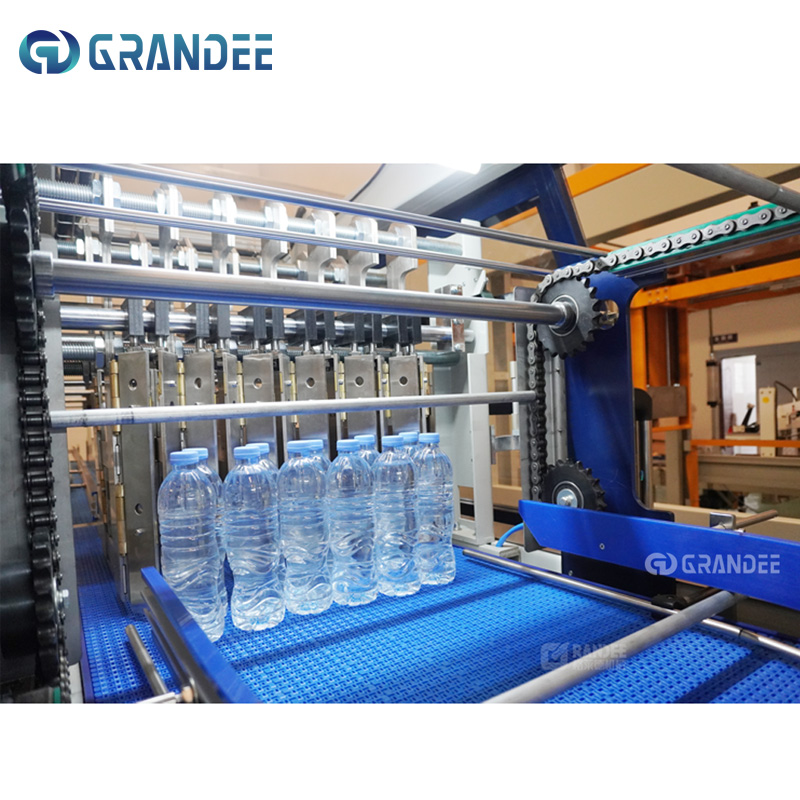

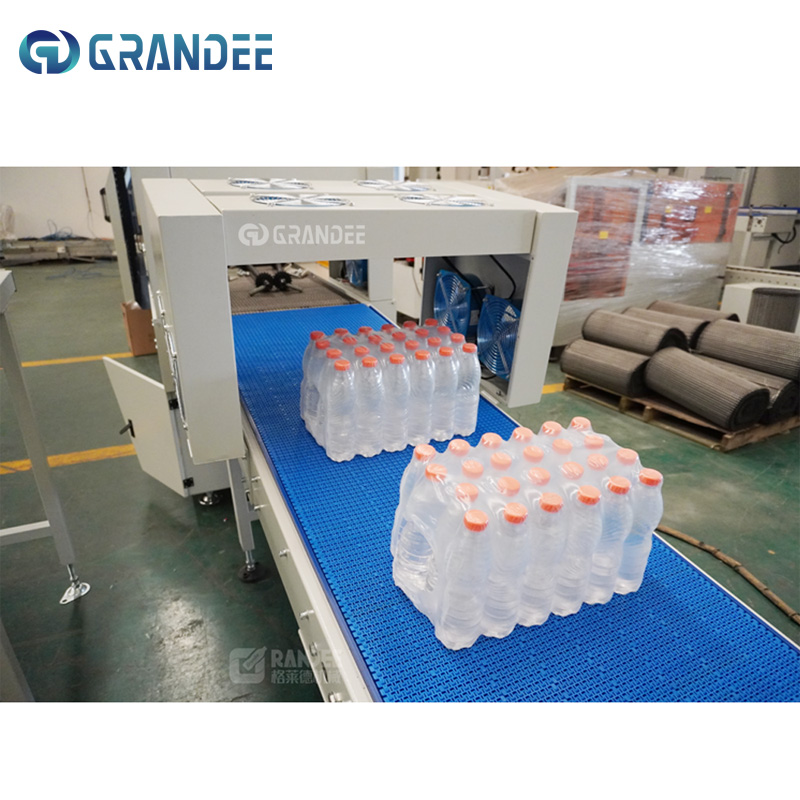

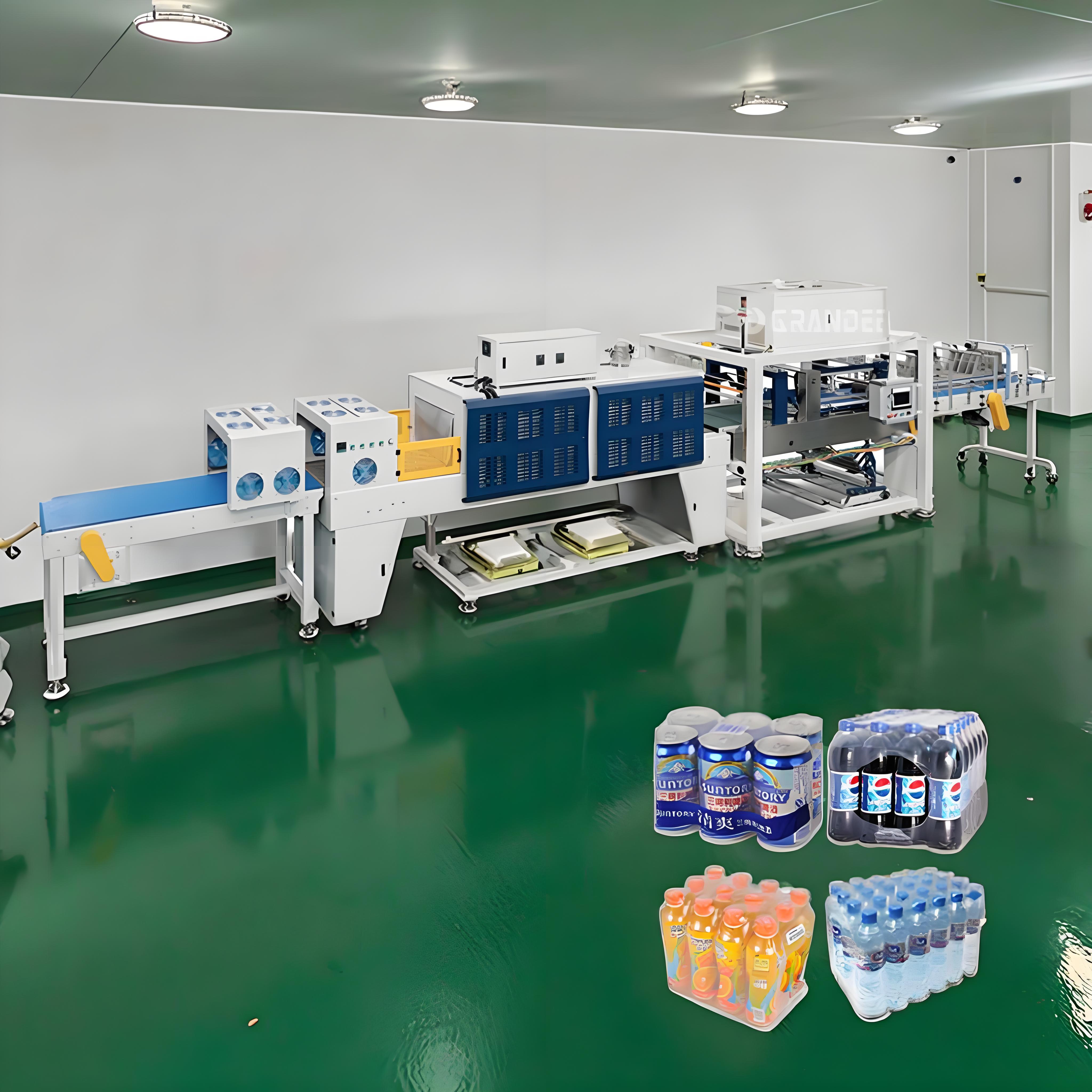

High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min
High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min
High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min
High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min
High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min
1 / 5
High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min
High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min
High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min
High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min
High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min

High Speed Energy Saving Heat Shrink Wrapping Machine for Beverage Water Bottle 20 Packages Min

Send Inquiry

Product Description

Packaging Machinery
Products Description

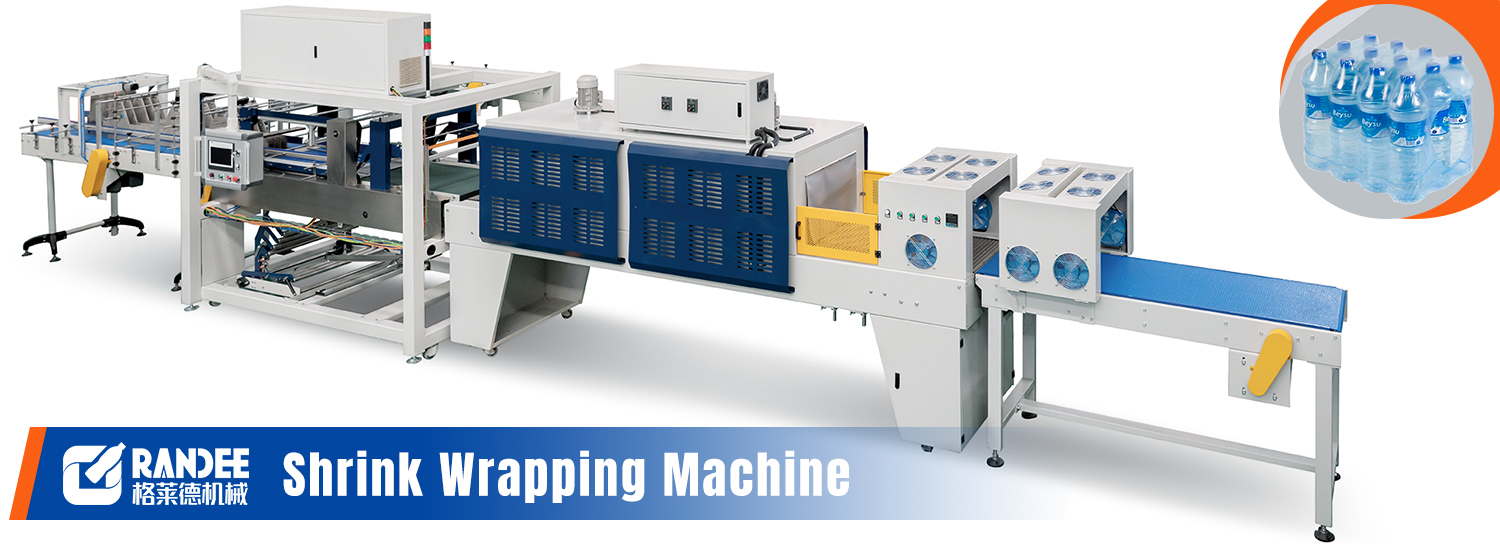

Packaging Machine Layout
Operating Principle Of Packaging Machine
The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure. The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.

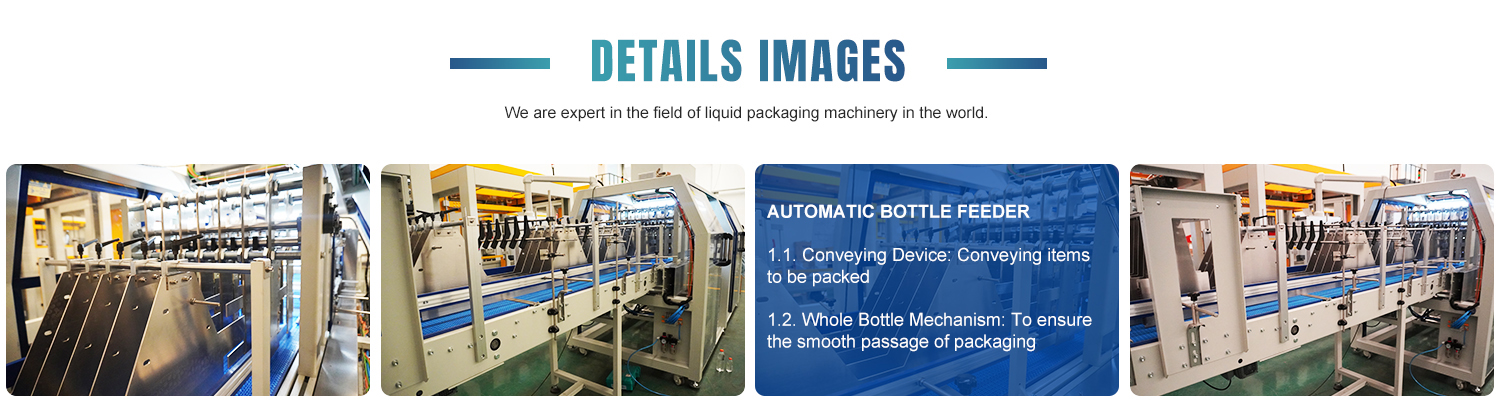

Packaging Process Detail 1

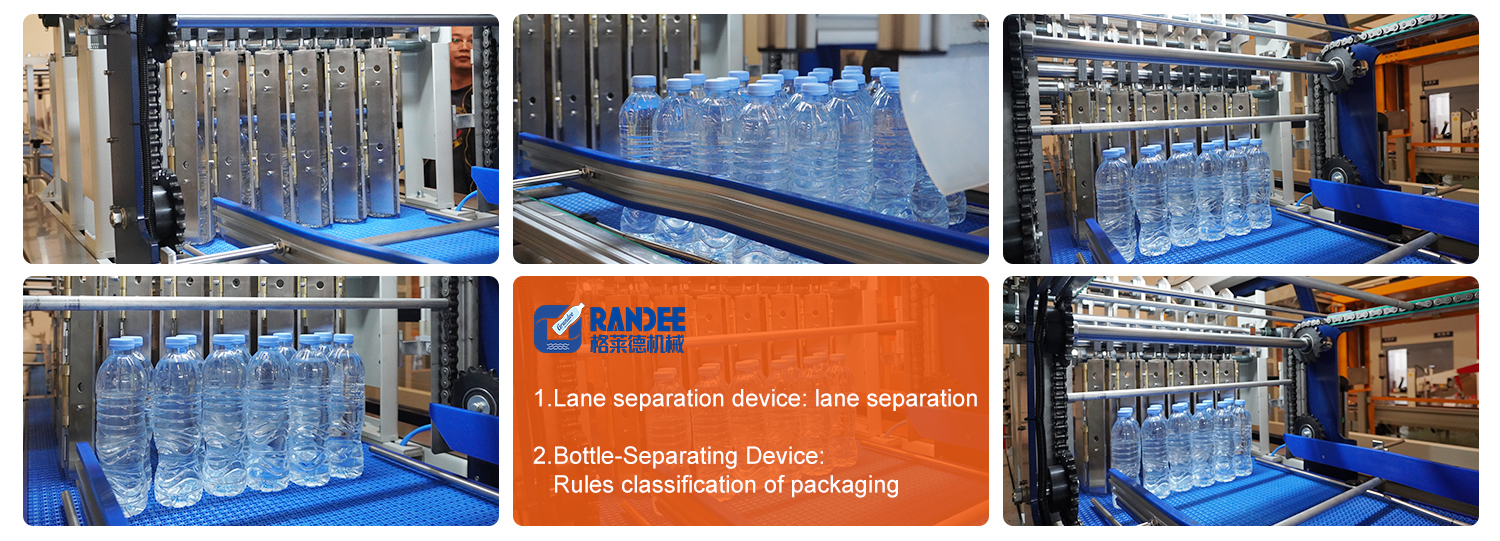

Packaging Process Detail 2

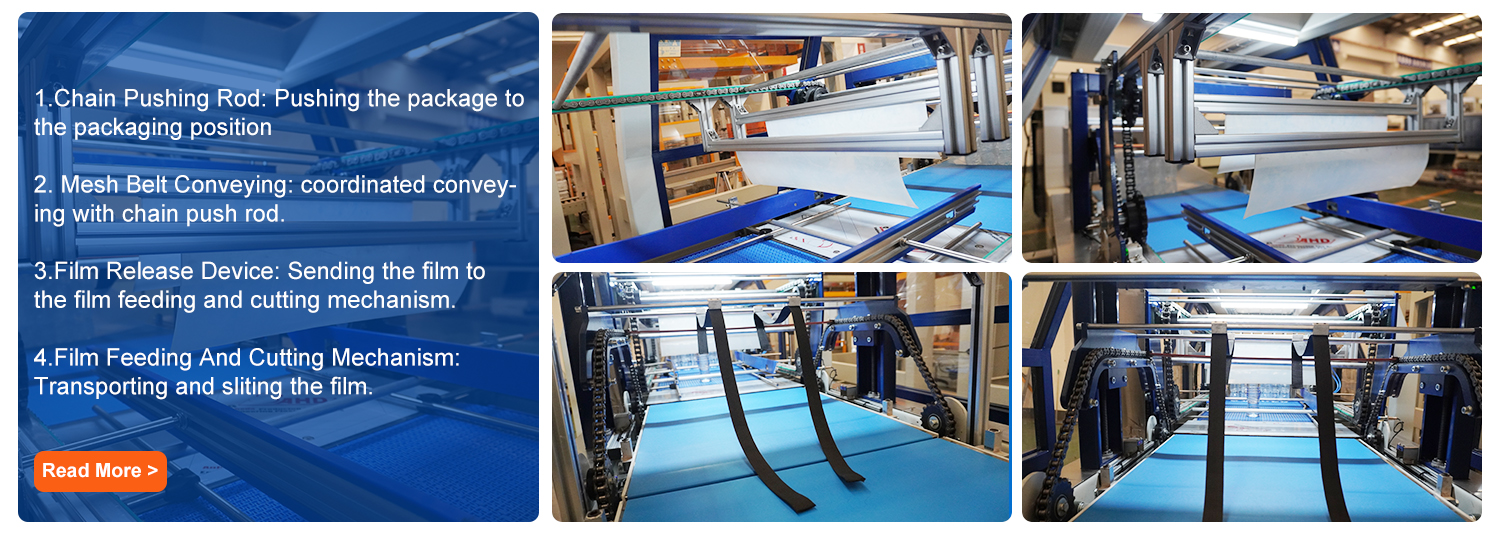

Packaging Process Detail 3

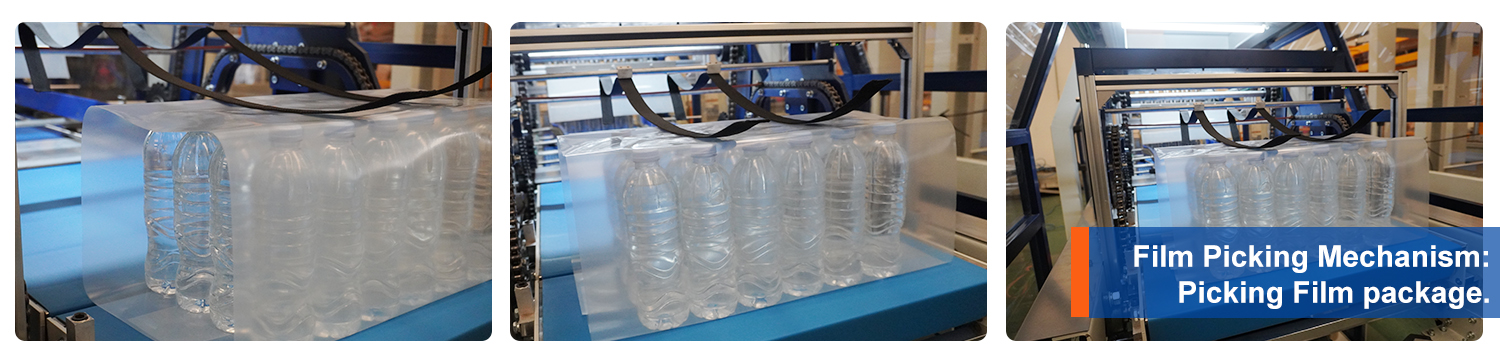

Packaging Process Detail 4

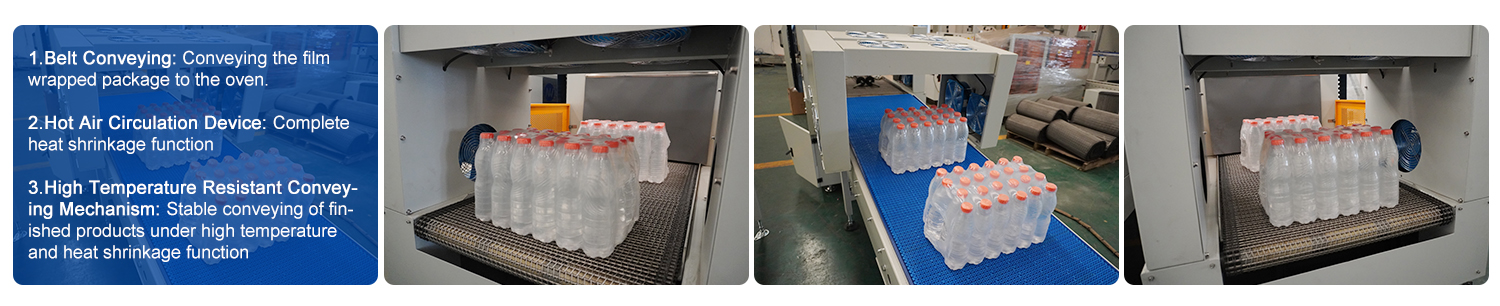

Packaging Process Detail 5

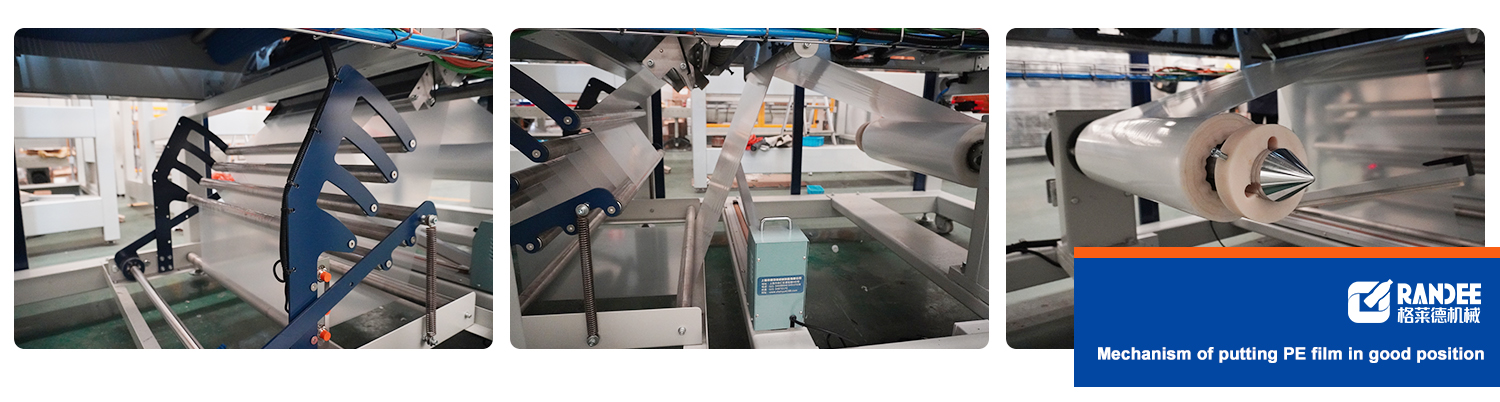

Packaging Process Detail 6
Main technical parameter

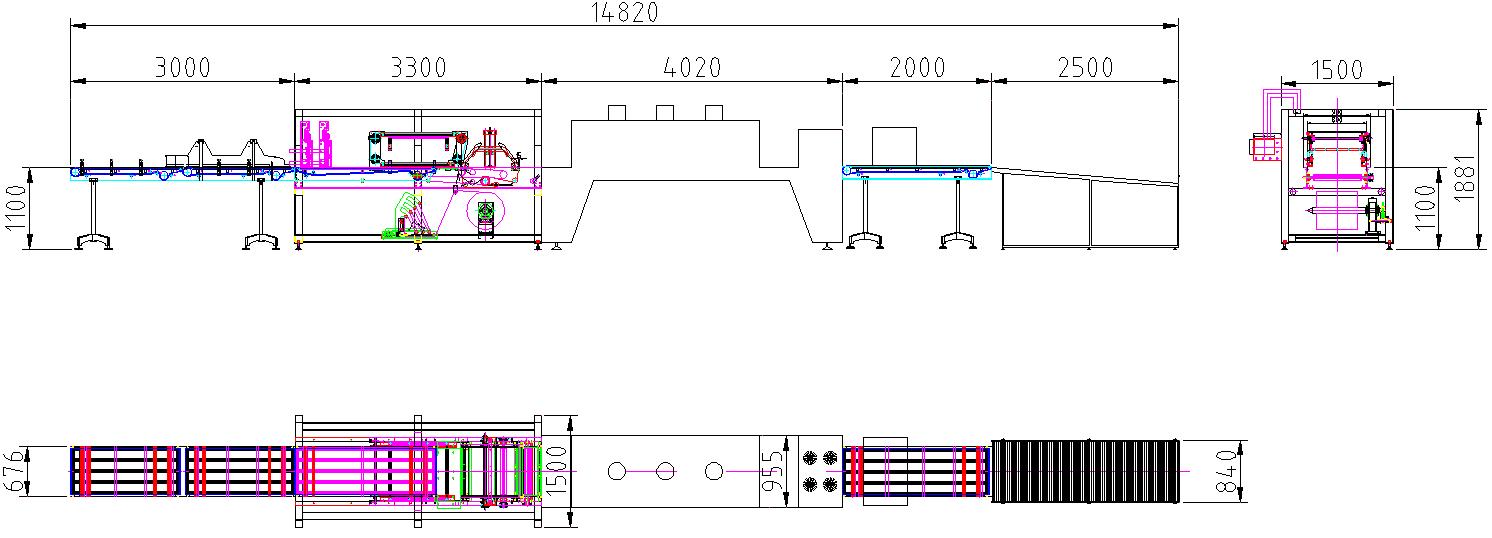

Technical parameters diagram
Model GD-A800-25
Power Supply AC 380V/60HZ Weight 5500KG
Operating Power 55KW Maximum Packaging Size 450 × 450 × 340 (H) mm
Working Pressure 0.6~0.8Mpa Film Cutter Length 600mm
Exhaust pressure 0.8Mpa Shrink Temperature 130-220 ℃
Gas consumption 80NL/min-100NL/min Shrink Time 0-6S (Depends on speed and site conditions)
Heat Shrinkable Film PE (Color Film) Maximum Production Speed 20-25 Pack/minute (Determined according to package size and packaging specifications)
Working Noise ≤65 Number of bottles per package (round or square)
Packaging Film Width ≤600mm 4 columns 4 x 6, 4 x 5 applicable bottle size 4 x 4 Φ 40 - Φ 70 mm
Packaging Film Thickness 0.03 ~ 0.15mm 3 columns 3 x 3 applicable bottle size 3 x 4 Φ 70 - Φ 98 mm
Level Of Feeding Conveyor Belt 1150±50mm 2 columns 2 x 3 bottle diameter 2 x 4 Φ 98 mm
package style: Sleeve Style Cuff Style 1 column 1 x 2 x 1 applicable bottle diameter 1 x Φ 140 mm
The Machine Features And Advantages
Machine detail view
  • 4.1. Universal Components: Selecting universal brand-name components, uniform specifications, and random interchangeability.
  • 4.2. PLC Programmable Control: The PLC programmable control system is adopted to ensure the accuracy and stability of the packaging process control. The shrinking machine adopts the latest thermal cycle treatment technology to reduce energy consumption. Improve the utilization rate of hot air, and the conveying speed can be adjusted by frequency conversion to achieve a good packaging effect.
  • 4.3. Intelligent Touch Screen: Touch screen control makes the device action control enter a high-precision and intelligent state. All actions are monitored, various alarms and PC status are displayed on the touch screen, which makes the equipment operation safer and more reliable. It can be operated in a single step, which is convenient for debugging and maintenance. The equipment is equipped with an automatic alarm device to further improve safety and reliability.
  • 4.4. High-Quality Pneumatics: The pneumatic components adopt the brand of Taiwan Airtac.

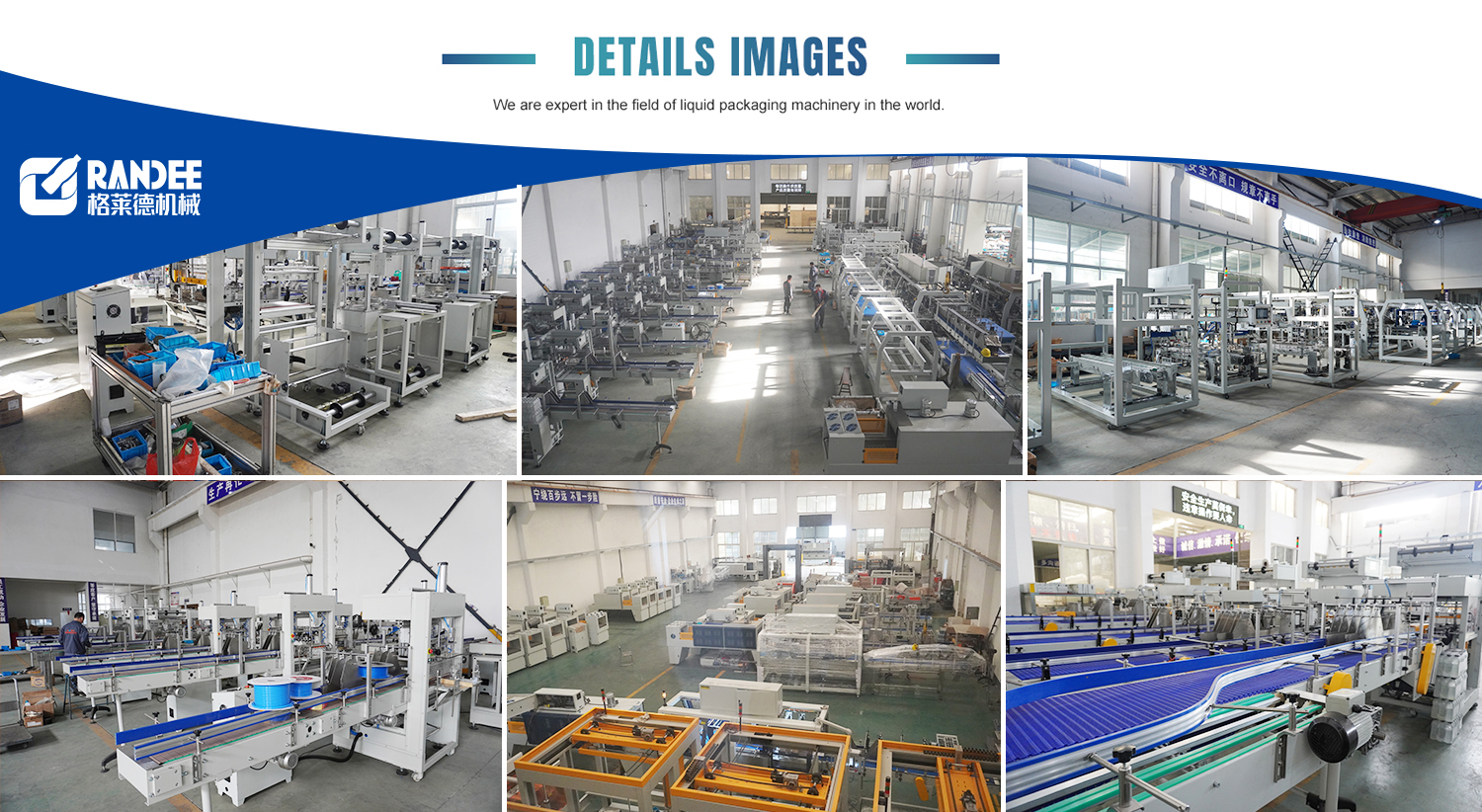

Component details
NAME BRAND AREA
PLC Siemens Germany
INVERTER Siemens Germany
CONTACTOR Siemens Germany
TOUCH SCREEN Siemens Germany
INVERTER Siemens Germany
MOTOR ABB SWISS
PNEUMATIC PARTS FESTO GERMANY
ELECTRICAL PARTS SCHNEIDER FRANCE
Turnkey Solution

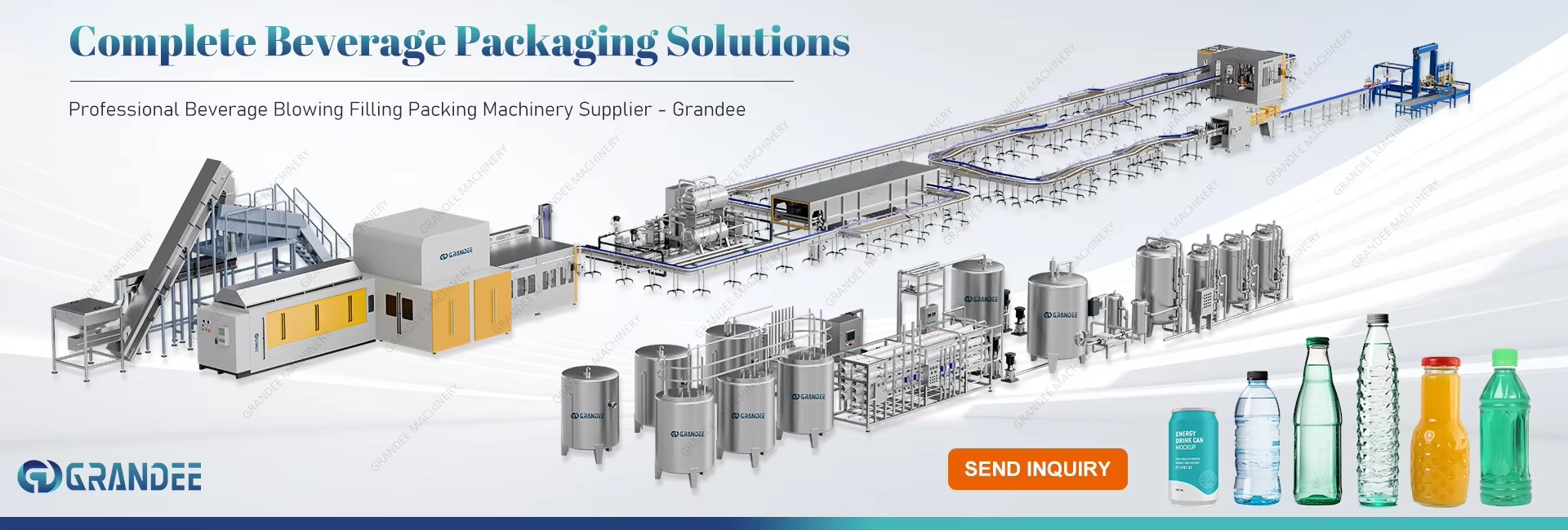

Turnkey solution production line
Turnkey solution processing line

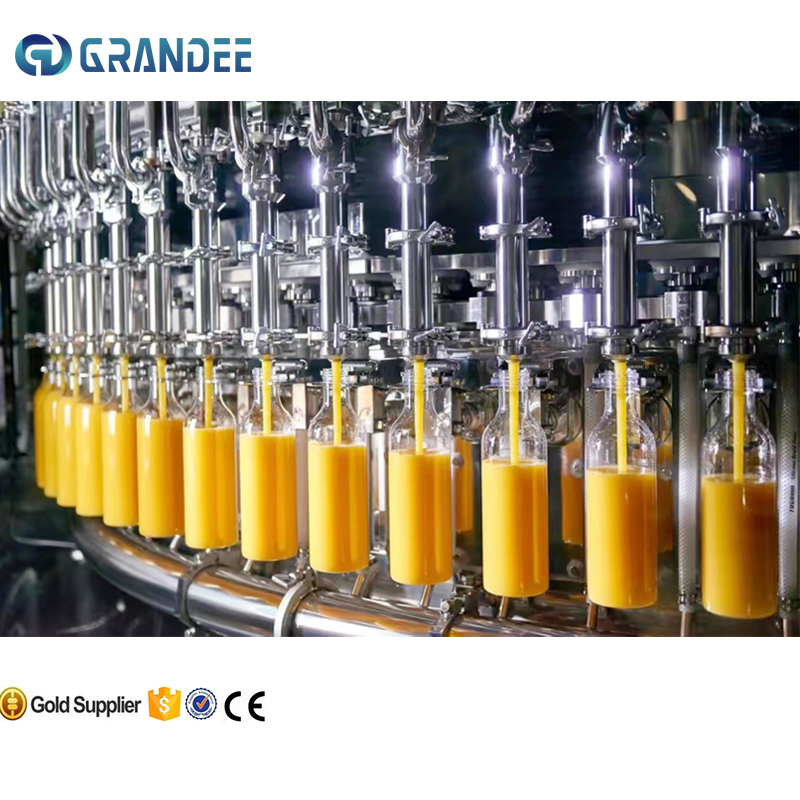

Juice filling machine
Juice filling machine

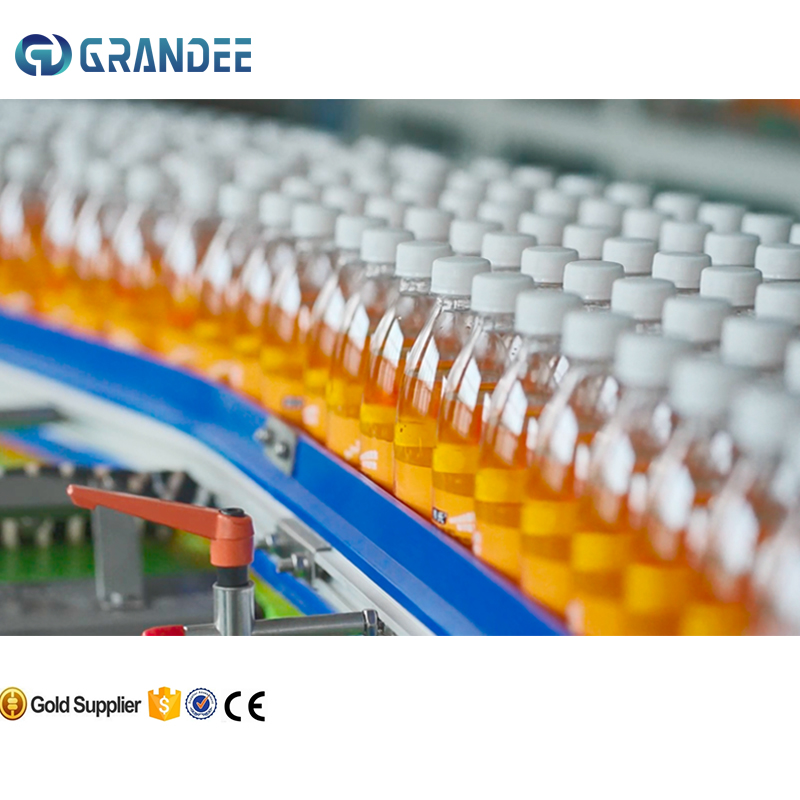

Carbonated drink filling machine
Carbonated drink filling machine

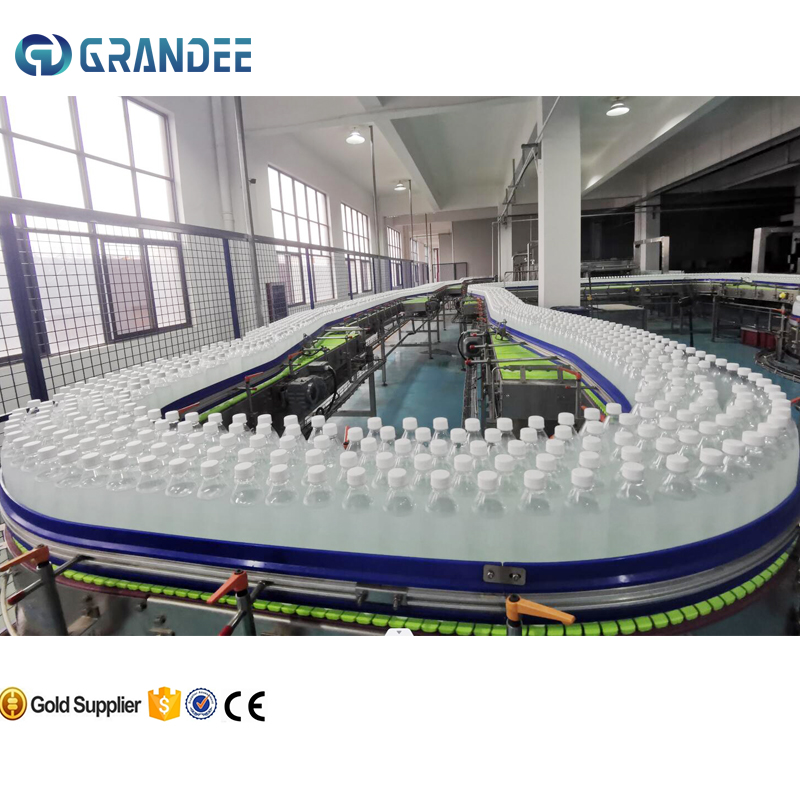

Automatic soft drink production line
Automatic soft drink production line
Mixed fruit juice mixing system
Mixed fruit juice mixing system

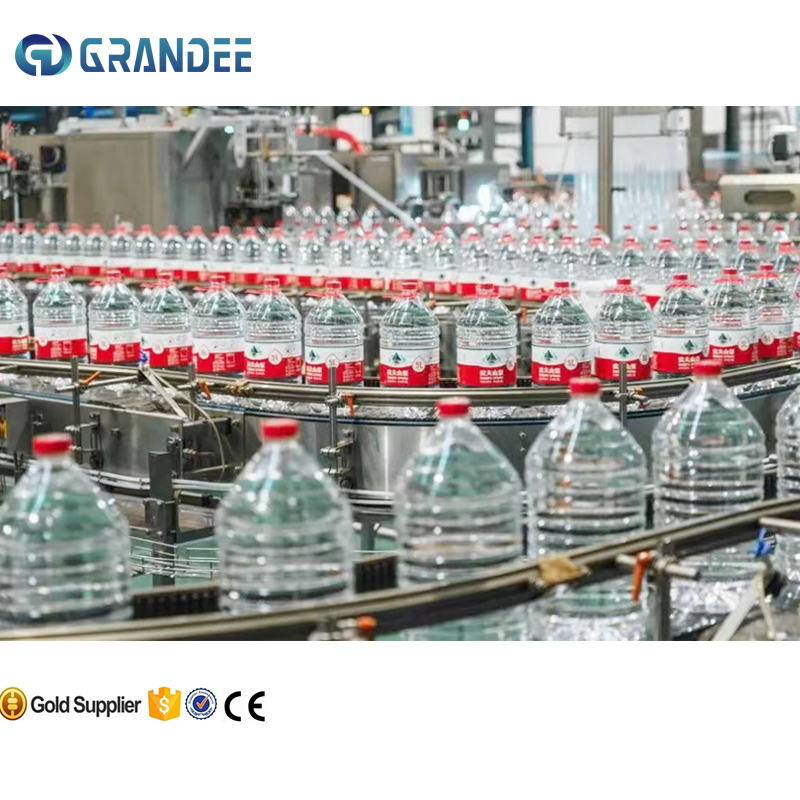

Mineral water filling machine
Mineral water filling machine

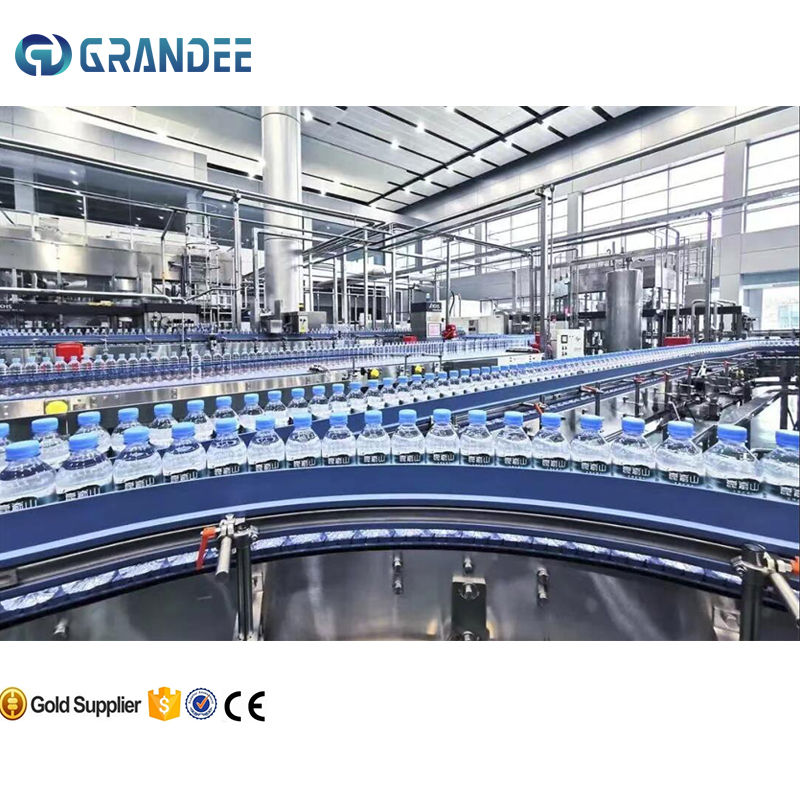

Bottle filling packaging machine
Bottle filling packaging machine
Exhibition
Exhibition booth
Exhibition interactions
Certifications
Product Quality Certifications
Customer Acceptance Report

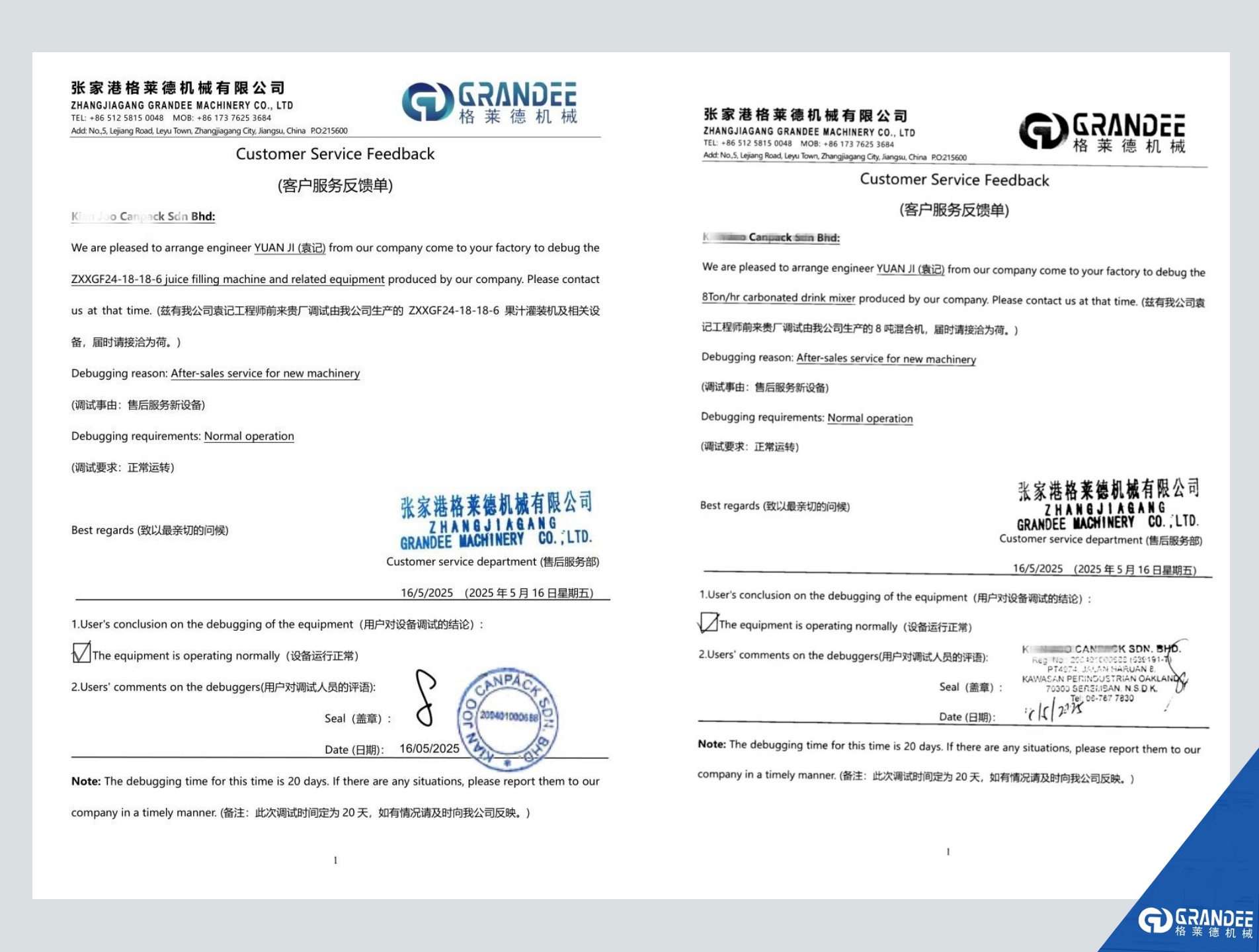

Customer Acceptance Verification
Frequently Asked Questions
How to find a suitable machine or complete beverage production line?
Please contact us via email or instant messenger and let us know your requirements. Discuss key details such as the items you are looking to pack, bottle sizes, and production volume so we can specify the correct equipment configurations.
Are you a trading company or a manufacturer?
We are a manufacturer of water/beverage filling machines and water treatment systems with over 10 years of experience. We provide complete solutions, high-quality engineering, and dedicated after-sales support.
Do you have technical support after we purchase your machines?
Yes, we arrange for our professional technicians to travel to your factory. They will assist with installation, commissioning, and train your team on how to operate and maintain the purchased machinery.
Do you offer wear-out spare parts with the machinery?
Yes, we provide our high-quality machine with a 2-year guarantee, and we also offer a 2-year supply of wear-out spare parts for free. Our technical team is available to assist via remote diagnostic support if any issues arise.
What type of packaging films are compatible with this shrink packing machine?
The machine is configured to run heat-shrinkable PE film, including both plain and printed color films. It accommodates a maximum packaging film width of 600mm and thicknesses ranging from 0.03mm to 0.15mm.
What brand components are used in your machines?
We select premium-grade international brand components to ensure high stability. This includes Siemens PLCs, touch screens, and inverters, ABB motors, Festo pneumatic parts, and Schneider electrical components.
