LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
1 / 5
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump

LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump

Send Inquiry

Product Description

Product Description
Main Performance

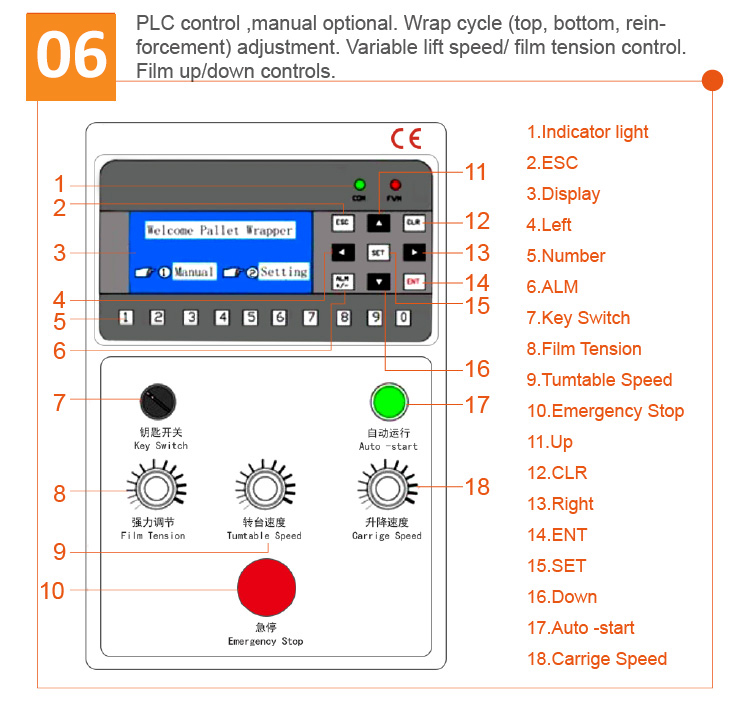

  • PLC programmable control, winding program optional, various parameters adjustable

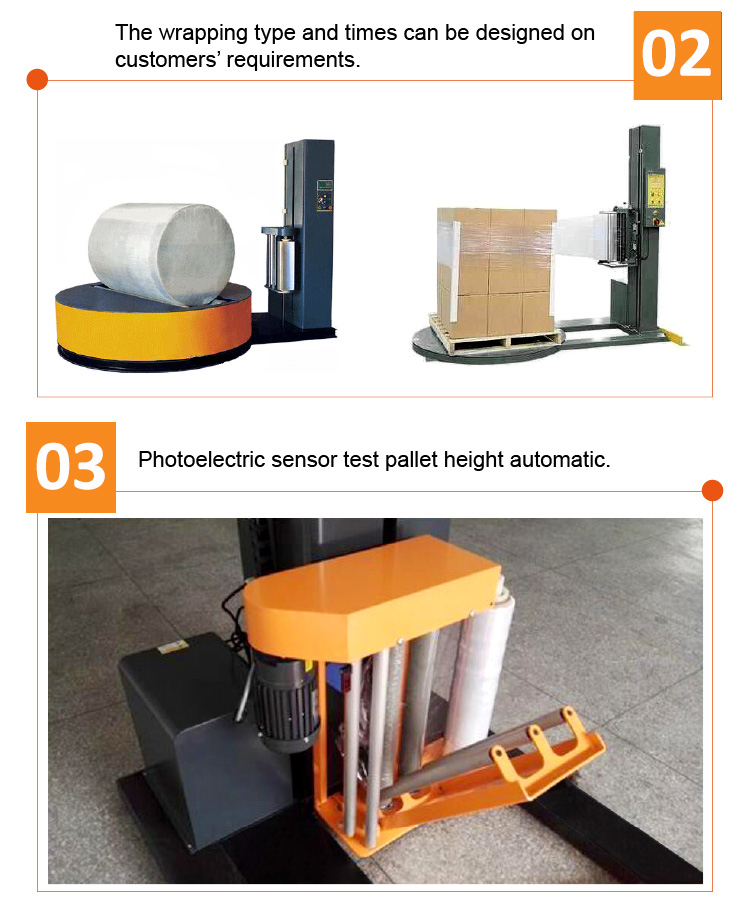

  • Photoelectric switch automatically senses cargo height
  • Pre-stretching automatic film feeding mechanism
  • Rotary slow start, slow stop, automatic reset
  • The top and bottom winding numbers are individually controlled
  • Automatic, manual switchable, virtually no routine maintenance required
Turntable Drive
  • Turntable frequency control 0~12 rpm adjustable

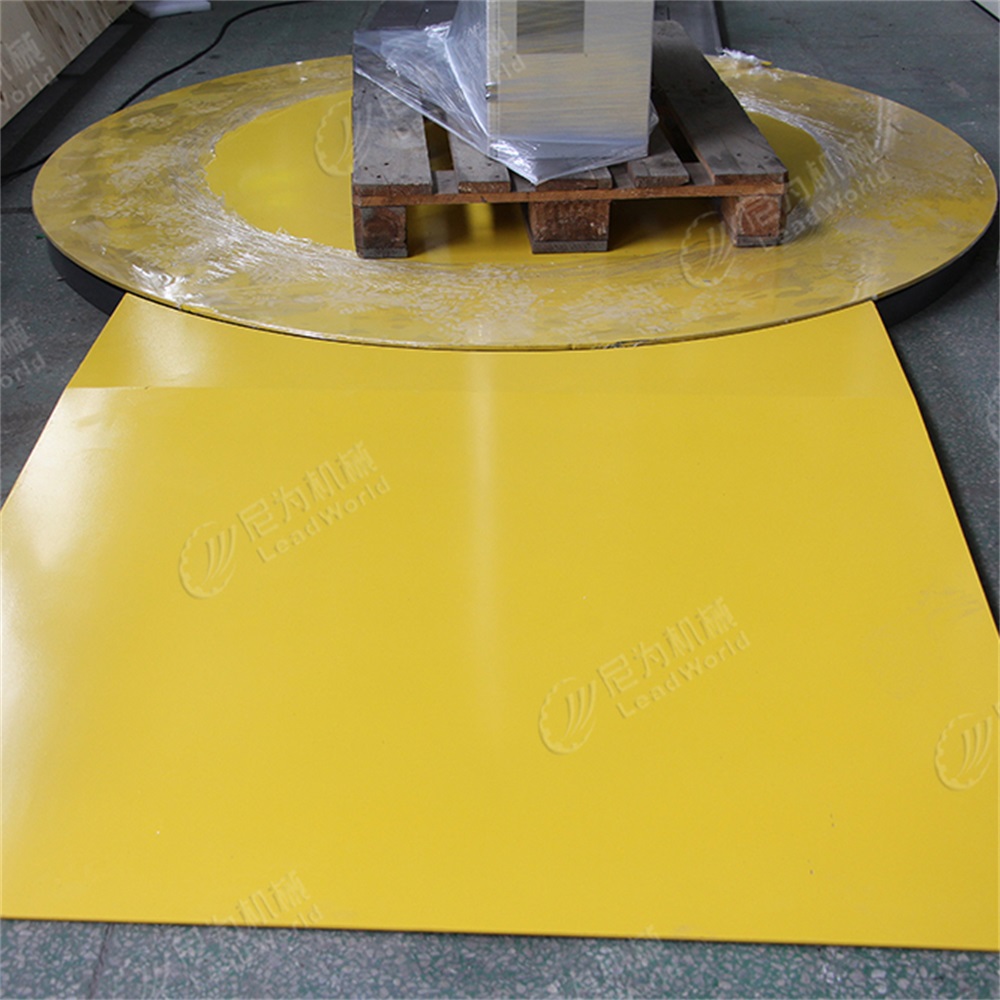

  • The turntable is automatically reset
  • The turntable is made of pure steel and high wear-resistant material
Film System
  • The membrane frame dynamic pre-stretching mechanism can pre-stretch up to 250%, reducing the amount of film consumption.
  • The rise and fall speeds of the membrane frame are respectively adjustable.
  • Film feed speed is adjustable; separate DC motor control.
  • The top and bottom winding numbers are individually controlled.
  • The film system follow-up mechanism, a pull.
  • The film frame is a pure cast aluminum frame, which is light and stable.
  • Use wear-resistant rubber roller, long service life.
  • The lifting column is a single chain structure, which is stable and reliable.

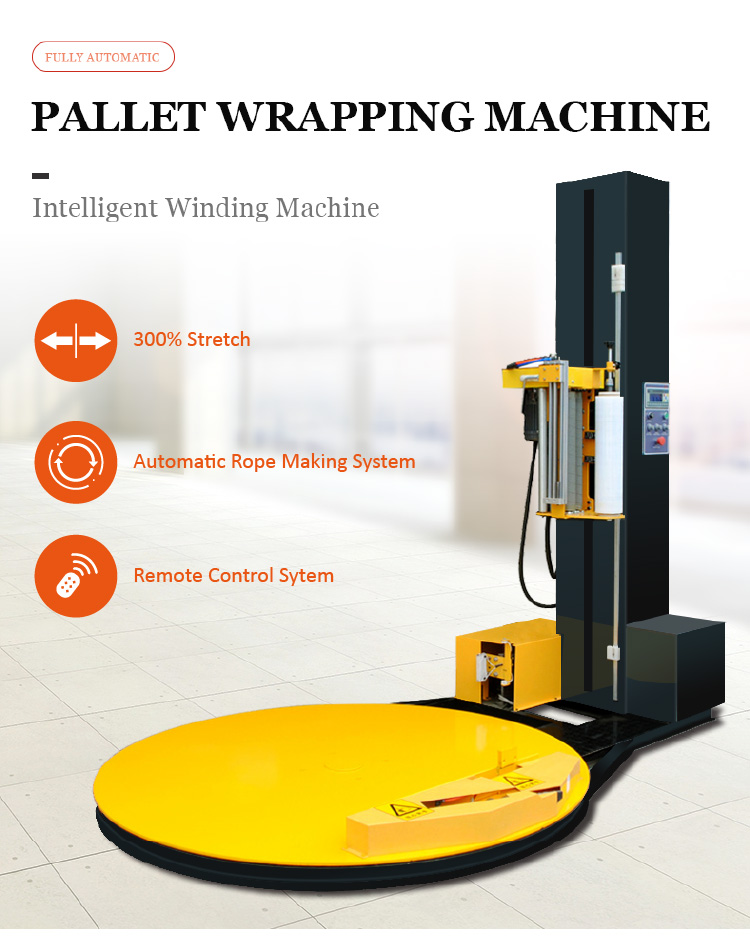

Product Image

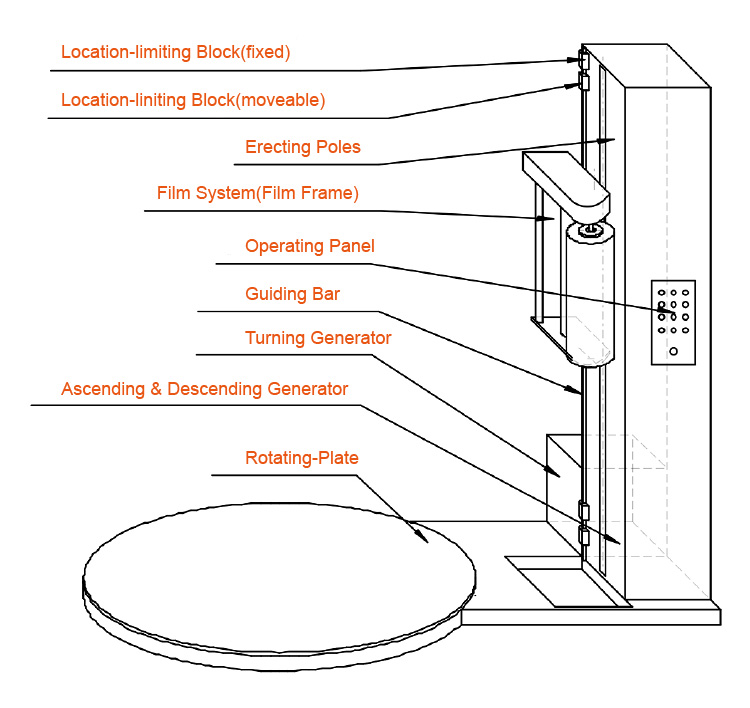

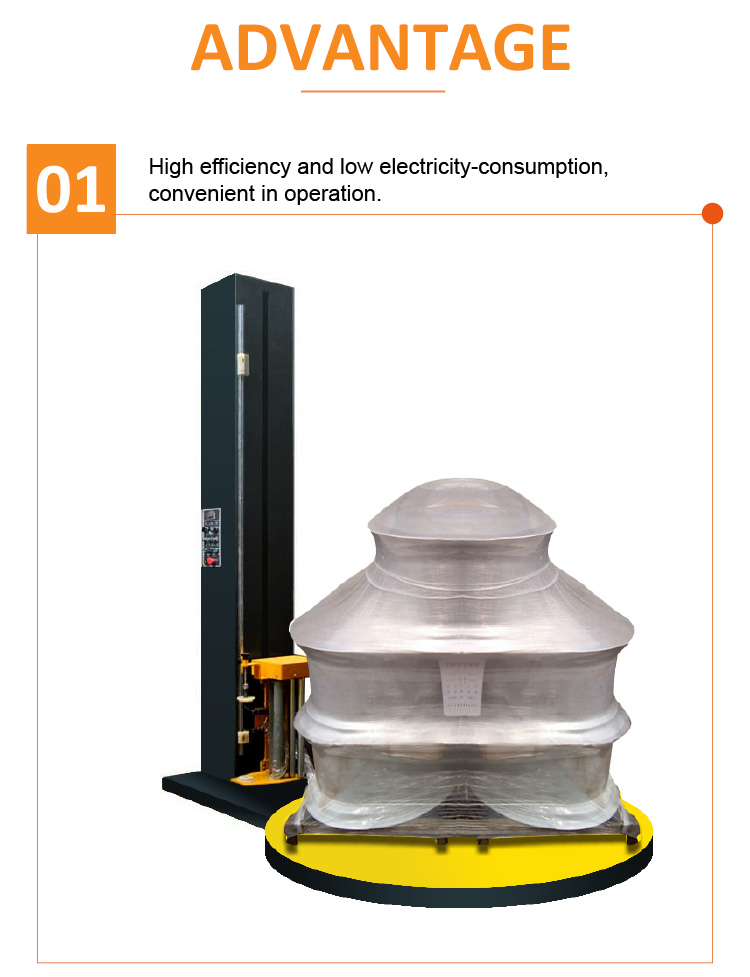

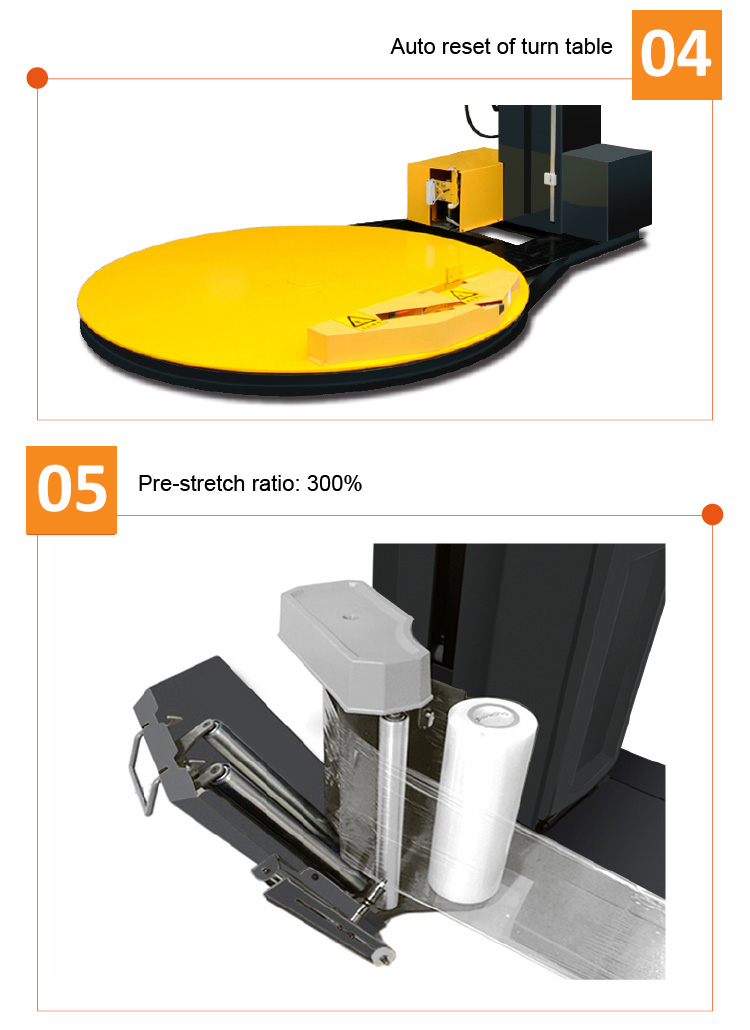

Equipment Detail 1 Equipment Detail 2 Equipment Detail 3 Equipment Detail 4 Equipment Detail 5 Equipment Detail 6
Specification
Parameter Specification Details
Packing size L1200xW1200xH2400mm
Max load 1500kg
Turntable size 1650mm (option 1800mm, 2000mm...)
Turntable height 80mm
Turntable speed 0-12 RPM
Voltage 220V/1phase - 50Hz
Wattage 1.32KW
Packing efficiency 20-40 pallet/h
Dimension L2625xW1650xH2750mm
Accessories Parameters
Name Brand
PLC Siemens
Touch screen Kunlun Tongtai, Taiwan
Turntable frequency converter Haily Danfoss, Denmark
Lifting and Frequency Converter Haily Danfoss, Denmark
Pre-pull drive Haily Danfoss, Denmark
Travel switch SCHNEIDER Schneider, France
Photoelectric switch Pegaft, Germany
Proximity switch Phoenix, Taiwan
Membrane frame lifting reducer Deli, China
Turntable reducer Taibang, Taiwan
Film frame pre-pull motor OT, China
Manufacturing & Production
Product Categories Overview Production Workflow
Facility Image 1 Facility Image 2 Facility Image 3 Facility Image 4 Facility Image 5
FAQ
1. What is the scope of our business and market distribution?
We established operations in 2009. Our market distribution includes the Domestic Market (40.00%), Southeast Asia (12.00%), Africa (10.00%), Mid East (8.00%), North America (5.00%), Oceania (5.00%), South America (4.00%), South Asia (4.00%), Eastern Europe (3.00%), Eastern Asia (3.00%), Western Europe (2.00%), and Northern Europe (2.00%). Our facility maintains a dedicated team of 51-100 personnel.
2. How is equipment quality guaranteed?
Quality is managed through structural protocols: a pre-production sample is always evaluated before mass production, followed by a mandatory final inspection before shipment.
3. What equipment types are available for purchase?
We offer a complete range of systems including Canned Food Production Lines, Vacuum Packaging Machines, Filling Lines, Packing Machines, and Palletizers.
4. What advantages separate us from other suppliers?
We hold 10 years of specialized experience in Food Processing Machinery and Packing Machine Equipment. Our machinery solutions are built to fulfill the automation demands of prominent global corporations.
5. What delivery and payment terms are supported?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDU, Express Delivery.
Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF.
Accepted Payment Types: T/T, L/C, Credit Card, PayPal, Western Union, Cash.
Languages Spoken: English, Chinese, Russian.
6. How does the dynamic pre-stretching film mechanism work?
The system utilizes a dynamic mechanism that stretches the wrapping film up to 250% prior to application. This design significantly decreases film consumption while maintaining high load stability.
