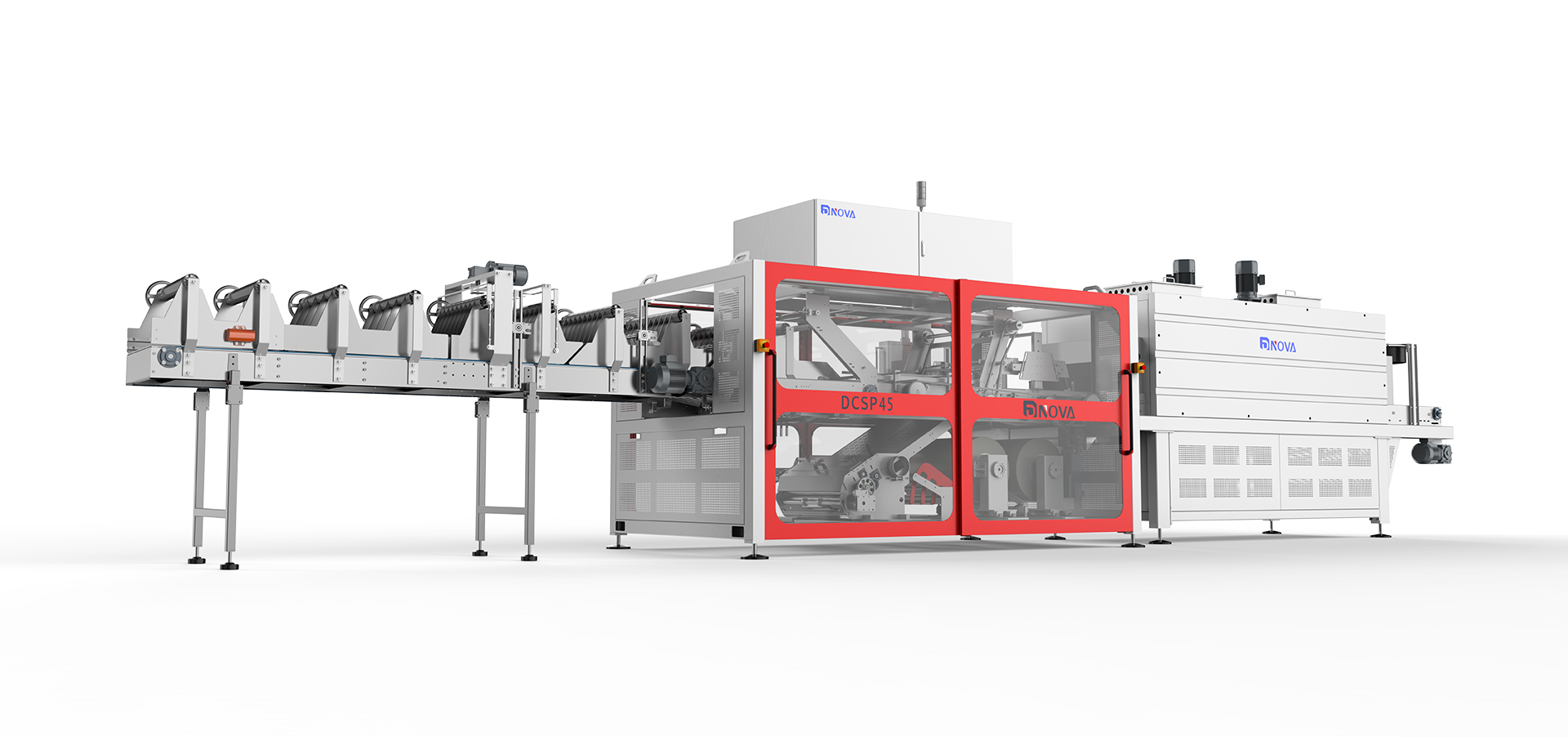

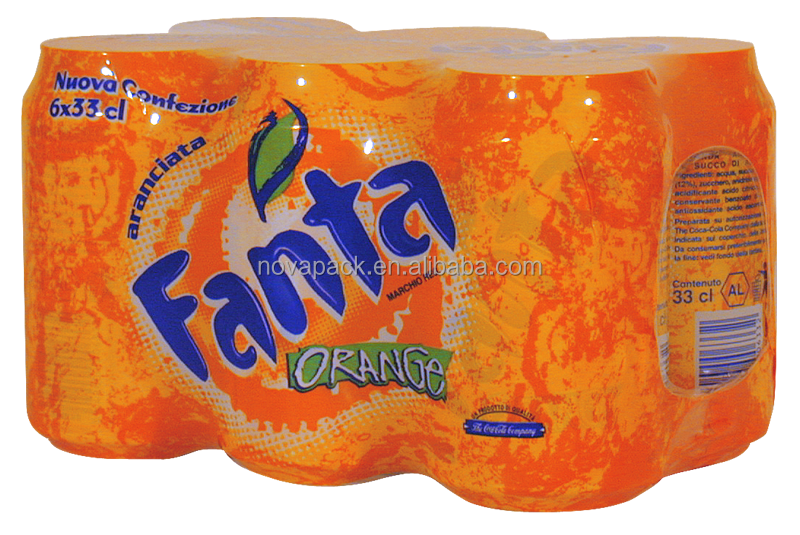

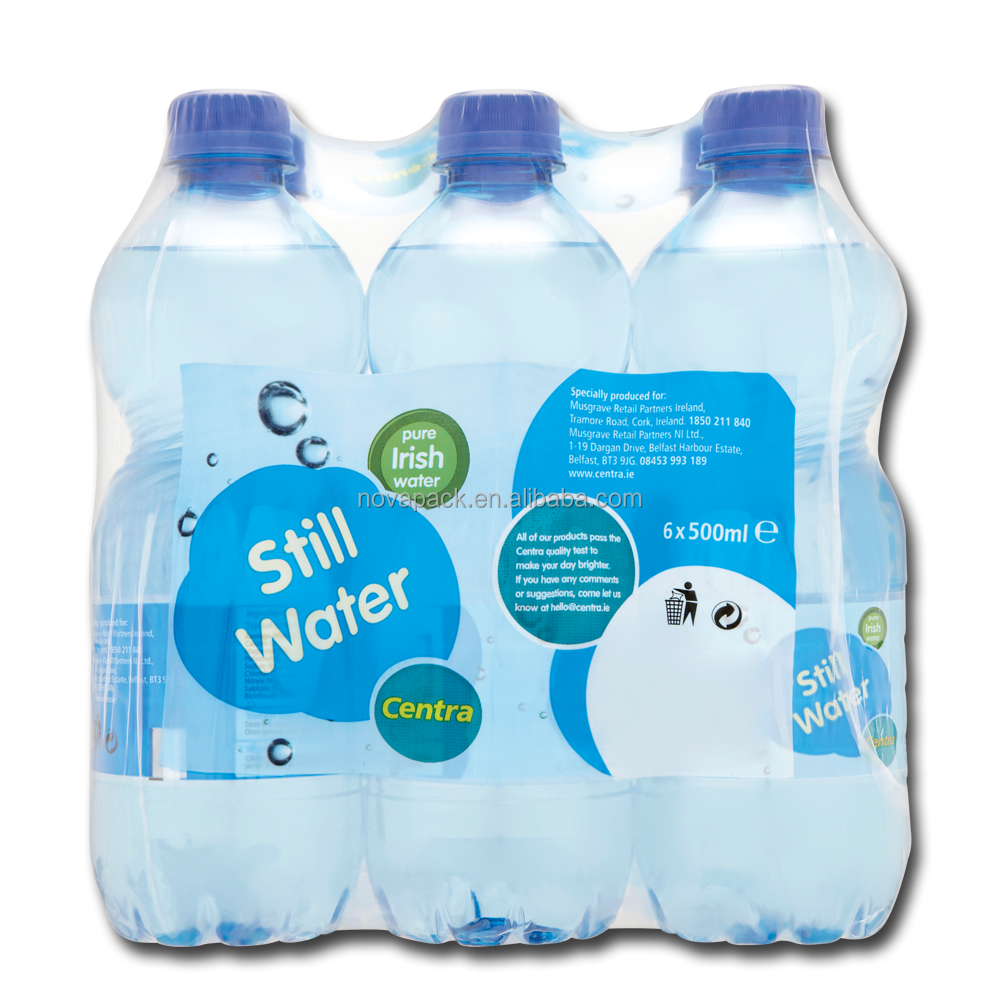

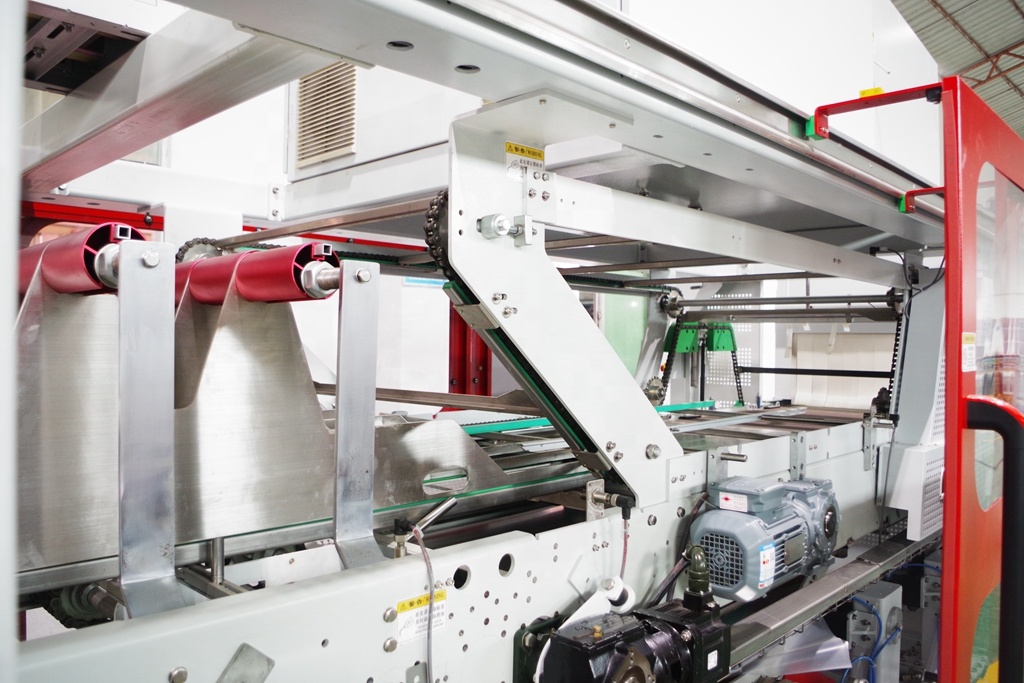

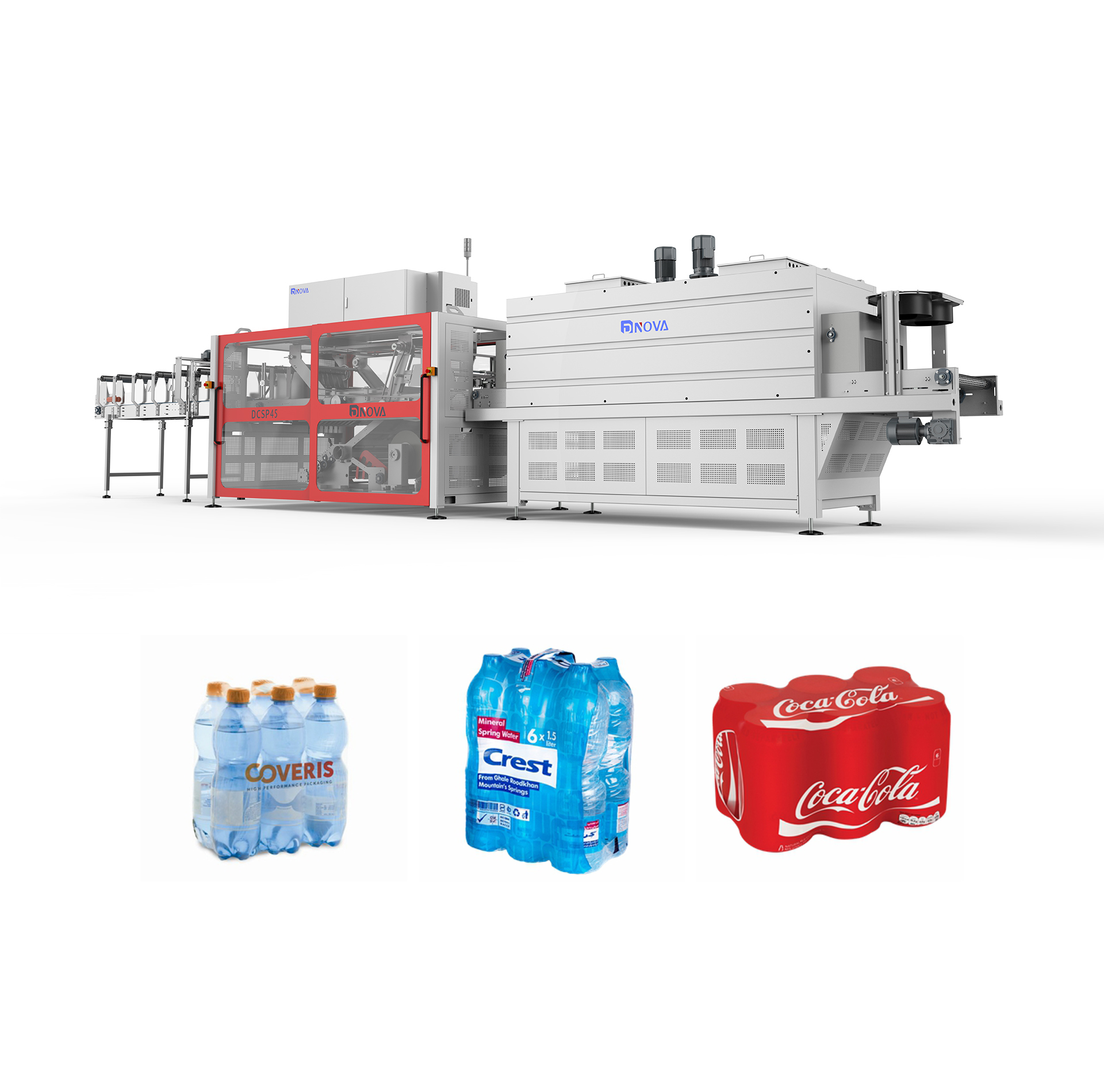

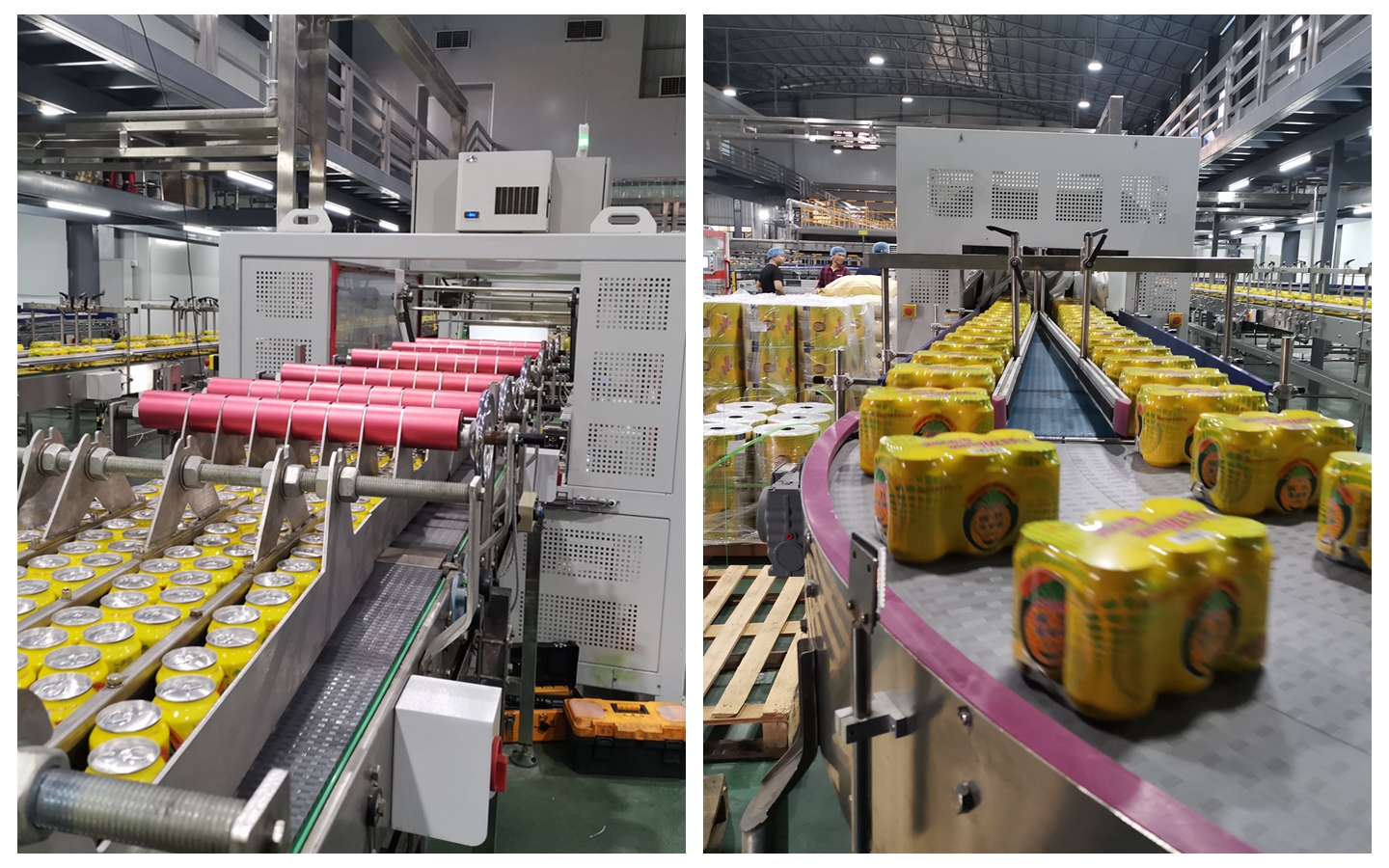

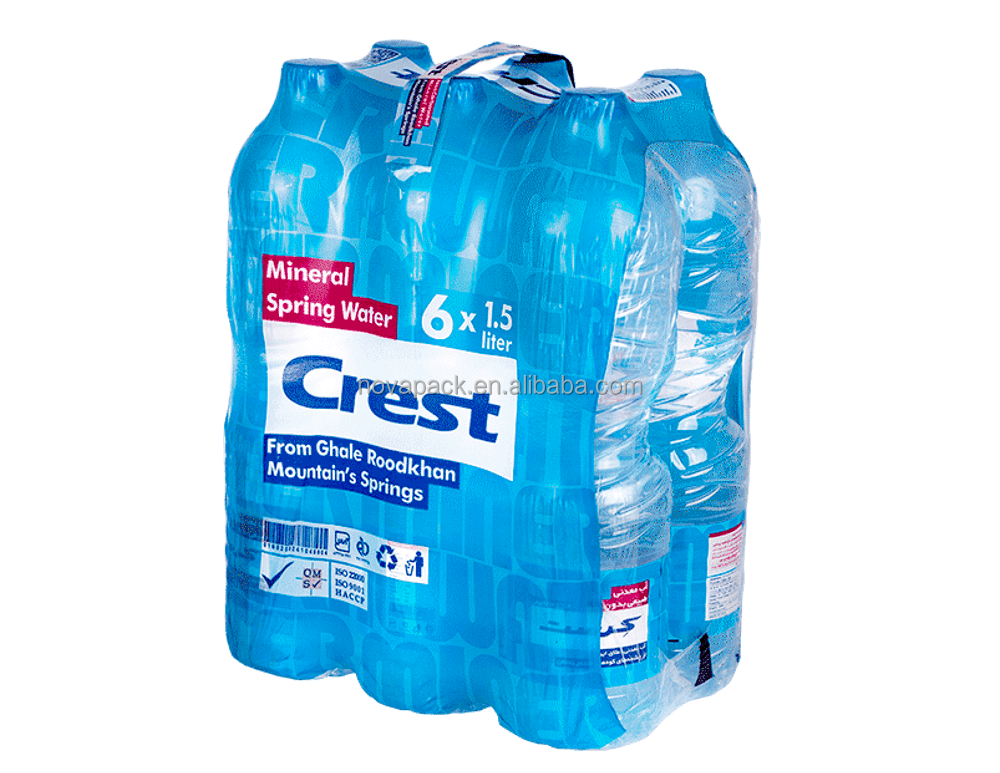

The film shrink wrapping machine is designed to wrap groups of pre-arranged bottles with plastic film, heating the film in a shrink tunnel to shrink it tightly and form a single packed unit.
Our fully automatic wrapping system features intelligent operation that automatically adjusts production speeds based on the line's bottle flow. It offers stable performance, simple operation, and excellent packaging results, making it widely applicable across the beverage, beer, dairy, and daily chemical industries.

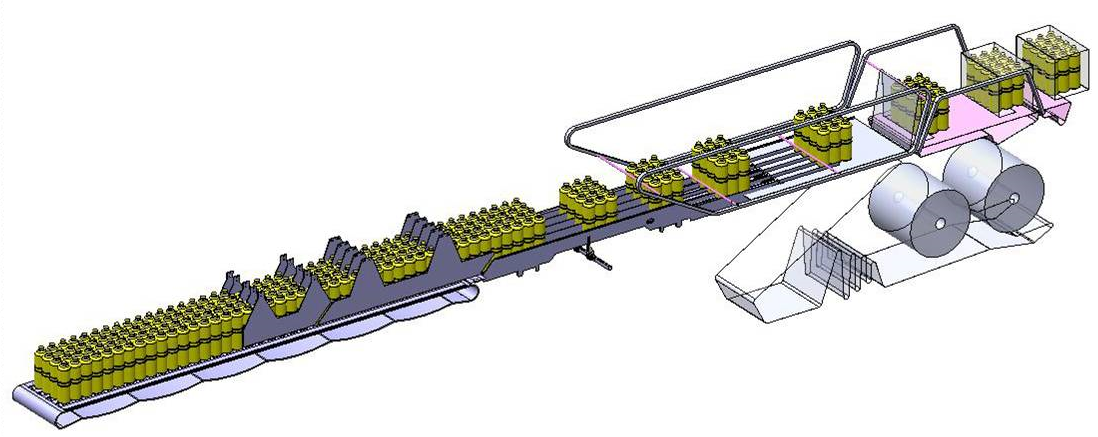

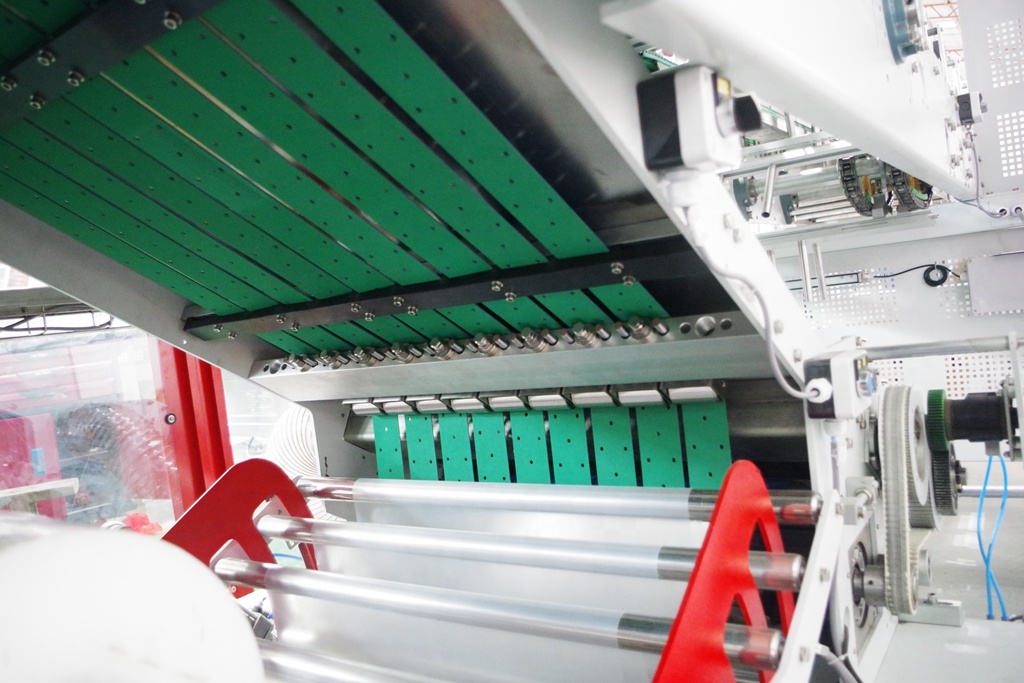

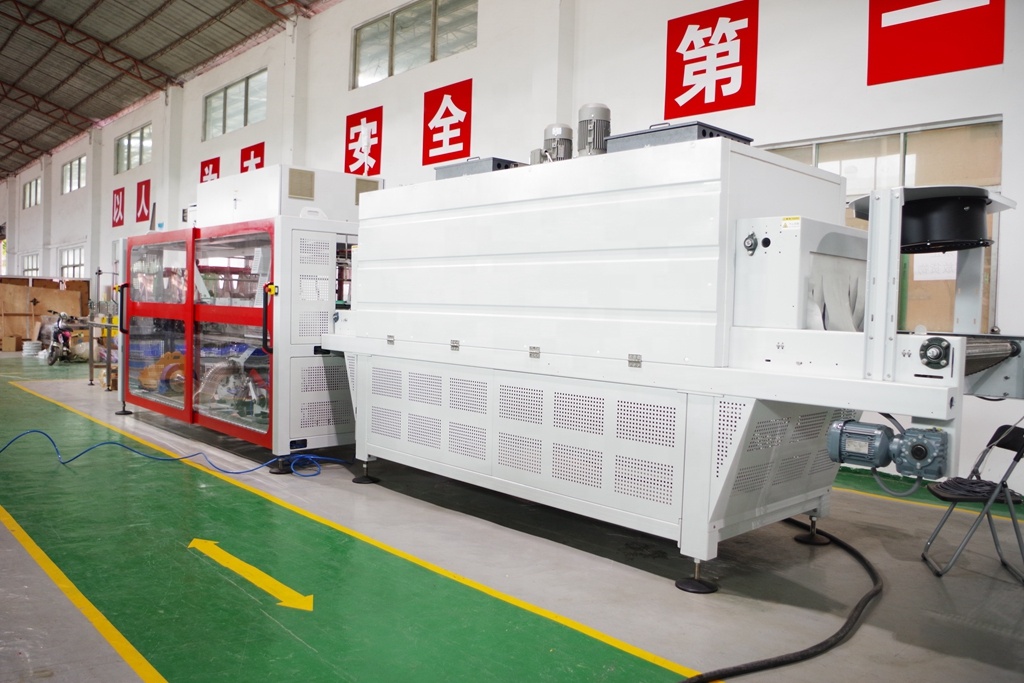

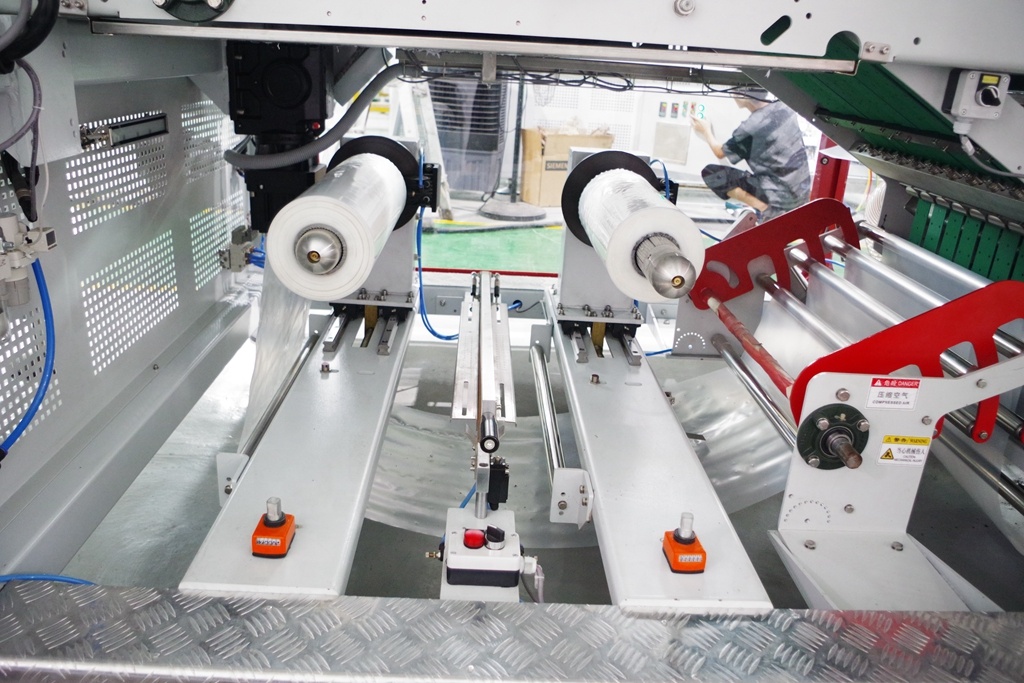

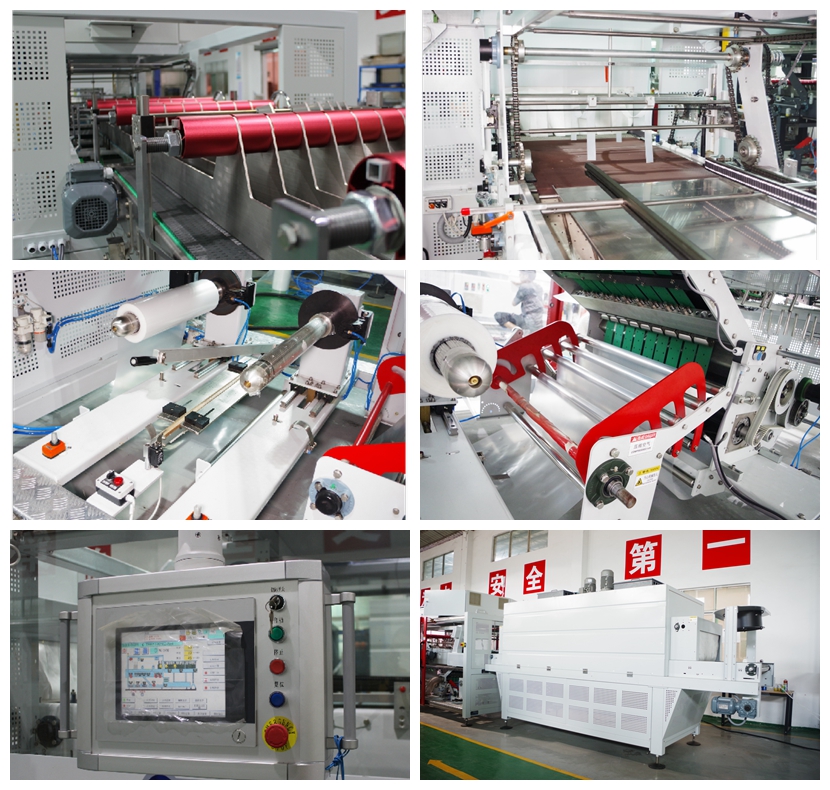

Working Principle: Undirected bottles are sorted through an unscrambling mechanism and fed into the host machine. The dividing mechanism organizes them into specific groups. A layer of shrink film is wrapped around the group before entering the shrink tunnel. High-temperature heating causes the film to shrink naturally and securely bundle the pack for future palletizing and transport.
| Equipment Name | Automatic shrink wrapping machine |
| Equipment model | DCSP35 |
| Capacity | 30-35 packs/min (single lane) |
| Applicable bottle type | Cans, glass bottles, PET bottles |
| Applicable bottle size |
(1) Diameter range: Ø50-80mm (2) Bottle height: H100-320mm |
| Packaging products size | Length: 260-430mm; Width: 165-280mm; Height: 100-320mm |
| Equipment size | 12,410 × 2,000 × 2,500mm (L*W*H) |
| Packaging pass rate | 98% |
| Film damage rate | ≤ 0.1% |
| Equipment power | 113kW (Main machine: 15kW; Shrink tunnel: 98kW) |
| Compressed air | (a) Pressure: 0.6-0.8MPa (b) Air consumption: 100NL/MIN |
| Equipment weight | 8 Tons |
| Ground load | ≈ 8 X 7500 N |
| Horizontal angle | ± 1° |
| Noise | ≤ 85 dB |
| Heading way | Longside ahead |
We specialize in the R&D and manufacturing of automated end-of-line packaging systems. Our core focus includes designing, building, and delivering high-performance packaging solutions for global food, beverage, brewery, dairy, and chemical operations. Major equipment offerings comprise shrink wrapping units, wrap-around case packers, advanced hybrid wrap-around shrink systems, and custom conveying lines.
Our engineering team averages over 10 years of packaging machinery experience, bringing creative and modern designs to every project.
We emphasize reliable construction standards as a primary path to long-term operational success for our clients.
Every machine configuration can be adapted to match exact plant layouts, bottle shapes, and speed requests.
Fast technical responses, remote troubleshooting support, and robust local parts inventory for timely maintenance.

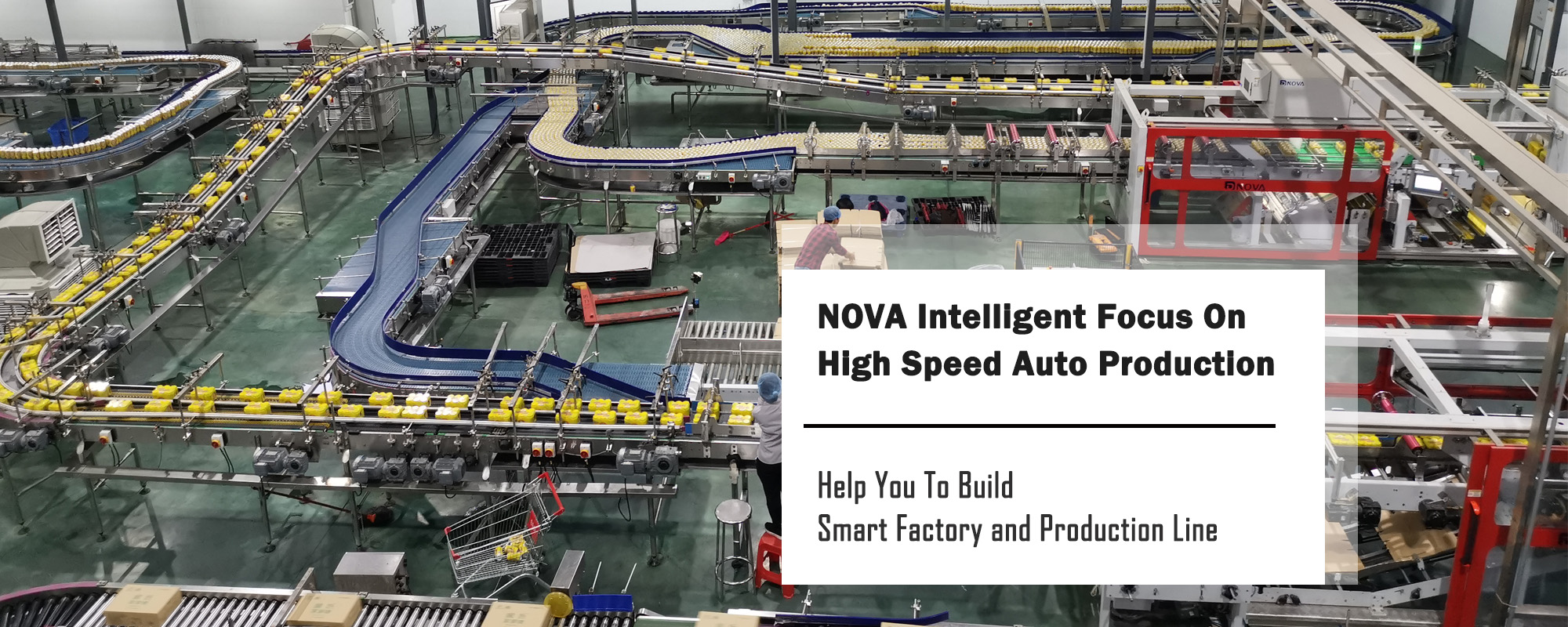

Over the past decade, we have supplied reliable equipment and technical assistance to numerous factories worldwide. Having commissioned successful packaging lines across various regions, we utilize our extensive engineering capabilities to design cost-effective setups that save floor space and raise line yields.

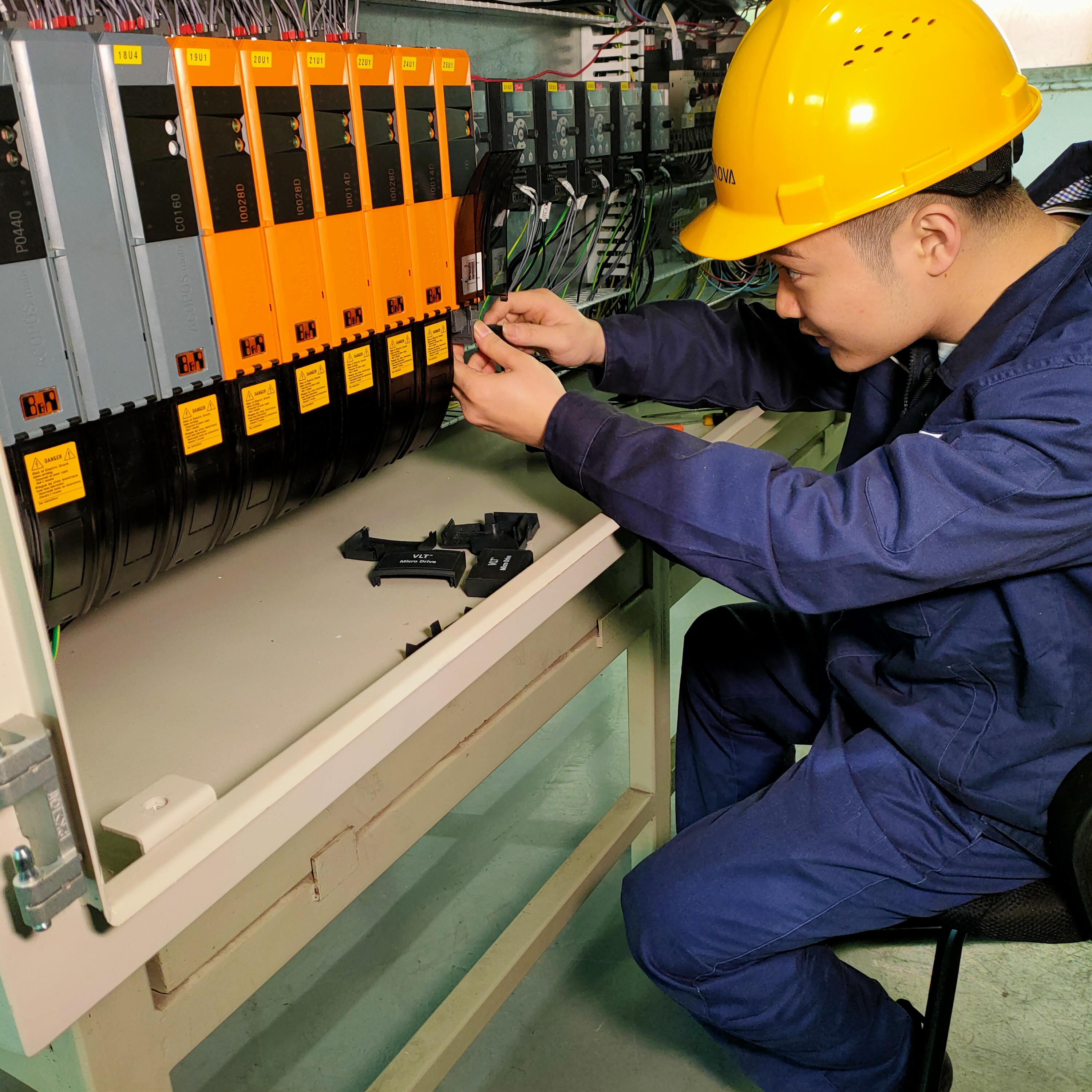

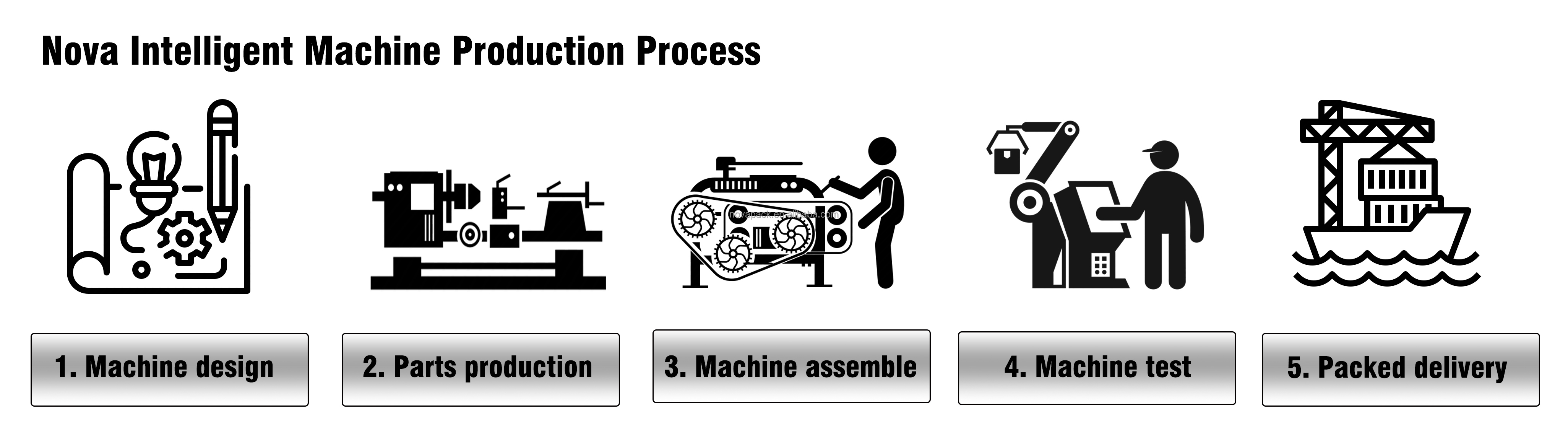

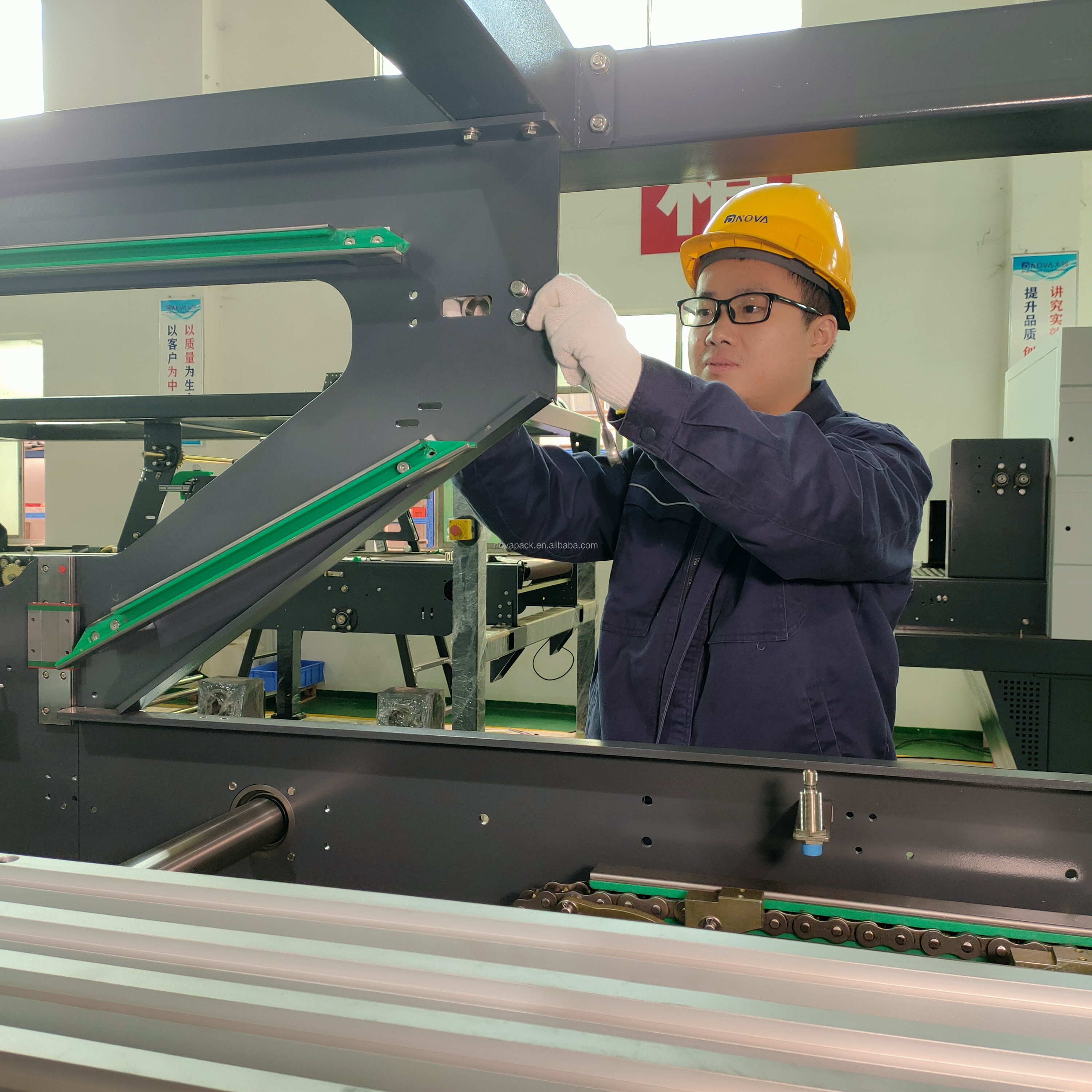

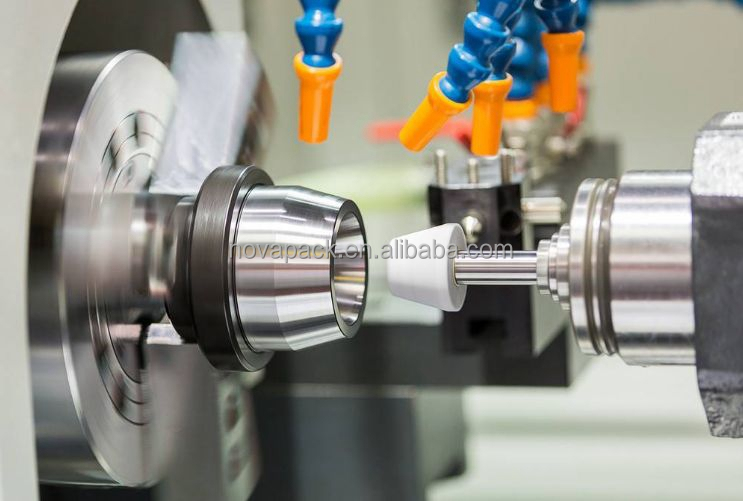

Parts Manufacturing: All components are manufactured strictly according to technical engineering diagrams.

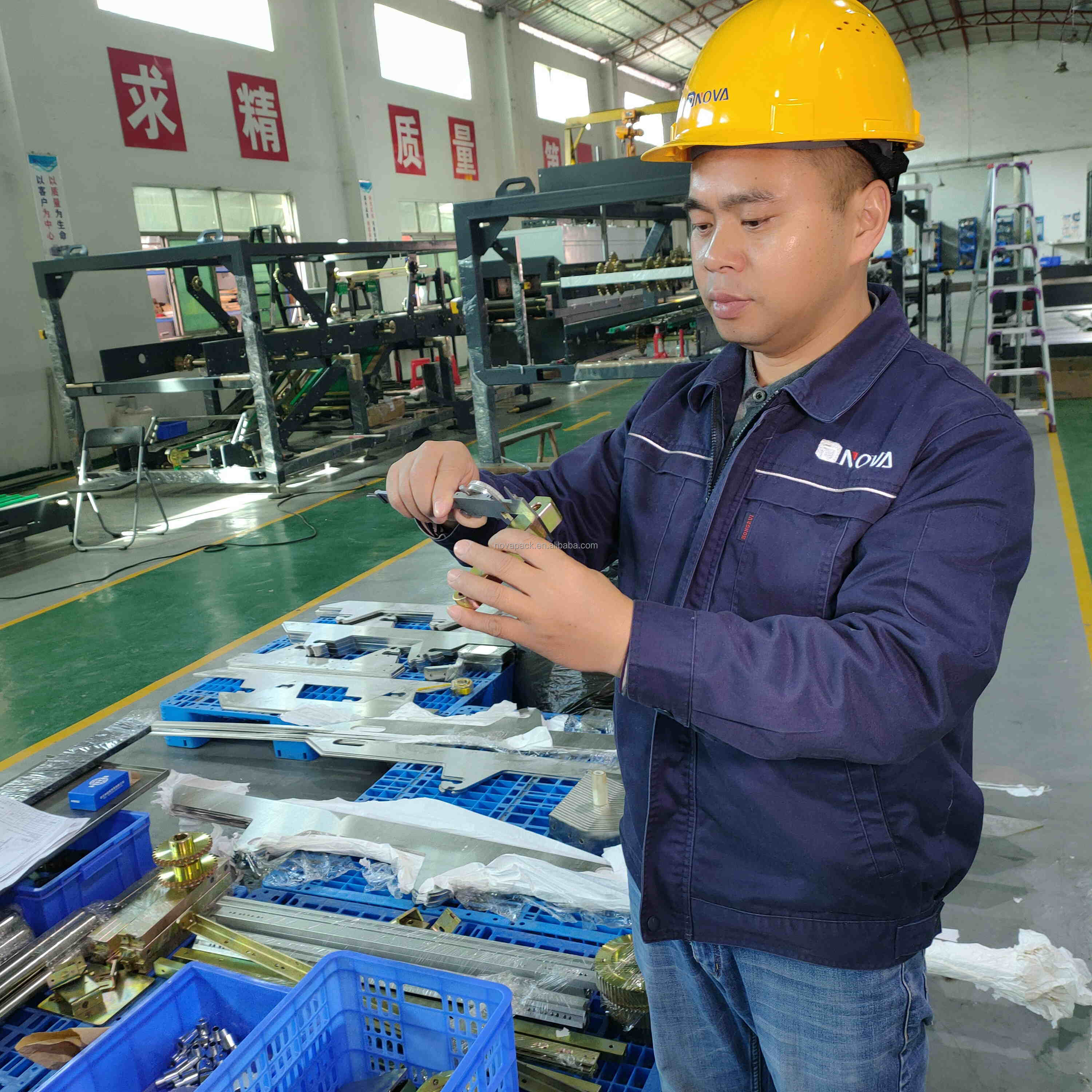

Laboratory Quality Inspections: 100% of manufactured and sourced parts are measured and tested in our quality control lab prior to entering assembly lines, ensuring complete drawing compliance.

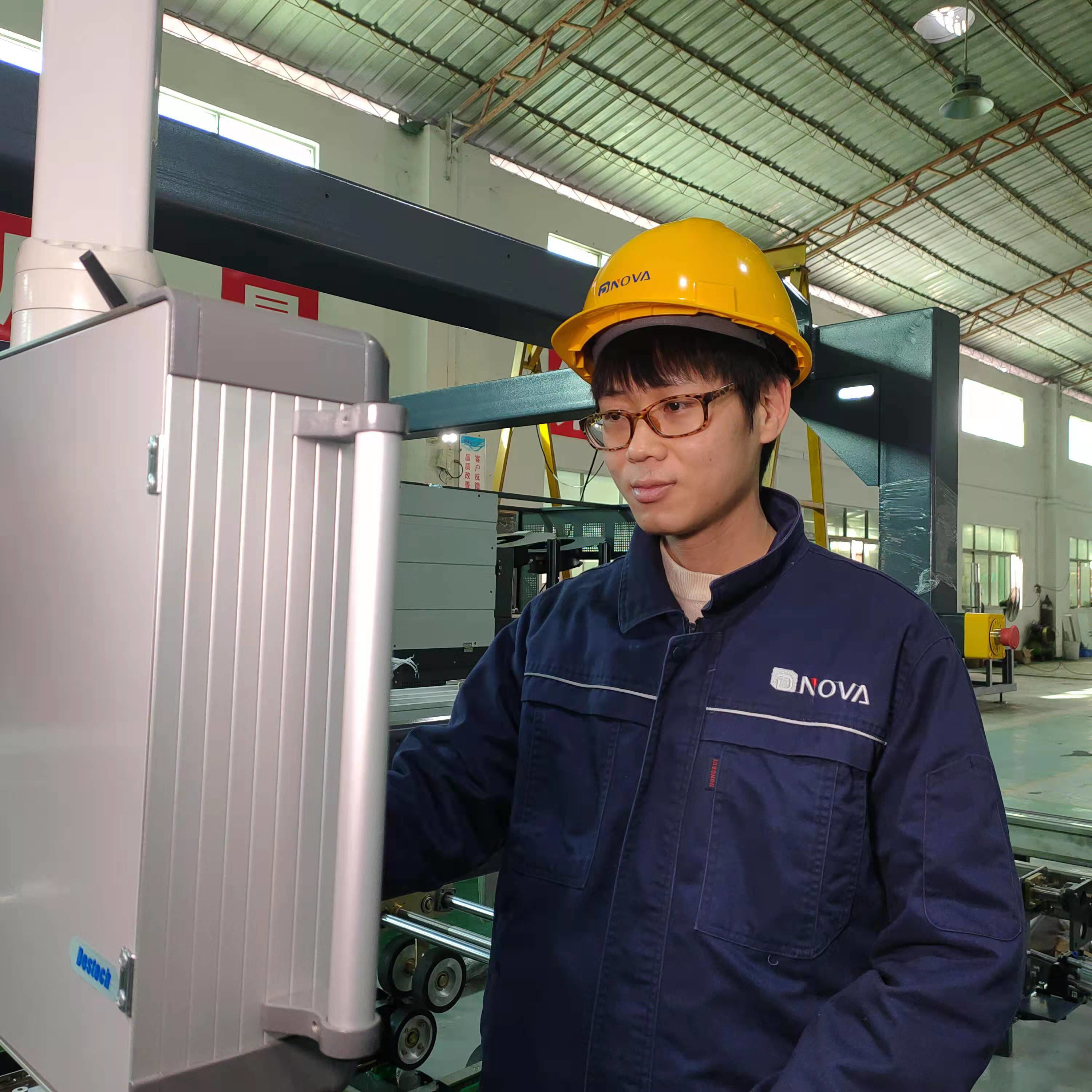

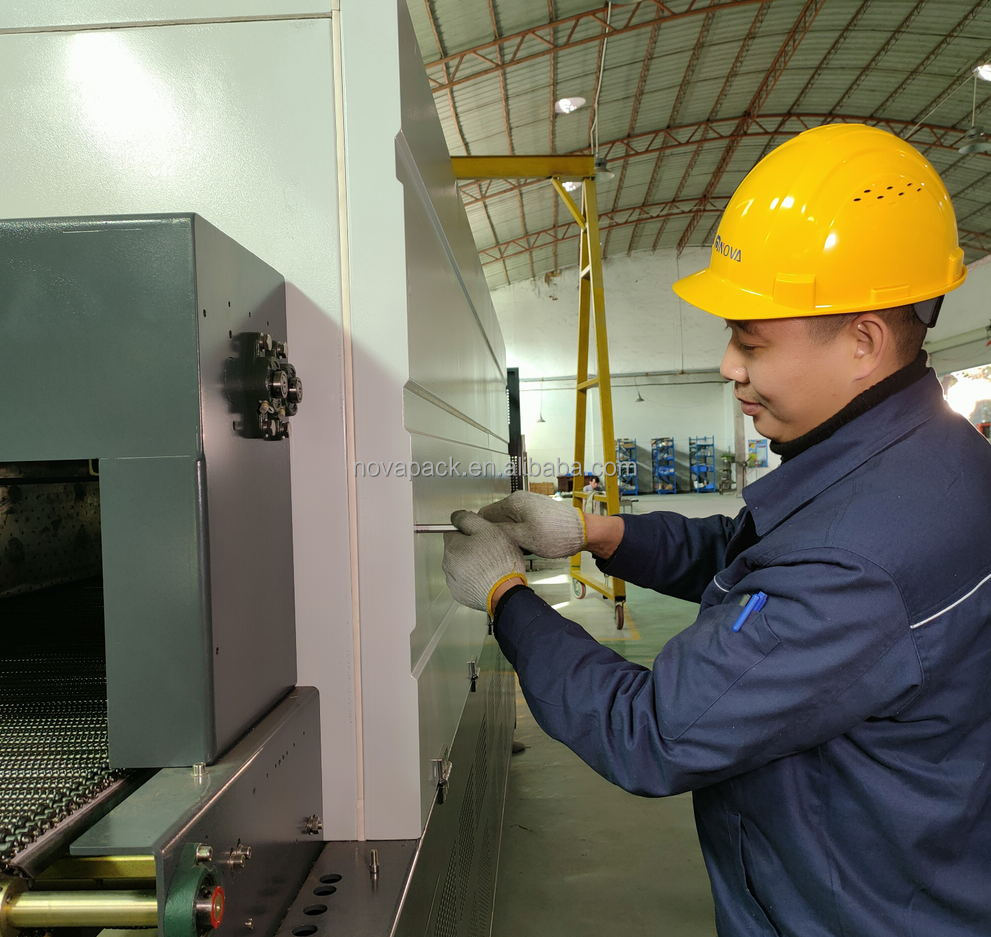

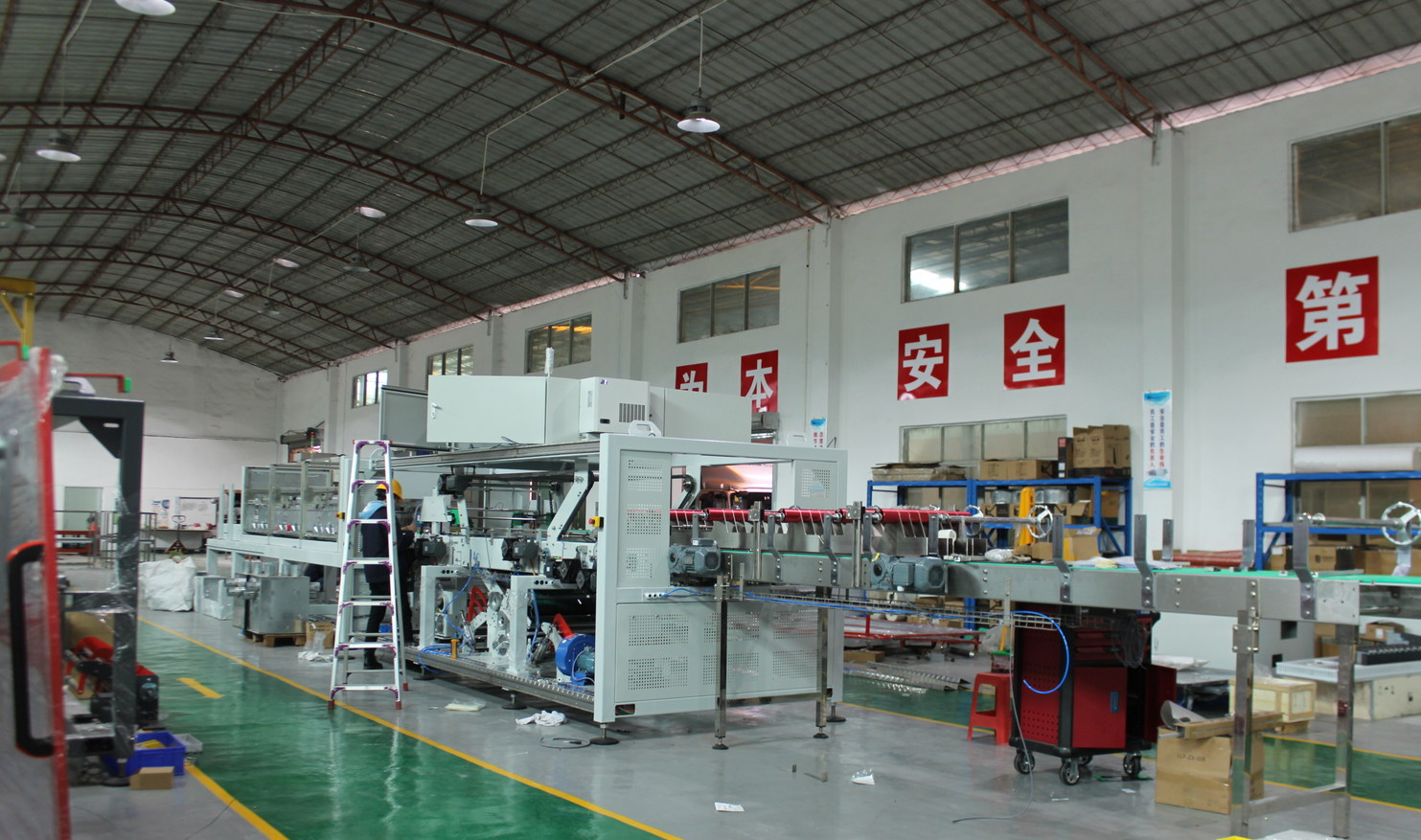

Our professional installation engineers assist client factories to ensure fast setup and rapid startup times. With years of layout experience, our engineers customize line flowcharts based on specific facility constraints to optimize spatial utilization and material flow.

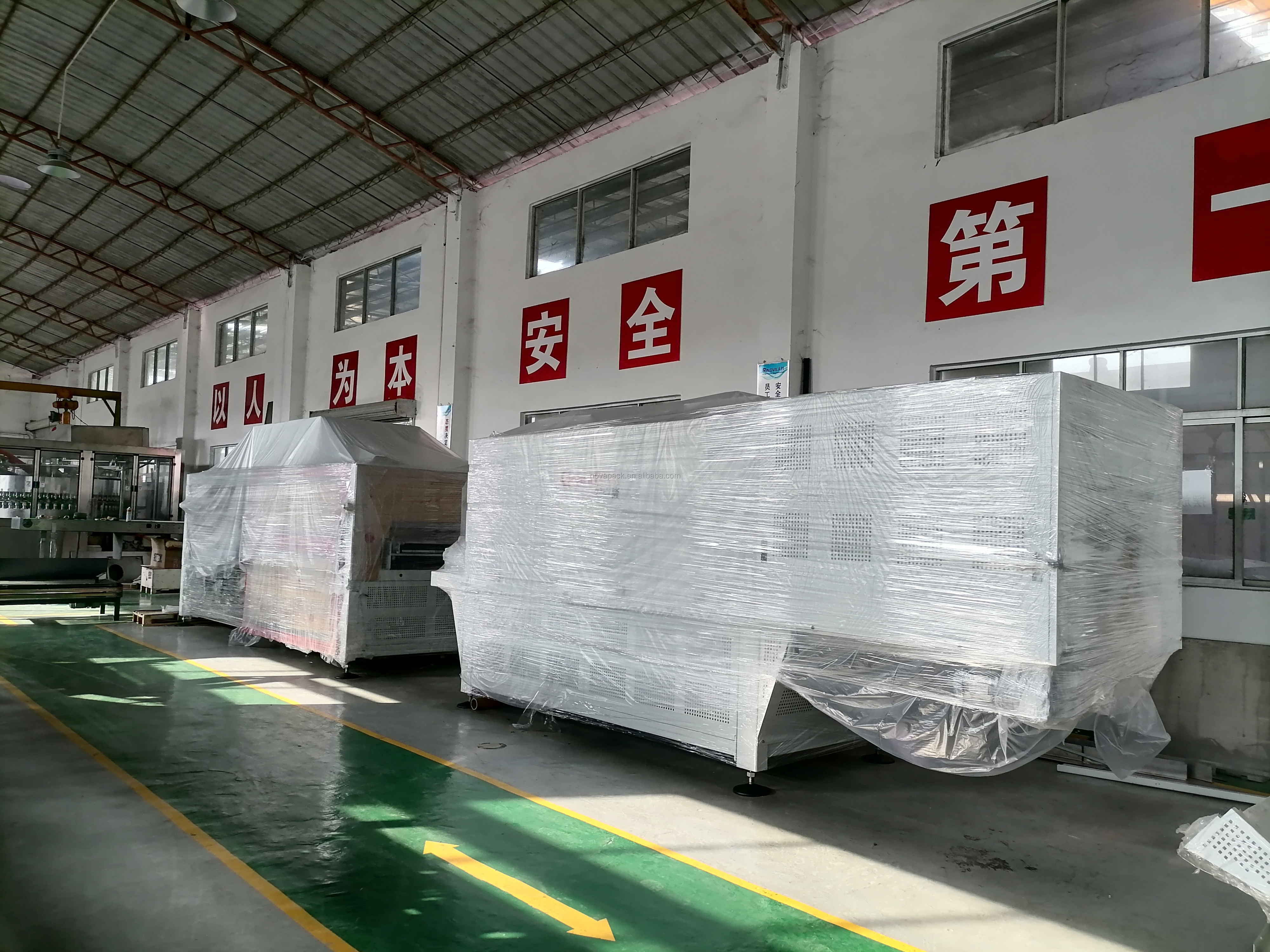

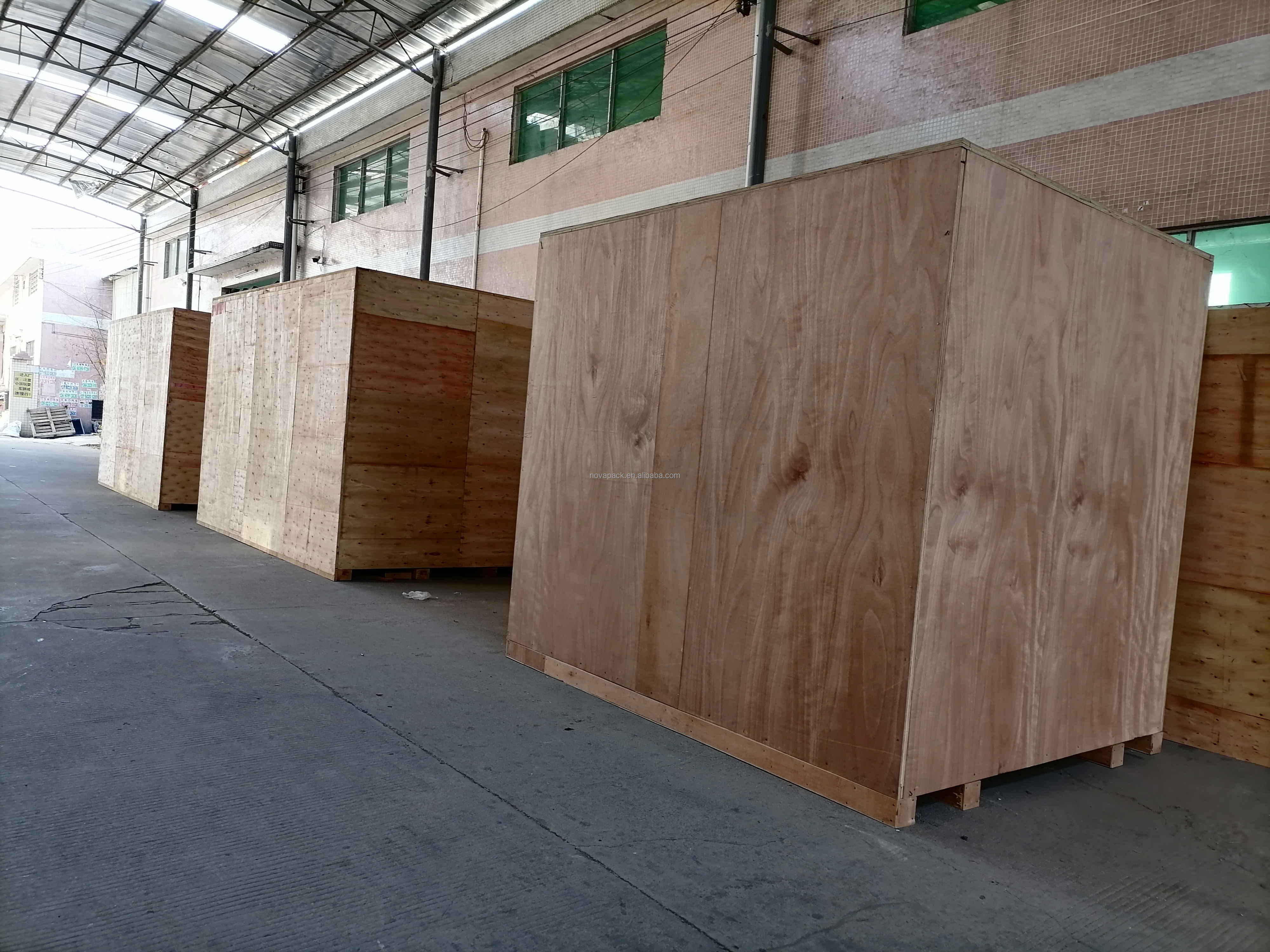

Once the machinery passes its Factory Acceptance Test (FAT), it is wrapped with stretch film and foam paper protection. Moisture-proof barriers are placed internally, and the setup is enclosed inside heavy-duty, export-grade wooden cases for safe sea transport.
