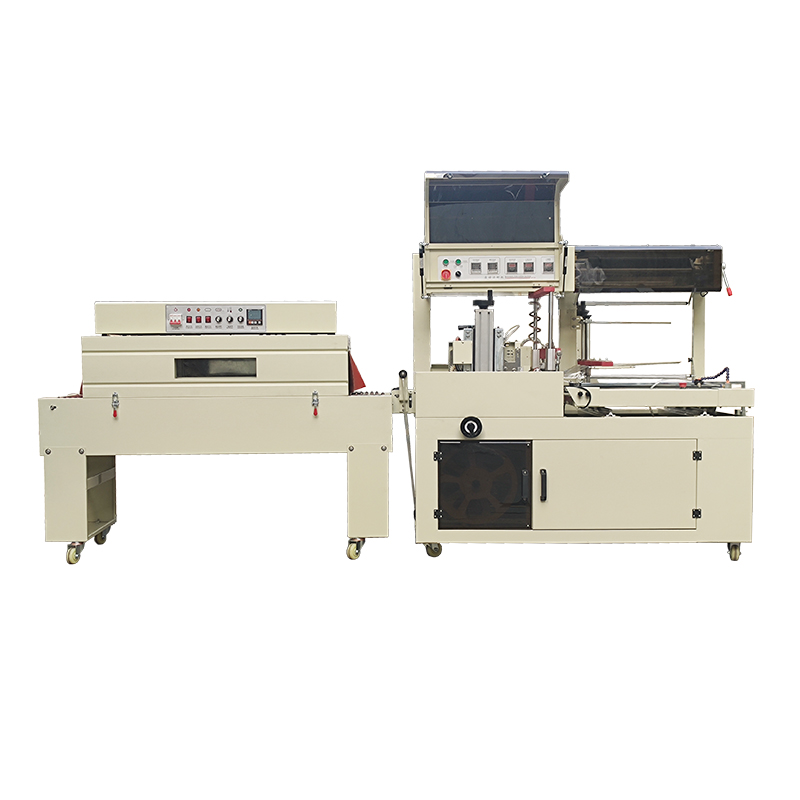

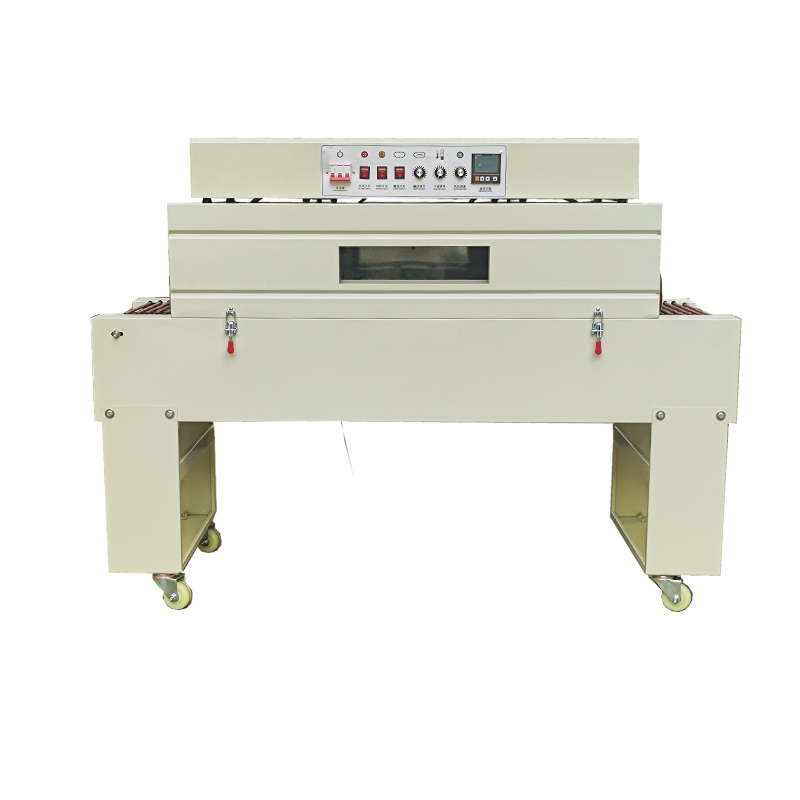

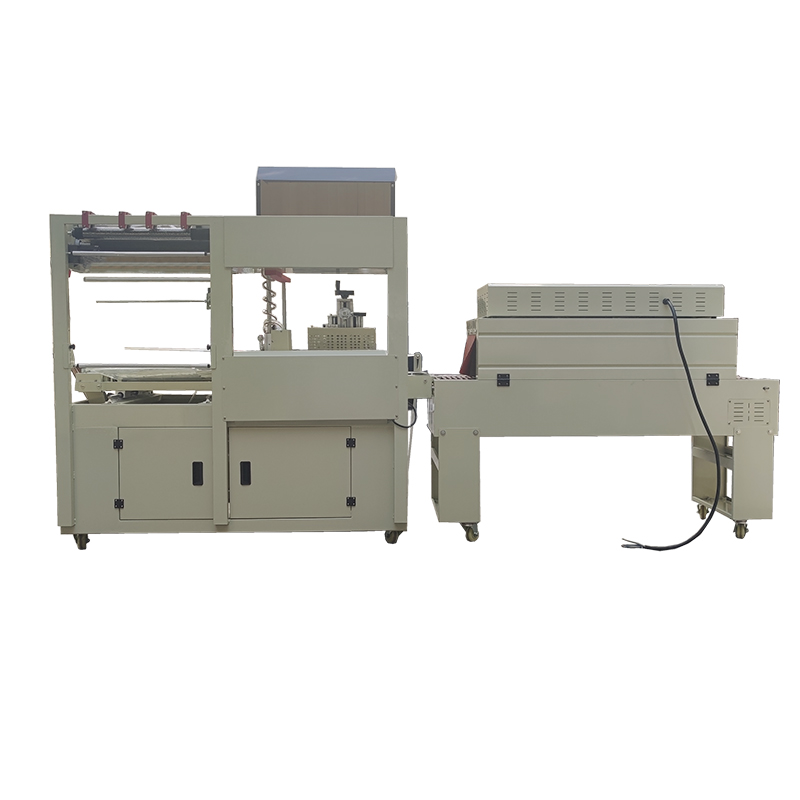

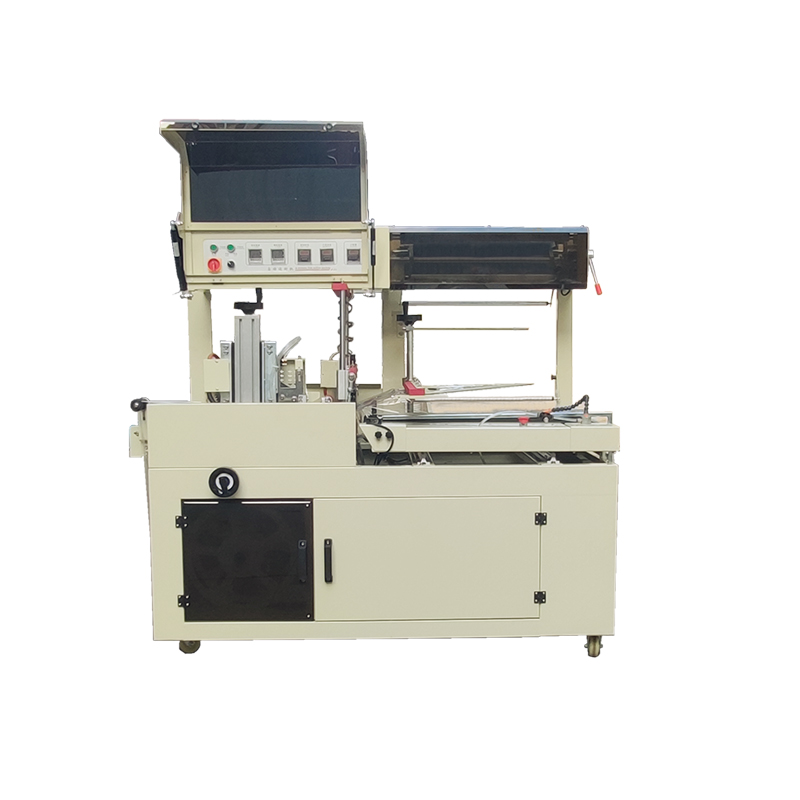

POF /PE Plastic Film Carton Roll Side Cutting Sealing and Shrinking Wrapping Machine

Product Description

POF /PE Plastic Film Carton Roll Side Cutting Sealing and Shrinking Wrapping Machine
POF /PE Plastic Film Carton Roll Side Cutting Sealing and Shrinking Wrapping Machine

Product Description

Applied to software, food, cosmetics, printing, pharmaceutical, beverage mass shrinkable packaging, hardware, and other industries, such as: wood, aluminum frame, wider and longer items.

Performance Characteristics

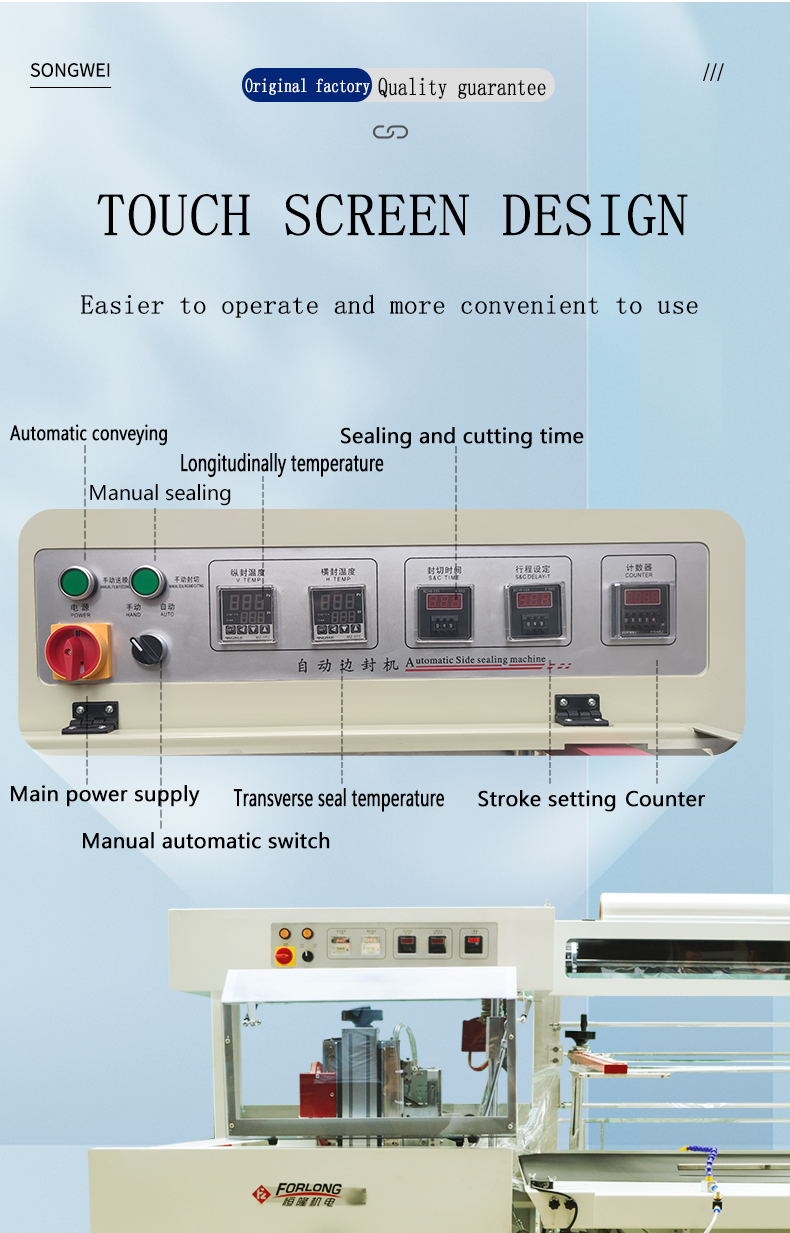

  • The machine adopts imported and the most advanced Electrical parts, With safety protection and alarm device, Ensure machine high-speed stability, a variety of Settings can be operated on the touch screen easily.
  • Adopt side sealing design, packaging length is no limited, The sealing line height can be adjusted according to the height of packing products.

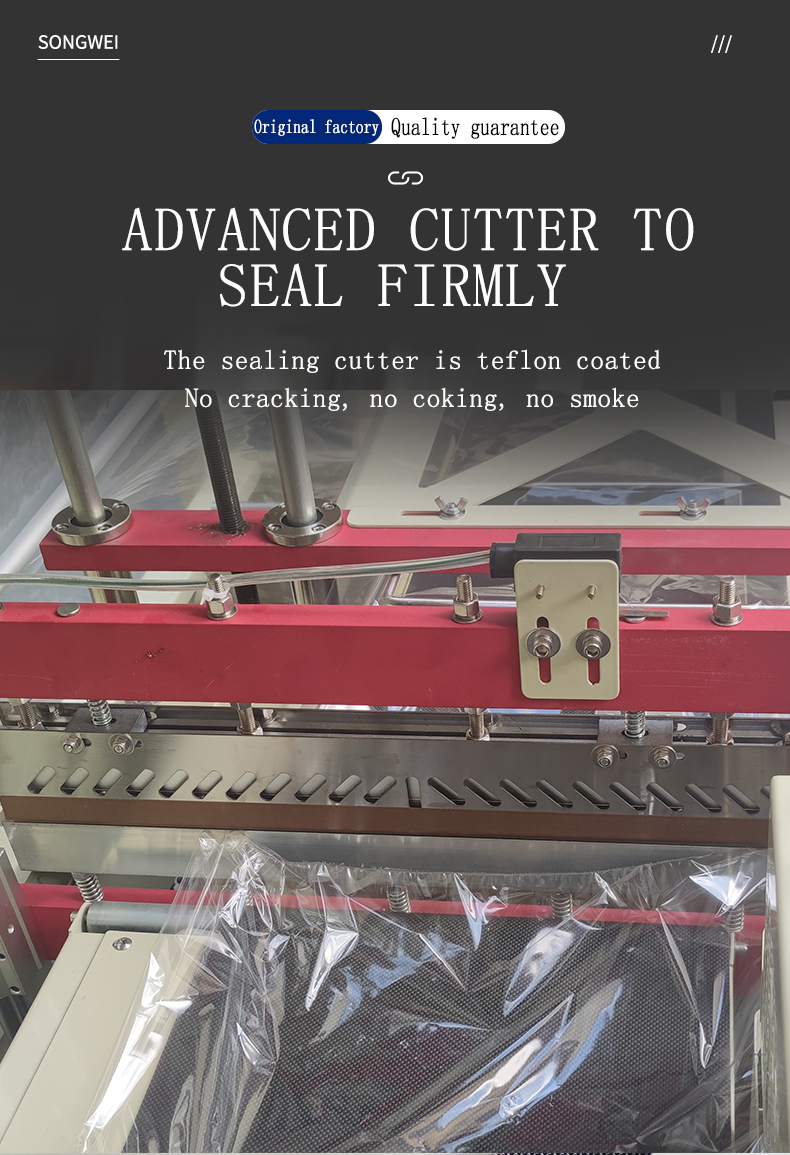

  • The Sealing knife adopt the United States DuPont Teflon coating ,anti-sticking, High temperature resistant alloy knife, the sealing will not crack, not coking and no smoke, no pollution.

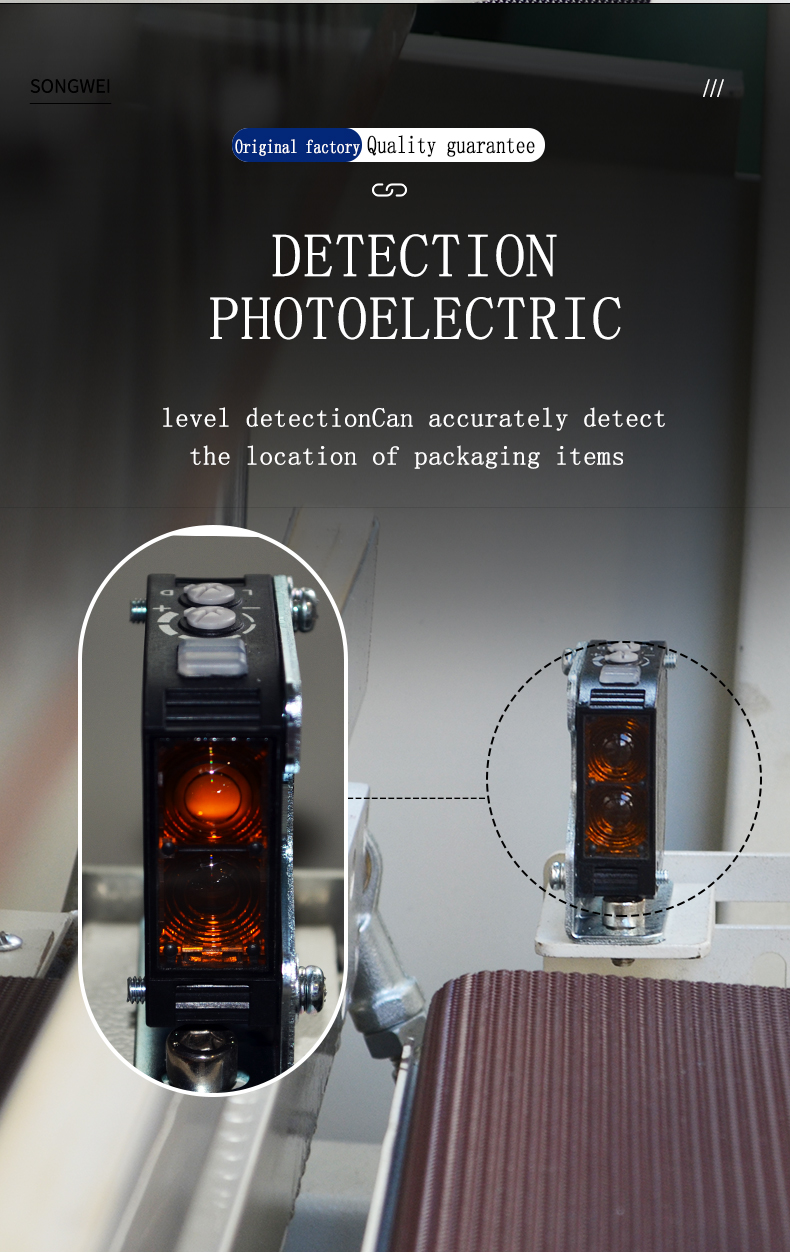

  • Assembles one horizontal and one erect sensor for the entrance to the sealer it is easy to switch over ,even for some thin products, it is also easy to pack them.
  • When pack different sizes of products, it is simple to adjust, need not to exchange any molds or any bag making device.
  • Adopts OMRON digital temperature controller with PID function, sealing temperature is extremely sensitive and accurate, can set temperature optionally, the cutter itself has a protective function, avoid from damage the products.
  • The machine can connect production line and unmanned operation.
  • The electronic governor, can adjust the transmission speed, to ensure the smooth delivery and good contraction effect; digital computer intelligent temperature control, the temperature difference is small, stable and reliable, low noise, long life; high quality stainless steel heat pipe, heat pipe radiator, internal double to thermal cycling wind, heat uniform, constant heat insulation effect; well, set the power function, free cooling, saving electricity.

Main Parameter

Model BF-450 BS-4020N
Max sealing size (W+H)≤400mm tunnel size: 1200*400*200mm
Packing speed 15-35pcs/min 0-10m/min
Electric supply and total power 220v 50hz 1.35kw 380v 50hz 6kw
Air pressure 5.kg/cm³ /
Weight 350kgs 55kgs

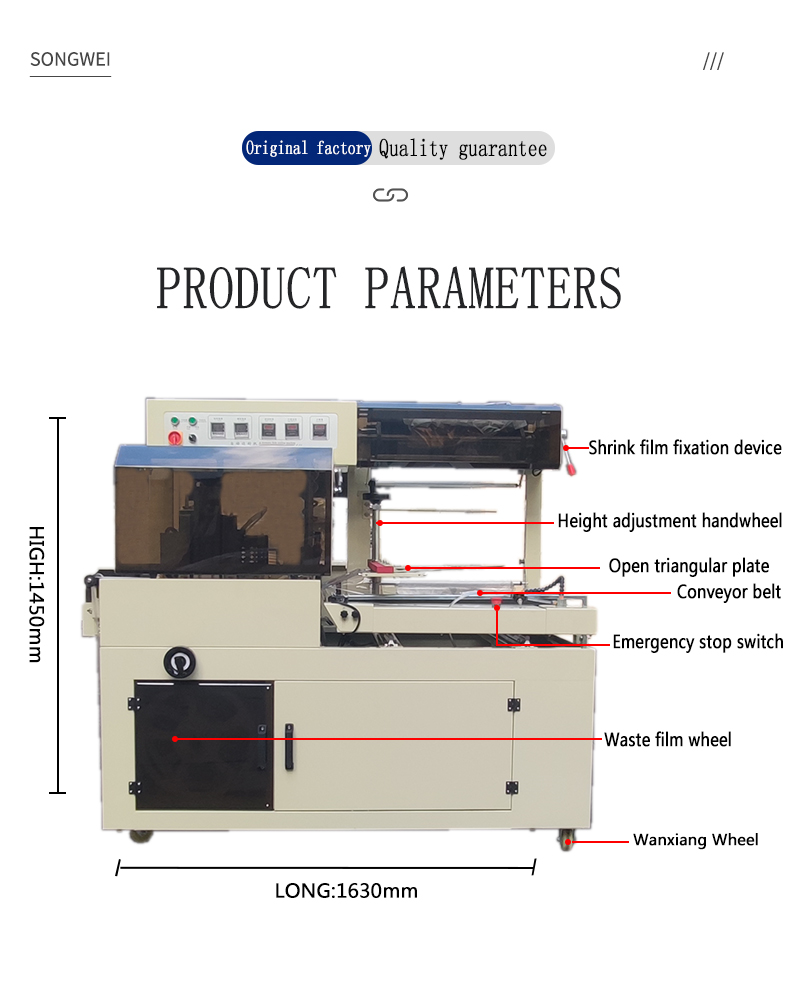

Dimension (mm) 1650*800*1460mm 1600*750*1100

Product Details Gallery

Details 1
Details 2

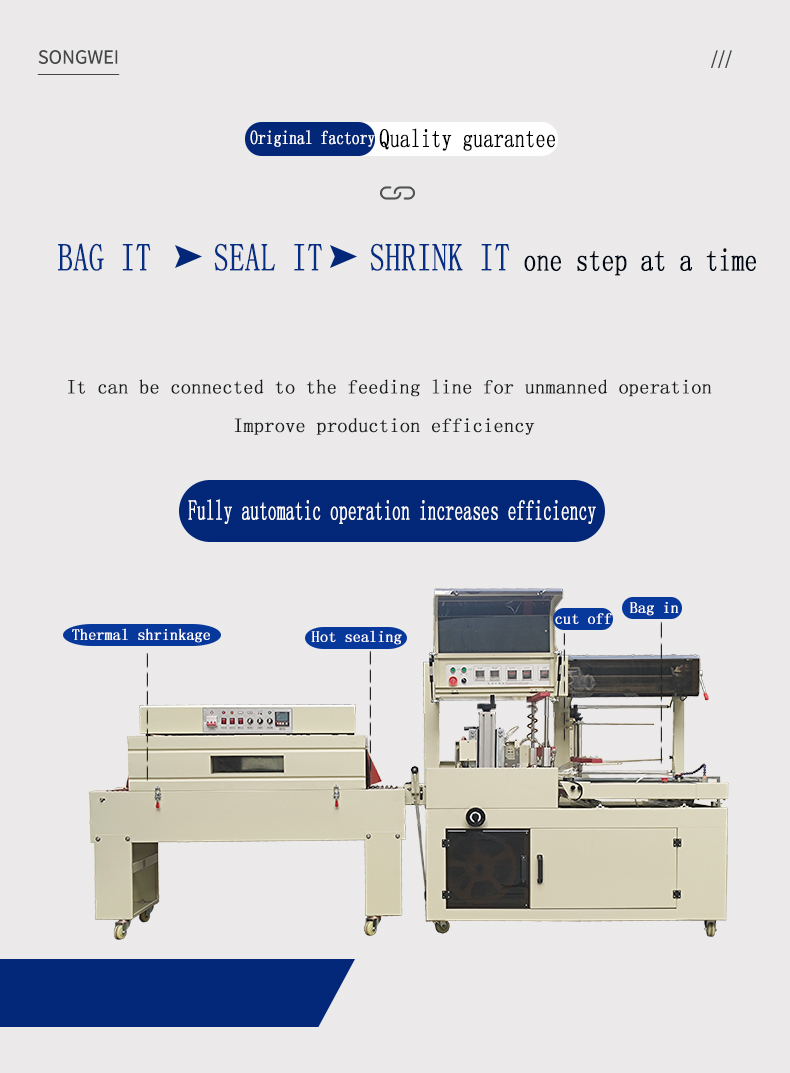

Details 3
Details 4
Details 5

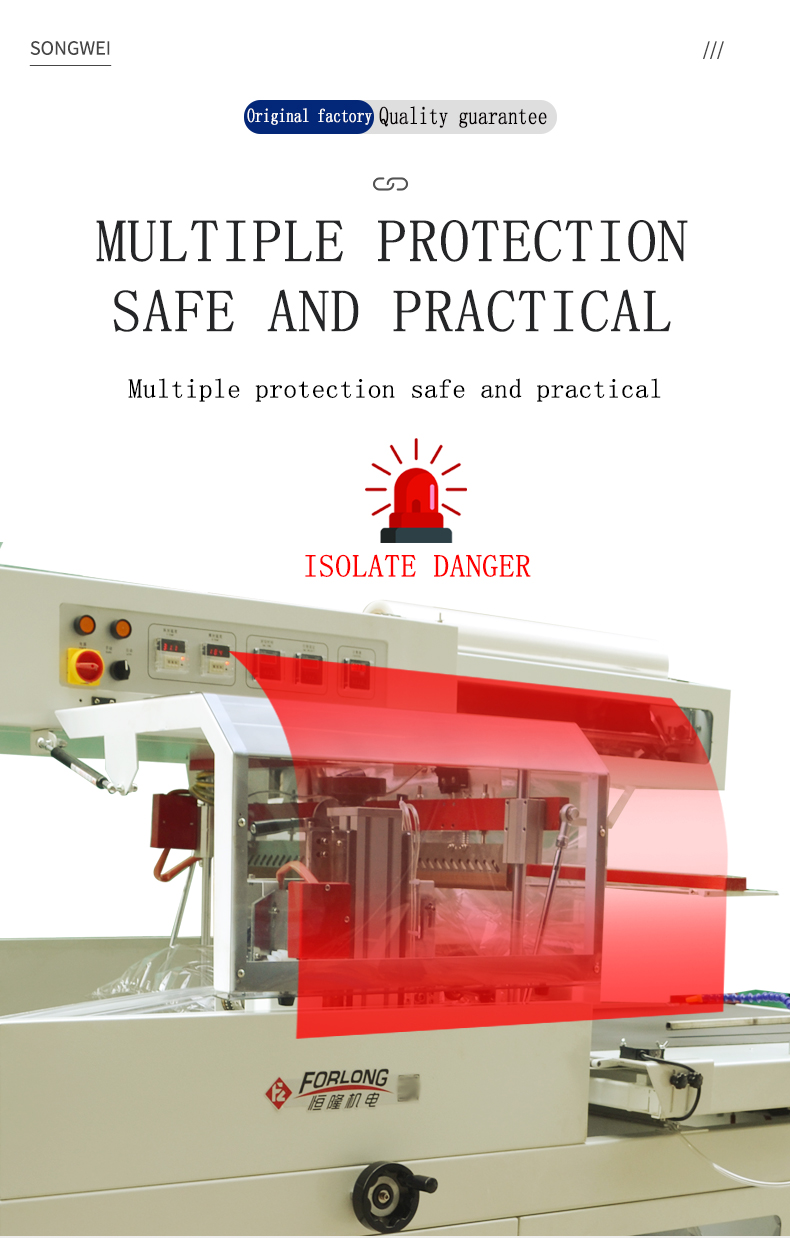

Details 6

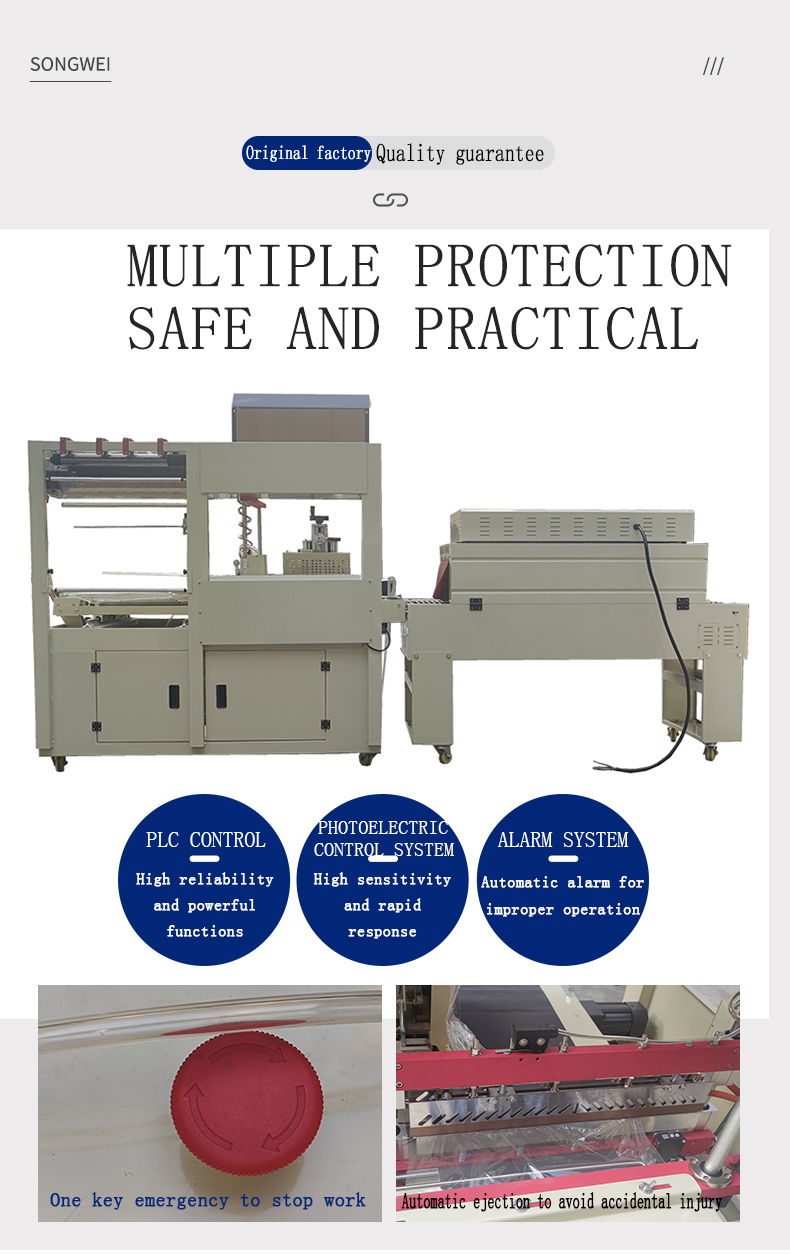

Details 7
Details 8

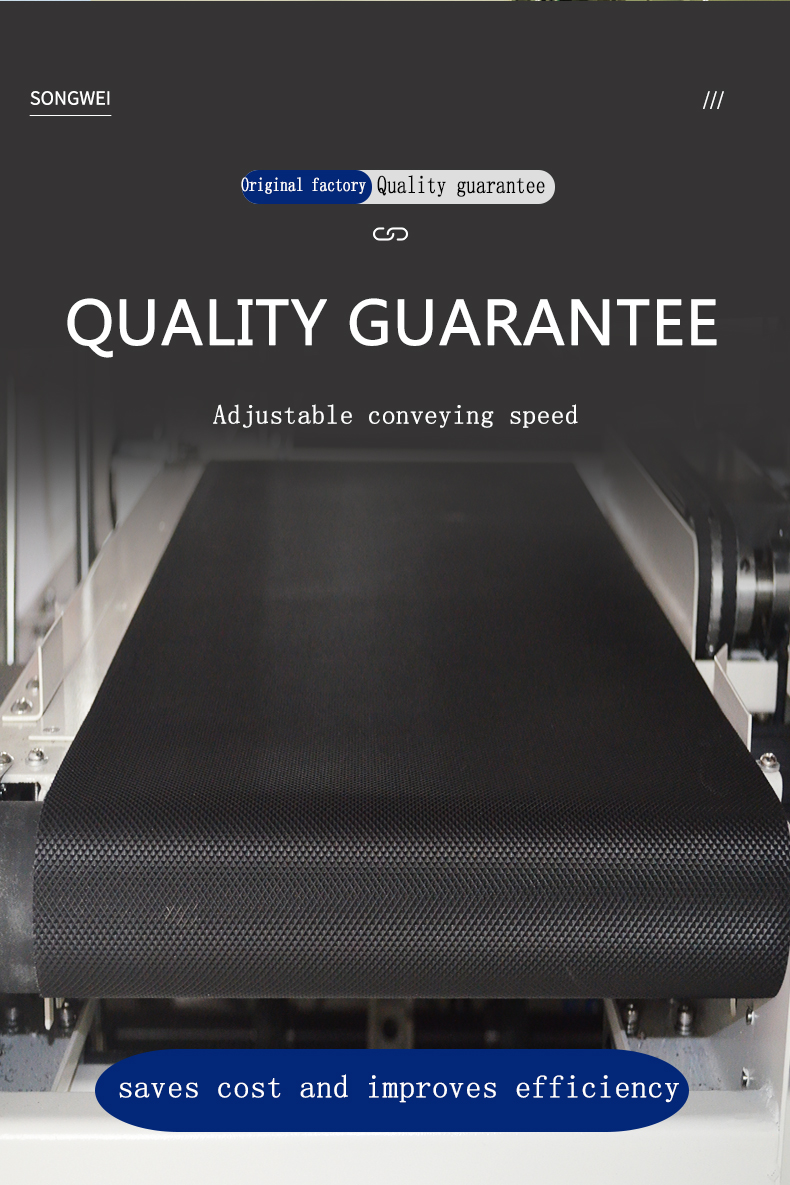

Details 9
Details 10

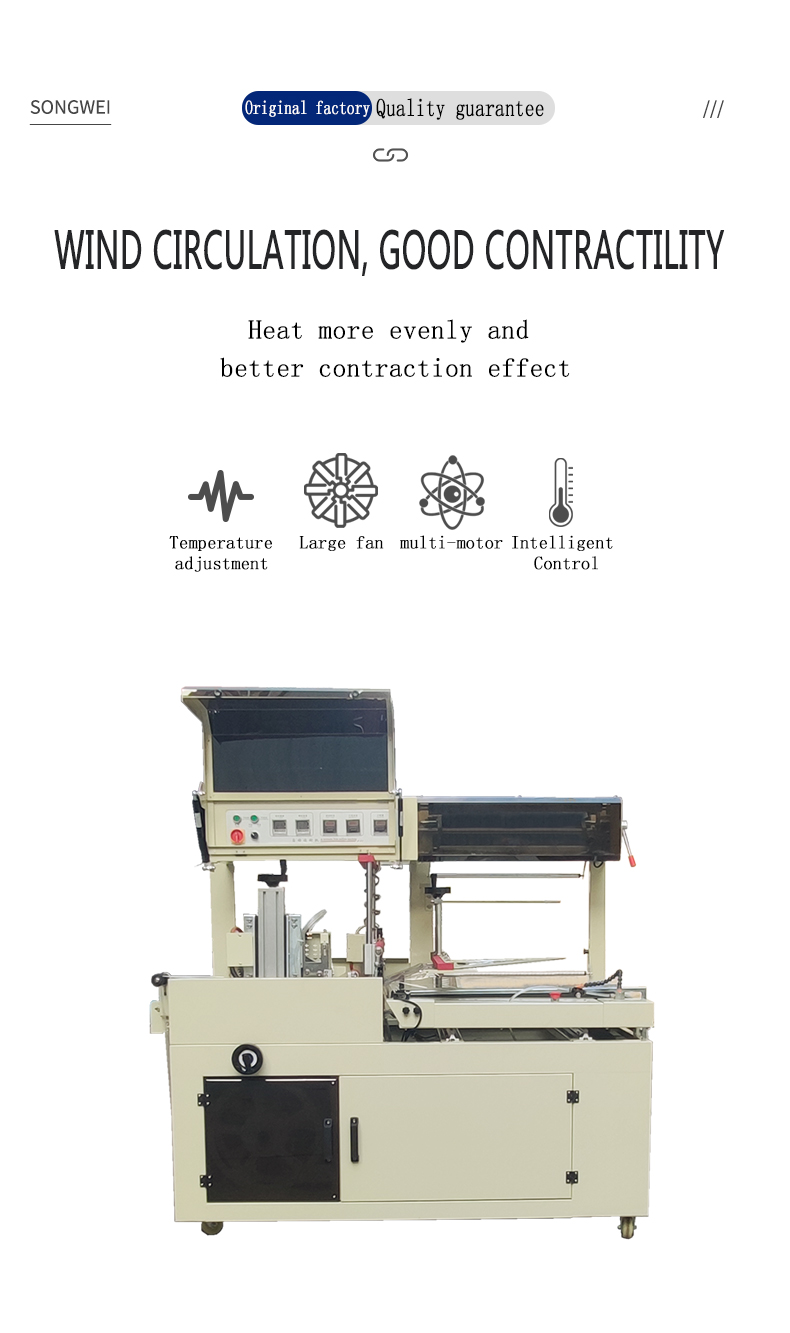

Details 11
Details 12
Details 13

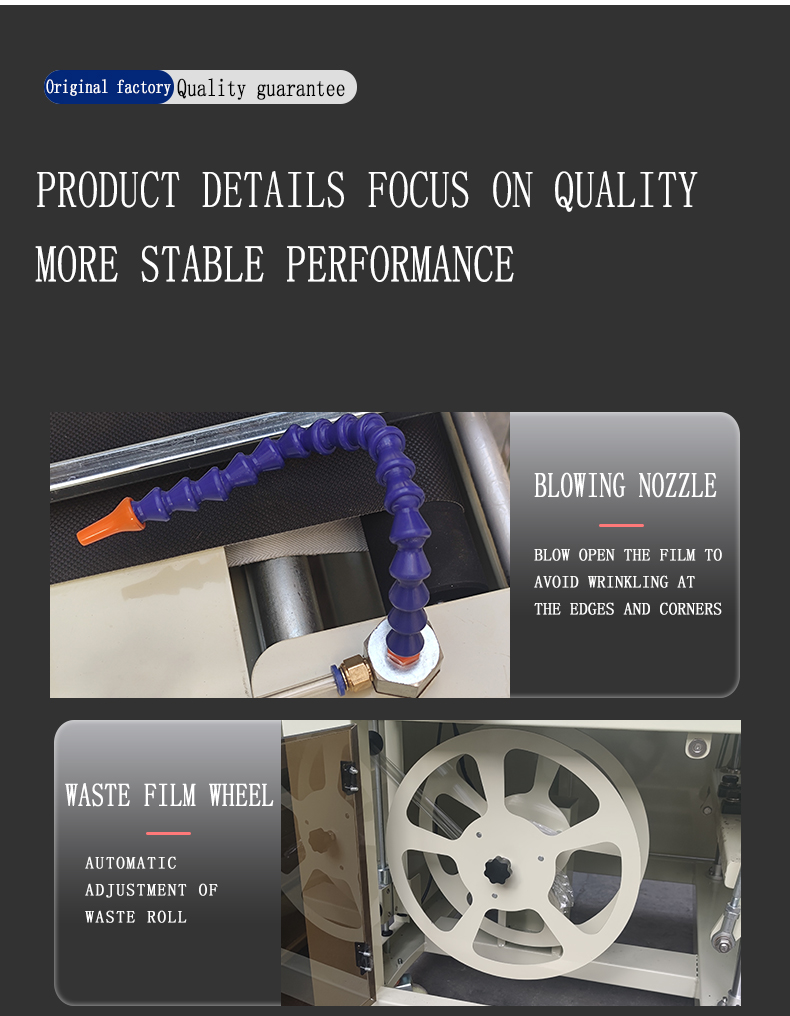

Details 14
Process Flow Diagram
Dimension Diagram 1
Dimension Diagram 2

Frequently Asked Questions

Which industries is this wrapping machine suitable for?

This machine is widely used in software, food, cosmetics, printing, pharmaceutical, beverage, and hardware industries. It is particularly suitable for packaging wider and longer items like wood and aluminum frames.

What are the advantages of the side sealing design?

The side sealing design ensures that the packaging length is completely unlimited. Additionally, the sealing line height can be adjusted according to the height of the target products for optimal results.

Does the sealing knife produce smoke or cause pollution?

No. The sealing knife is made of a high-temperature resistant alloy with a DuPont Teflon coating. It features anti-sticking properties, ensures the seal won't crack, and operates without coking, smoke, or pollution.

Is it difficult to adjust the machine for different product sizes?

No, it is very simple to adjust. You do not need to exchange any molds or bag-making devices when transitioning between different product sizes.

Can this machine be integrated into an automated production line?

Yes, this wrapping machine is designed to connect directly with existing production lines, allowing for unmanned, fully automated packaging operations.

How is the temperature controlled during the sealing process?

It utilizes an OMRON digital temperature controller with PID function. This ensures that the sealing temperature is highly sensitive, accurate, and adjustable, with protective functions built in to prevent product damage.
