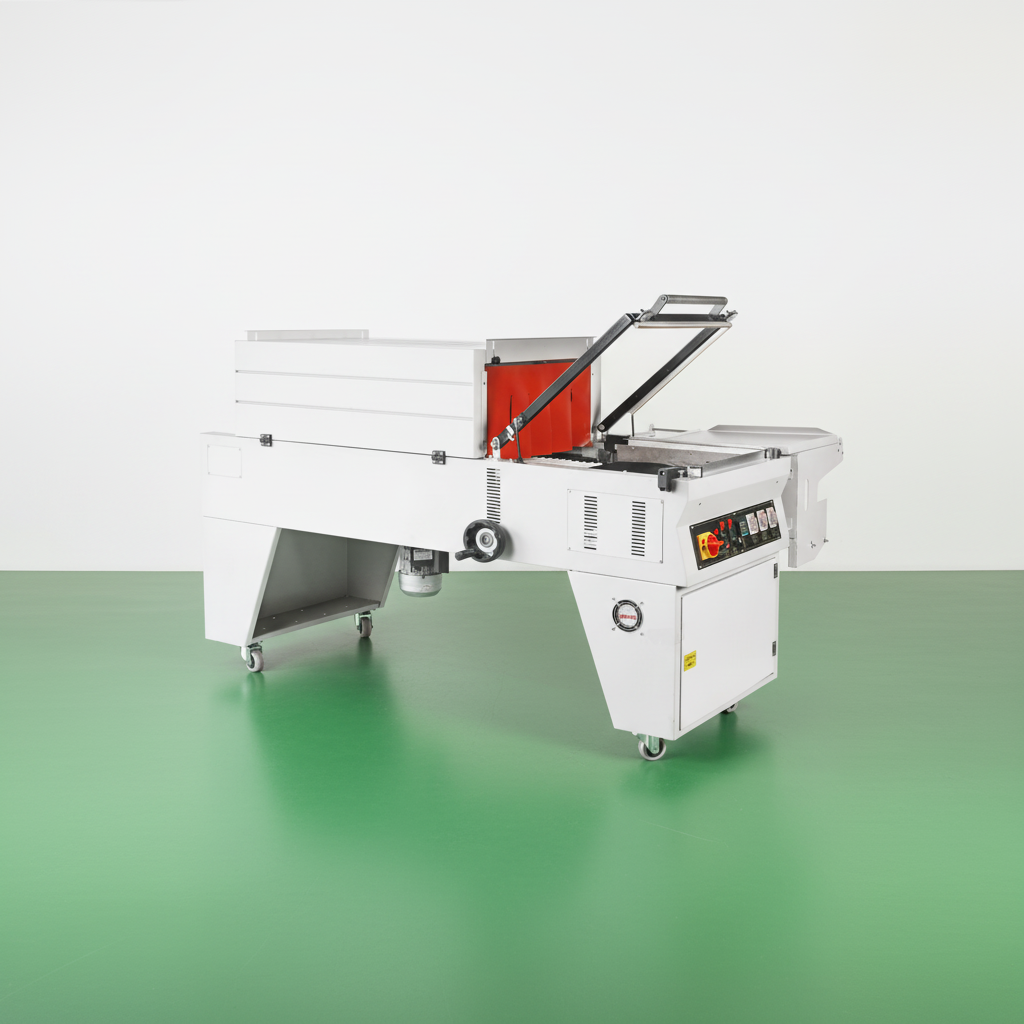

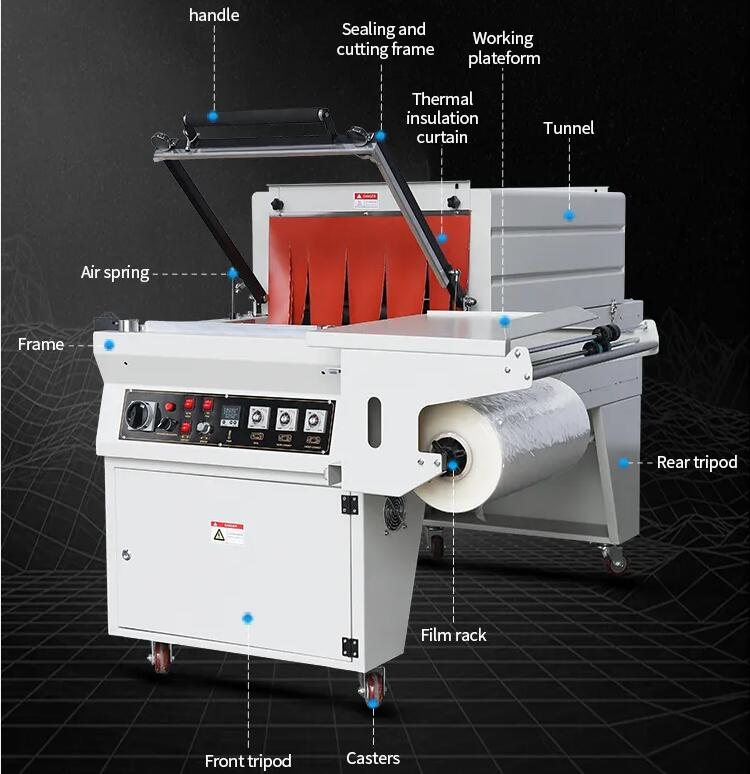

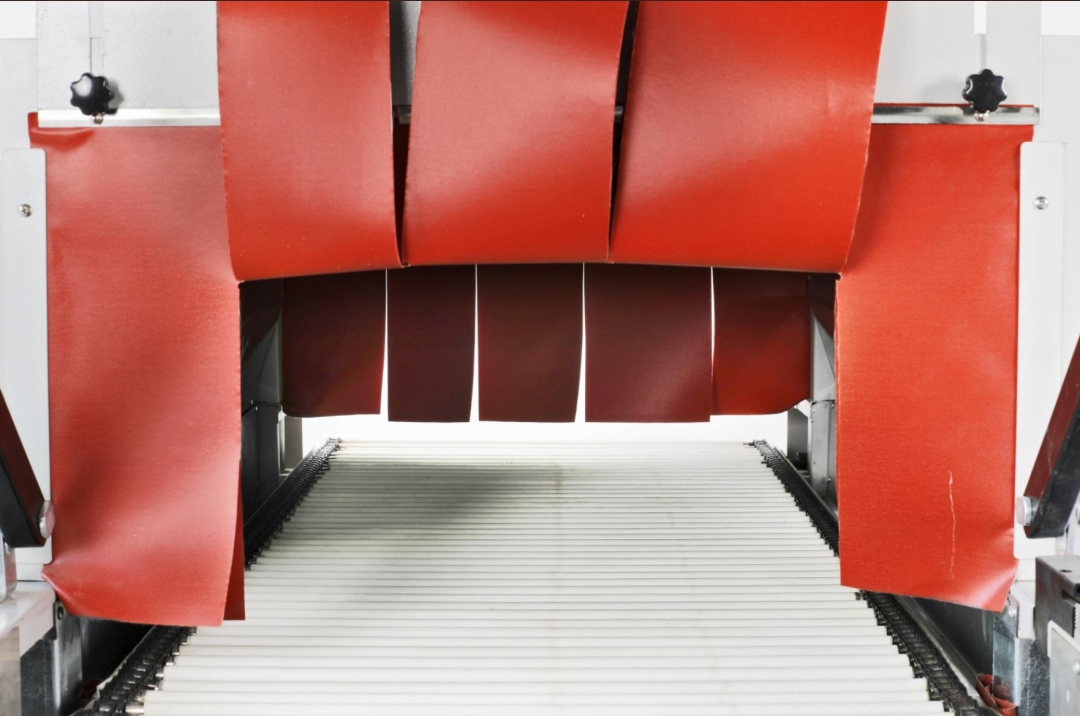

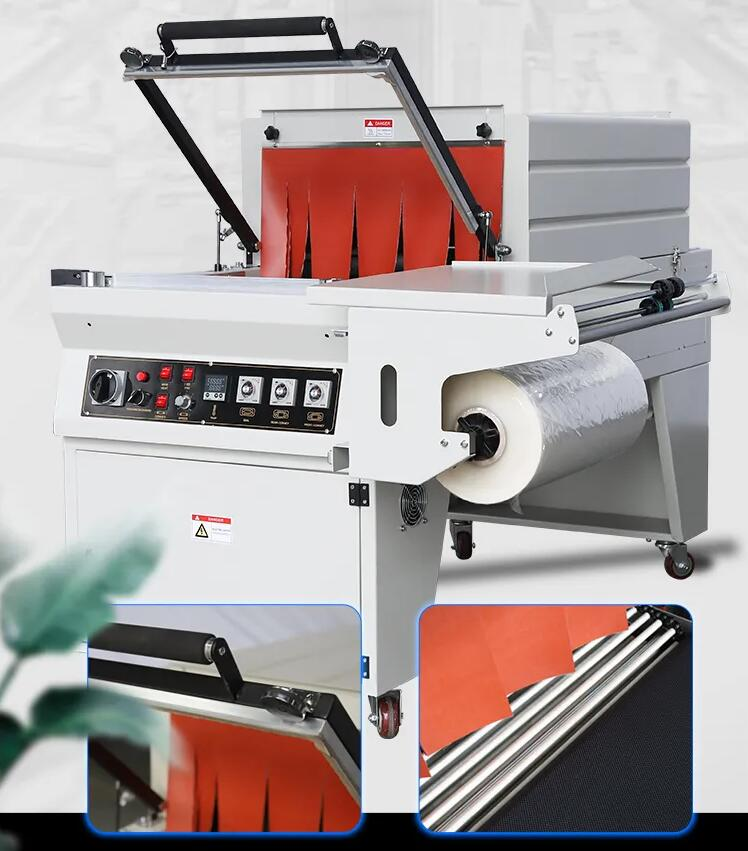

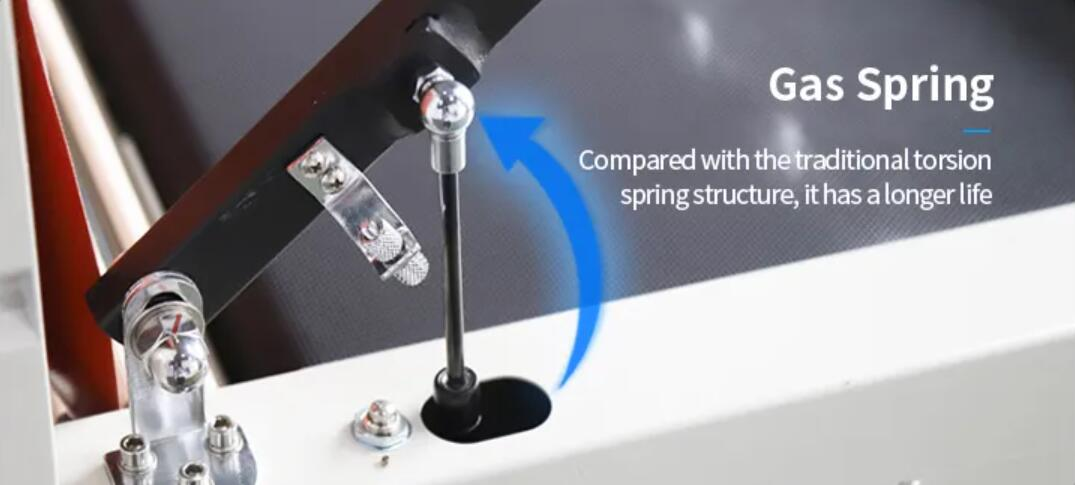

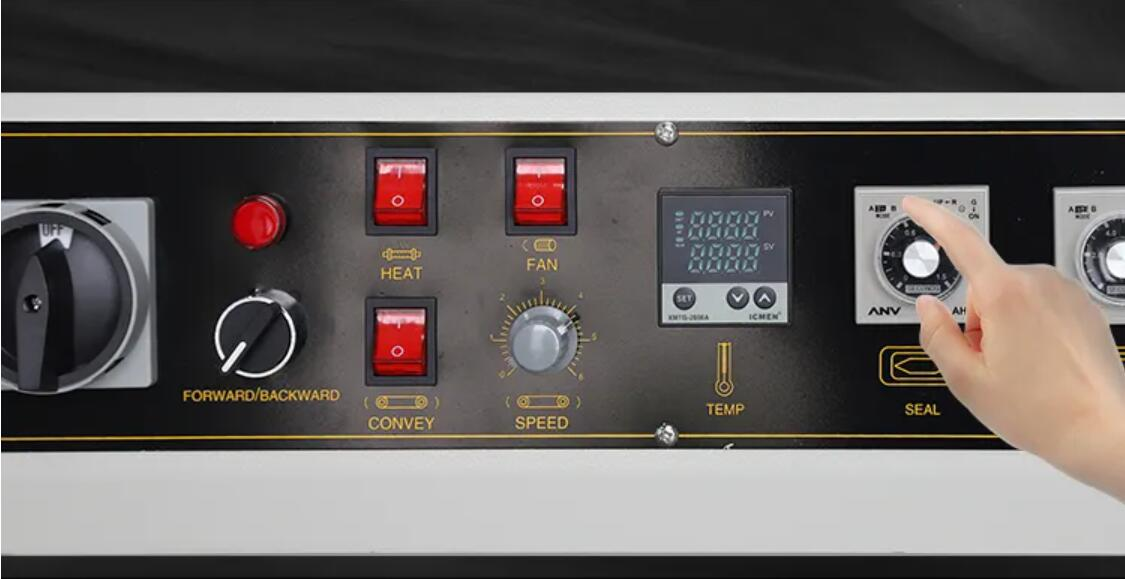

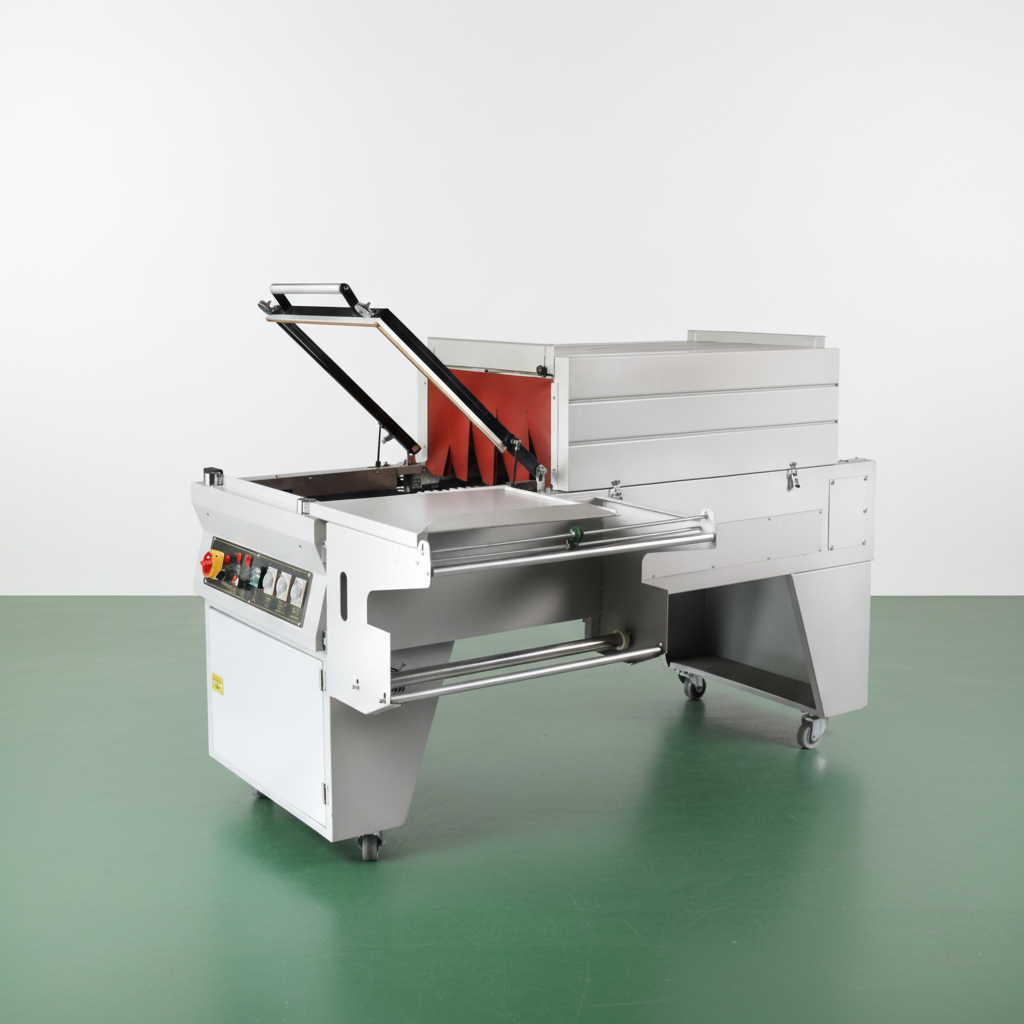

The combo shrink packing machines combine a heavy-duty L-bar sealer and shrink tunnel for packing, sealing, and shrink wrapping a variety of products. The combo shrink packaging systems can be used with a wide range of films due to their precise temperature and speed controls. These combo shrink packing machines come with a standard power take-away system and are available with a sealer arm that works manually, pneumatically, or with a motor.
| Model | DQBS-5030F |
| Heating power | 8.6kw |
| Packing efficiency | 5-8 Pieces/minute |
| Max sealing size/packing size | L500 x W400mm |
| Shrink tunnel size | L1000 x W500 x H300mm |
| Allowed max product width/height | W350 x H250mm |
| Shrink film | POF/PVC shrink film |
| Power supply | 380-415V 3Phase 50-60Hz |
| Machine size | L1700 x W680 x H1125mm |
| Machine weight | 180kg |

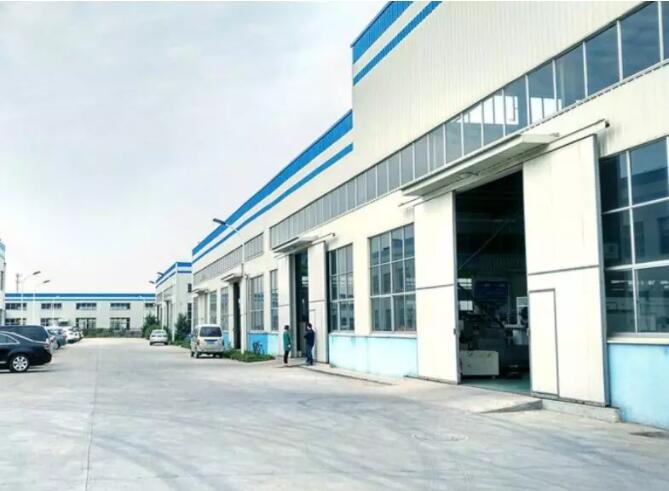

We specialize in the sales of packaging equipment. We are one of the professional equipment and solution providers in the field of automatic packaging in China. In recent years, through the continuous development of new products and new fields, we have accumulated rich experience in the design and development of case erectors, case sealers, stretch wrappers, and more. We will build up a strong and professional team to provide robust technical support and timely after-sales service in the future.
The minimum order quantity (MOQ) is 1 set.
The lead time is 10-15 workdays after we receive the payment.
The warranty period is 12 months starting from the date you receive the machine.
We accept a 100% down payment, or a 50% deposit with the remaining balance paid before shipment.
Yes, this machine has successfully passed CE certification.
This system works efficiently with POF and PVC shrink films.
