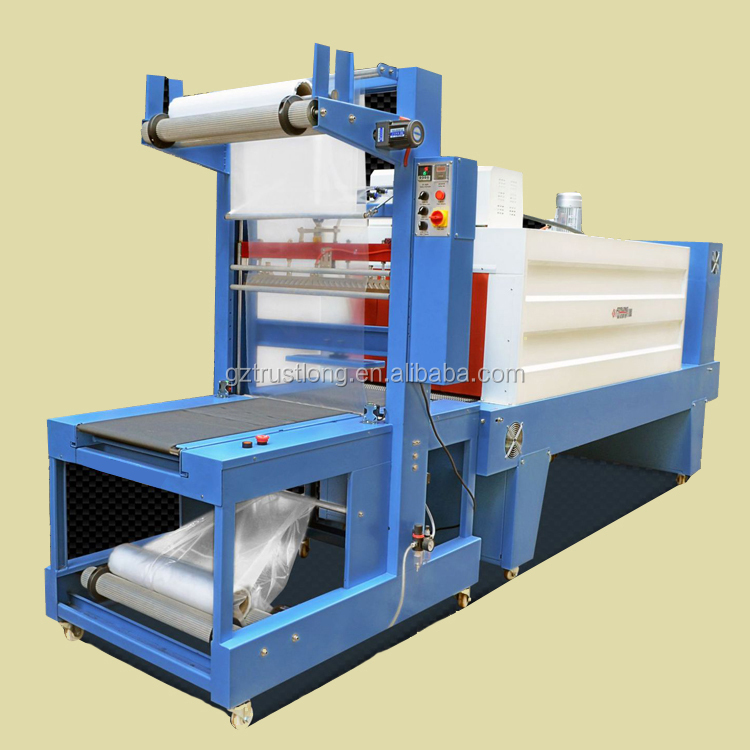

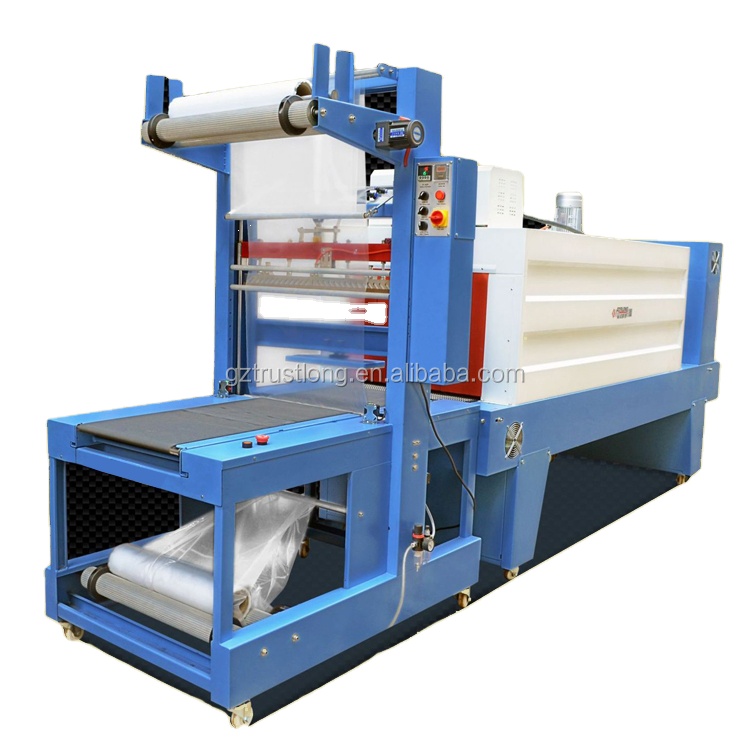

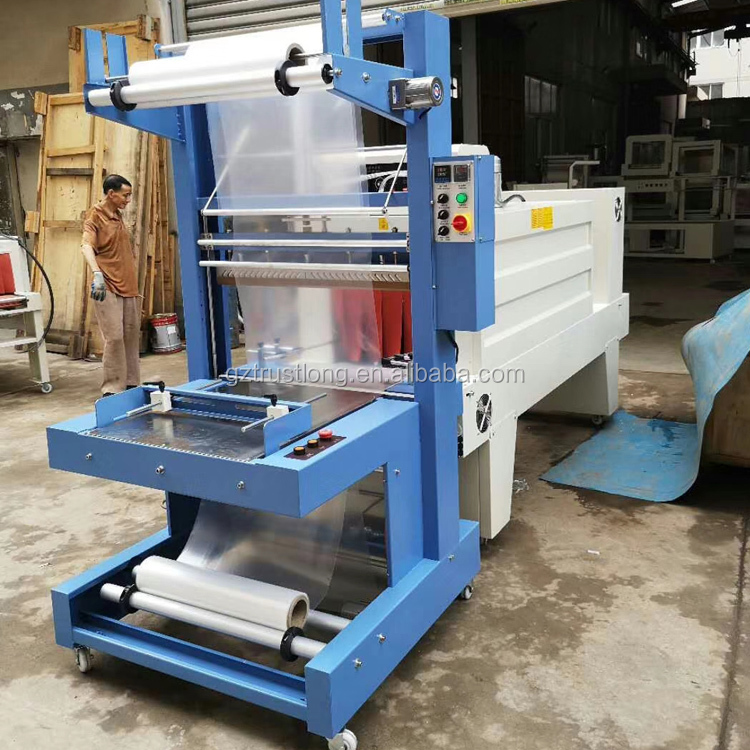

Fully Automatic Big Small Carton Case Bottle Box Wrapping Machine for Large Small Box
Product Description
Description of carton shrinking wrapping machine:
Suitable for cans, glass bottles, plastic bottles, beer, mineral water and other large-scale automatic shrink packaging items, but also can be used in wood, steel ceramics, household appliances, computers and other industries.
Specifications

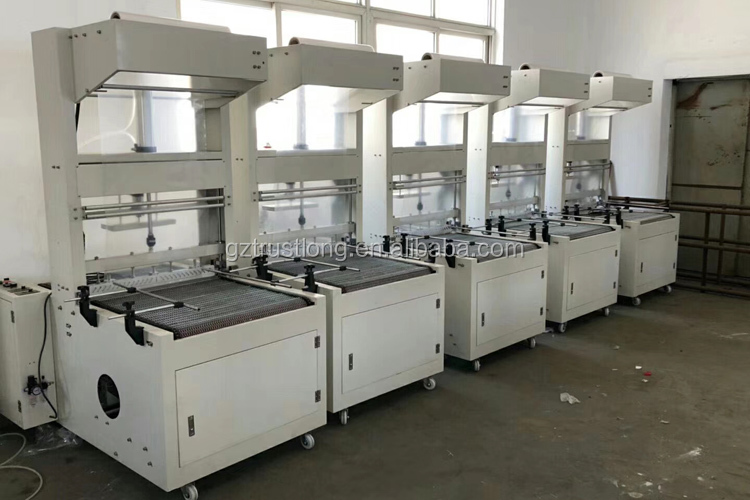

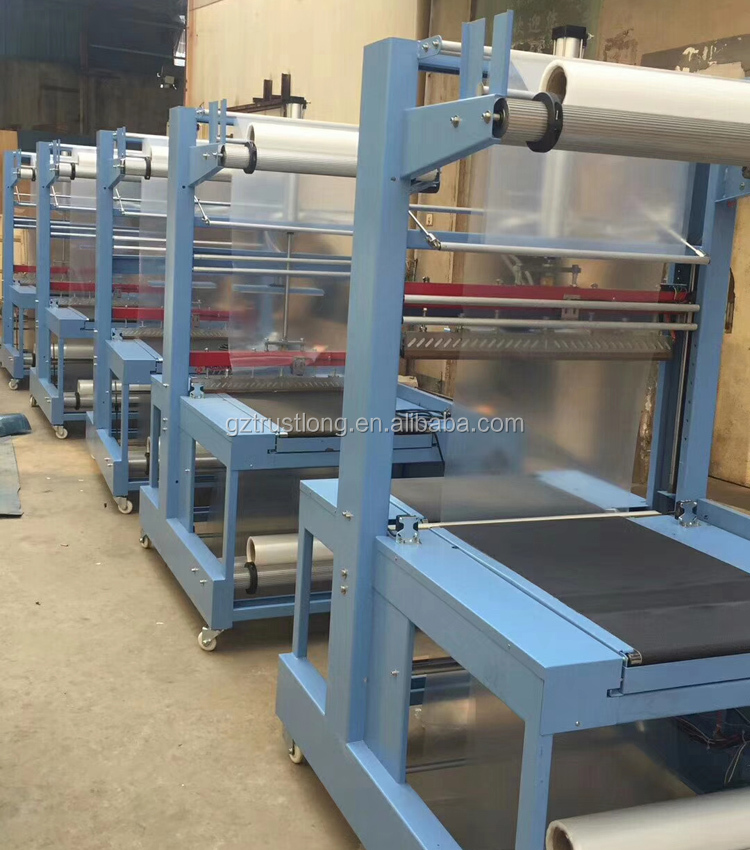

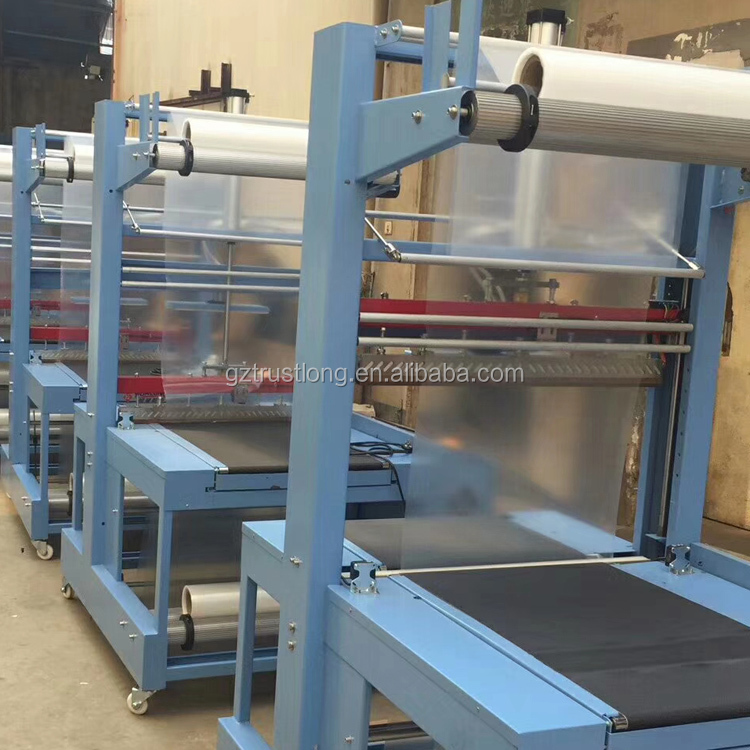

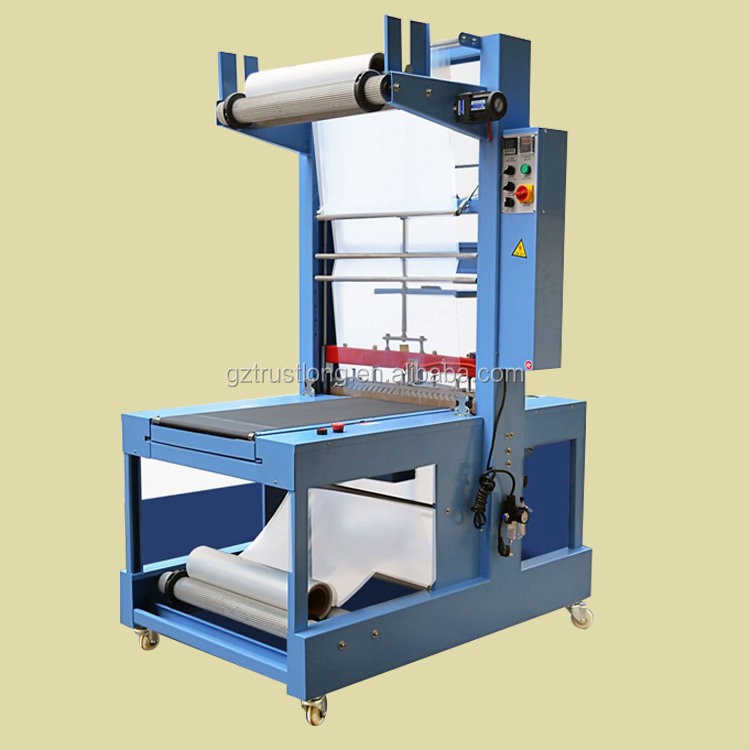

Wrapping Machines Specifications:
Model
TL-6540
TL-7540
Voltage
110V/220V/50HZ/60HZ
110V/220V/50HZ/60HZ
Packing speed
5-8packs/min
5-8packs/min
Power
1.5kw
1.5kw
Max. Packing size
L400×W400×H380mm
L500×W500×H380mm
Max. Sealing Length
650mm
750mm
Working Air Pressure
5~7 kg/cm²
5~7 kg/cm²
Dimension
L925*W940*H1920mm
L925*W1040*H1920mm
Net Weight
300kg
350kg

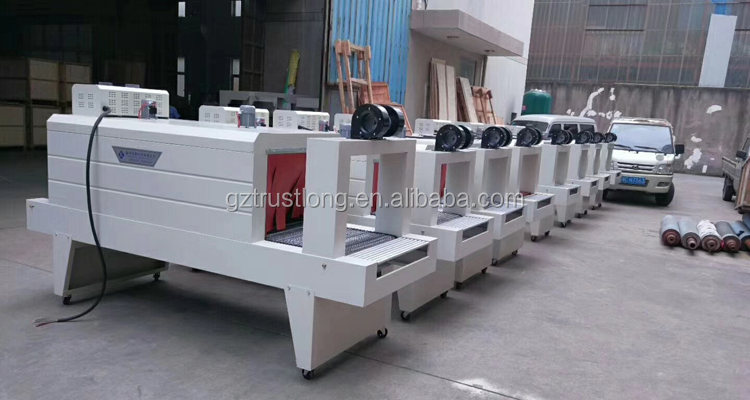

Shrinking Machines Specifications:
Model
BSE-5040A
BSE-6040A
Voltage
220V/380V/50HZ/60HZ
220V/380V/50HZ/60HZ
Packing speed
0-15M/min
0-15M/min
Power
20KW
24KW
Max. Packing size
L1500*W500*H400mm
L1800*W600*H400mm
Max. Sealing Length
450*400mm
550*450mm
Max loading weight
35KG
35KG
Dimension
L2500×W740×H1550mm
L2800×W840×H1600mm
Net Weight
290kg
340kg
Shrink film
PE PVC POF PP
PE PVC POF PP
Performance Characteristics
1
Two high-power wind-driven motors ensure large circulating air volume and uniform temperature in the furnace cavity.
2
Conveying is controlled by original high-quality inverter, stepless speed regulation.
3
Stainless steel heater, fast heating and long service life.
4
The planetary reducer and high-power motor ensure smooth transportation and no vibration.
5
Large cooling fan, quickly cooling and shaping after heat shrinking.
6
Both ends of the furnace mouth are equipped with heat insulation baffles and shields to prevent heat loss.
7
Original high temperature resistant thermal curtain, greatly reducing thermal energy loss.
8
There are many choices of ordinary and dense shaft types, and even small items can be packed without shifting the product.
9
There are casters on the bottom to move the machine freely, with bottom corner bolts, which can be used with different height cords.
10
The specially designed air duct system guarantees the appearance effect after packaging.
11
Internal furnace cavity plate adopts adjustable phoenix, which can adjust local air volume according to shrinkage requirements.
12
The conveyor belt can be designed as a roller type, Teflon mesh or stainless steel conveyor mesh according to customer requirements.

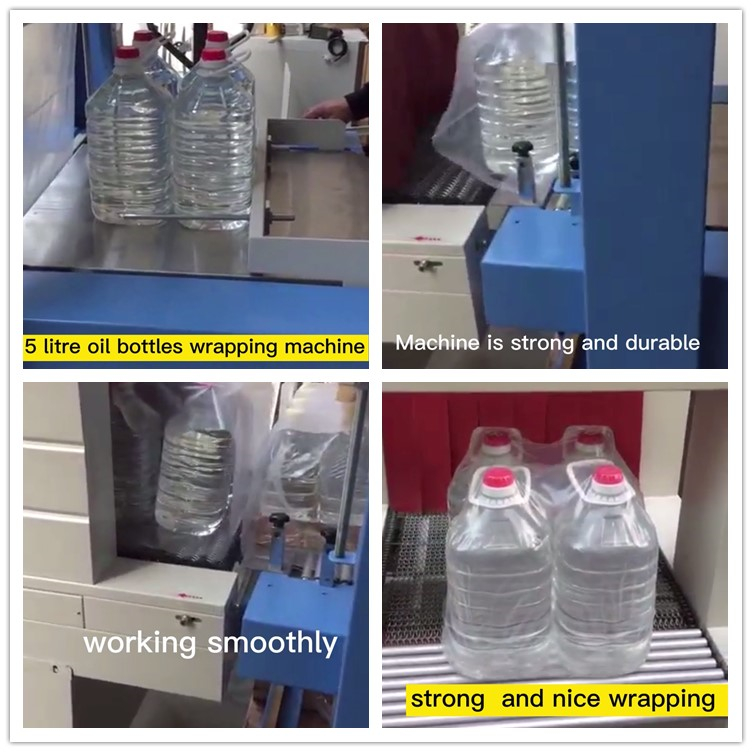

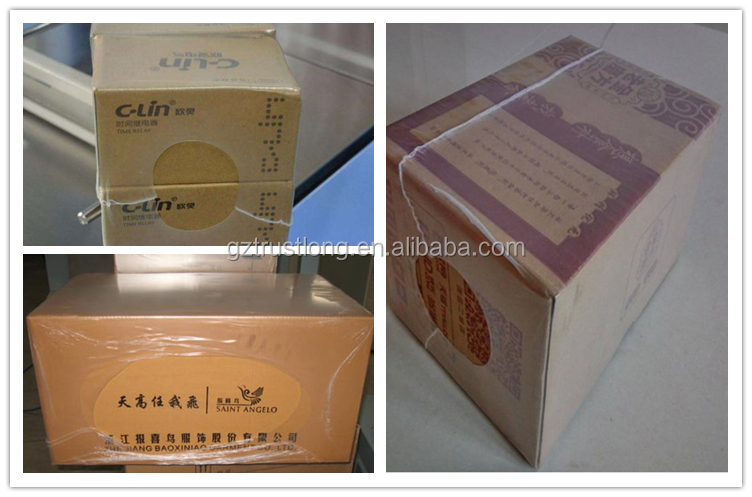

Application
Packaging & Shipping

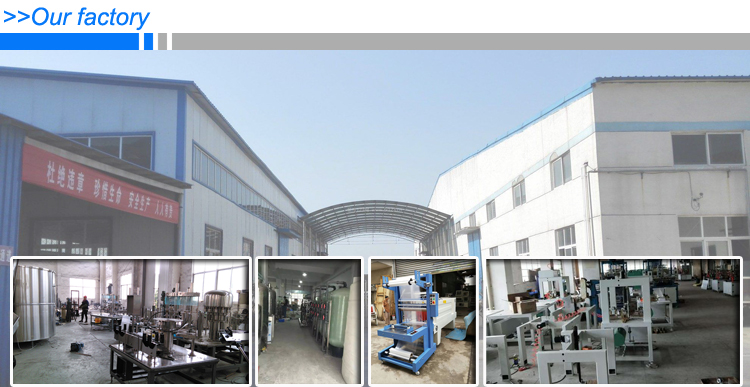

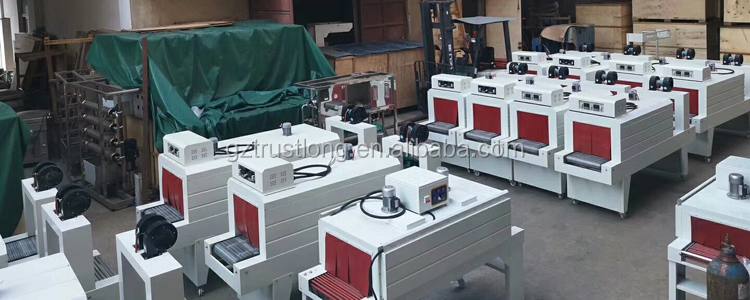

Production Facility
Frequently Asked Questions
1. How long does it take to ship the goods?
It often takes about 10 days after the receipt of the deposit.
2. What are the terms of payment?
We typically accept a 30% deposit, and the remaining payment is to be paid before delivery.
3. Do you perform quality control (QC) inspections?
Yes, each machine is thoroughly tested by a technician before sending out and is packed with free spare parts.
4. Are there any spare parts provided?
If it is necessary, free spare parts are sent together with the machine.
5. What does the warranty cover?
The warranty is one year after shipment. If there is a machine quality problem, the seller pays for the service and repairs during the first year. The seller is not responsible for issues caused by improper operation. If the buyer needs spare parts after the warranty period, the seller can supply them and send them by express.
6. Do you offer training for technicians?
We offer free training for the buyer's technician at the seller's factory. However, the buyer's technician needs to pay for their own living, eating, and travel expenses.
