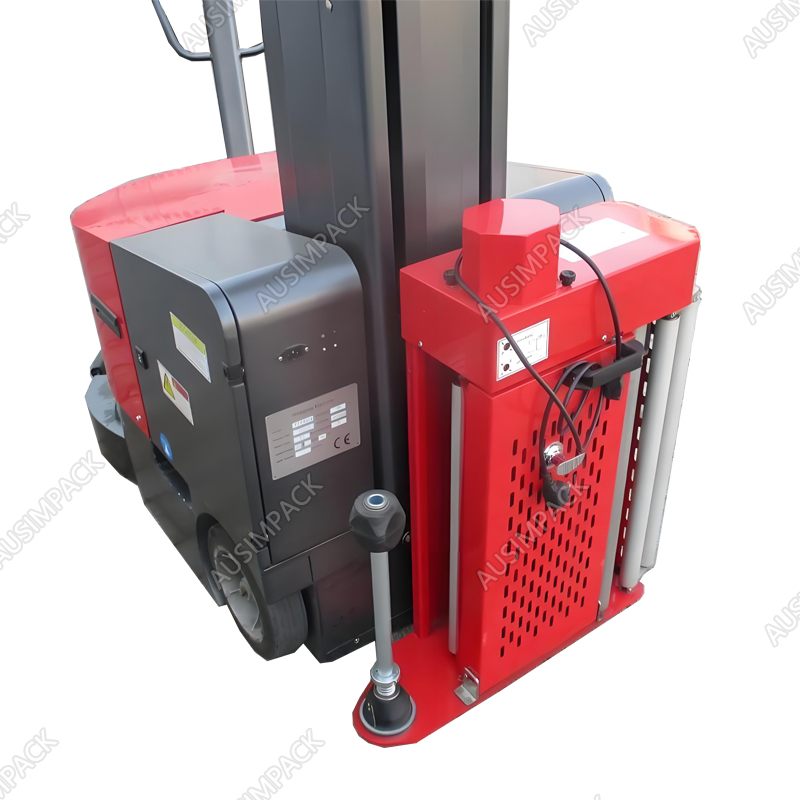

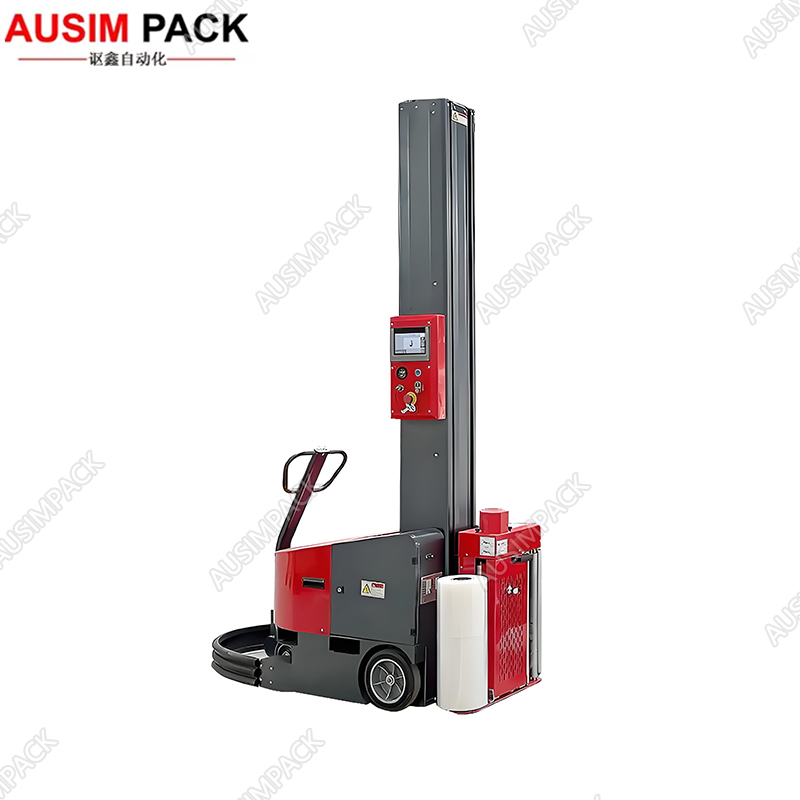

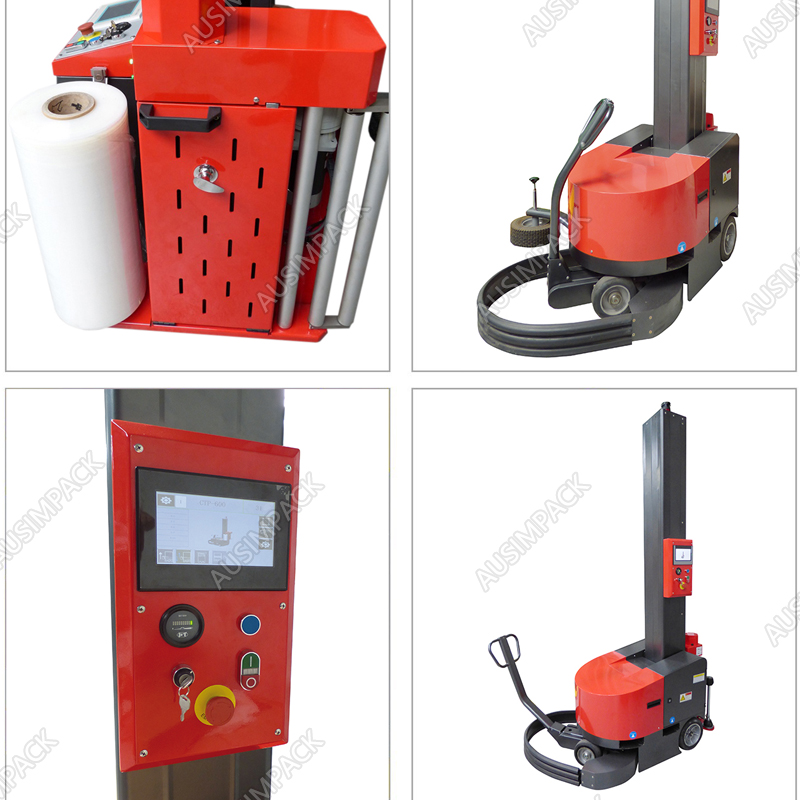

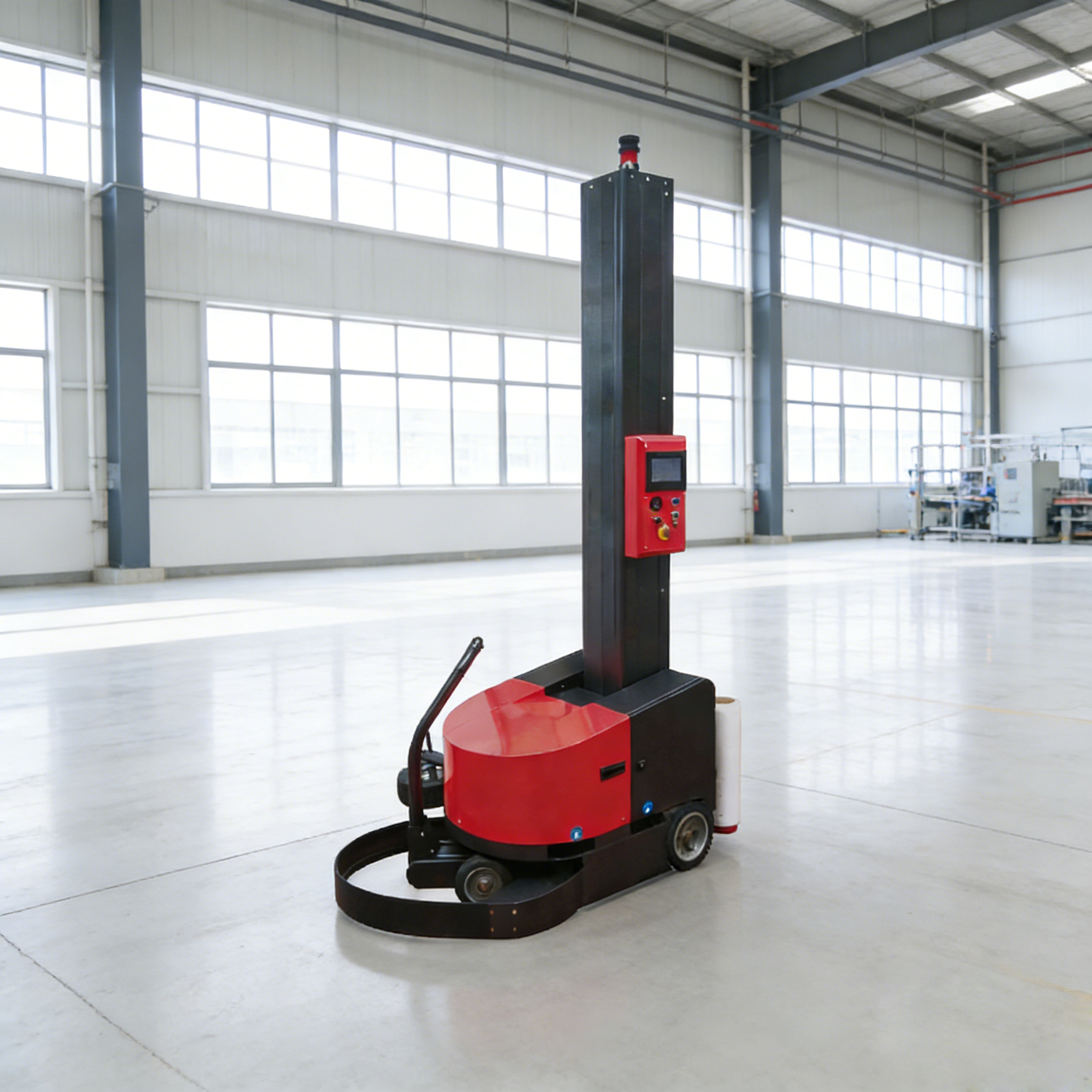

The SCR-600B self-walk / Robot pallet wrapper offers two options of semi-auto, mobile wrapping machines. Ideal for applications requiring mobility, extended length or shaped pallet sizes with the wrapper driving around to wrap the pallet, improving wrap consistency and all important load retention.
Fully Automatic Robot Pallet Wrapper / Self-propelled Pallet Wrapping Machine
| Size of the packing cargo | |
| Min pallet size: | (L)600mm*(W)600mm |
| Max pallet size: | no limited |
| Max packing height: | (H)2400mm |
| Max packing weight: | no limited |
| Machine Specification | |

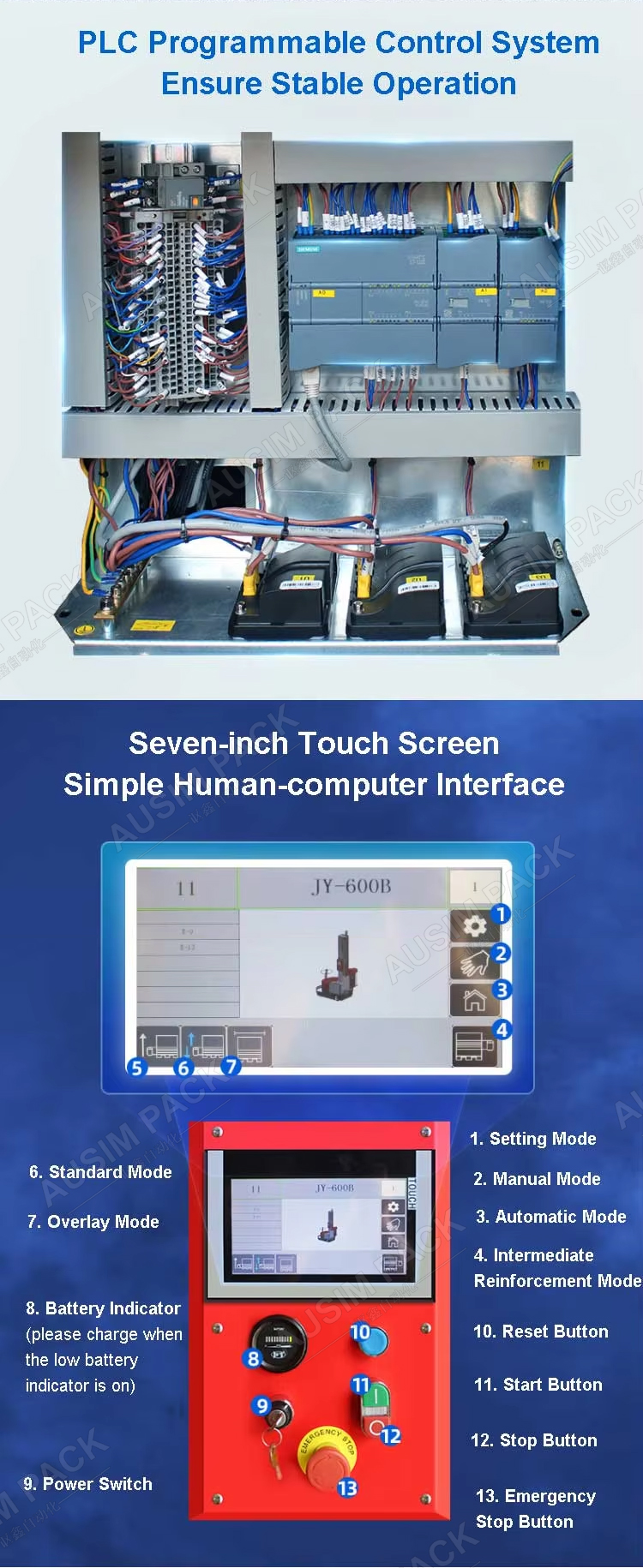

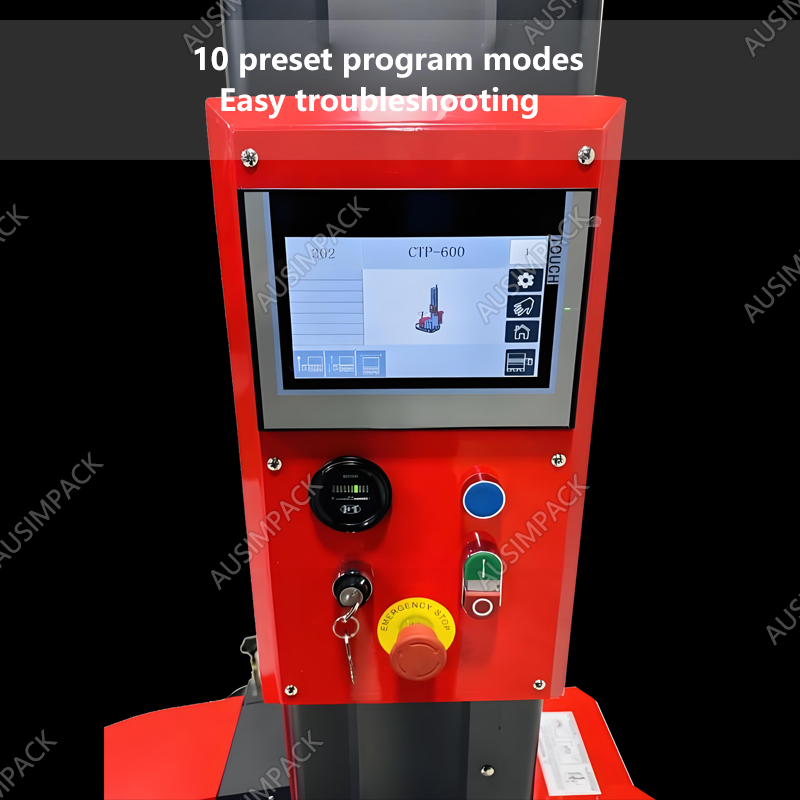

| Control system: | PLC |
| Max moving speed: | 70 meters/min |
| Charge power: | 1PH AC220V, 50/60Hz, 10A |
| Built-in battery: | Acid battery (can be charged more than 1500 times), built-in charger. Works for 8 hours when fully charged. |
| Battery capacity: | 110AH (12V) , 2 pcs |
| Required charge time: | 8~10 hours |
| Rated working time: | 8 hours |

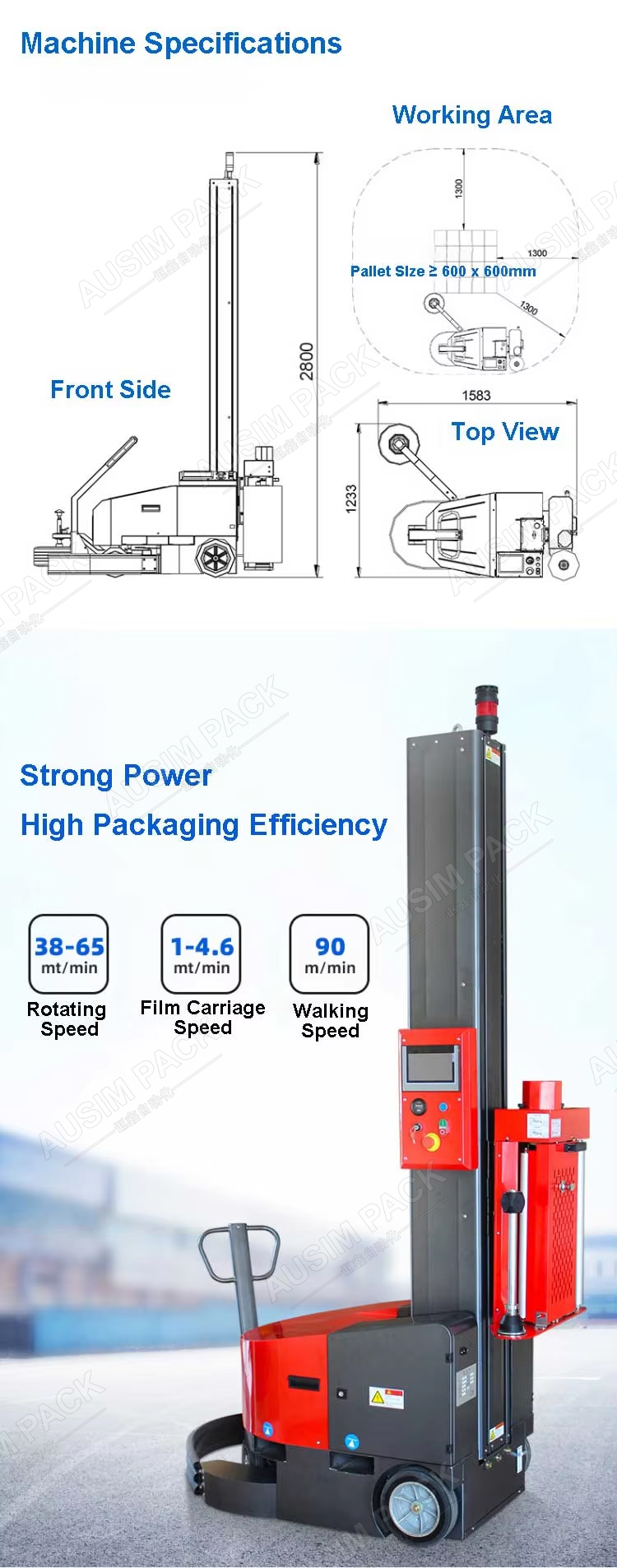

| Machine dimension: | (L)1542mm*(W)1231*(H)2276mm |
| Air pressure: | 0.4-0.6Mpa (film cutting mechanism) |
| Power supply voltage: | 1PH 220VAC, 50Hz |
| Power: | 0.95kw (Rotating motor 0.4kw / Up/down motor 0.35kw / Pre-stretch motor 0.2kw) |
| Photoelectric sensors: | Yes |
| Number of wraps: | 0-9 laps |
| Machine weight: | 430kg |
| Stretch Film Detail | |

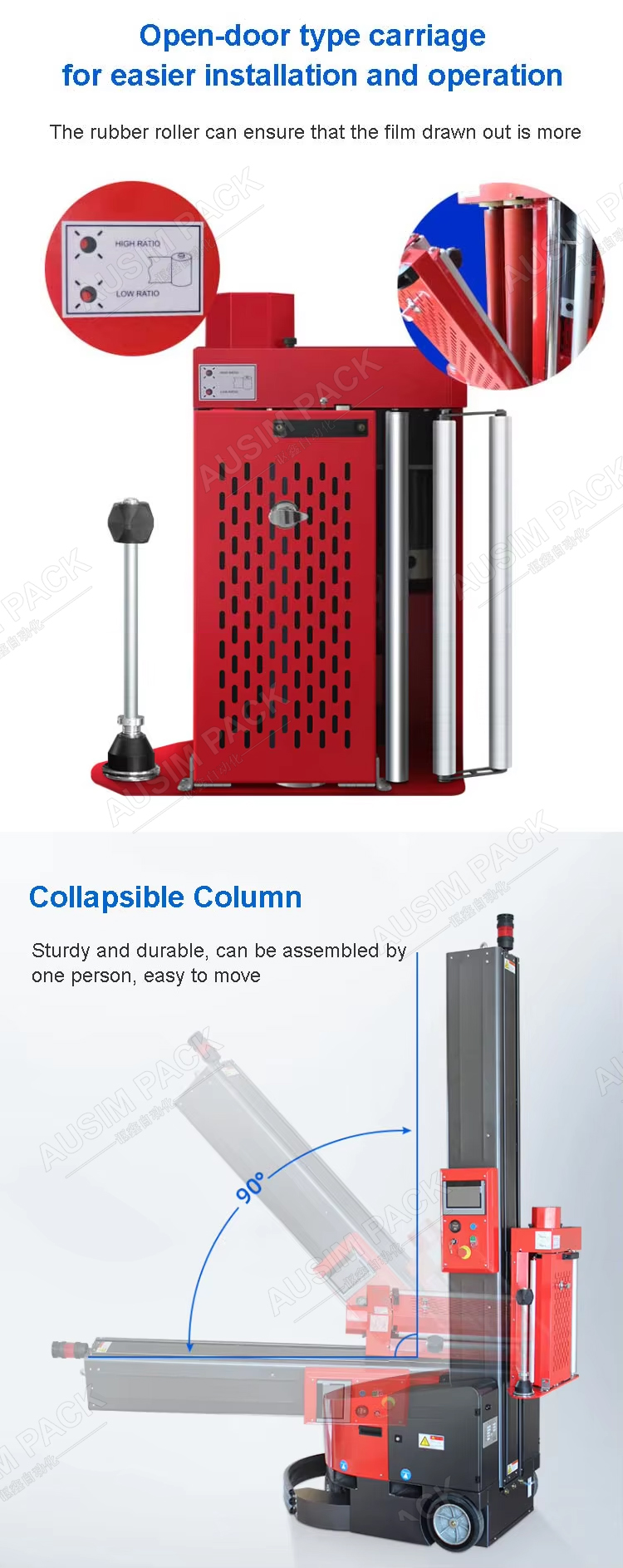

| Film carriage type: | power stretch |
| Pre-stretch rate: | 250%-300% |
| Film type: | LLDPE stretch film |
| Max. external diameter (D): | ∅250mm |
| Internal diameter (d): | ∅76mm |
| Film roll height (h): | 500mm |
| Film thickness: | 20 -25µm |
We are a professional manufacturer specializing in shrink wrappers, carton sealers, carton erectors, and pallet wrapping machines. Our operations integrate research and development, manufacturing, sales, and service. We consistently pursue a "quality first, credibility first" business purpose, respecting a "people-oriented, technology-leading, and service-oriented" modern enterprise management philosophy. Continuous improvement of technical talent, upgrading of production equipment, and creation of innovative products remain our primary goals.
Our team works with dedication, innovation, and integrity to build a stable market and enhance corporate image. By introducing advanced expertise and technology, our independently developed and manufactured models offer stable performance, excellent quality, and user-friendly operation, making us a trusted partner for global customers.
