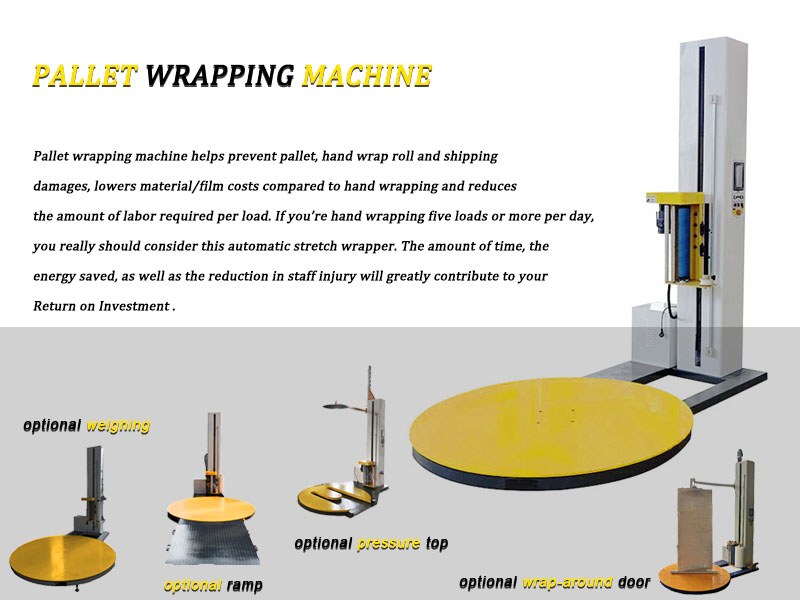

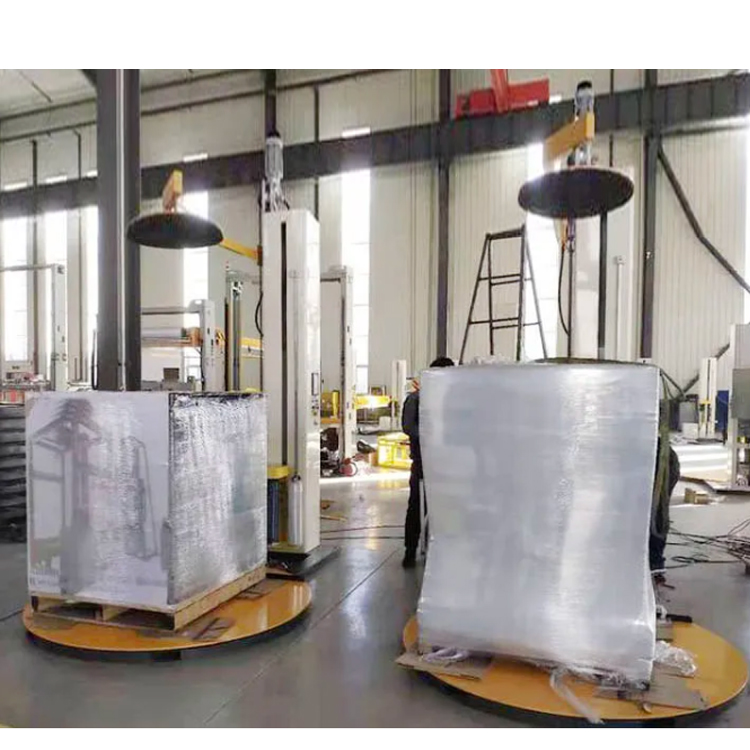

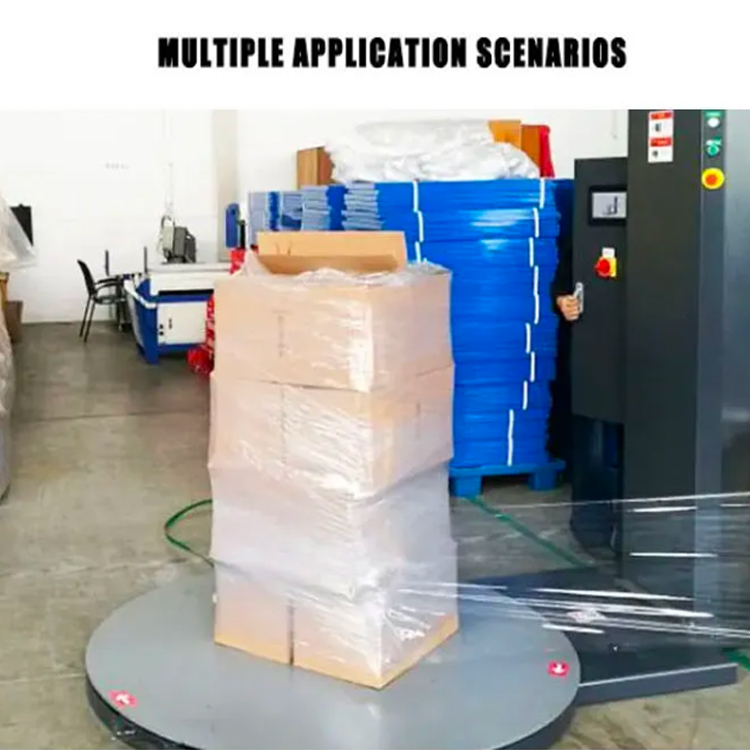

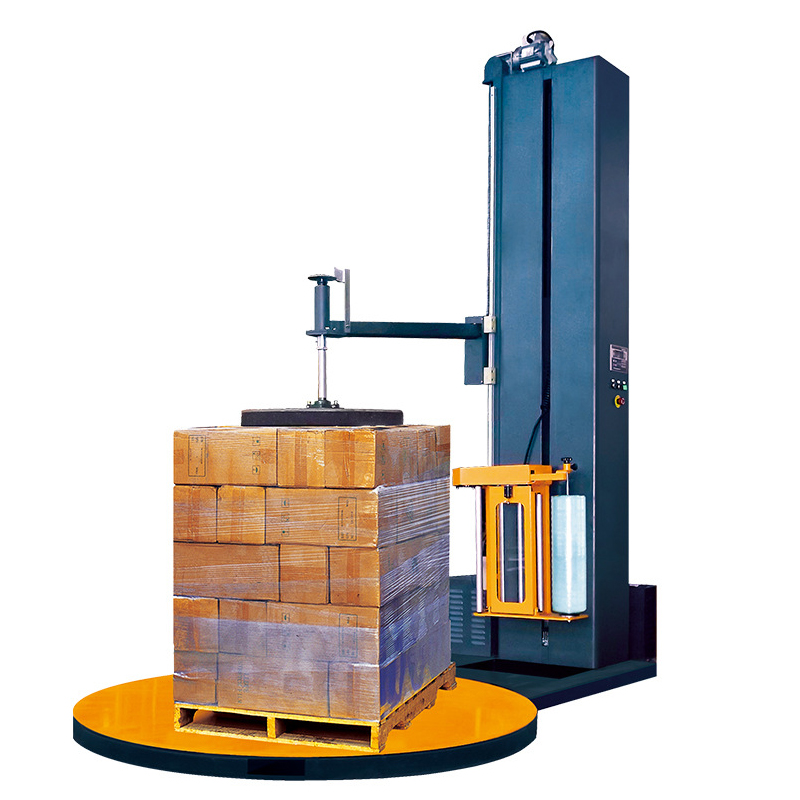

The pallet wrapping machine is suitable for packing goods shipped with pallets (such as container transportation of bulk goods and packing of bulk pallets, etc.). The equipment uses the contractibility and self-adhesive of wrapping film to bind the goods and pallets into a whole, which plays a fixed role. Widely used in glass products, hardware tools, electronic appliances, paper making, ceramics, food, beverage, building materials, and other industries. It can improve logistics efficiency and reduce loss during the shipping process. It has the advantages of being dust-proof, moisture-proof, and offering low packaging costs.
| Parameter | Specification Details |
|---|---|
| Model | T1650F |
| Wrapping product size | L(500-1200) mm × W(500-1200)mm |
| Wrapping height | L type:1800mm | H type:2400mm | Y type:2800mm |
| Packing efficiency | 20-40 pallet/h |
| Rotary speed | 0~15rpm (adjustable, steady start and stop) |
| Turntable size | Dia:1650mm | Height:78mm |
| Turntable weight capacity | 2000kgs |

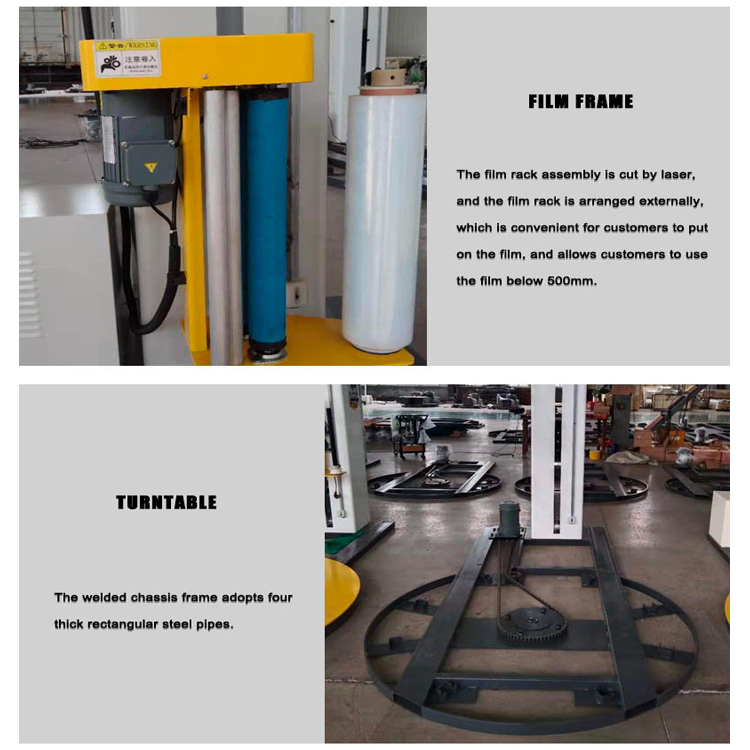

| Film carriage system | Pre-stretch film carriage, pre-stretch up to 250%, automatic transport film |
| Up and down upright | Double chain structure, adjustable up and down speed by transducer |

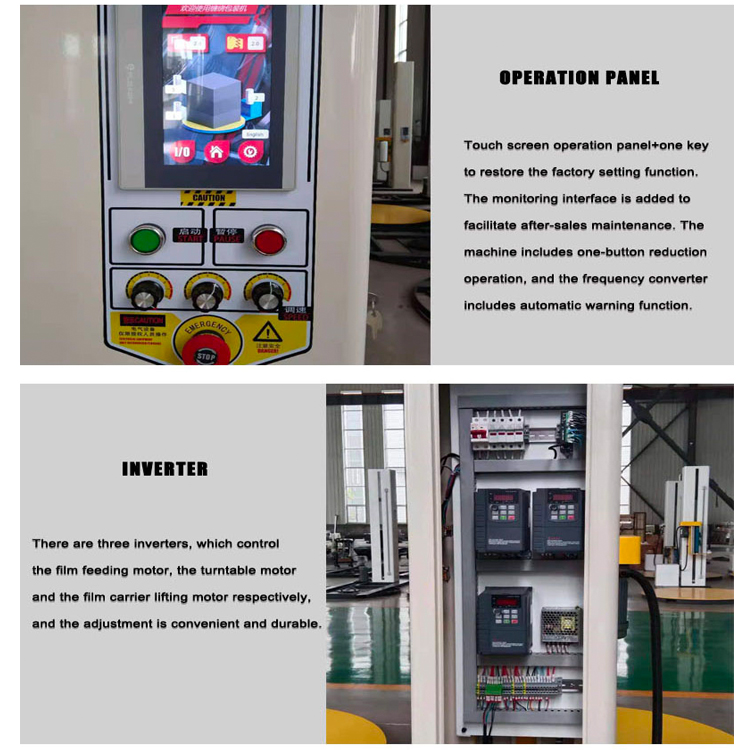

| Control system | PLC programmable |
| Power | Turntable 0.75kw, film carriage 0.4kw, upright 0.37kw |
| Machine weight | 700kg |
| Machine size | 2745mm × 1650mm × (2260-3260) mm |

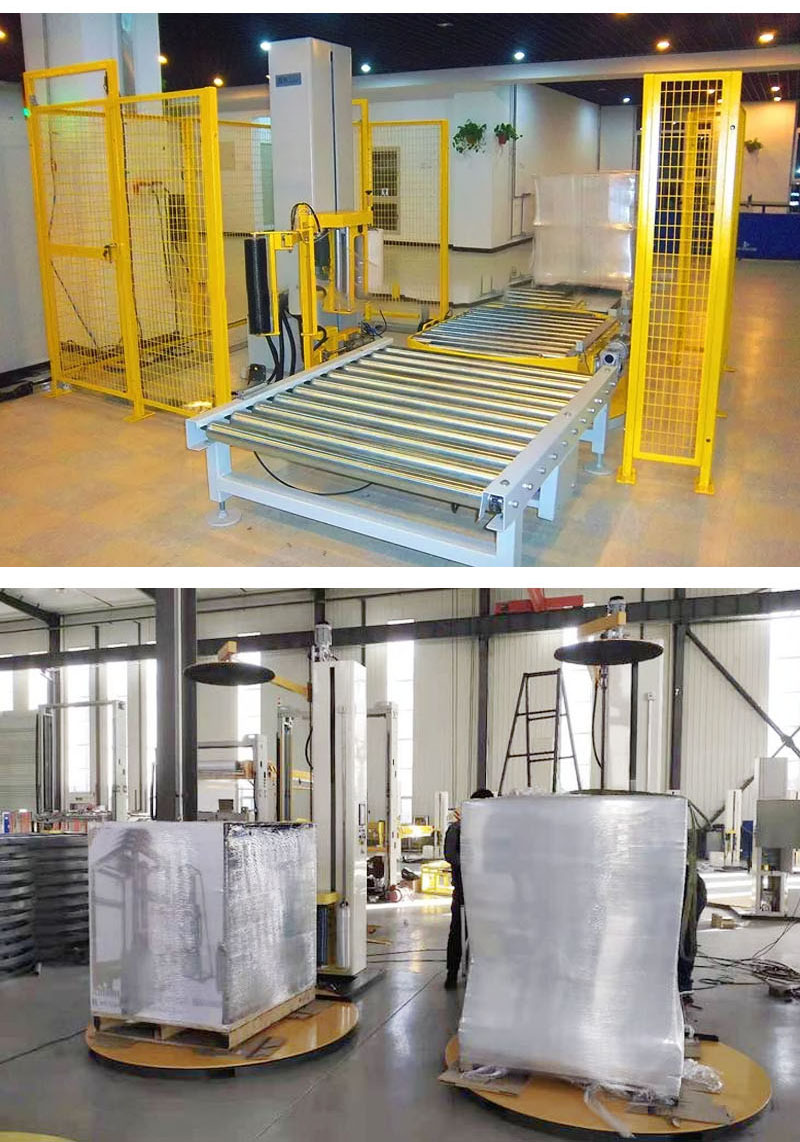

We specialize in the planning of automatic packaging production lines, such as shrink packaging lines, all-automatic pallet strapping lines, automatic carton packaging lines, conveying systems, robot stackers, and other mechanical equipment.
