Product Description

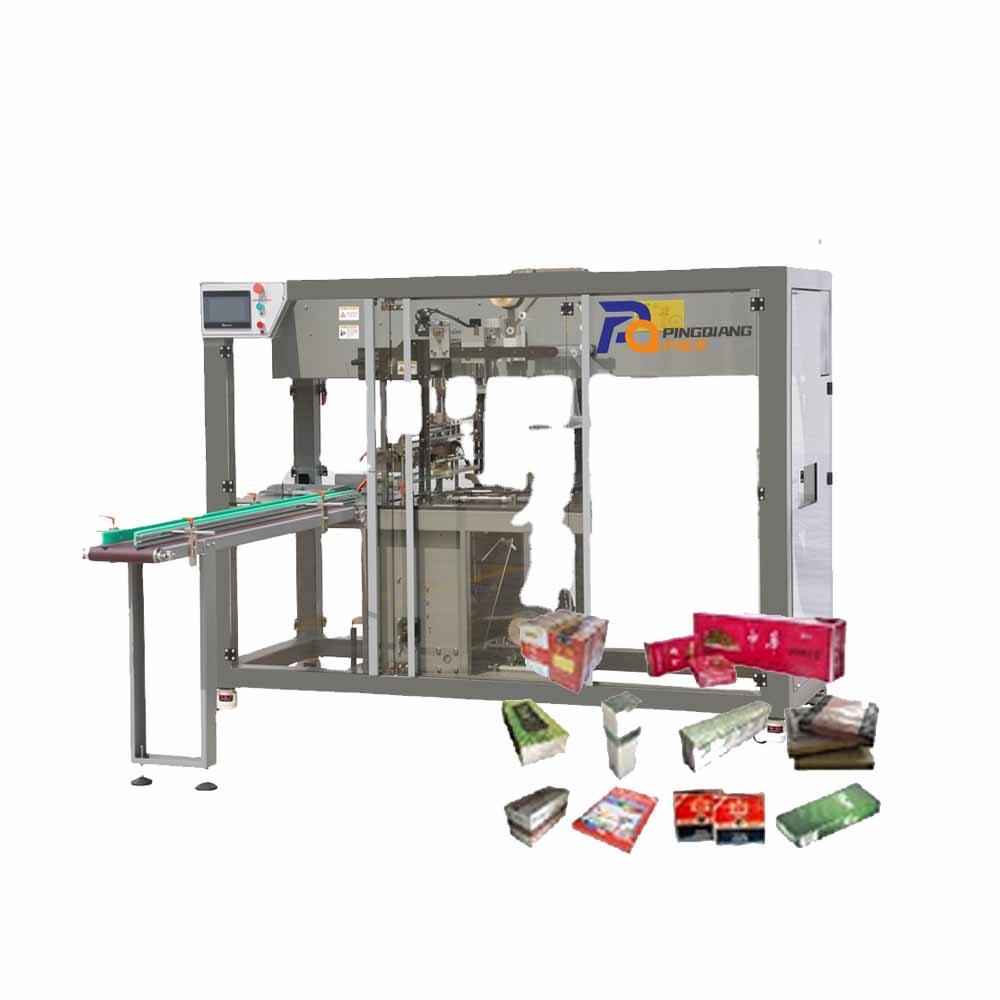

PQ-450 High Speed Transparent Film 3D Packaging Machine

PQ-450 high-speed transparent film three-dimensional packaging machine can automatically feed, wrap, fold, side seal, end seal, up and down shaping and counting single box and multi box sets. It has the functions of automatic pasting, anti-counterfeiting and easy pulling; With specification memory function: With automatic track adjustment function; It also has face ironing and point ironing functions. This machine is widely used in cosmetics, medicine, food and other industries.

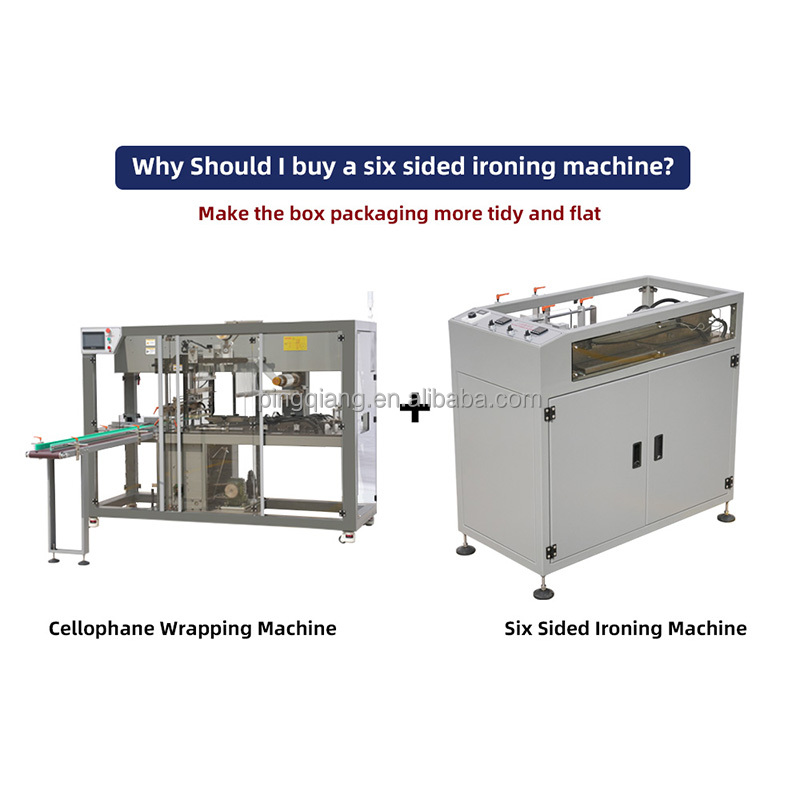

Transparent film packaging machine details

Manufacturing Technique

PRODUCT SPECIFICATIONS

Suitable packaging materials	0.018mm-0.03mm bopp double-sided heat sealing film, outer diameter Φ 320mm, inner diameter Φ 70mm
Packing Speed	10-50 packs / minute (adjustable speed according to product size)
Maximum package size	L40-280mm W30-200mm H20-90mm (all dimensions cannot be taken as the maximum)
Electric Supply & Total Power	7.5kw
Machine weight	700kg

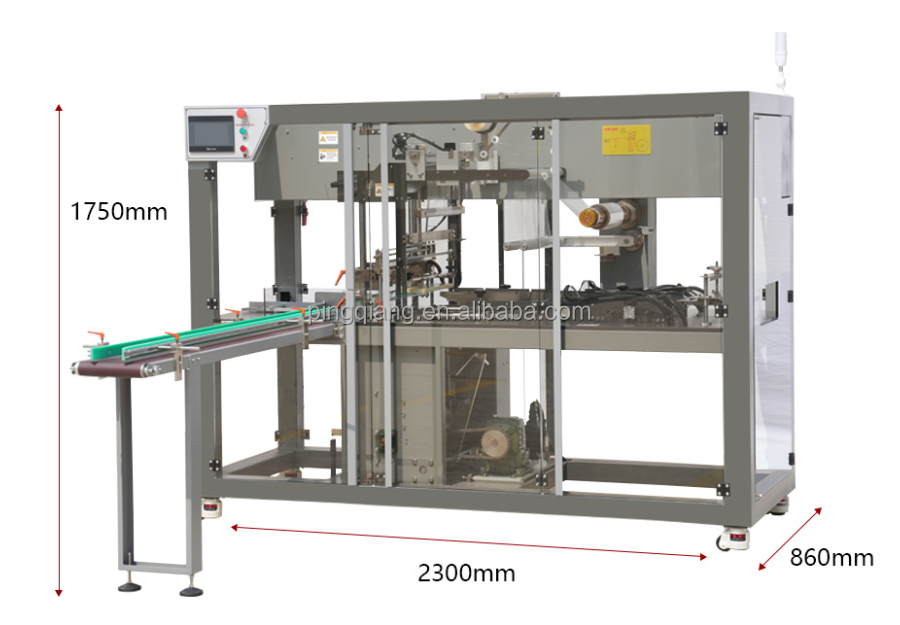

Machine dimensions	23009001750mm

PRODUCT CONFIGURATION

Item	Brand
Time relay	Omron (Japan)
Time relay base	Omron (Japan)
Intermediate relay base	Omron (Japan)
Temperature controller	Taisong
Inverter	Zhongchen
MCB	Schneider
Emergency stop button	Schneider
Run / stop button	Schneider
2-position selector switch	Schneider
Switching Mode Power Supply	Schneider
Main power isolating switch	Schneider

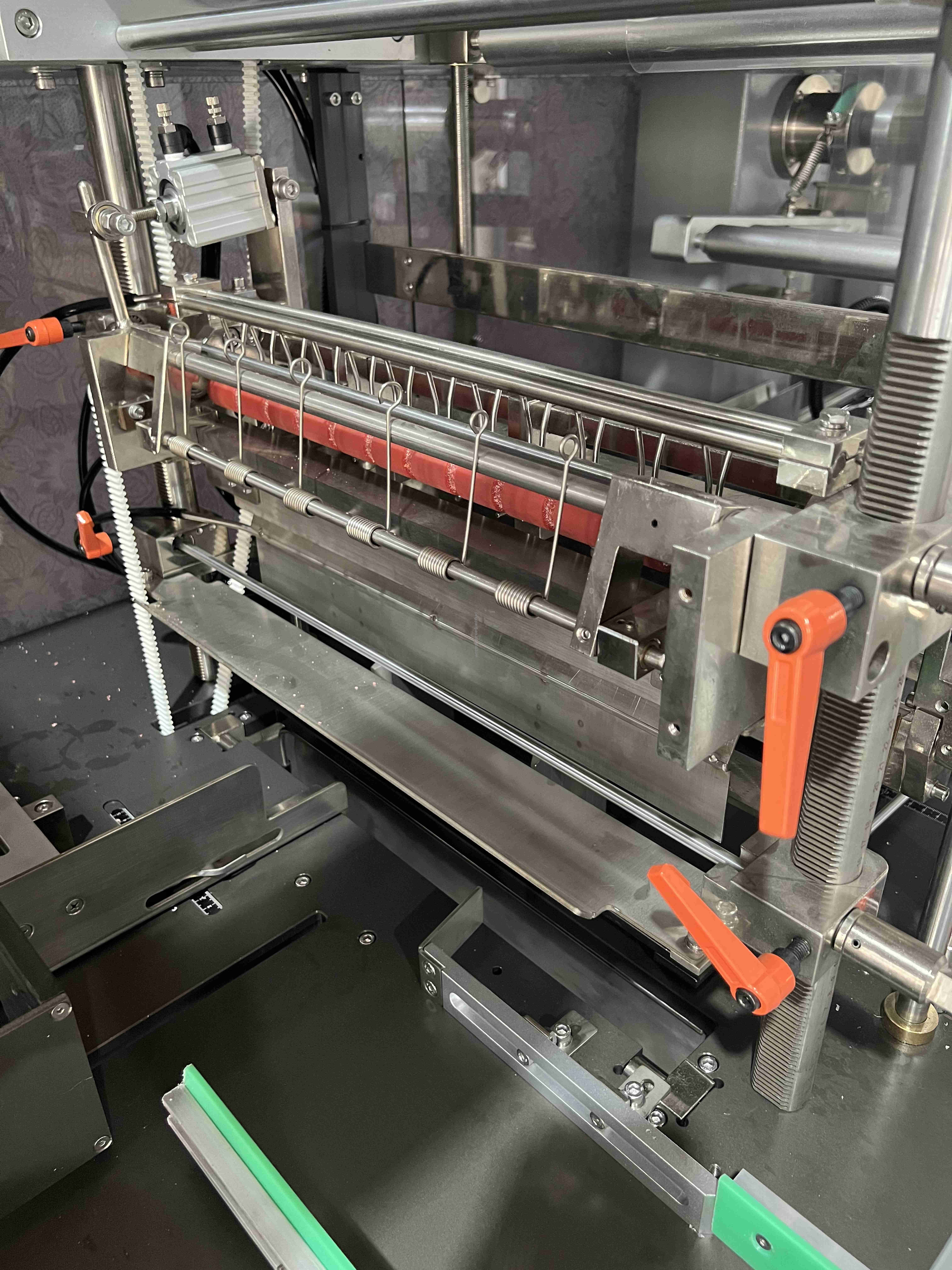

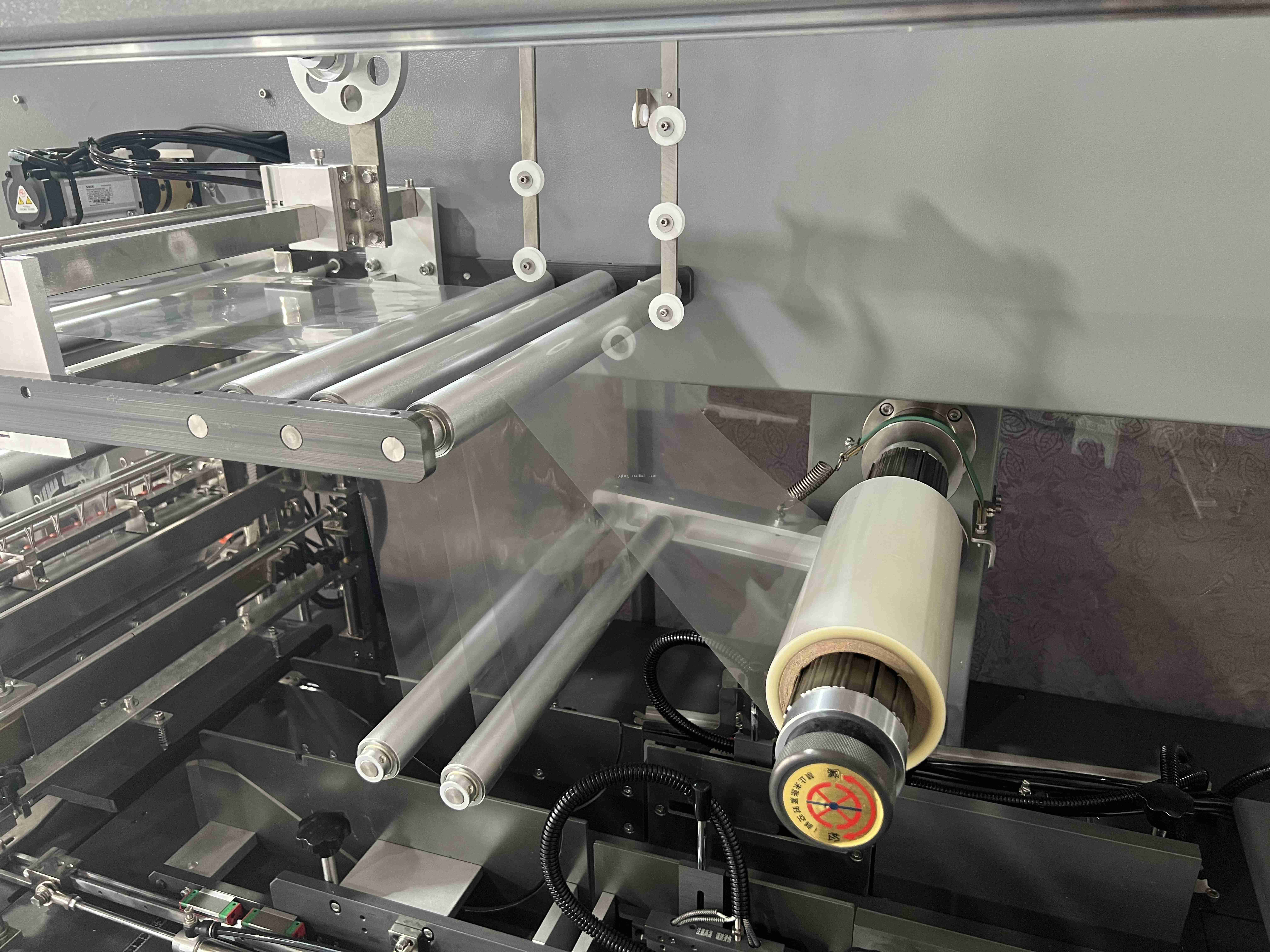

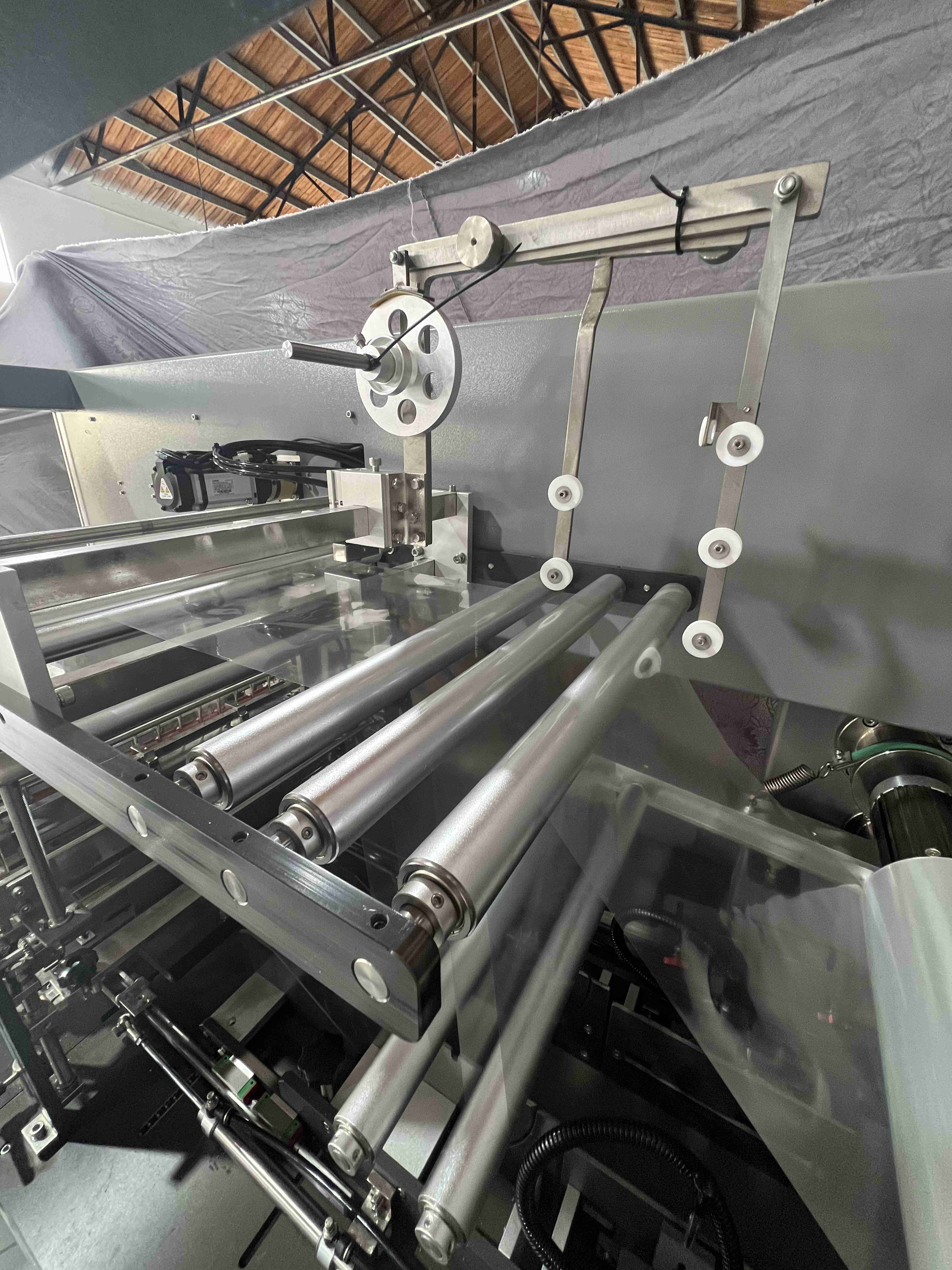

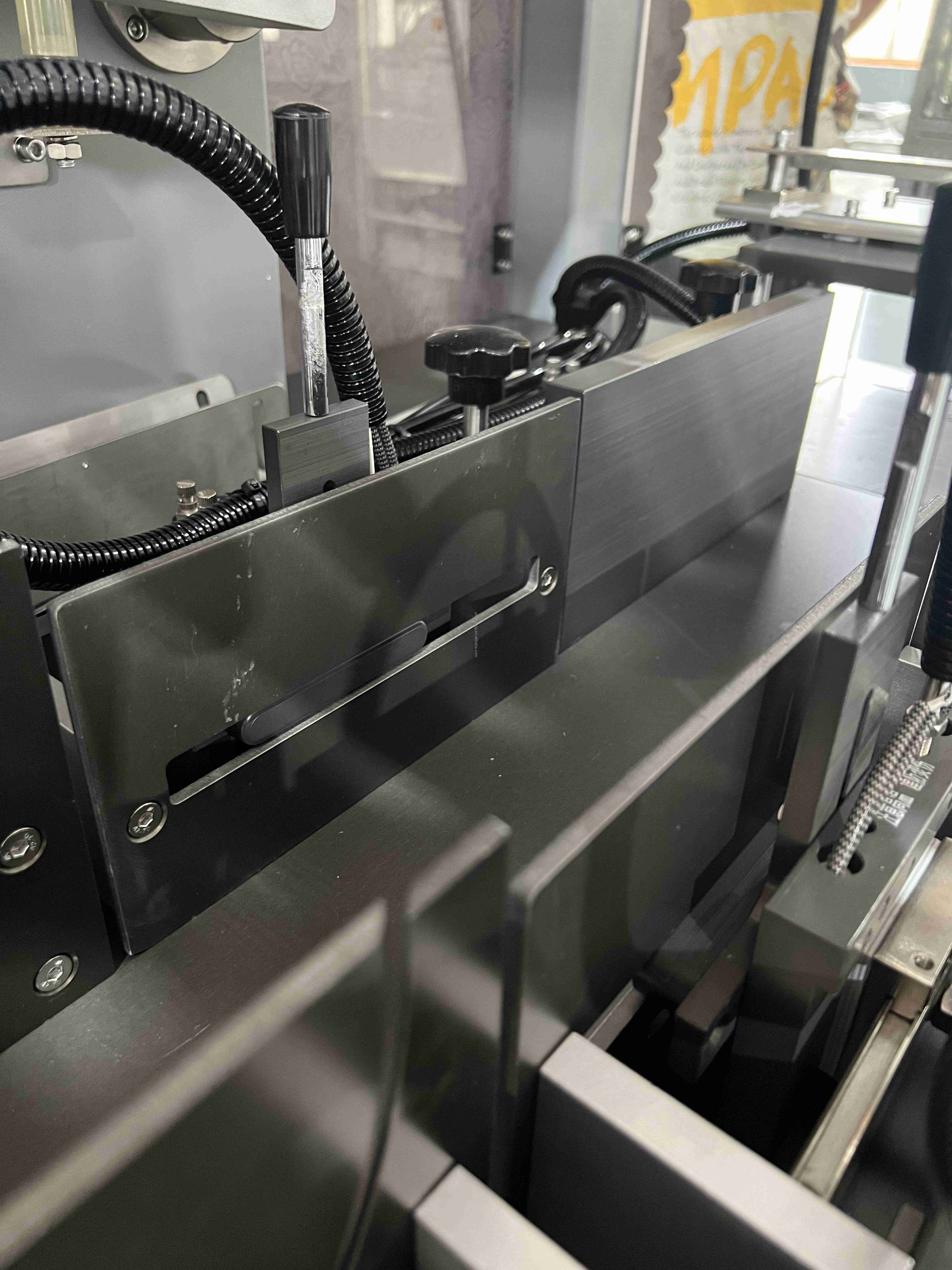

Details Images

Features At-A-Glance

This machine is a full-automatic high-speed transparent film packaging equipment, which adopts the flat push packaging mode. All wrapping and heat sealing actions are completed by cam and cylinder transmission, with the characteristics of high speed and stable operation.
Changing the mold can pack articles of different sizes. The newly designed quick adjustment structure makes it easier and faster to replace the mold.
This machine adopts all aluminum alloy oxidation film cutting knife holder and single rotation film cutting knife. The film cutting is accurate and flat, and there is no need to replace the film cutting mechanism for large and small products.
The frequency converter is used to adjust the packaging speed, which can reach 30 ~ 70 packages / minute according to different packaging items.
It is equipped with a double-sided anti wrinkle device to make the film packaging more close to the body and more beautiful.
Quick disassembly and assembly pull wire reel, with the function of composite adhesive laser anti-counterfeiting and king line, which really plays the role of anti-counterfeiting and moisture-proof.
The machine adopts two kinds of feeding mechanisms: automatic feeding and manual feeding. The automatic feeding can be connected with the fully automatic unmanned production line.
The automatic feeding mechanism has the shutdown function when box is used up, and is equipped with a blocking torque overload protection device and an upper and lower double-layer air blowing auxiliary lower film device.
The imported stainless steel integrated panel is adopted, and the integrated electrical box is installed on the top (to completely isolate the electrical and mechanical components).
The whole machine adopts acrylic safety cover.

Product Category

Why Choose Us

If you need any video, pls contact us. We will send original video to you. We support all kinds of cellophane wrapping machines and shrink film packing machines in China.

Company Profile

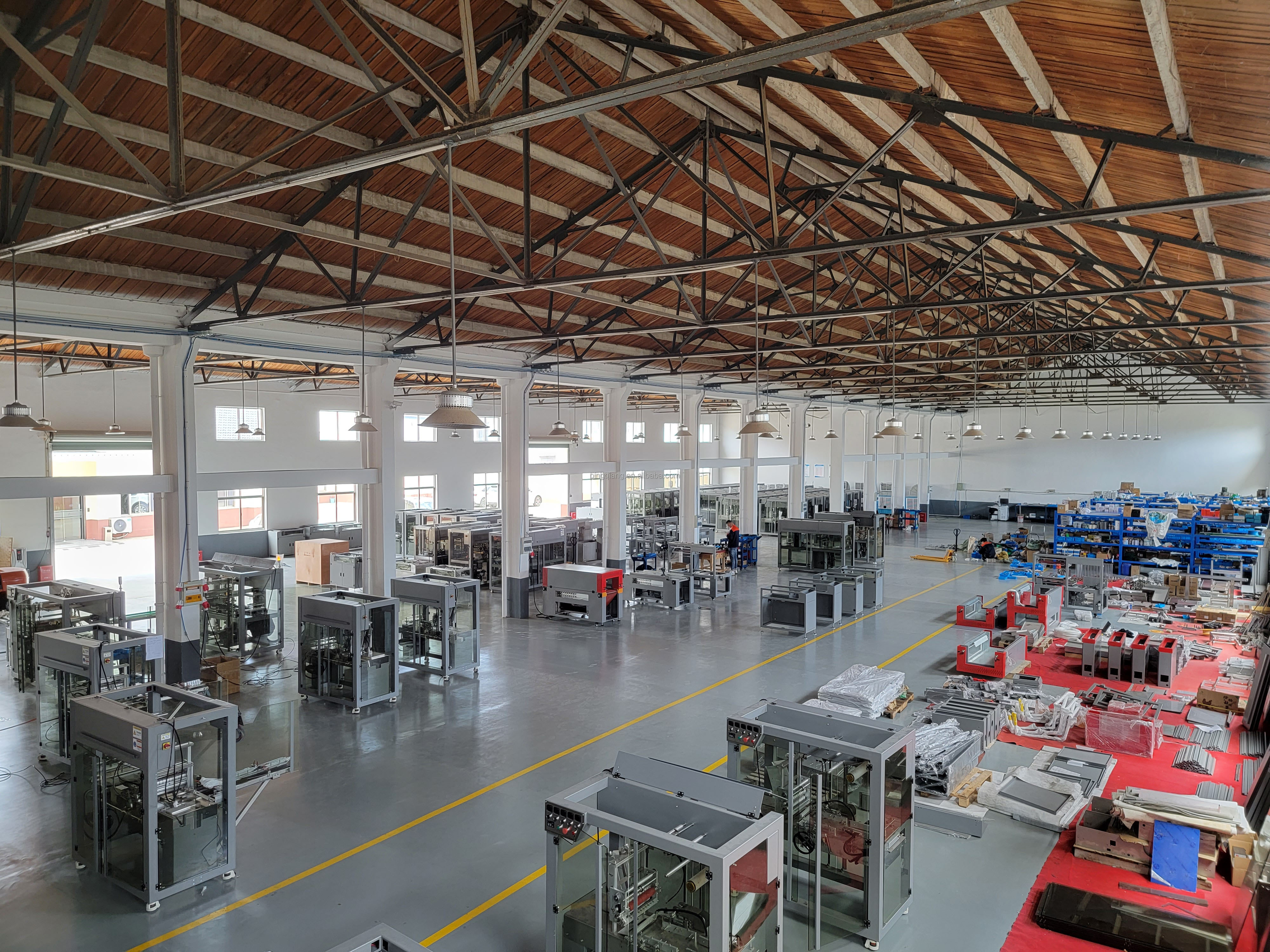

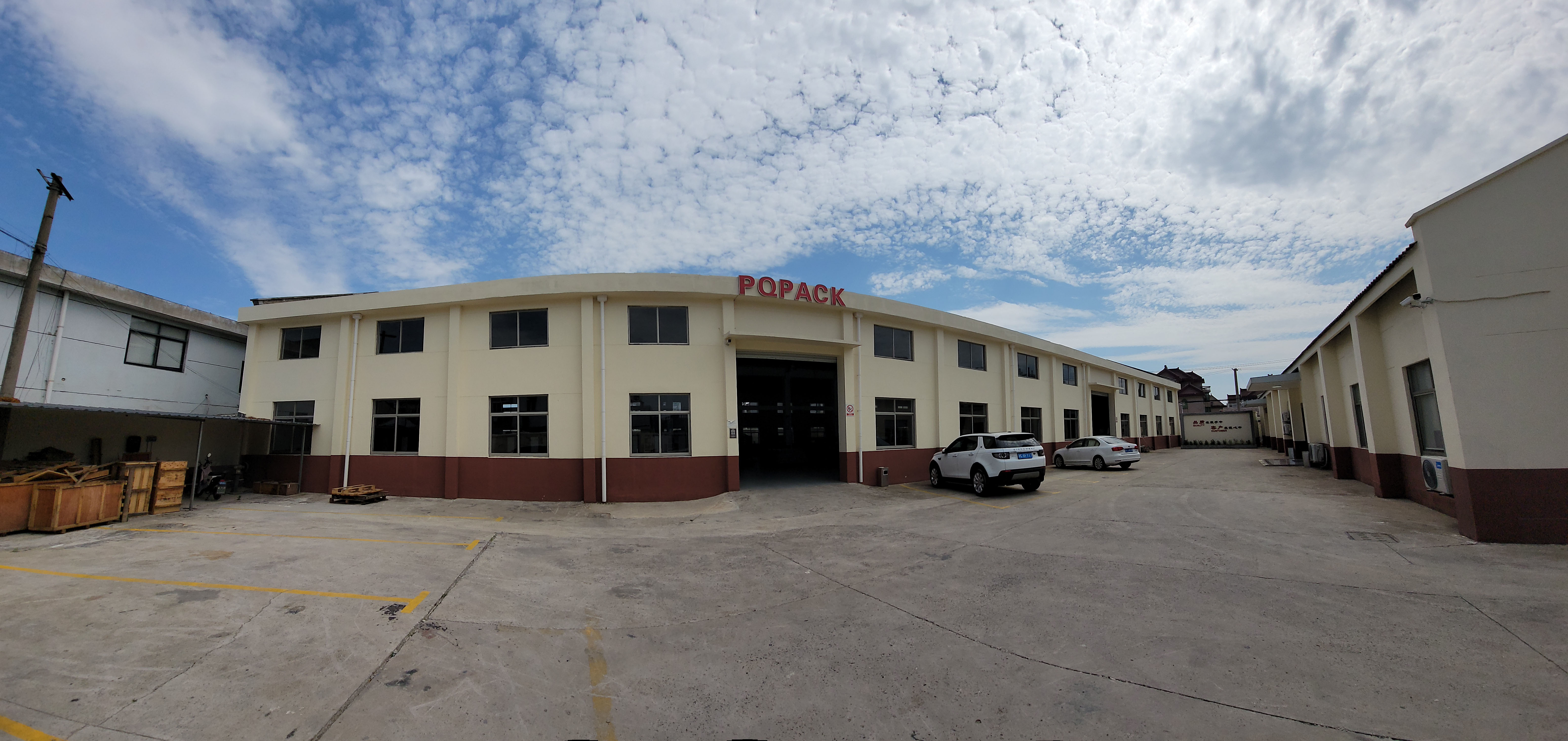

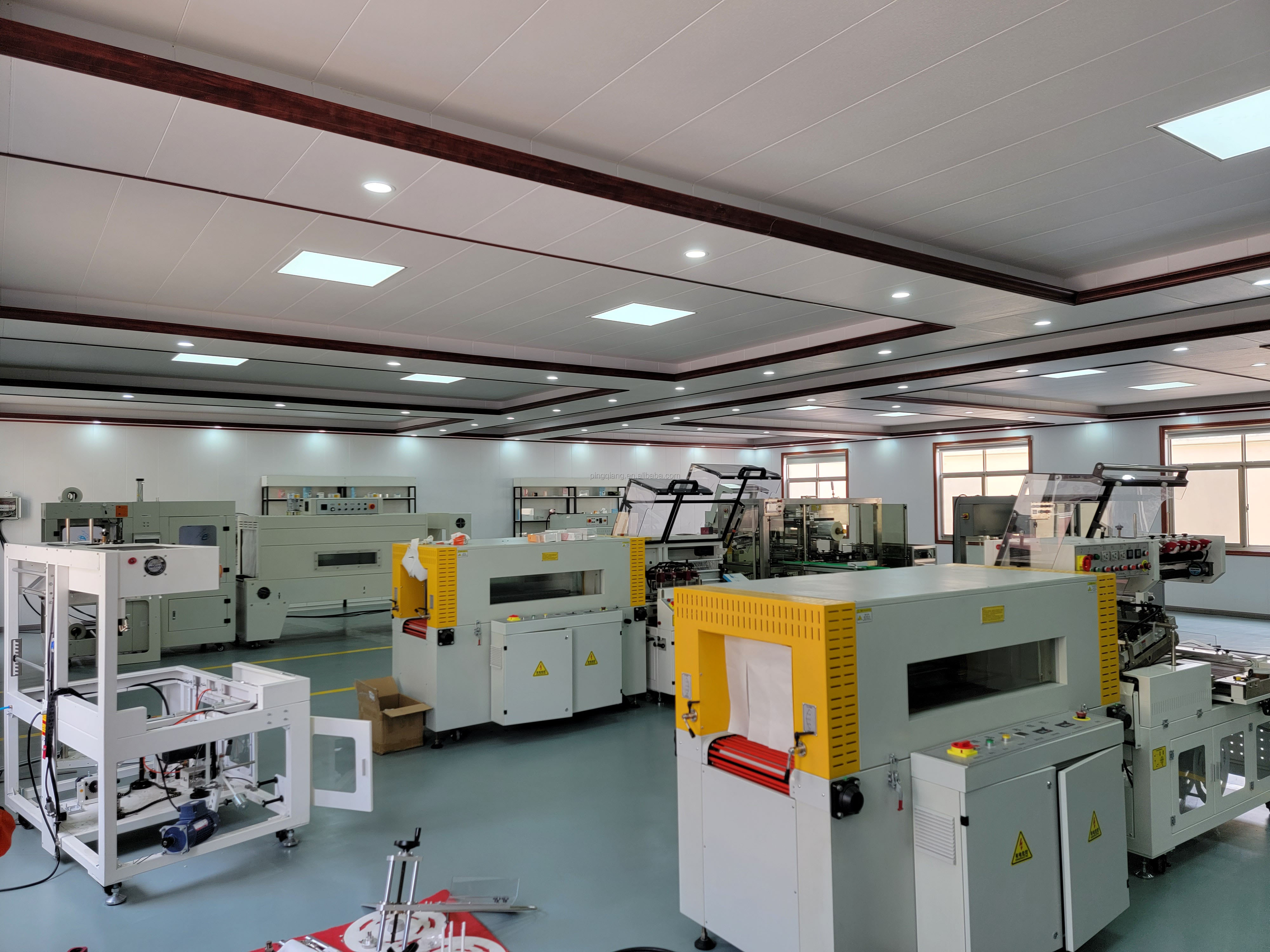

Founded in 2011, the factory focuses on the research and development and production of packaging equipment such as three-dimensional packaging machine (cigarette packer), heat shrink sealing and cutting machine. With a professional R & D team, intelligent control system, perfect packaging production line, personalized customized one-stop service system for you.

Main products: overwrapping machine, transparent film packaging machine, transparent film three-dimensional packaging machine, heat shrink packaging machine, box packing machine, box sealing machine, Cartoning machine, etc.

Exhibition

Certifications

FAQ

Q1Are you a factory or trading company?

We are the factory, and especially R&D, manufacture and sell various packing equipments. We have engaged in the packing R&D and production for over 10 years.

Q2Why we should choose your company?

We are professional in packing machines for over 10 years, and we provide better after-sales service. No risk for our deal.

Q3How can guarantee your machines’ quality?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking staff by yourself.

Q4Is this machine safe?

Our machines are better in safety than our competitors. You can see all electric parts and wires are arranged at the top of the machine. No children and pets can reach the electric parts. Avoid electric shock.

Q5How soon can I get my machines?

We can send the in-stock machines within 48 hours; For new machines, normally It’s about 15-20 days.

Q6Can you design the machine according to our requirements?

Yes. We not only can customize the machine according to your technical drawing, but also can design new machine according to your requirements.
