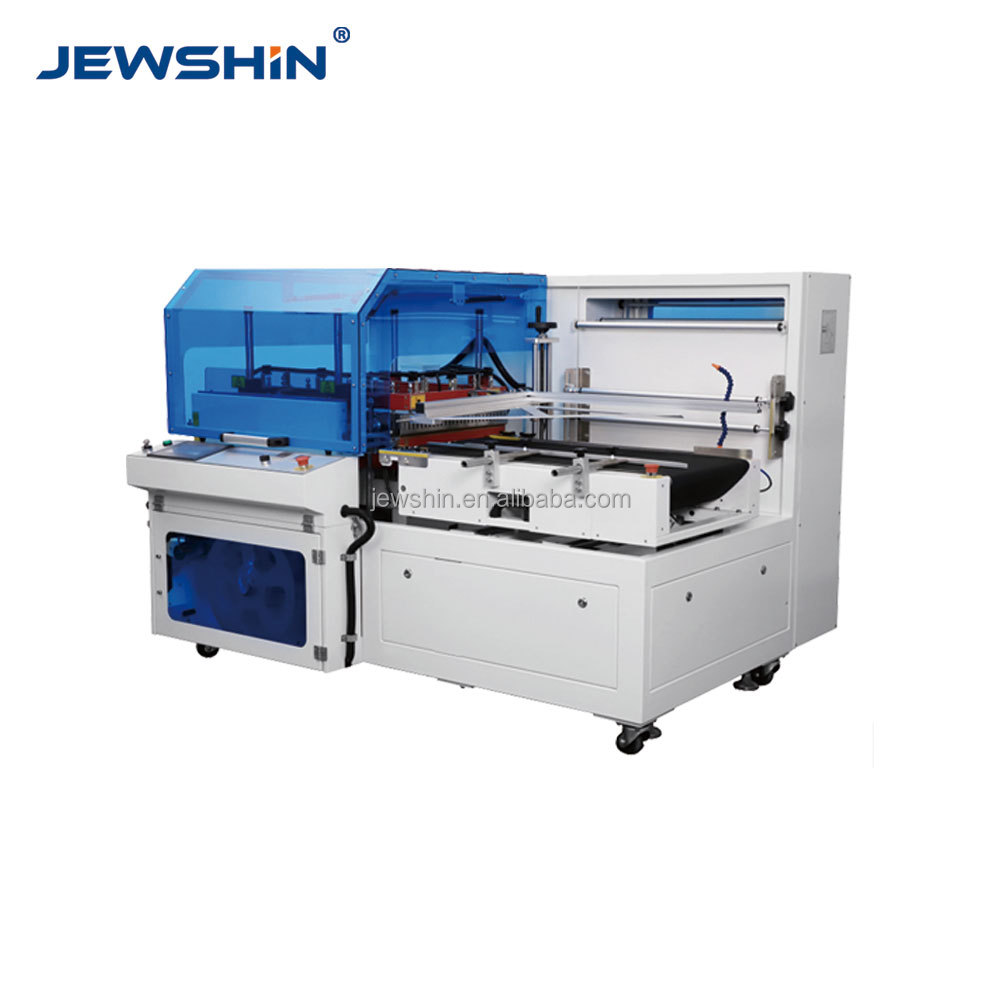

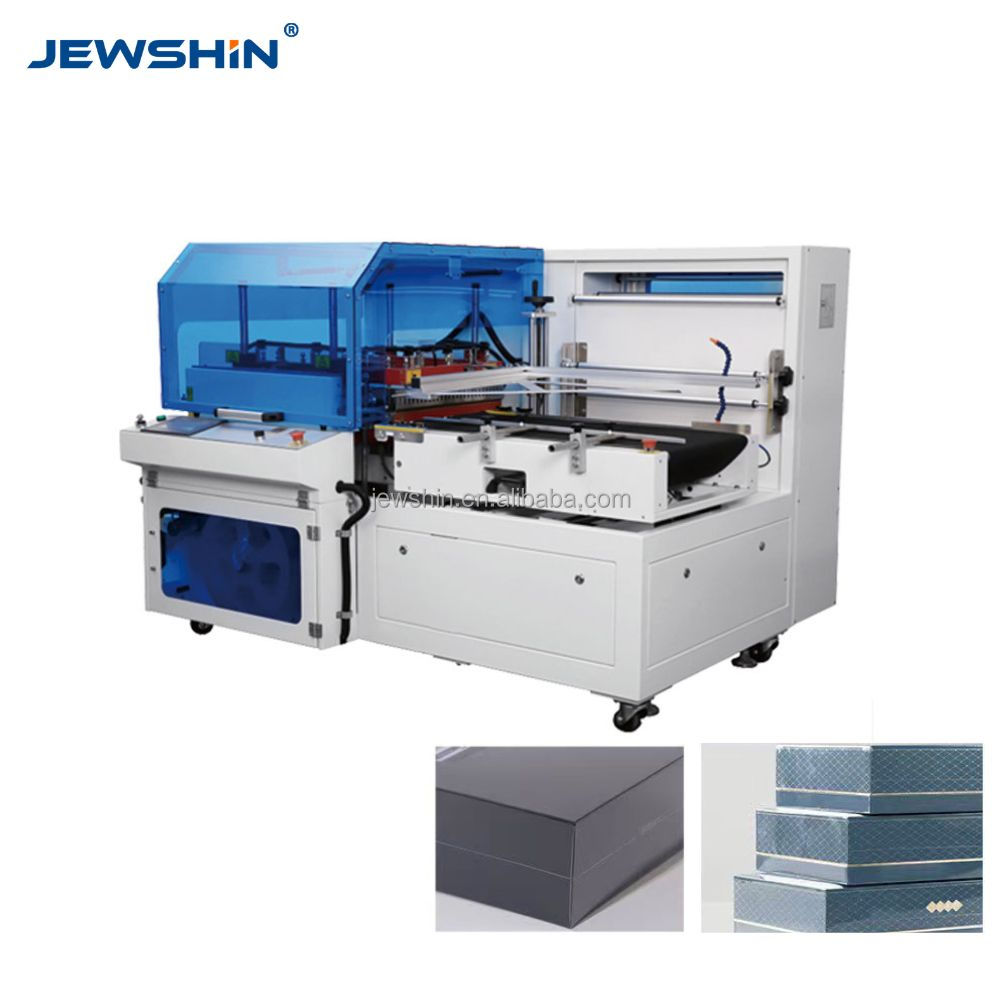

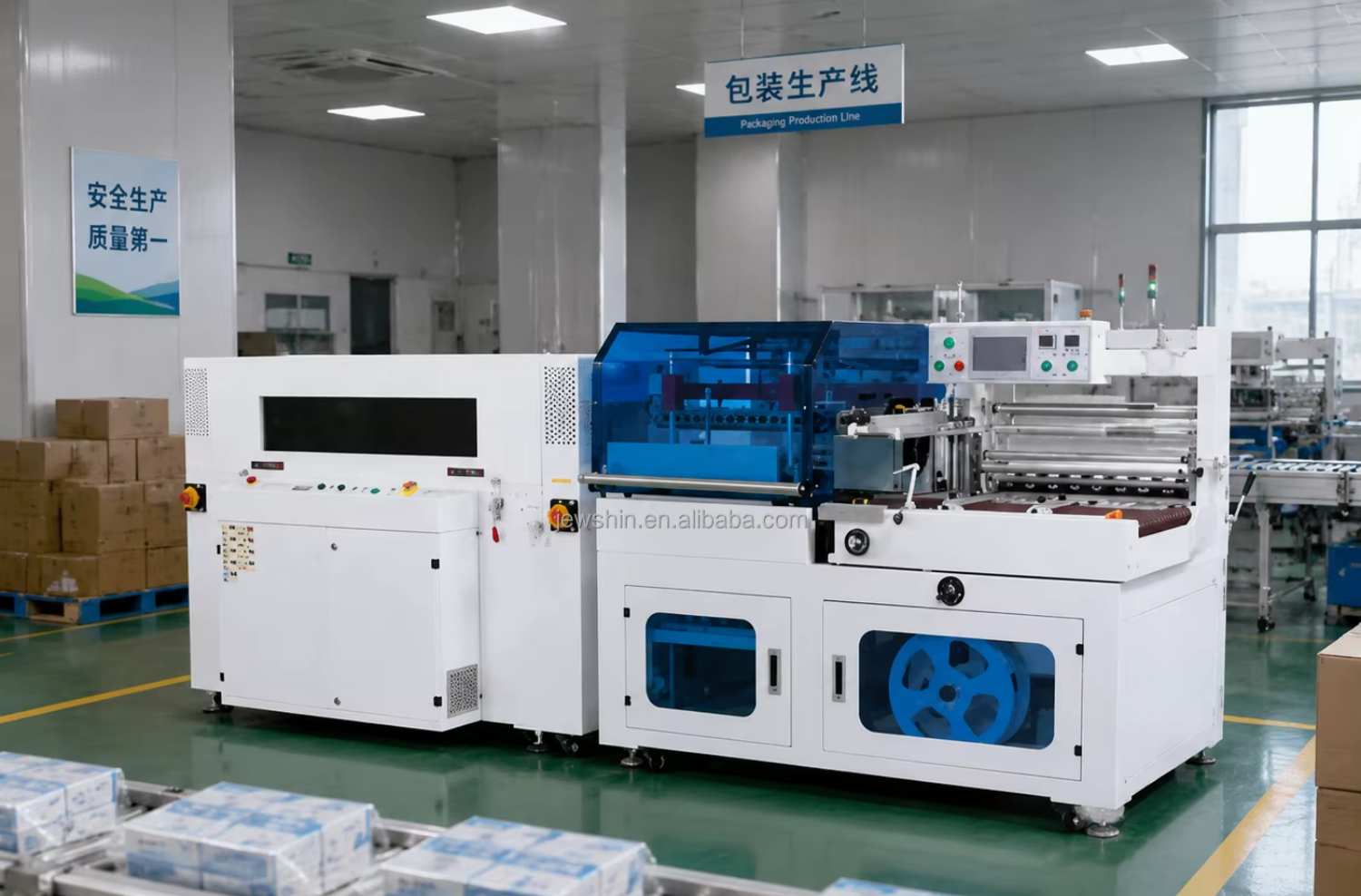

Automatic L-Bar Vertical Shrink Wrapping Machine with Heat Tunnel for Paper Plate Disposable Tableware Food Tray CE Certified
1 / 5
Automatic L-Bar Vertical Shrink Wrapping Machine with Heat Tunnel for Paper Plate Disposable Tableware Food Tray CE Certified
Easy Operation with Smart Control System: User-friendly control panel makes parameter setting simple and fast. Easy to operate, no complex training required.
Integrated sealing knife design: The sealing knife is designed as a single integrated structure, ensuring strong and durable sealing lines without deformation for a more reliable packaging result.
Stable Performance for Continuous Operation: High-quality electrical components and precise assembly ensure stable machine performance with low failure rate, even during long-time continuous working.
Excellent Shrink Effect: Provides tight and smooth shrink wrapping, enhancing products appearance and making packaging more professional and attractive.
SCENE IMAGE
The shrink wrapping machine is widely used in various industries for product outer packaging, providing protection and improving appearance. It is suitable for packaging food, cosmetics, daily necessities, stationery, electronic products, hardware parts, and printing products. It is also widely used for gift boxes, toy packaging, packaging and printing industry and other retail items. The machine is ideal for individual packaging or combined packaging, helping products achieve a clean, sealed, and professional appearance.

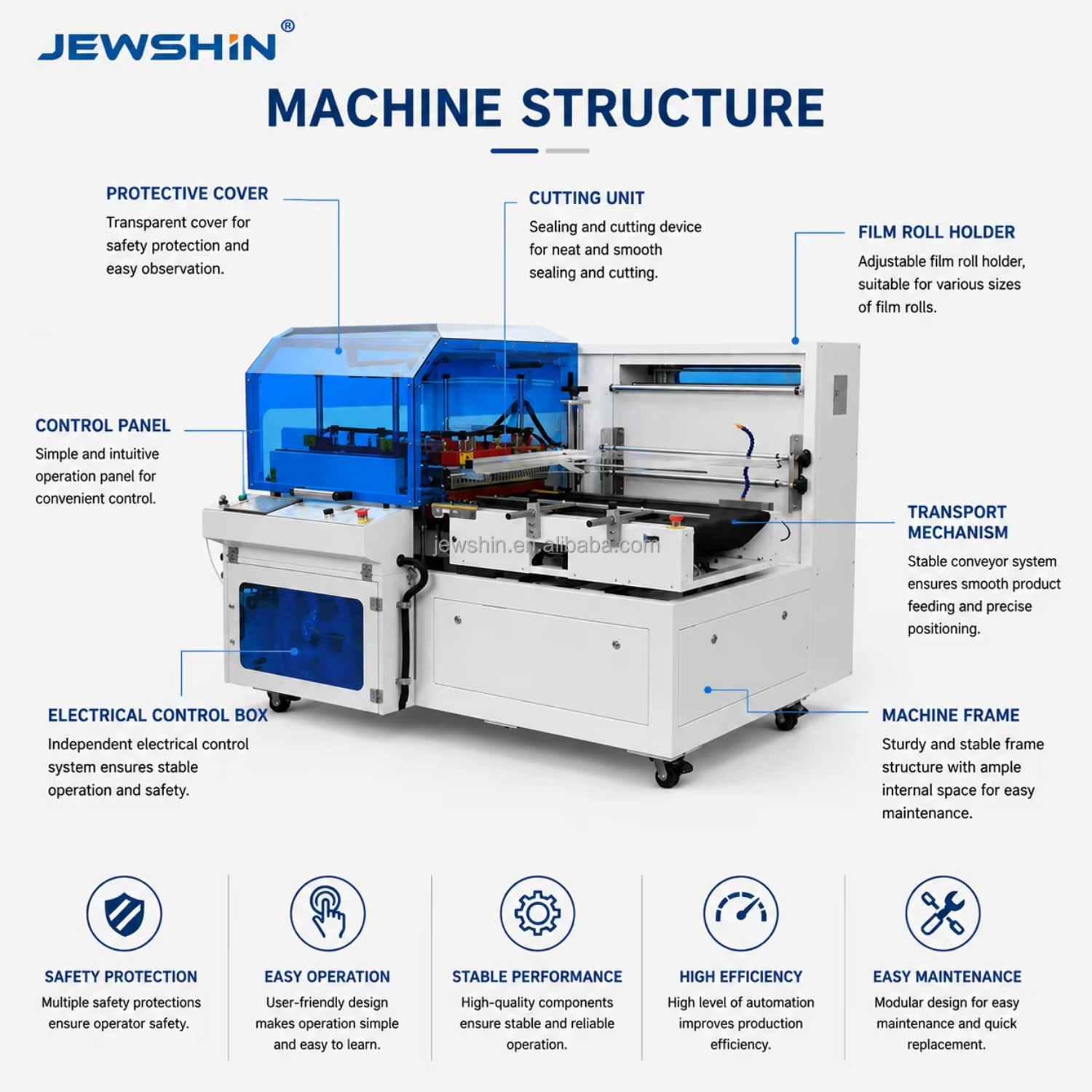

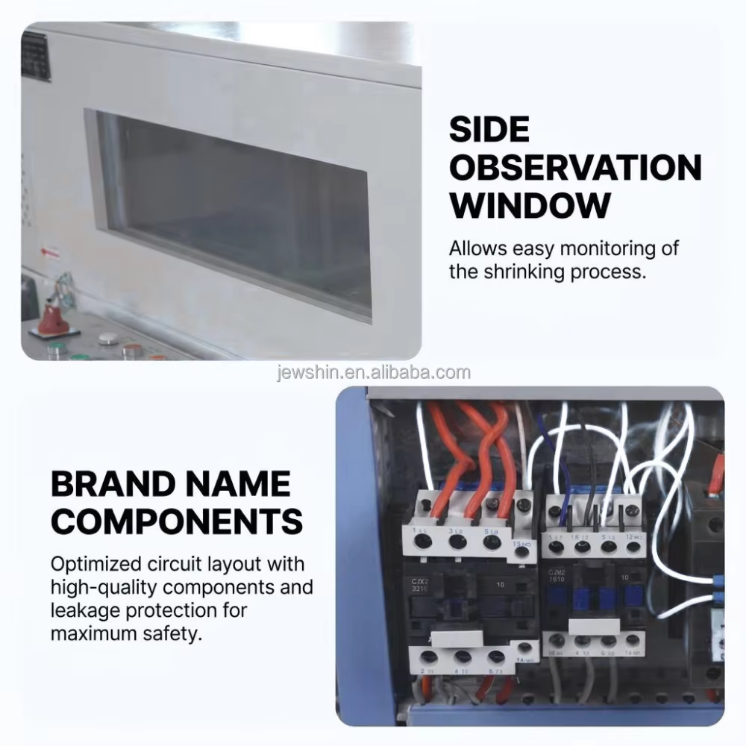

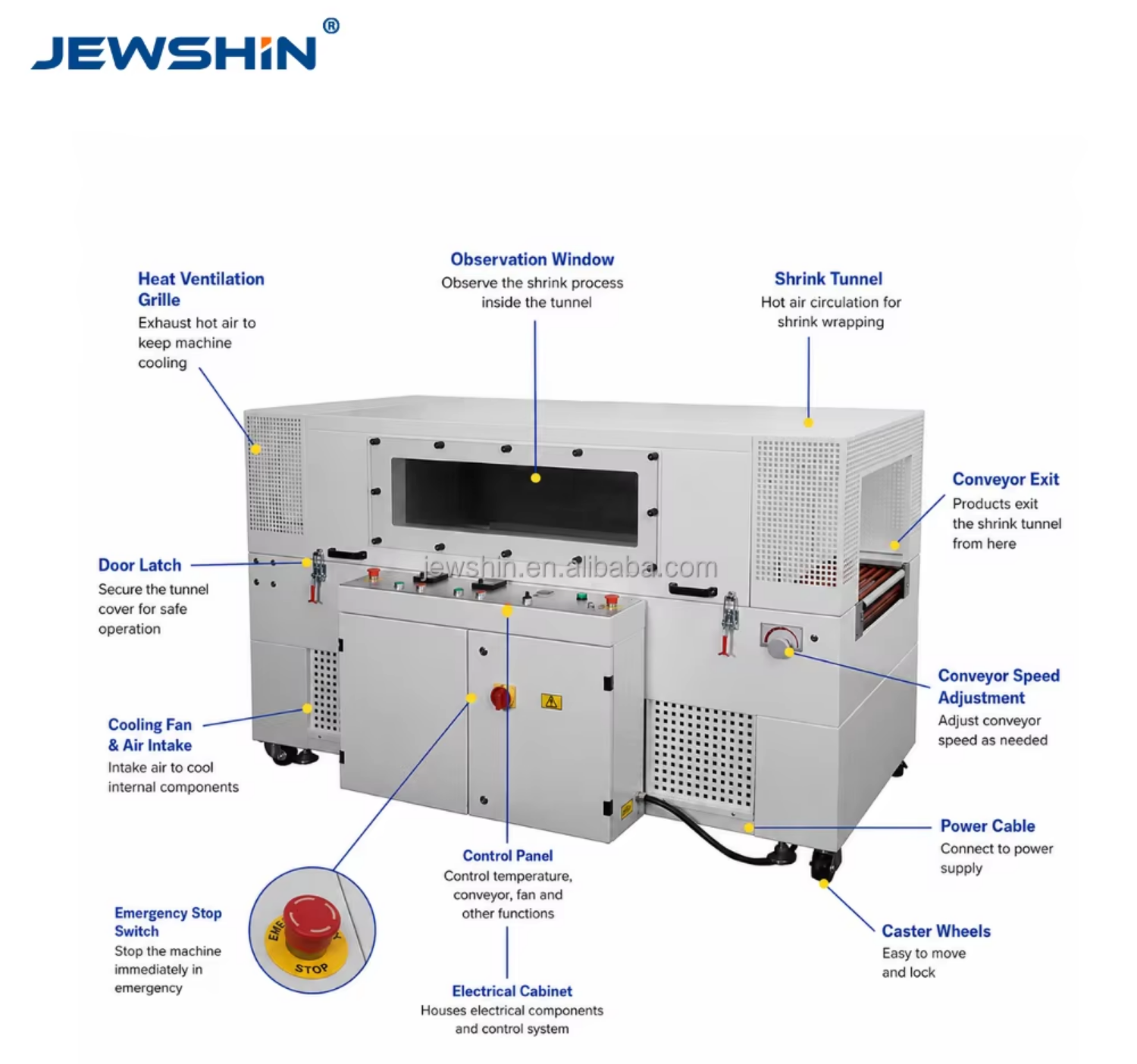

DETAIL SHOT
Model No
JX-A5645
JX-A6345
JX-A6352
JX-A9070
Machine Size L*W*H(mm)
1795*880*1570
1898*1125*1568
1950*1570*1310
2417*1748*1333
Cylinder Air Consumption
80psi,6kg/cm³
80psi,6kg/cm³
80psi,6kg/cm³
80psi,6kg/cm³
Sealing Blade Size L*W(mm)
565*460
630*465
630*515
900*700
Product Size Range L*W*H(mm)
(90-450)*(50-350)*(10-120)
(80-560)*(50-380)*(5-180)
(80-560)*(60-430)*(5-250)
(200-830)*(200-630)*(10-250)
Conveyor Belt Speed
26m/min
26m/min
26m/min
26m/min
Power
1P/220V/50HZ/3KW
1P/220V/50HZ/2.5KW
1P/220V/50HZ/3KW
1P/220V/50HZ/4KW
Net Weight
360KG
650KG
750KG
1200KG
SAMPLE DISPLAY
COMPANY OVERVIEW
COMPETITIVE ADVANTAGES

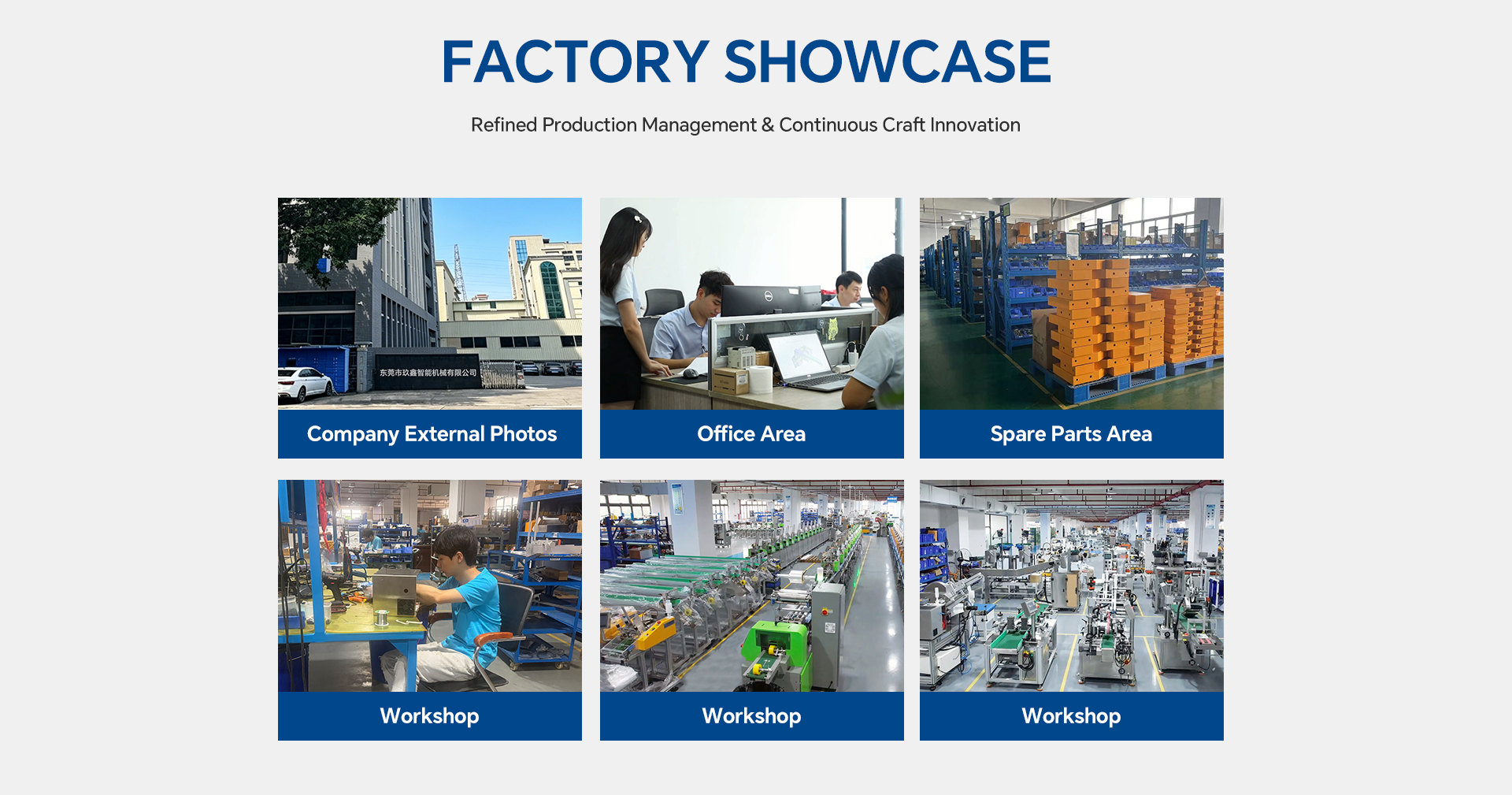

FACTORY PROFILE
CUSTOMIZATION CAPABILITIES
PRODUCTION WORKFLOW
TRADE SHOW PARTICIPATION
PACKAGING & SHIPPING SPECIFICATIONS
FAQs
What is the main difference between an L-bar sealer and a side sealer?
L-bar Sealer uses a standard L-shaped frame to seal the side and end simultaneously, ideal for standard-sized boxes. Side Sealer performs continuous motion sealing on the side, meaning there is no limit to product length, making it perfect for long profiles or high-speed production lines.
What types of shrink films are compatible with your machines?
Our machines are highly versatile and work perfectly with POF (Polyolefin), PVC, and even thick PE film (by adjusting the sealing blade and temperature settings). We recommend POF for retail consumer goods due to its high clarity and strength.
How do you ensure the sealing blade does not carbonize or stick during high-speed operation?
All our machines use upgraded Teflon-coated alloy sealing knives and a PID constant temperature control system. This ensures a clean, smoke-free, and anti-sticking seal even under 24/7 continuous industrial operation.
Can the machine handle thin or very light products without shifting on the conveyor?
We can equip the machine with an optional soft-start conveyor and high-sensitivity photoelectric sensors (horizontal and vertical dual detection) to ensure lightweight items are positioned accurately before sealing.

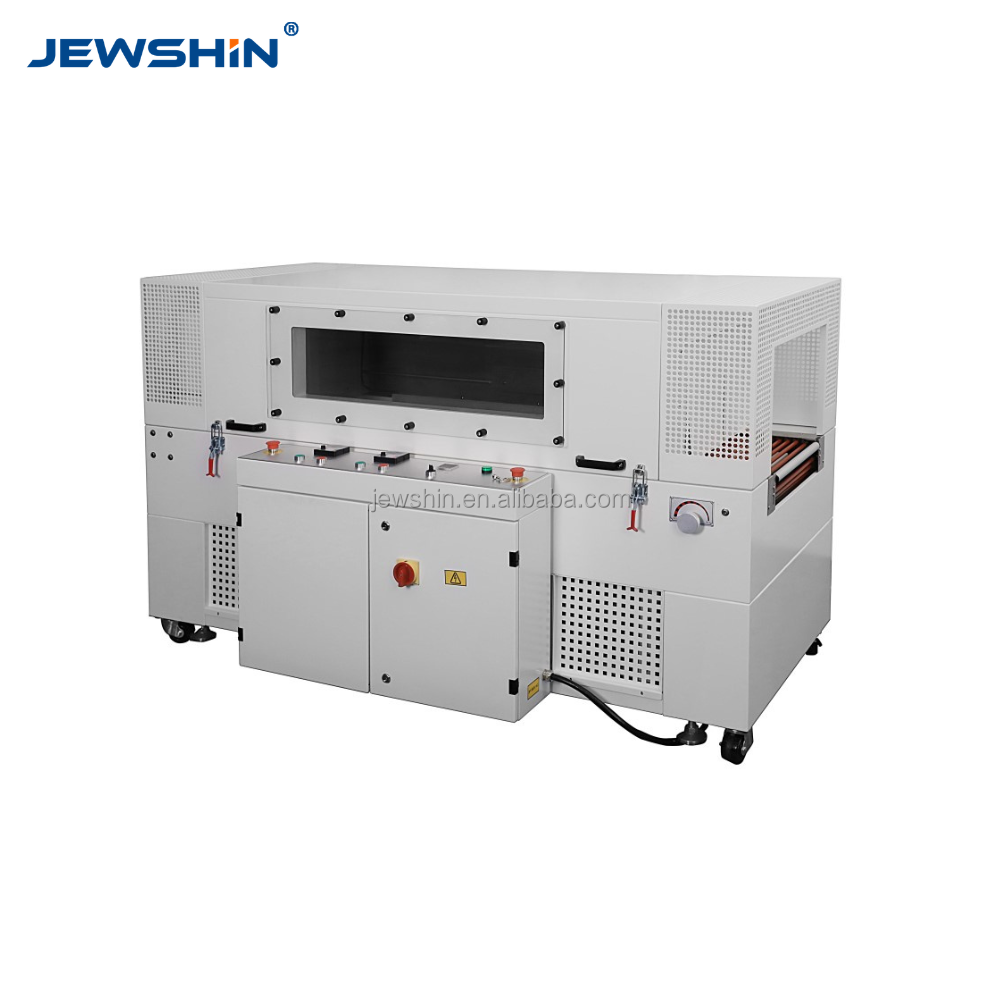

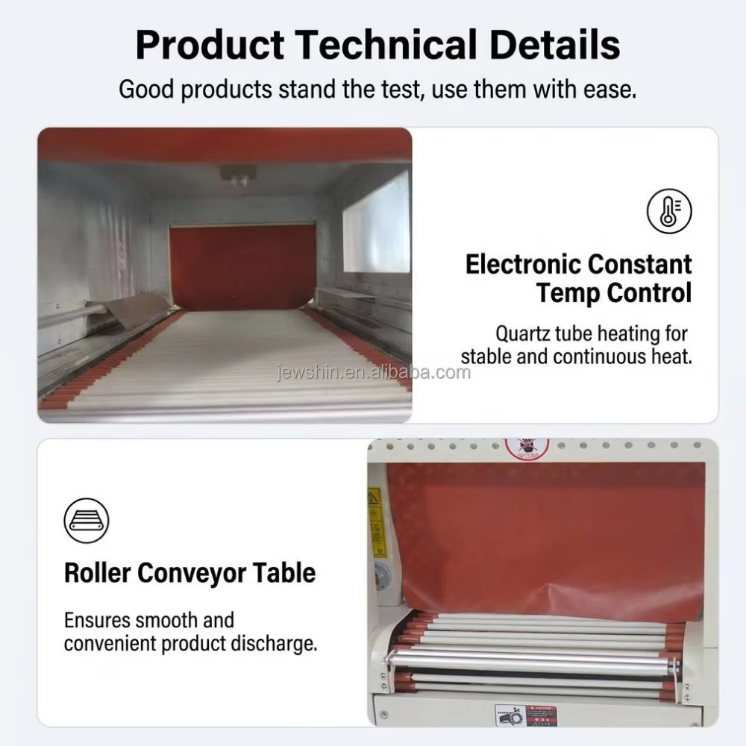

Is the shrink tunnel temperature adjustable for different package sizes?
Yes, 100% adjustable. The tunnel features an intelligent digital thermostat and dual-velocity air circulation fans. You can precisely control the heat and airflow to prevent "burn-through" on small boxes or "wrinkling" on larger items.
What is your policy for pre-shipment FAT (Factory Acceptance Test)?
We strongly support FAT. We invite you to send us your samples; we will film the entire testing process and provide high-definition test videos for your approval before the balance payment and shipment.
