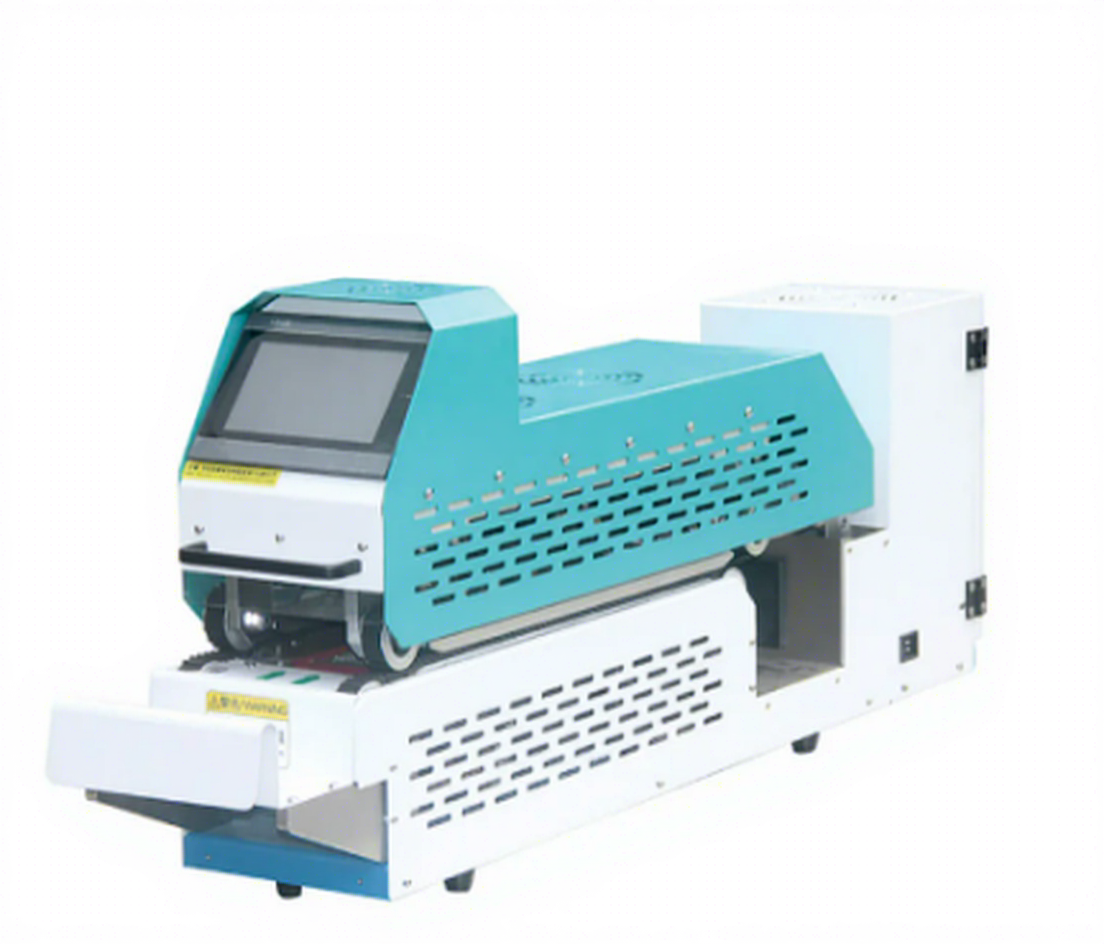

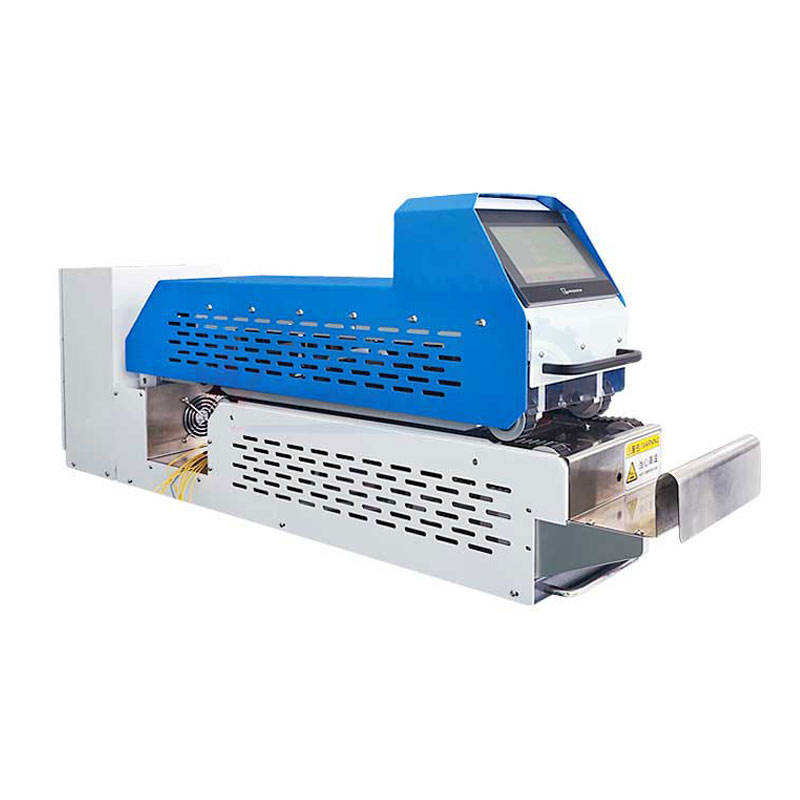

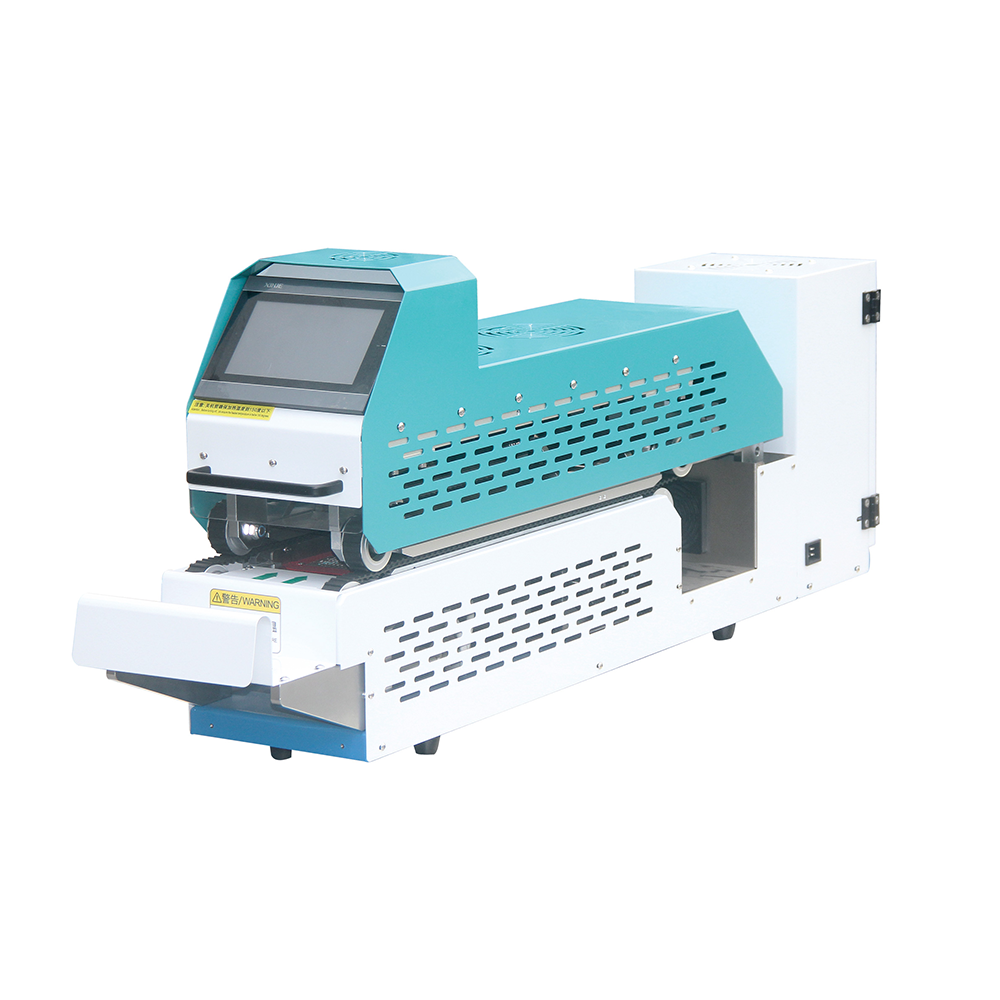

JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine
JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine
JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine
JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine
JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine
1 / 5
JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine
JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine
JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine
JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine
JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine

JCW-HSB60 Low Price Heating Sealer Shrink Machine Semi Automatic PVC Shrink Sleeves Heating Machine

Send Inquiry

Product Description

Heat Shrinkable Tubing Processing Equipment Banner
Heat Shrinkable Tubing Processing Machine
Model JCW-HSB60 Heat Shrinkable Tubing Processing Equipment
Function Heat shrinkable tubing, PVC, POF, PP, PE shrink film. Feed speed, temperature controller, counter.
Feeding speed 0 - 100
Working temperature Max 600 ºC
Shrink length 60 mm [ Customizable ]
Wire diameter 10 mm [ Customizable ]
Rated power 2300 W
Power supply AC 220 V, 50 Hz
Weight 40 KG
CE-Conformity Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Processing Equipment Component 1
Processing Equipment Component 2
Processing Equipment Close Up View
Continuous processing of harness joints on a belt conveyor
Adaptable for different applications
Over-temperature alarm lights and buzzer
Upper and lower heater
Far infrared quartz heating tube
PTFE conveyor belt
Mobile freestanding model
Conveyor Belt Heat Shrink Tunnel Overview
Heat Shrink Operation Step 1
Heat Shrink Operation Step 2
Heat Shrink Operation Step 3
Machine Internal Heating Module
Machine Configuration Layout

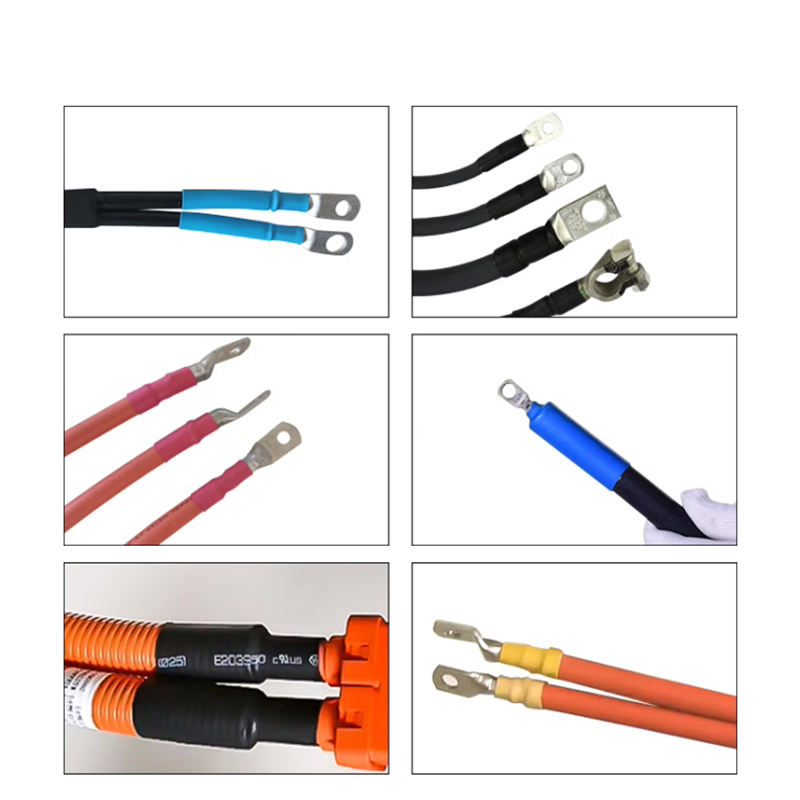

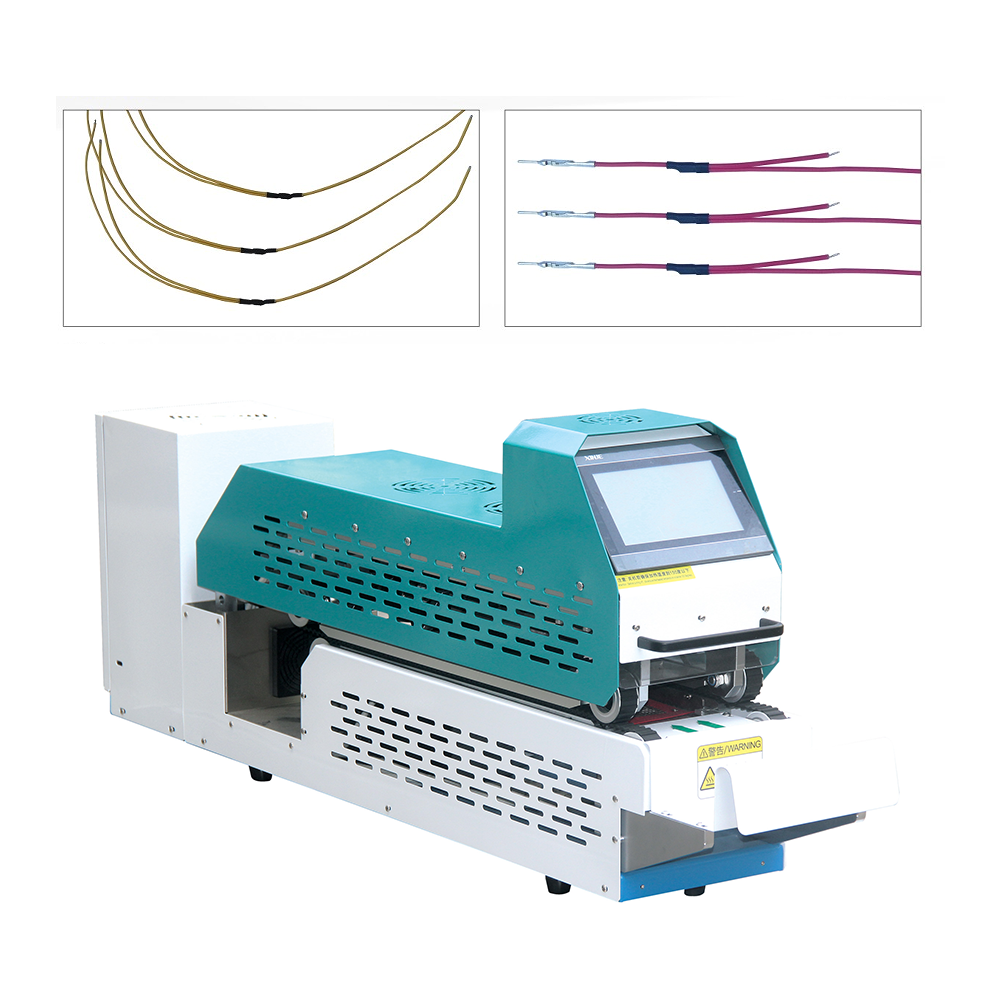

Finished Wire Harness Samples
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A: We started trading 13 years ago and started production 10 years ago. Now we have complete production equipment and an experienced team of engineers.
Q2: Do your products have CE certification?
A: We have formal CE certification, test reports, and declarations of conformity. We also hold ISO9001:2015 certification as a factory.
Q3: Can you customize the machine?
A: Yes, we can customize the machine according to your specific requirements, and we can also provide you with a complete set of wire harness production solutions.
Q4: Can I get some samples?
A: We are honored to offer you samples to test and check the quality. Customers should cover the shipping freight. The lead time for samples is 7-10 days.
Q5: What is your delivery time?
A: It usually takes 1-2 days for small orders and 10-15 days for larger orders.
Q6: What is your warranty time?
A: We offer a 12-month warranty period.
