4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine
4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine
4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine
4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine
4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine
1 / 5
4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine
4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine
4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine
4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine
4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine

4522N Hot Sale Shrink Wrap Plastic Film Heat Bags Machine Automatic Heat Shrink Wrapping Machine

Send Inquiry

Product Description

Product Description

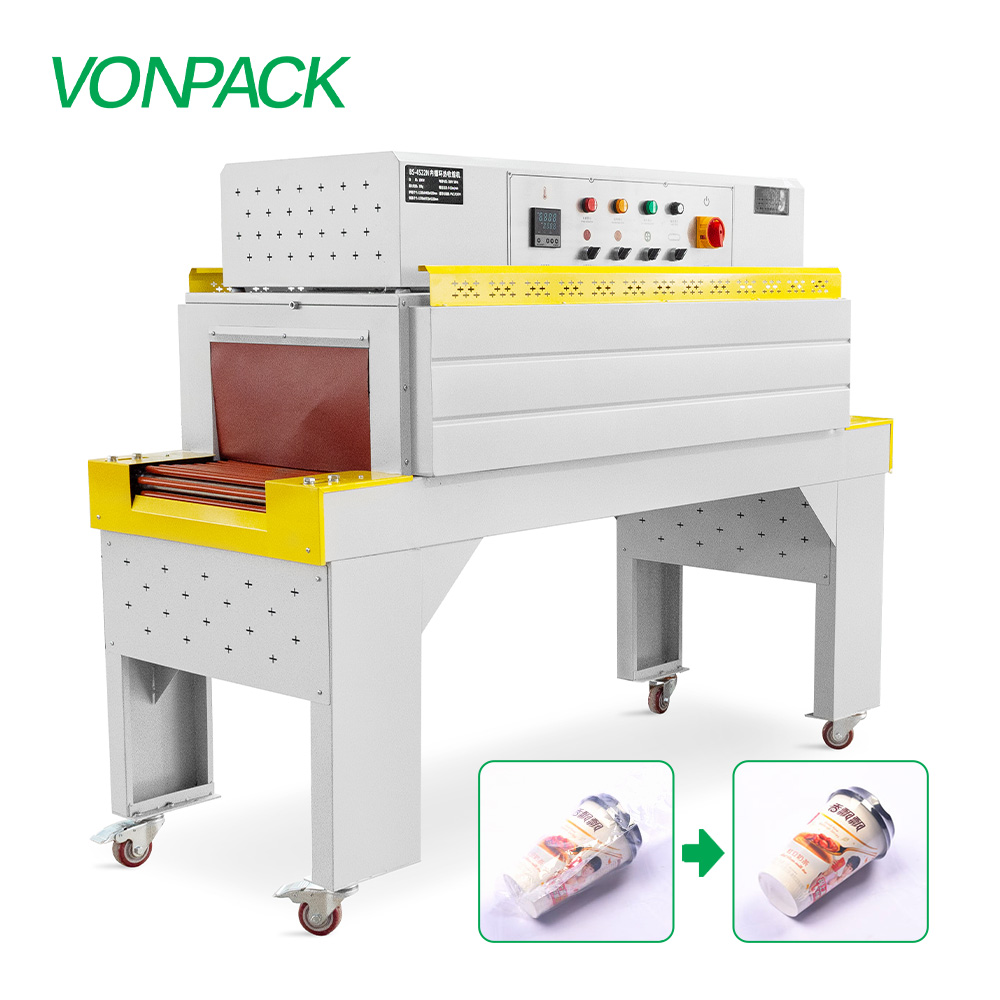

Shrink Packaging Machine Detail 1

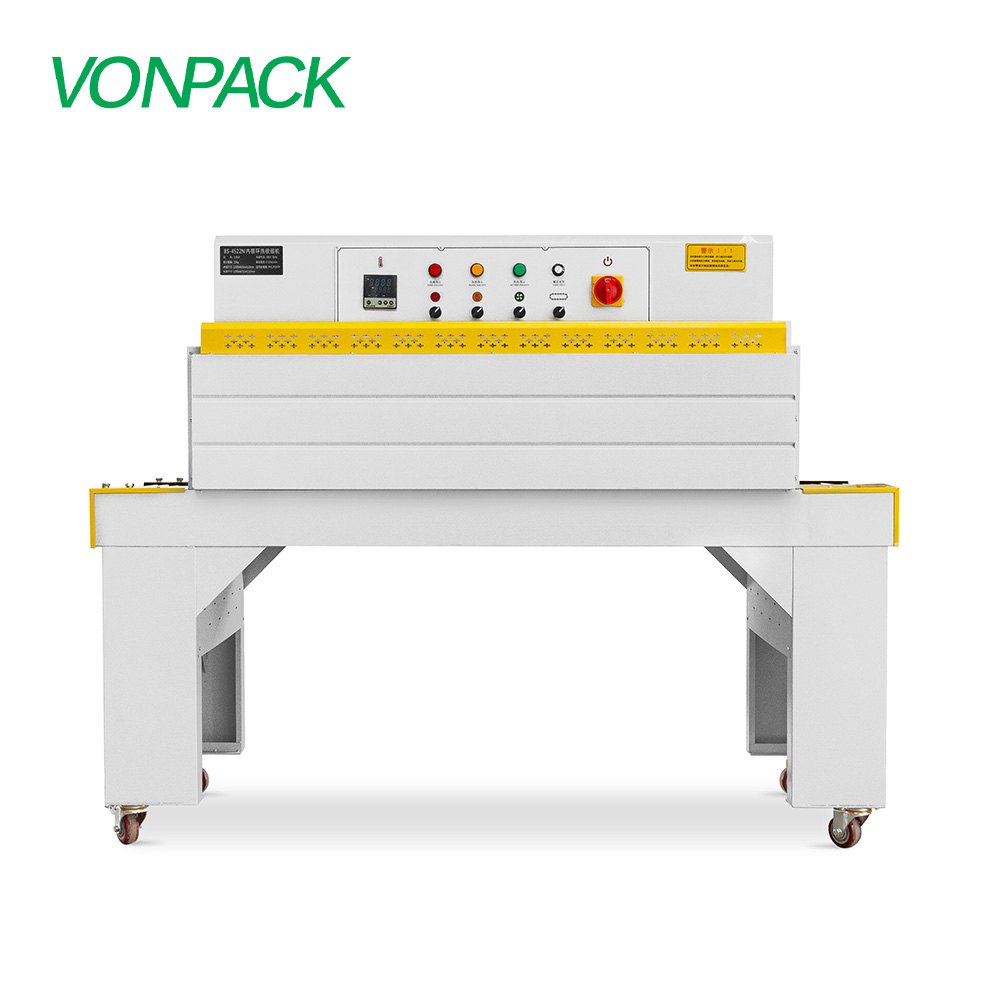

Shrink Packaging Machine Detail 2

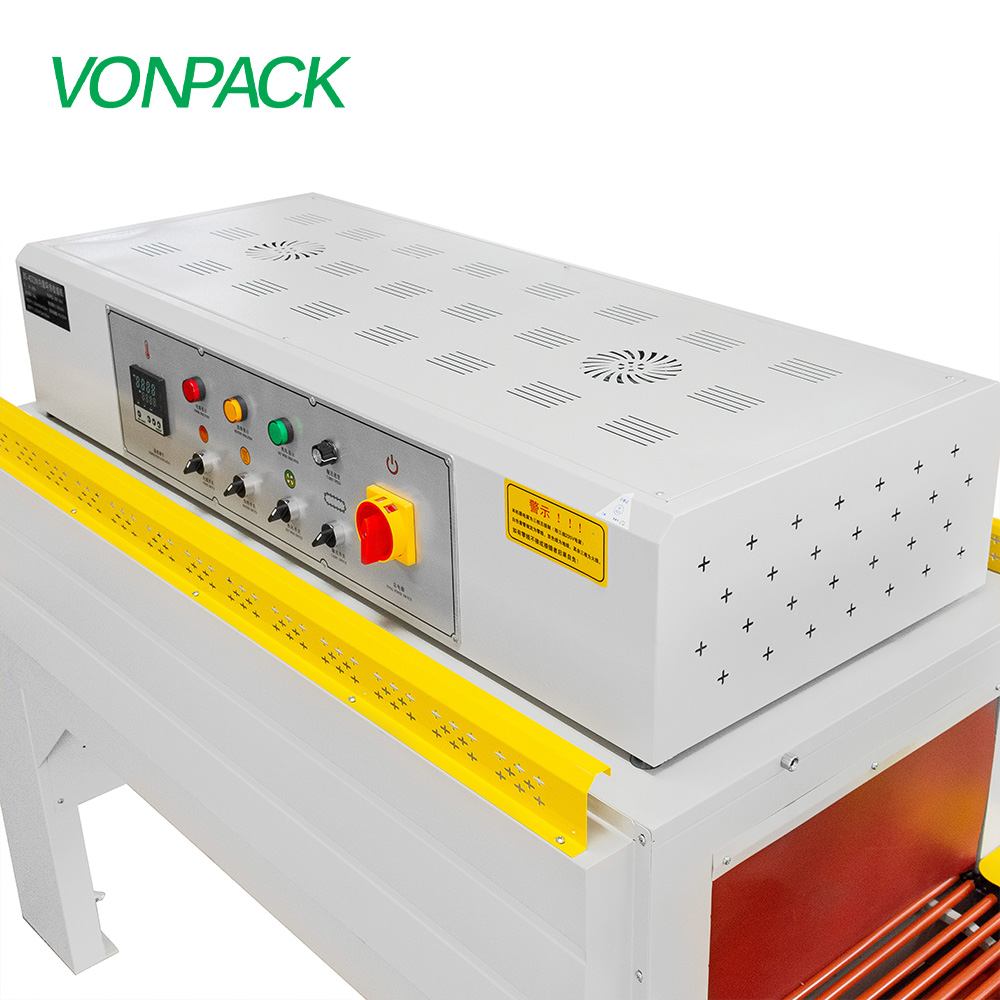

Shrink Packaging Machine Detail 3

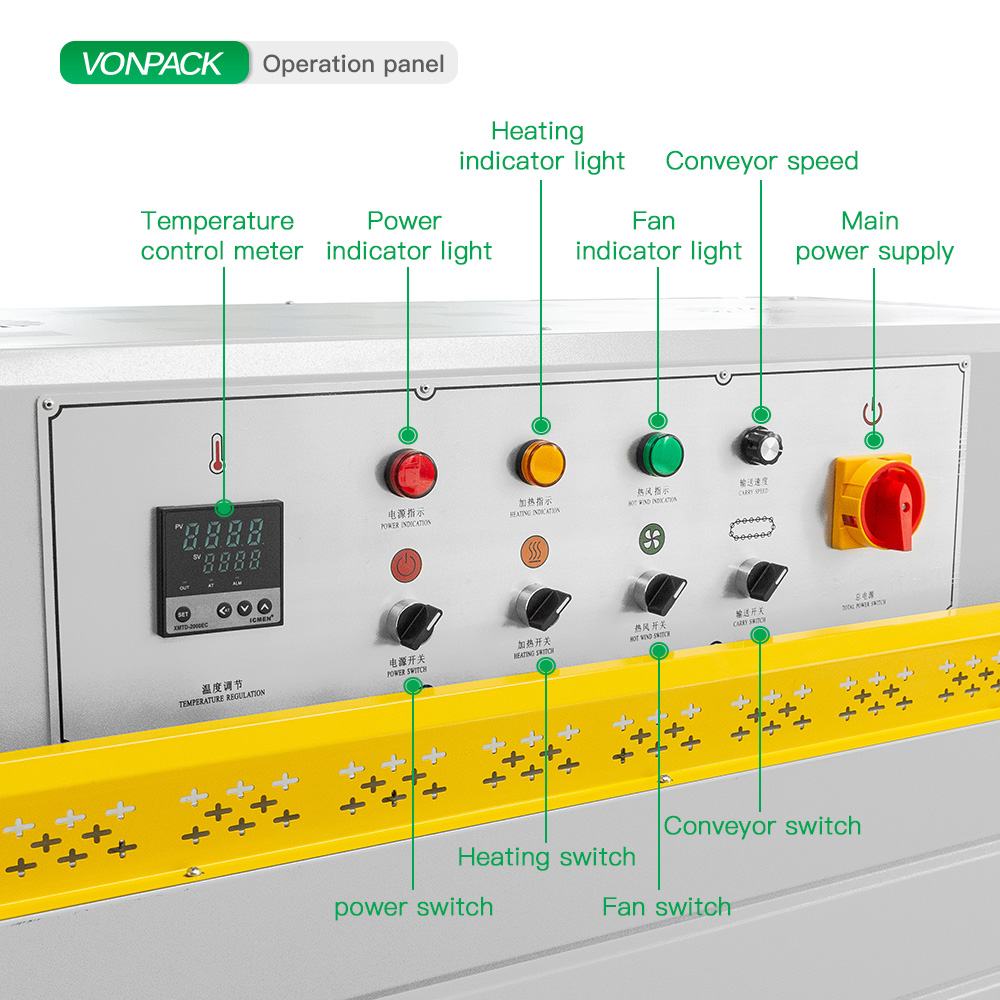

Shrink Packaging Machine Detail 4

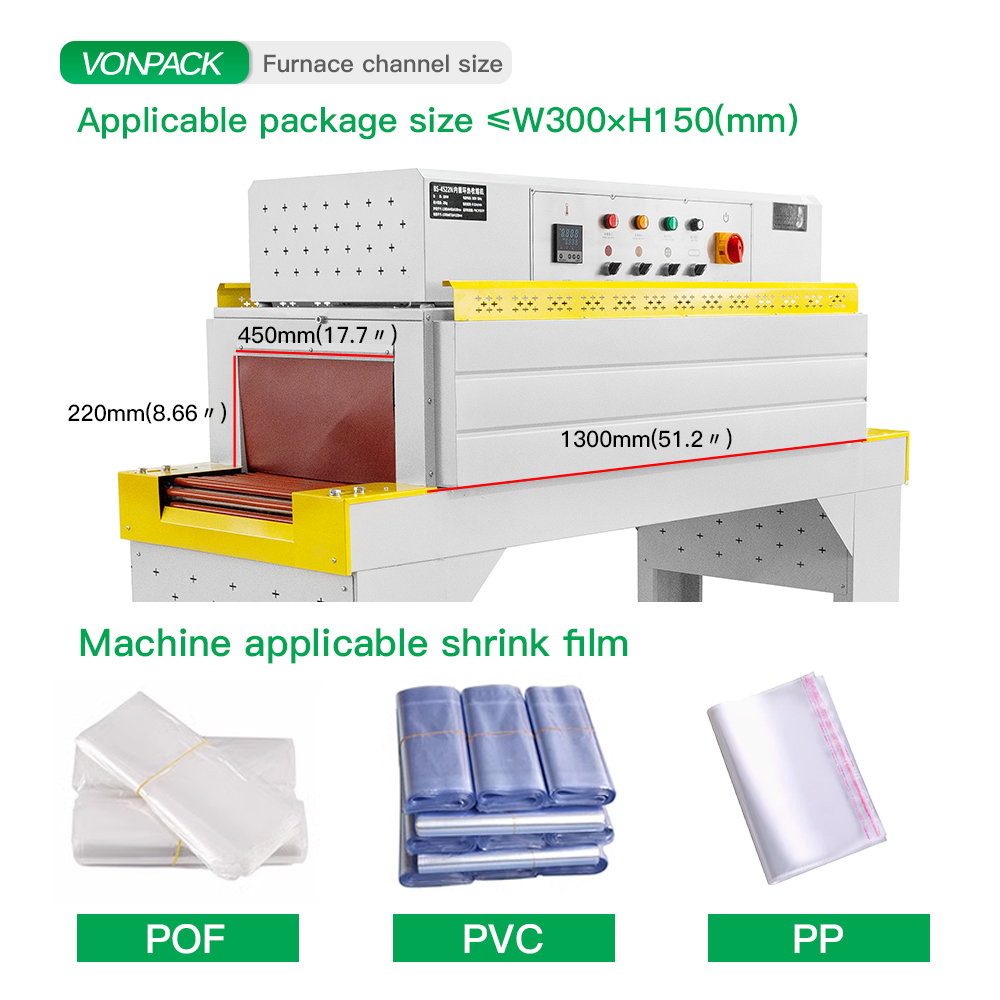

Shrink Packaging Machine Detail 5

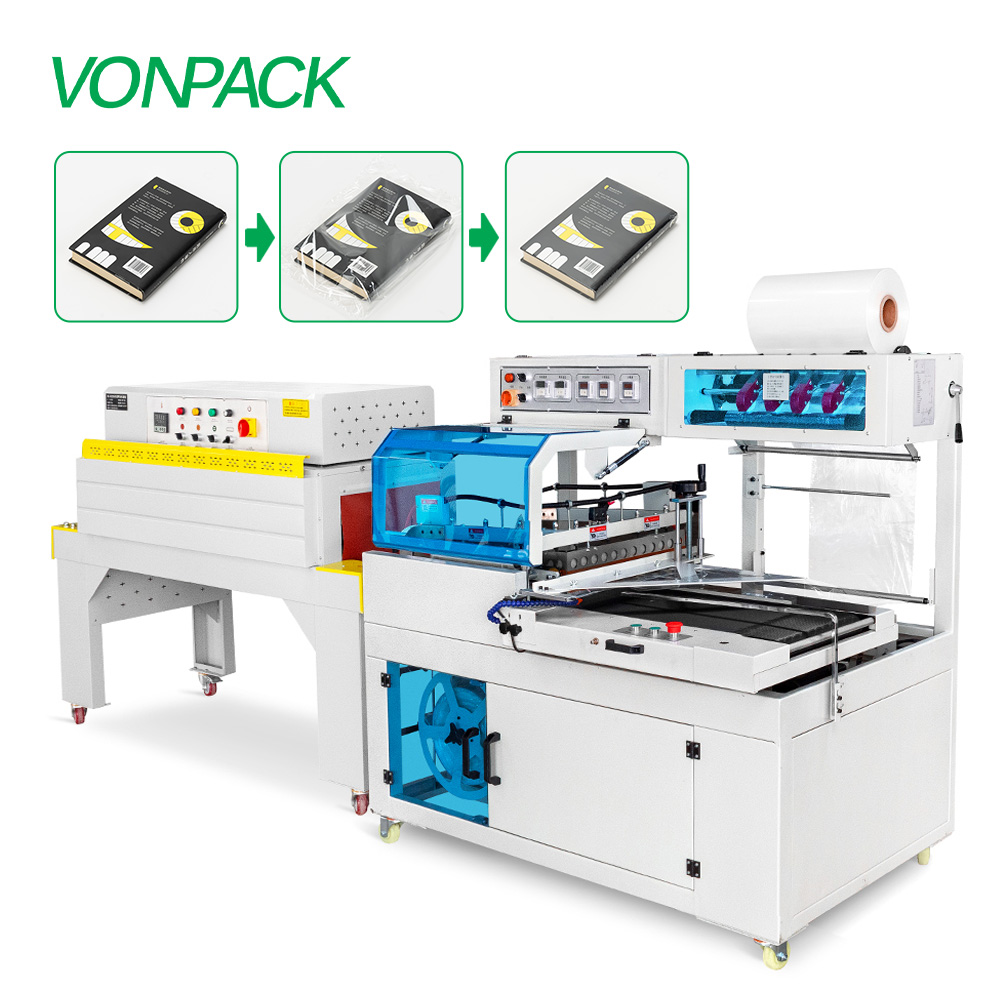

Shrink Packaging Machine Detail 6
Shrink Packaging Machine Detail 7

Specification

Model BS-4522N Inner Circulation
Supply Voltage 380V 60Hz
Heating Power 10KW
Maximum Load 20KG
Channel Size L1300 × W450 × H220 (mm)
Applicable Product Size ≤ W300 × H150 (mm)
Conveyor Speed 0 ~ 10 m/min
Consume Materials PVC/PP/POF (max 0.04mm = 40 microns)
Product Dimensions L1700 × W710 × H1320 (mm)
Package Dimensions L1740 × W740 × H1280 (mm)
Volume (CBM) 1.67 CBM
Overall Weight 205.5 kg
Heating Element Metal Tube 1190mm × 6
Fan Type 150W × 2 (with fan wheel)

Production Showcase

Production Facility Showcase 1
Production Facility Showcase 2
Production Facility Showcase 3
Production Facility Showcase 4
Production Facility Showcase 5

Frequently Asked Questions

What types of shrink packaging films can be used with the BS-4522N?
The machine is compatible with PVC, PP, and POF shrink films. For optimal performance, the film thickness should not exceed 0.04mm (40 microns).
What is the maximum dimensions of products that can go through the tunnel?
The inner channel size of the machine is L1300 × W450 × H220 mm. The applicable product size for effective shrink wrapping should be within W300 × H150 mm.
Is the conveyor speed adjustable on this model?
Yes, the conveyor speed features a variable adjustment mechanism allowing a speed range between 0 and 10 meters per minute (m/min).
What is the heating power and electrical requirement?
The BS-4522N requires a supply voltage of 380V at 60Hz. It has a high-efficiency heating system with a total heating power of 10KW.
What type of heating elements does this shrink tunnel use?
This model utilizes 6 heavy-duty metal heating tubes (1190mm in length) configured with dual 150W fans with fan wheels to achieve balanced inner hot-air circulation.
What is the maximum weight capacity for the conveyor?
The conveyor is designed to carry a maximum weight load of up to 20KG.
