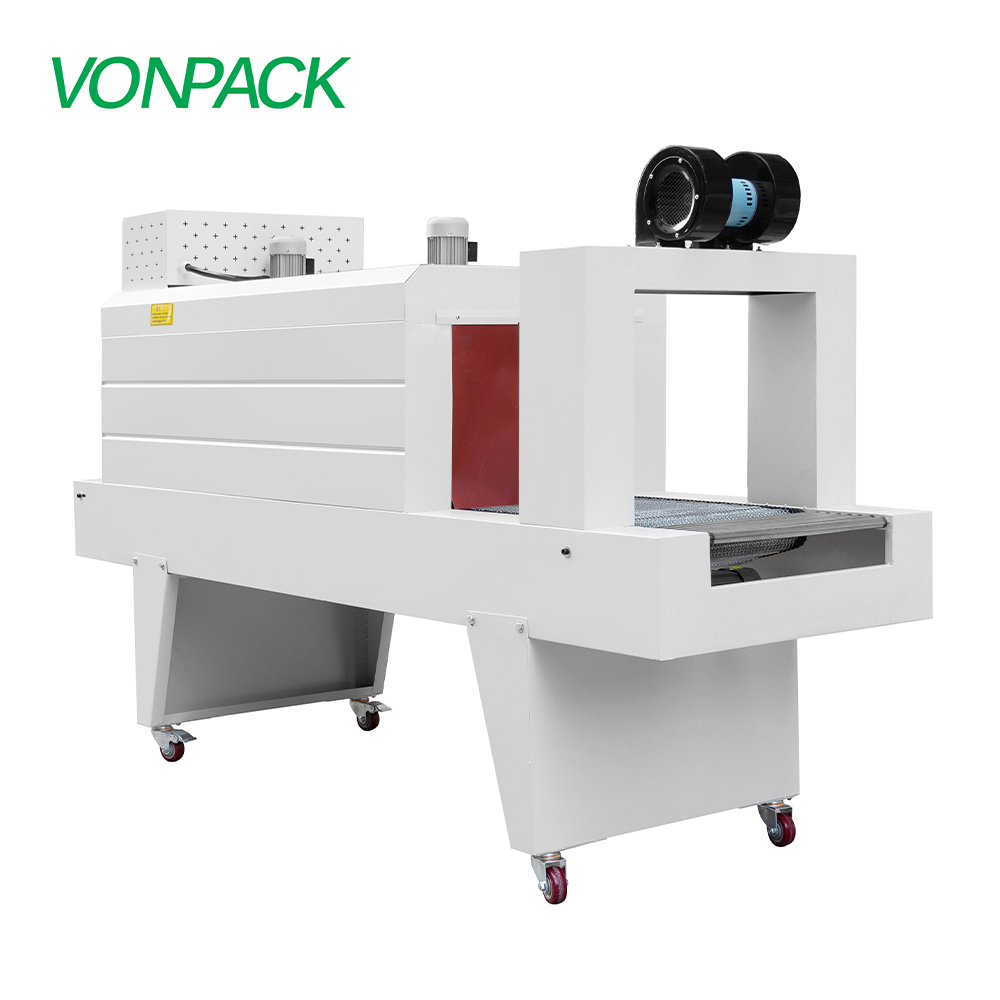

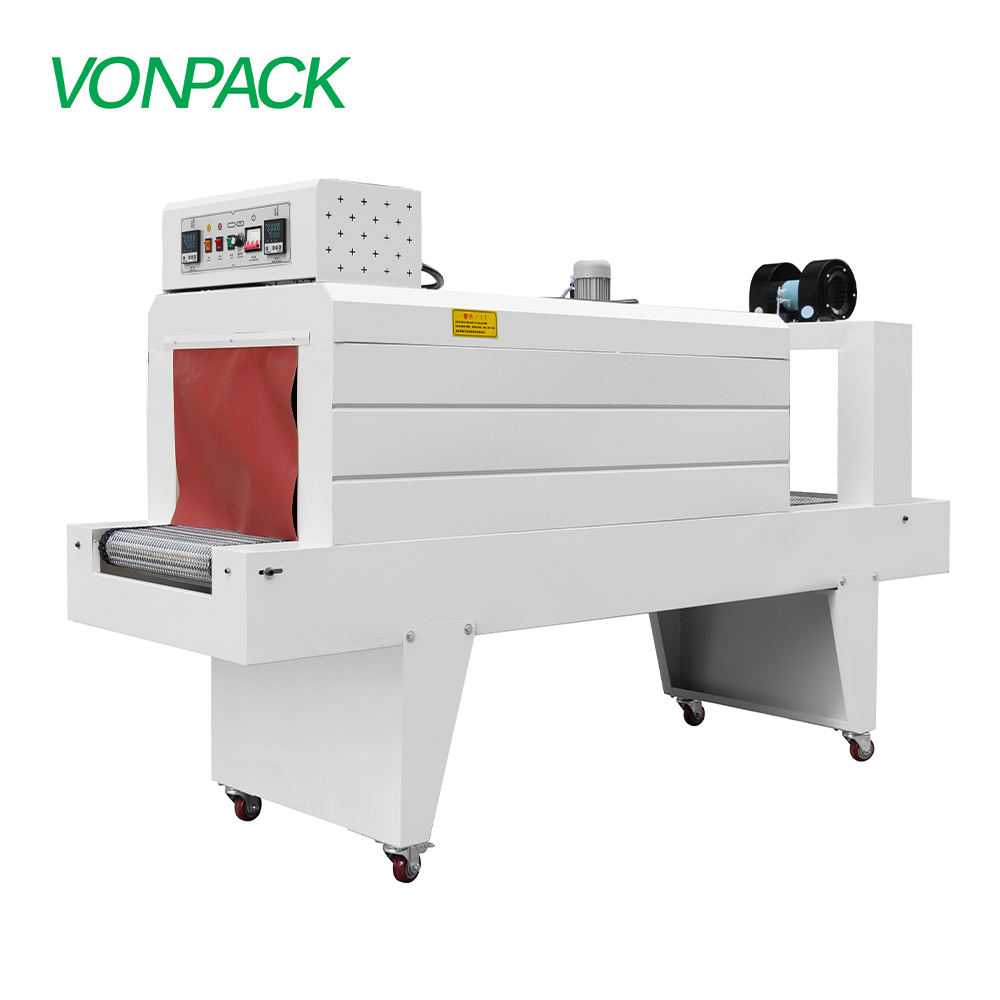

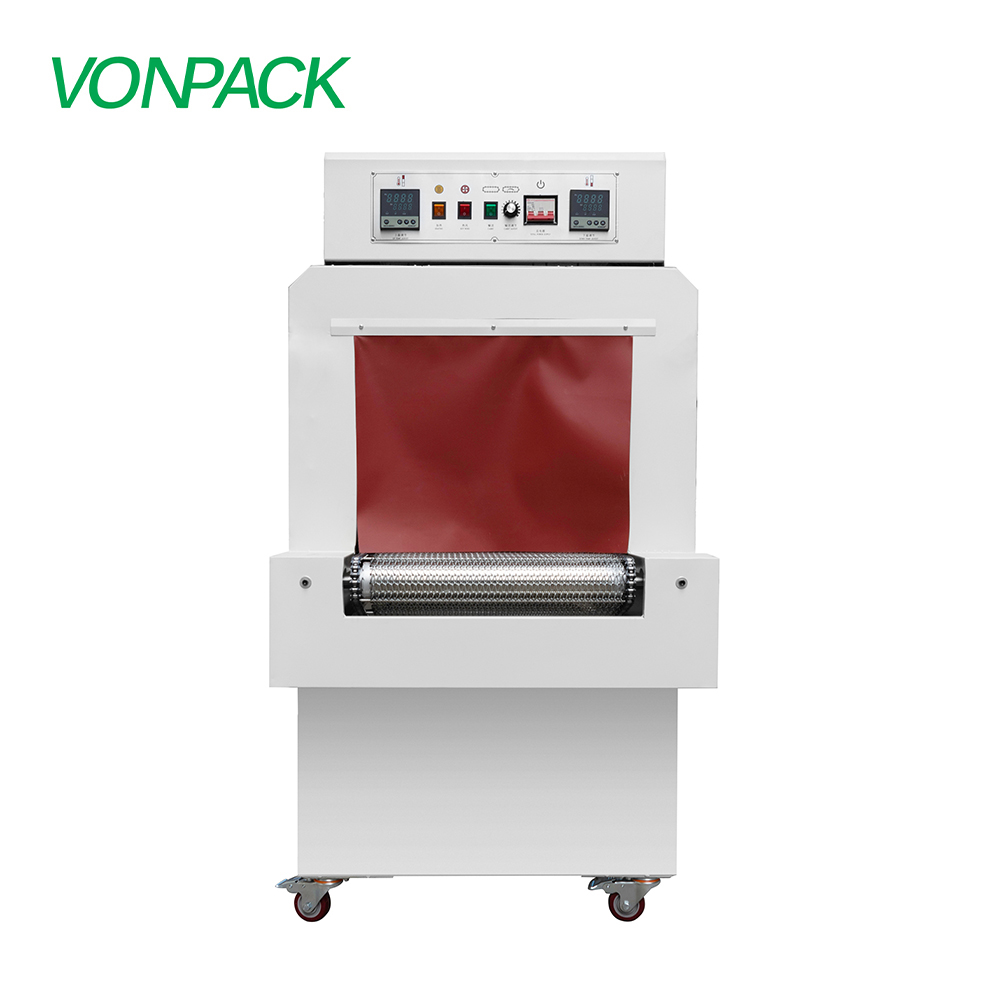

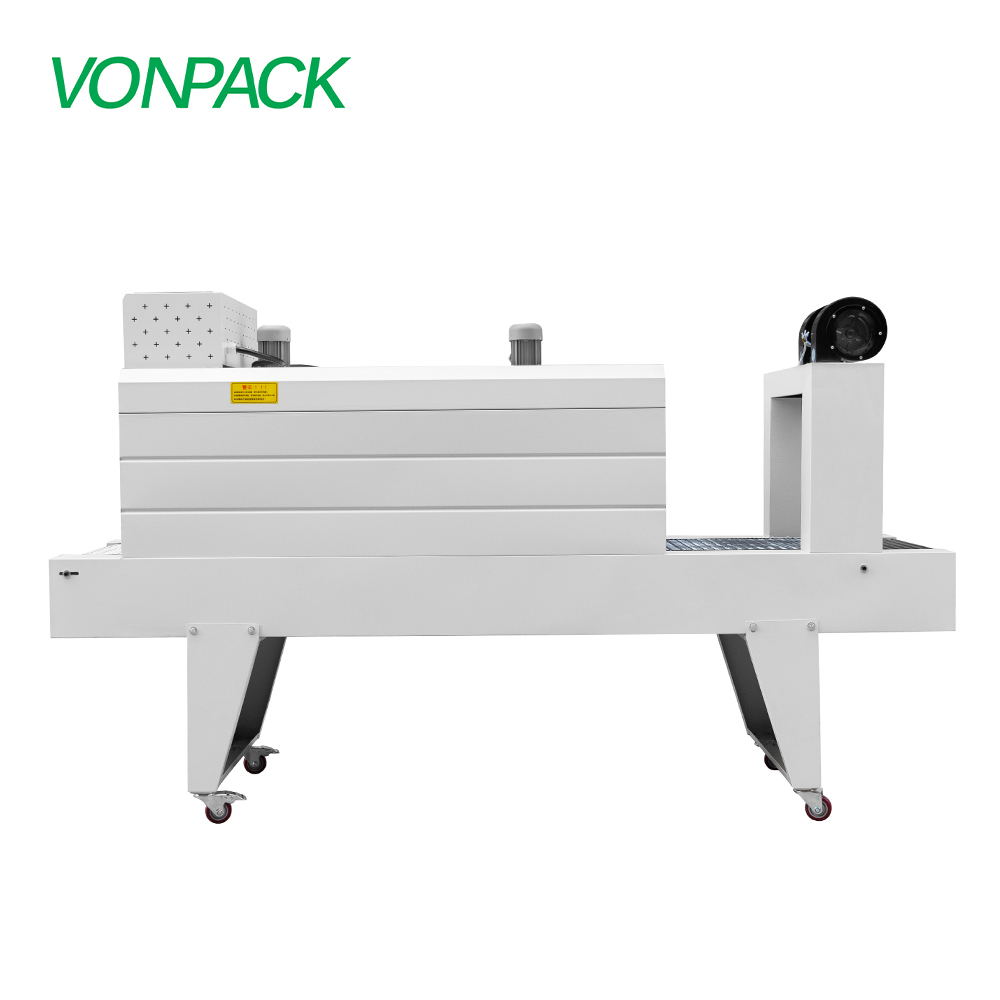

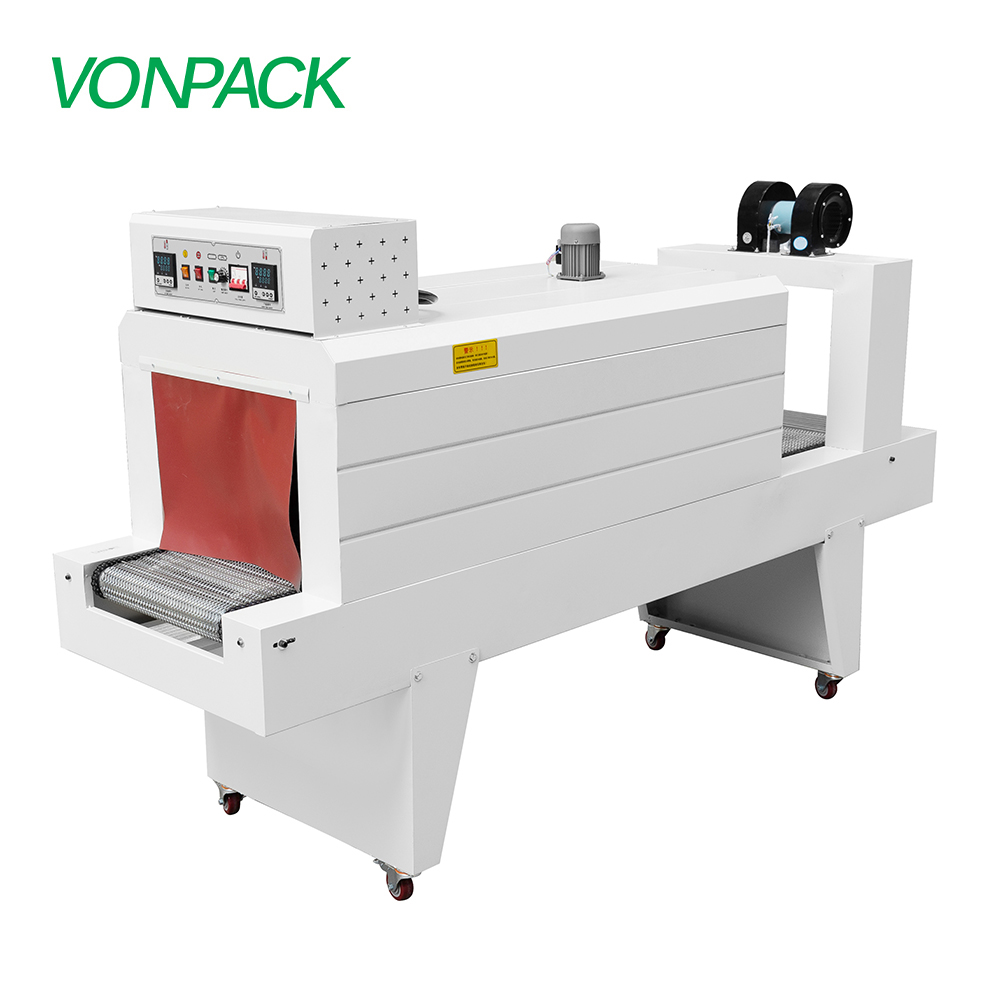

| Model No | PE-5040 |
| Product Name | Shrinking Machine |
| Voltage | 380V/50Hz |
| Power | 20KW |
| Loading | 25KGS |
| Channel Size | L1500 x W500 x H400(mm) |
| Conveyor Width | 480mm |
| Applicable Size | ≤W350×H320(mm) |
| Speed | 0-10M/min |
| Consume materials | PVE/PP/POF/PE (max 0.1mm=100microns) |
| Package Size | L2600×W800×H1070(mm) |
| Weight | 216kgs |
The PE-5040 shrinking machine is compatible with various shrink materials, including PVE, PP, POF, and PE films, with a maximum thickness of up to 0.1mm (100 microns).

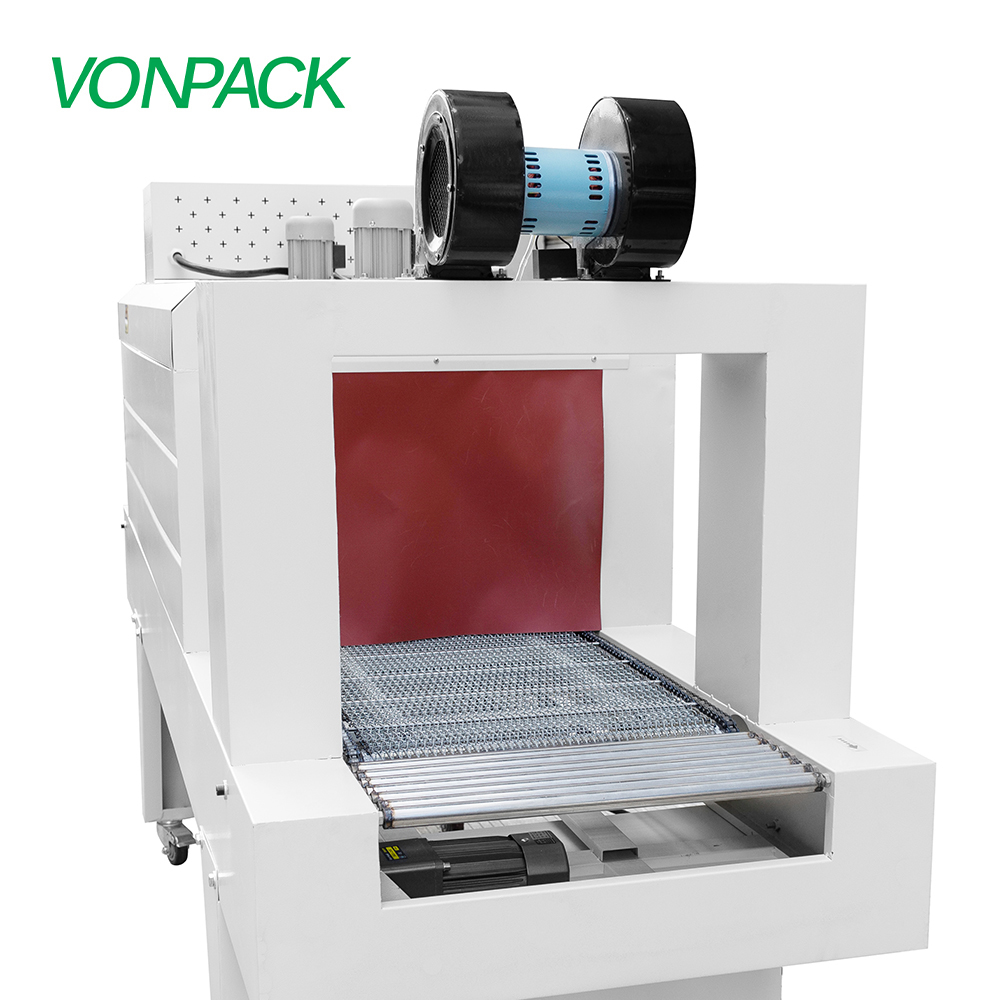

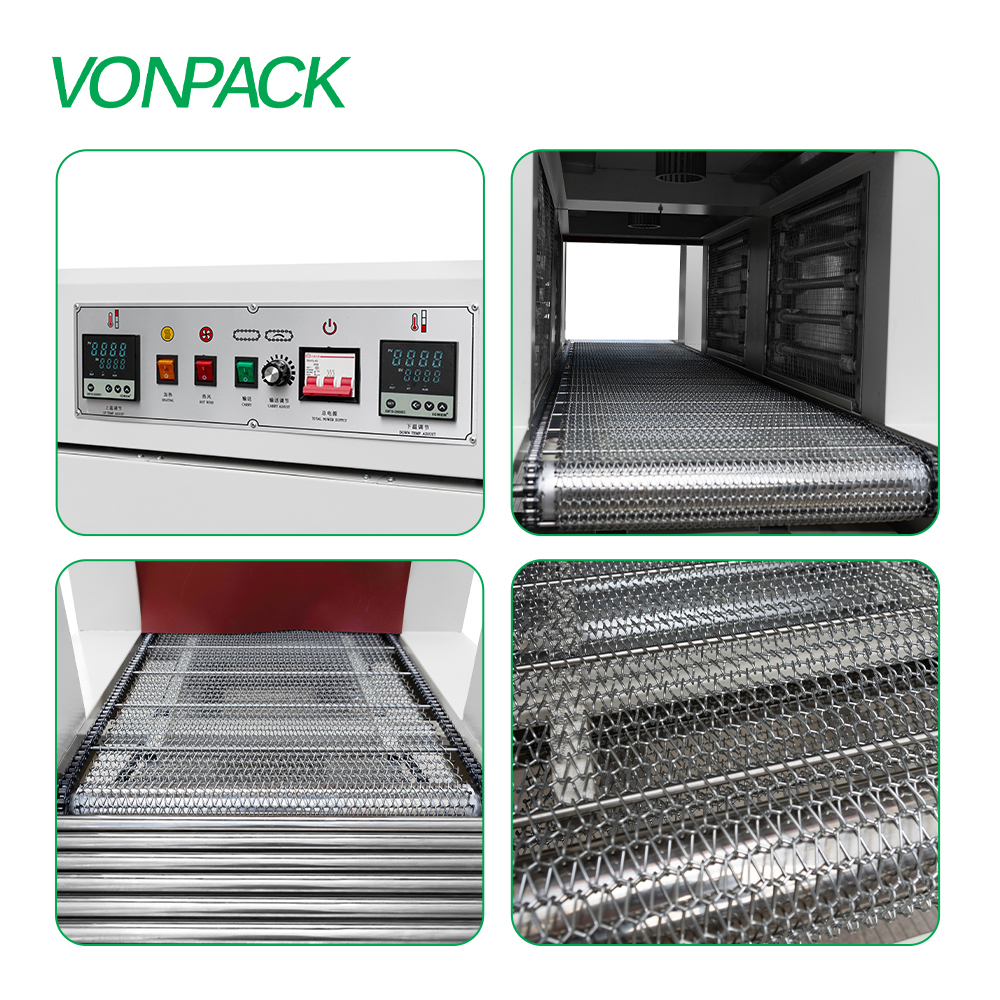

The conveyor belt is designed to support a maximum product loading weight of 25KGS, ensuring smooth and stable transport through the shrinking chamber.
The channel size is L1500 x W500 x H400 mm, and it is suitable for packaging products with maximum dimensions up to W350 x H320 mm.
The conveyor speed is fully adjustable, ranging from 0 to 10 meters per minute, allowing you to optimize the shrinking process based on your film type and production speed.
The PE-5040 operates on a standard voltage of 380V/50Hz and has a total power consumption of 20KW.
Yes, basic regular maintenance like cleaning the conveyor, checking the heating elements, and lubricating the chains will ensure optimal performance and extend the machine's lifespan.
