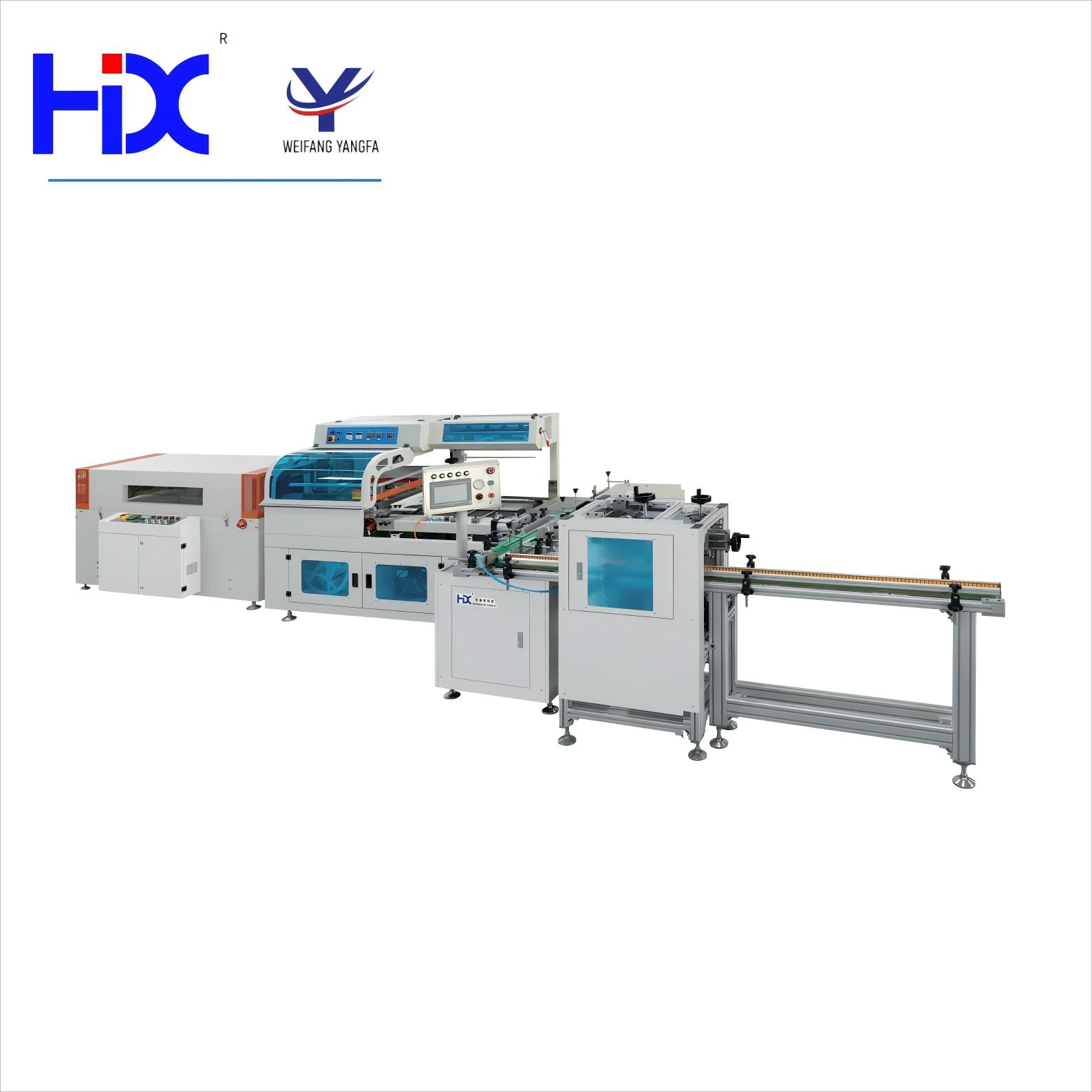

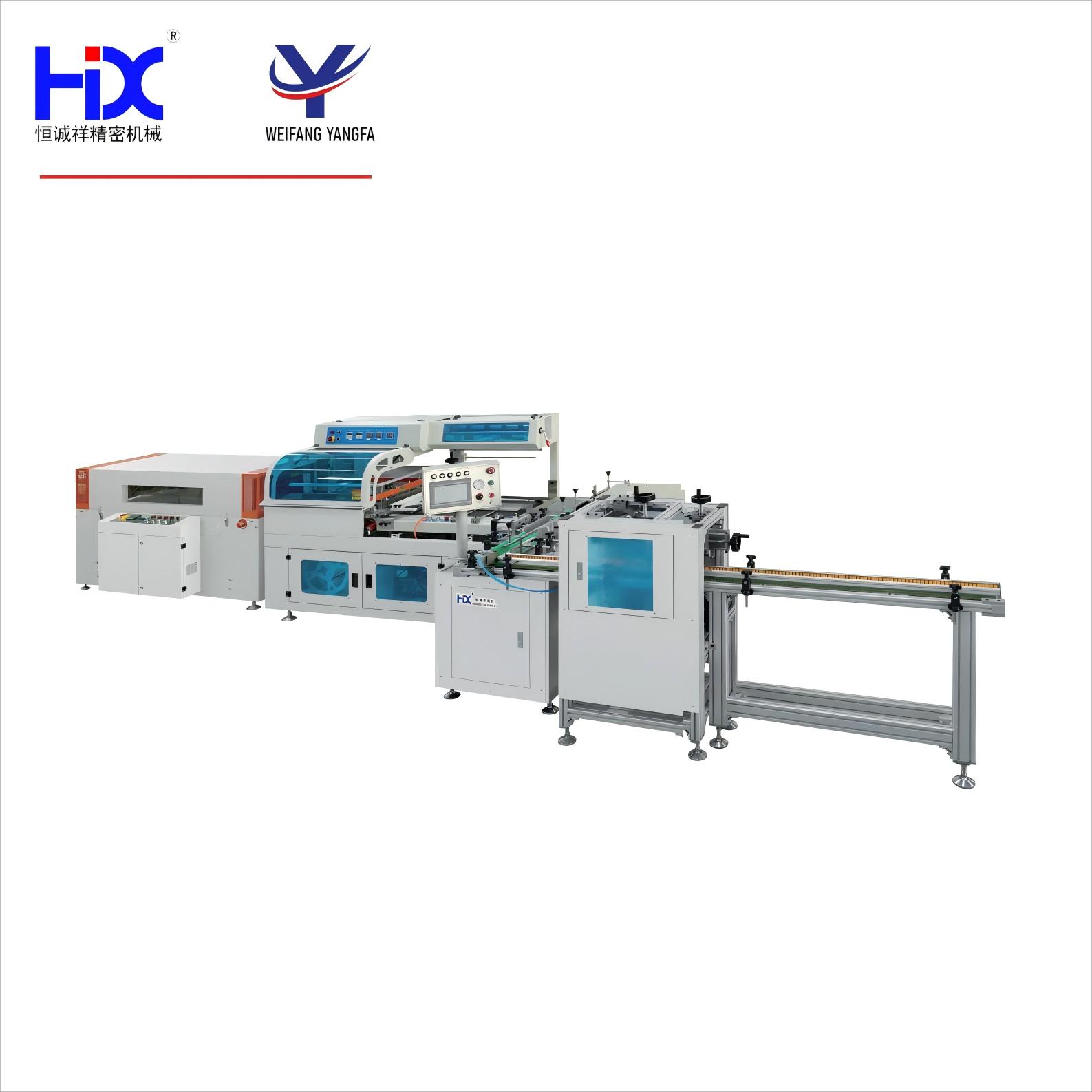

HX500BZ-R Thermoplastic Packaging Machine
HX500BZ-R
Thermoplastic Packaging Machine
Product Introduction:
This machine can be used for fully automatic online shrinkage packaging of products, using a folded film and sealing the other three sides. The constant temperature heating and sealing system can automatically detect products using photo electronics, and can choose between automatic feeding and manual feeding modes for sealing PE and POF heat sealing films. The sealing is firm and beautiful, especially suitable for POF sealing and cutting. When changing the product size, only simple adjustments need to be made through the hand wheel, without the need to replace any components, reducing product replacement time and making it easier to operate. The adjustable front-end feeding system and the back-end storage work platform enable the entire machine to operate at high speed and unmanned automatically.
This machine adopts a stainless steel heater and a high-power air supply motor, which makes the heat shrinking furnace warm up quickly, with large air volume and uniform air flow. The conveyor belt temperature and furnace chamber temperature can be adjusted according to the size and output of the product, achieving the best shrinkage effect.
  • The electronic governor can adjust the conveying speed of the conveyor belt arbitrarily.
  • Adopting a double-layer insulation device, the machine's exterior will not be too hot.
  • Double layer heat resistant and insulated cord fabric, greatly reducing heat loss.

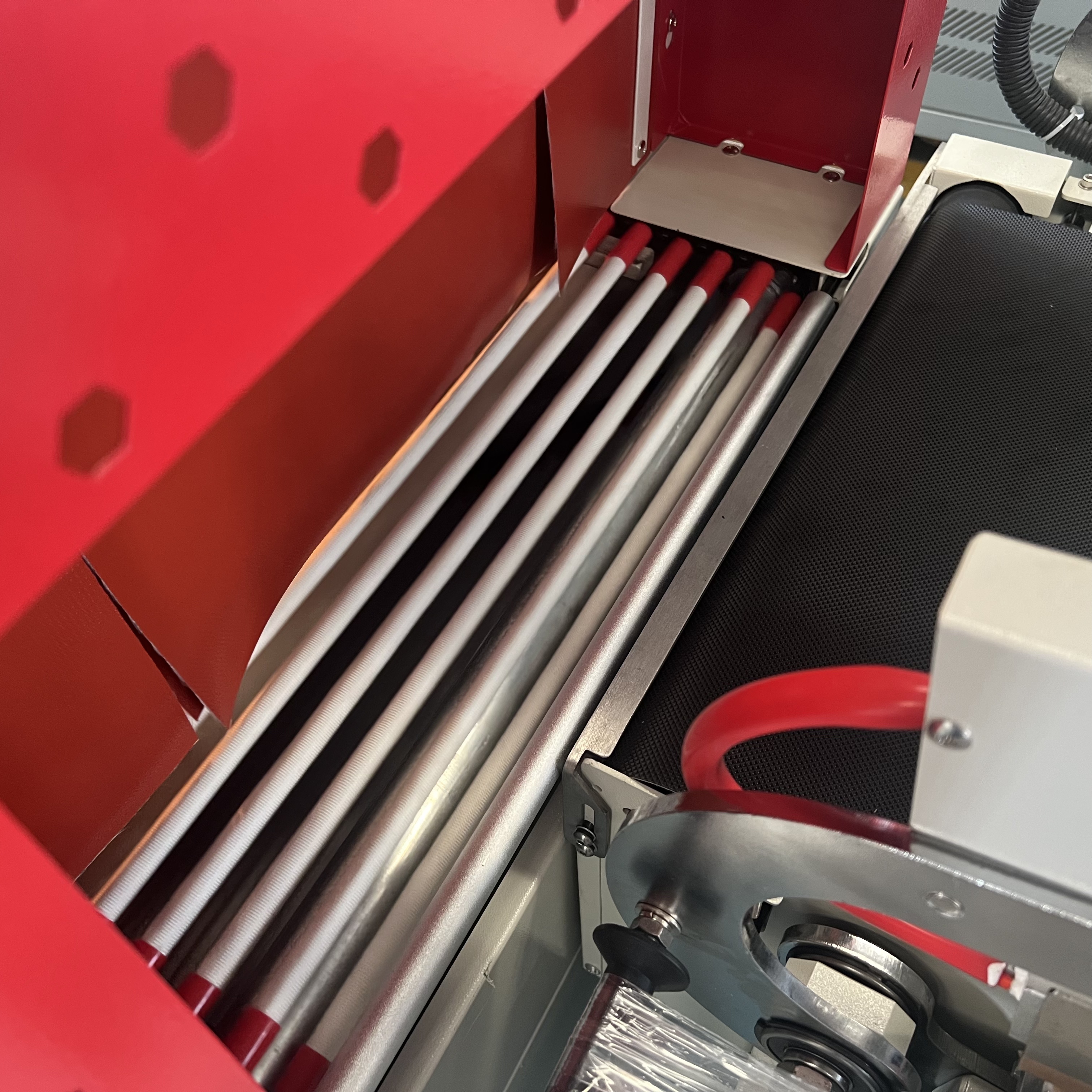

  • The conveyor chain adopts a 10 mm roller and is externally wrapped with high-temperature resistant silicone tubing, which can withstand heavy objects without deformation of the roller. Optional mesh conveyor.
Scope of use: PE, PVC, PP, POF and other types of shrink films.
Packaging Machine Detail 1

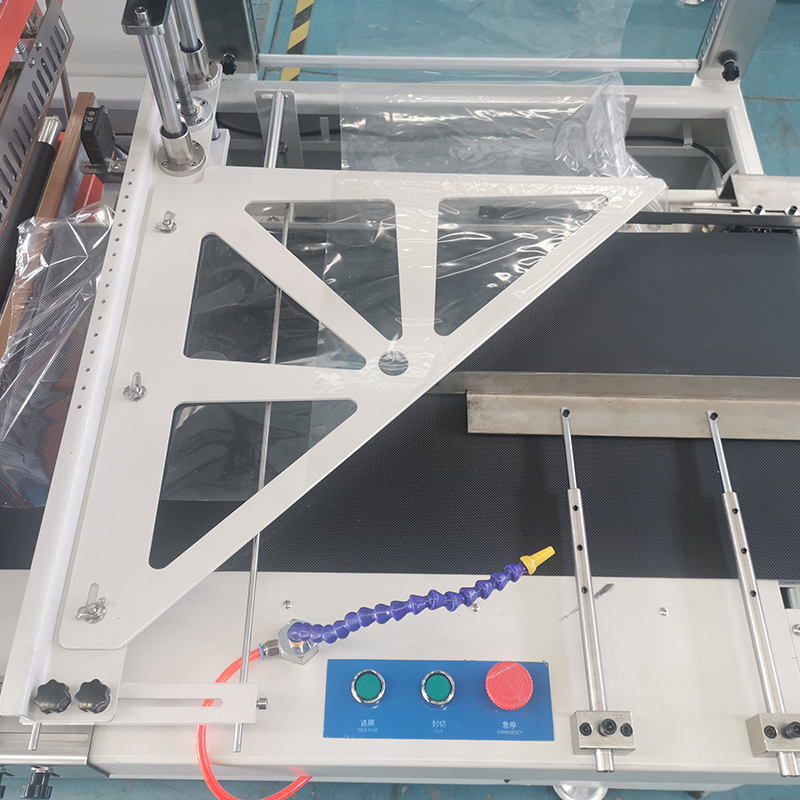

Packaging Machine Detail 2
Packaging Machine Detail 3
Technical Specifications

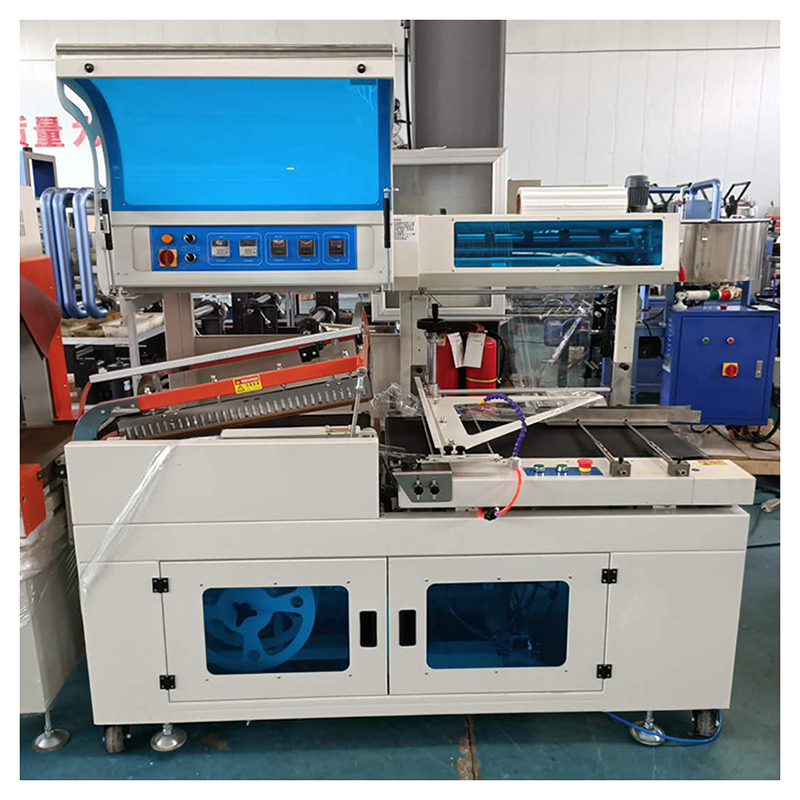

Sealing and Cutting Part (Type: HX500BZ-R)
Max. Package height 85mm
Sealing line dimensions 650*550mm
Throughput 15-30 bags/min
Pneumatic pressure 0.5MPA
Power 380V/50HZ/6.5KW
Power input 1.55KW
Size (L*W*H) 2500*700*1500mm
Weight 600kg
Shrinkage Furnace Section (Type: HX500BZ-R)
Heat shrinkable furnace dimension 1200*500*350mm
Packaging size (W*H) ≤400*800mm
Transmission speed 0-15m/min
Transmission medium Chain roll
Max. Transmission load capacity 25kg
Compatible shrinkable film PE, POF, PVC, PP
Power 380V 50/60Hz
Power input 12KW
Size (L*W*H) 1500*800*1400mm
Weight 150kg
Machine Structure Detail
Factory Overview
Factory Environment 1
Factory Environment 2
Production Process 1
Production Process 2
Frequently Asked Questions
FAQ Image Representation
Are you a manufacturer or trading company?
We are a manufacturer and trading company.
How does your factory do regarding quality control?
We pay much attention to quality control from the very beginning to the very end. Fully check and test takes before shipment.
What's service or guarantee can you offer?
One year guarantee for key parts of machine; Machine installing and worker training service; Free technical support whole life; Material support.
Is the machine hard to operate?
Our slitting machine is easy to operate and free installation. It can be immediately started once the power has been connected. Besides, we still have 24*7 hours of online service technical support to help you with any problems with the operation.
Will it take long time to receive the machine?
The lead time will be 7 days after the pre-payment has been issued. We will help to deliver the machine at the earliest.
Without professional operator to run the lines?
We shipped our machine as a whole, and it is very easy to everybody to operate it. We send all manuals and videos and 7*24 hours service to you. Everybody will learn it in 2 hours.
