Photoelectric detection ensures precise sealing and cutting position (error ≤ ± 1mm).
Compatible with various heat sealing films such as PE and POF, specially optimized for POF sealing and cutting effect.
Handwheel adjustment for production change, no need to replace parts, size switching can be completed within 5 minutes.
Constant temperature heating system, avoiding energy waste and reducing production costs.
Industrial grade structural design, supporting 24-hour continuous operation with low failure rate.

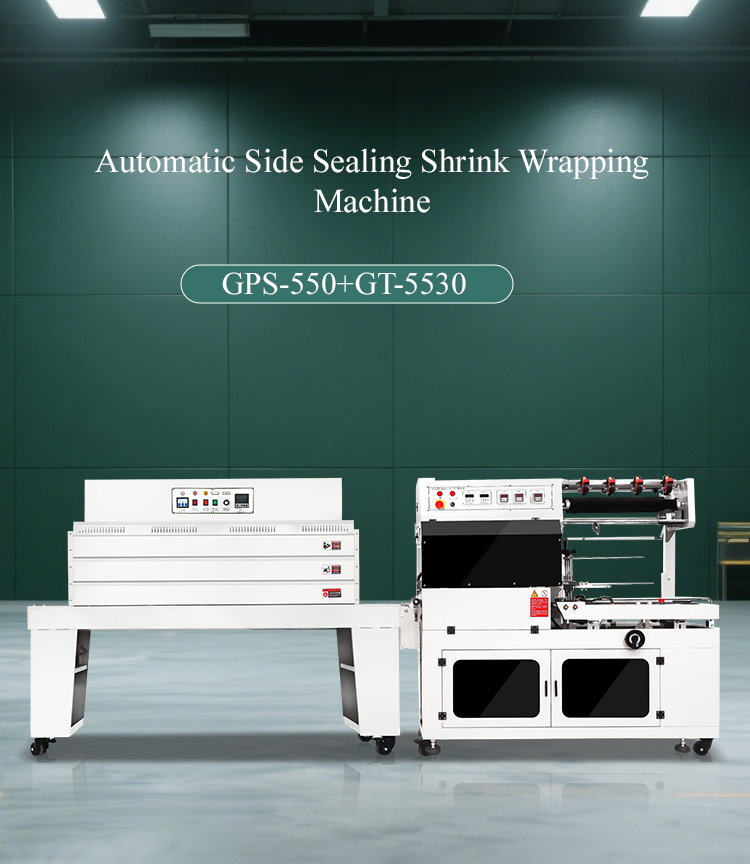

| GPS-550 Sealing & Cutting Machine | |
|---|---|
| Model | GPS-550 Sealing & Cutting Machine |
| Sealing Type | Full Cover Side Sealing Machine |
| Installed Power | 220V; 50-60Hz; 1Phase |
| Packing Capacity | 15-25 packs per minute |
| Sealing Height | 230MM |
| Packing Width | 300MM |
| Packing Length | Unlimited |
| Packing Size | Width+Height≤500mm; Width≤250mm |
| Film Type | Center Folded POF Film/PE film |
| Max Film Roll Size | 700MM (Width) X 280MM (Outer Diameter) |
| Working Height | 780-850 MM |

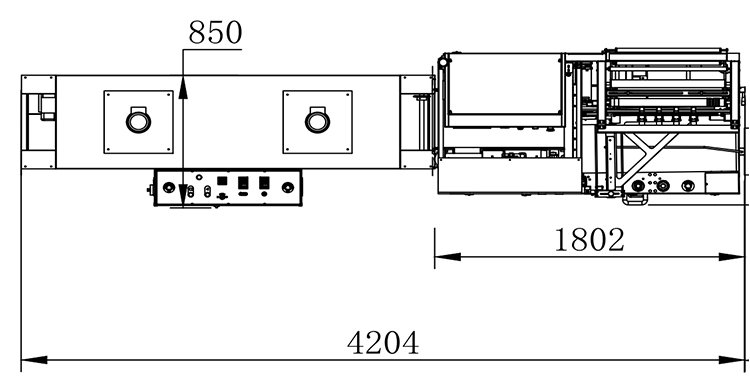

| Sealing Machine Dimensions | 1950×1030×1530mm |
| Sealing Machine Weight | 350kg |
| Power | 1.35KW |
| Sealing Machine Feeding Conveyor Width | 430MM |
| Sealing Blade Width | 570MM |
| Sealing machine Package Dimensions | 2030×1100×1660mm |
| GT-5530 Shrink Tunnel | |
|---|---|
| Model | GT-5530 Shrink Tunnel |
| Conveyor Speed | 0-15 meters/min |
| Installed Power | 380V; 50-60Hz; 3Phase |
| Power | 16KW |
| Tunnel Oven Size | 1500x550x350mm |
| Conveying weight capacity | 20kg |
| Machine Material | Carbon Steel |
| Tunnel Machine Dimensions | 1900x810x1320mm |
| Tunnel Weight | 230kg |
| Shrink Tunnel Package Dimensions | 2000x910x1550mm |
| GPS-550 Sealing & Cutting Machine Parts | Manufacturer | Number |
|---|---|---|
| Heat Source | JIPAI | 1 |
| Cutting Blade Protection | Omron | 1 |
| Cutting Blade | JIPAI | 1 |
| Temperature Controller | XINPU | 1 |
| Drive System (cylinder) | AIRTAC | 1 |
| Sealing and Cutting System | AIRTAC | 1 |
| Motor (conveyor system) | MAILI | 1 |
| Photoelectric Sensor | Omron | 1 |
| Motor (Recovery system) | MAILI/TAIBANG | 1 |
| Sensor Switch (Recovery system) | Omron | 1 |
| Motor (film feeding system) | MAILI/DONGBANG | 1 |
| Sensor Switch (film feeding system) | Omron | 1 |
| Timing Relay | XINPU | 1 |
| Intermediate relay | Omron | 1 |
| Counter | XINPU | 1 |
| Emergency Button | CHINT | 1 |
| GT-5530 Shrink Tunnel Parts | Manufacturer | Number |
|---|---|---|
| Speed Motor | TAIBANG | 1 |
| Heat Tube | GUANGHUA | 8 |
| Fan | SULIN | 2 |
| Cooling Fan | - | 1 |
| AC contactor | CHINT | 1 |
| Temperature Controller | HUIYU | 1 |
| potentiometer | HUAYU | 1 |
| Air Switch | CHINT | 1 |
| Thermocouple | HUIYU | 1 |
| Button Switch | SHANGHAI | 3 |
What types of heat-shrinkable films are compatible with the GPS-550 sealing machine?
The GPS-550 is highly versatile and compatible with both POF (Polyolefin) and PE (Polyethylene) heat-shrinkable films. It is particularly optimized for POF film sealing and cutting to ensure a firm, clean, and aesthetically pleasing finish.
How long does it take to switch packaging sizes for different products?
Size switching is highly efficient. The machine uses a convenient handwheel adjustment system, requiring no part replacements. Operators can complete product dimension switches in under 5 minutes.
What is the packaging capacity of this automatic sealing line?
The GPS-550 Sealing & Cutting machine features a capacity of 15 to 25 packs per minute, depending on the product length, width, and film thickness, ensuring seamless integration into fast-paced production lines.
How accurate is the sealing and cutting position?
The system integrates precision photoelectric automatic detection sensors (utilizing Omron electronics) to detect film edges and print marks, keeping the sealing and cutting position error within ± 1mm.
Can this machine support 24-hour continuous operations?
Yes, the line is constructed with an industrial-grade steel frame and features premium components (such as Airtac pneumatics and Omron relays) to support stable, continuous 24-hour manufacturing with minimal maintenance down-time.
