The sealing knife takes use of an adjustable power supply and adopts heating wire design to seal firmly without smoke and pollution. When the size of packaging products change, it is very easy to adjust without any tools, and it can be quickly regulated to the required size. Different sizes of products can also be combined to package to achieve promotion effects.
The whole machine truly realizes unmanned operation connection with the production line with simple operation, stable running, and easy learning. The product is widely used in packaging areas such as 3C digital, food, beverage, medicine, health-care products, hardware fittings, daily necessities, cosmetics, souvenir boxes, etc.
| Product Specification | |
|---|---|

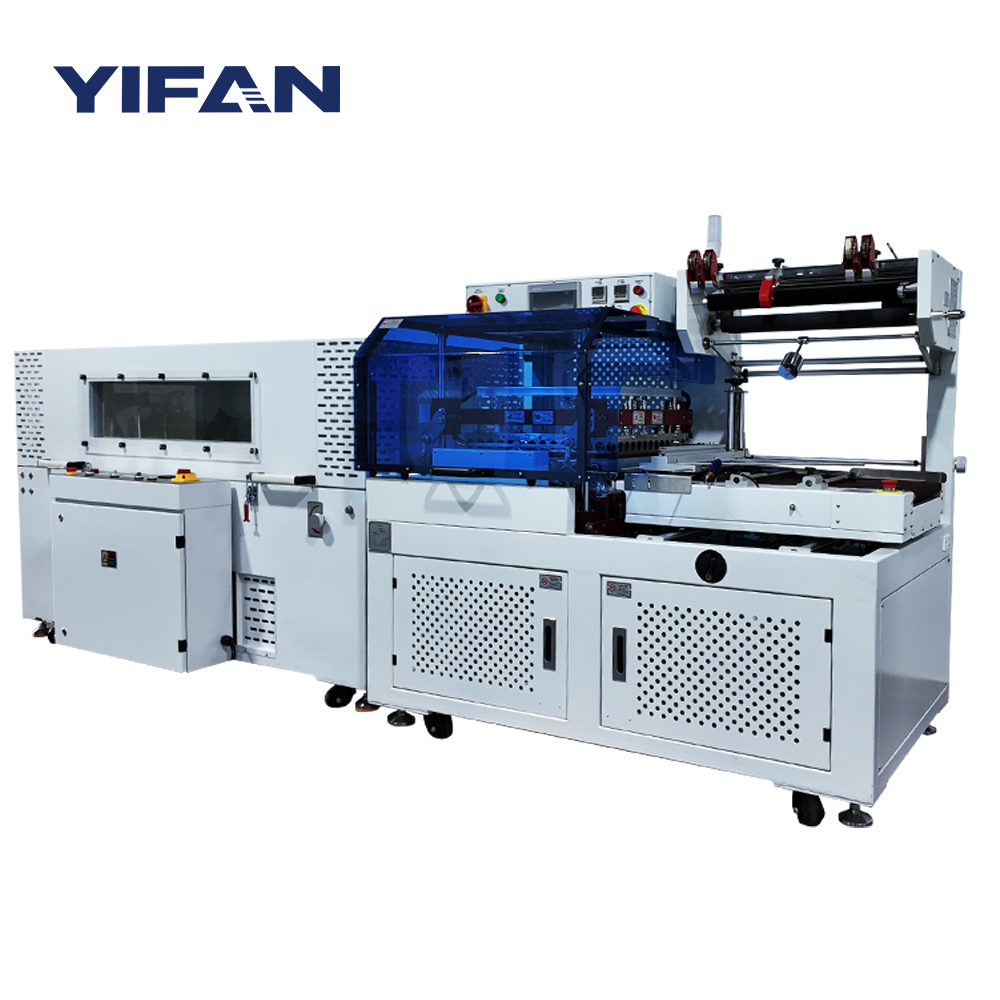

| Model | YF5545CL |

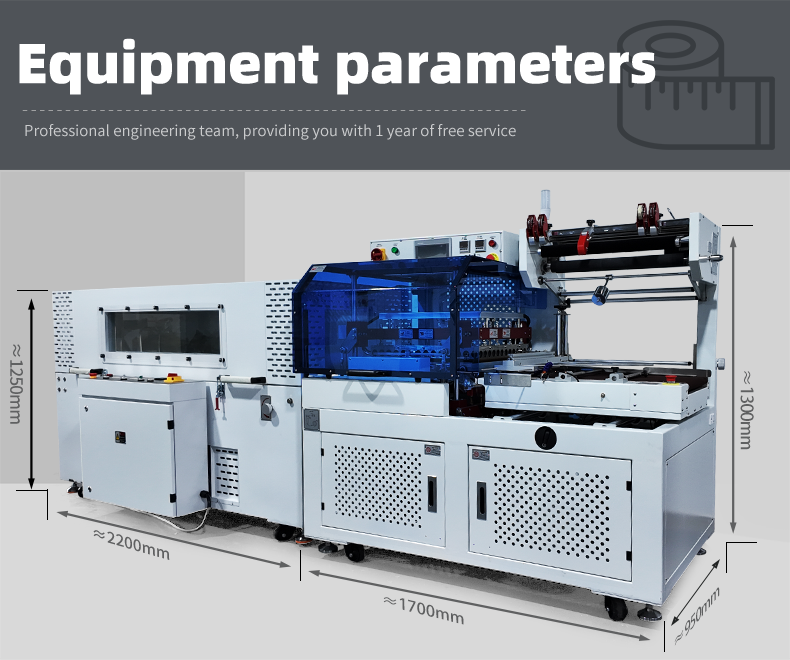

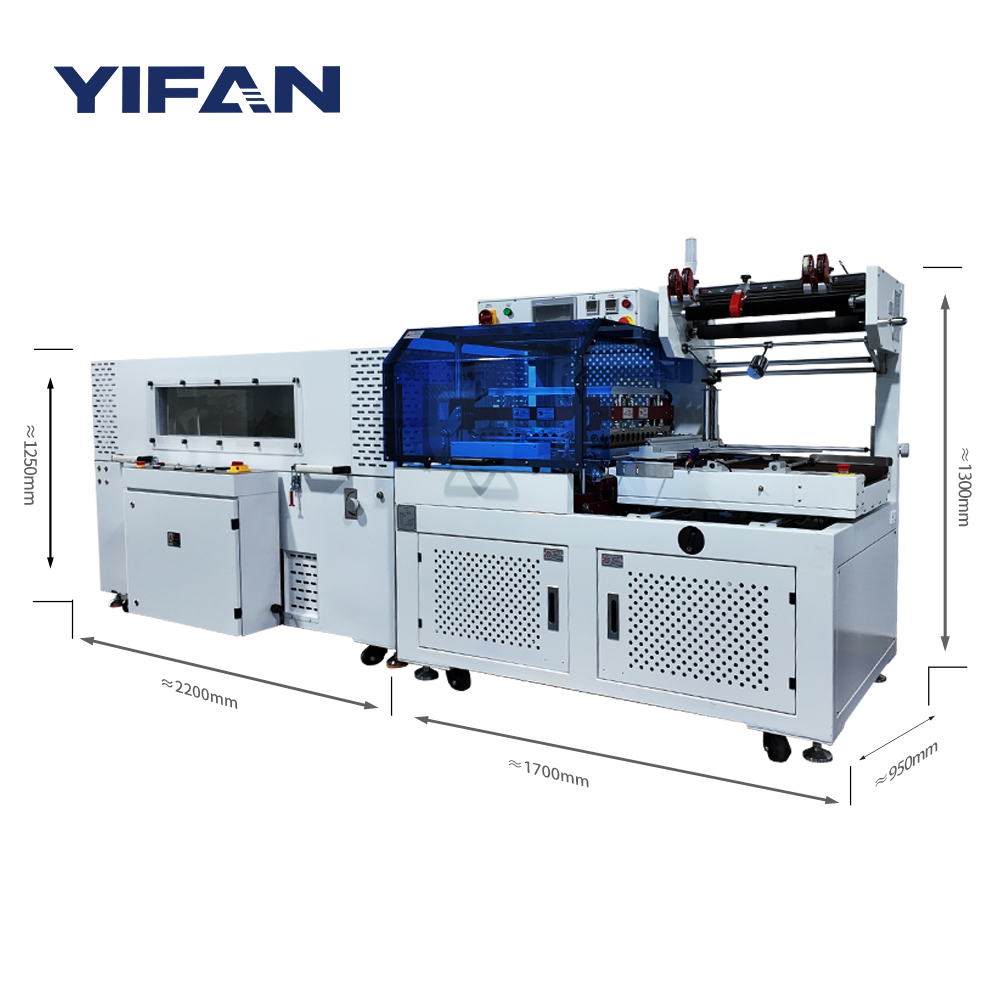

| Machine Dimensions | L:1700 * W:950 * H:1300mm |
| Machine Weight | 630KG |
| Sealing Knife Size | L:630mm W:465mm |
| Packaging Size | L:90-560mm W:50-380mm H:10-180mm |
| Maximum Width Of Material | 600mm |
| Conveyor Belt Speed | 25m/min |
| Packaging Material | POF PE |
| Sealing Knife Temperature | 180-230 °C |
| Power Requirements | 220V |
| Current | 10A |
| Electric Heating Power | 3KW |
| Production Capacity | 10-35pc/min |
| Heat shrinking furnace Product Specification | |
|---|---|
| Model | YF5030 |
| Power Supply | 3 & 380v 50Hz 13.5kw |
| Machine Dimension | L:2200 * W:1076 * H:1250mm |
| Operation Console Height | 850mm (Customizable) |
| Packaging Speed | 0-60pcs/min |
| Machine Materials | Steel |
| Tunnel Size | L:1500 * W:450 * H:300mm |
| Machine Weight | 300kg |
| Noise | <71dB(A) |
This equipment is widely utilized in packaging sectors including 3C digital products, food, beverages, medicine, health-care products, hardware fittings, daily necessities, cosmetics, and souvenir boxes.
The machine is designed to work efficiently with POF and PE heat-shrinkable packaging materials.
The sealing knife utilizes an adjustable power supply and adopts a specialized heating wire design to ensure a firm, clean seal without producing smoke or environmental pollution.
Yes, when the size of your packaging product changes, you can quickly regulate and adjust the machine to the required size without using any tools.
Absolutely. The system features a design that realizes unmanned operation, making it easy to connect directly with your automated production line for stable, simple, and continuous running.
The YF5545CL model operates on a 220V power requirement with a 10A current and 3KW electric heating power.
