Product Description

Product Description

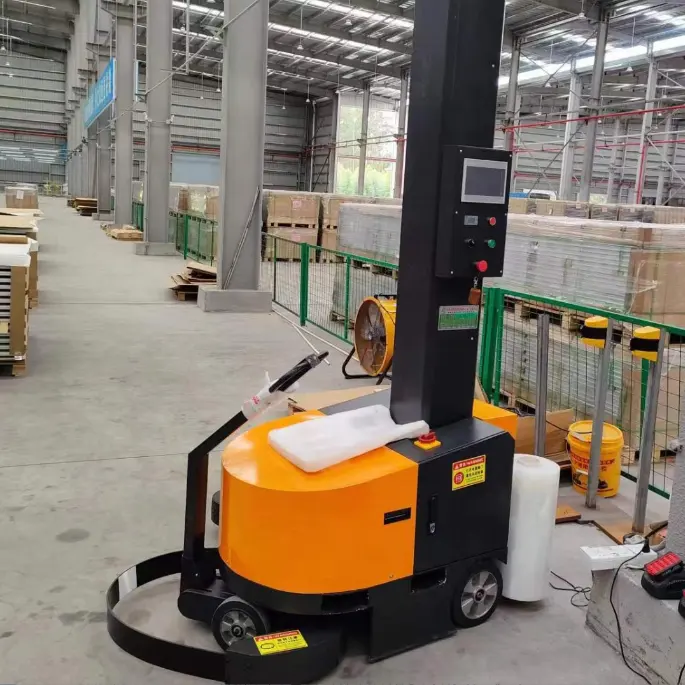

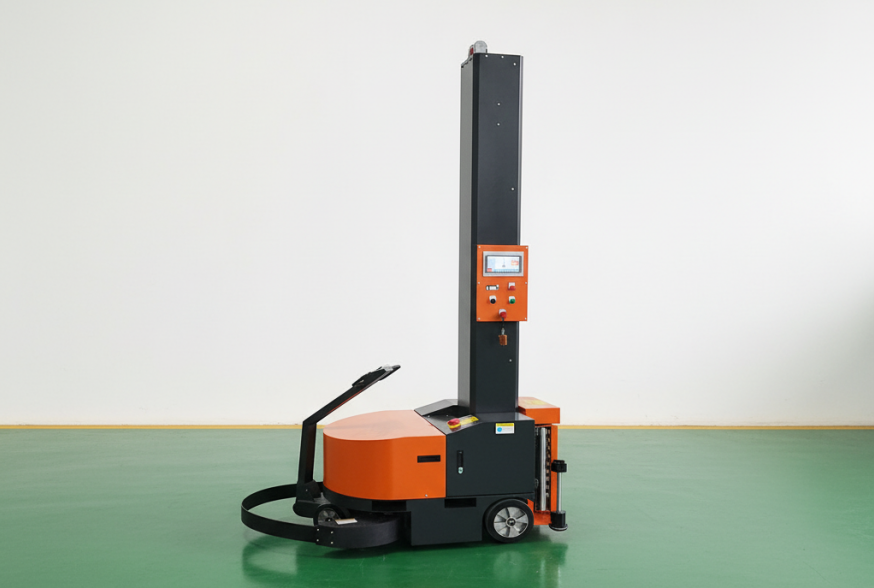

Robot Pallet Wrapping Machine
Robot pallet wrapping machine is belong to a movable machine that with two rechargeable batteries. After the battery is fully charged, the robot pallet wrapping machine can work continuously for 10 hours. It is suitable for heavy goods or special shaped pallets. The pallet is stationary on the ground. The robot pallet wrapping machine automatically rotates 360 degrees around the pallet to automatically detect the height of goods. The wrapping height of the standard machine can reach 2.4m and the maximum customized height can reach 2.8m. The robot pallet wrapping machine adopts PLC control system, and the performance of the whole machine is stable.
Machine Features
Machine Features:
  • Adopt movable power, can be continuous used 10 hours.
  • Photoelectric detect pallet height up 2.4m of standard machine.
  • Rotating speed adjustable, accurate resetting after wrapped.
  • Film carriage up & down running speed can be adjustable.
  • There has emergency switch in front of the machine to avoid run into the wrapping.

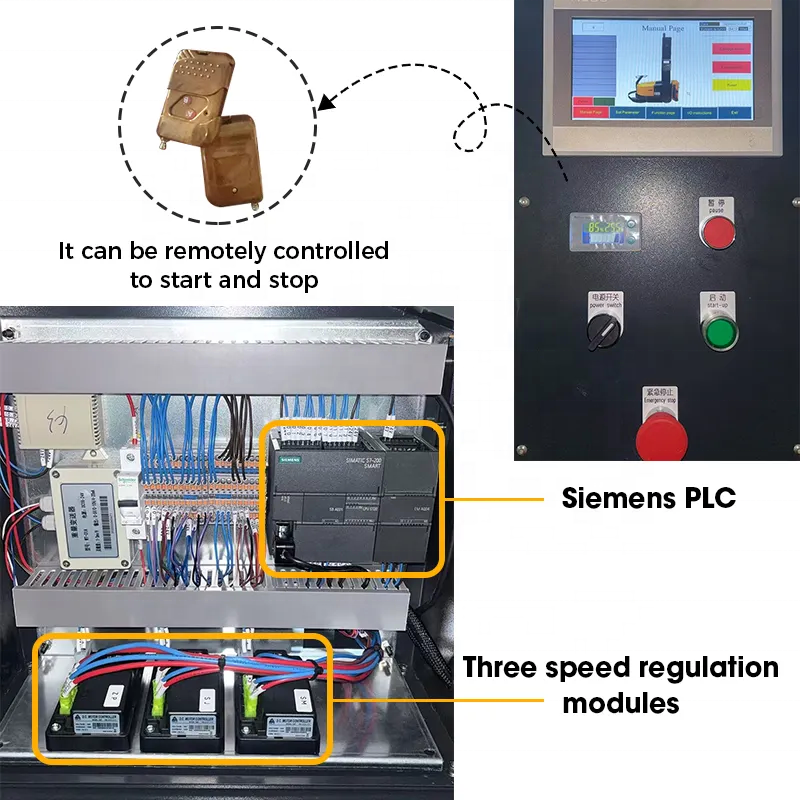

  • Siemens PLC control system will be more stable.
  • Wrapping layer of pallet top & bottom can be set.
Specification
Model ST2400Z
H.S code 8422400090
Min pallet size L700xW700xH500mm
Max pallet length/width No limit
Wrapping height(standard machine) Max 2400mm(2800mm and 3000mm customized)
Control panel Touch screen(English language)
Control system Siemens PLC
Max moving speed 90m/min
Charge power AC100-240V 1Phase 50/60Hz
Battery type Lead acid battery
Required charge time 6-8hours
Rated working time 10hours
Power 1.15kw
Film width and thickness 500mm, thickness 20-30micron available
Machine size L1583xW1233xH2800mm
Machine weight 450kg
Wooden case size L2700xW1020xH1220mm
G.W 520kg
Details Images
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Detail Image 7
Detail Image 8
Detail Image 9
Detail Image 10
Detail Image 11
Detail Image 12
Related Products
Related Products 1
Related Products 2
Related Products 3
Related Product A
Related Product B
Related Product C
Packing & Delivery
Packing 1
Packing 2
Packing 3
Packing 4
Frequently Asked Questions
QHow many machines can be loaded into one 20' container and 40' container?
8 Units per 20' container, 16 Units per 40' container.
QWhat is the fastest delivery time?
We have stock for 1-3 units. 4-8 units will take 10 workdays, and 9-16 units will take 15 workdays.
QWhat is the warranty policy for the machine?
The entire machine is covered by a 12-month warranty from the date of receipt. During this period, if the machine needs replacement spare parts, they will be provided free of charge, but the buyer will be responsible for the shipping cost.
QCan the machine accept color customization?
Yes, special color requests will take 15 workdays of lead time.
QCan the buyer's logo be designed and posted on the machine?
Yes, we can provide this service. The Minimum Order Quantity (MOQ) is 2 units.
QDoes the machine meet the standards for sea transportation?
Yes, the machine uses a lead acid battery and comes with a sea transportation identification report and MSDS report.
